Article-No.:
70995
LED Panel
3-Step-Dim
Atria Shine
angular 420x420mm 22W 2200lm 3000K Chrome matt dimmable
angular 420x420mm 22W 2200lm 3000K Chrome matt dimmable
£68.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days

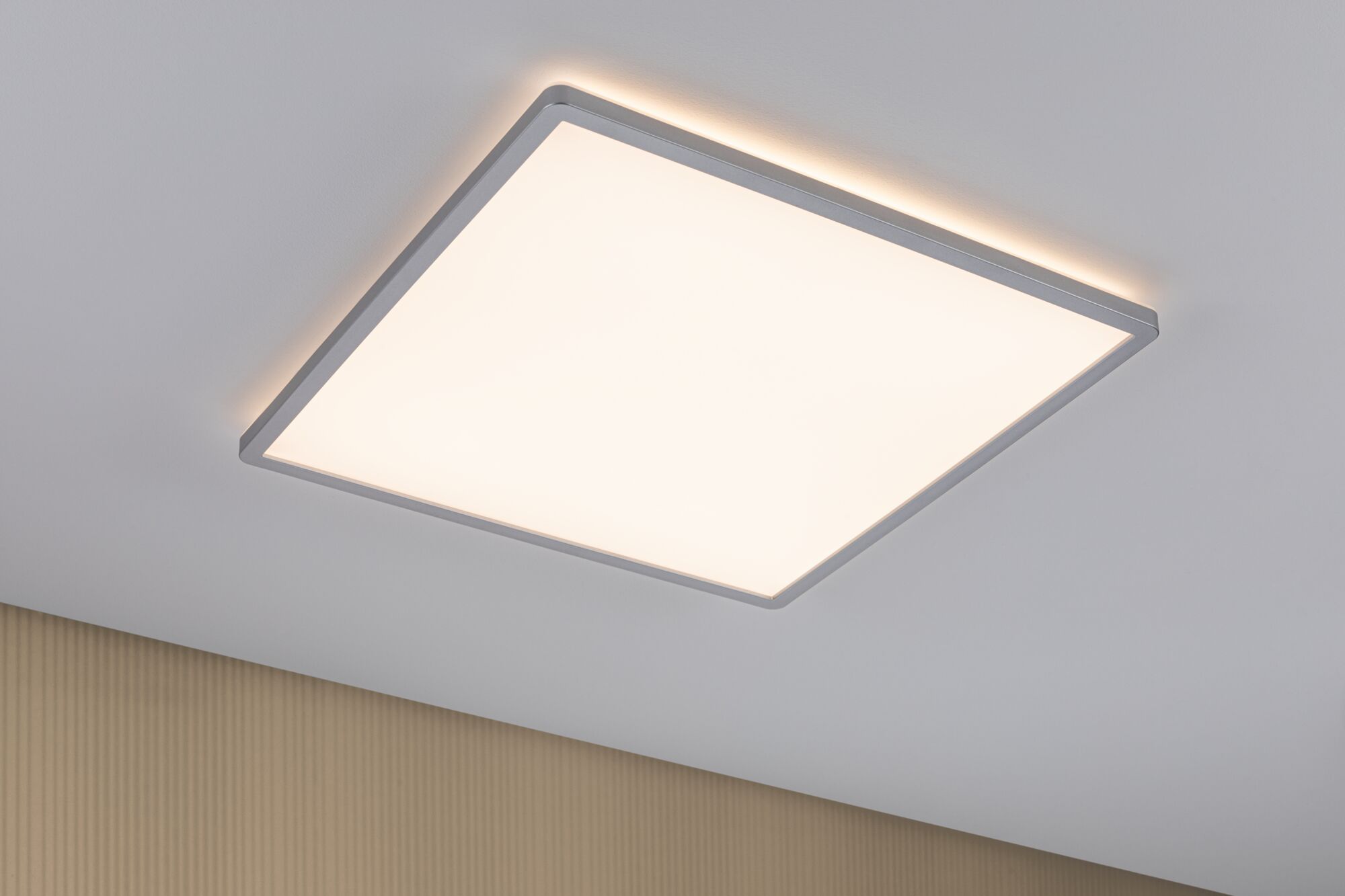

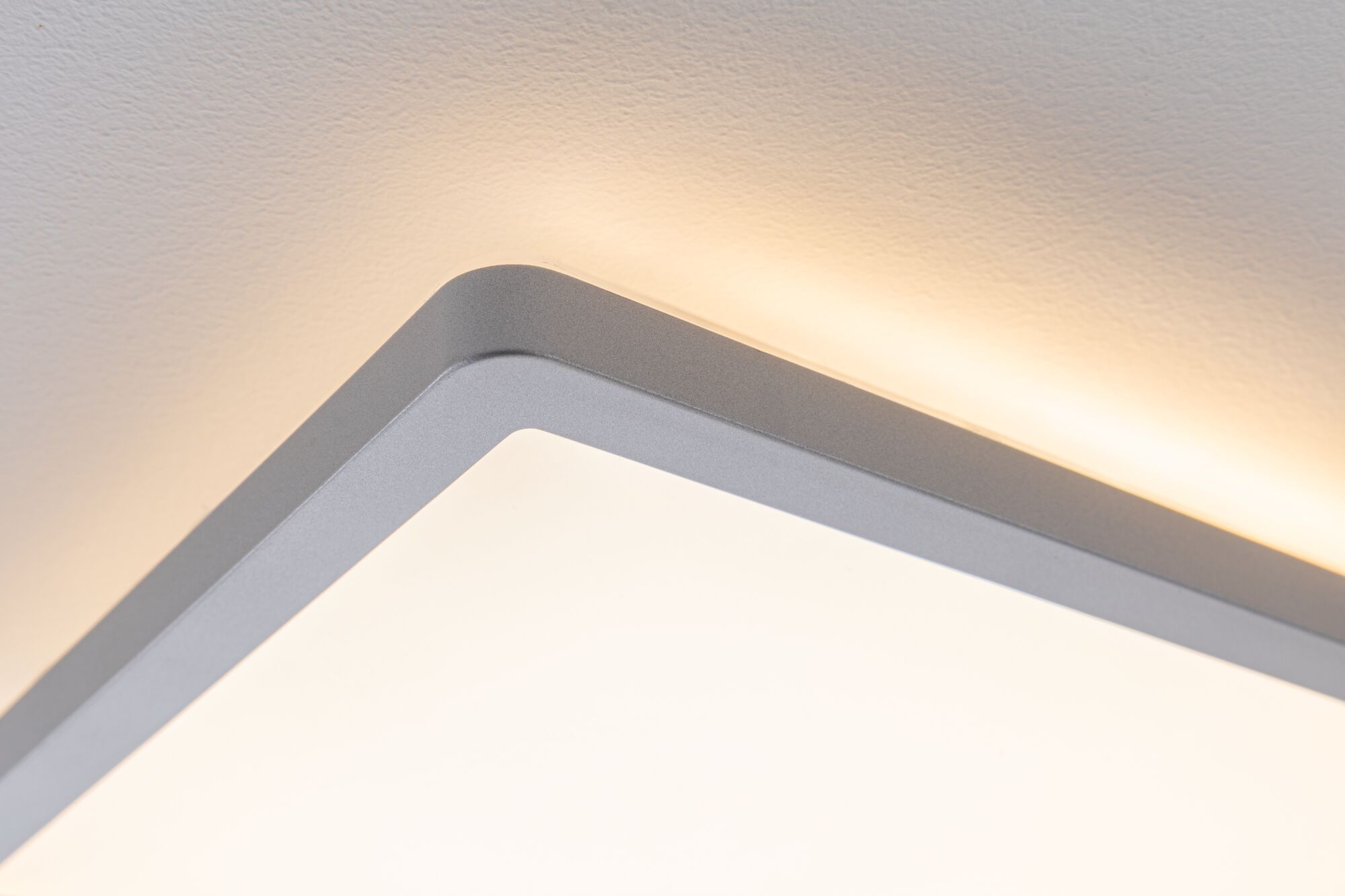

- Backlight technology for subtle, almost floating appearance of the light
- Ultra-flat design: Installation height of only 28 mm
- Even room light based on cutting-edge LED technology

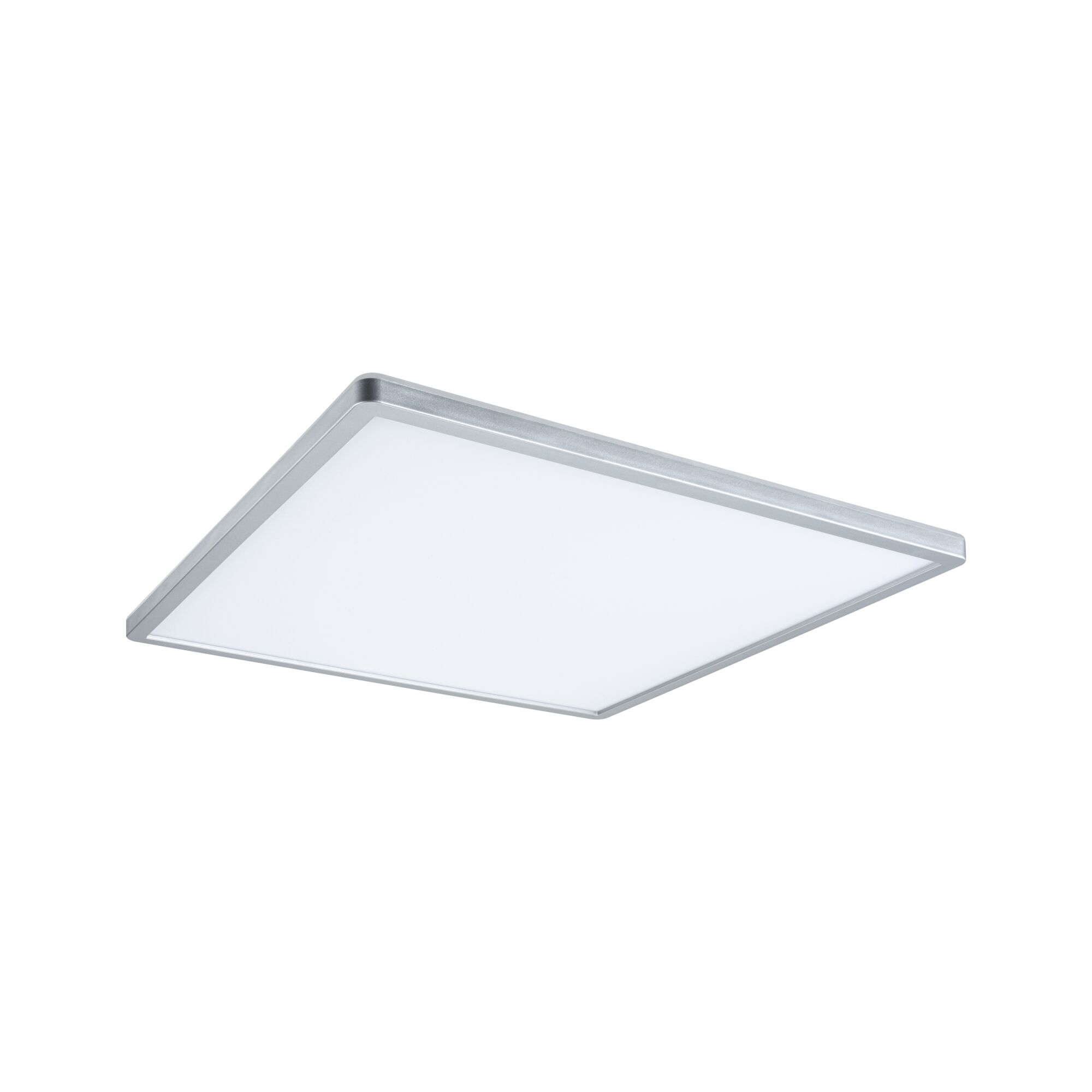

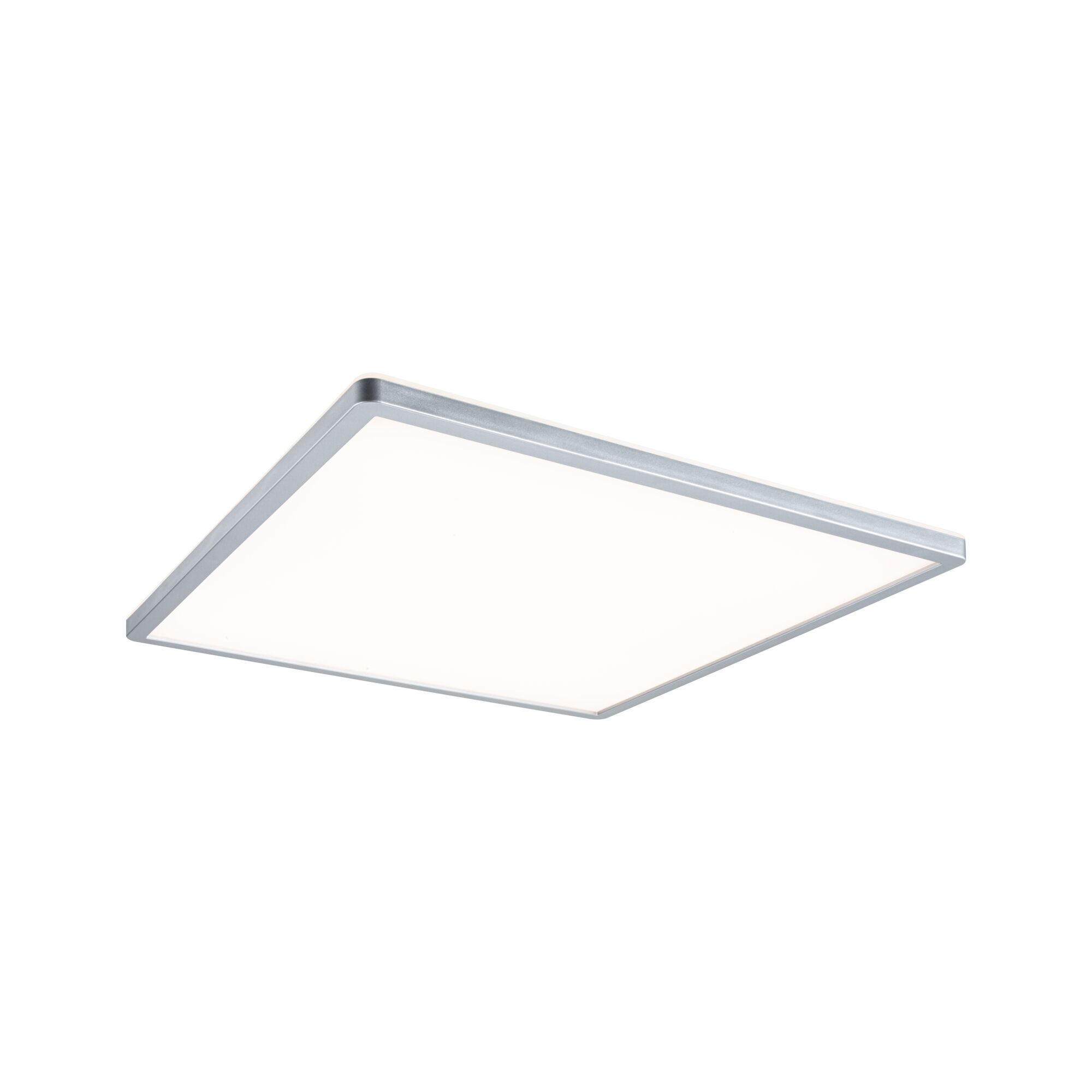

LED Panel 3-Step-Dim Atria Shine Backlight angular 420x420mm 22W 2200lm 3000K Chrome matt dimmable

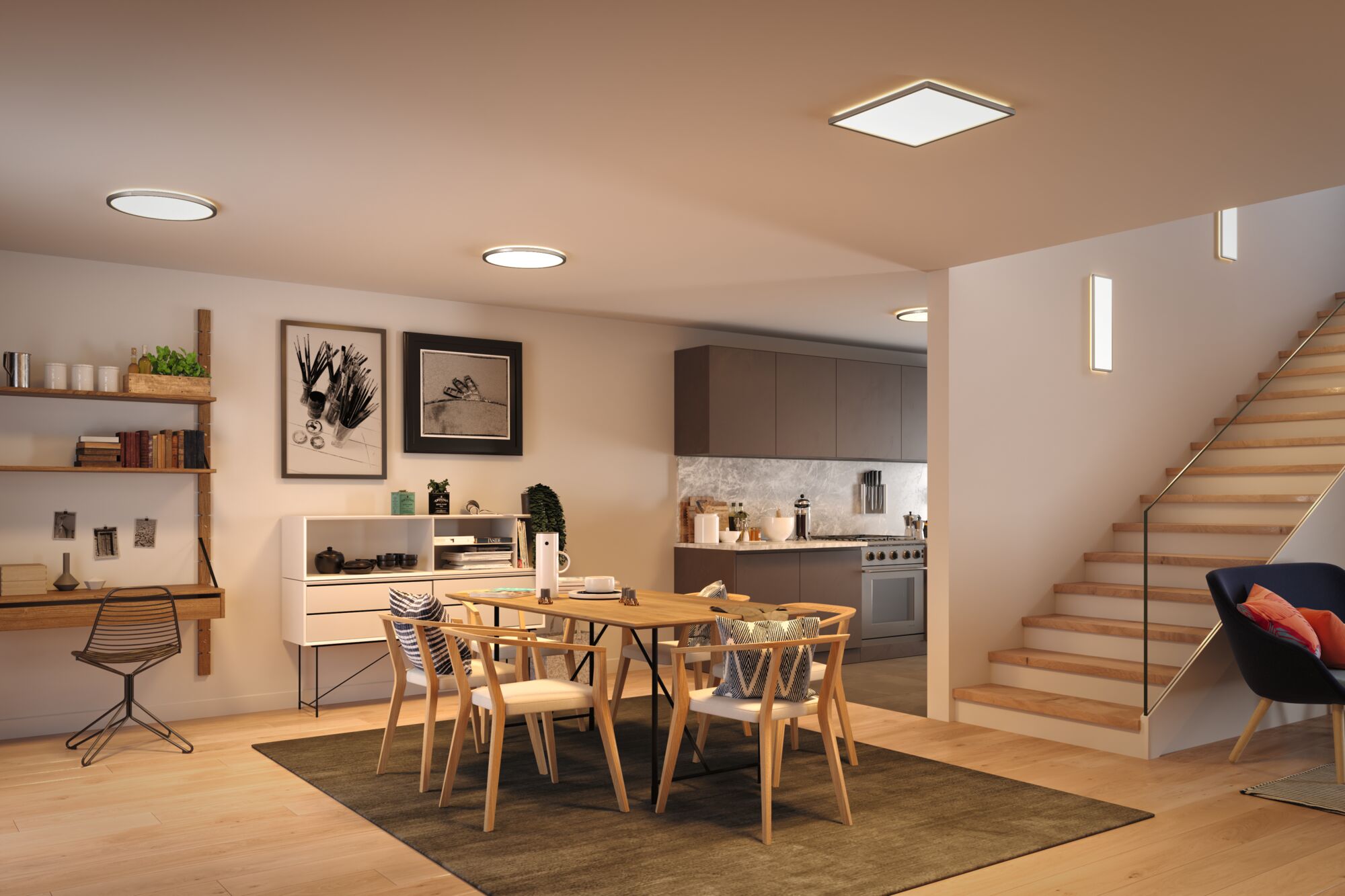

With a power rating of 22W, the square Atria Shine LED panel in chrome matt, measuring 420x420mm, is ideal for general lighting in living rooms, bedrooms or kitchens. The panel’s warm white light provides even, wide-area room illumination. With the integrated 3 Step Dim function, it can be dimmed in three stages by repeatedly pressing a standard light switch. The additional Backlight technology creates a special, cosy atmosphere and gives the panel an almost floating appearance. Thanks to the quick-release clamp and the special twist lock, the panel – with its ultra-slim profile of 28 mm – is very easy to install.
- Backlight technology for subtle, almost floating appearance of the light
- Ultra-flat design: Installation height of only 28 mm
- Even room light based on cutting-edge LED technology
- Color temperatur: 3000K - Warm white
- Can be mounted on wall or ceiling
- Especially flat construction
| Dimension | |
|---|---|

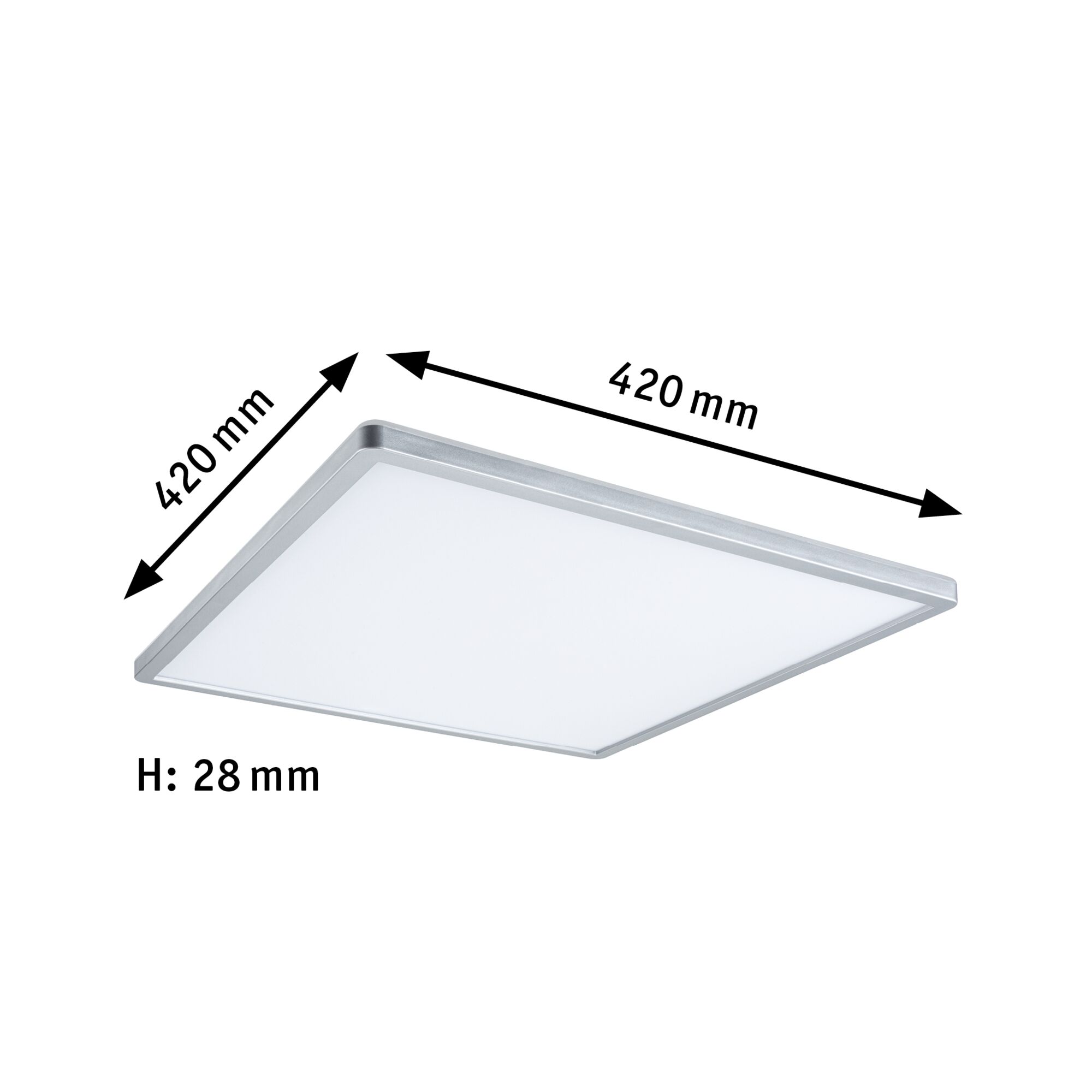

| Dimensions (Height x Width x Depth) | H: 28 x B: 420 x T: 420 mm |
| Net weight | 1408 g |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | Chrome matt |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | E |
| Features | |
|---|---|
| Backlight | Backlight |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Dimming Control | Dimmable in 3 steps with normal light switch |
| Inclusive lamp | yes |
| Component parts | 22 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 160 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 23 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 40 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 2200 lm |
| Color rendering index | > 80 Ra |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 2700 lm |
| Rechargeable battery / battery data | |
|---|---|
| Dimensions (Height x Width x Depth) | 28 x 420 x 420 mm |
