Article-No.: 94337

LED Recessed floor luminaire Brick Twilight-controlled motion detector (IR)
IP67 200x100mm 3000K 1,6W 50lm 230V Aluminium/Grey Metal/Stainless steel

Dimension: 200x100mm

100x100mm

200x100mm

Light colour: Warm white

Tunable Warm

Warm white

£88.95* Prices incl. Standard rate VAT

Ready to ship, delivery within 2-3 working days

5-year warranty

Secure payment

Free shipping from £ 150 Free returns

Automatic switching with integrated motion detector
A dusk sensor automatically switches on the light as soon as darkness begins to fall.
For 230 V direct connection

LED Recessed floor luminaire Brick Twilight-controlled motion detector (IR) IP67 200x100mm 3000K 1,6W 50lm 230V Aluminium/Grey Metal/Stainless steel

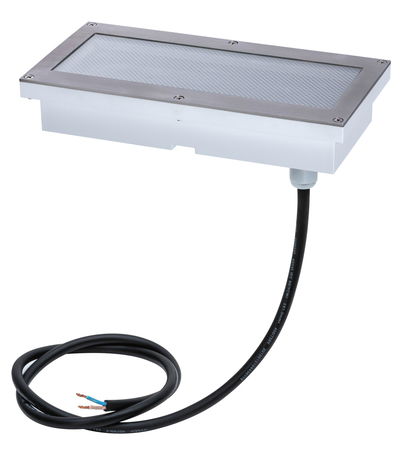

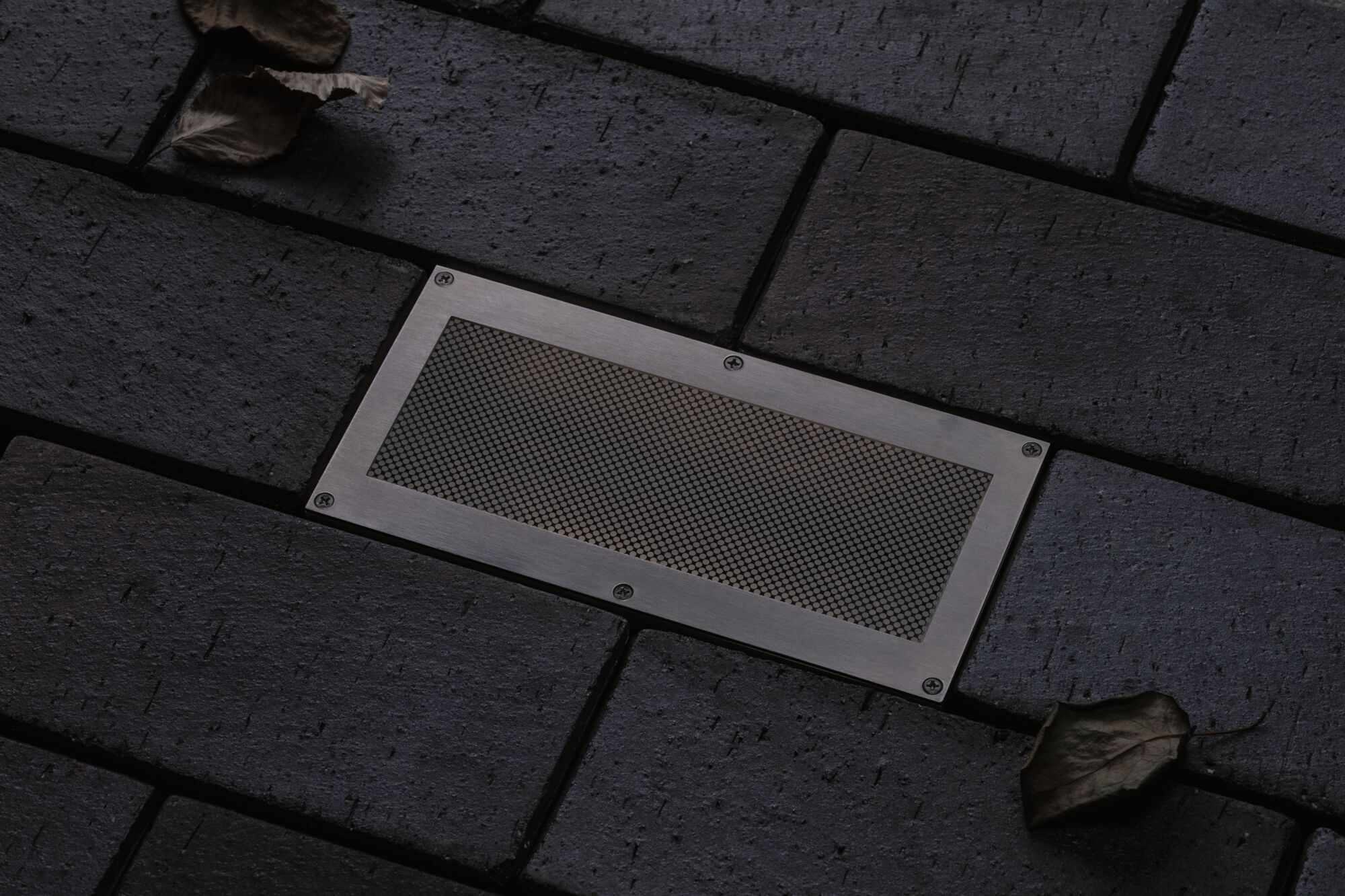

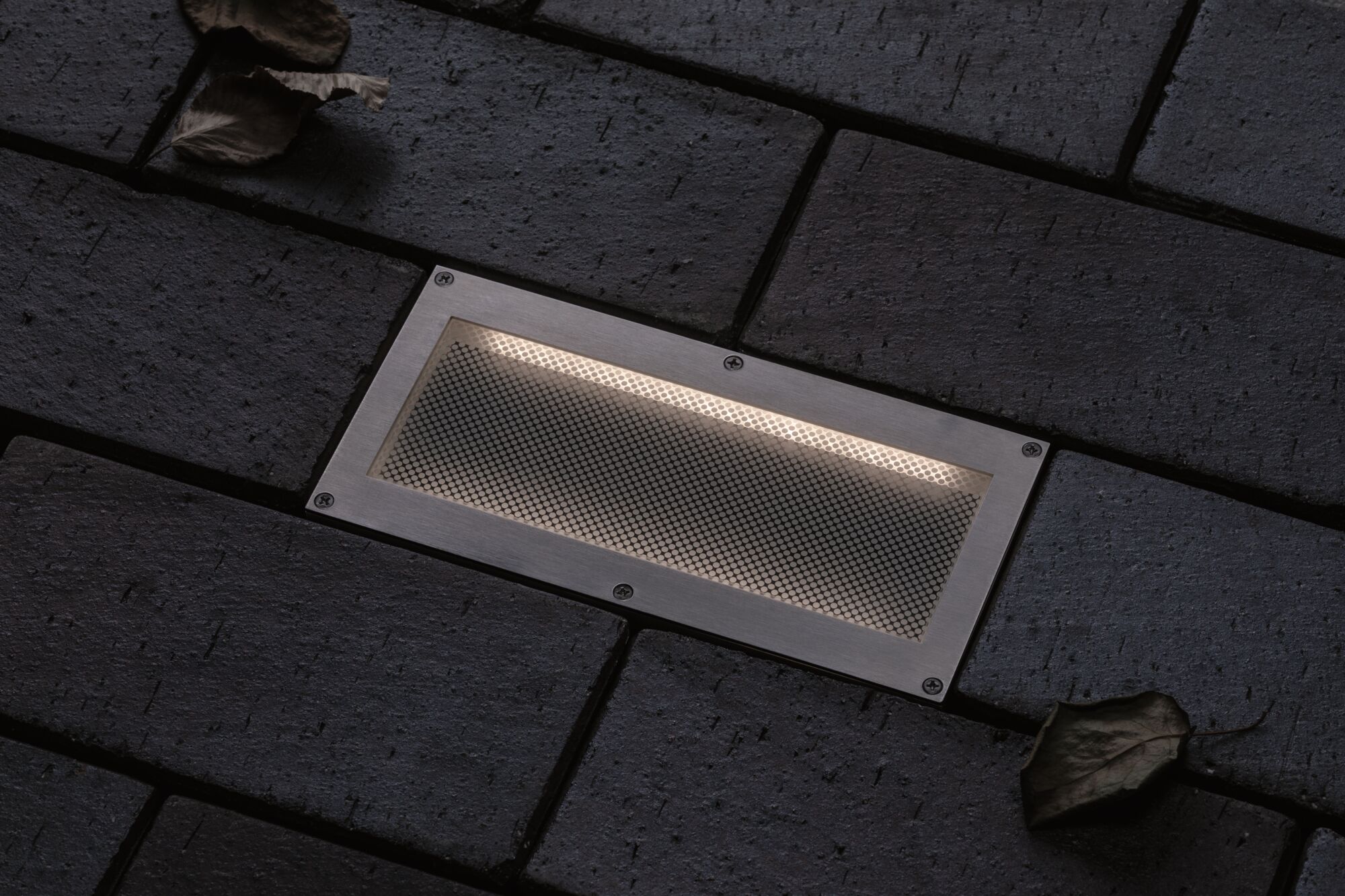

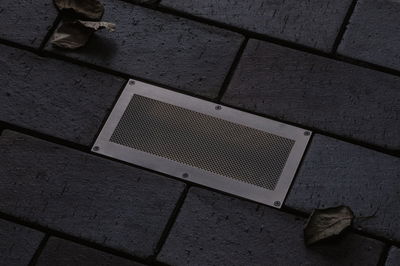

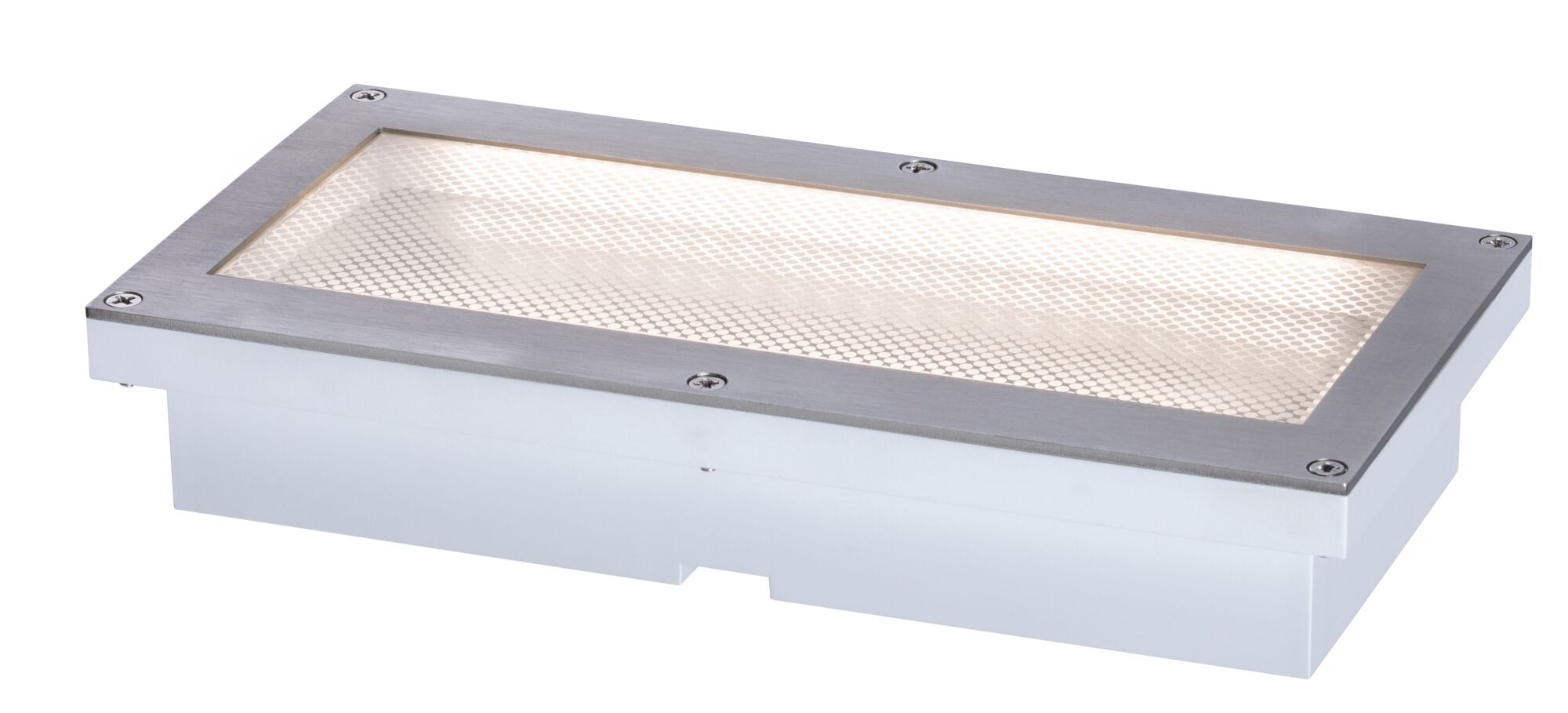

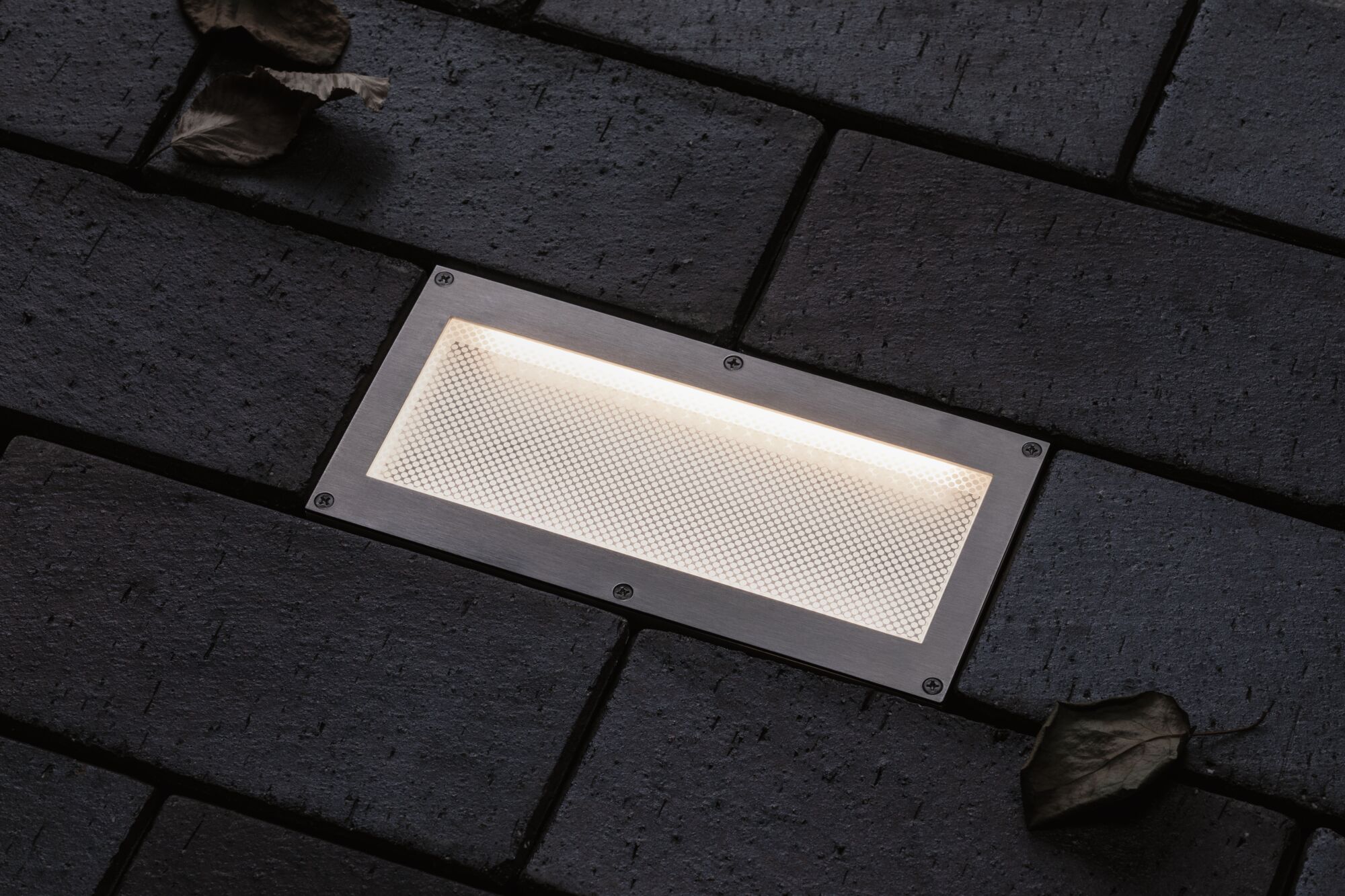

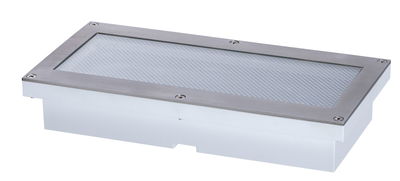

The Brick recessed floor luminaire made of Metal/stainless steel, in the dimensions 100 mm x 200 mm x 38 mm, activates at dusk to provide a functional orientation light when the motion sensor detects people in the immediate vicinity. The functions can be adjusted using a switch on the luminaire. It is virtually invisible, creating the overall effect of a uniformly lit area. Thanks to its IP67 protection class, the floor recessed luminaire is guaranteed waterproof, stainless and suited for installation in walkable outdoor areas – and can easily withstand up to 500 kg in weight. The recessed luminaire emits a pleasant light colour of 3,000 K at night.

Automatic switching with integrated motion detector
A dusk sensor automatically switches on the light as soon as darkness begins to fall.
For 230 V direct connection
Color temperatur: 3000K - Warm white
IP Protection: IP67 - protected against temporary immersion

Dimension
Depth of hollow wall	21,5 mm, 21,5 mm
Total Mounting depth	36,5 mm

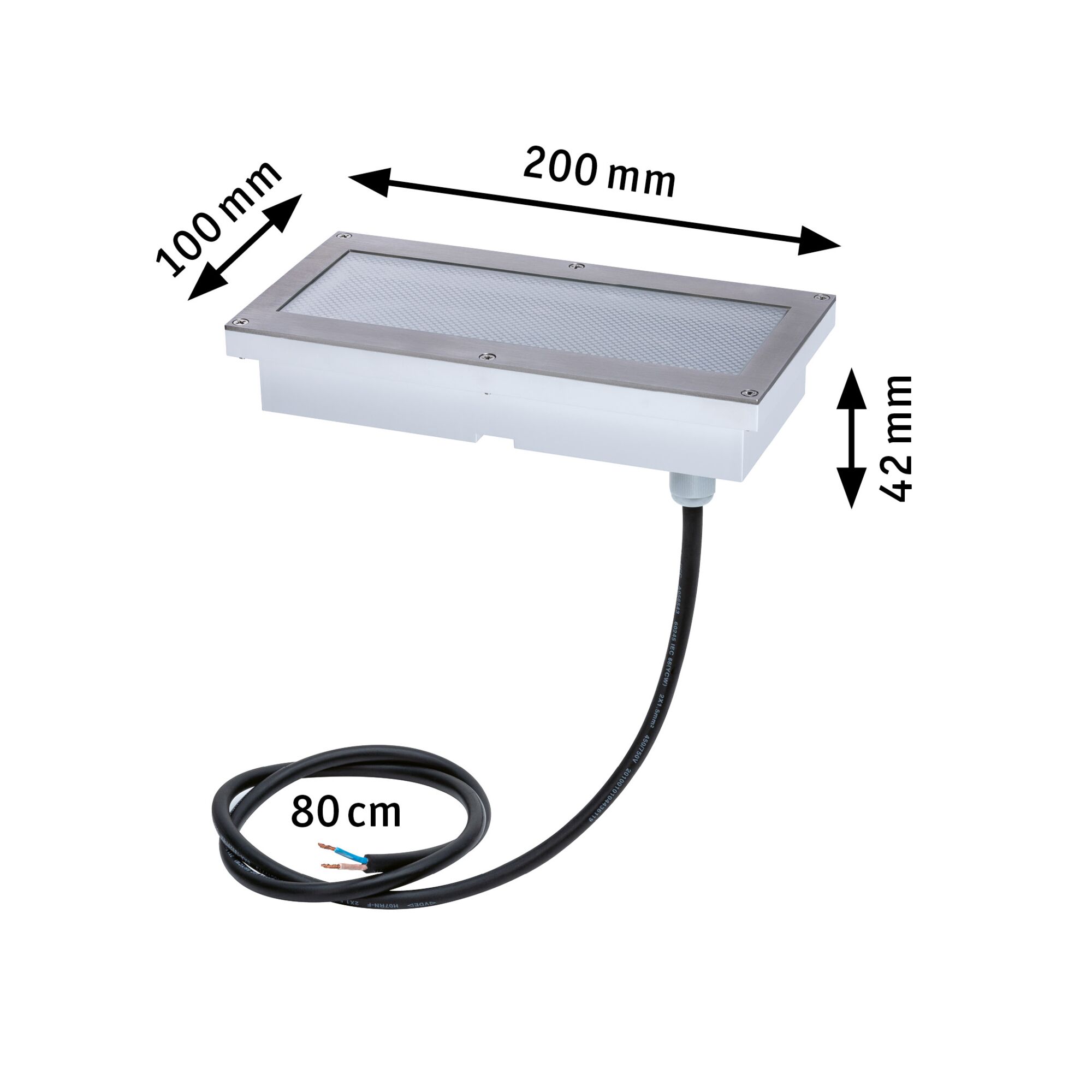

Dimensions (Height x Width x Depth)	H: 42 x B: 200 x T: 100 mm
Mounting hole	100 mm

Design and Material
stainless	stainless
Colour	Aluminium, Grey
Material	Metal, Stainless steel

Installation
Installation site (recommendation)	Floor mounting

Energy consumption
Energy efficiency (A to G)	F

Features
Sensors	Twilight-controlled motion detector (IR)

Service life
Lifetime	30000 h

Light Characteristics
Colour temp.	3000 K
color temp	Warm white
Usable luminous flux	50 lm
Luminous flux LED module	160 lm
Color rendering index	> 80 Ra

Lamp Features
Component parts	1,6 W
Technique	LED
Inclusive lamp	yes
Incandescent Equivalent	17 W
Adjustability	fixed
Dimmable	No
IP protection	IP67
Number of component parts	1x
protection class	protection class II
Replacable	3 Lightsource is not replaceable, the complete lighting must be replaced.\|6 Control gear is not replaceable, the complete lighting must be replaced.
Power consumption	5 W

Transformer
apparent power	9.2 VA
Transformer height	22 mm
Transformer width	28 mm
Transformer depth	53 mm

Accessories
Radio control included	no

Labelling
WEEE-Reg.-No	DE 39236390
