Article-No.:
50134
Wall switch
Smart Home Zigbee 3.0
On/Off/Dimm
White
White
£49.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- Direct control of Zigbee products via Touchlink

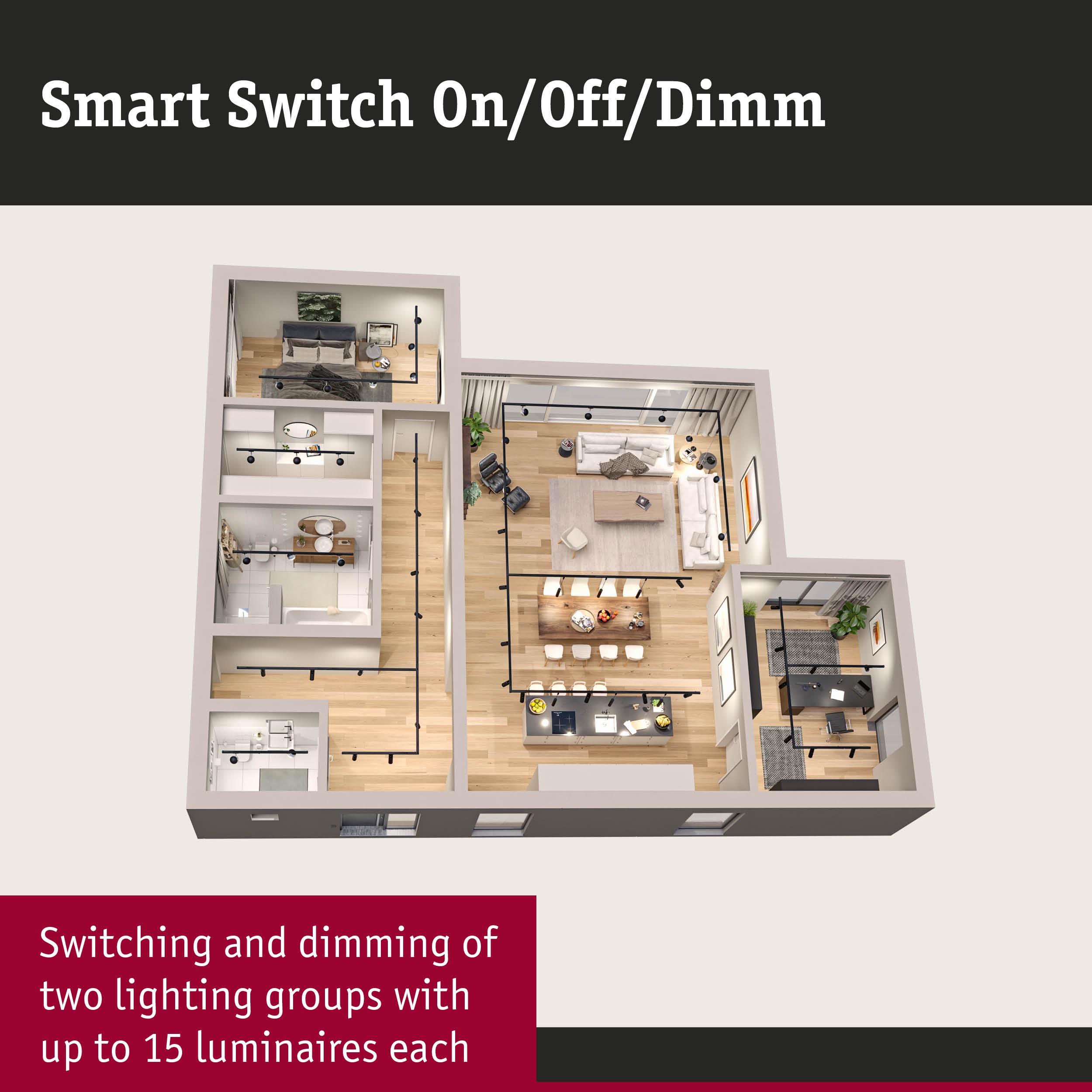

- Switching and dimming of two light groups with up to 15 devices
- Freely positionable using screws or adhesive

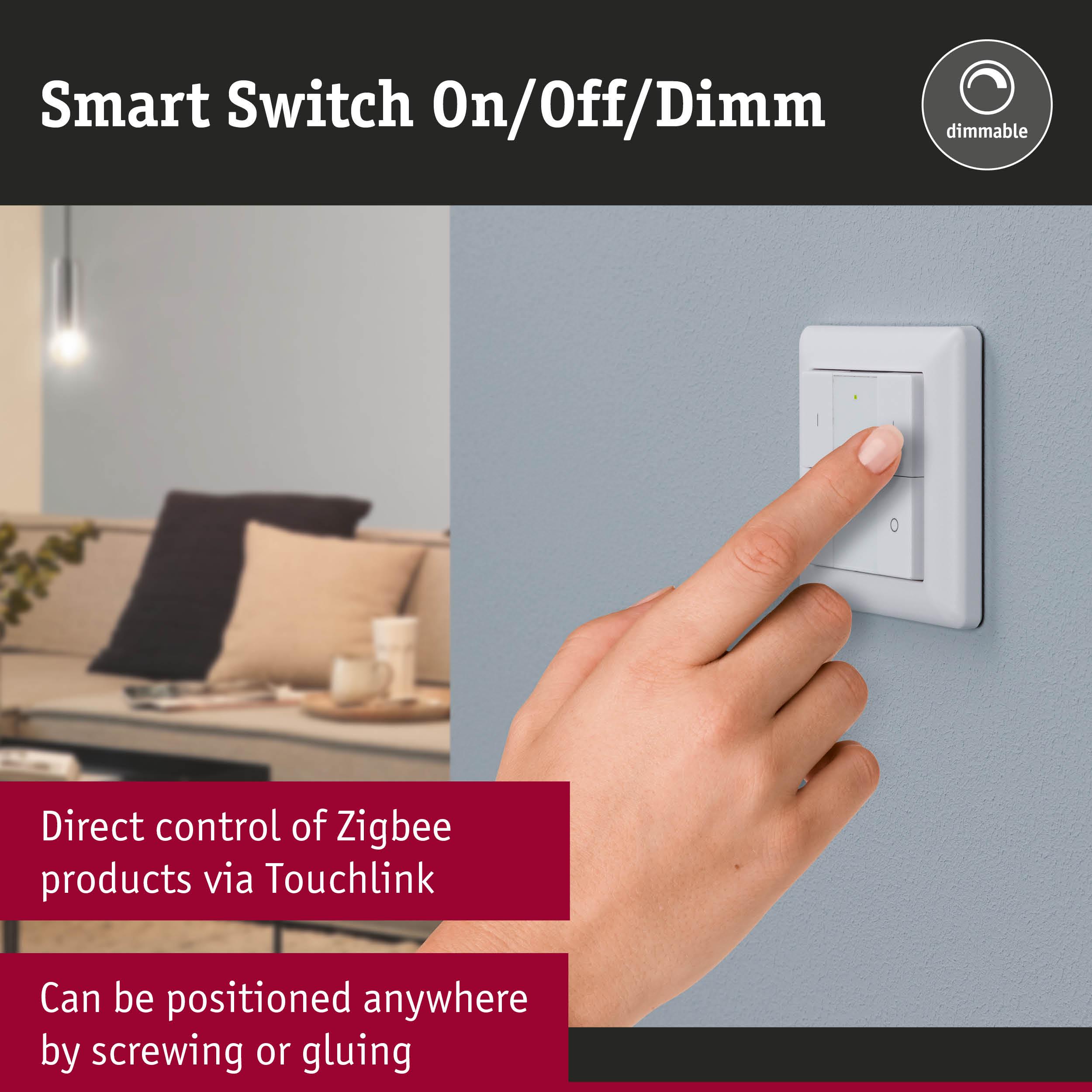

Wall switch Smart Home Zigbee 3.0 On/Off/Dimm White
The Smart Home Zigbee 3.0 wall switch enables intuitive, direct switching of smart Zigbee 3.0 products without a smartphone or gateway. The wall switch can be used to dim and switch smart lights on and off in the classic fashion.
- Direct control of Zigbee products via Touchlink
- Switching and dimming of two light groups with up to 15 devices
- Freely positionable using screws or adhesive
- Directly usable without a Zigbee gateway using the standard settings
- Separate control of light groups with one pair of buttons each
- Status LED provides feedback on push buttons and system status
- Switching module can easily be integrated in the following switch series: Berker: S.1, B.1, B.3, B.7 glass / GIRA: Standard 55, E2, Even, Esprit / JUNG: A500, A plus / Merten: M-Smart, M-Arc, M-Plan
- Ready for immediate use thanks to battery operation; no electrical connection to home installation necessary
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 81 x B: 81 x T: 15 mm |
| net weight | 70 g |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Inclusive lamp | no |
| light source property | Without light source |
| Compatible Smart Home technology | Zigbee |
| Technique | Accessories without bulbs |
| Adjustability | fixed |
| IP protection | IP20 |
| Protection class | Protection class III |
| Replacable | 7 not concerned. |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_certified |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
| Compatible smart home systems | Paulmann smik Gateway |
| AVM Fritz! compatibility | Compatible with Fritz!Smart Gateway and FRITZ!Box models with Zigbee support |
