Article-No.:
71127
MaxLED 1000
LED Strip
Full-Line COB Basic Set
1,5m 18W 1280lm/m 528 LEDs/m 6500K 40VA
1,5m 18W 1280lm/m 528 LEDs/m 6500K 40VA
- Can be shortened as required
- Color temperatur: 6500K - Daylight white
- Complete set incl. strip and power supply

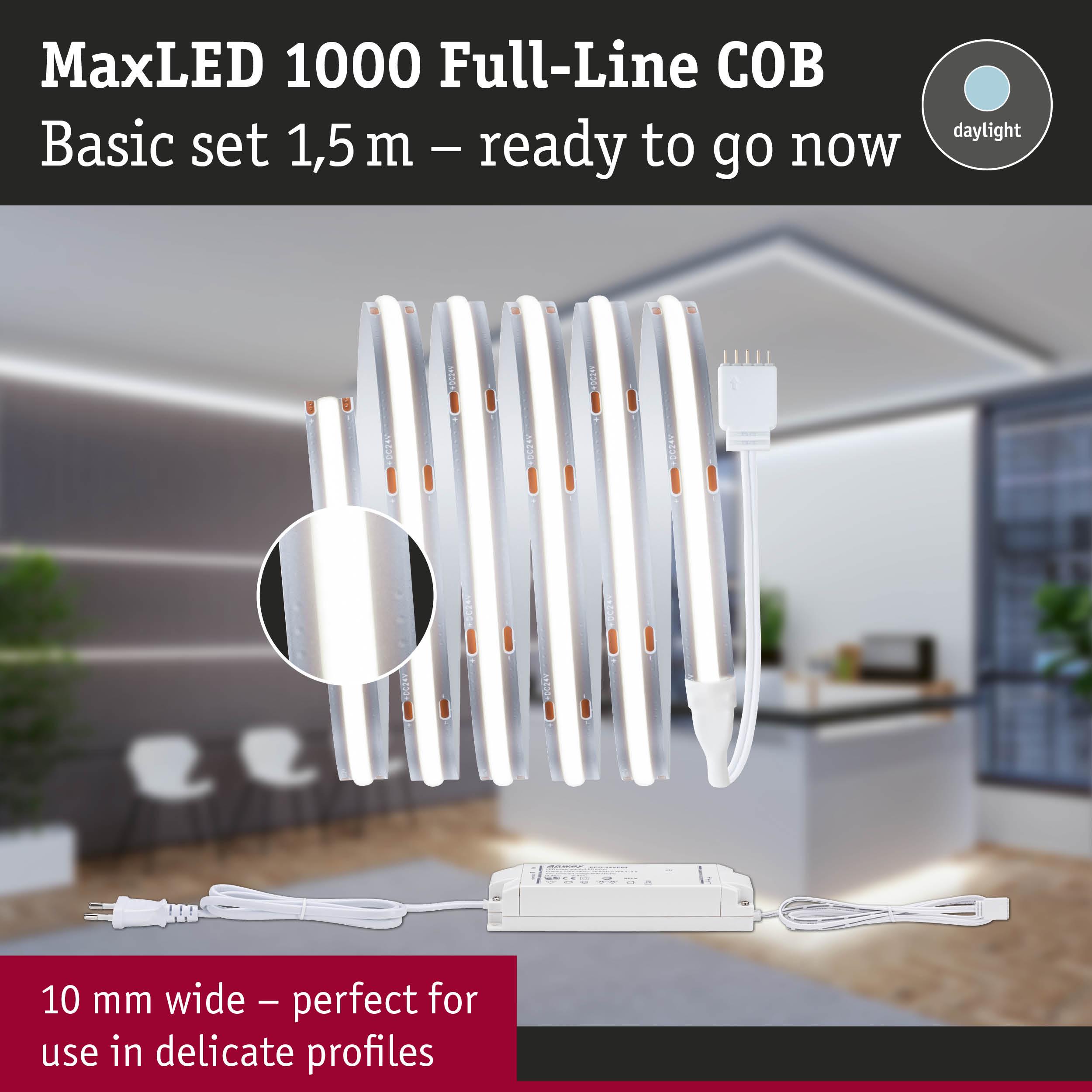

MaxLED 1000 LED Strip Full-Line COB Basic Set 1,5m 18W 1280lm/m 528 LEDs/m 6500K 40VA

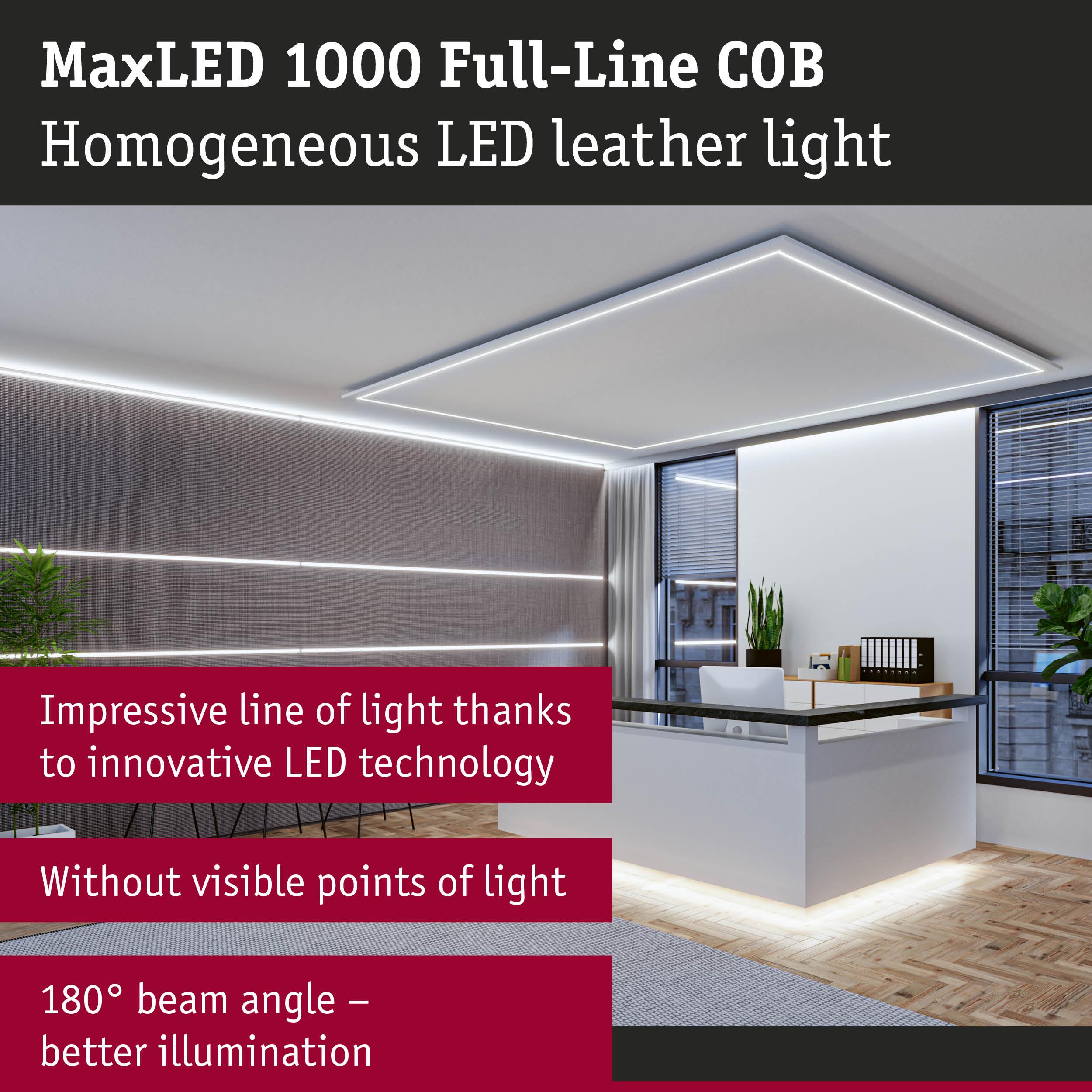

The MaxLED 500 Full-Line COB Strips emit perfect, glare-free working light for the worktop in the kitchen or garage, or any other work area. The MaxLED 500 COB basic set with 18 W, a length of 1.5 m and 528 LED/m generates a completely uniform light image without visible light points. The light connector continues the linear light seamlessly and without interruption. At 10 mm, the strip is extra narrow to fit into the most slimline LED profiles. The wide, 180° beam angle optimally distributes the light without shadow formation. A coating throughout protects the LEDs against dust and moisture, and the contact points have an IP20 protection. The daylight white basic set can be easily extended with suitable individual strips.

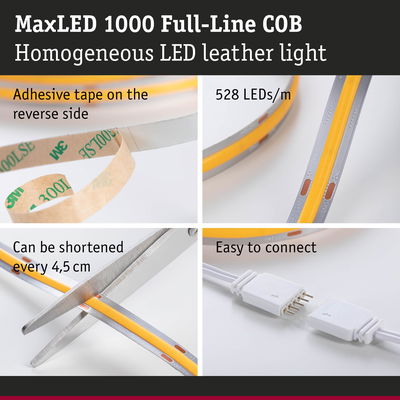

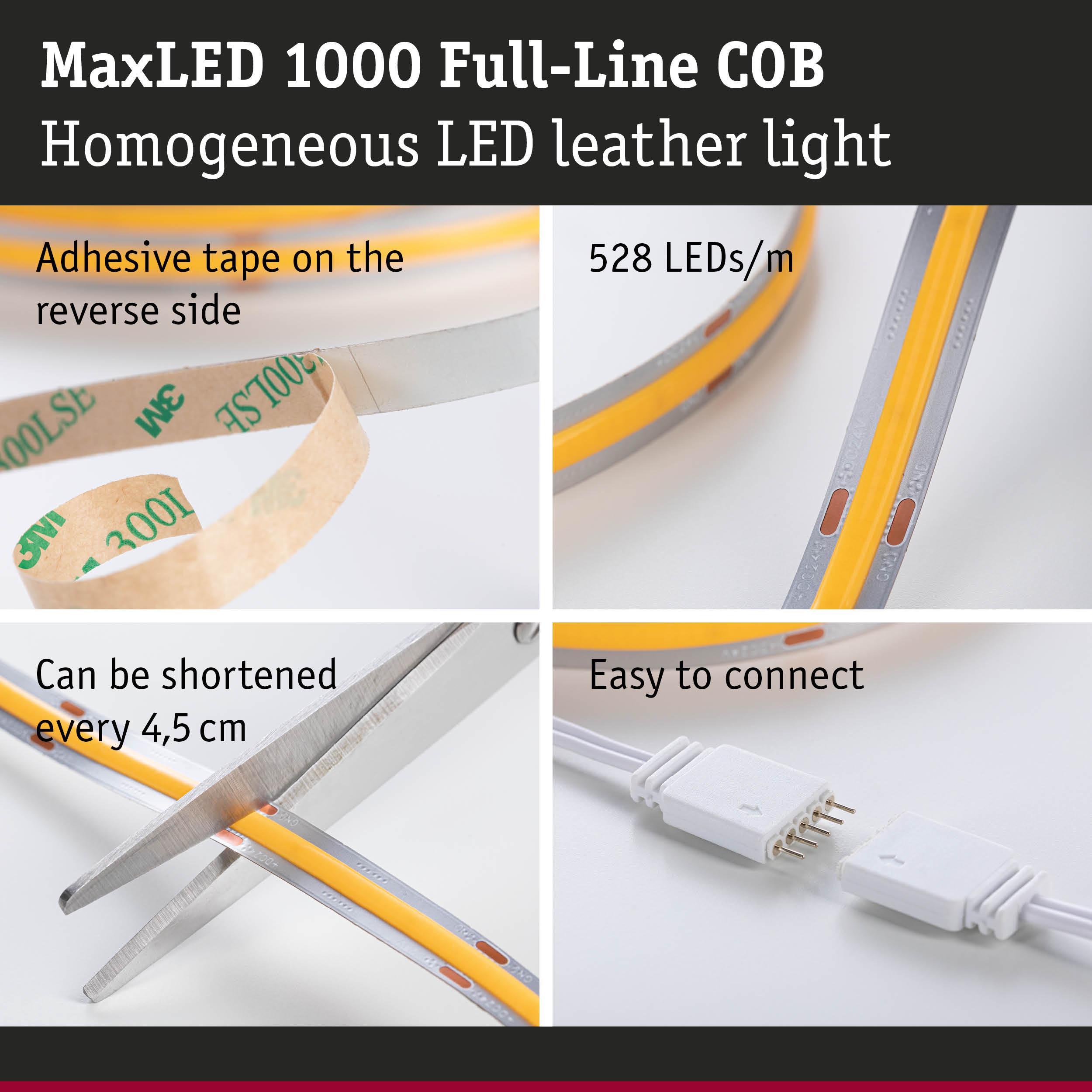

- Can be shortened as required
- Color temperatur: 6500K - Daylight white
- Complete set incl. strip and power supply
- Coating protects against splashing water and dust
- Simple plug-in system for easy installation
- Rear self-adhesive for simple installation
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 1,6 x B: 10 x mm |
| Length | 1,5 m |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Length max. | 4 m |
| can be used with the following dimmers | Paulmann SmartHome BLE LED-Stripes 500.02, Paulmann SmartHome ZigBee LED-Stripes 500.45 |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 6500 K |
| Usable luminous flux | 1920 lm |
| Luminous flux LED module | 1920 lm |
| color temp | 6500 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 18 W |
| Technique | LED |
| IP protection | IP20 |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Total Width | 10 mm |
| Number of component parts | 1x |
| protection class | protection class II |
| Number of LED's per meter | 528 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 21 W |
| Transformer | |
|---|---|
| Transformer power | 40 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
