Article-No.:
70588
MaxLED 1000

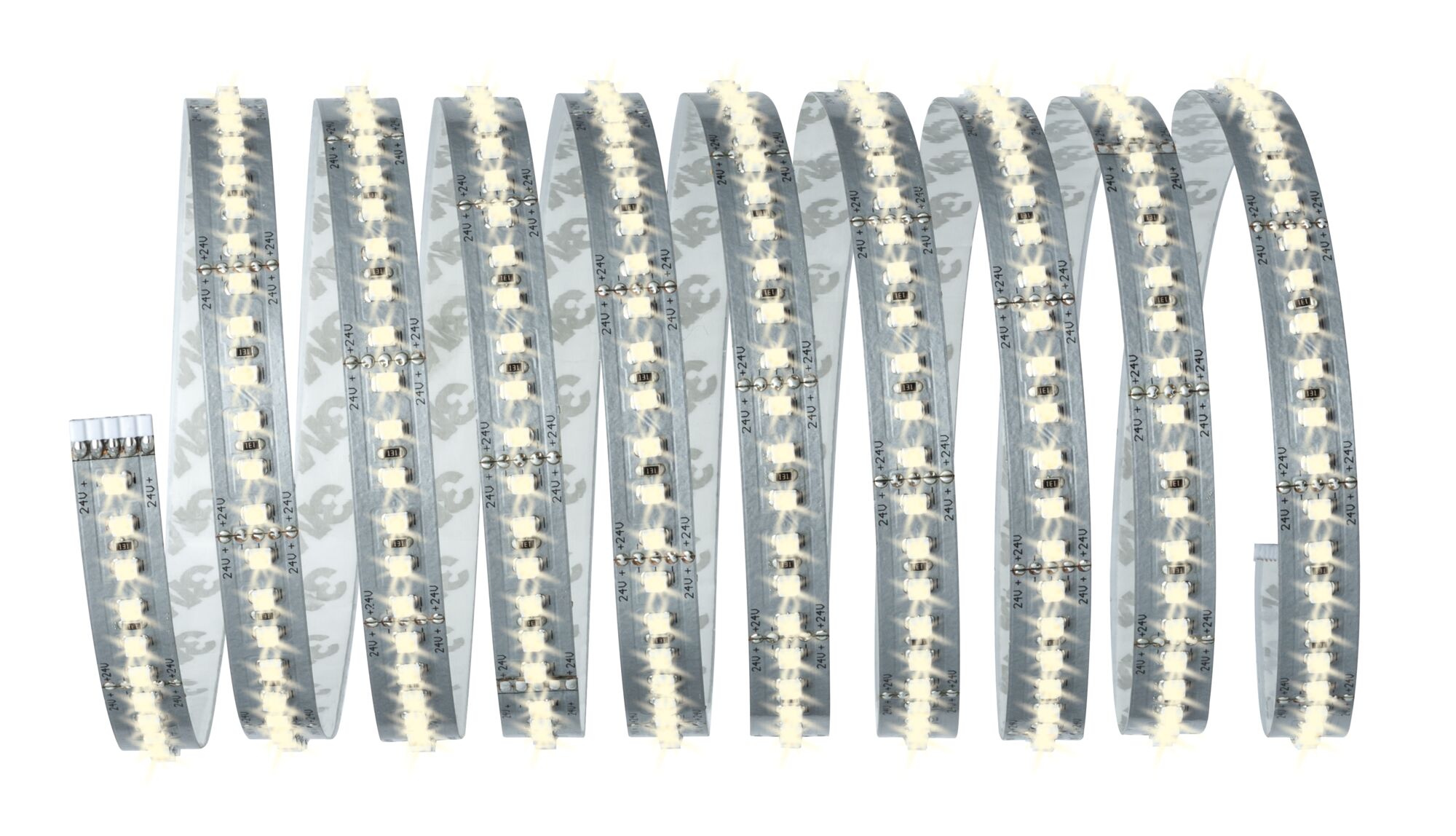

LED Strip
Warm white Basic Set
3m 35W 1100lm/m 144 LEDs/m 2700K 60VA
3m 35W 1100lm/m 144 LEDs/m 2700K 60VA

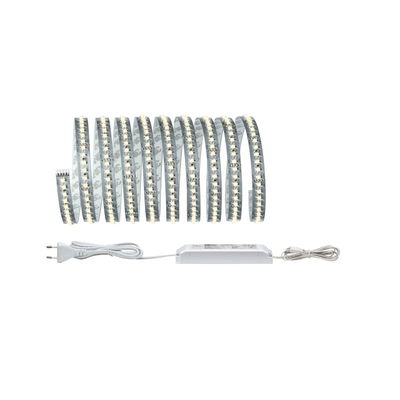

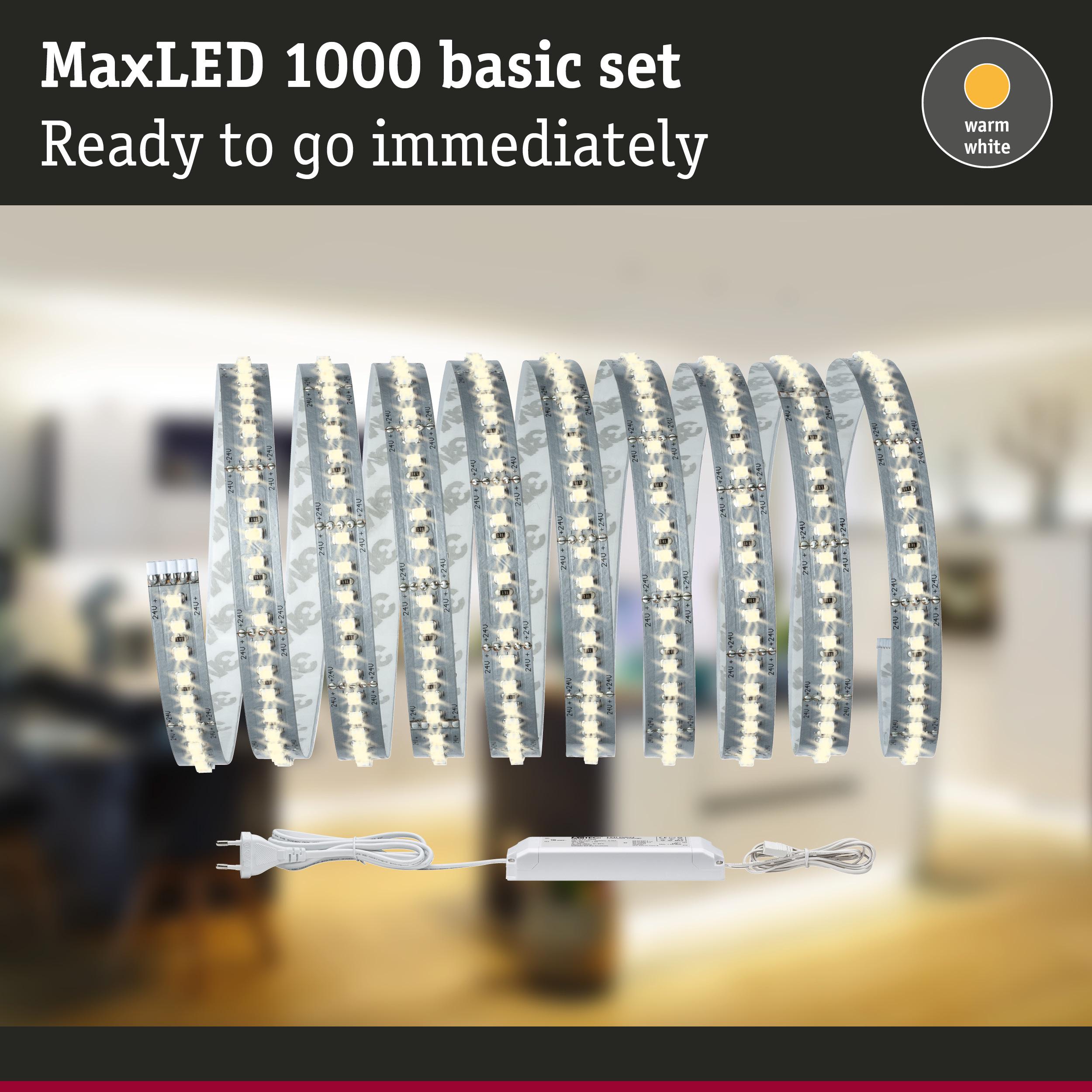

- Complete set incl. strip and power supply
- Can be shortened as required
- Simple plug-in system for easy installation
MaxLED 1000 LED Strip Warm white Basic Set 3m 35W 1100lm/m 144 LEDs/m 2700K 60VA

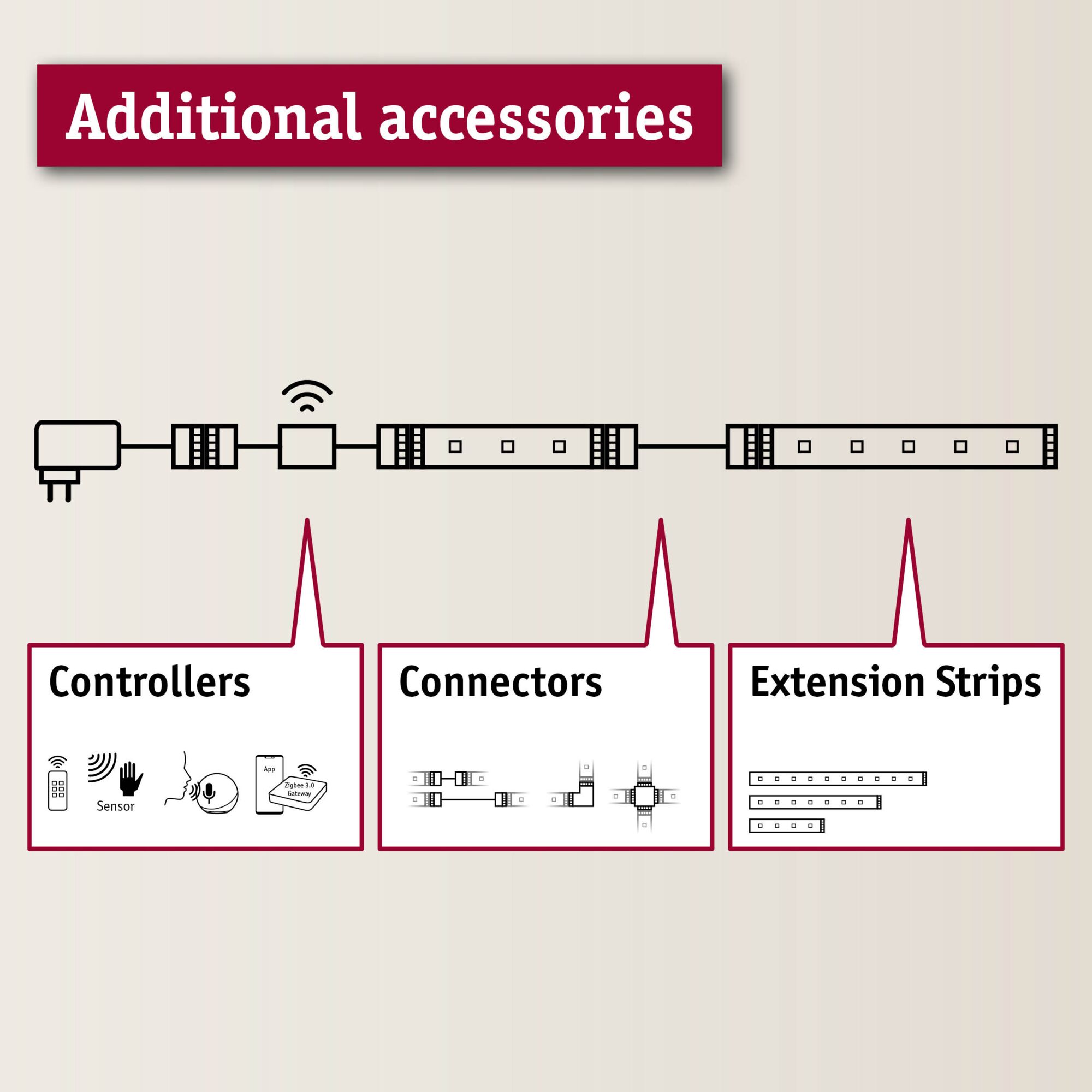

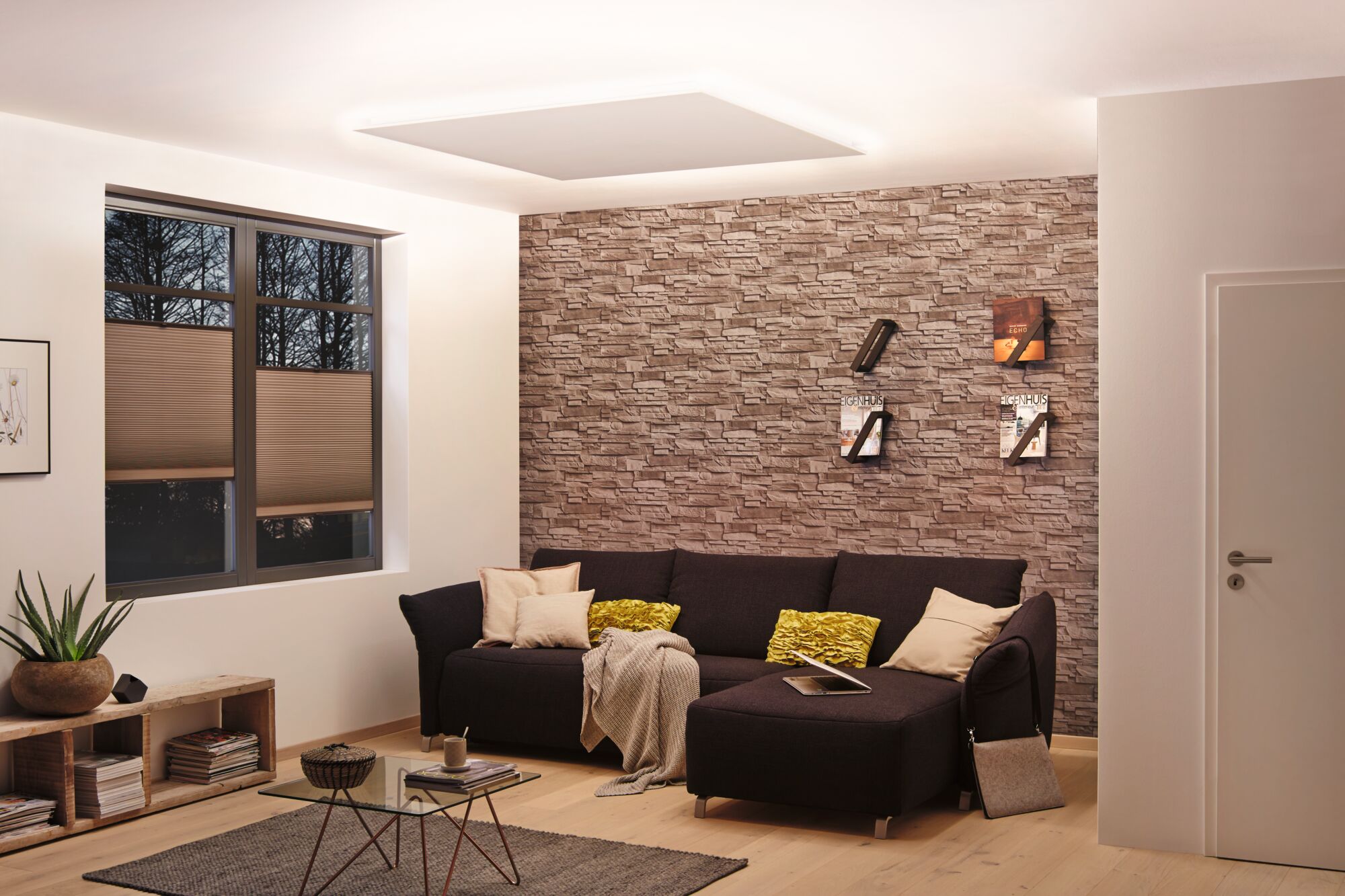

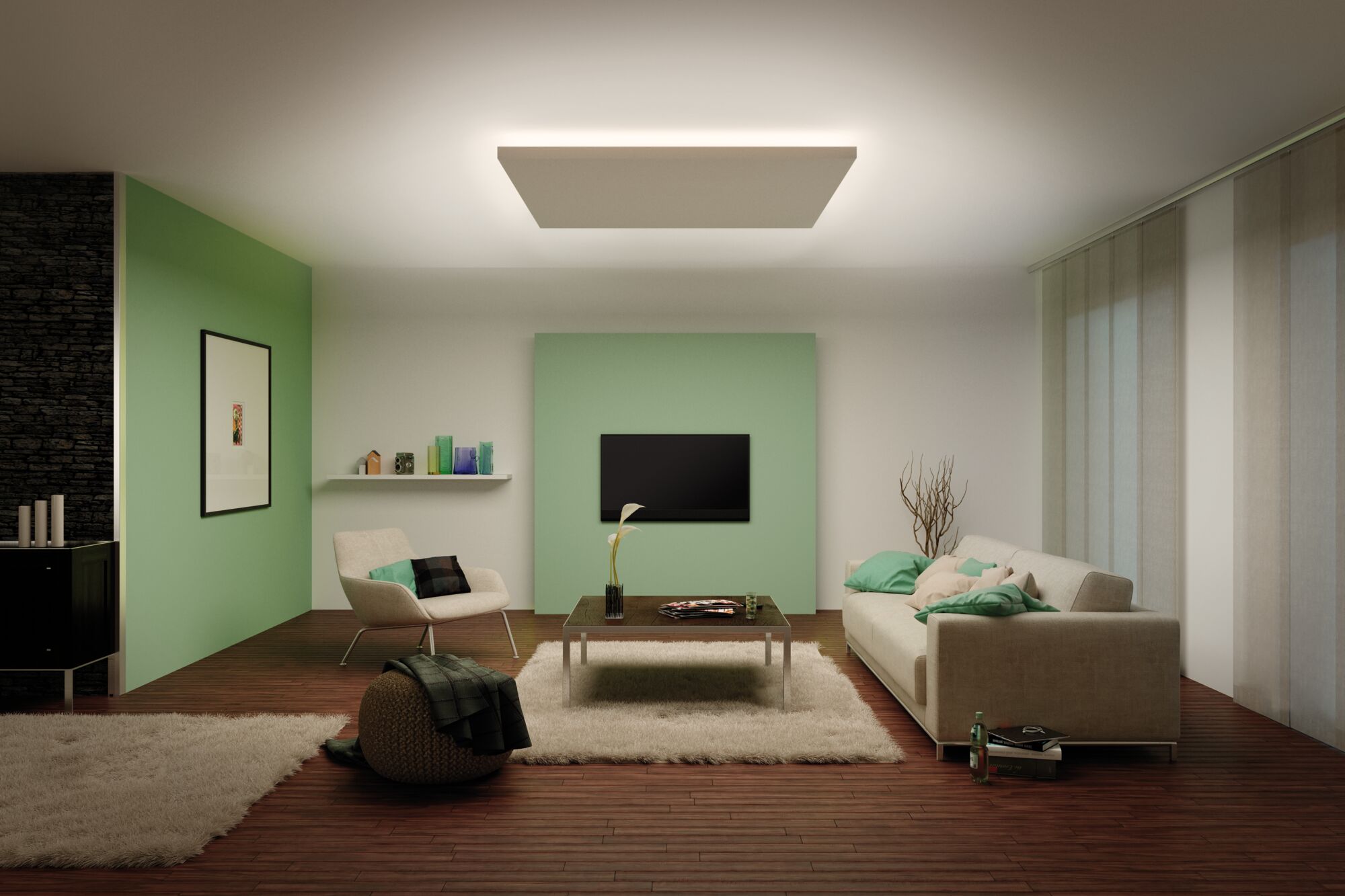

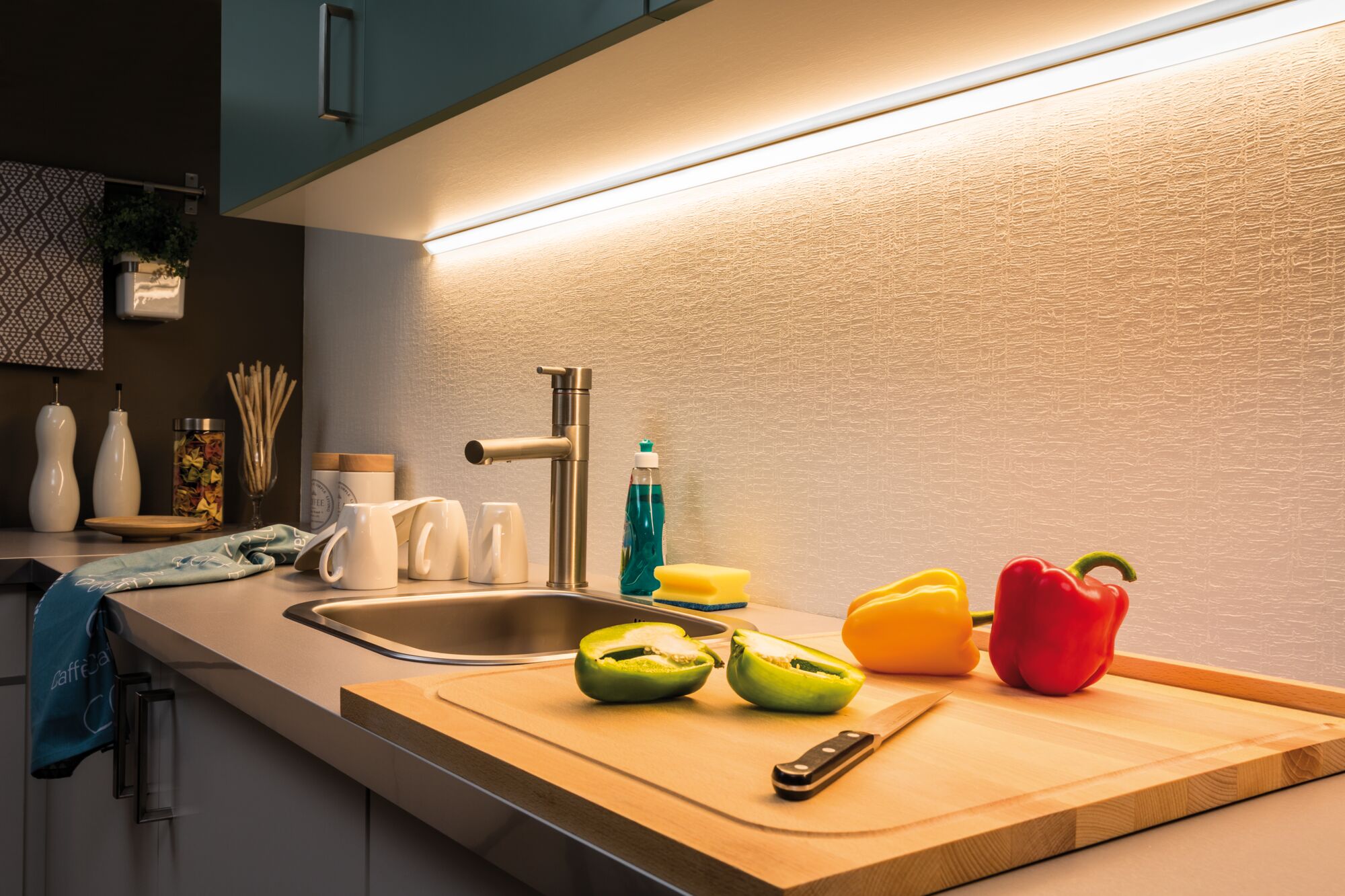

MaxLED strips are so powerful that they can easily be used as room lighting. They are real highlights especially in profiles. Warm white strips provide a cosy and relaxed room and workplace light. Where required, you can extend your basic set using single strips. Please note in your planning the maximum length specified for the basic set, which must not be exceeded.
- Complete set incl. strip and power supply

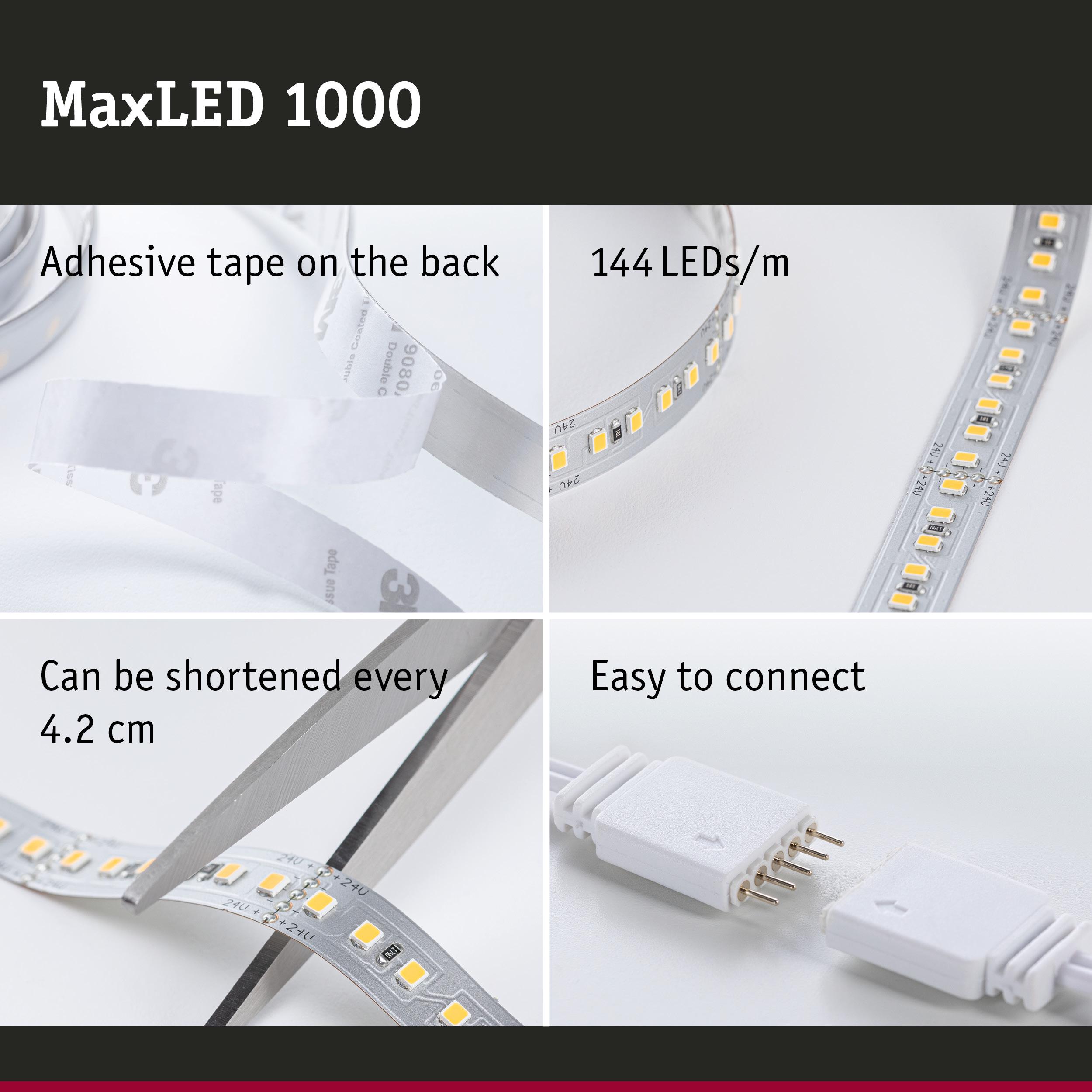

- Can be shortened as required
- Simple plug-in system for easy installation
- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces
- Color temperatur: 2700K - Warm white
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)
- Dimmable with MaxLED dim/switch controller
- Incl. 5-pin plug for easy connection of the strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 T: 12,5 mm |
| Length | 3 m |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Metal |
| Installation | |
|---|---|
| Length max. | 5,5 m |
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Usable luminous flux | 3300 lm |
| Luminous flux LED module | 3300 lm |
| color temp | 2700 K |
| Color rendering index | > 80 Ra |
| Rated luminous flux (Lumen) | 3300 lm |
| Lamp Features | |
|---|---|
| Component parts | 35 W |
| Technique | LED |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Number of component parts | 1x |
| protection class | protection class II |
| Number of LED's per meter | 144 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 40 W |
| Transformer | |
|---|---|
| Transformer power | 60 VA |
| Transformer height | 32 mm |
| Transformer width | 50 mm |
| Transformer depth | 166 mm |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
