Article-No.:
71198
MaxLED 500
LED Strip
Basic set 3m RGBW
18W 530lm/m RGBW+ 36VA
18W 530lm/m RGBW+ 36VA
£105.00*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- RGBW offers a fluid colour selection, plus the tunable white function
- Complete set incl. strip and power supply
- Can be shortened as required

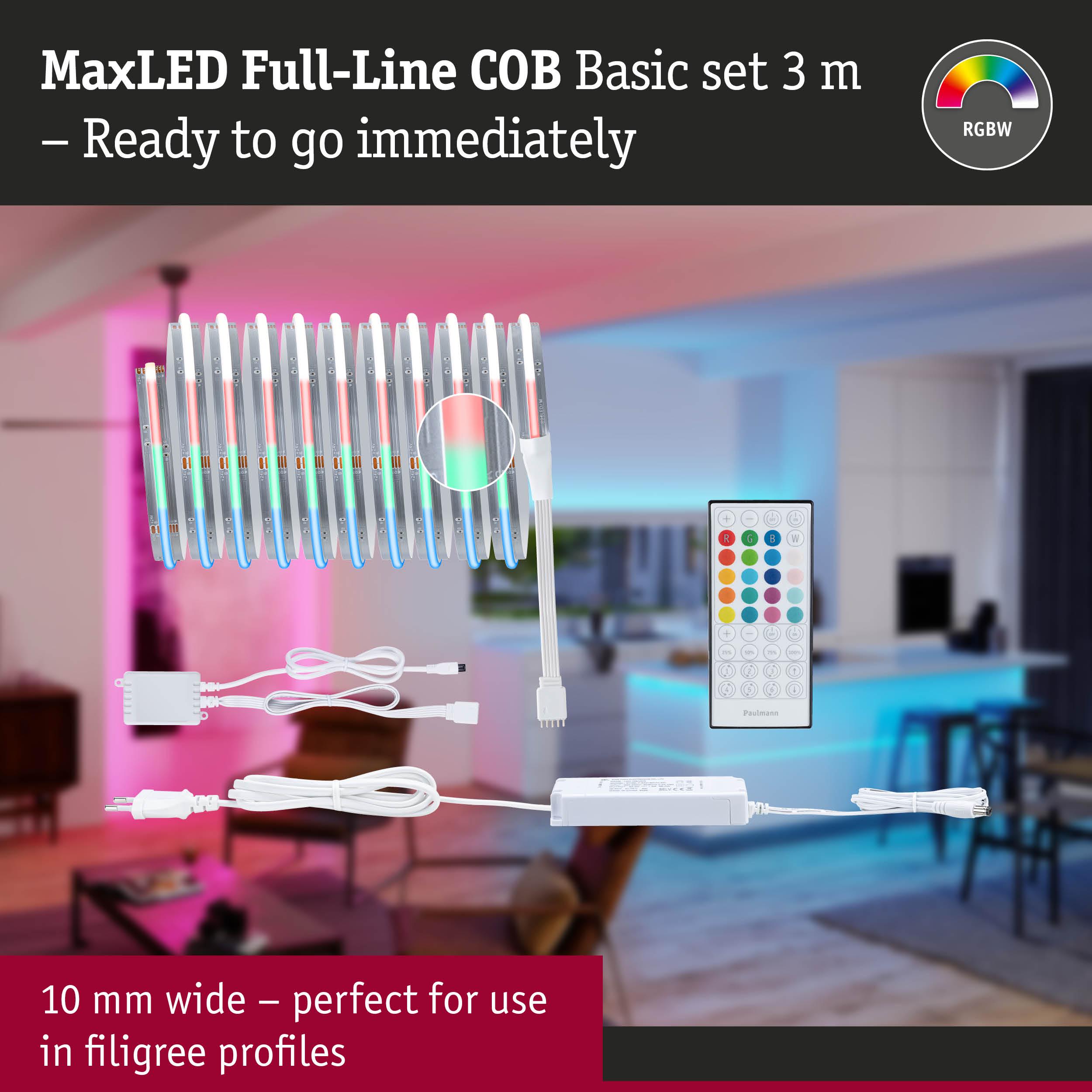

MaxLED 500 LED Strip Basic set COB 3m RGBW 18W 530lm/m RGBW+ 36VA

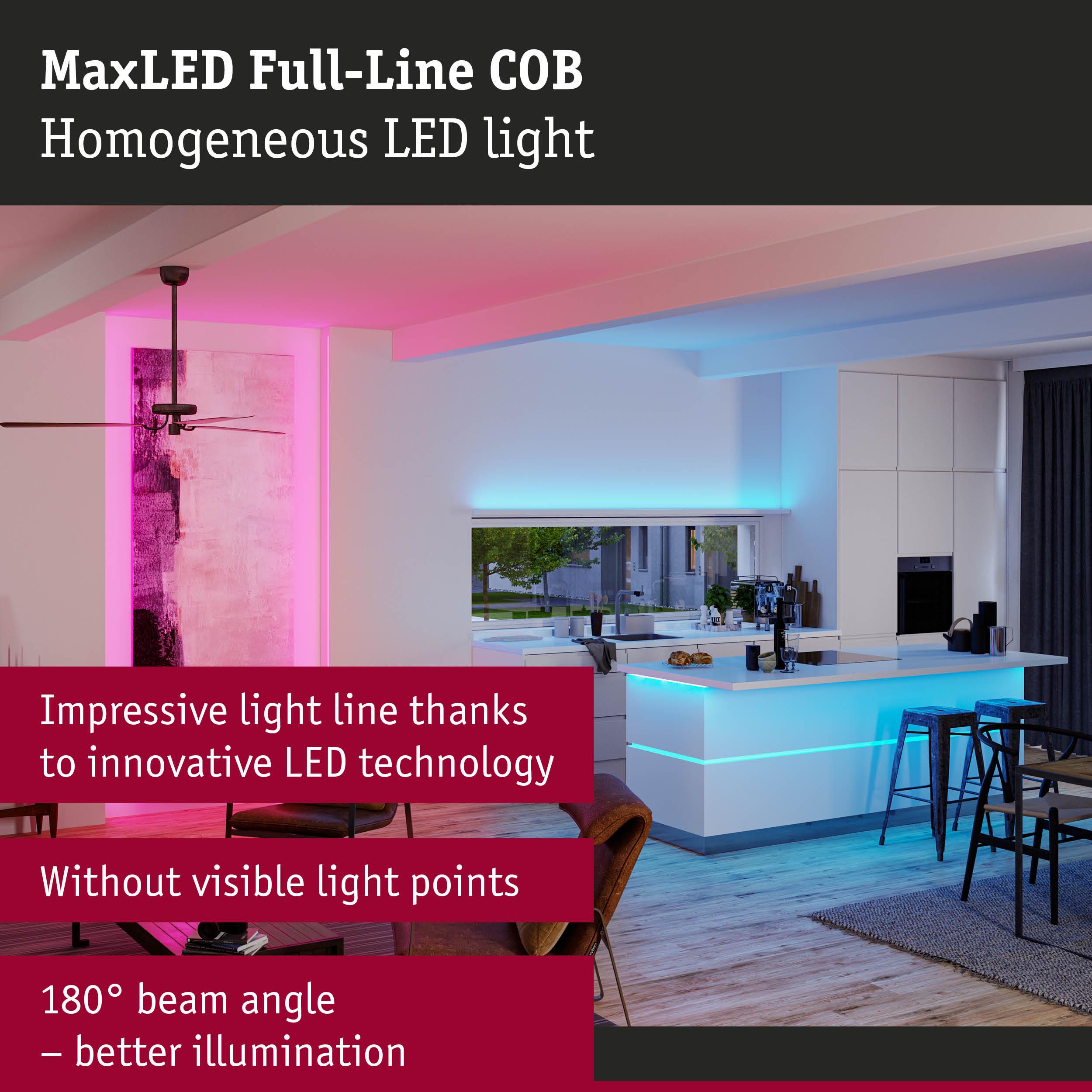

This MaxLED 500 full-line COB basic set offers all the components for impressive lighting. In addition to the strip with a length of 3m, it contains a suitable ballast. The basic set can be expanded as required with additional strips, connectors and control units with remote control. When planning, the maximum length given below must not be exceeded. With RGBW technology, you can choose from flowing colour tones and also use the Tunable White function. This creates the right atmosphere, whether it's relaxing warm white or lively and colourful.
- RGBW offers a fluid colour selection, plus the tunable white function
- Complete set incl. strip and power supply
- Can be shortened as required
- Coating protects against splashing water and dust
- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 4,5 x B: 12 mm |
| Length | 3 m |
| Shortenability Strips | 71.4 mm |
| net weight | 396 g |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 5,5 m |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 1590 lm |
| Colour change | coloured light with Tunable White function (RGBW), Tunable White |
| Color rendering index | > 80 Ra |
| Lumens per metre | 530 lm/m |
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 3000 K |
| Luminous flux LED module | 1590 lm |
| Lamp Features | |
|---|---|
| Dimming Control | with remote control |
| Inclusive lamp | yes |
| Component parts | 18 W |
| light source property | Light source integrated (non-replacable) |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP20 |
| Protection class | Protection class II |
| Number of component parts | 1x |

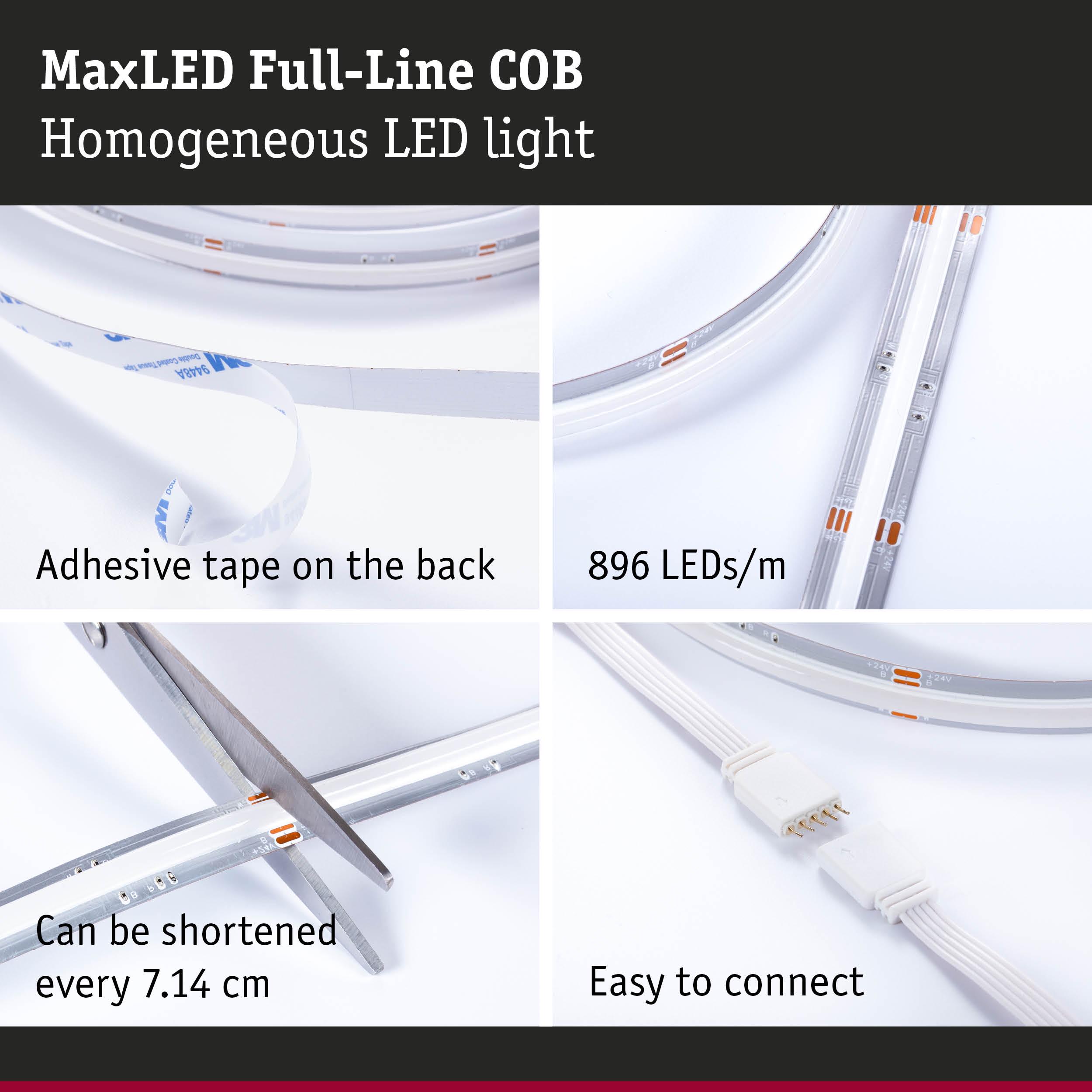

| Number of LED's per meter | 896 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 21 W |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 36 VA |
| apparent power | 21 VA |
| Transformer height | 130 mm |
| Transformer width | 43 mm |
| Transformer depth | 21 mm |
| Accessories | |
|---|---|
| Radio control included | yes |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
