Article-No.:
92935
LED Recessed panel
Areo
IP44 round 180mm 11W 770lm 3000K Nickel matt dimmable
IP44 round 180mm 11W 770lm 3000K Nickel matt dimmable
£43.95*
£20.49*
Prices incl. Standard rate VAT
- Made of easy-care plastic
- For 230 V direct connection
- IP protection: IP44 splash-protected

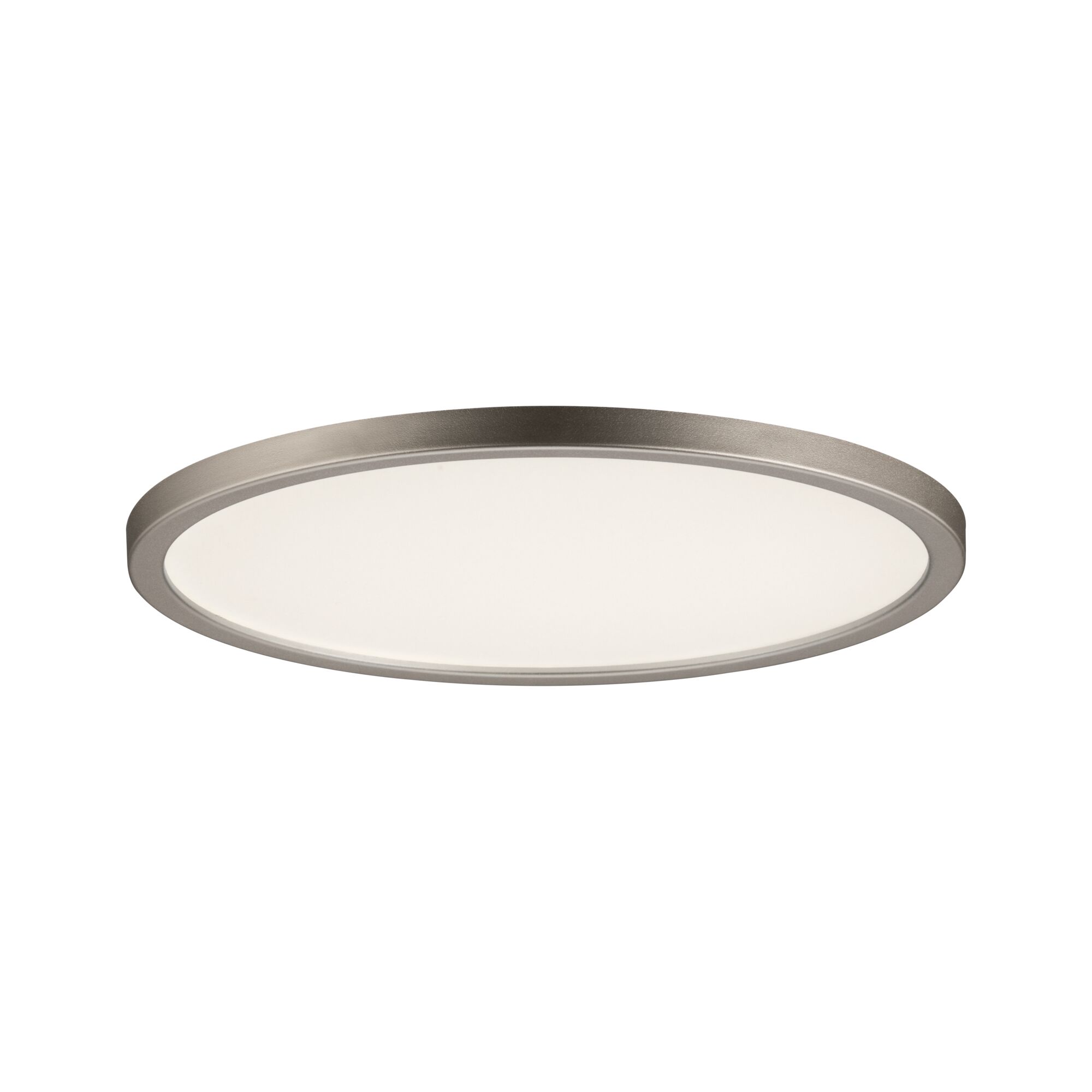

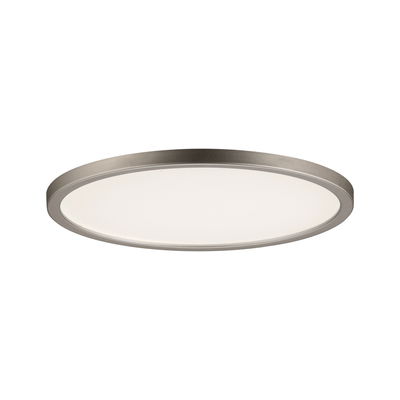

LED Recessed panel Areo IP44 round 180mm 11W 770lm 3000K Nickel matt dimmable
The round Areo LED recessed panel with a diameter of 18 centimetres and 12W power features an extra-narrow edge and dimming function. The matt nickel-coloured plastic housing is particularly easy to install and keep clean thanks to its low weight.
- Made of easy-care plastic
- For 230 V direct connection
- IP protection: IP44 splash-protected
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Dimmable
| Dimension | |
|---|---|
| Diameter | 180 mm |
| Dimensions (Height x Width x Depth) | H: 10 mm |
| Built-in diameter | 155 mm |
| Mounting depth | 35 mm |
| Depth of hollow wall | 20 mm |
| net weight | 307 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Nickel matt |
| Material | Plastic |
| Stainless | stainless |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 770 lm |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 1200 lm |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 11 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 83 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 13 W |
| Voltage | 230 V |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
