Article-No.:
93951
Plug & Shine

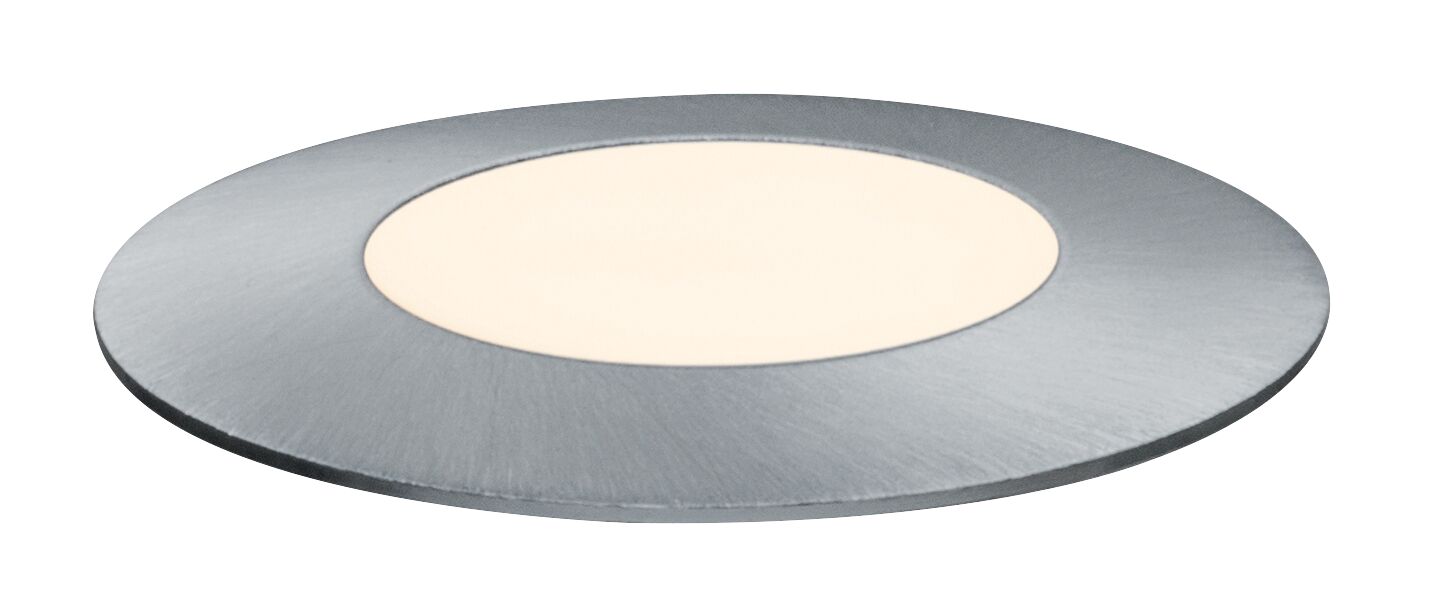

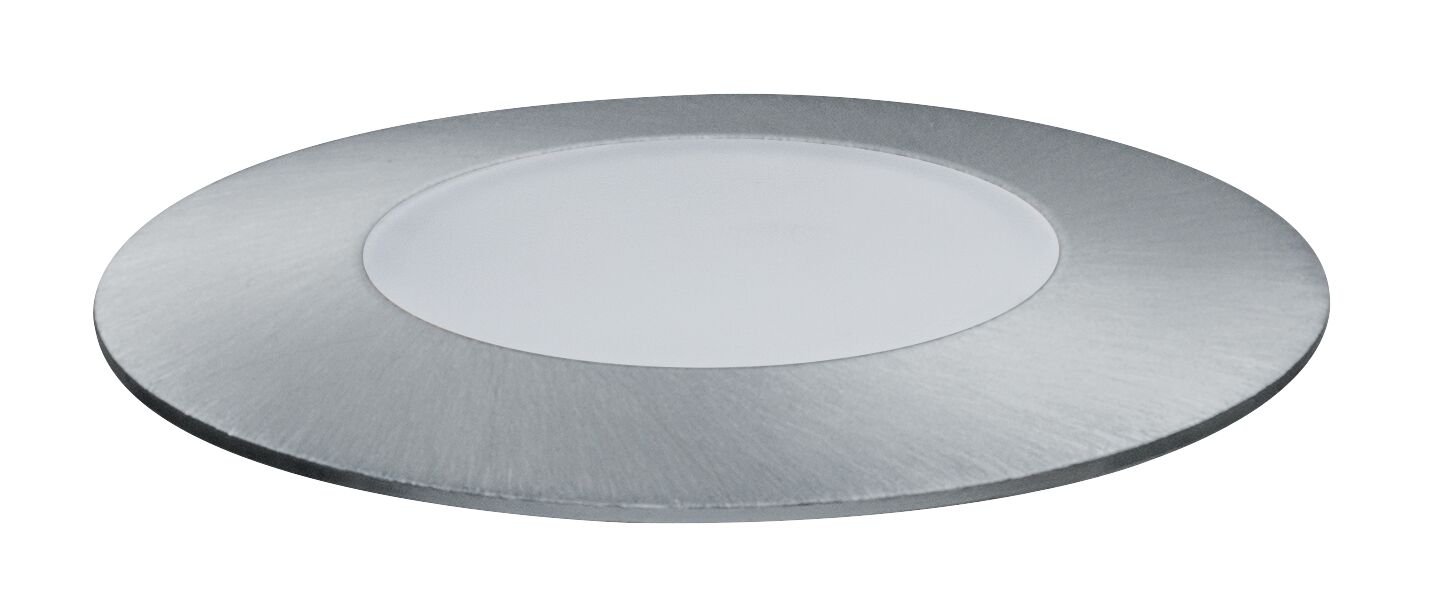

LED Recessed floor luminaire
Floor Mini Individual Spot
IP67 3000K 2,5W Silver
IP67 3000K 2,5W Silver
- 24 V floor recessed luminaire
- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion
Plug & Shine LED Recessed floor luminaire Floor Mini Individual Spot IP67 3000K 2,5W Silver

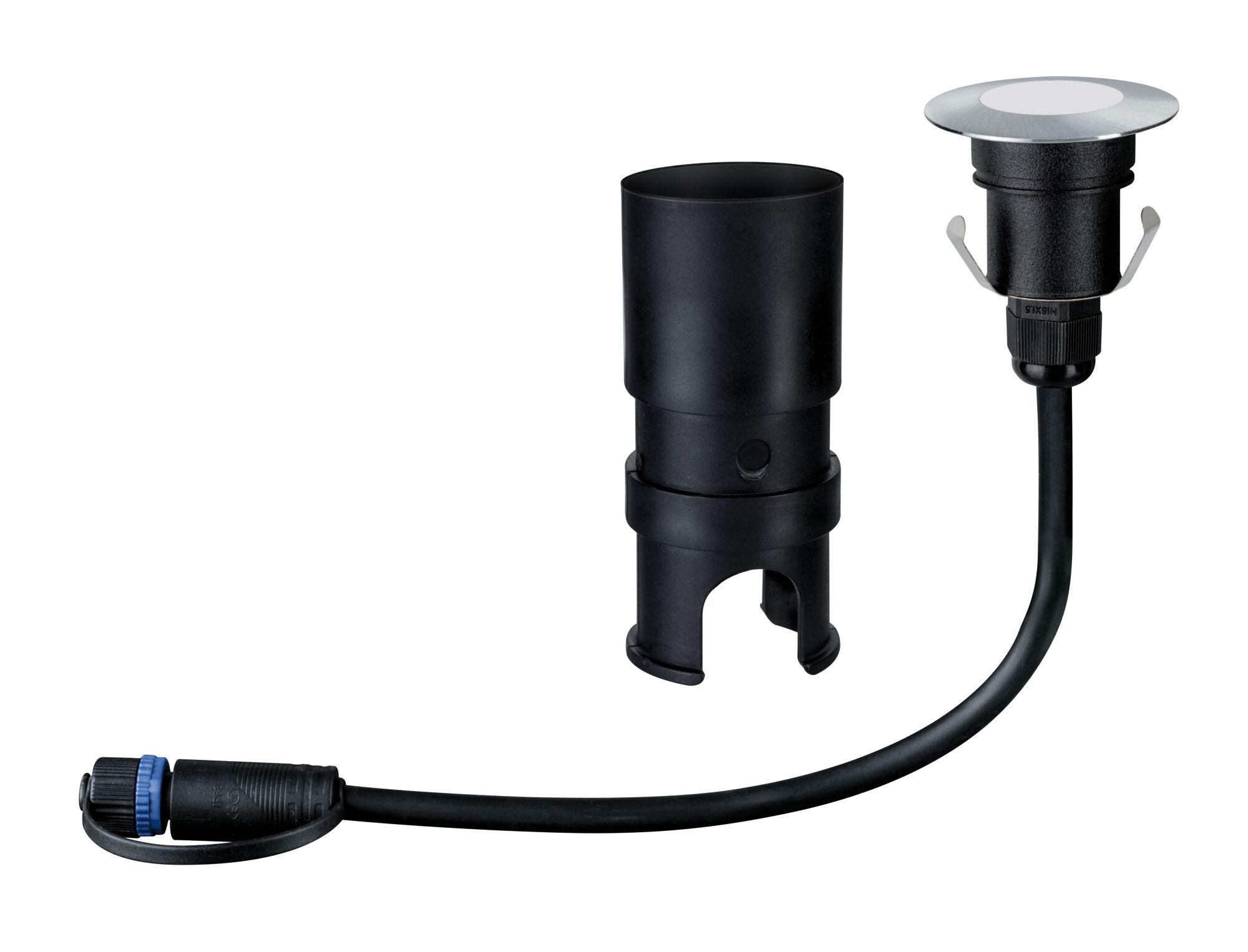

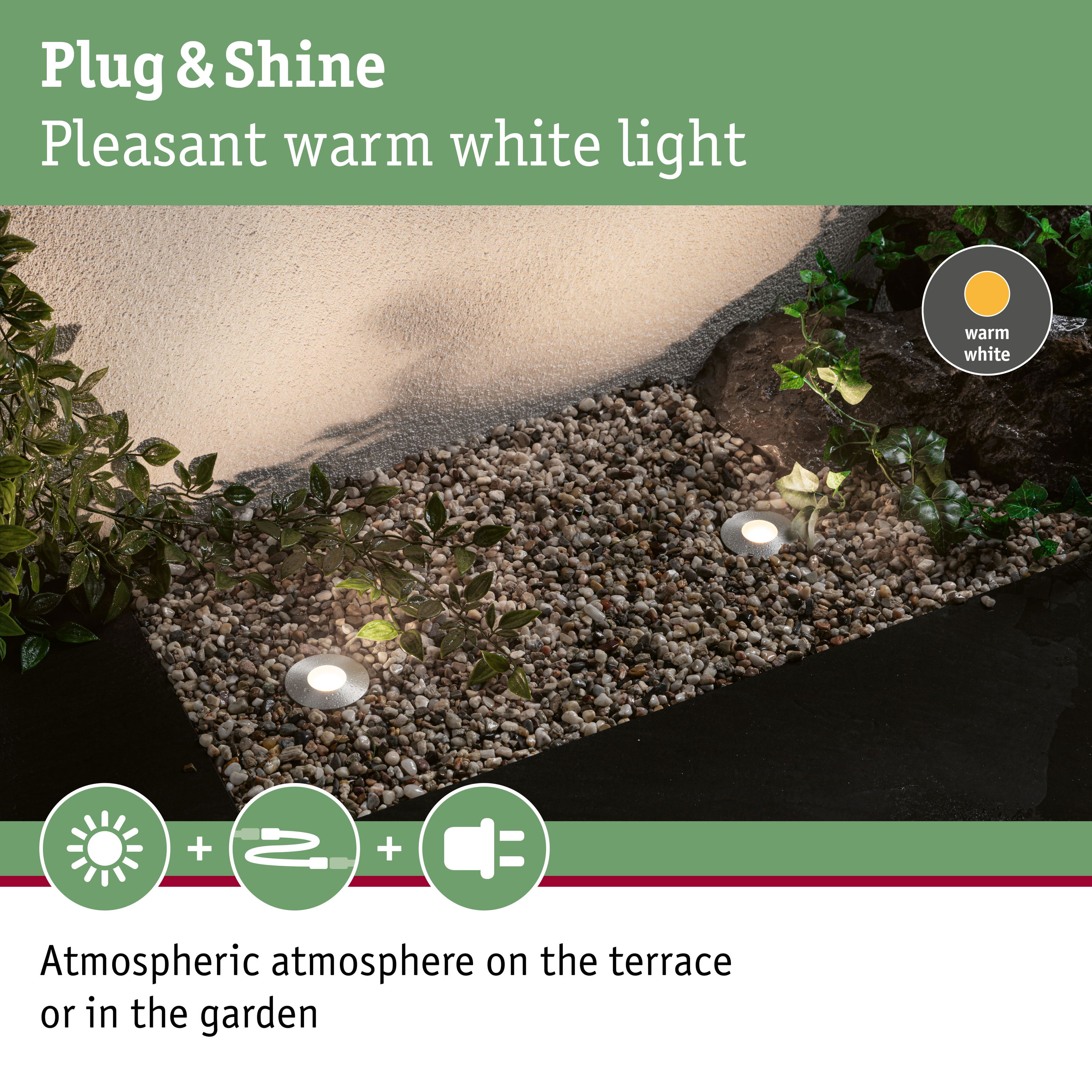

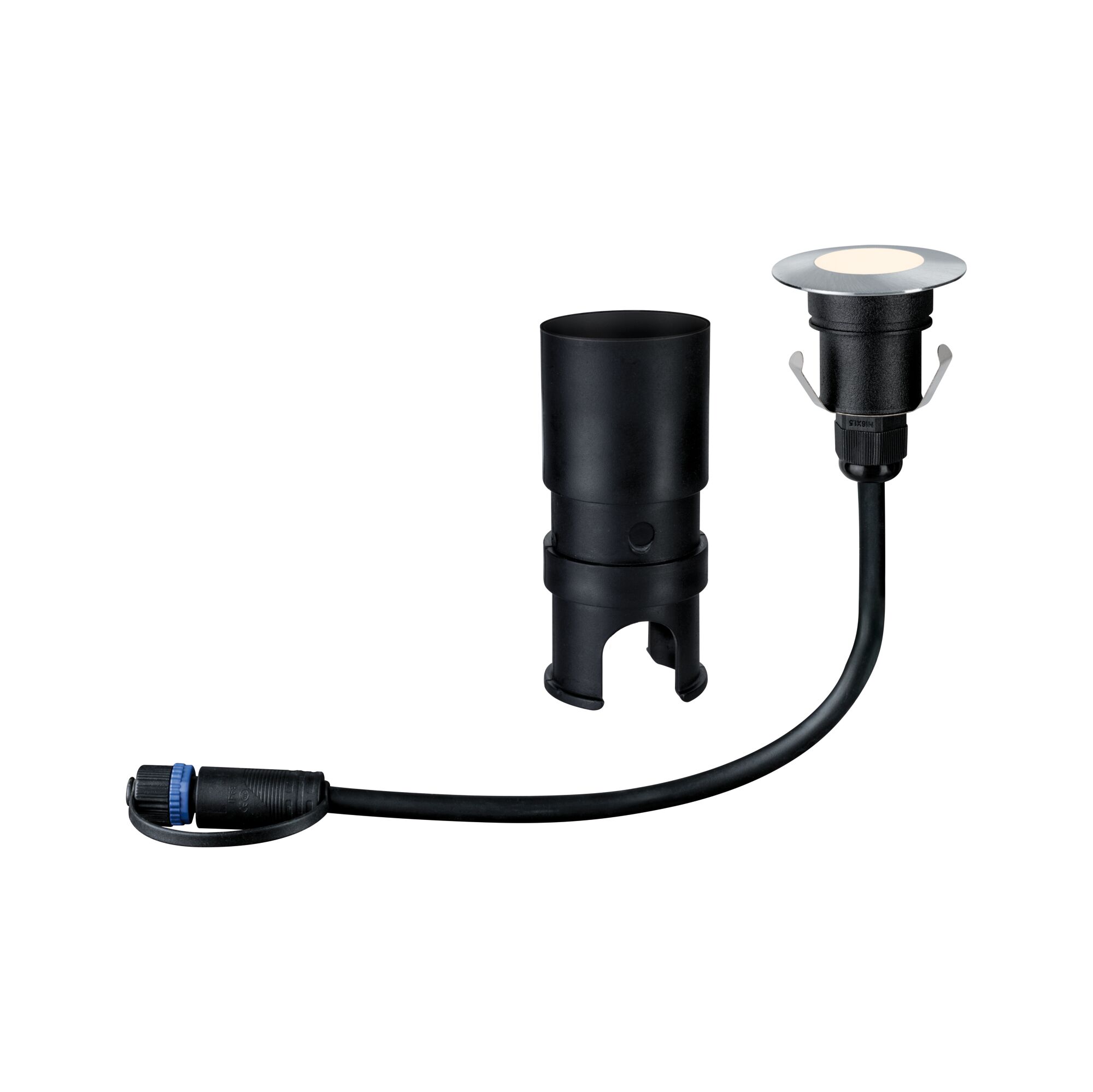

Plug & Shine Floor Mini floor recessed spotlights with water jet protection create decorative light points in warm white on paths, driveways and patios. An installation sleeve is included in the delivery. With transformers, connectors and additional luminaires from the Plug & Shine series, you can compile an individual lighting installation for your outdoor spaces. It can't be walked on or driven over.
- 24 V floor recessed luminaire
- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Sits flush with the floor; can be run over with a lawnmower
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.
| Dimension | |
|---|---|
| Total Mounting depth | 55-105 mm |
| Dimensions (Height x Width x Depth) | H: 90 mm |
| Ø | 55 mm |
| Mounting hole | 40 mm |
| Form | round |
| Depth of hollow wall | 40 mm, 40-90 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Silver |
| Material | Plastic, Stainless steel |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11, Paulmann Plug & Shine ZigBee Controller 939.99 |
| Application | For decorative light points on paths, driveways and patios |
| Installation site (recommendation) | Floor mounting |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 95 ° |
| Luminous flux LED module | 250 lm |
| color temp | 3000 K |
| Color rendering index | > 80 Ra |
| Beam angle LED module | 120 ° |
| Lamp Features | |
|---|---|
| Component parts | 2,5 W |
| Technique | LED |
| IP protection | IP67 |
| Dim | with dimmer |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 10 W |
| Number of component parts | 1x |
| protection class | protection class III |
| Maximum load | 500 kg |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 2,5 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
