Article-No.:
95370
URail
Panel
Campo
1541,7lm 15,5W 3000K dimmable 230V White
1541,7lm 15,5W 3000K dimmable 230V White
£163.00*
Prices incl. Standard rate VAT
- URail system lamp incl. assembly instructions
- Area lighting
- For wall and ceiling mounting

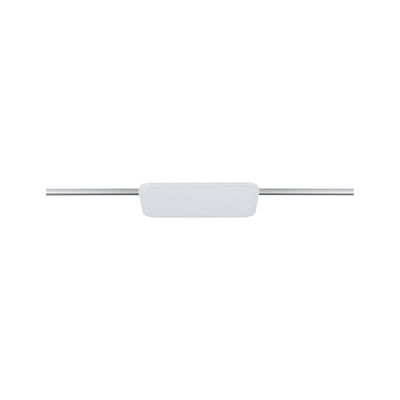

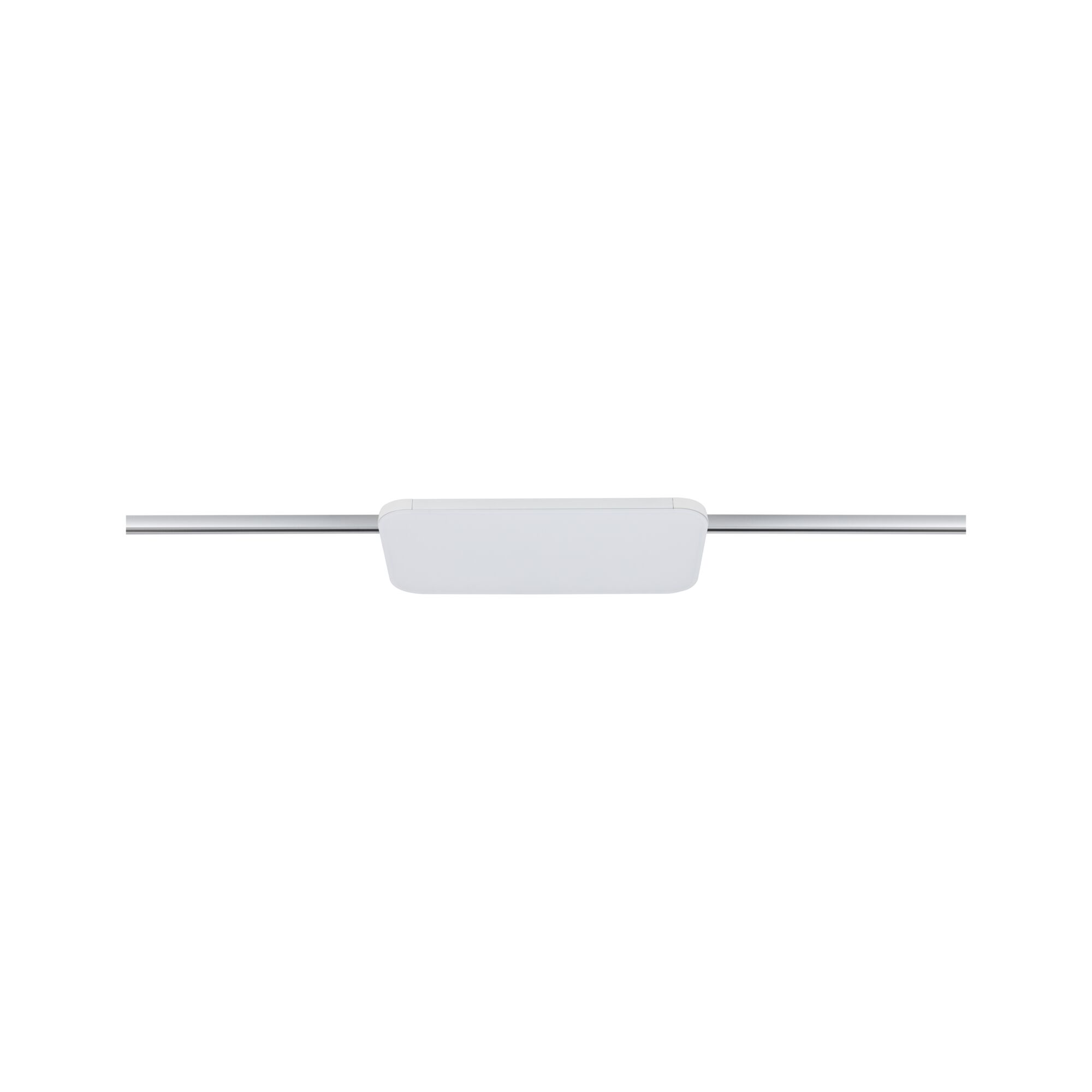

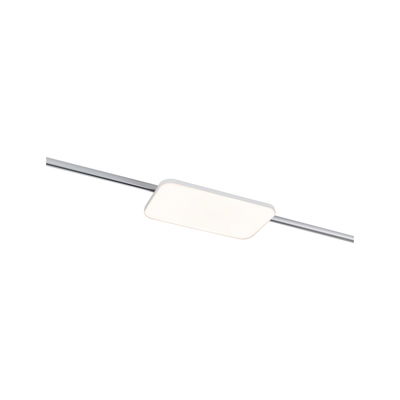

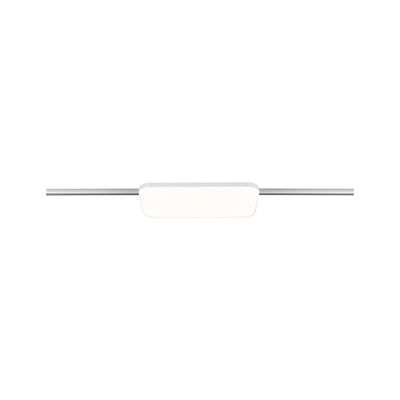

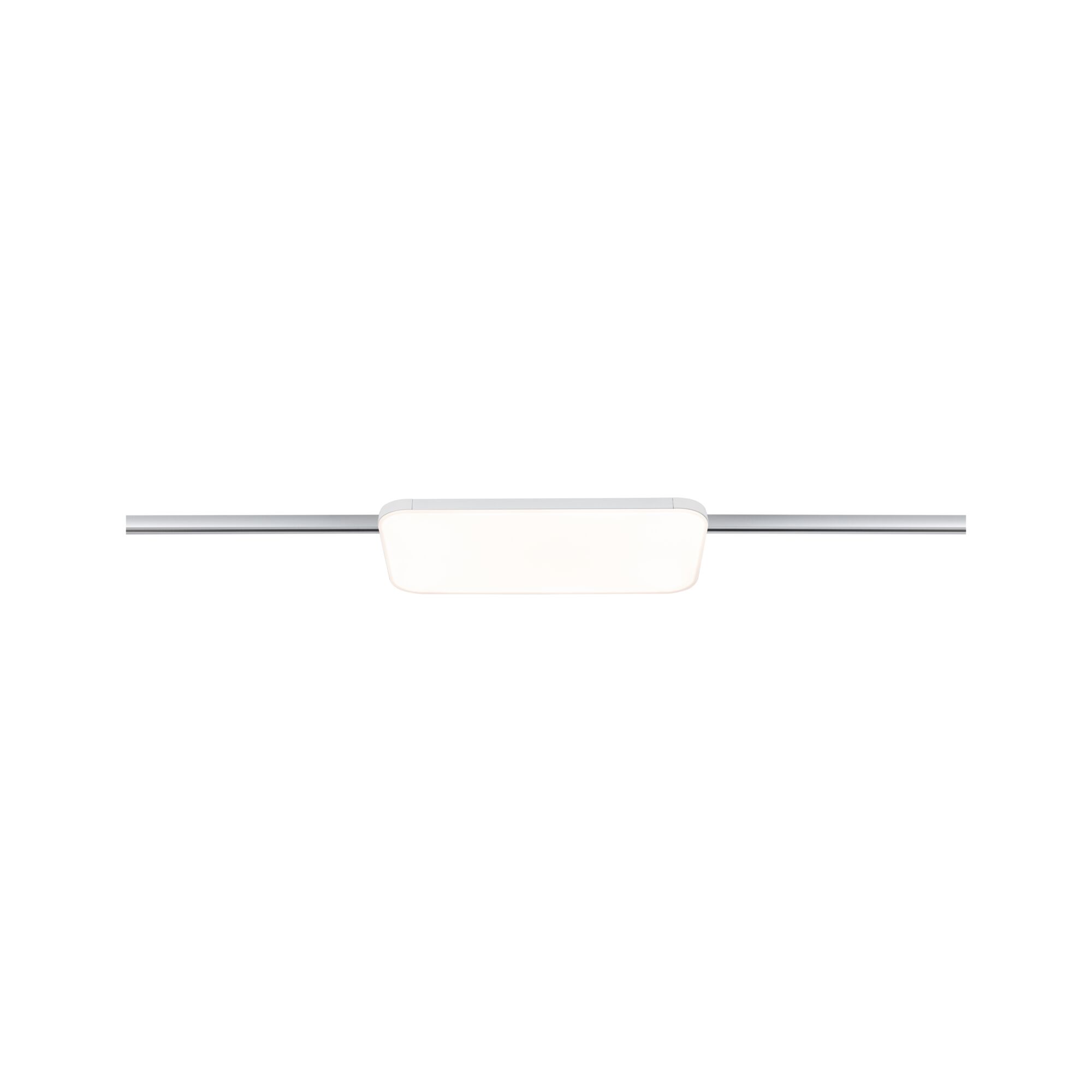

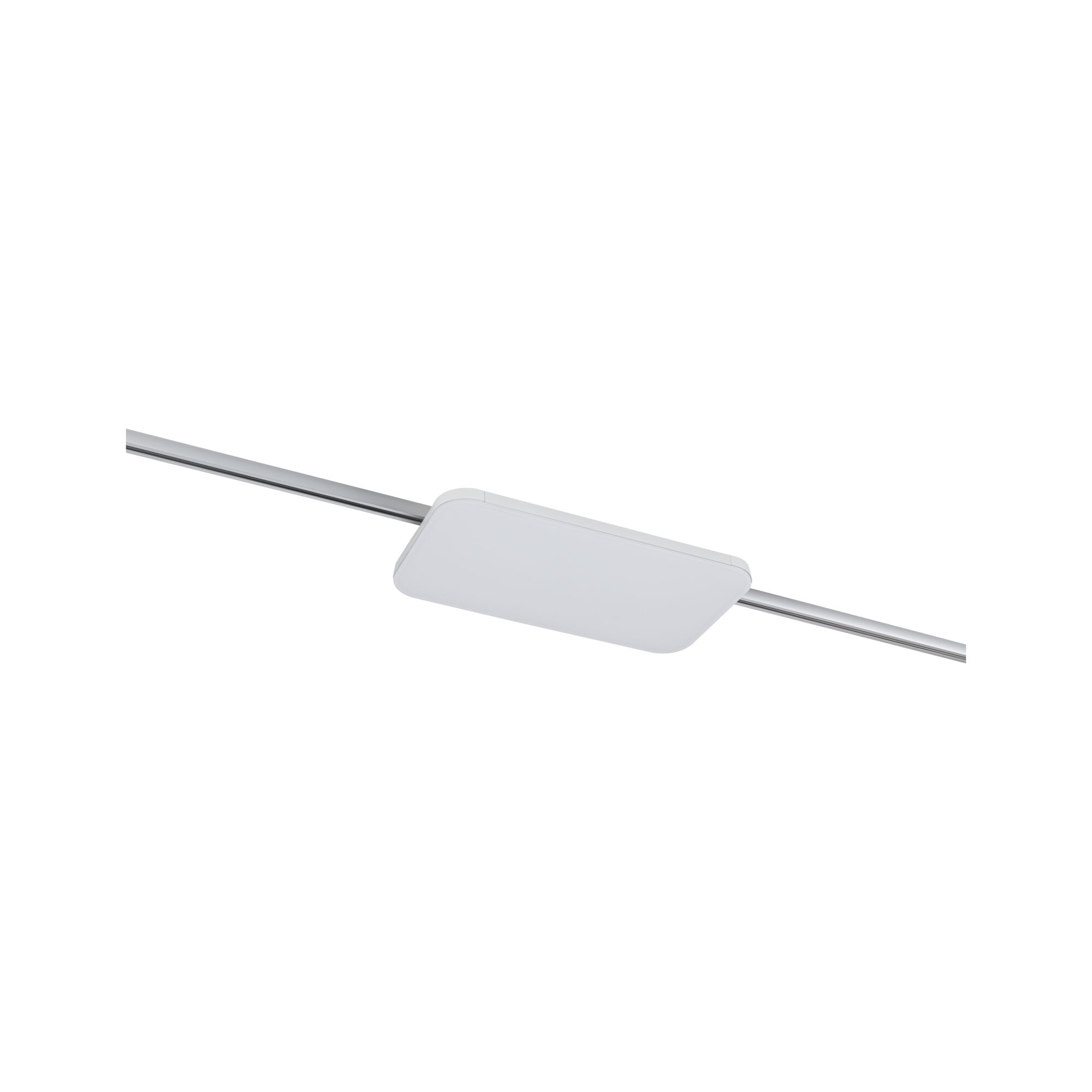

URail Panel Campo 1541,7lm 15,5W 3000K dimmable 230V White

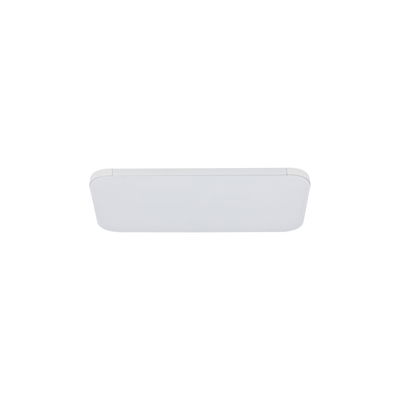

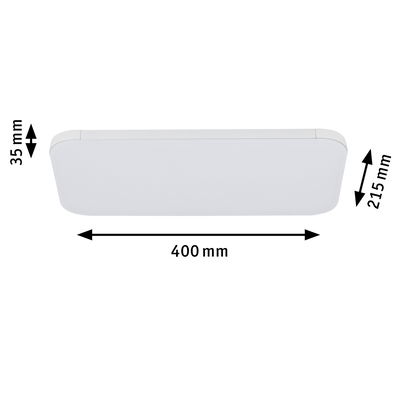

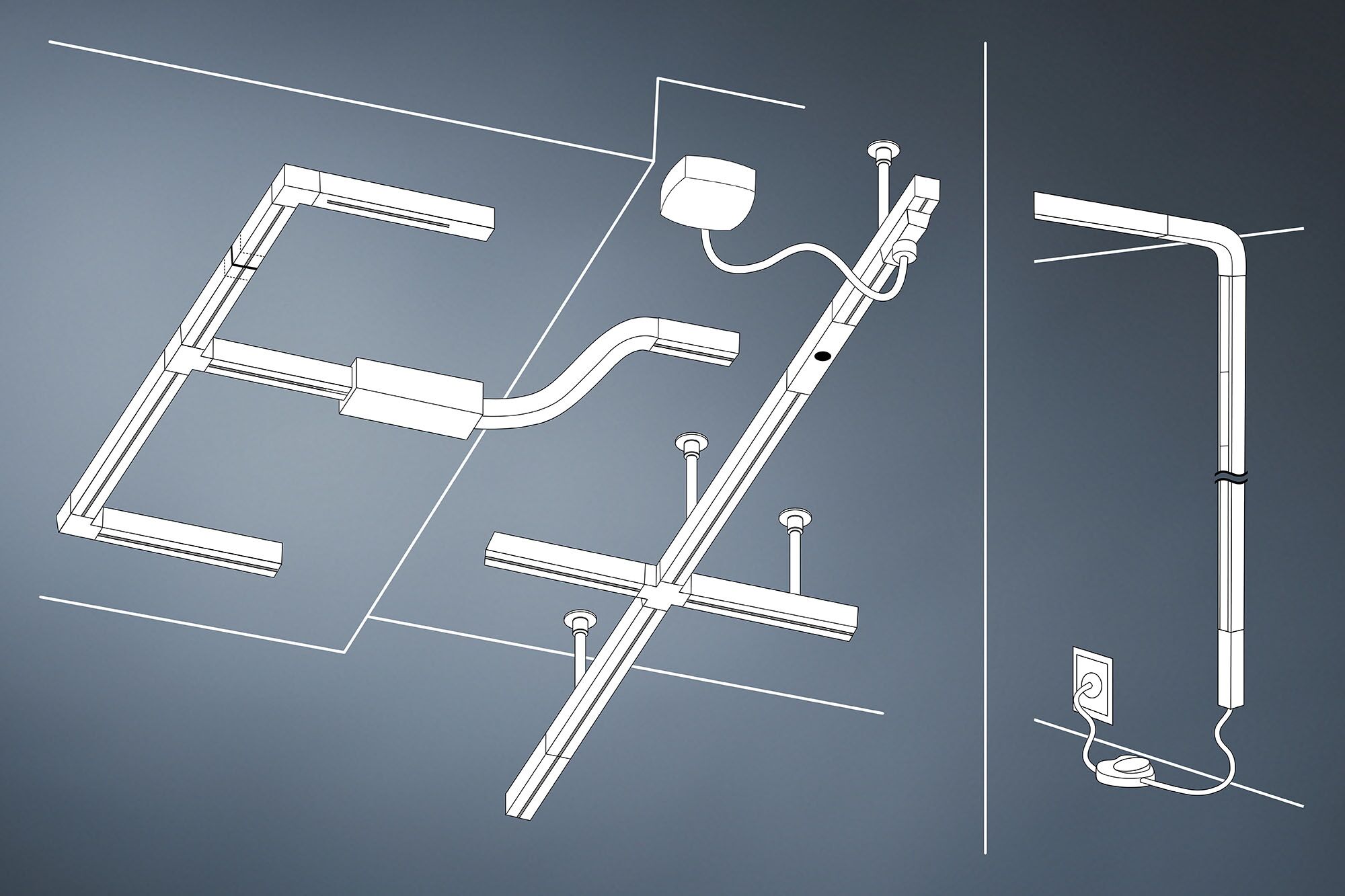

The innovative white URail LED panel Campo with the dimensions 40 cm x 21.5 cm casts a broad, glare-free light and is right on trend. With the versatile URail 230 V rail system, different areas of the room can be very easily illuminated. The panels can be install either on the wall or the ceiling, and provide attractive basic lighting.
- URail system lamp incl. assembly instructions
- Area lighting
- For wall and ceiling mounting
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
| Dimension | |
|---|---|

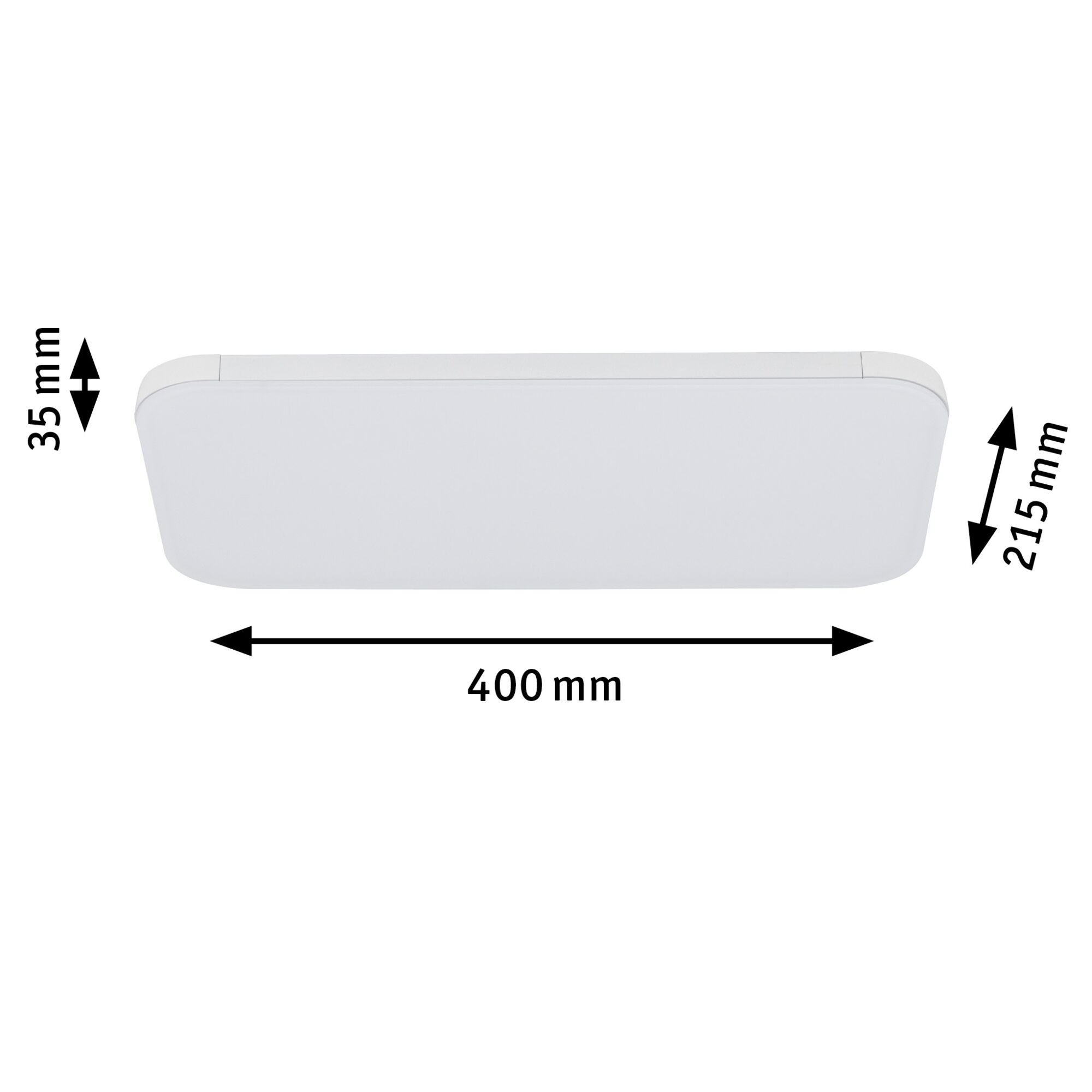

| Dimensions (Height x Width x Depth) | H: 51 x B: 400 x T: 215 mm |
| Form | square |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Metal |
| Installation | |
|---|---|
| can be used with the following dimmers | RC Kopp 8035.0208.0 /8078, RC REV Ritter 501448551, RL Busch-Jäger 2247 U, RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED, RC Jung 225 T DE, Paul, Paulmann URail 500.50/-51/968.15, RC Gira 0307 00/I02, RLC Busch-Jäger 6523-U-102, RC Busch-Jäger 6513U-102 |
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 1541,7 lm |
| Luminous flux LED module | 2000 lm |
| color temp | 3000 K |
| Lamp Features | |
|---|---|
| Component parts | 15,5 W |
| Technique | LED |
| Dim | with dimmer |
| Dimmable | with dimmer R, L, C (universal compatibility) |
| Inclusive lamp | yes |
| Total Width | 400 mm |
| Incandescent Equivalent | 142 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 17,5 W |
| Transformer | |
|---|---|
| apparent power | 17 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
