Article-No.:
71152
LED Panel
Atria Shine Backlight
IP44 round 190mm 11,2W 850lm 3000K White
IP44 round 190mm 11,2W 850lm 3000K White

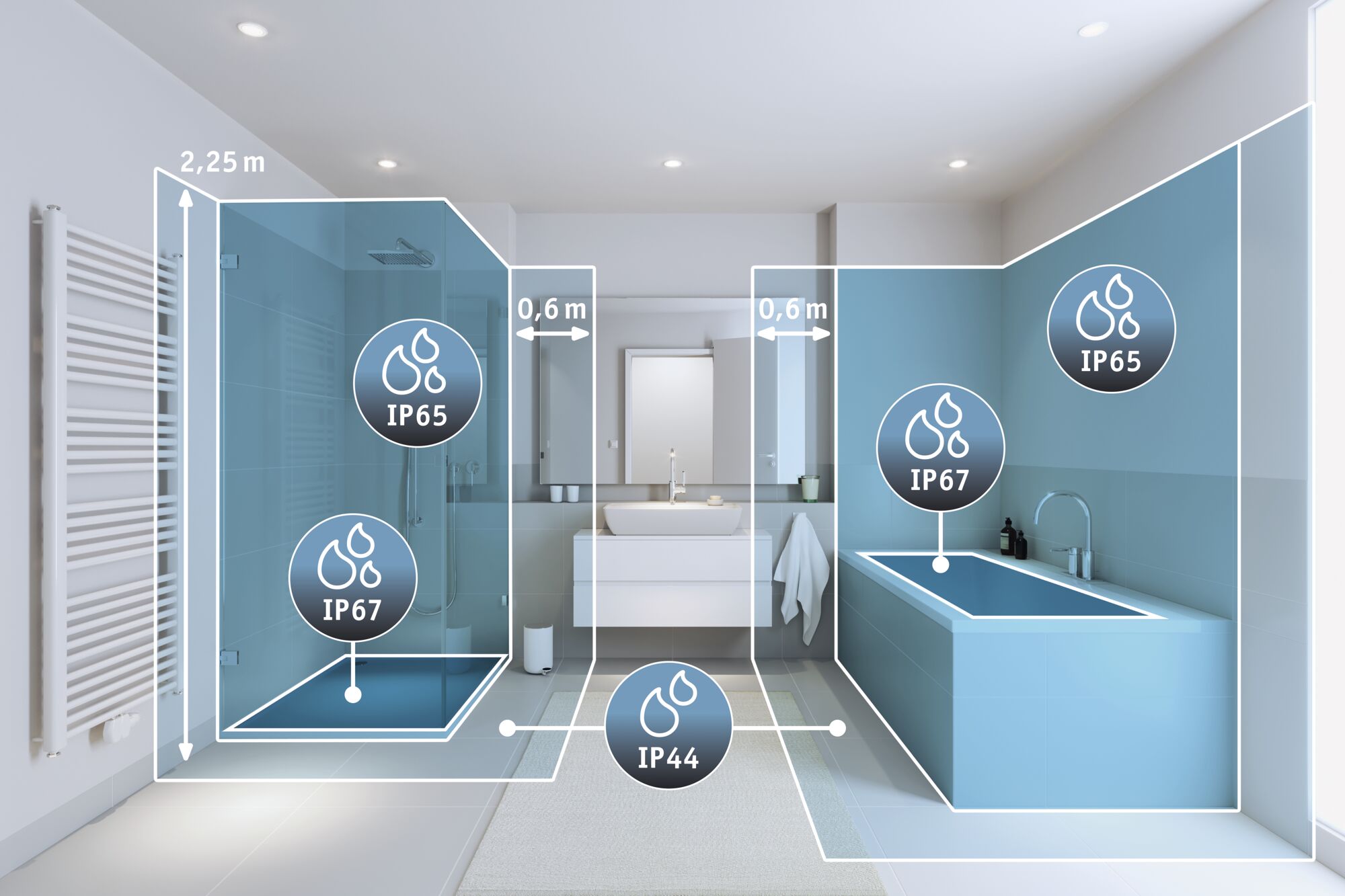

- IP44 splash-protected for bathrooms and similar rooms

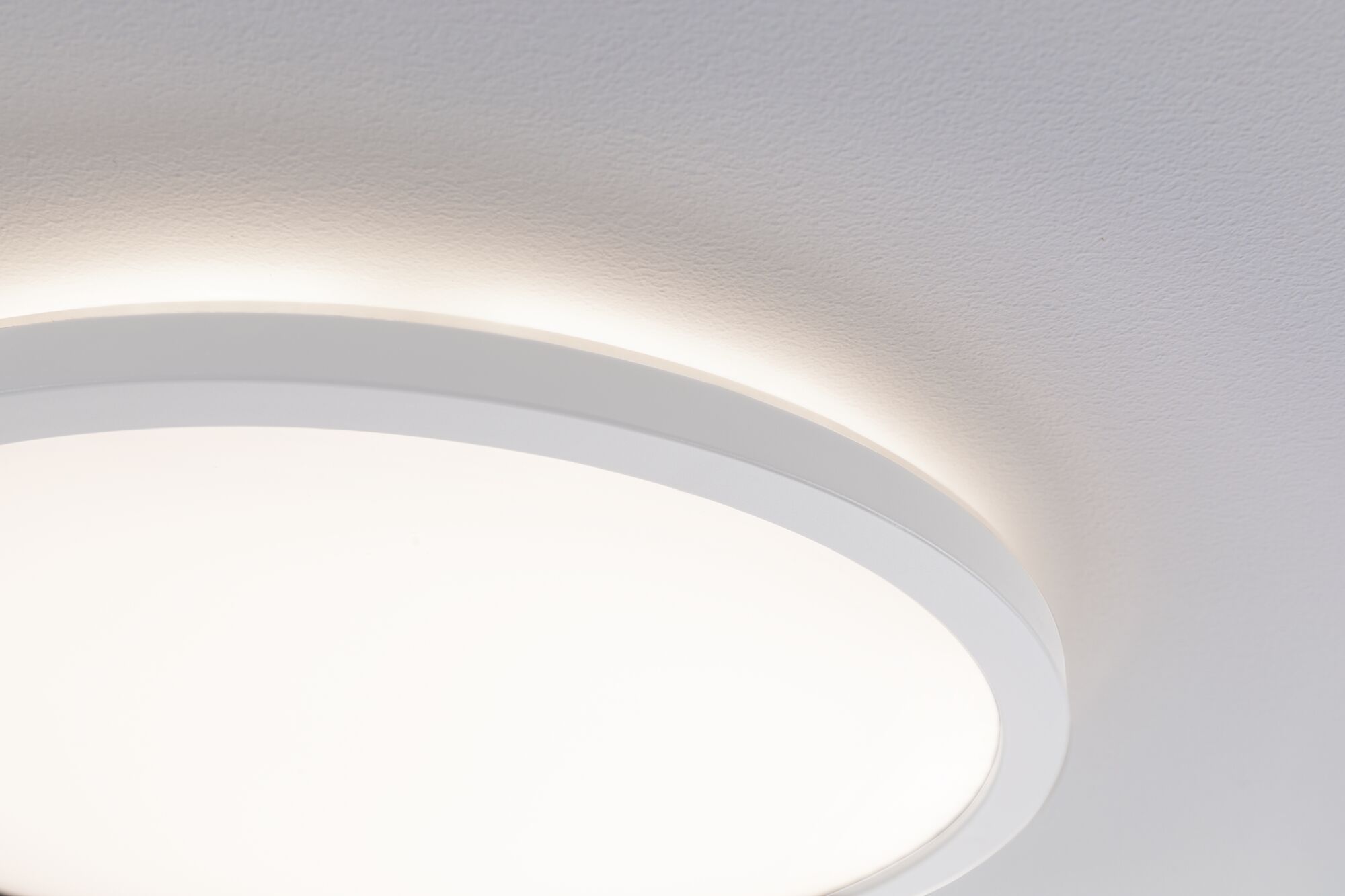

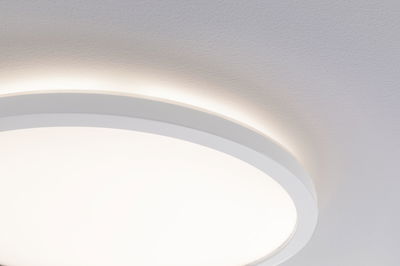

- Backlight technology for subtle, almost floating appearance of the luminaire
- Ultra-flat design: Installation height of only 28 mm

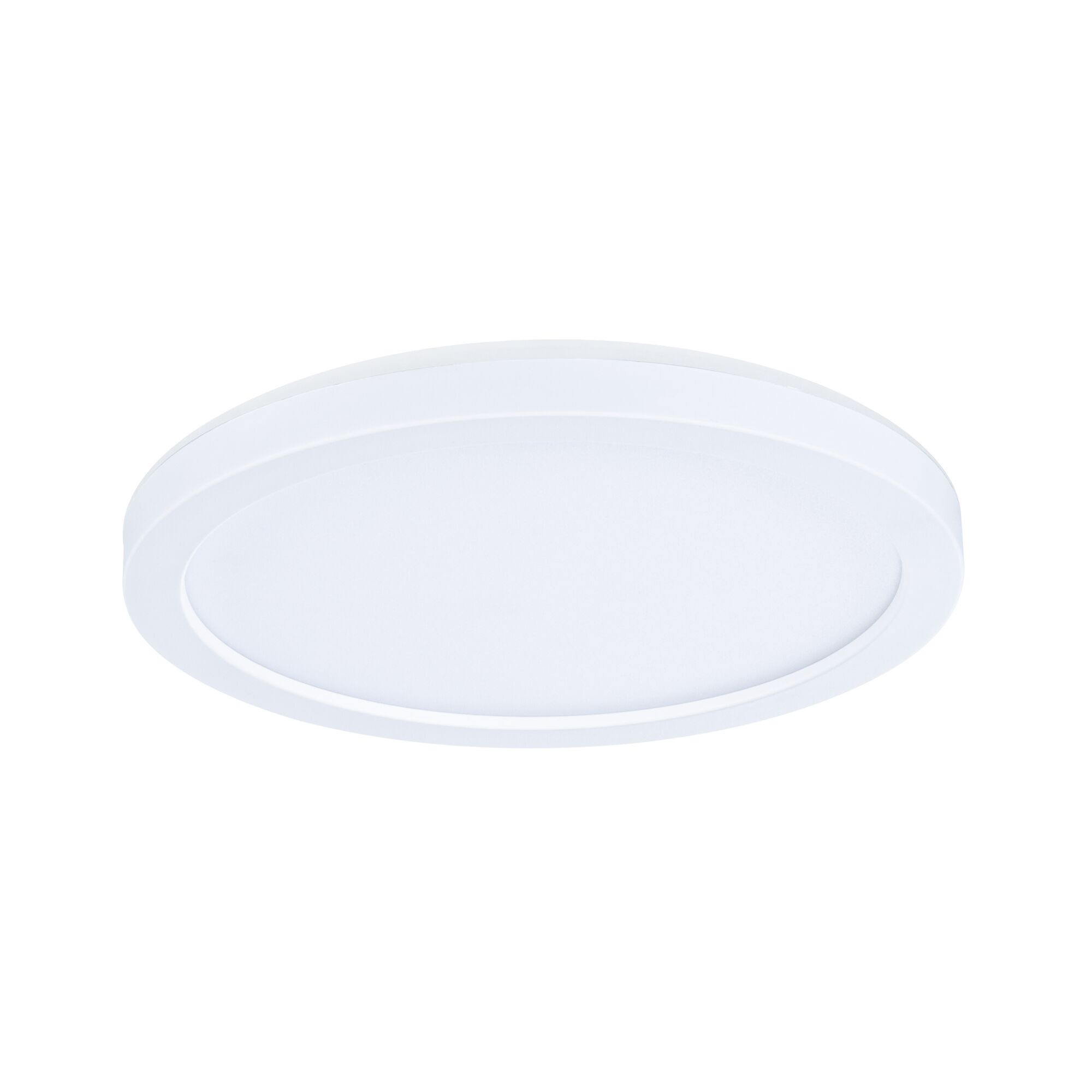

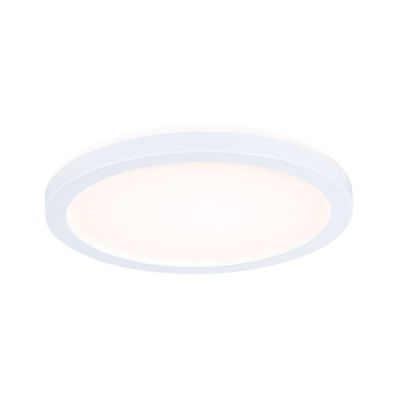

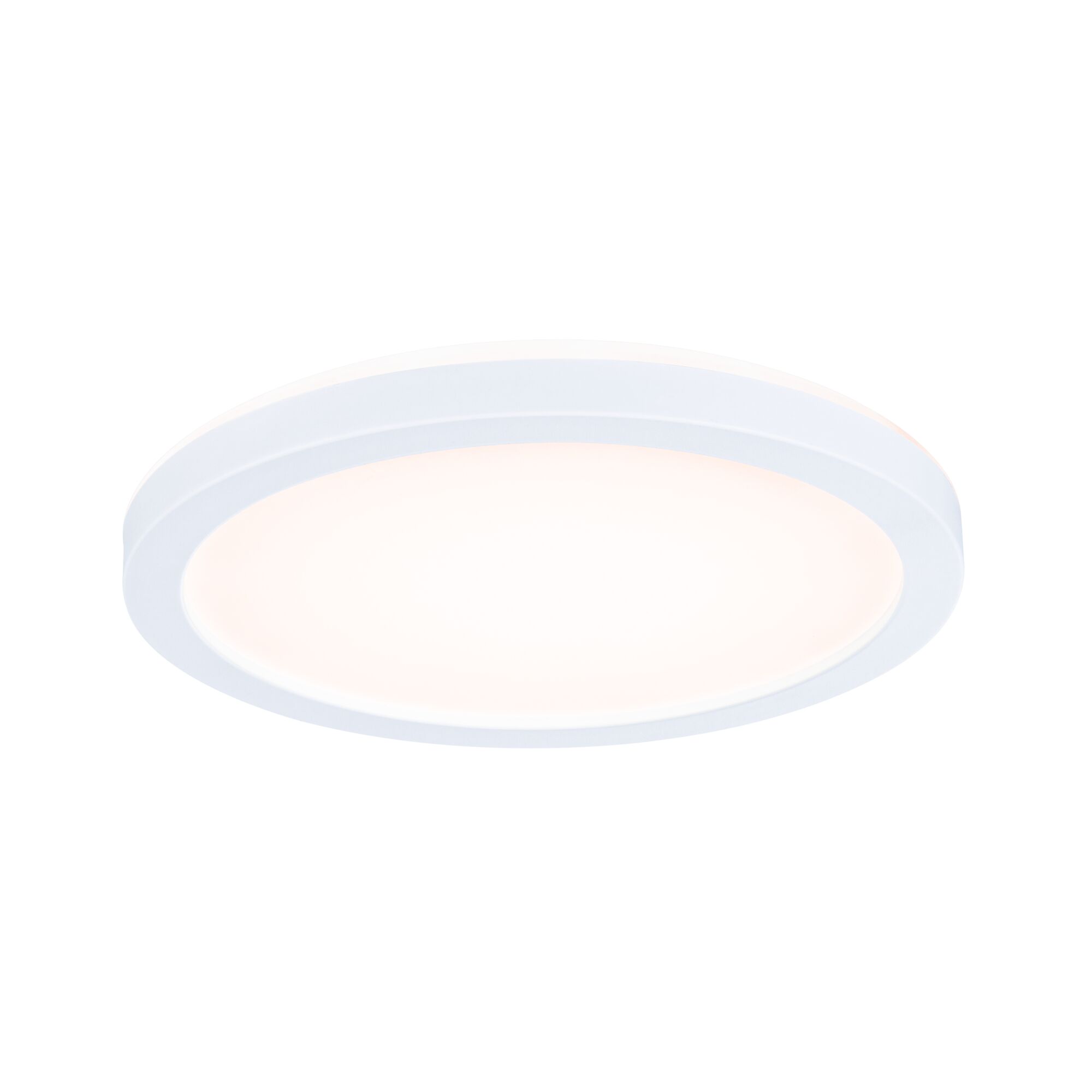

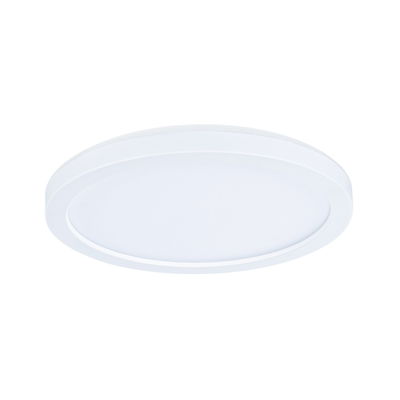

LED Panel Atria Shine Backlight IP44 round 190mm 11,2W 850lm 3000K White

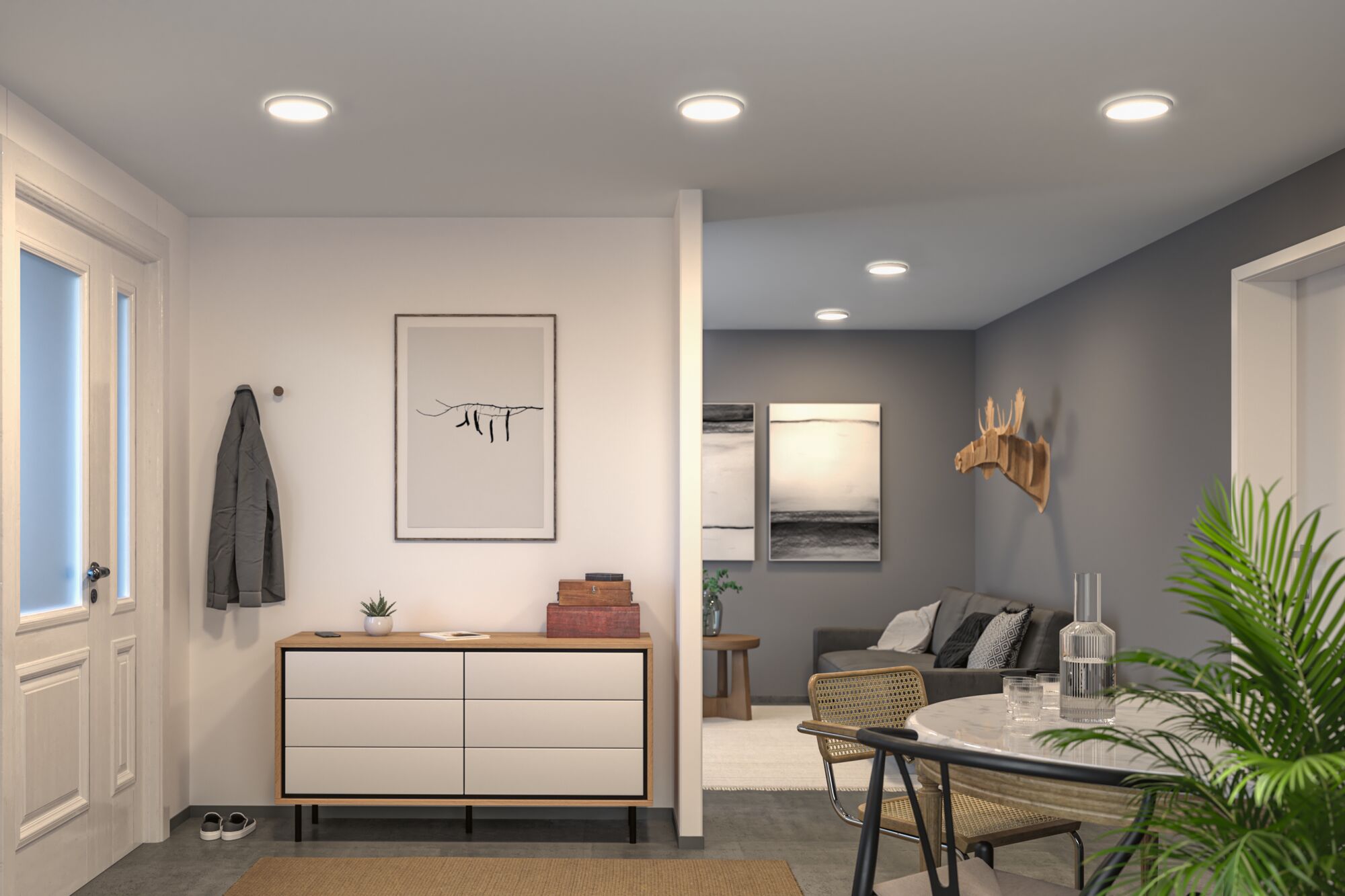

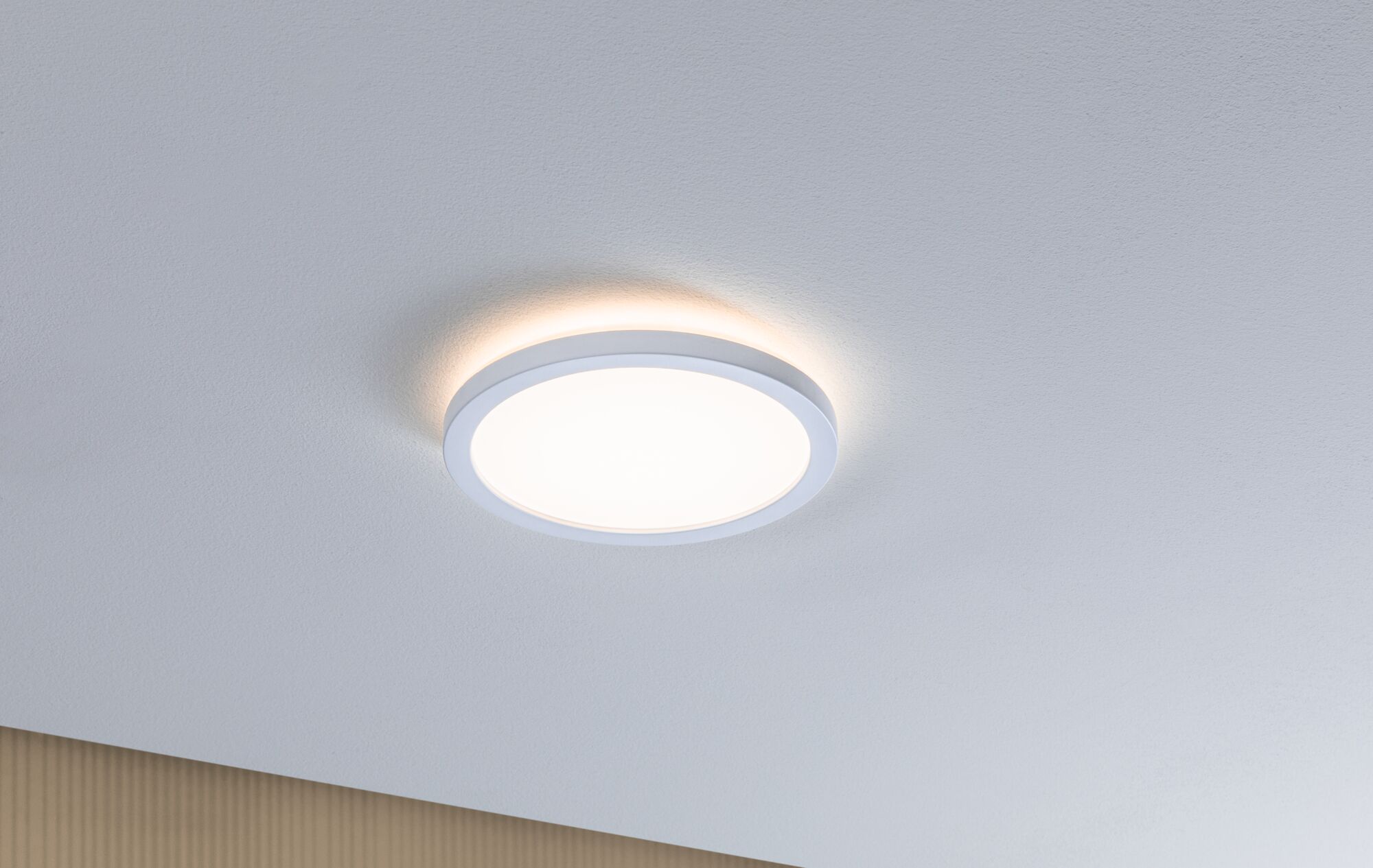

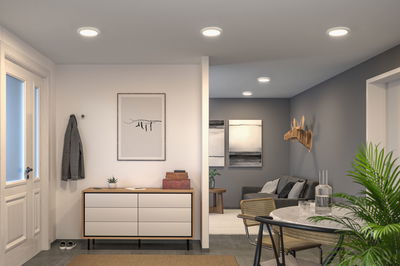

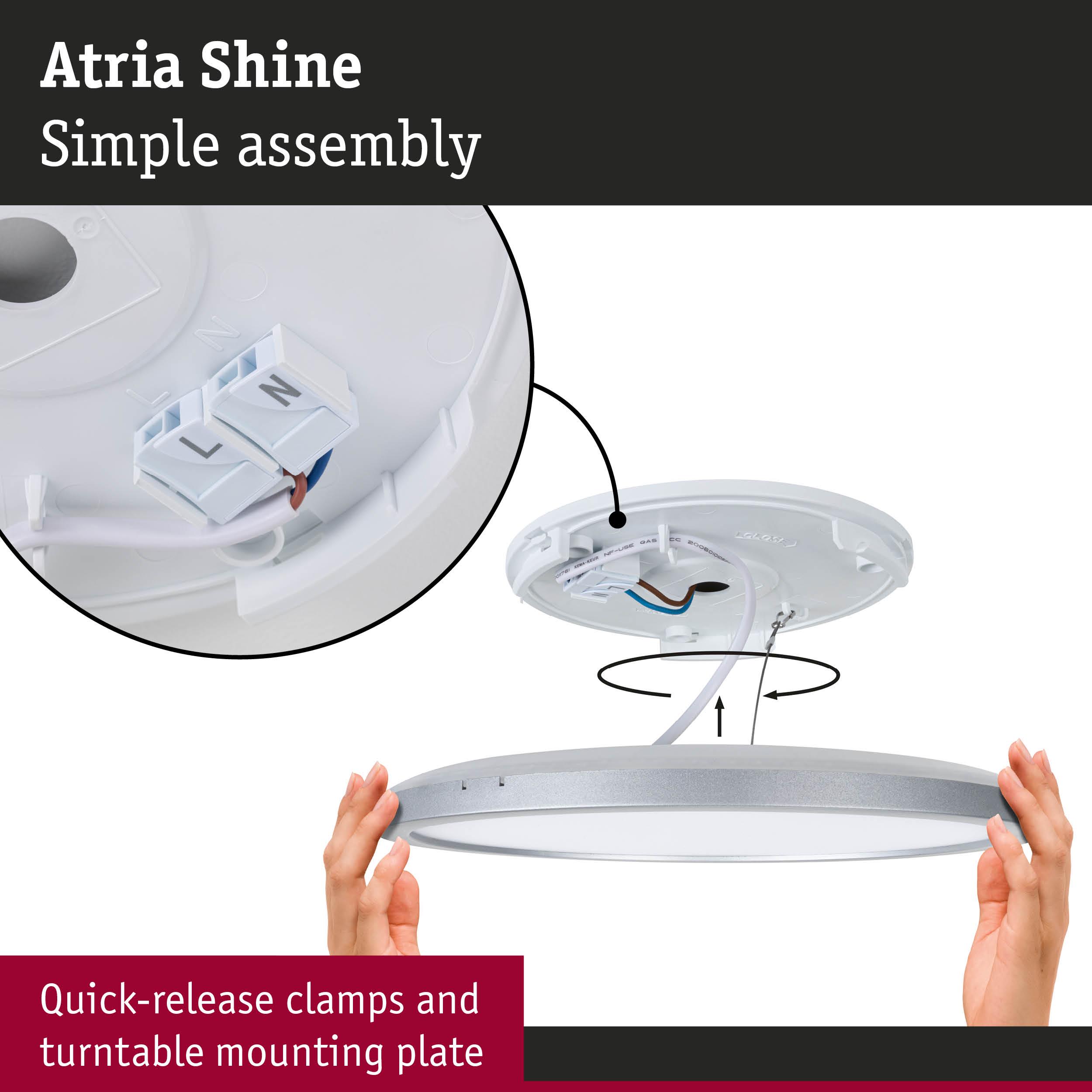

With an output of 11,2W, the rounde Atria Shine LED panel in White and 190mm is ideal for basic lighting in living rooms, bedrooms and kitchens. The warm white light of the panel creates uniform and wide-area room illumination. Additional backlight technology produces a magical feel-good atmosphere and gives the panel an almost floating luminous appearance. With a quick clip, a special twist lock and an ultra-flat installation height of 28 mm, the panel is very easy to install.
- IP44 splash-protected for bathrooms and similar rooms
- Backlight technology for subtle, almost floating appearance of the luminaire
- Ultra-flat design: Installation height of only 28 mm
- Color temperatur: 3000K - Warm white
- Can be mounted on wall or ceiling
- Even room light based on cutting-edge LED technology
- Especially flat construction
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 30 mm |
| Ø | 190 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | White |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 850 lm |
| Luminous flux LED module | 1340 lm |
| color temp | 3000 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 11,2 W |
| Technique | LED |
| IP protection | IP44 ceiling mounting |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 90 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 12,5 W |
| Transformer | |
|---|---|
| Transformer power | 18 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
