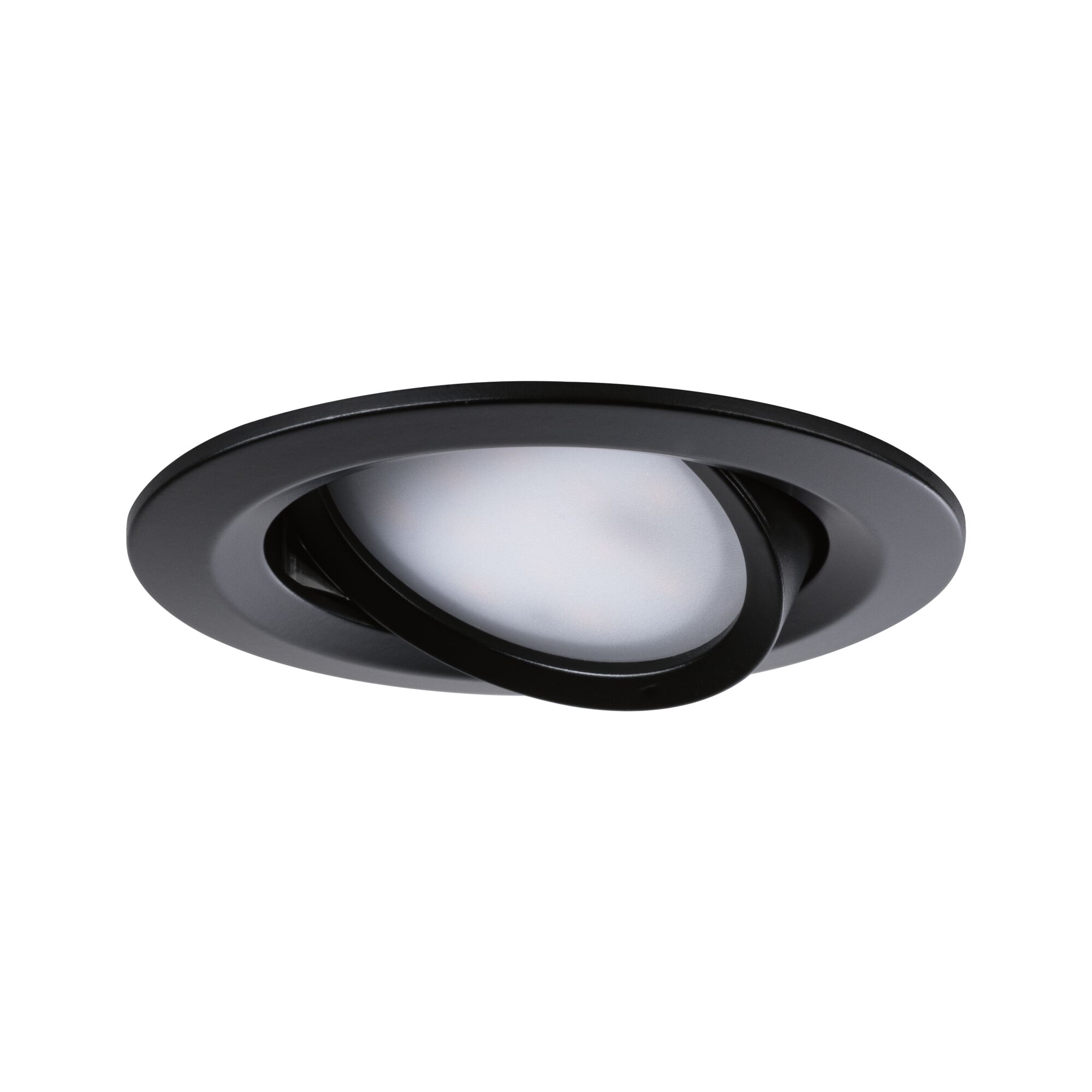

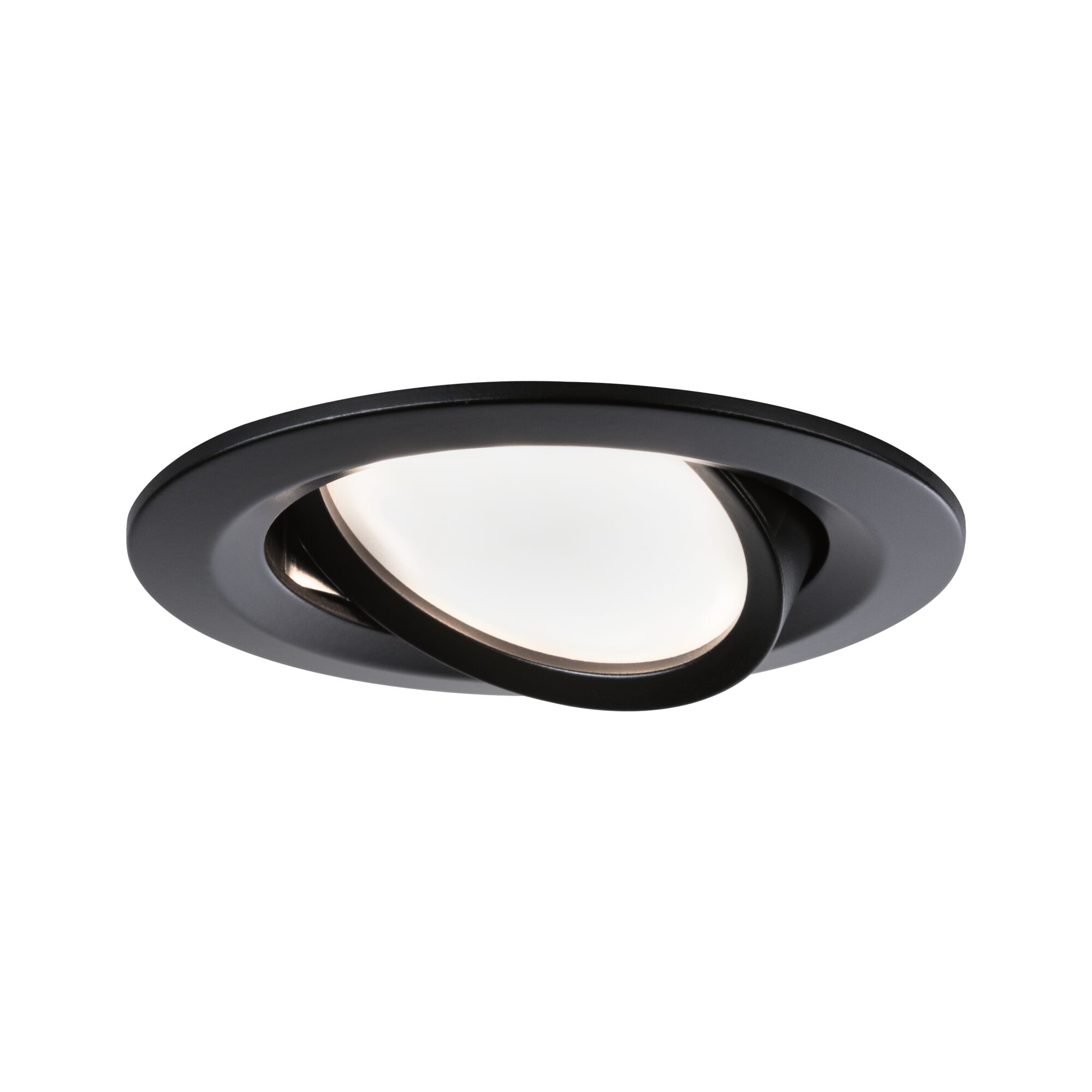

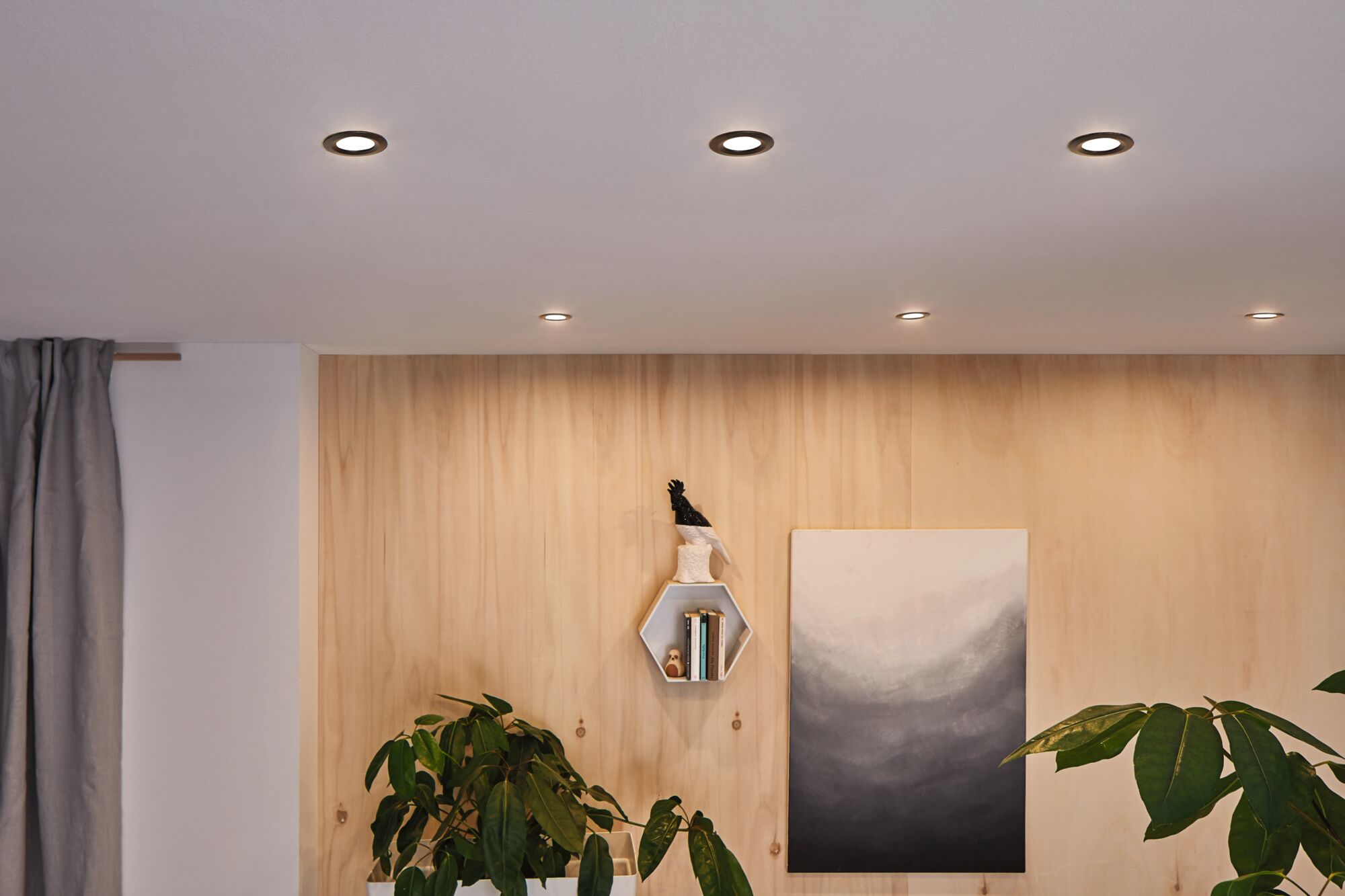

LED Recessed luminaire 3-Step-Dim Nova Coin Basic Set Swivelling round 84mm 50° Coin 3x6W 3x470lm 230V dimmable 2700K Black matt

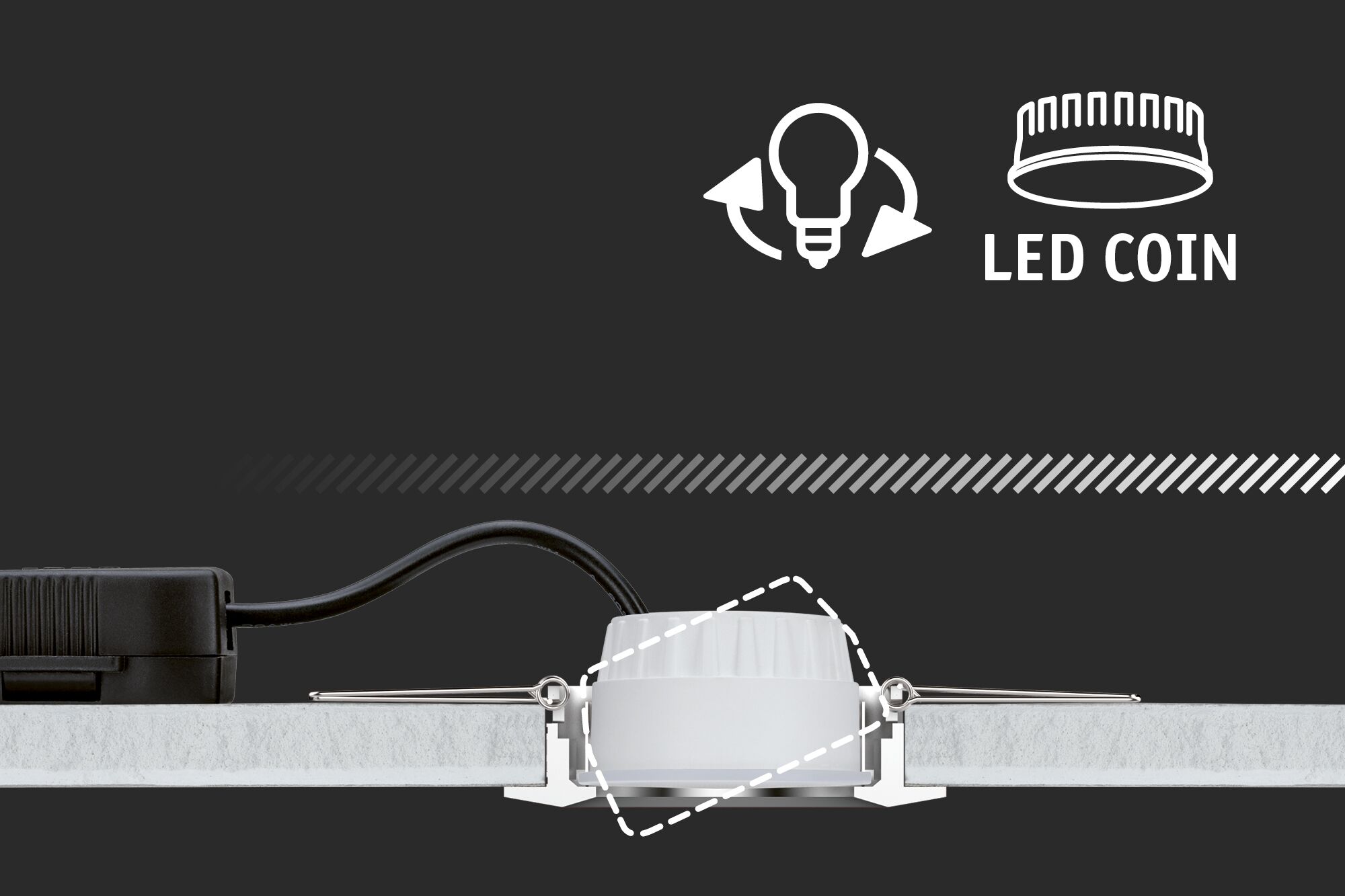

The swivelling and dimmable Nova recessed spotlights with 3x6 watts in Black matt provide effective lighting, a harmonious design and high energy efficiency. As the lamp is inserted from behind, no snap rings are necessary. This preserves the puristic aesthetic of the luminaire. Thanks to the 230V direct connection, an unlimited number of luminaires can easily be linked together. Thanks to the simple fixing method with retaining springs, the ceiling remains undamaged, even after multiple installations and removals. Efficient, long-lasting LED lamps are included, and guarantee a comfortable atmosphere with their warm white light.

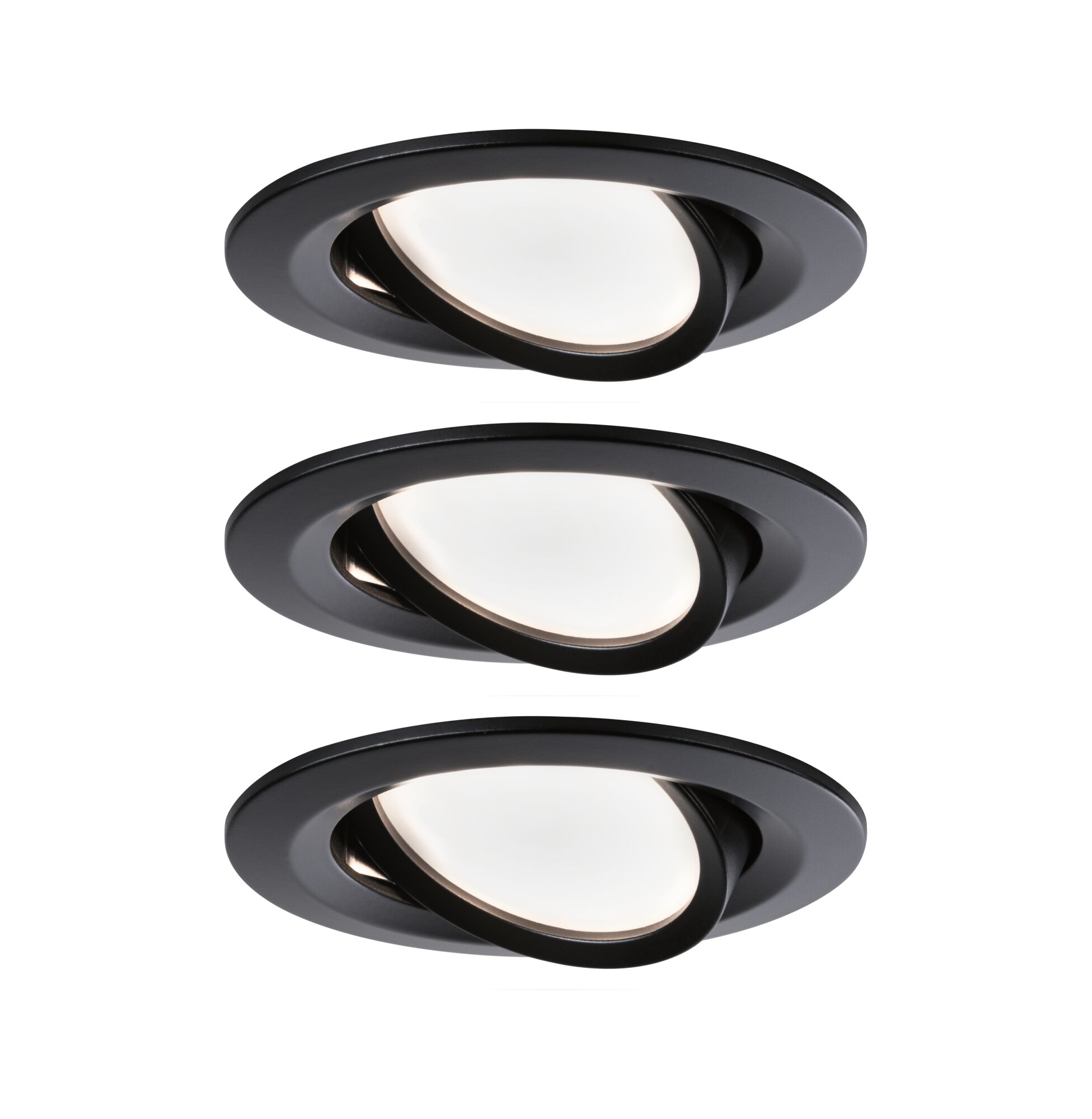

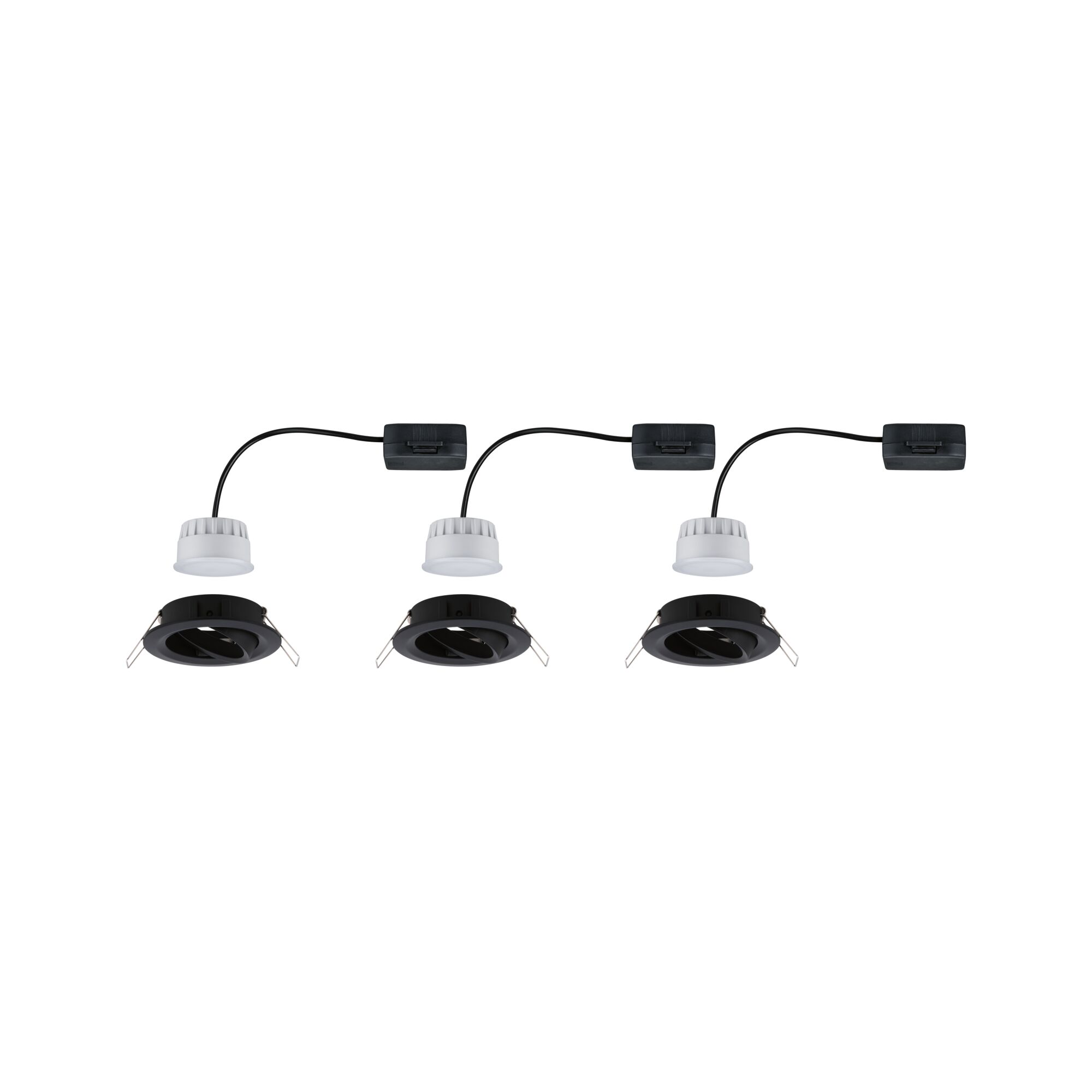

Set of 3 luminaires incl. LED module

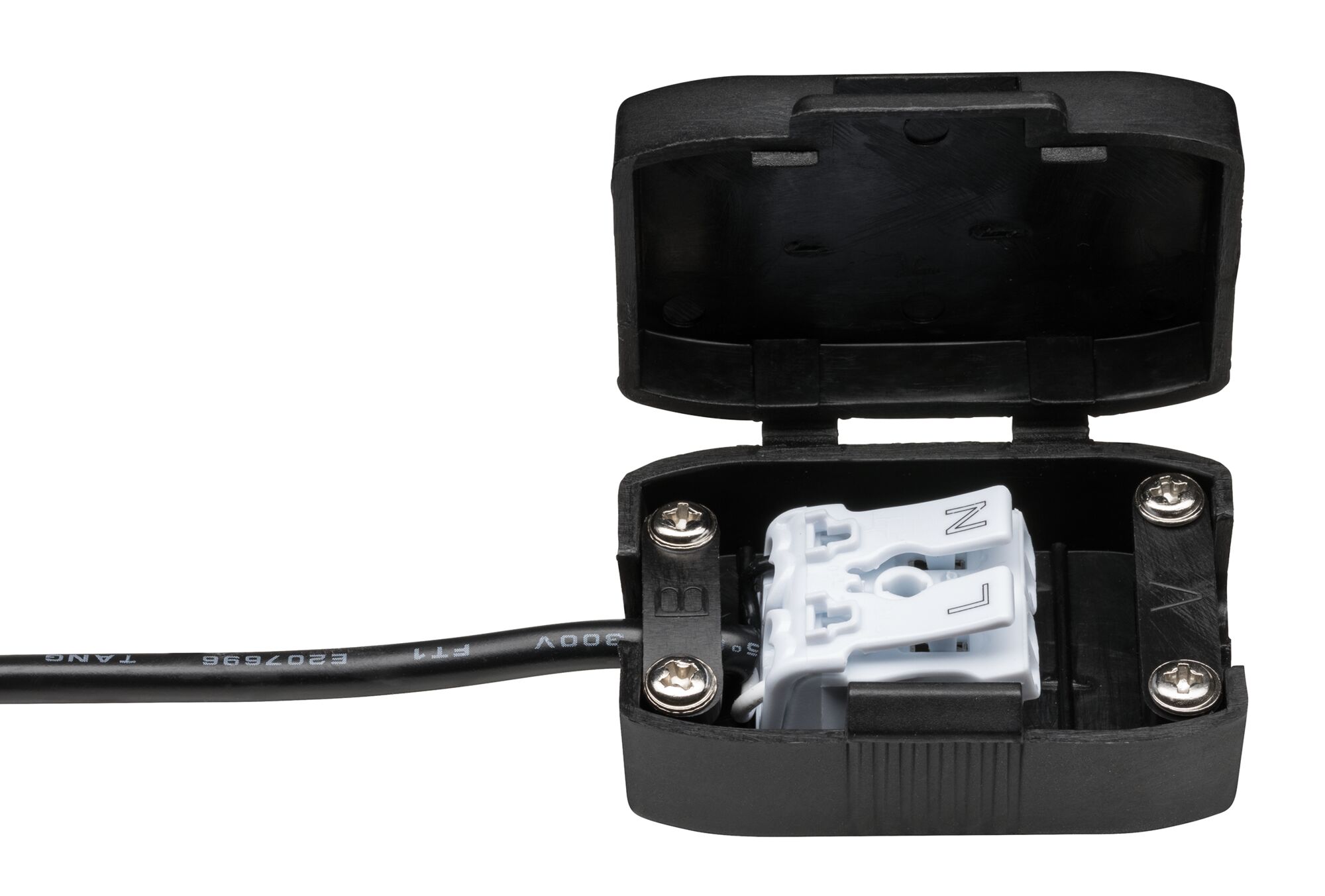

For 230 V direct connection
Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
Color temperatur: 2700K - Warm white

Dimension
Depth of hollow wall	30 mm, 30 mm
Total Mounting depth	45 mm
Ø	84 mm
Mounting hole	68 mm
Form	round

Design and Material
stainless	stainless alu
Colour	Black matt
Material	Aluminium

Energy consumption
Energy efficiency (A to G)	G
Energy consumption	7 kWh_1000h

Service life
Lifetime	30000 h

Light Characteristics
Colour temp.	2700 K
color temp	2700 K
Farbtemperatur_Text	Warmweiß
Beam angle	100 °
Usable luminous flux	470 lm
colour consistency	SDCM 6
Color rendering index	> 85 Ra

Lamp Features
Component parts	6 W
Swivel range	50 °
Technique	LED
Socket	Coin
Dim	dimmable in 3 steps with normal light switch
Dimmable	Yes
Inclusive lamp	yes
Incandescent Equivalent	40 W
Adjustability	swivelling/tilting
Maximum wattage range	max. 3x10 W
IP protection	IP23
Number of component parts	3x
protection class	protection class II
Replacable	2 Lightsource is replaceable without damage the lighting fixture by electrician.
Power consumption	11 W

Labelling
MM symbol	MM symbol
