Article-No.:
92976
LED Module recessed luminaireEasy Dim
Nova Mini Plus Coin
round 35mm Coin 4,2W 300lm 230V dimmable 2700K Clear
round 35mm Coin 4,2W 300lm 230V dimmable 2700K Clear
£19.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days

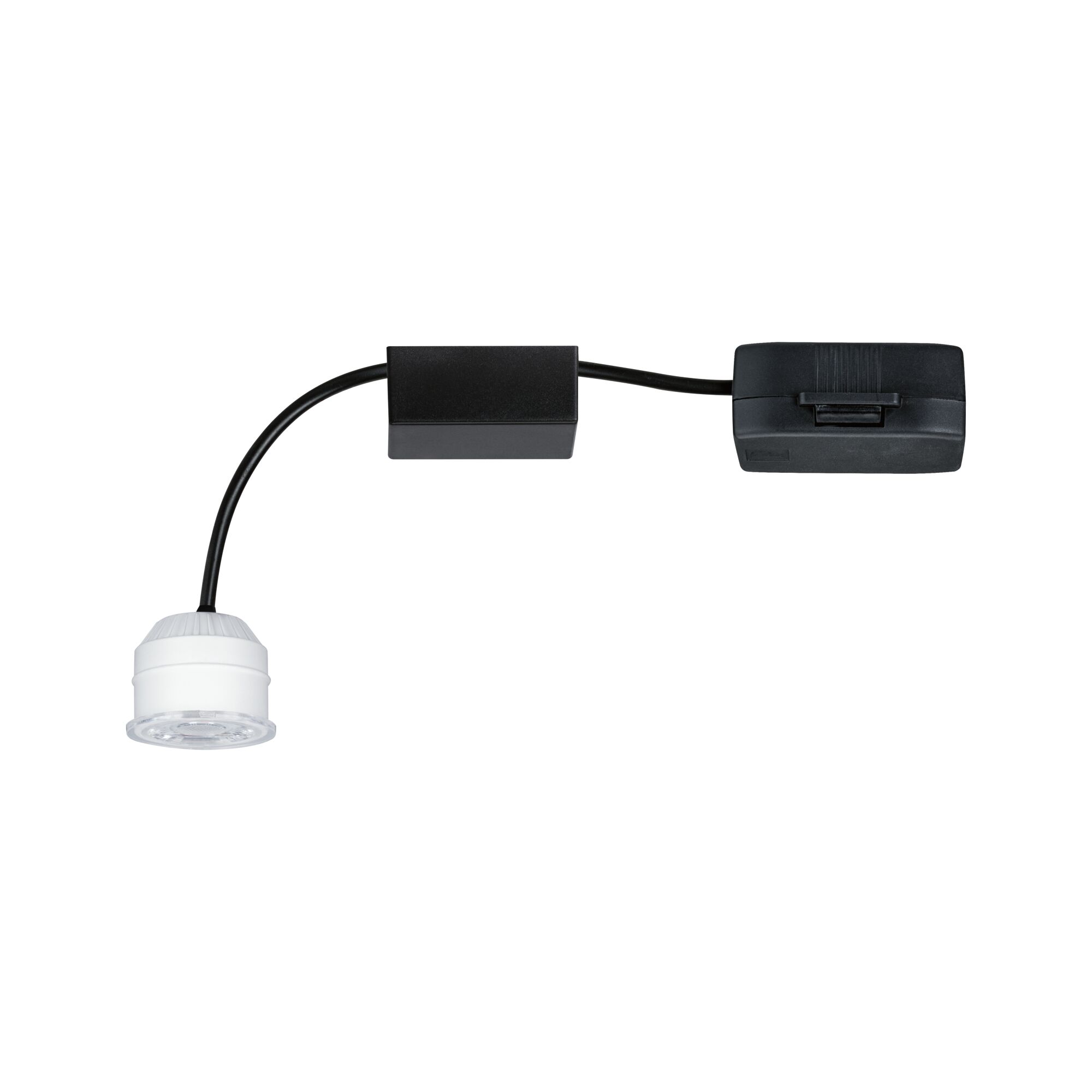

- LED module with junction box, incl. double quick terminal to loop through
- Color temperatur: 2700K - Warm white

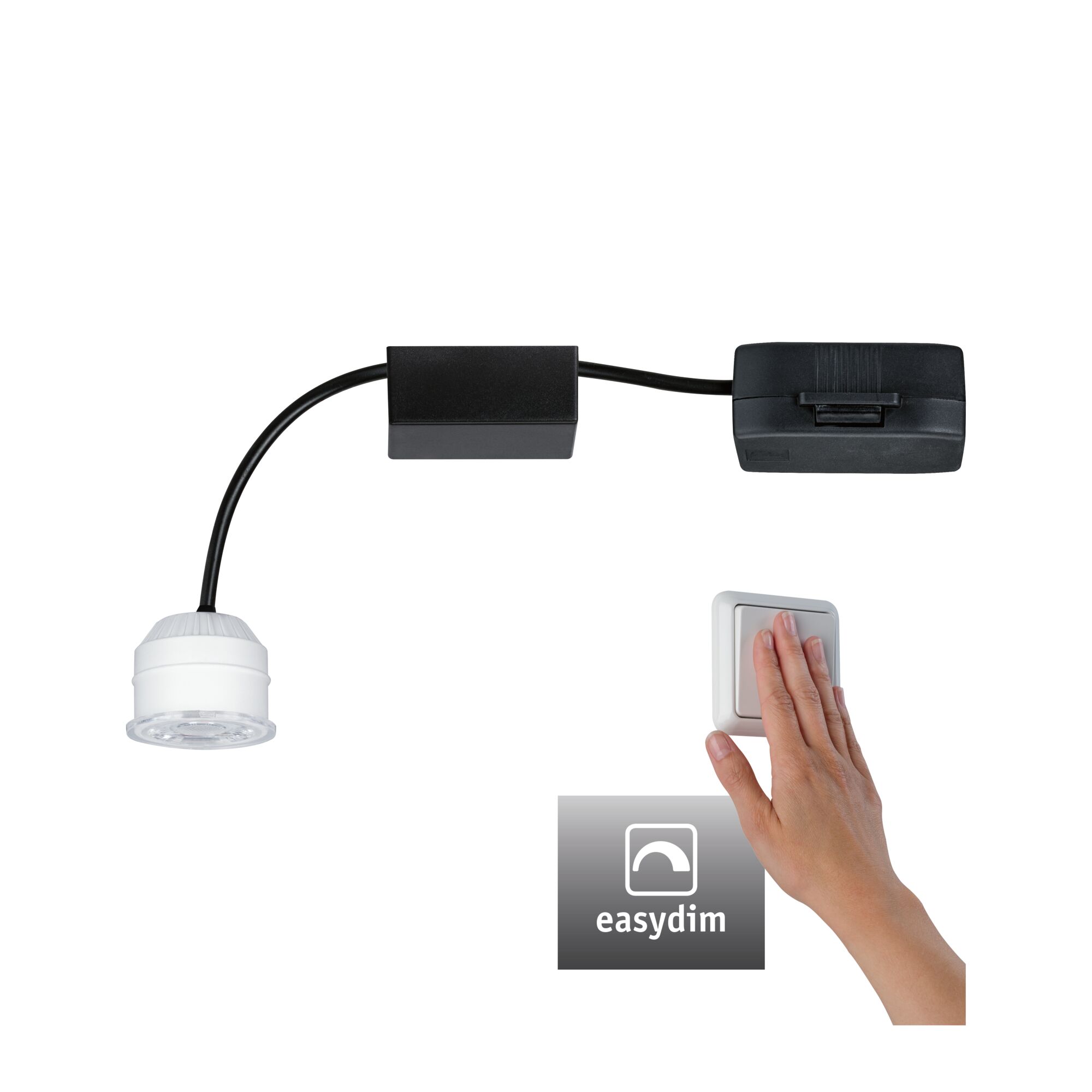

- EasyDim – continuous dimming via an existing wall switch
LED Module recessed luminaire Easy Dim Nova Mini Plus Coin round 35mm Coin 4,2W 300lm 230V dimmable 2700K Clear

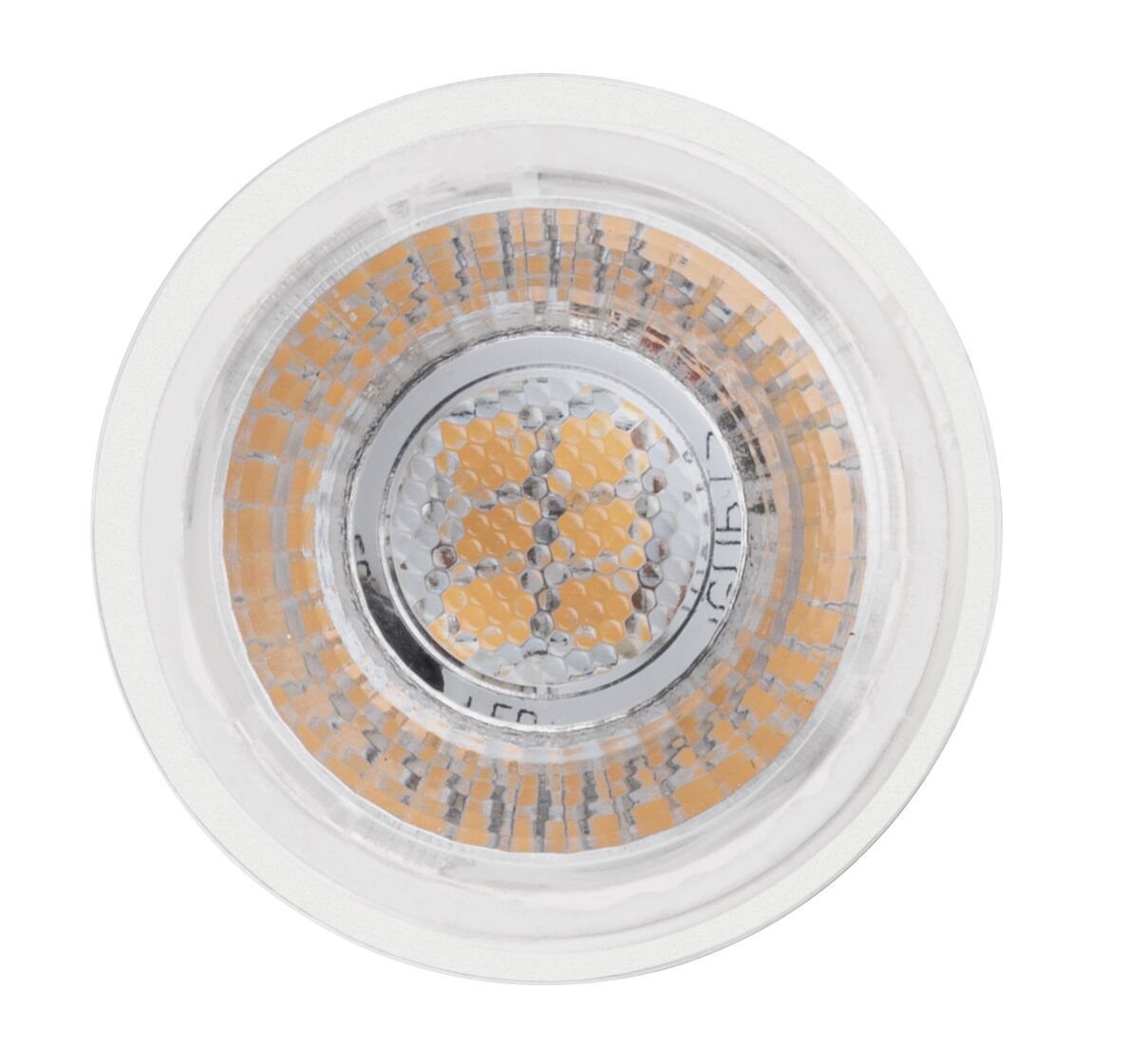

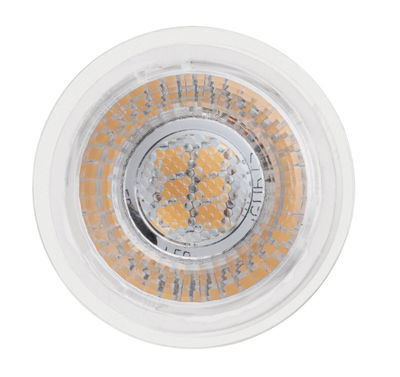

The Nova mini EasyDim Coin is ideal for the replacement of existing 35 mm installations. The unique LED lamp is exchangeable, flat and can be linked unlimited times. The integrated EasyDim function enables continuous dimming via a regular commercial light switch.
- LED module with junction box, incl. double quick terminal to loop through
- Color temperatur: 2700K - Warm white
- EasyDim – continuous dimming via an existing wall switch
- For 230 V direct connection

Dimension | |
---|---|
Dimensions (Height x Width x Depth) | H: 30 mm |
Diameter | 35 mm |
Built-in diameter | 55 mm |
Design and Material | |
---|---|
Form | round |
Type | Coin |
Colour | Clear |
Material | Plastic |
Energy consumption | |
---|---|
Energy efficiency | G |
Energy consumption | 5 kWh_1000h |
Service life | |
---|---|
Lamp lumen maintenance factor 6000h | 80 % |
luminous flux at the end of lamplife | 85 % |
Number of switching cycles >= | 50000 |
Lifetime | 30000 h |
Light Characteristics | |
---|---|
Colour temperature | Warm white, 2700 K |
Nominal luminous flux | 300 lm |
Colour consistency (SDCM) | 6 |
Color rendering index | > 80 Ra |
Beam angle | 38 ° |
Luminous intensity | 600 cd |
Lamp Features | |
---|---|
Dimmable | Yes |
Dim | EasyDim |
Inclusive lamp | yes |
Lamp property | Leuchtmittel |
Incandescent Equivalent | 28 W |
Protection class | Protection class II |
Base/Socket | Coin |
Technique | LED |
Component parts | 4,2 W |
Number of component parts | 1x |
Replacable | 7 not concerned. |
Power consumption | 4,2 W |
Adjustability | fixed |
Voltage | 230 V |
Voltage type | AC 50 Hz |
Accessories | |
---|---|
Radio control included | no |
Labelling | |
---|---|
WEEE-Reg.-No | DE 39236390 |
