Article-No.:
92980

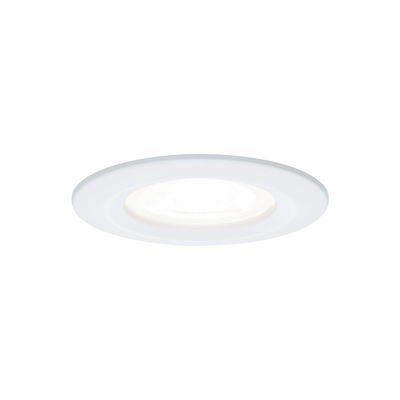

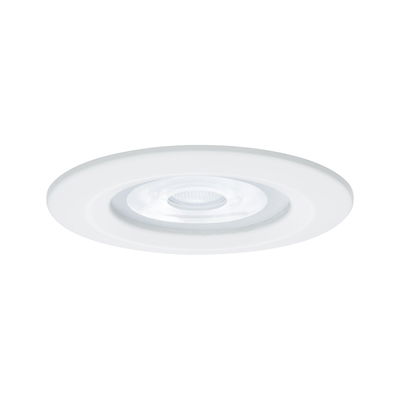

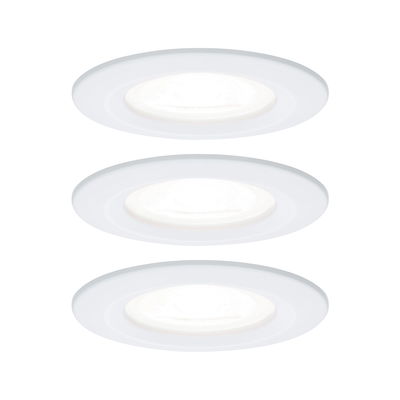

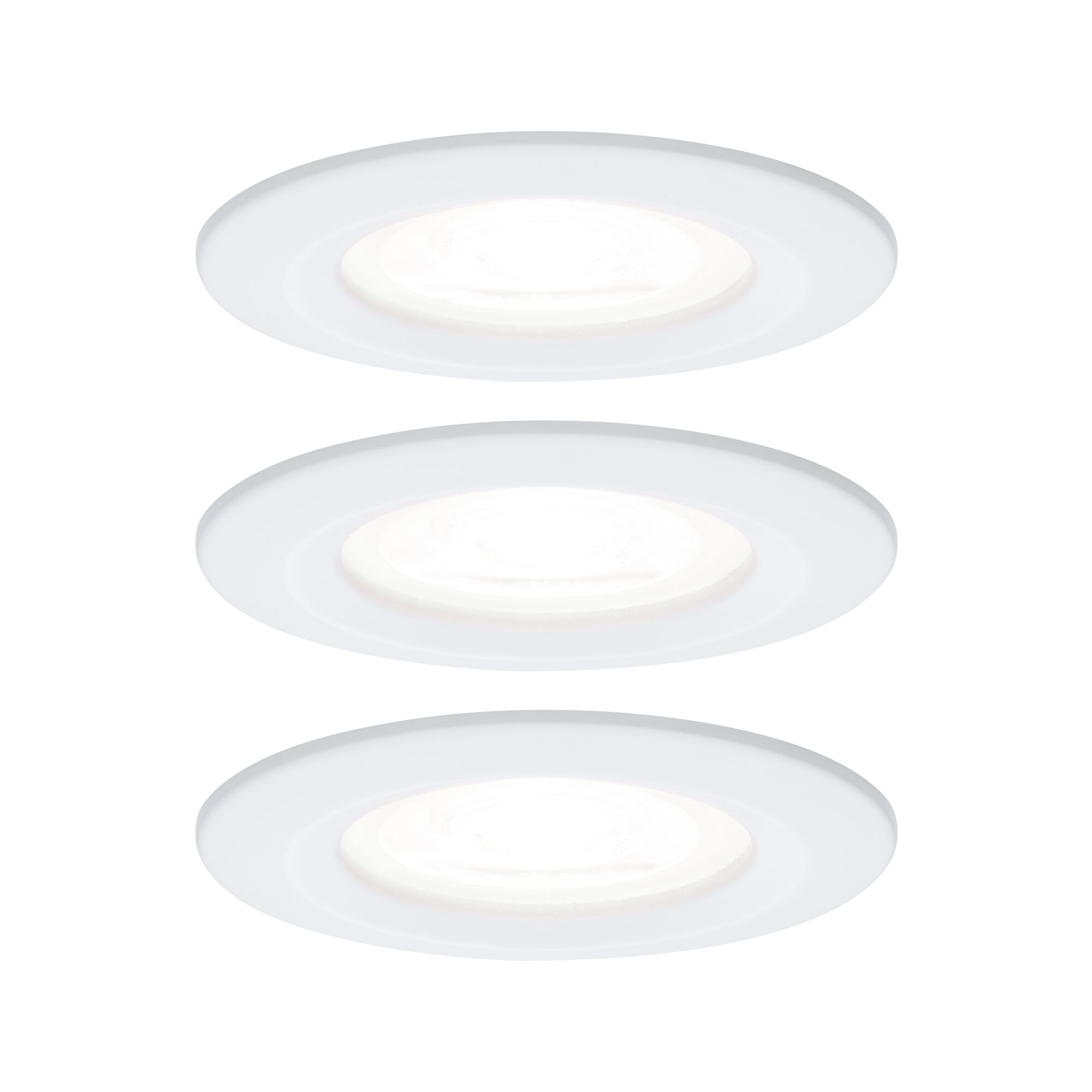

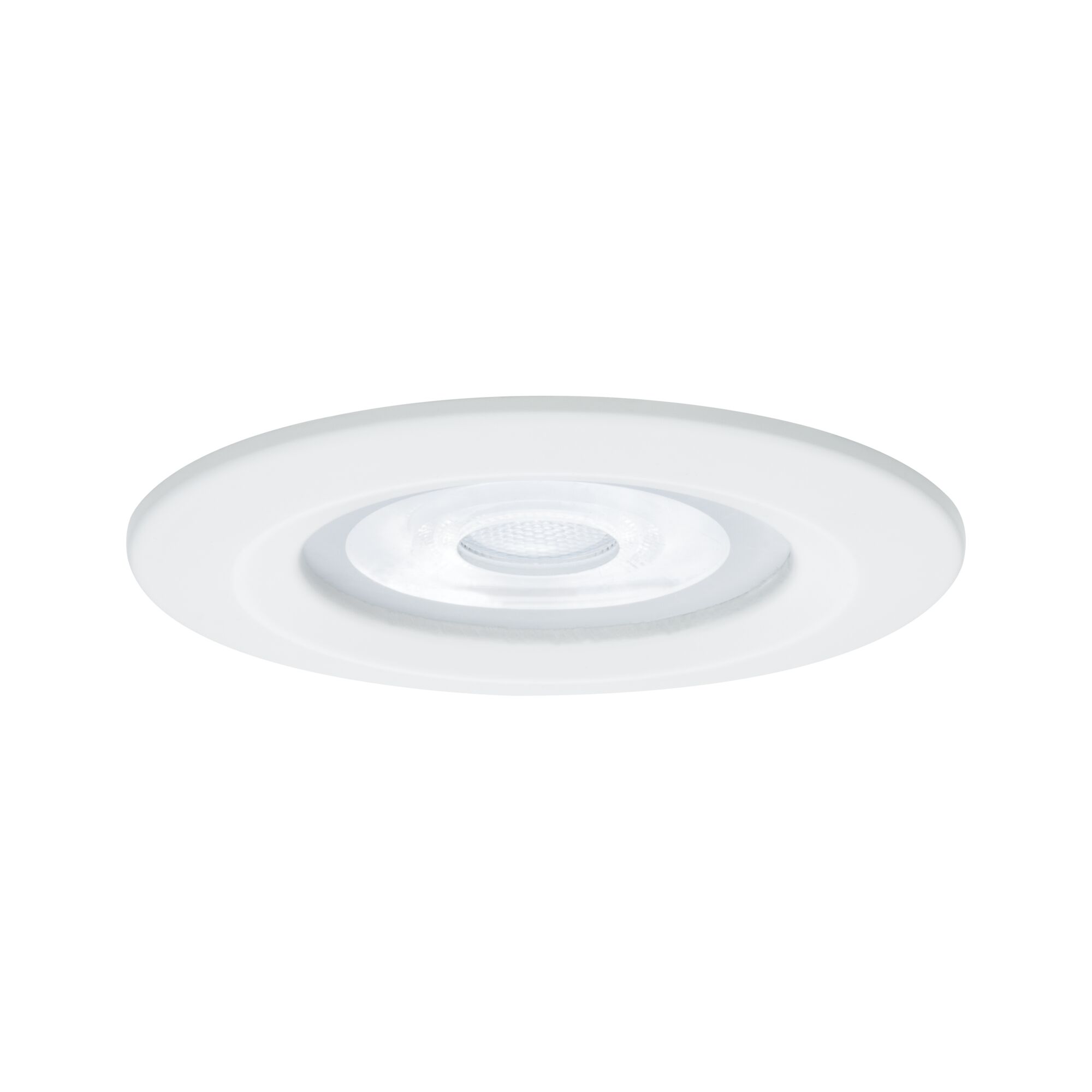

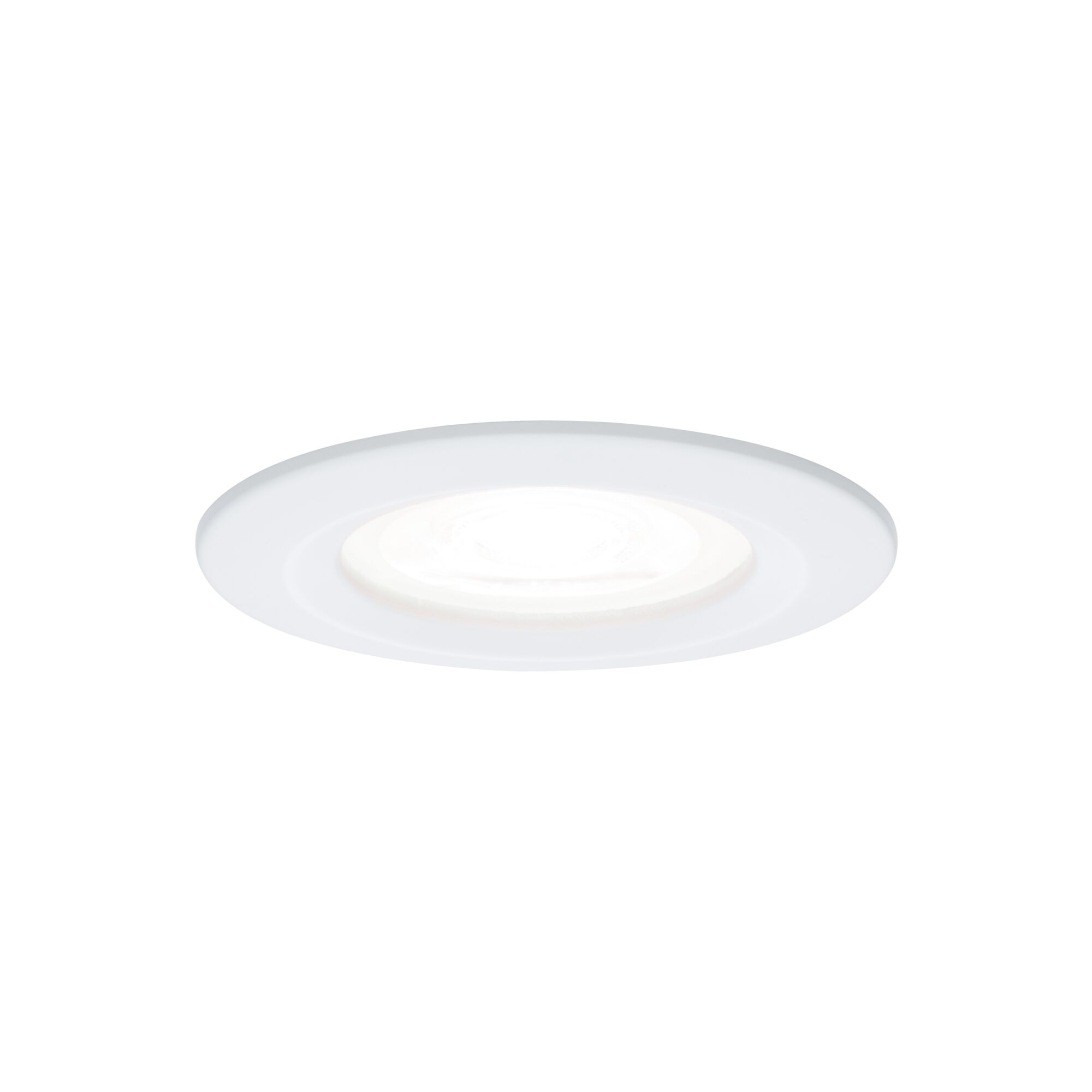

LED Recessed luminaire
Nova Basic Set Rigid
IP44 round 78mm GU10 3x6,5W 3x470lm 230V 4000K Matt white
IP44 round 78mm GU10 3x6,5W 3x470lm 230V 4000K Matt white
- Incl. replaceable LED lamp
- Color temperatur: 4000K - Neutral white

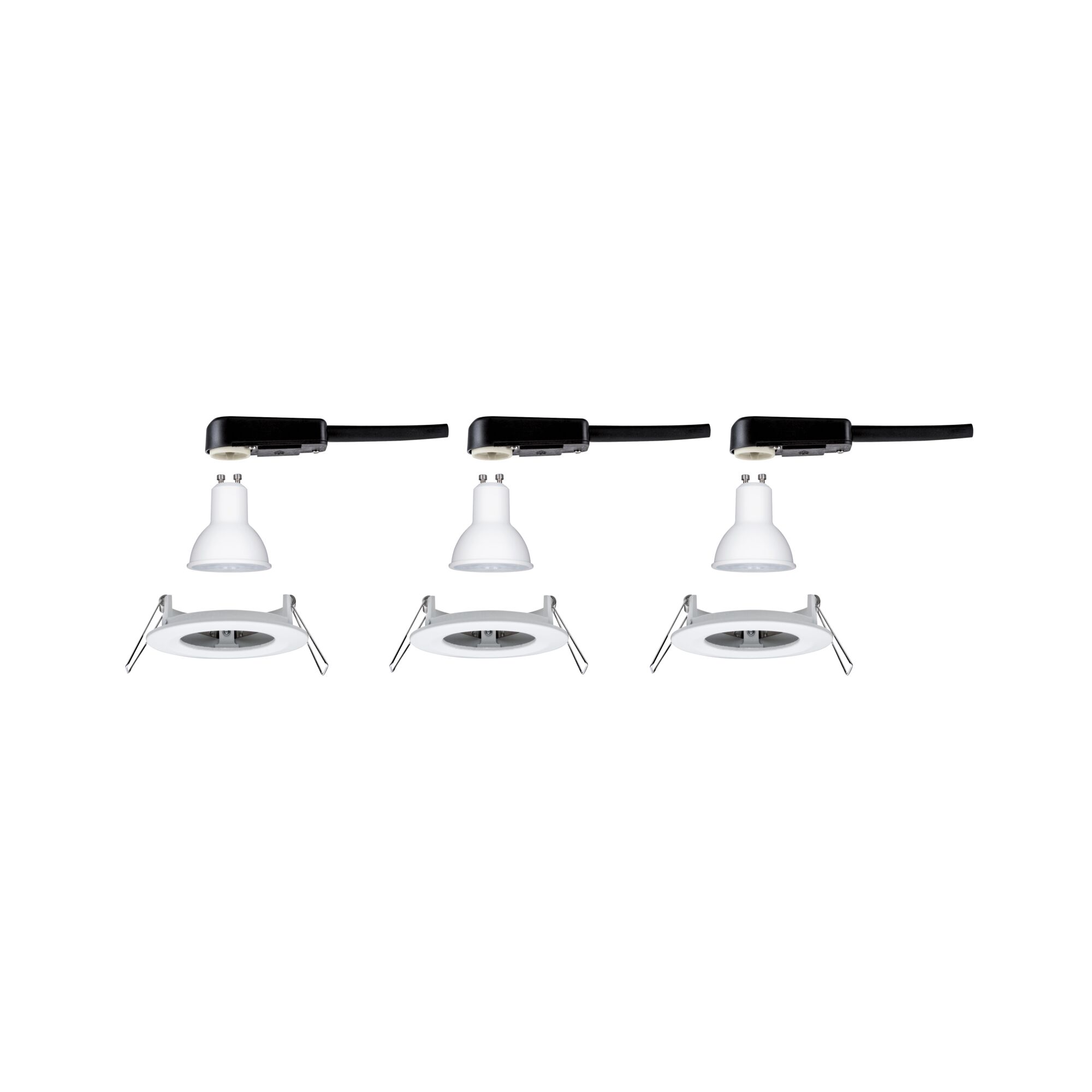

- The lamp can easily be fitted without a snap ring
LED Recessed luminaire Nova Basic Set Rigid IP44 round 78mm GU10 3x6,5W 3x470lm 230V 4000K Matt white
The round Nova Recessed spotlights in white matt with 3x6.5W and 3x470lm, offer great lighting, an attractive design and high energy efficiency. The minimalistic look is undisturbed by snap rings: As the lamp is inserted from behind, no snap rings are necessary. Thanks to the 230V direct connection, an unlimited number of luminaires can easily be linked together. Thanks to the simple mounting method with retaining springs, the ceiling remains undamaged, even after repeated installations and removals. Delivery includes efficient and long-lasting GU10 LED lamps that provide sober lighting with their neutral white light.
- Incl. replaceable LED lamp
- Color temperatur: 4000K - Neutral white
- The lamp can easily be fitted without a snap ring
- For 230 V direct connection
| Dimension | |
|---|---|
| Depth of hollow wall | 60 mm, 60 mm |
| Total Mounting depth | 75 mm |
| Ø | 78 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Matt white |
| Material | Aluminium zinc |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 15000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 4000 K |
| Beam angle | 36 ° |
| Usable luminous flux | 470 lm |
| color temp | 4000 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 6,5 W |
| Technique | LED |
| Socket | GU10 |
| IP protection | IP44 ceiling mounting |
| Dimmable | No |
| Inclusive lamp | yes |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
