Article-No.: 92468

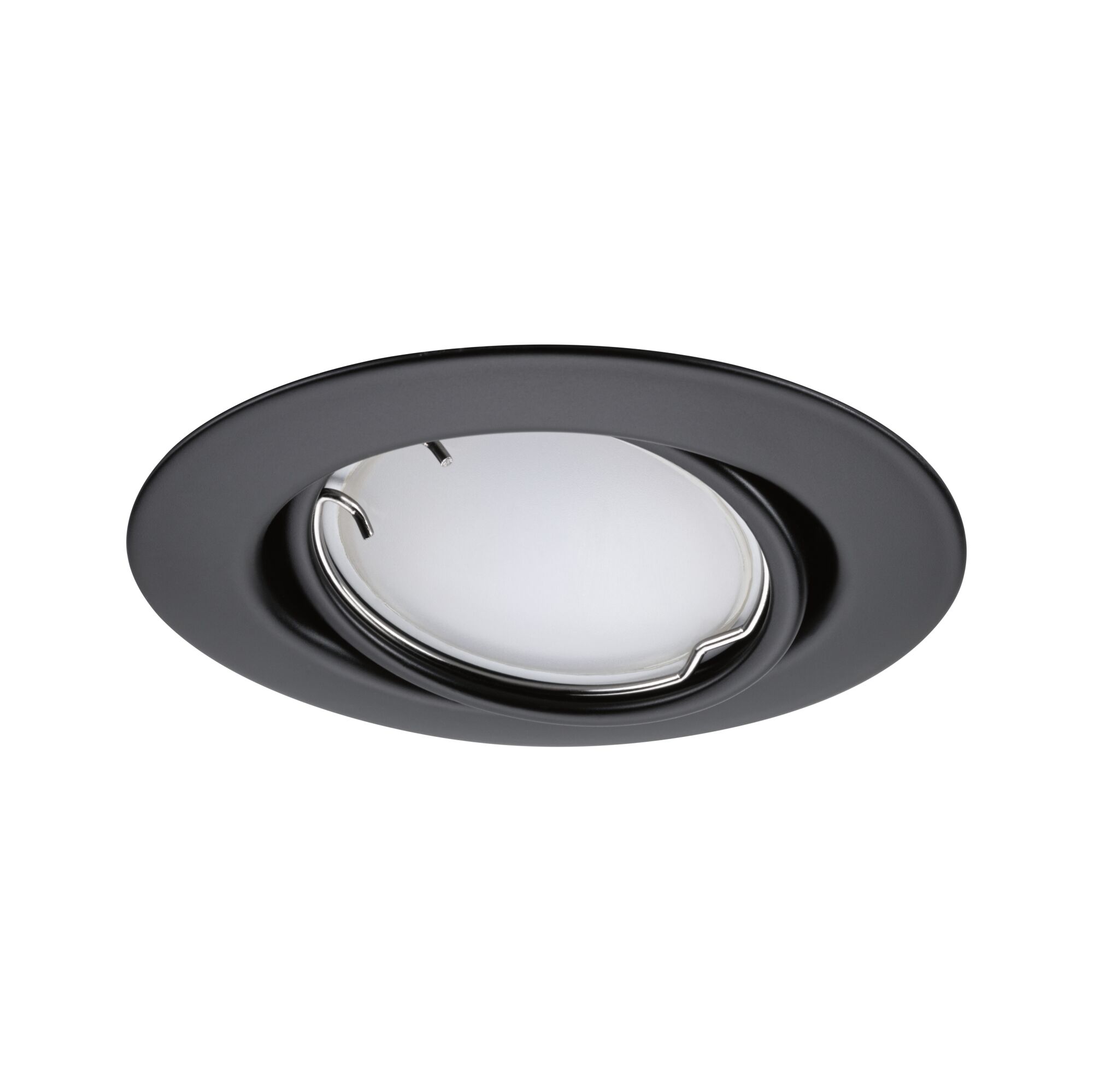

LED Recessed luminaireSmart Home Zigbee 3.0 Base Coin Basic Set Swivelling
round 90mm 20° Coin 3x4,9W 3x420lm 230V dimmable RGBW+ Black matt

Version: RGBW

Dim

RGBW

Colour: Black matt

Black matt

Brushed iron

White

£79.95* Prices incl. Standard rate VAT

Ready to ship, delivery within 2-3 working days

5-year warranty

Secure payment

Free shipping from £ 150 Free returns

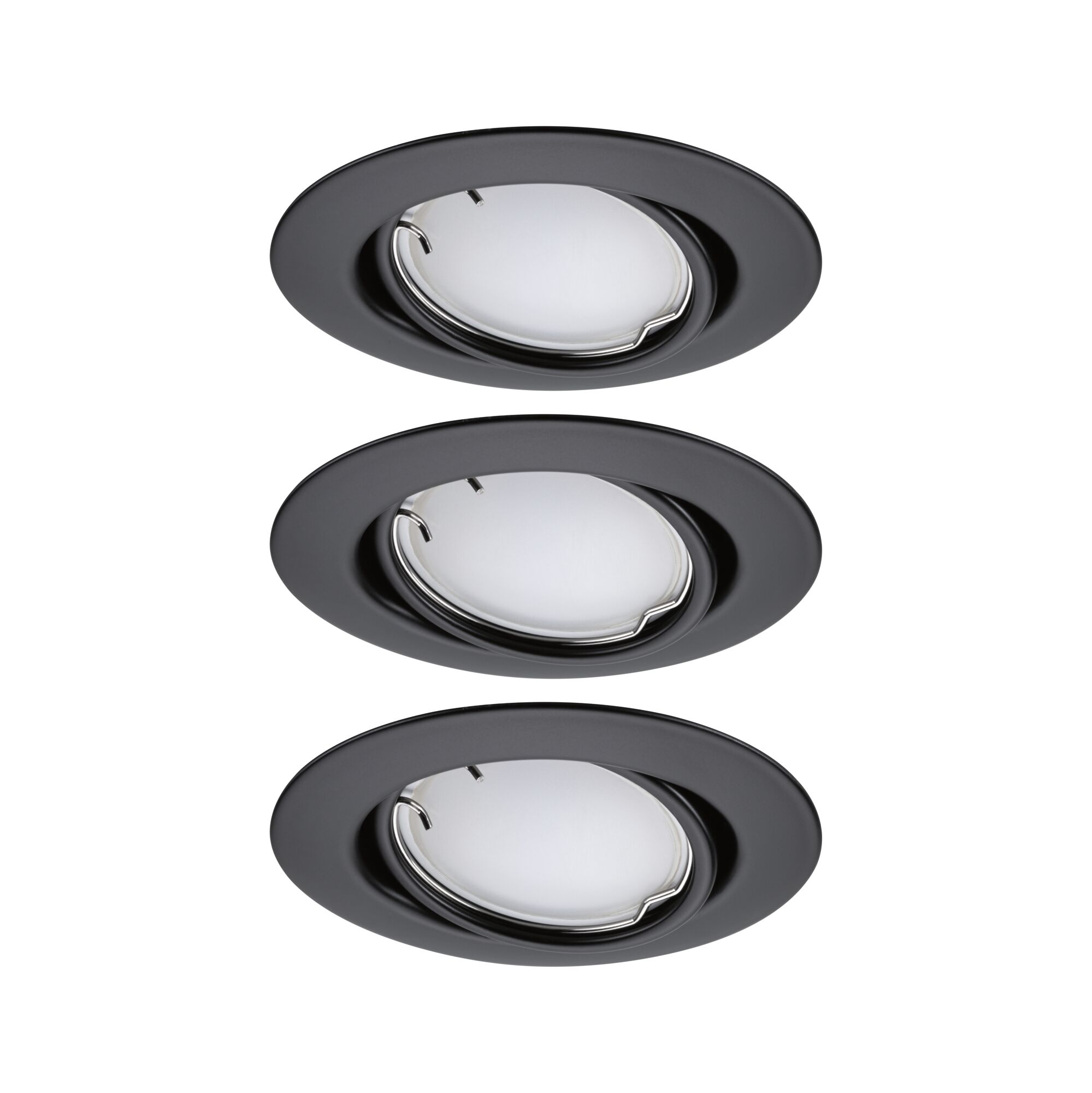

Set of 3 luminaires
With swivelling spots for ideal illumination

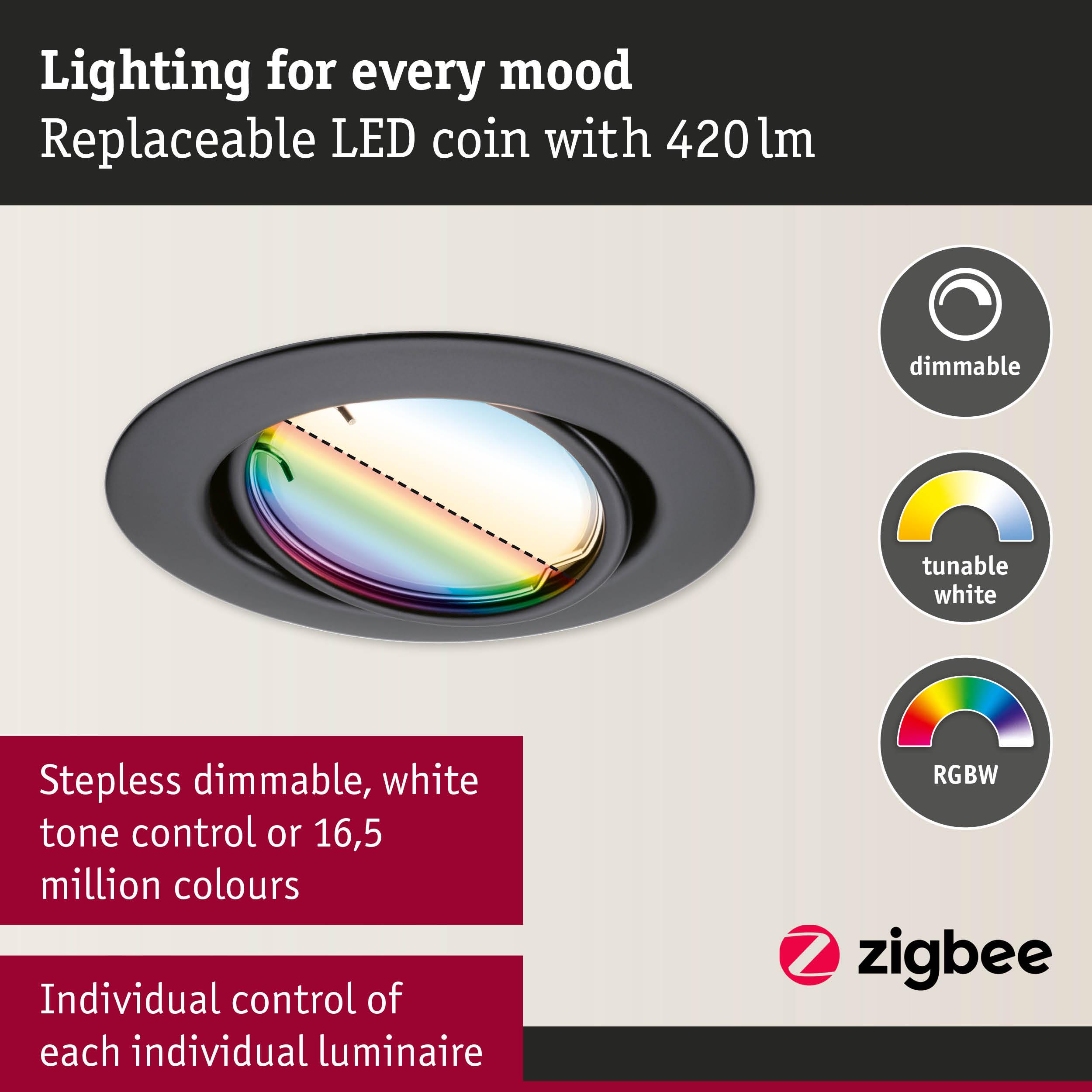

RGBW function offers a free choice of light colour

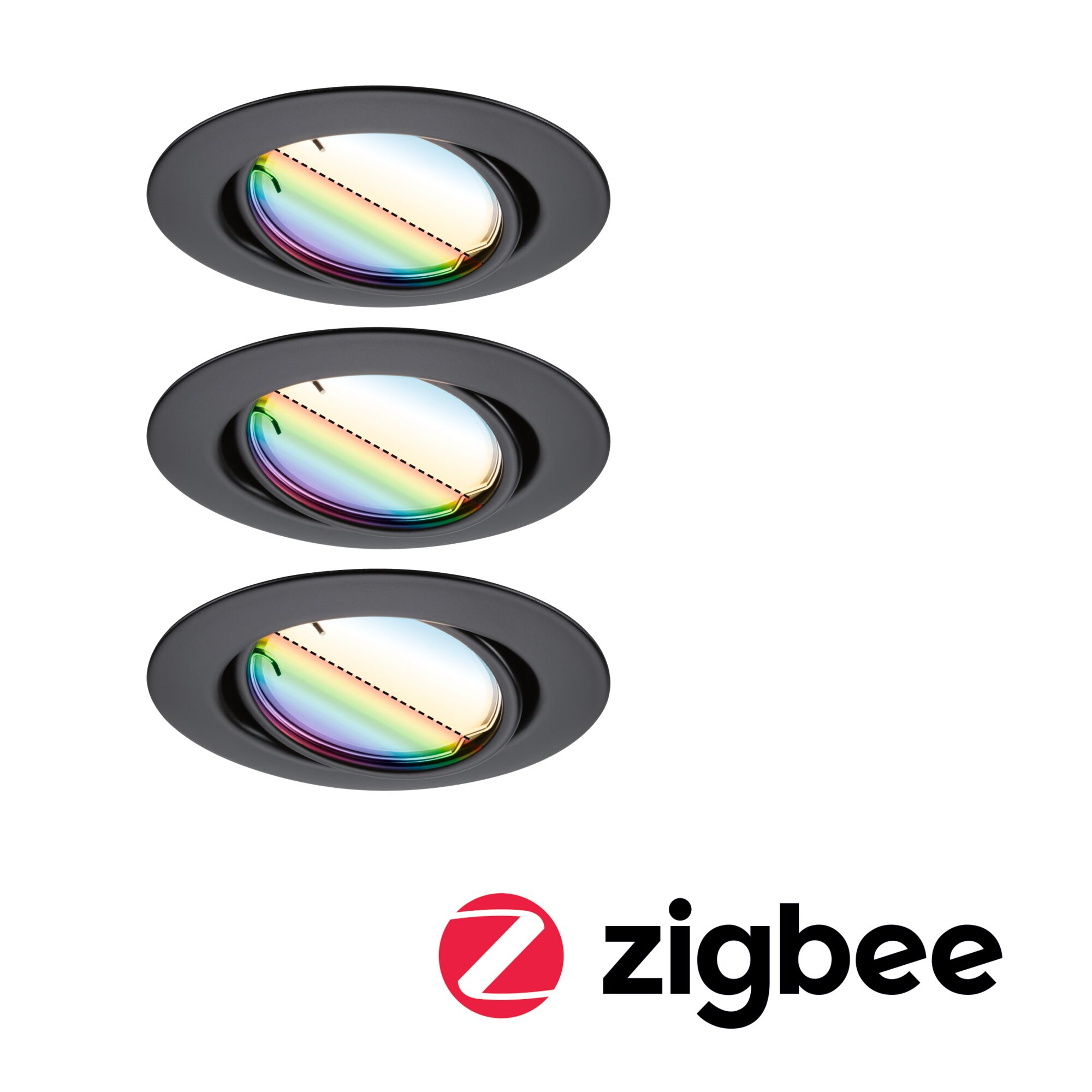

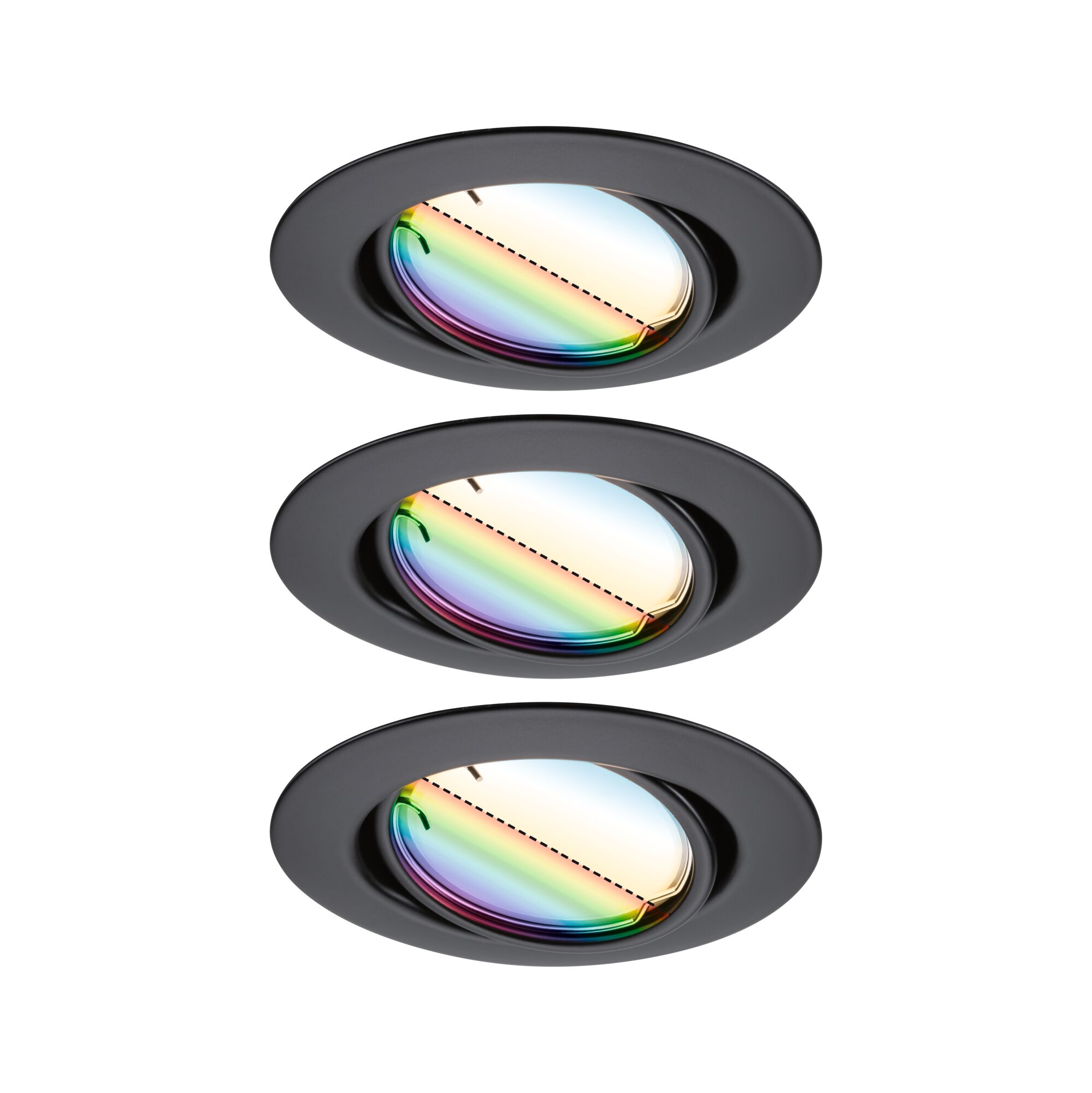

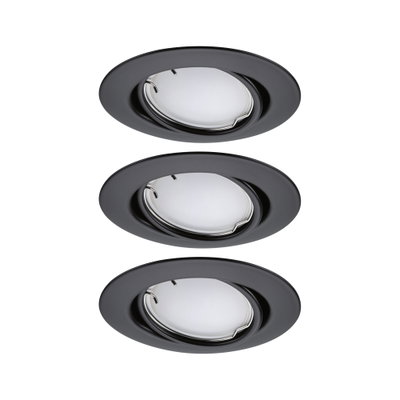

LED Recessed luminaire Smart Home Zigbee 3.0 Base Coin Basic Set Swivelling round 90mm 20° Coin 3x4,9W 3x420lm 230V dimmable RGBW+ Black matt

The smart recessed spotlights in Black matt with 3x4,9W are robust and user-friendly Metal spots that are suitable for new installations or the upgrade of existing installations alike. The scope of delivery includes exchangeable Coin LED lamps with RGBW Zigbee 3.0 control. The luminaires can be controlled individually or in groups via app, remote control, or voice command. The combinations of Tunable White, RGB and dimming function are virtually endless – from gentle, dimmed warm white to objective daylight white or colourful colour gradients. Thanks to the 230V direct connection, an unlimited number of luminaires can easily be linked together.

Set of 3 luminaires
With swivelling spots for ideal illumination
RGBW function offers a free choice of light colour
Can be controlled with the Smart Home Zigbee remote control
Usable with smart home gateways that have a Zigbee interface
Can still be switched on and off with the light switch

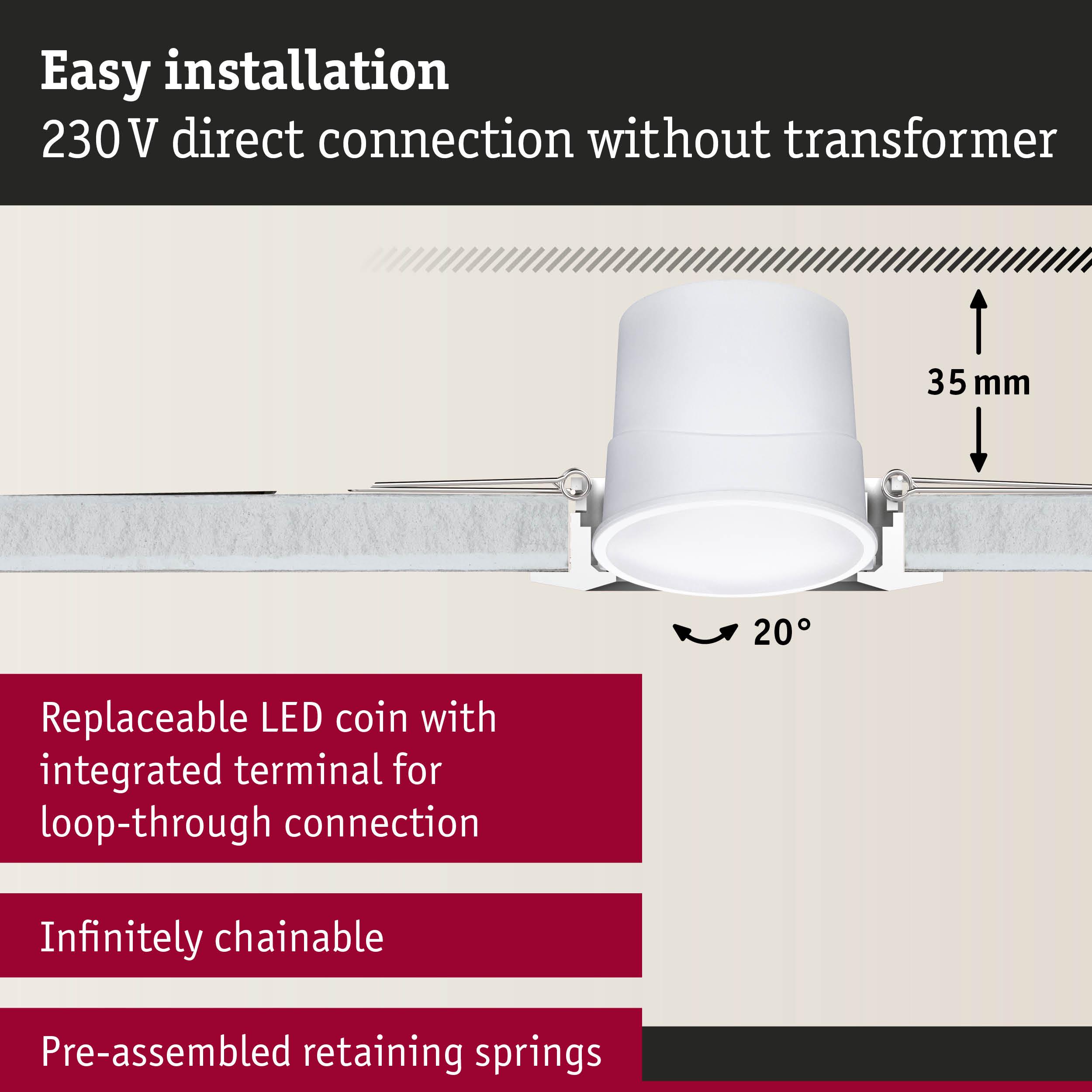

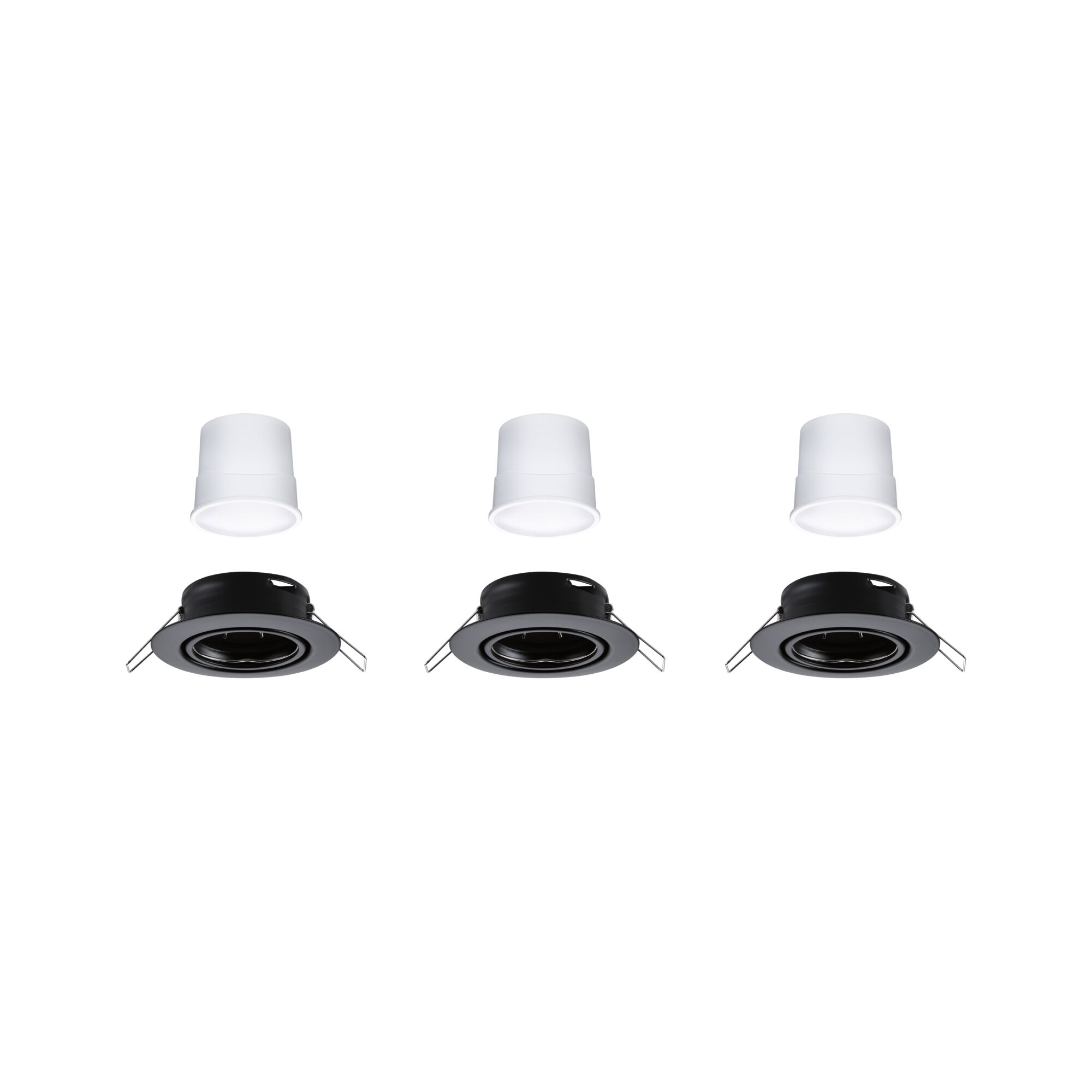

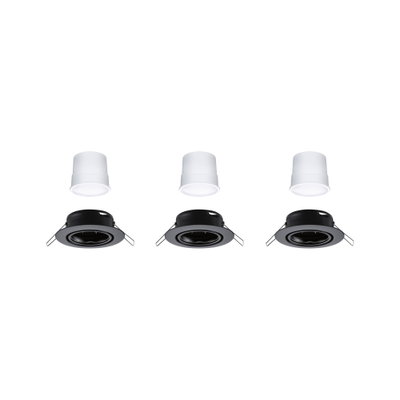

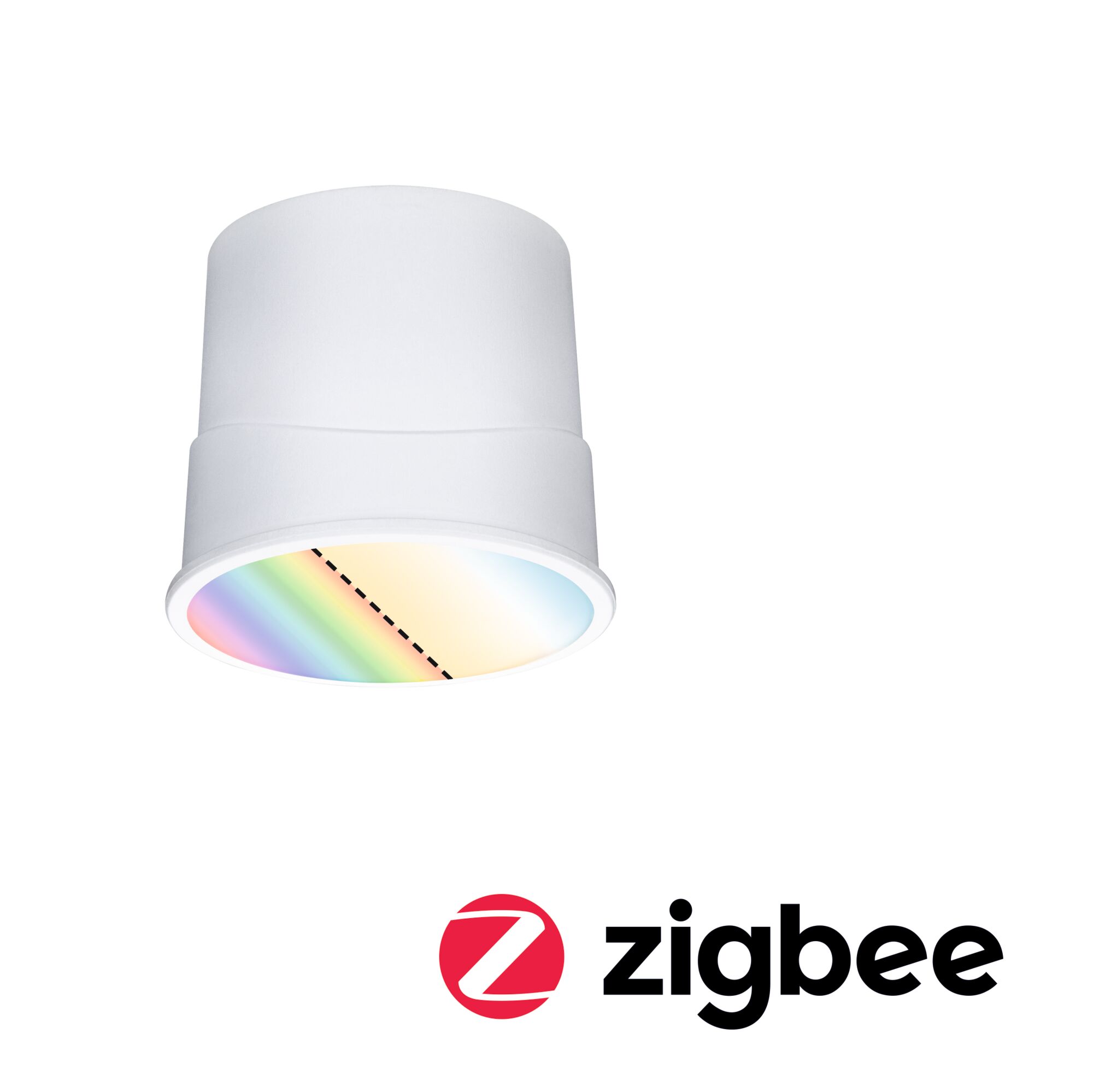

Incl. replaceable LED lamp
For 230 V direct connection
Efficient LED technology
Variable dimming

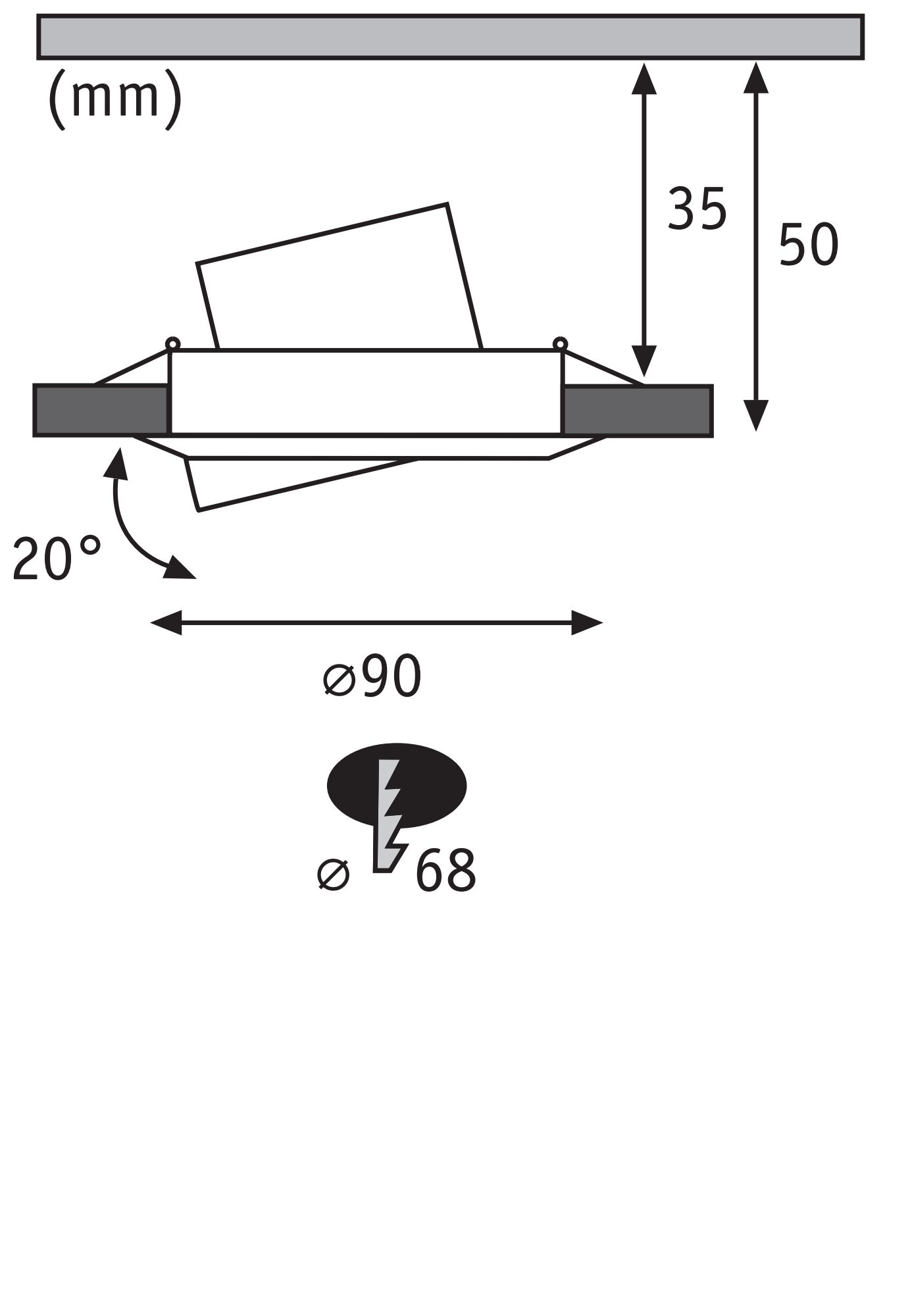

Dimension
Depth of hollow wall	35 mm, 35 mm
Total Mounting depth	50 mm
Ø	90 mm
Mounting hole	68 mm
Form	round

Design and Material
Colour	Black matt
Material	Metal

Installation
can be used with the following dimmers	Paulmann 501.34 Smart Switch, Paulmann SmartHome Zigbee Gent2 501.40

Energy consumption
Energy efficiency (A to G)	F

Service life
Lifetime	25000 h

Light Characteristics
Colour temp.	3000 K
colour temperature to	6500 K
color temp	Warm white to Daylight white
Colour change	coloured light with Tunable White function (RGBW), Tunable White
Beam angle	110 °
Usable luminous flux	420 lm
Color rendering index	> 80 Ra
Luminous flux LED module	420 lm
Colour consistency (SDCM)	6

Lamp Features
Component parts	4,9 W
Compatible Smart Home technology	Zigbee
Swivel range	20 °
Technique	LED
Socket	Coin
Dim	with Smart Home
Inclusive lamp	yes
Incandescent Equivalent	36 W
Adjustability	swivelling/tilting
Dimmable	Yes
IP protection	IP20
Number of component parts	3x
protection class	Protection class II
Replacable	2 Lightsource is replaceable without damage the lighting fixture by electrician.
Power consumption	14,7 W

Transformer
apparent power	27 VA

Accessories
Radio control included	no

Labelling
WEEE-Reg.-No	DE 39236390

Smart Home
Protocol type	Zigbee 3.0
Zigbee certification	Zigbee zertifiziert
Radio frequency	2,4 GHz
Radio range (Open field)	20 m

Downloads

Manuals

Download Installation/Montage

Flyer and Safety instructions

Safety instructions
