Article-No.:
97657
URail
Connector
X-Stück Light&Easy
104x104mm max. 1000W Chrome matt
104x104mm max. 1000W Chrome matt
- Surface/color: Chrome matt
- URail X-cover incl. assembly instructions
- End caps to close off the rail ends are included in the scope of delivery

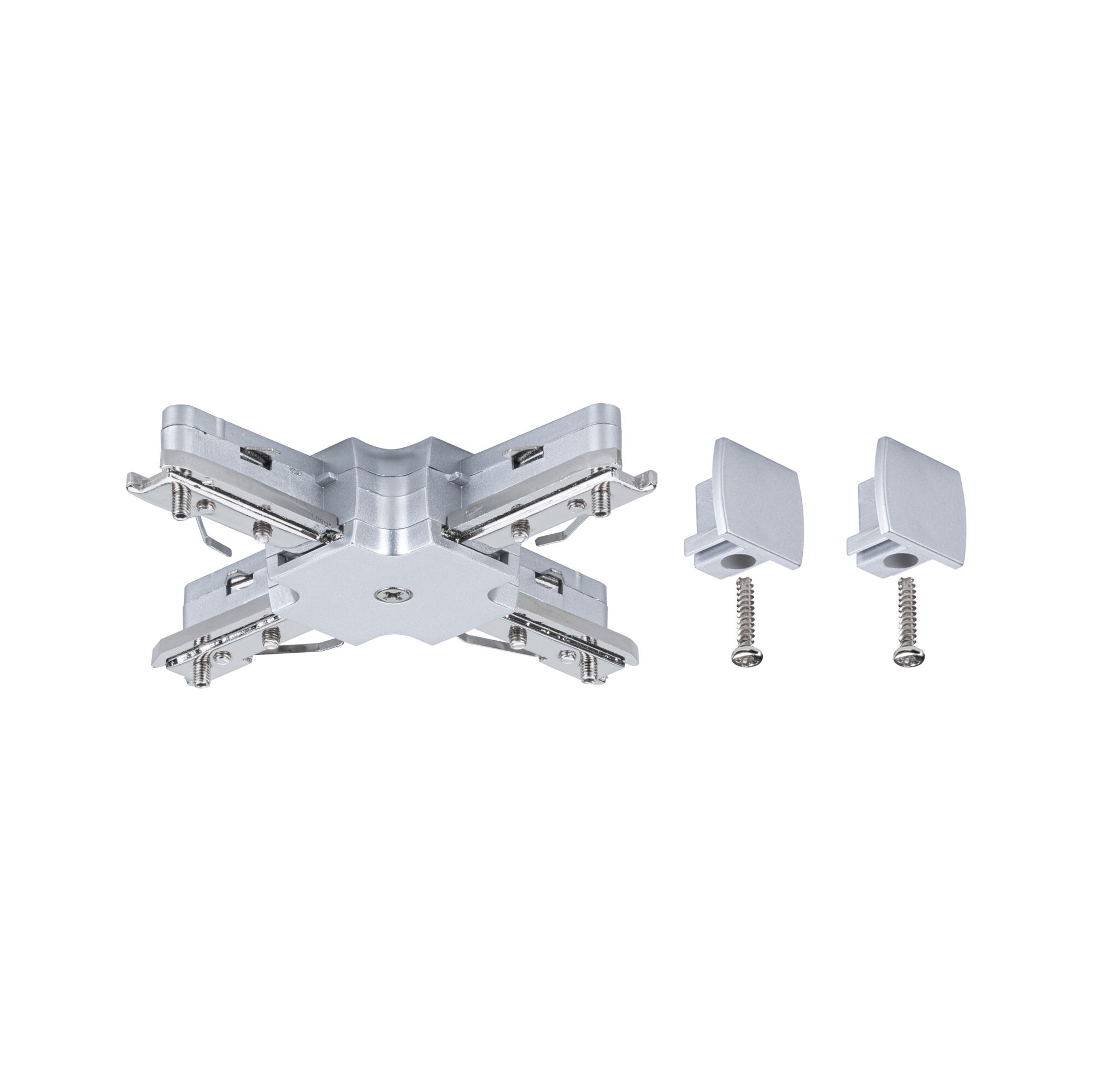

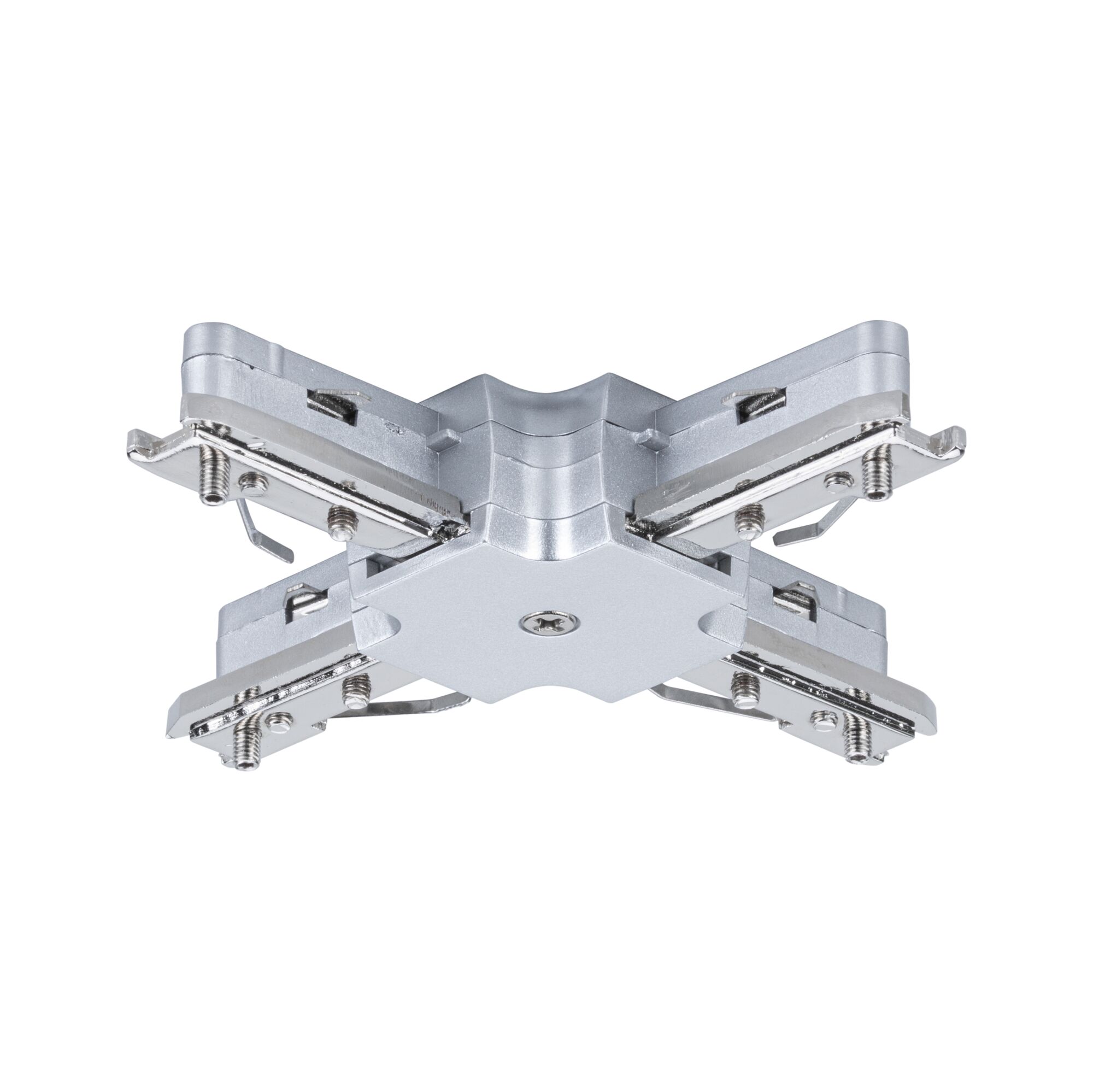

URail Connector X-Stück Light&Easy 104x104mm max. 1000W Chrome matt

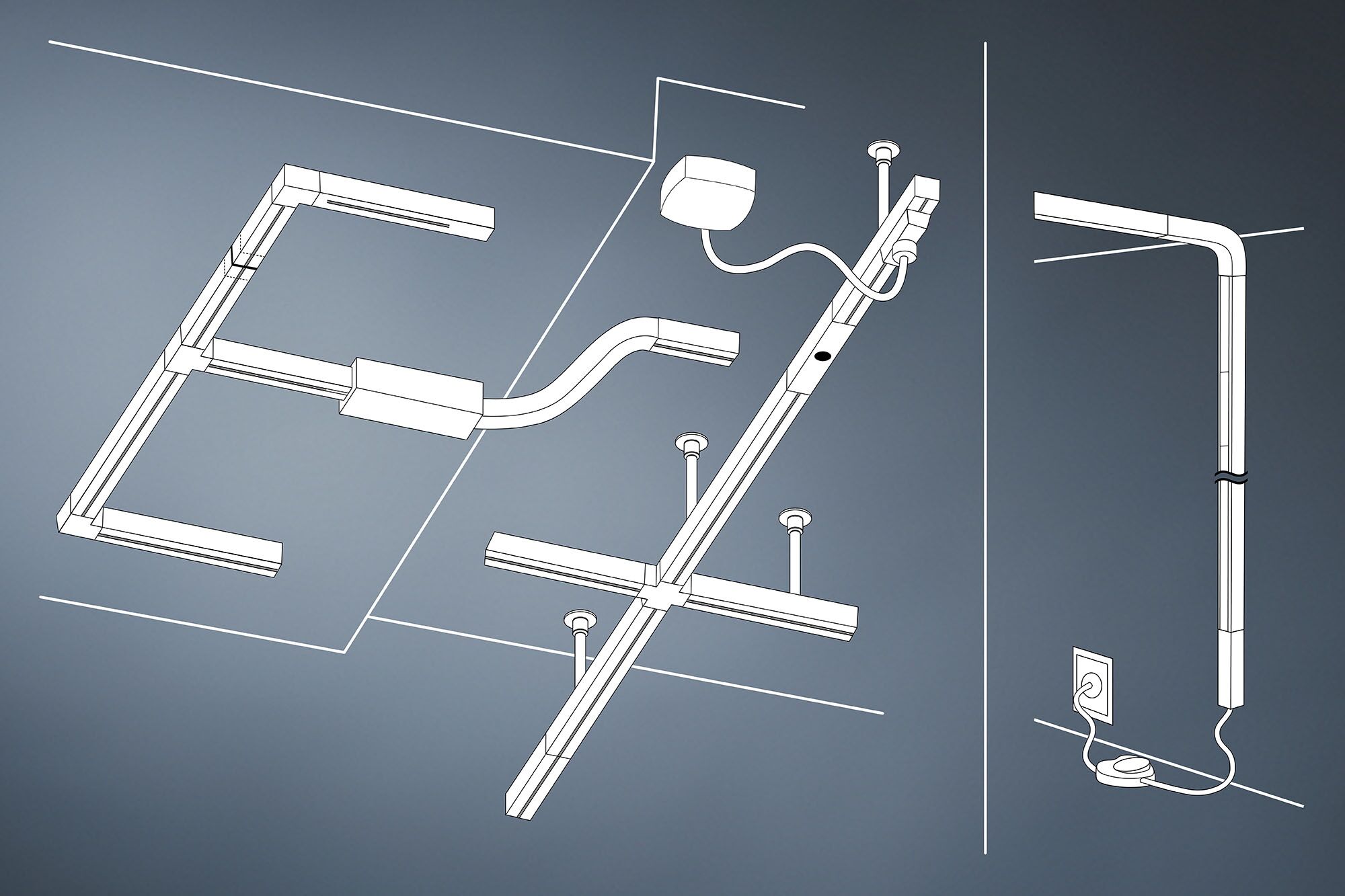

You can design X-shaped installations with this connector. It is one of many modular parts from the URail series. Used together with additional components, it allows you to design your own ideal personal 230 volt URail rail system. The system is designed for a total output of 1,000 W and for the operation of LED luminaires, luminaires with energy-saving lamps and halogen luminaires.
- Surface/color: Chrome matt
- URail X-cover incl. assembly instructions
- End caps to close off the rail ends are included in the scope of delivery
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 18 x B: 104 x T: 104 mm |

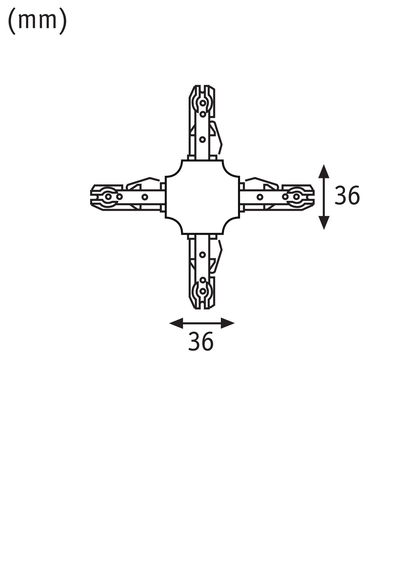

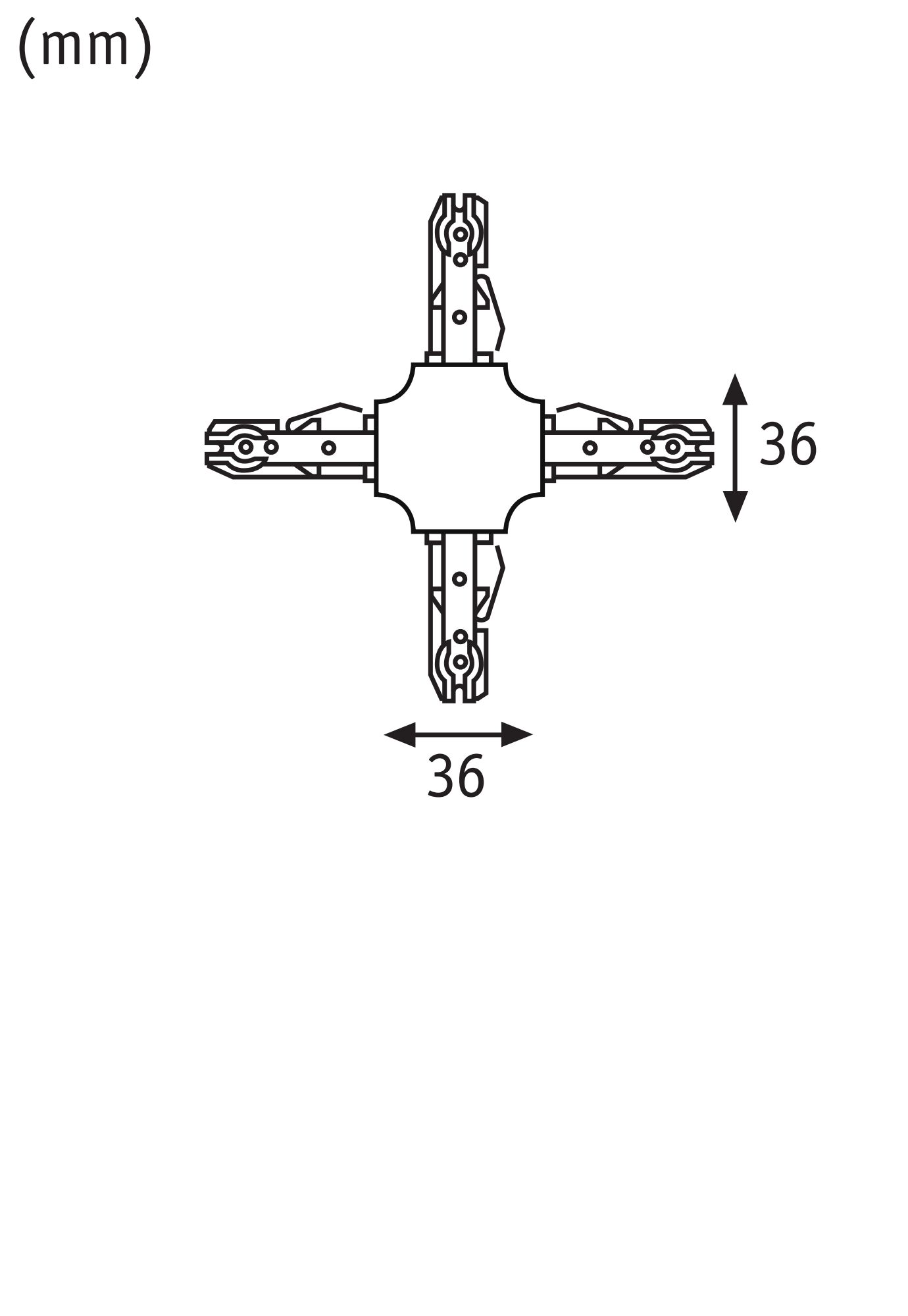

| Usable length | 36/36 mm |
| Design and Material | |
|---|---|
| Colour | Chrome matt |
| Material | Metal |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Lamp Features | |
|---|---|
| Technique | Accessories without bulbs |
| Inclusive lamp | no |
| Total Width | 104 mm |
| Maximum wattage range | max. 1000 W |
| protection class | protection class I |
| Replacable | 7 not concerned. |
| Labelling | |
|---|---|
| 850°C test | 850°C test |
| WEEE-Reg.-No | DE 39236390 |
