Article-No.:
95526
URail
Rail spot
Smart Home Zigbee 3.0
Cone Individual Spot incl. Tunable White illuminant
GU10 330lm 5W Tunable White dimmable 230V Chrome matt/Chrome
GU10 330lm 5W Tunable White dimmable 230V Chrome matt/Chrome
- Usable with smart home gateways that have a Zigbee interface
- A Zigbee product can be addressed using various remote controls
- URail system lamp incl. assembly instructions

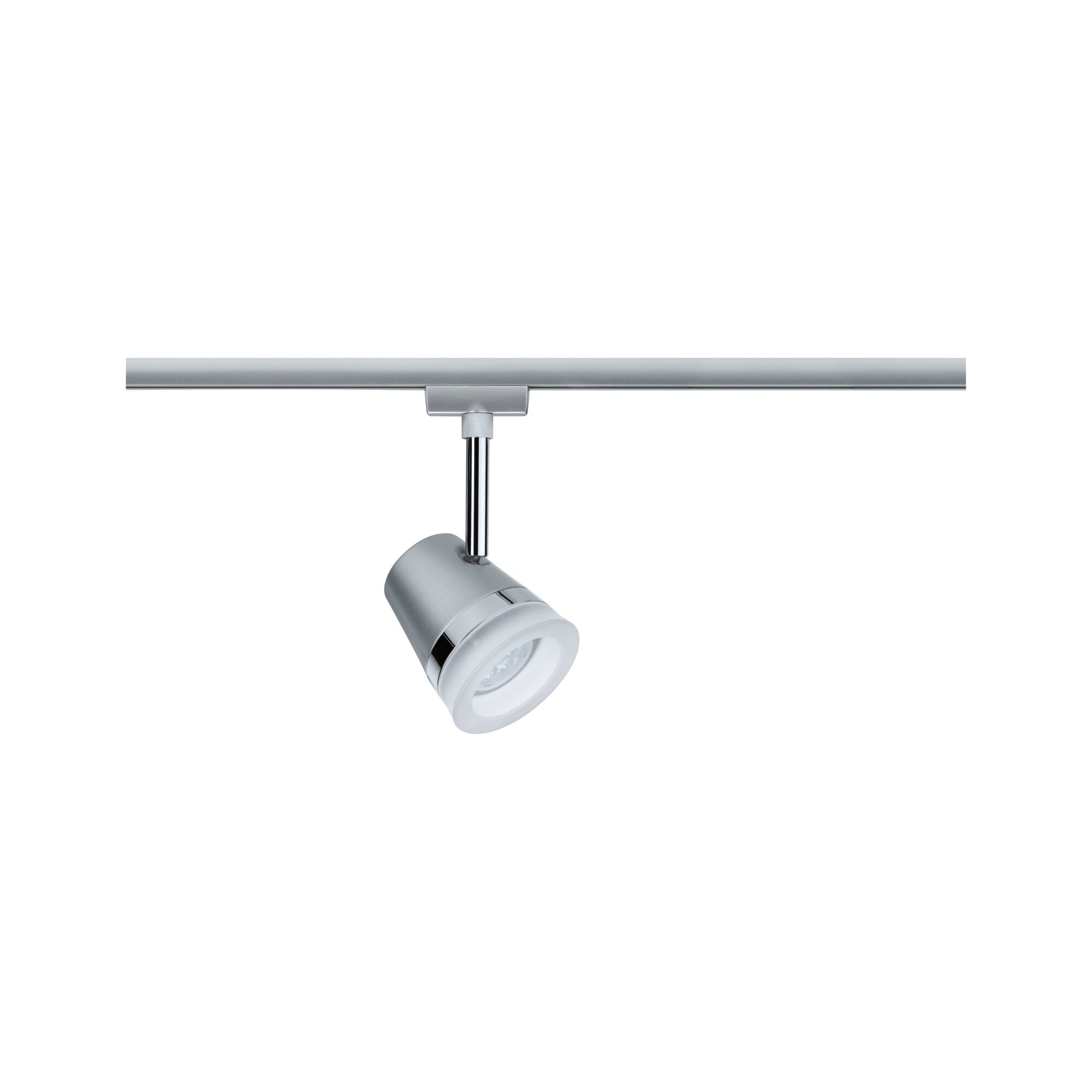

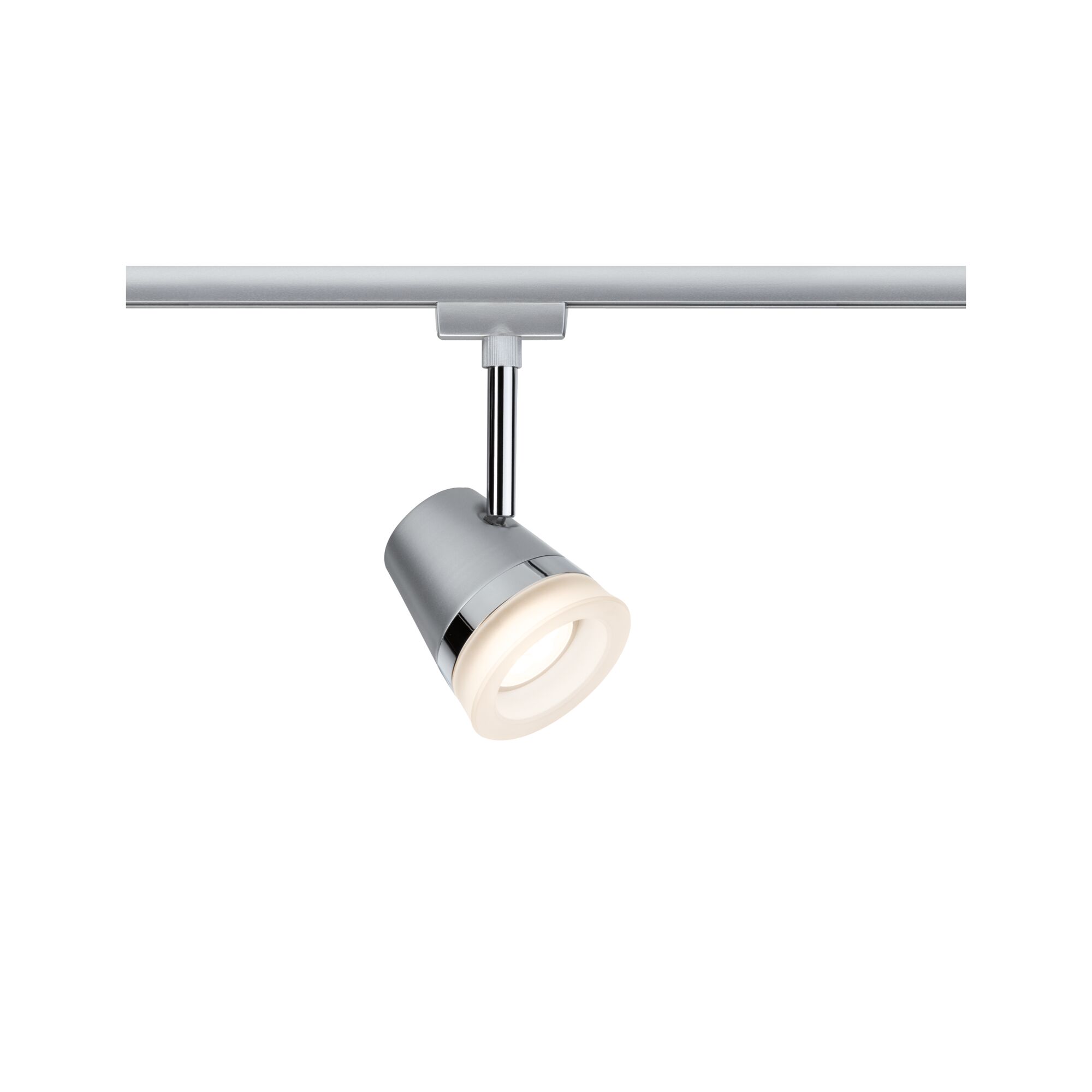

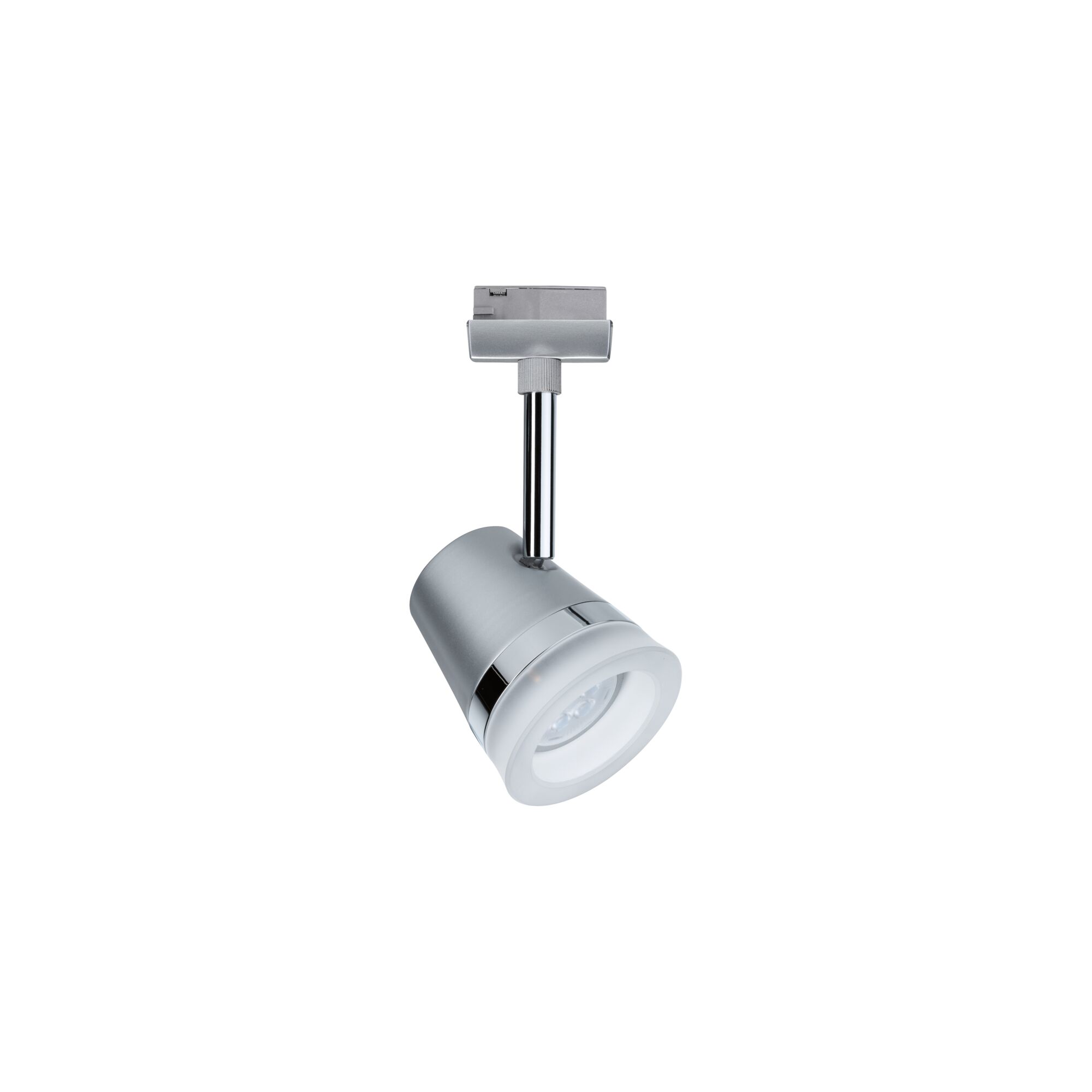

URail Rail spot Smart Home Zigbee 3.0 Cone Individual Spot incl. Tunable White illuminant GU10 330lm 5W Tunable White dimmable 230V Chrome matt/Chrome

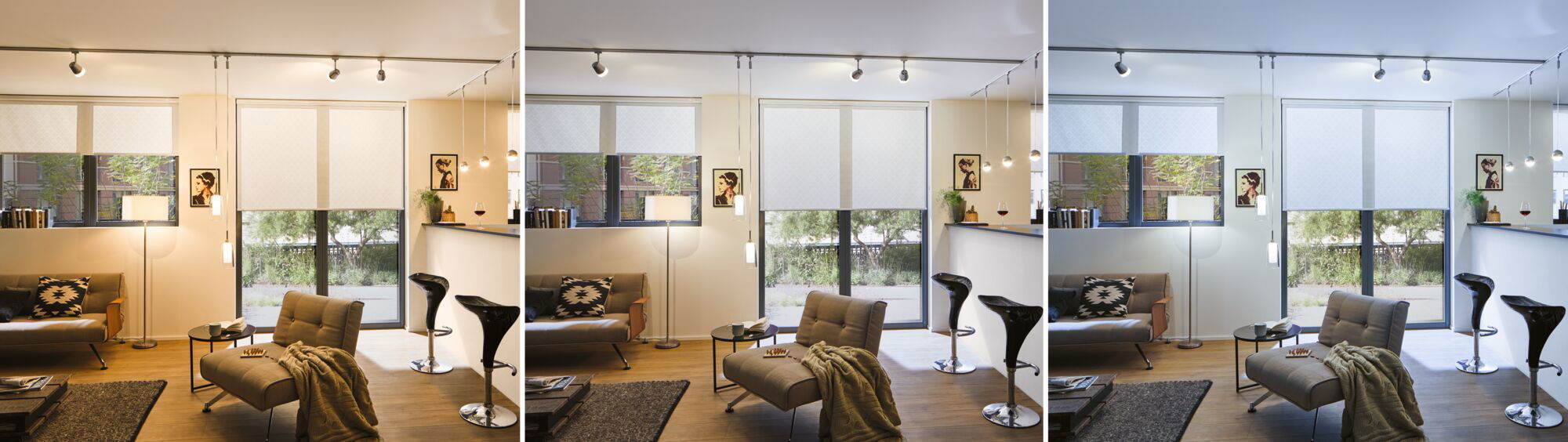

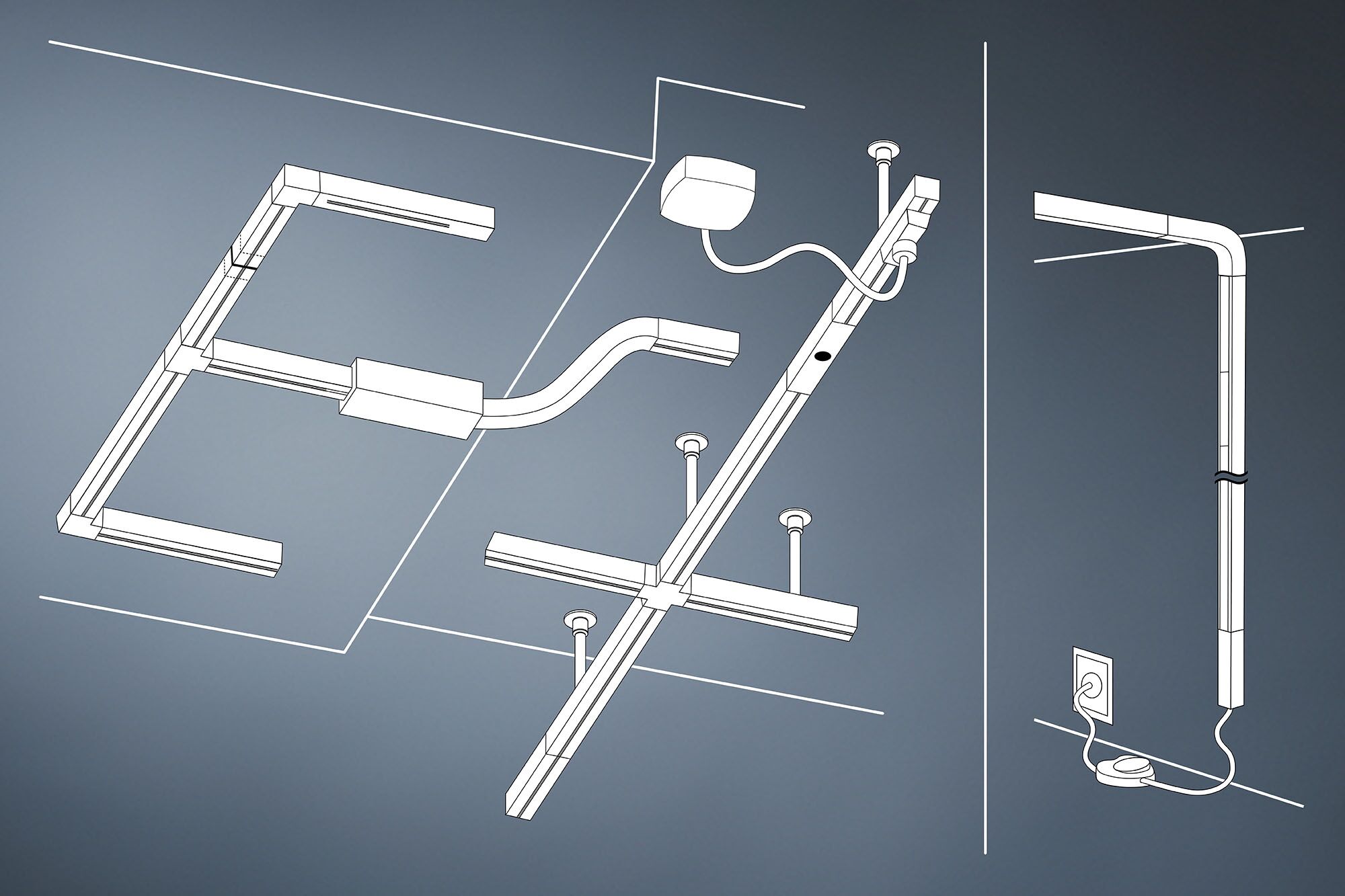

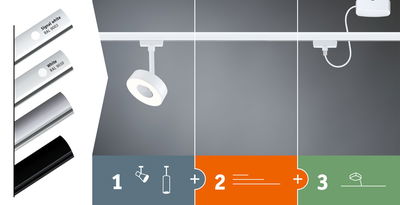

Different areas of a room can be easily illuminated with the versatile URail 230 V rail system. The URail spot Cone Smart is equipped with a lamp, incl. Zigbee 3.0 and Tunable White function. The tunable white function allows the light colour to be adjusted as required: from daylight-white working light to relaxing, warm white light. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers. The Cone Smart spot can be directed anywhere you like, to highlight pictures, furniture or other decorative objects with targeted lighting. The lamp is exchangeable.

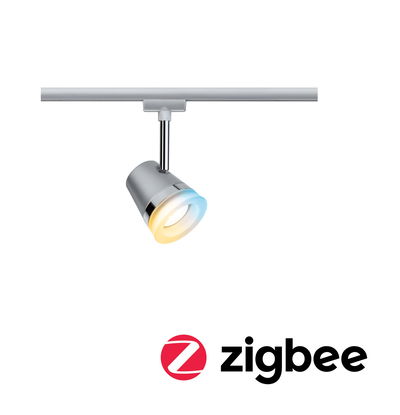

- Usable with smart home gateways that have a Zigbee interface
- A Zigbee product can be addressed using various remote controls
- URail system lamp incl. assembly instructions
- Directional light sets light accents by shining on objects.
- Dimmable

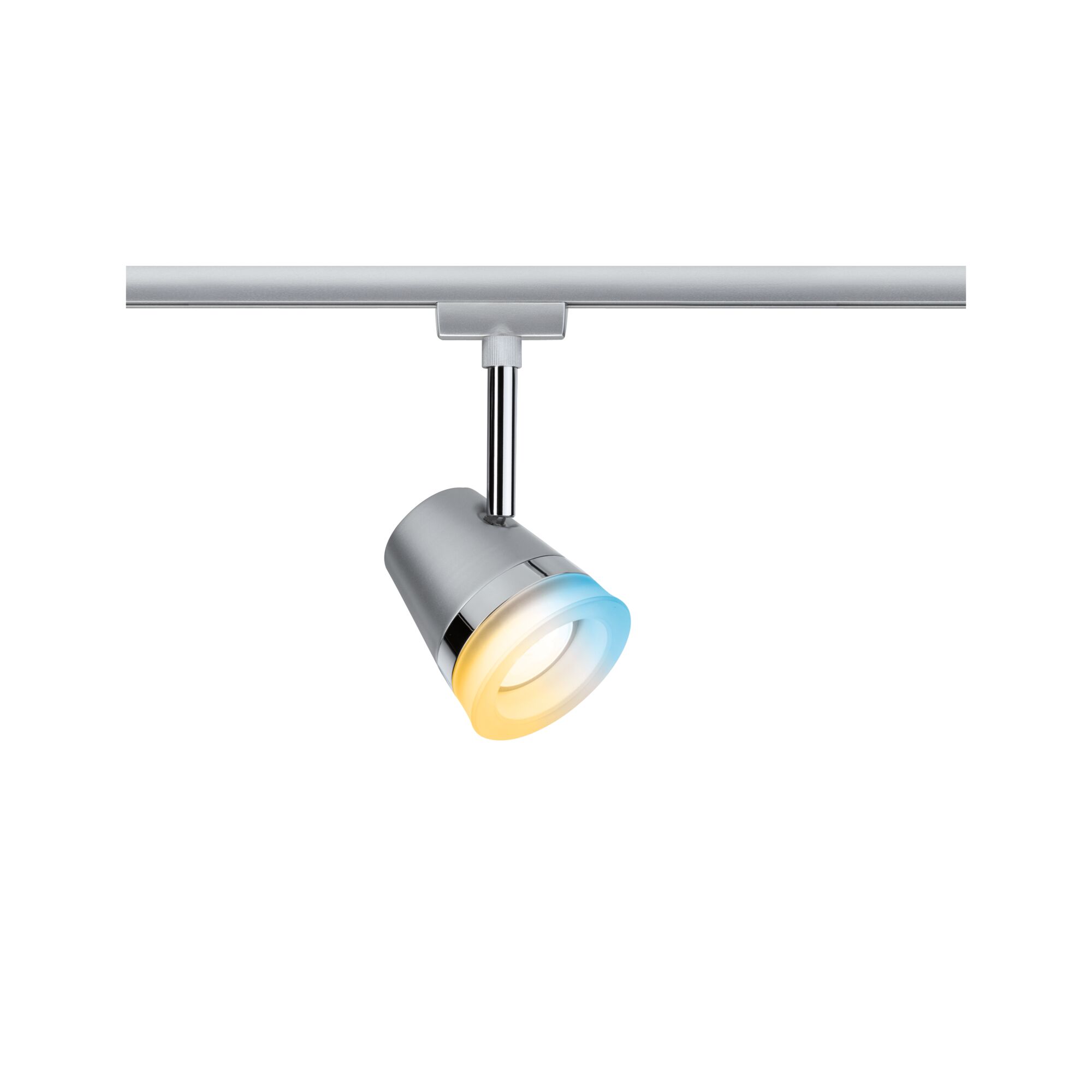

- With white-light control (Tunable White)
| Dimension | |
|---|---|
| glass length | 20 mm |
| Ø glass | 85 mm |

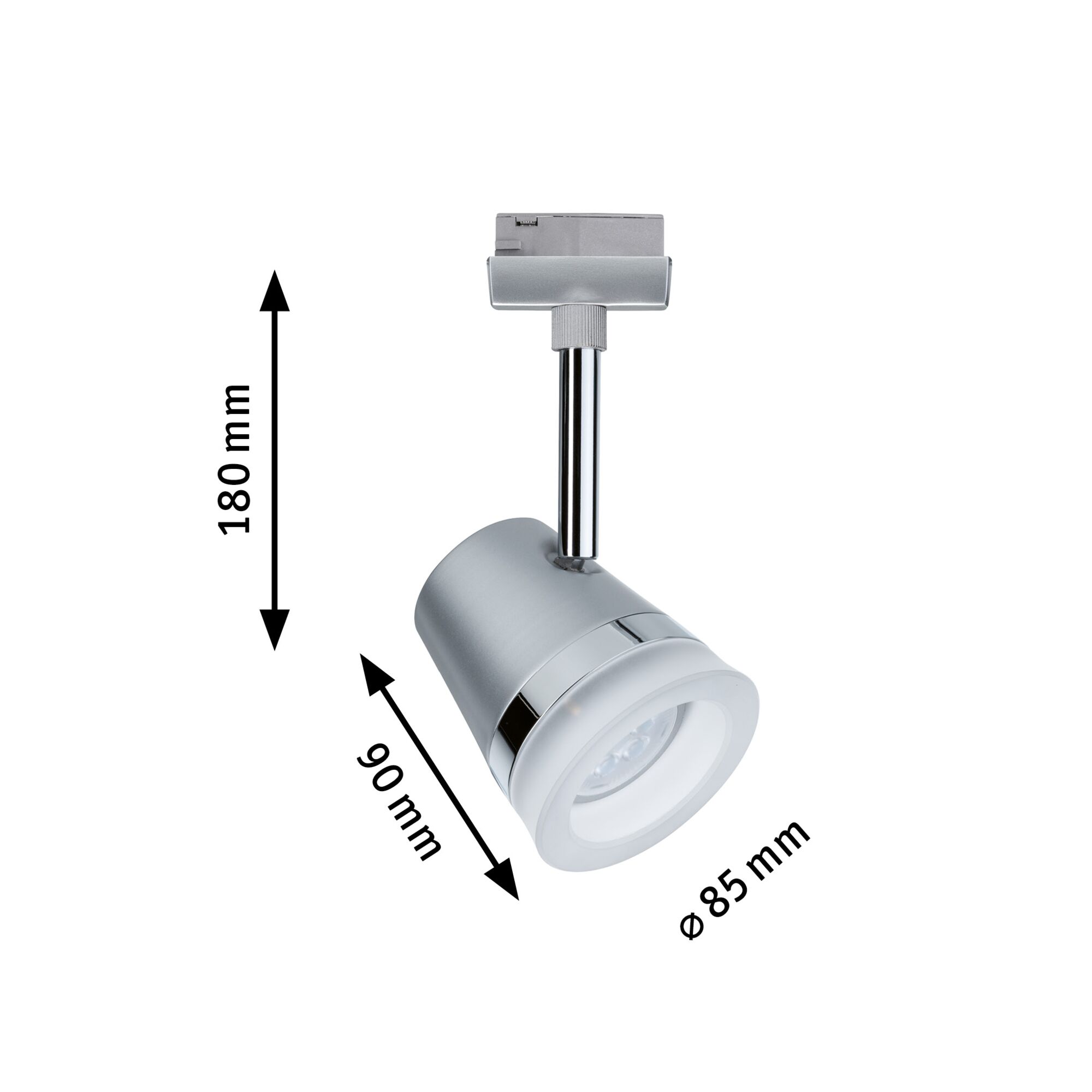

| Dimensions (Height x Width x Depth) | H: 185 x B: 100 x T: 90 mm |
| Ø | 85 mm |
| Design and Material | |
|---|---|
| Colour | Chrome, Chrome matt |
| Material | Metal |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent 500.67, Paulmann SmartHome Zigbee Gent2 501.40 |
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Colour change | Tunable White |
| Beam angle | 36 ° |
| Usable luminous flux | 330 lm |
| color temp | 2700 - 6500 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 5 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Socket | GU10 |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Total Width | 100 mm |
| Incandescent Equivalent | 31 W |
| Maximum wattage range | max. 10 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_inside (not certified) |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
