Article-No.:
98181
Linion
Power Supply
Power Channel Zigbee
230/24V 17W Signal black 1m
230/24V 17W Signal black 1m
£181.00*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days

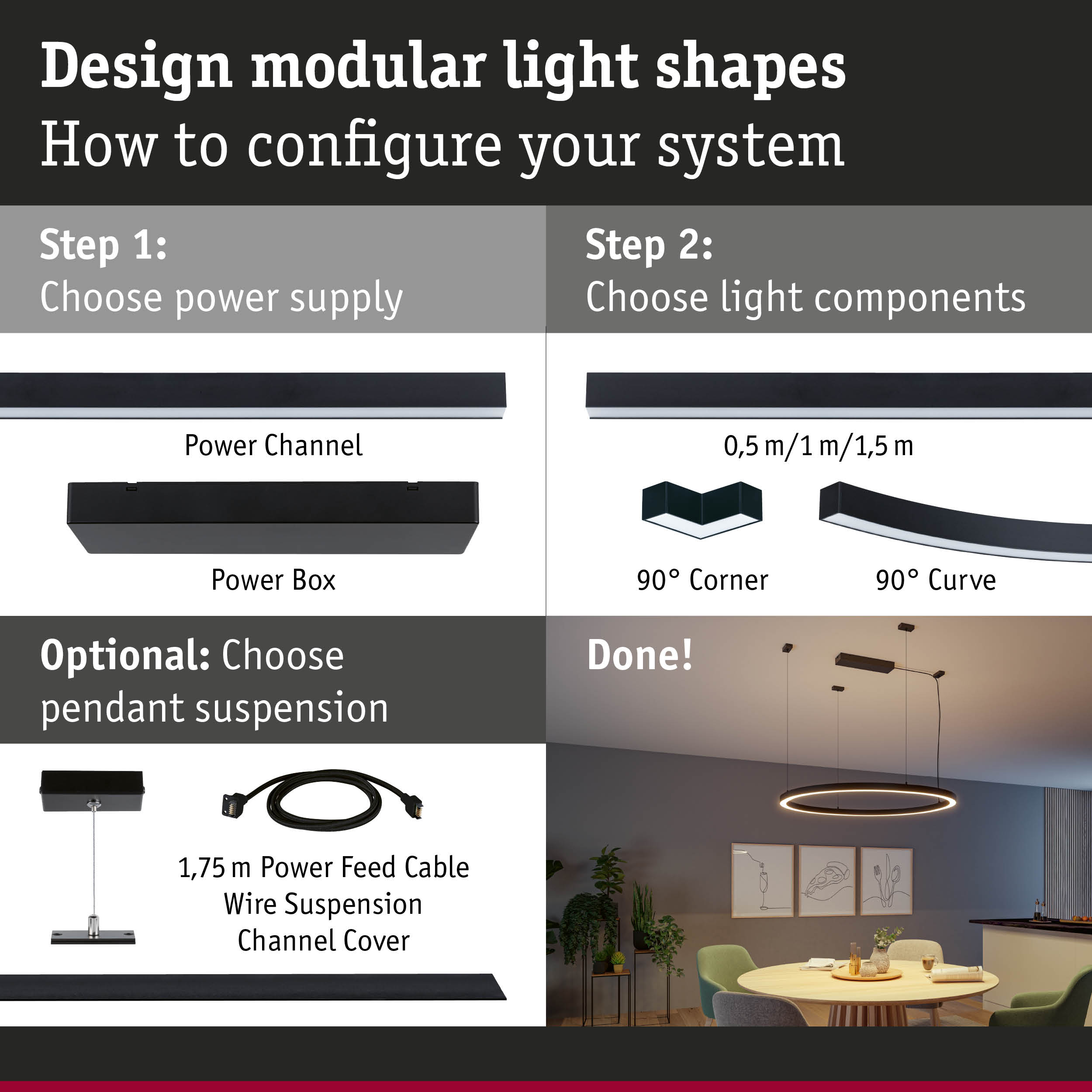

- Feed module for Linion light channel system
- Enables convenient controls via Zigbee technology
- Connection of up to 124 W possible
Linion Power Supply Power Channel Zigbee 230/24V 17W Signal black 1m

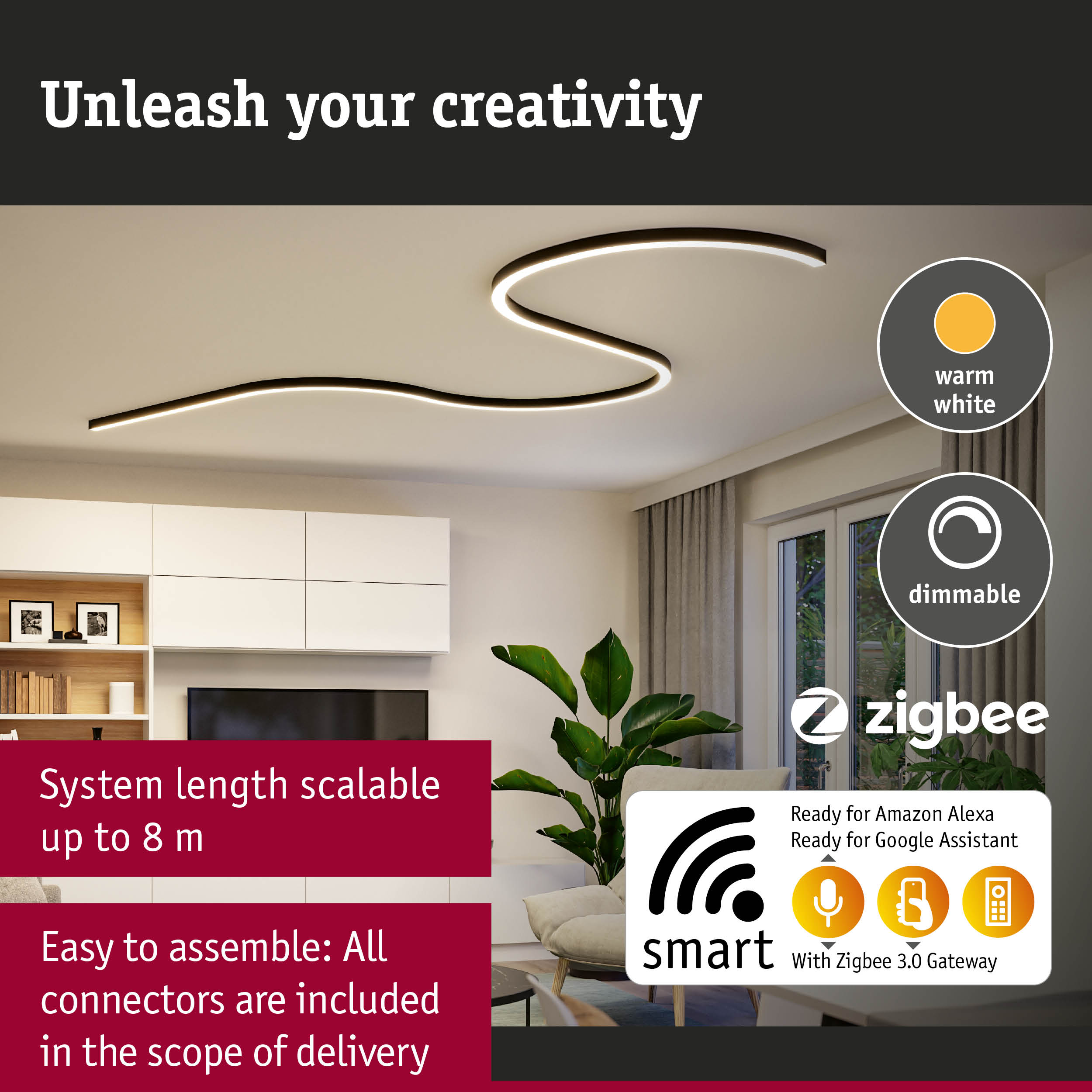

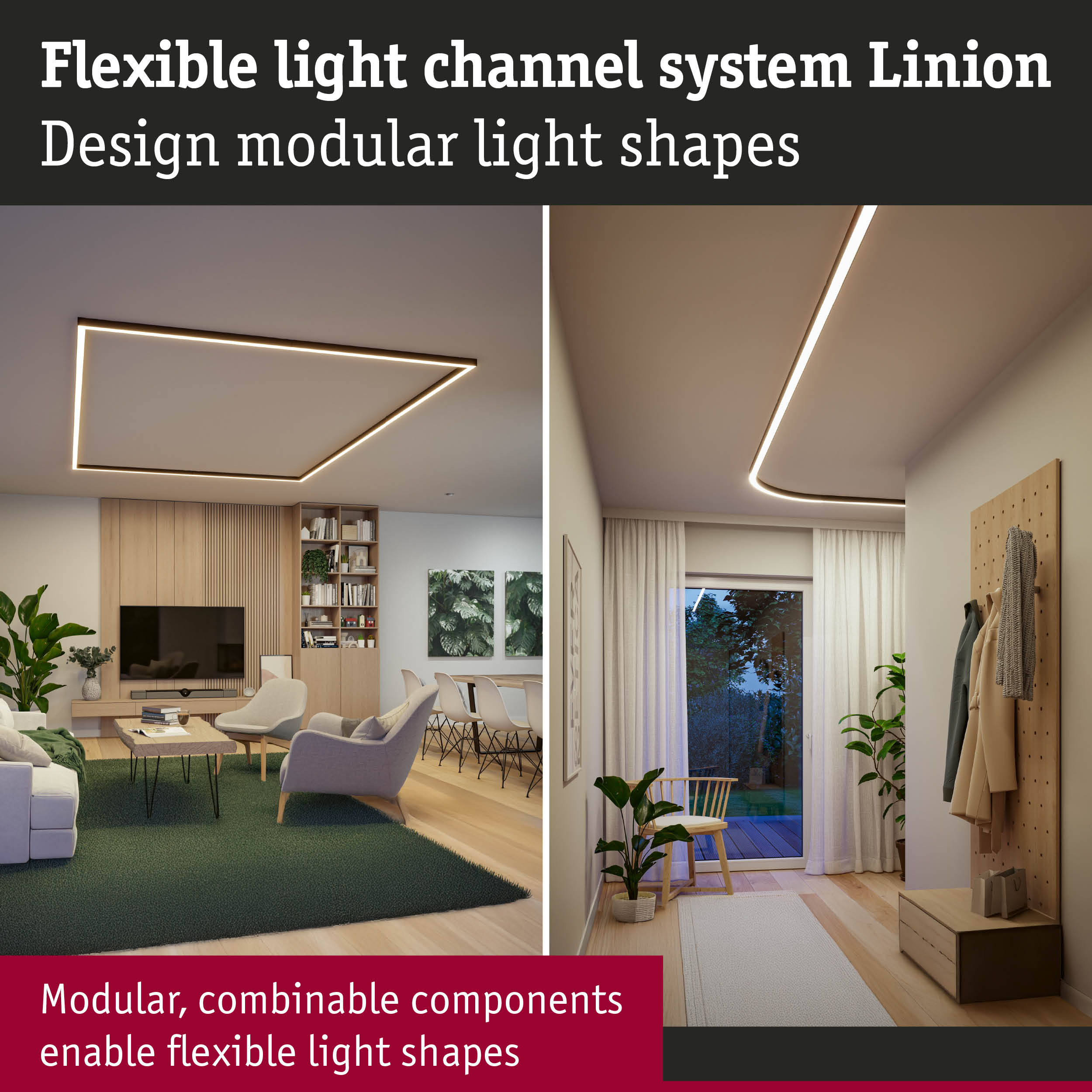

The unique Linion light channel system sets new standards in individual room lighting. The Power Channel with an integrated transformer and Zigbee interface consists of a high-quality aluminium housing in timeless Signal black. It can be installed directly on the 230V power outlet. The Power Channel enables the connection of further lighting components from the system up to a maximum length of 8m and 124 W on both sides. With an output of 17W and a colour temperature of 3000K, the illuminated channel creates a bright, warm white light atmosphere. Thanks to the Zigbee 3.0 interface, the connected light components can be conveniently dimmed via remote control, voice command and Zigbee gateway. Installation couldn’t be simpler, as all the necessary connectors and two end caps are included in delivery.
- Feed module for Linion light channel system
- Enables convenient controls via Zigbee technology
- Connection of up to 124 W possible
- Seamless lines of light, thanks to modular components
- Uniform and glare-free light for your living space
- High-quality aluminium housing
- Color temperatur: 3000K - Warm white
- suitable for a system length of up to 8m
- Included in delivery: power supply including connectors, end caps and stability disc
- Easy to assemble using a ‘plug & play’ connection
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 40 x T: 40 mm |
| Length | 1 m |
| net weight | 1101 g |
| Design and Material | |
|---|---|
| Colour | Signal black |
| Material | Plastic, Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 1040 lm |
| Color rendering index | > 80 Ra |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 1780 lm |
| Lamp Features | |
|---|---|
| Dimming Control | with Smart Home, with remote control |
| Inclusive lamp | yes |
| Component parts | 17 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 114 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| Maximum wattage range | max. 144 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Number of LED's per meter | 168 |
| Power consumption | 20 W |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 150 VA |
| apparent power | 24 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_certified |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
| Compatible smart home systems | Amazon Echo Smart Speaker with Zigbee 3.0 interface|Paulmann smik Gateway|Philips Hue Bridge 2 and Pro (excluded Hue Entertainment) |
| MagentaZuhause compatibility | Works with MagentaZuhause App |
