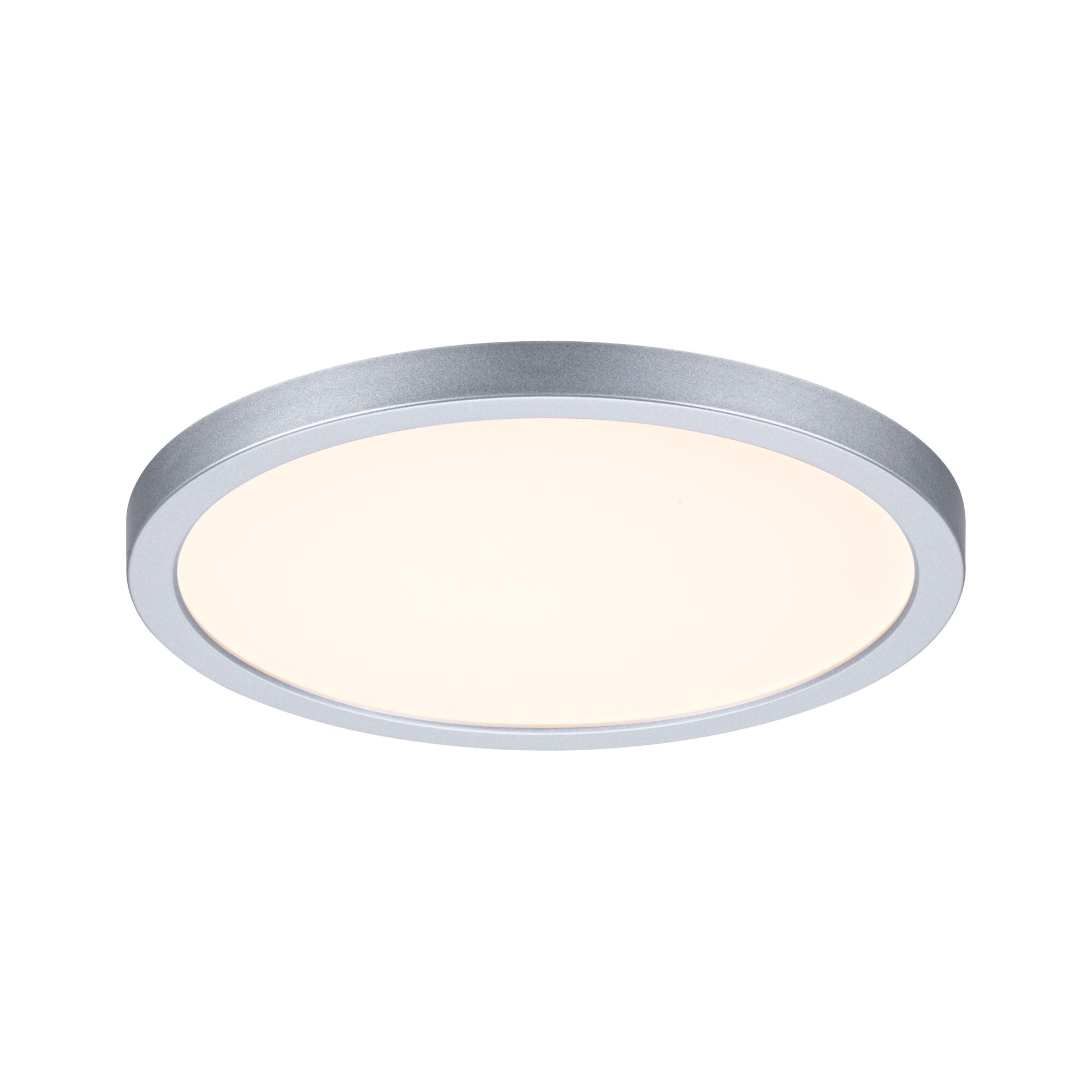

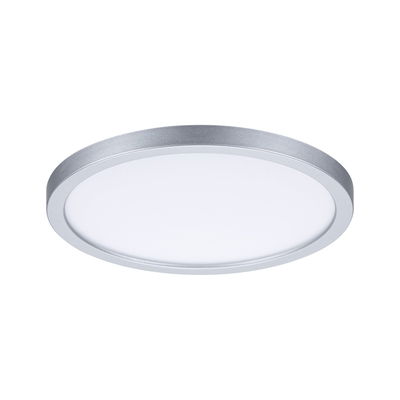

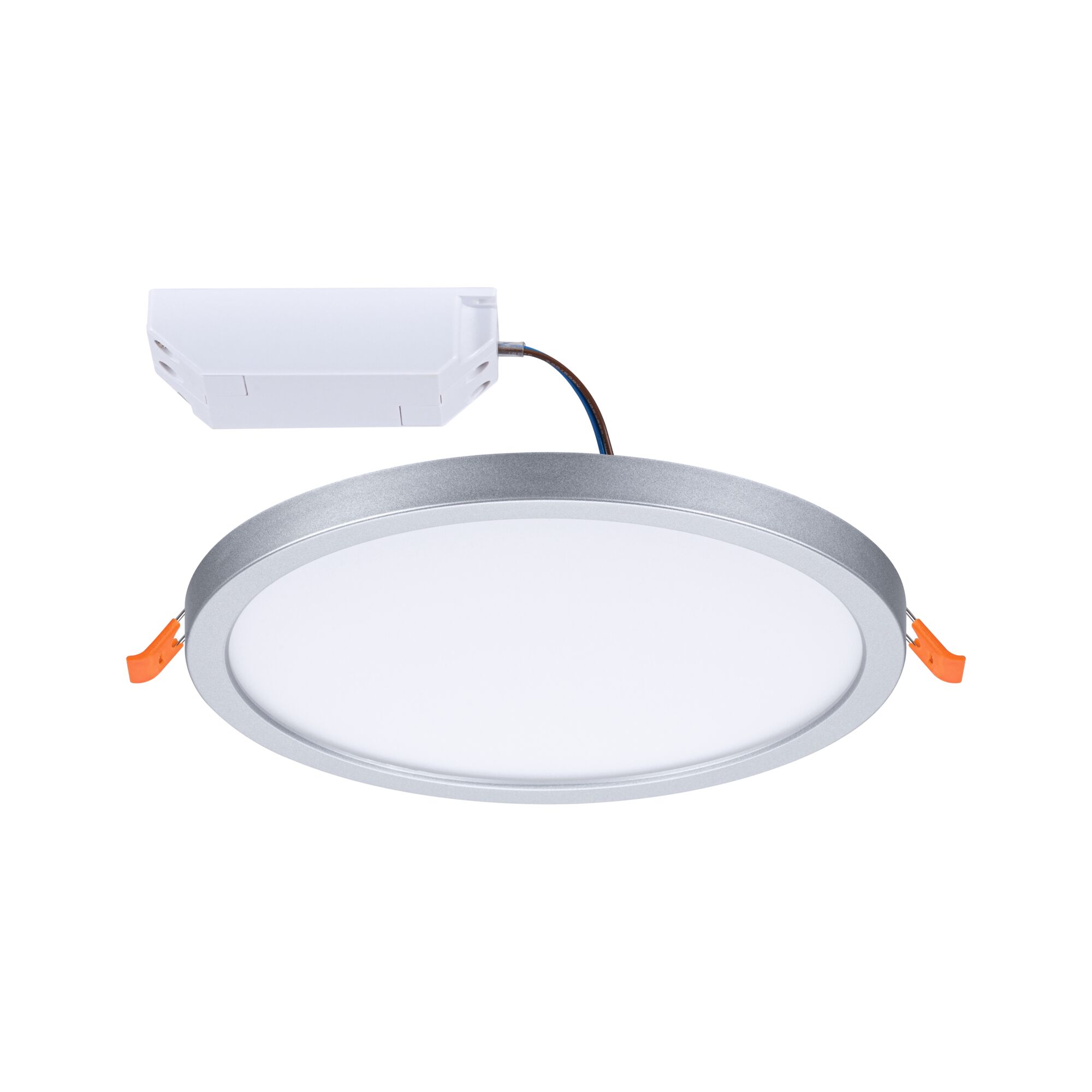

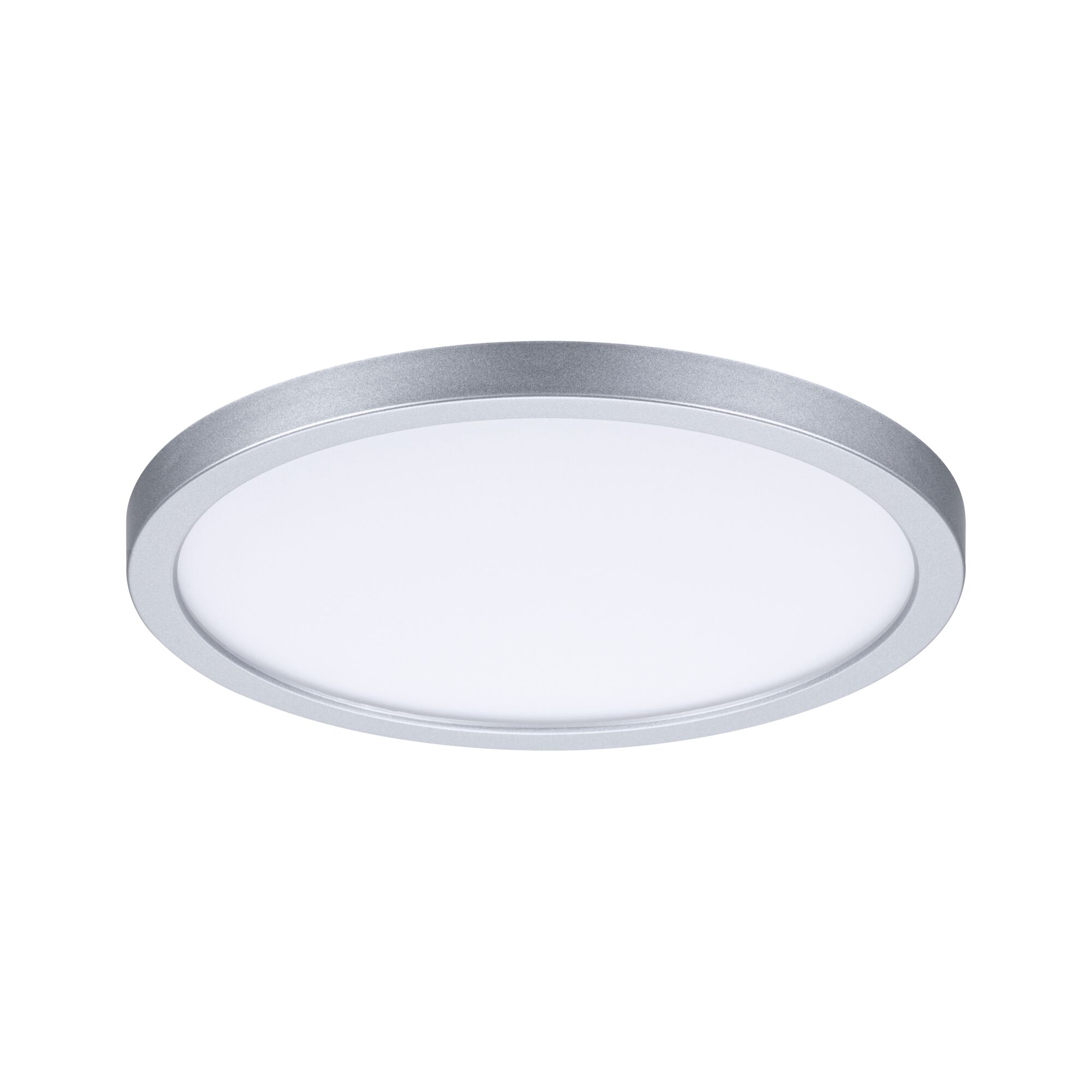

VariFit LED Recessed panel Areo IP44 round 175mm 13W 1200lm 3000K Chrome matt

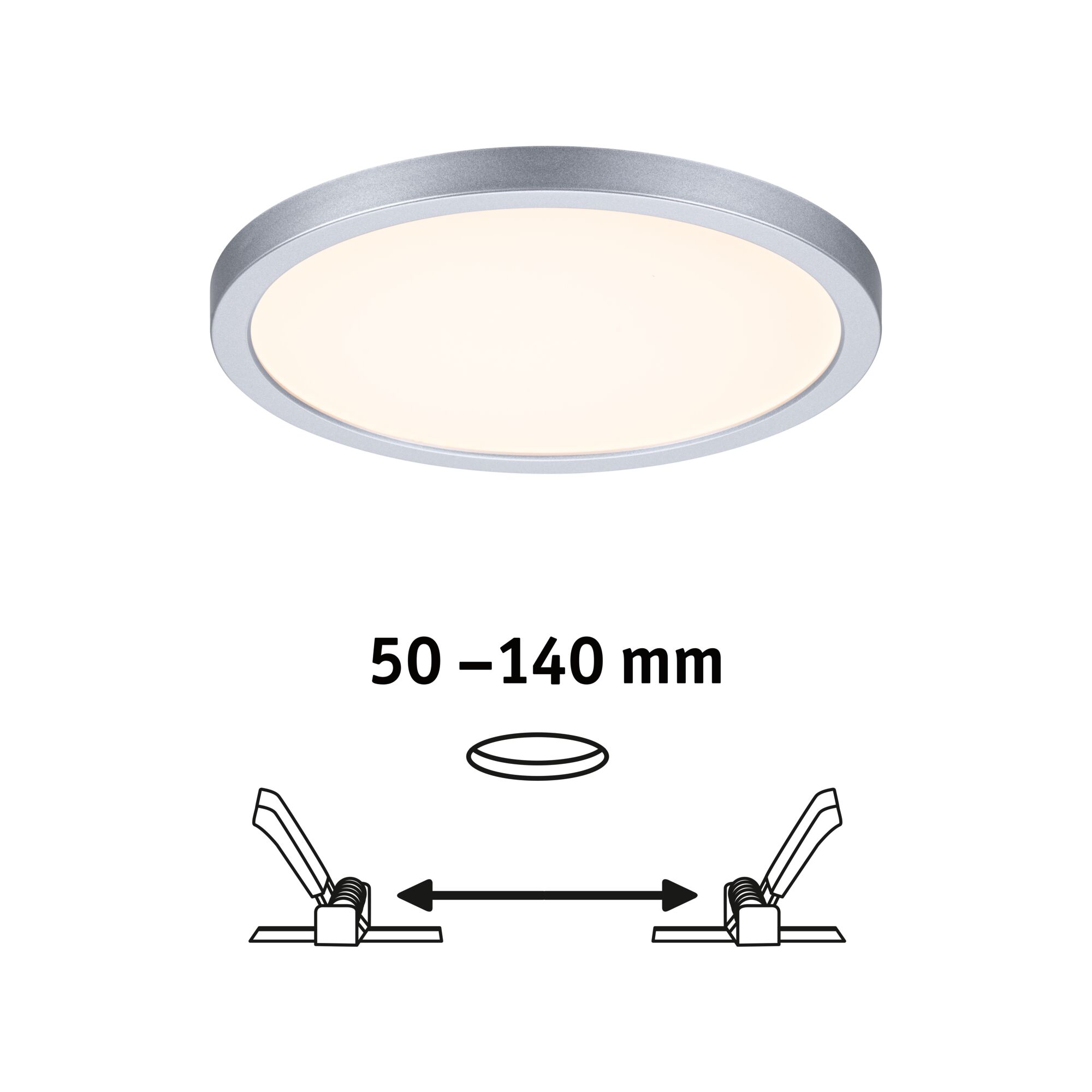

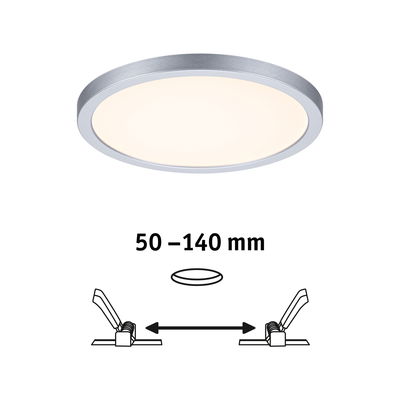

The round Areo recessed panel with a diameter of 175 mm and an output of 13 watts in Chrome matt provides extensive warm white light. Thanks to flexible VariFit technology, the clamping springs can be freely adjusted between 50 and 140 mm for installation. The panel can therefore be installed both in existing boreholes and new ones created with standard drill bits.For hole diameters larger than 85 mm, a cavity depth of at least 30 mm is needed. For hole diameters larger than 68 mm, a depth of at least 55 mm is needed.

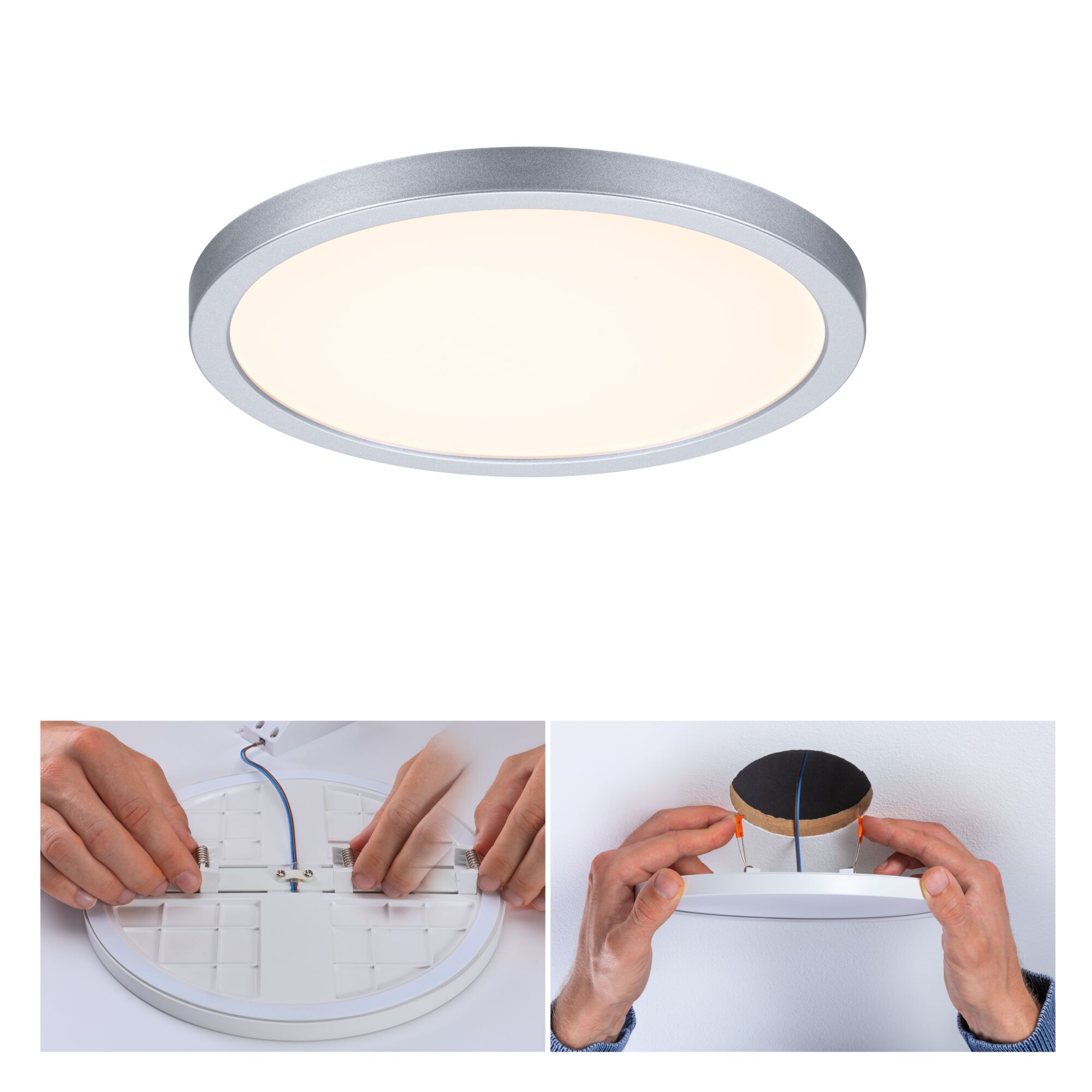

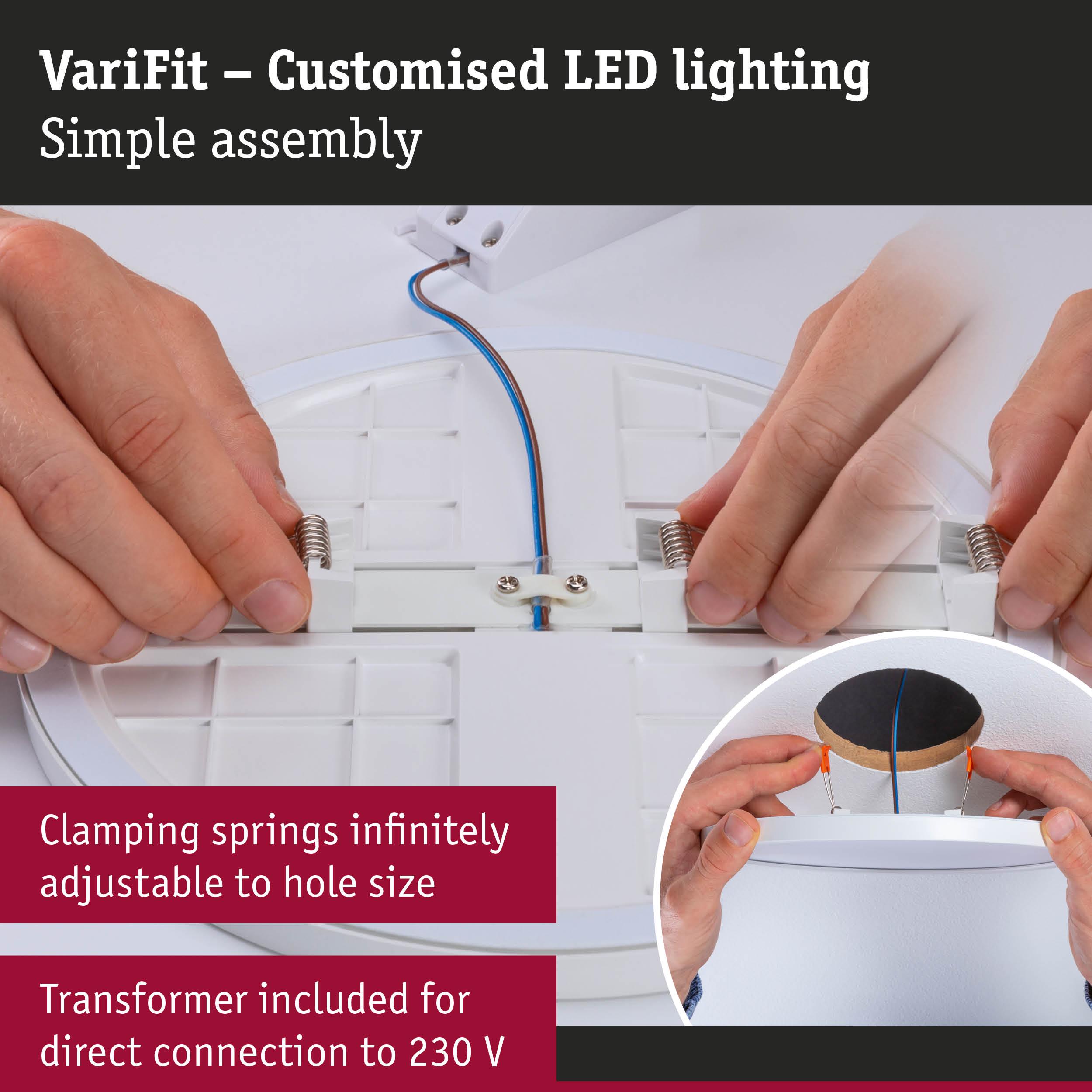

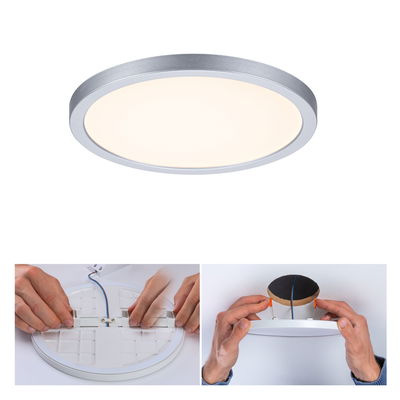

VariFit – flexible installation with infinitely adjustable clamping springs
With integrated LED bulb
Made of easy-care plastic
Color temperatur: 3000K - Warm white
For 230 V direct connection

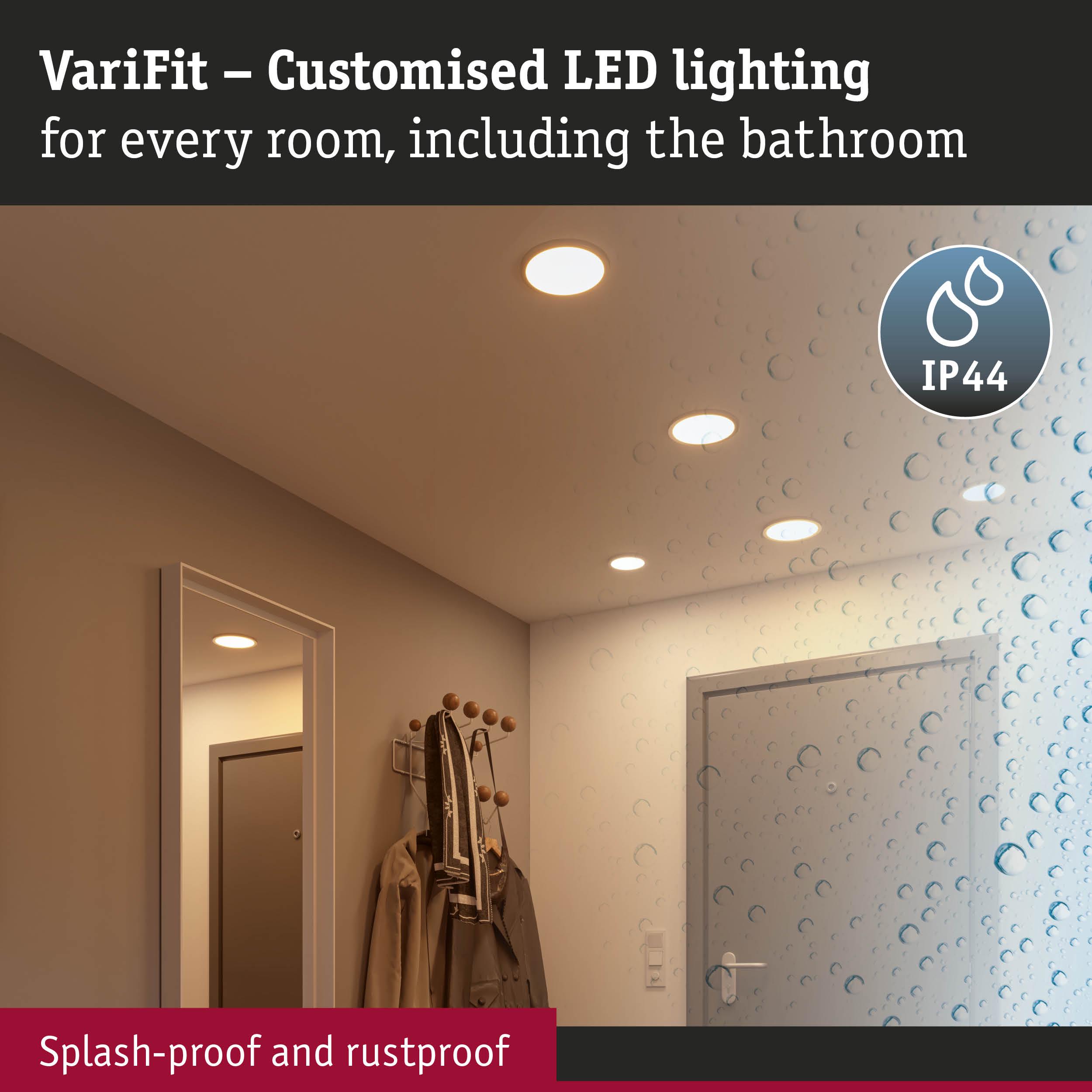

IP protection: IP44 splash-protected

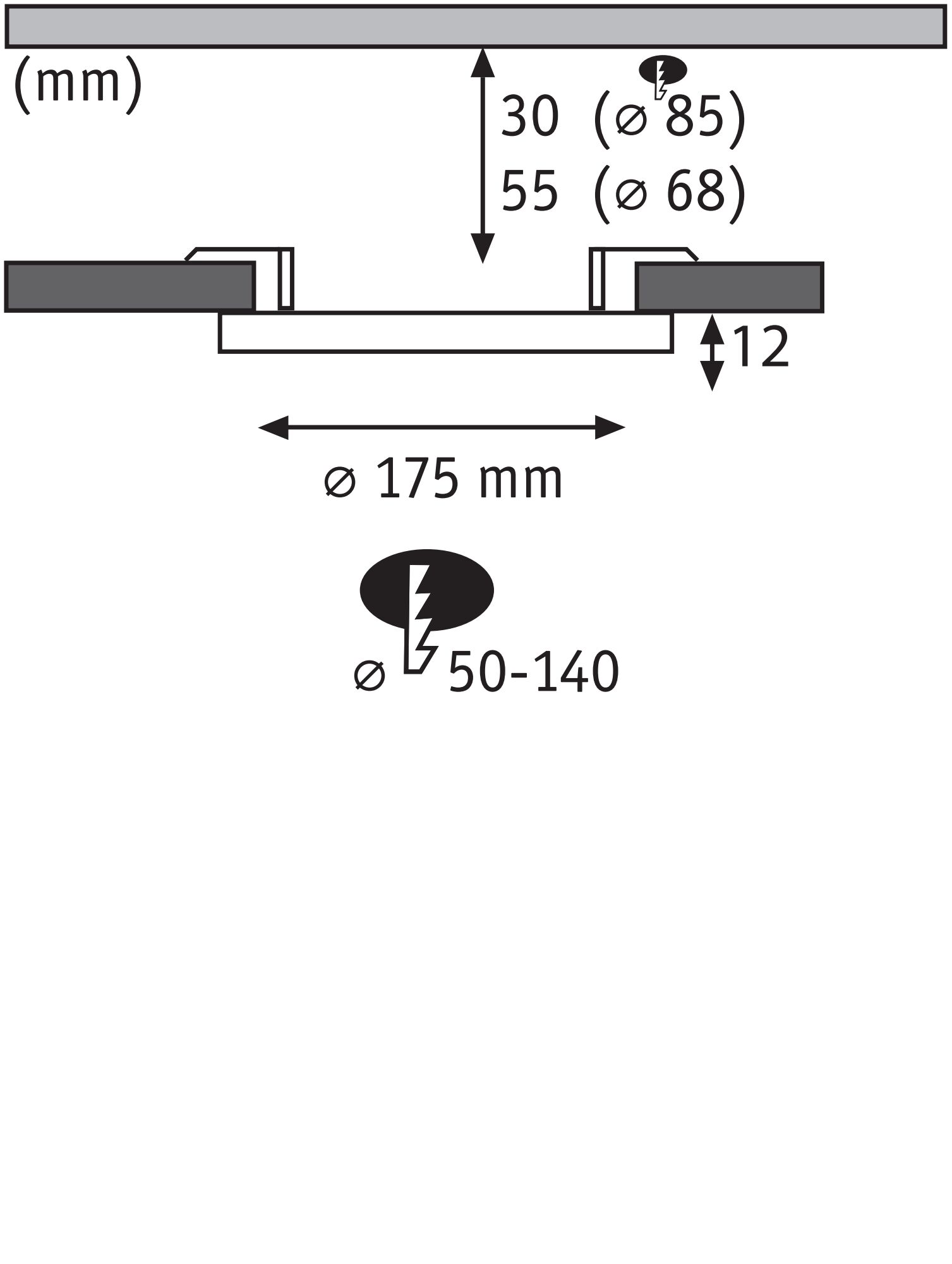

Dimension
mounting hole 2	140 mm
Depth of hollow wall	30-55 mm, 30 mm
Total Mounting depth	45-70 mm
Dimensions (Height x Width x Depth)	H: 12/26 mm
Ø	175 mm
Mounting hole	50 mm
Form	round

Design and Material
Colour	Chrome matt
Material	Plastic

Energy consumption
Energy efficiency (A to G)	E

Service life
Lifetime	30000 h

Light Characteristics
Colour temp.	3000 K
Usable luminous flux	1200 lm
Luminous flux LED module	1800 lm
color temp	3000 K
Color rendering index	> 80 Ra

Lamp Features
Component parts	13 W
Technique	LED
IP protection	IP44
Dimmable	No
Inclusive lamp	yes
Incandescent Equivalent	115 W
Number of component parts	1x
protection class	protection class II
Replacable	3 Lightsource is not replaceable, the complete lighting must be replaced.\|5 Control gear is replaceable without damage the lighting fixture by electrician.
Power consumption	15 W

Transformer
apparent power	28 VA

Labelling
WEEE-Reg.-No	DE 39236390
