Article-No.:
93135

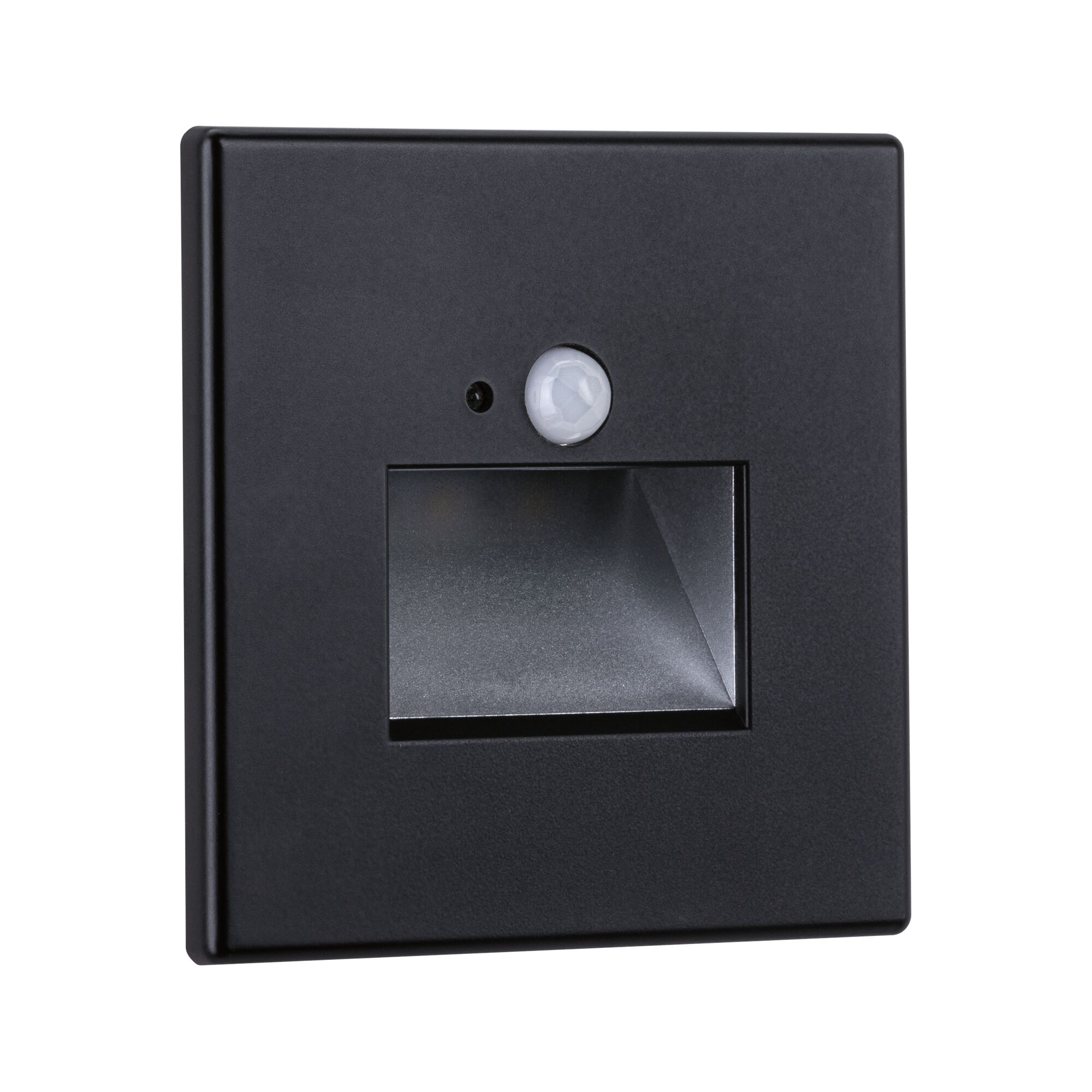

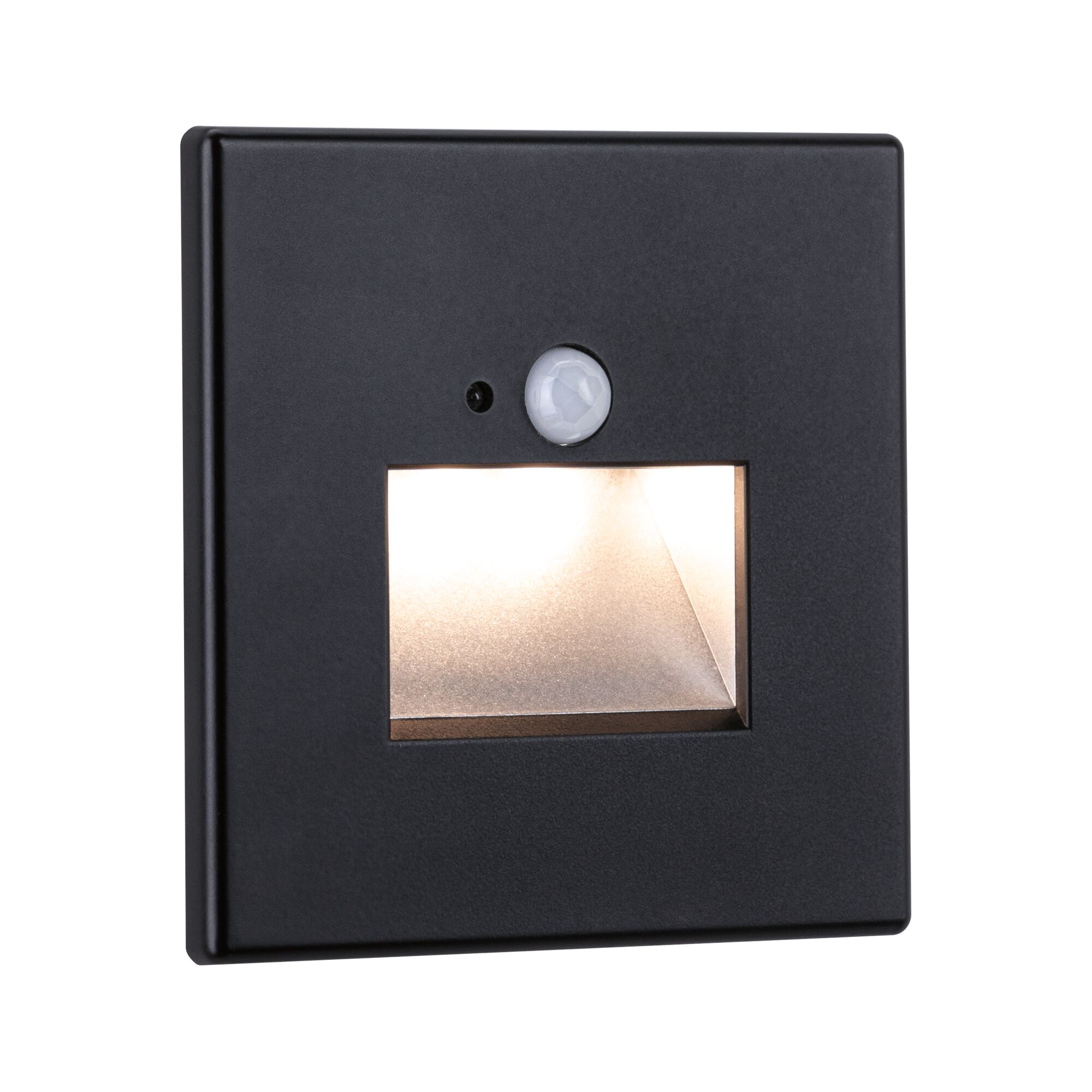

LED Recessed wall luminaire
Edge Quadro
square 80x42mm 1,2W 25lm 230V 2700K Black
square 80x42mm 1,2W 25lm 230V 2700K Black

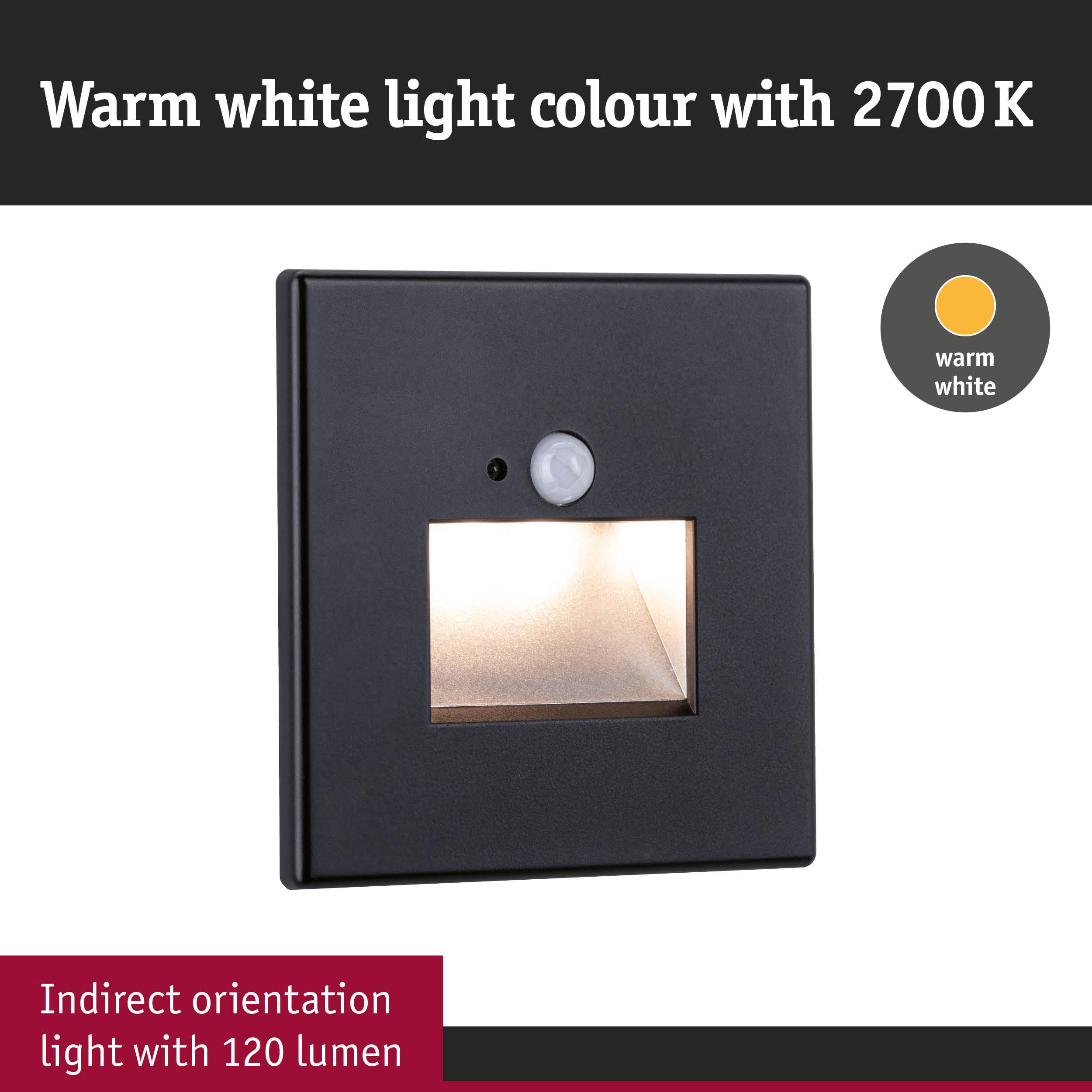

- Color temperatur: 2700K - Warm white

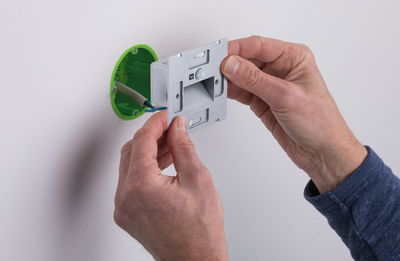

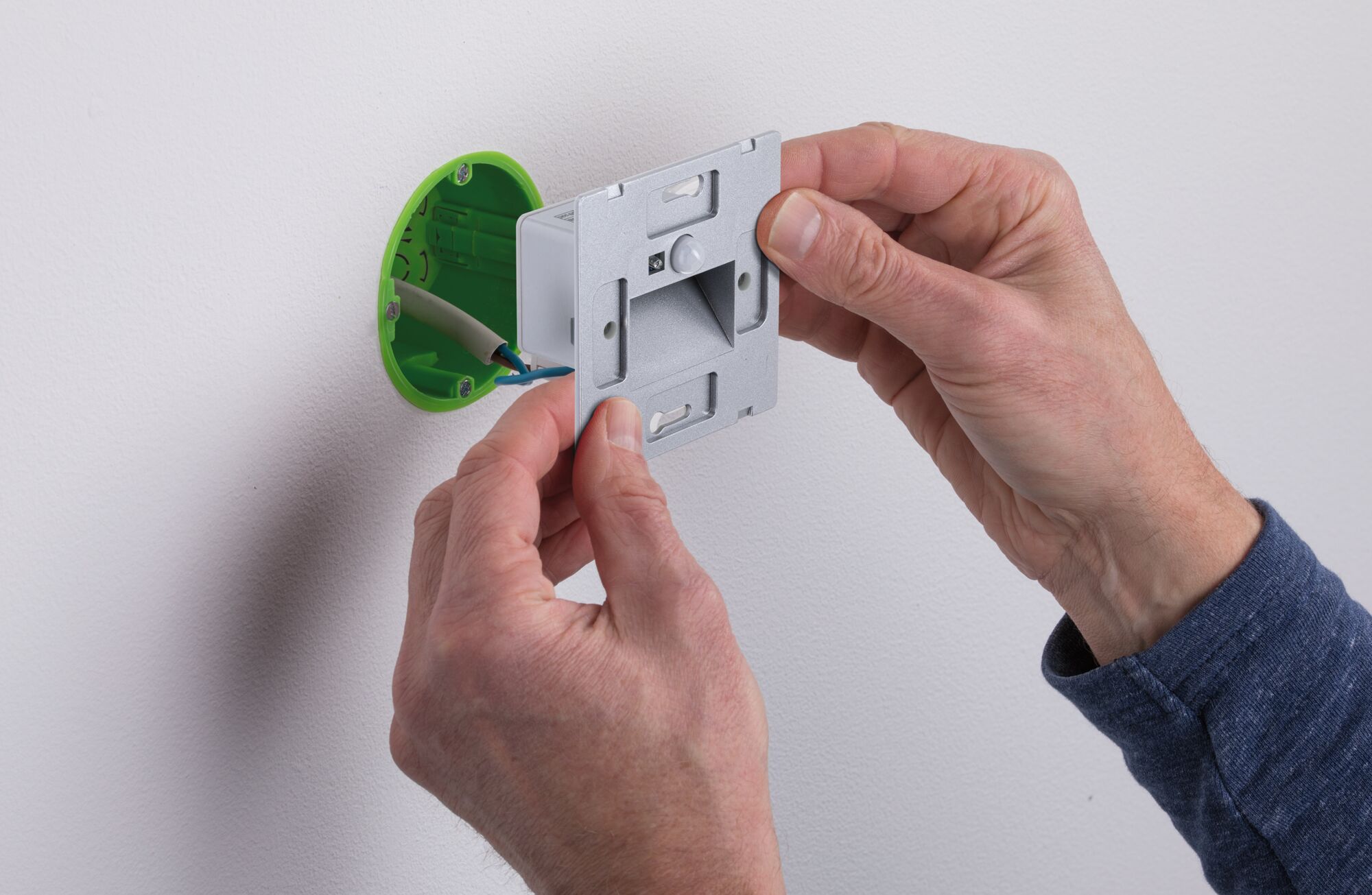

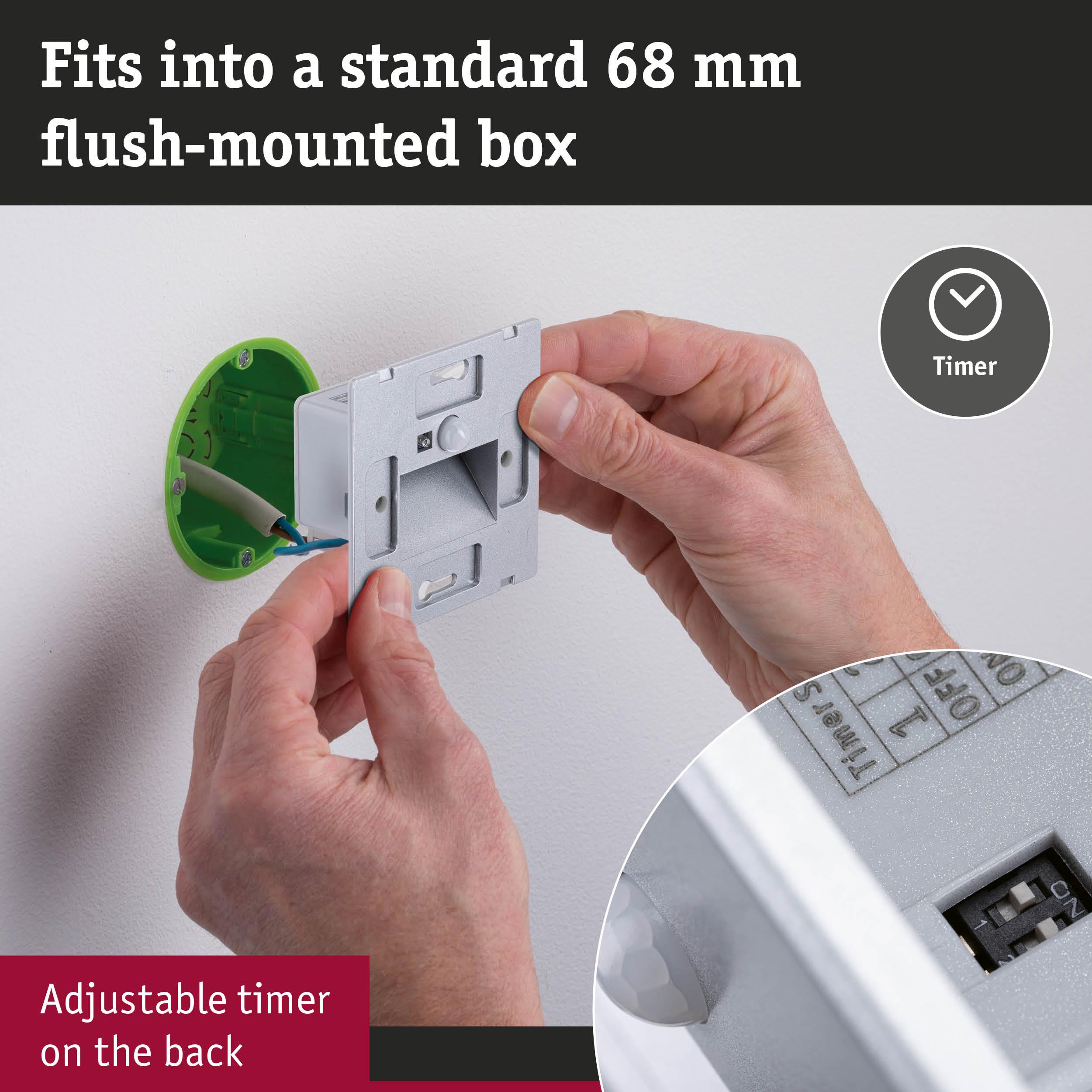

- For standard recessed device sockets with a 68 mm diameter
- LED lamp (fixed) included in scope of delivery
LED Recessed wall luminaire Edge Quadro square 80x42mm 1,2W 25lm 230V 2700K Black

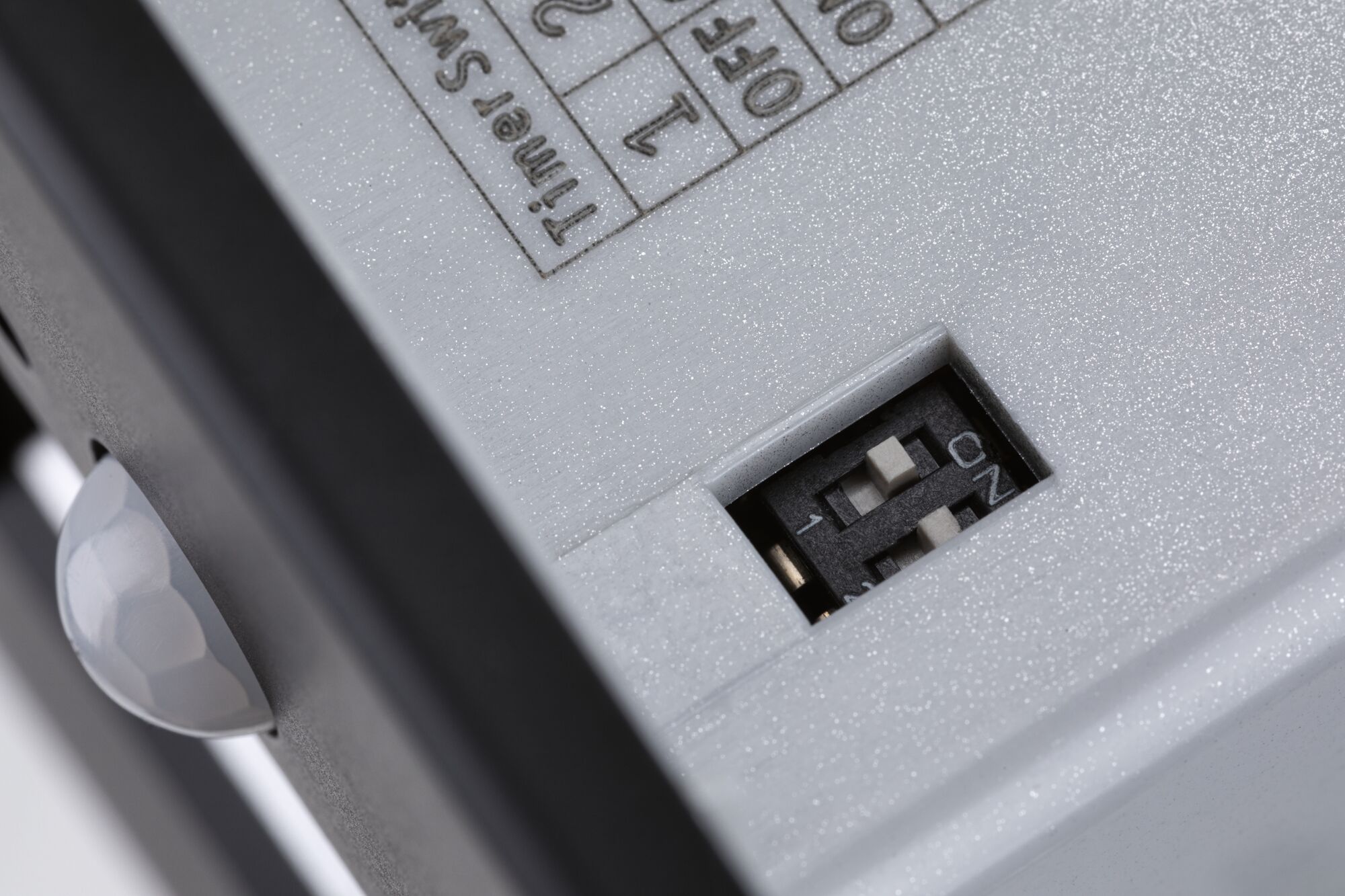

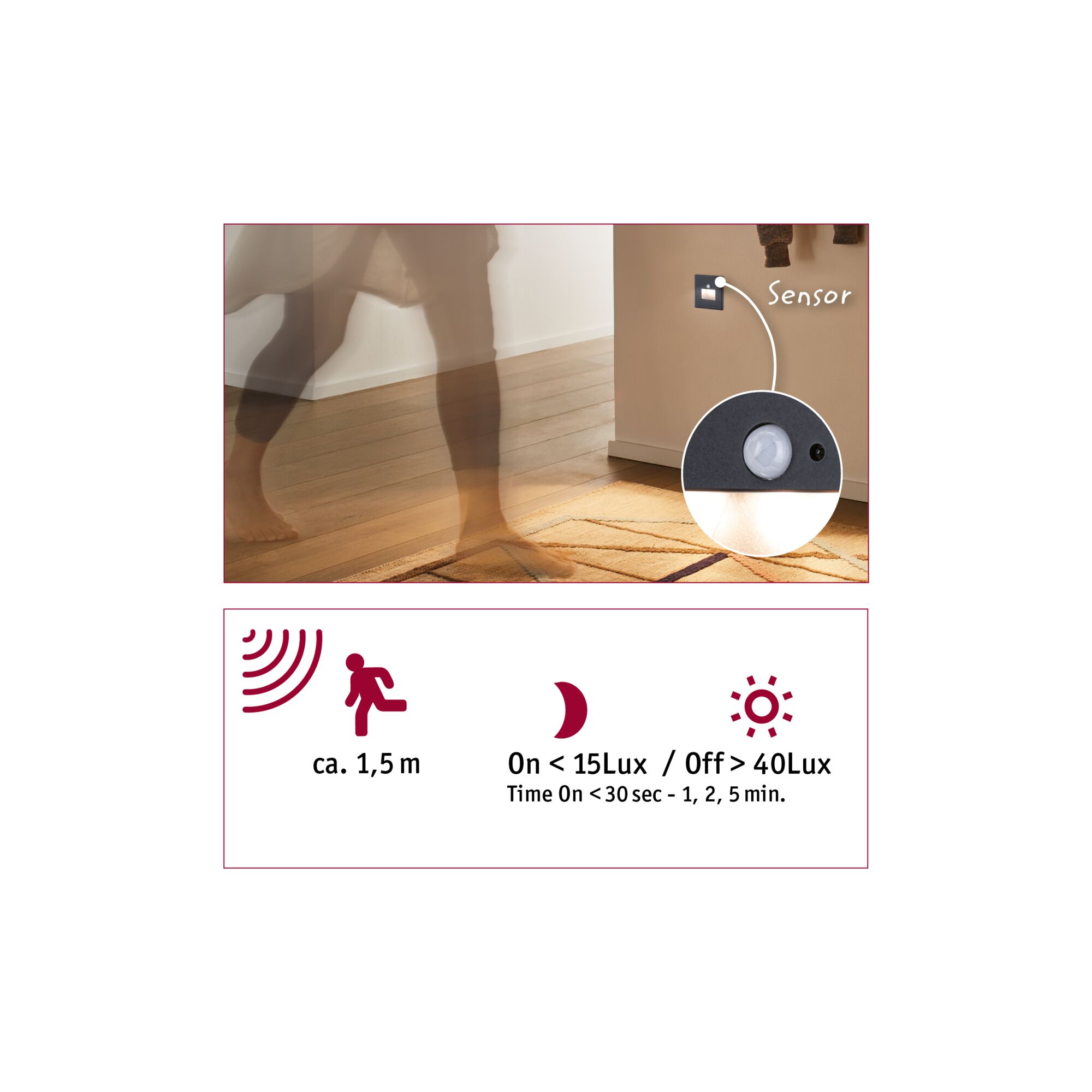

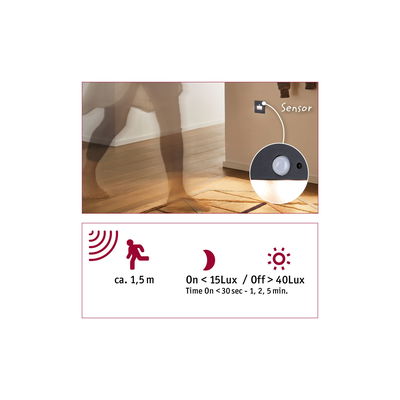

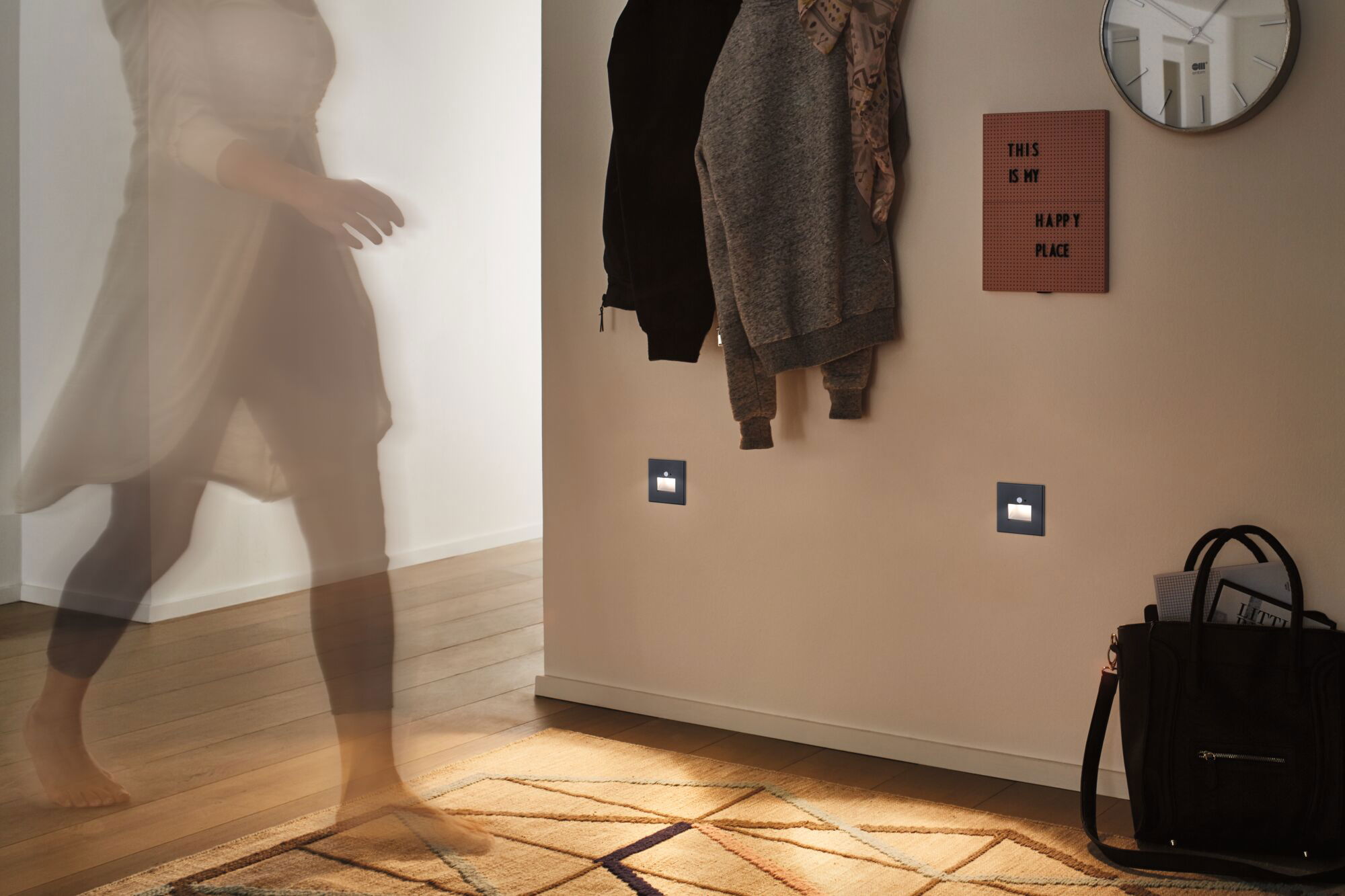

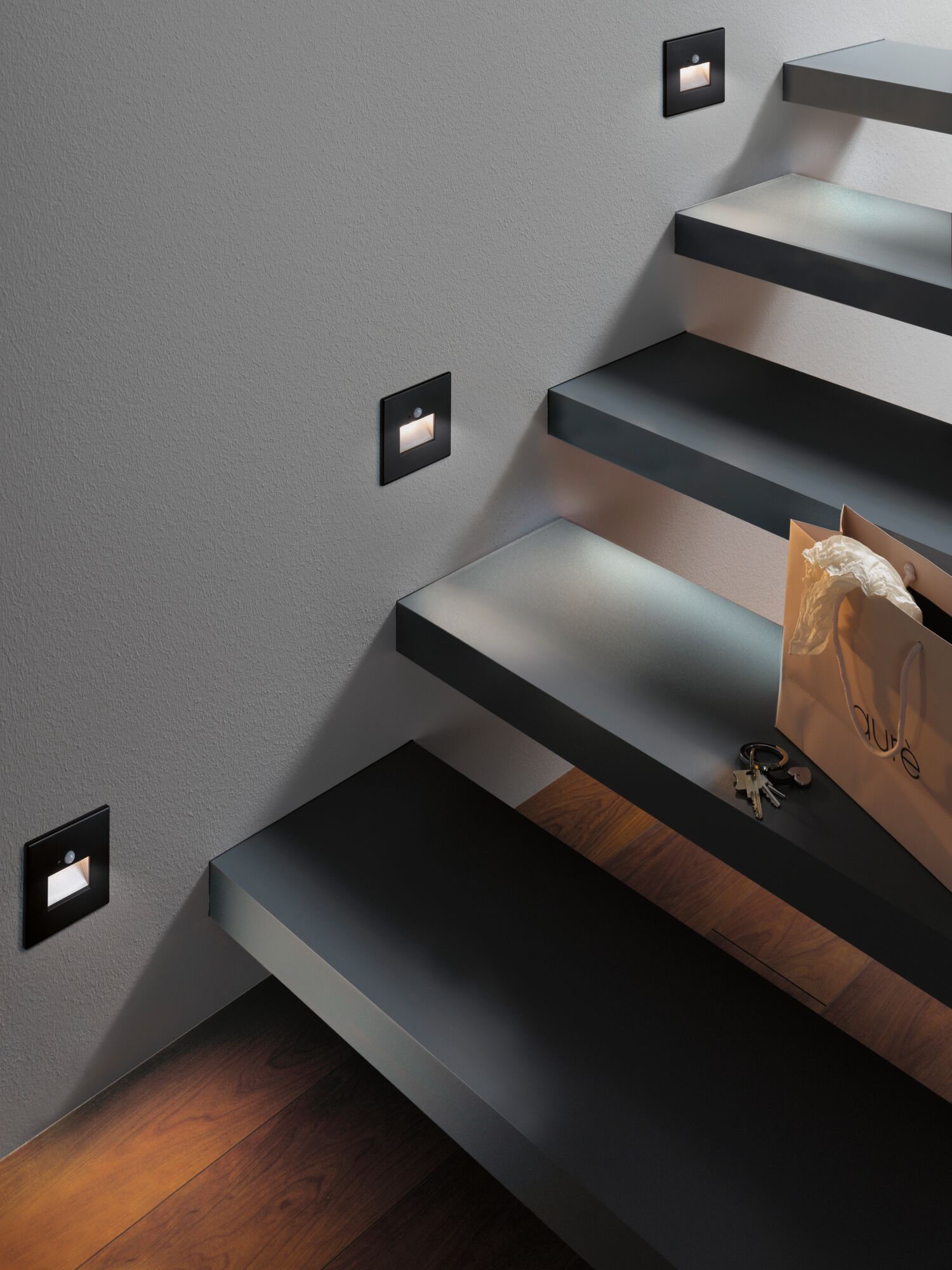

Light need not always come from the ceiling. The Edge spotlight in Black was designed specifically for in-wall mounting to create attractive lighting effects, and to increase safety in corridors or stairwells. The advantages of the non-replaceable LED lamp include its energy efficiency and long service life. The PIR-Sensor activates illumination automatically when motion is detected, while the timer function controls the time interval before automatic deactivation.
- Color temperatur: 2700K - Warm white

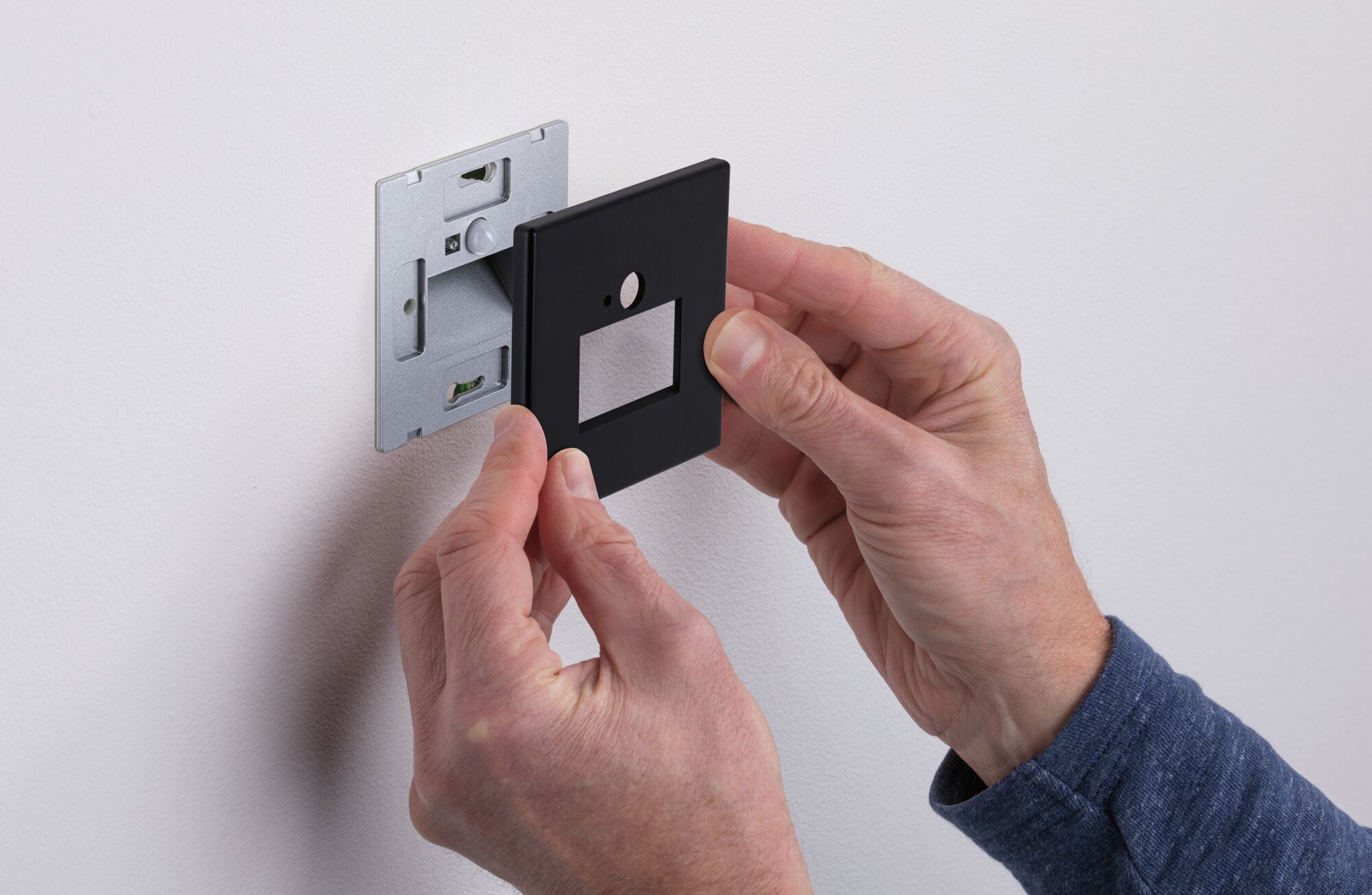

- For standard recessed device sockets with a 68 mm diameter
- LED lamp (fixed) included in scope of delivery
- Efficient LED technology
- Decorative lighting effects highlight the wall
| Dimension | |
|---|---|
| Total Mounting depth | 35 mm |

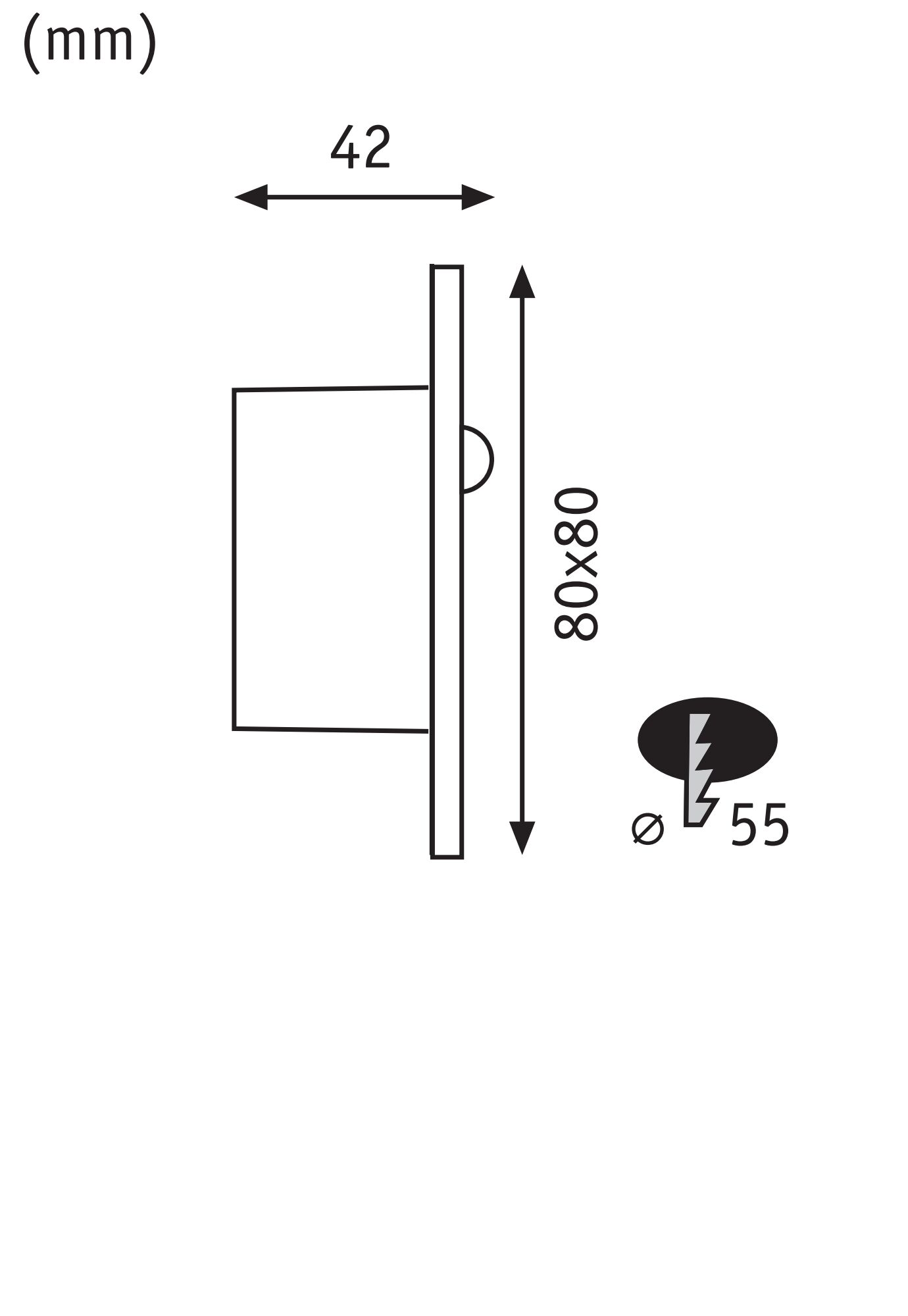

| Dimensions (Height x Width x Depth) | H: 80 x B: 80 x T: 42 mm |
| Mounting hole | 68 mm |
| Form | square |
| Depth of hollow wall | 20 mm, 20 mm |
| Design and Material | |
|---|---|
| stainless | stainless polycarbonate |
| Colour | Black |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Features | |
|---|---|
| Sensors | Motion detector |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 78 ° |
| Usable luminous flux | 25 lm |
| Luminous flux LED module | 120 lm |
| color temp | 2700 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 1,2 W |
| Technique | LED |
| IP protection | IP20 |
| Dimmable | No |
| Inclusive lamp | yes |
| Total Width | 80 mm |
| Incandescent Equivalent | 13 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Power consumption | 2,2 W |
| Transformer | |
|---|---|
| apparent power | 5.5 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
