Article-No.:
94845

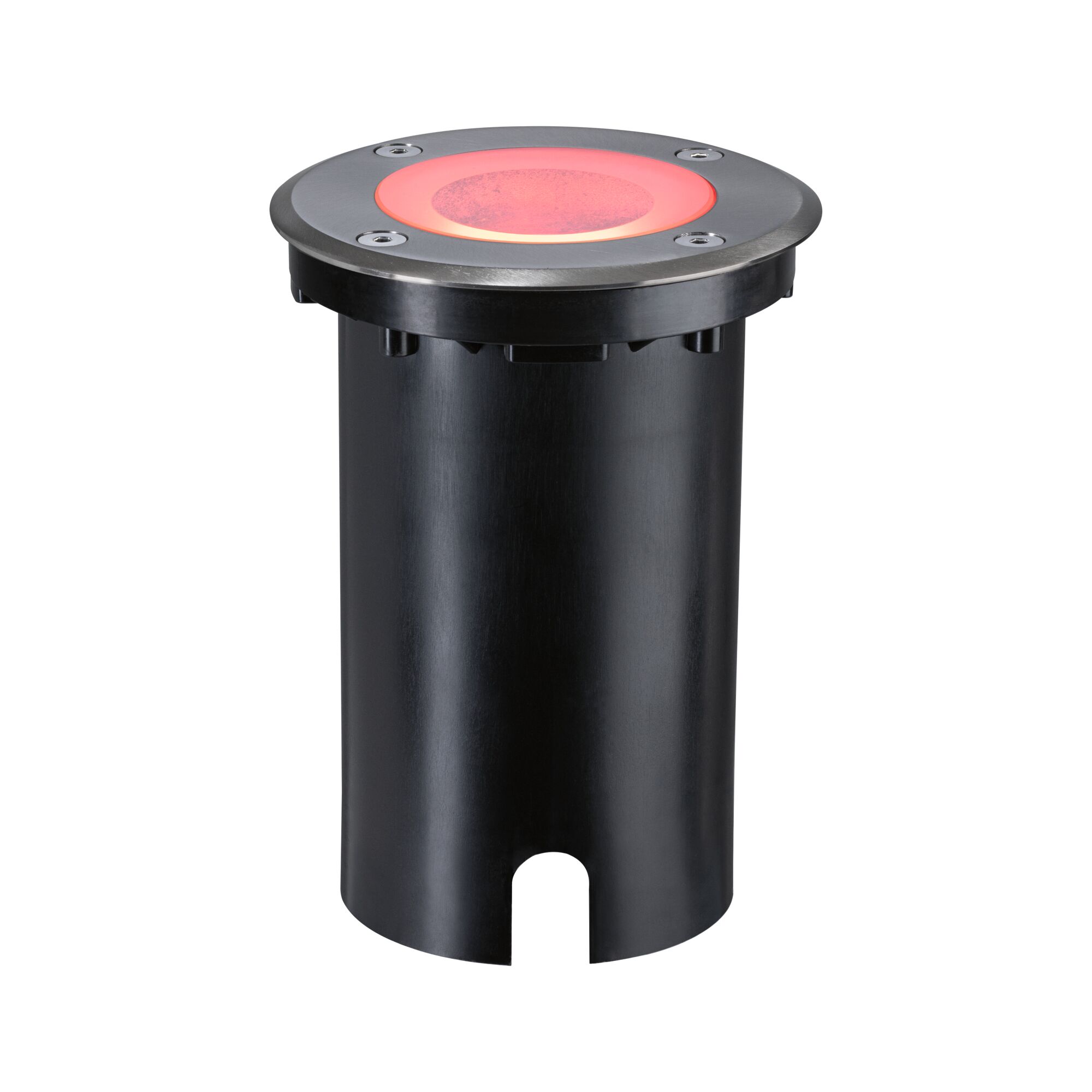

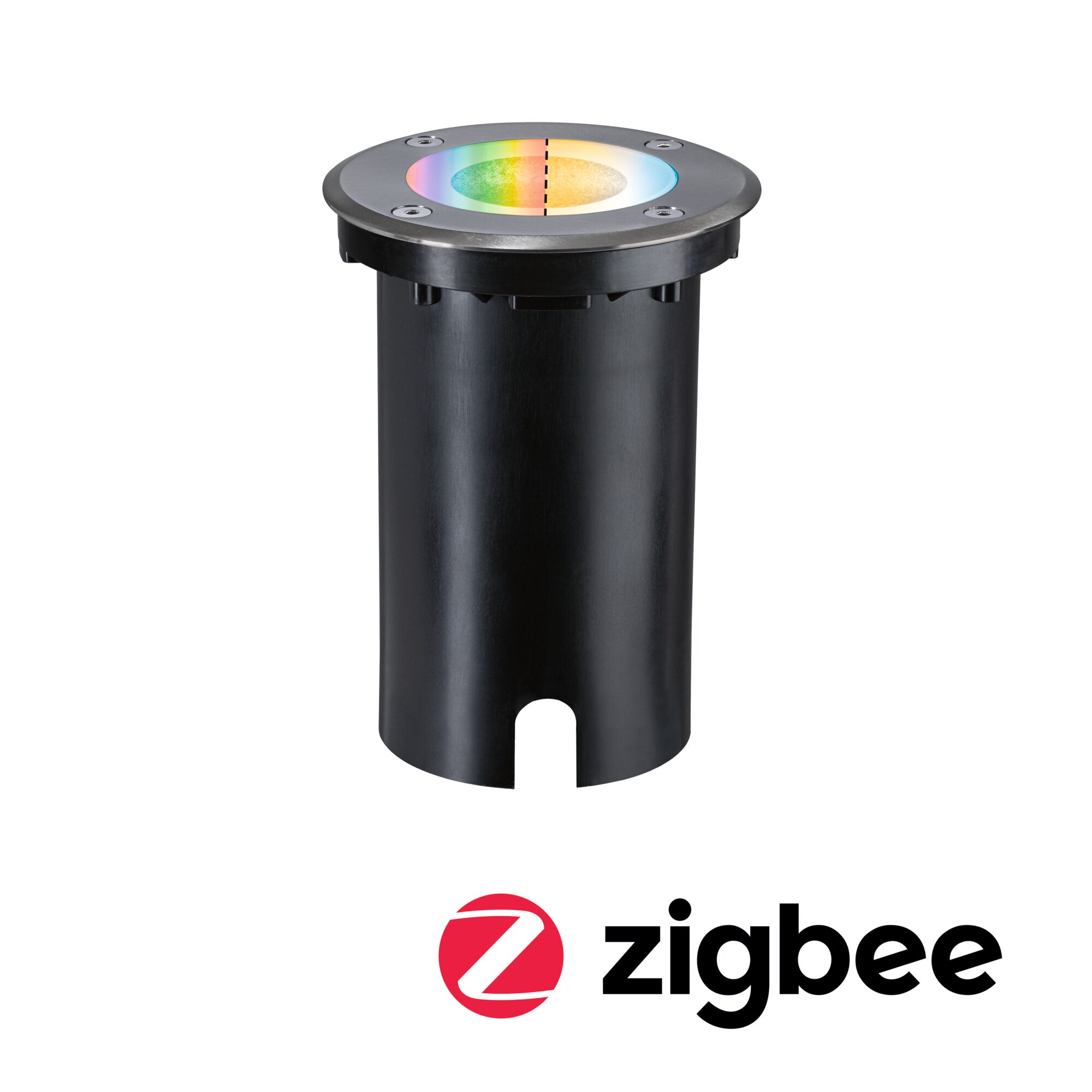

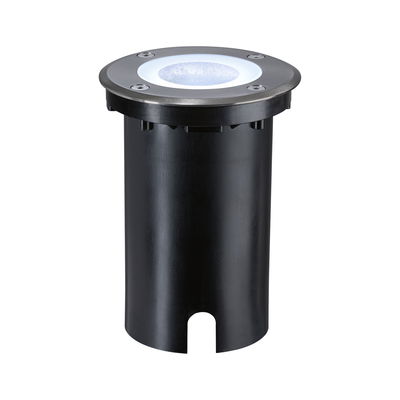

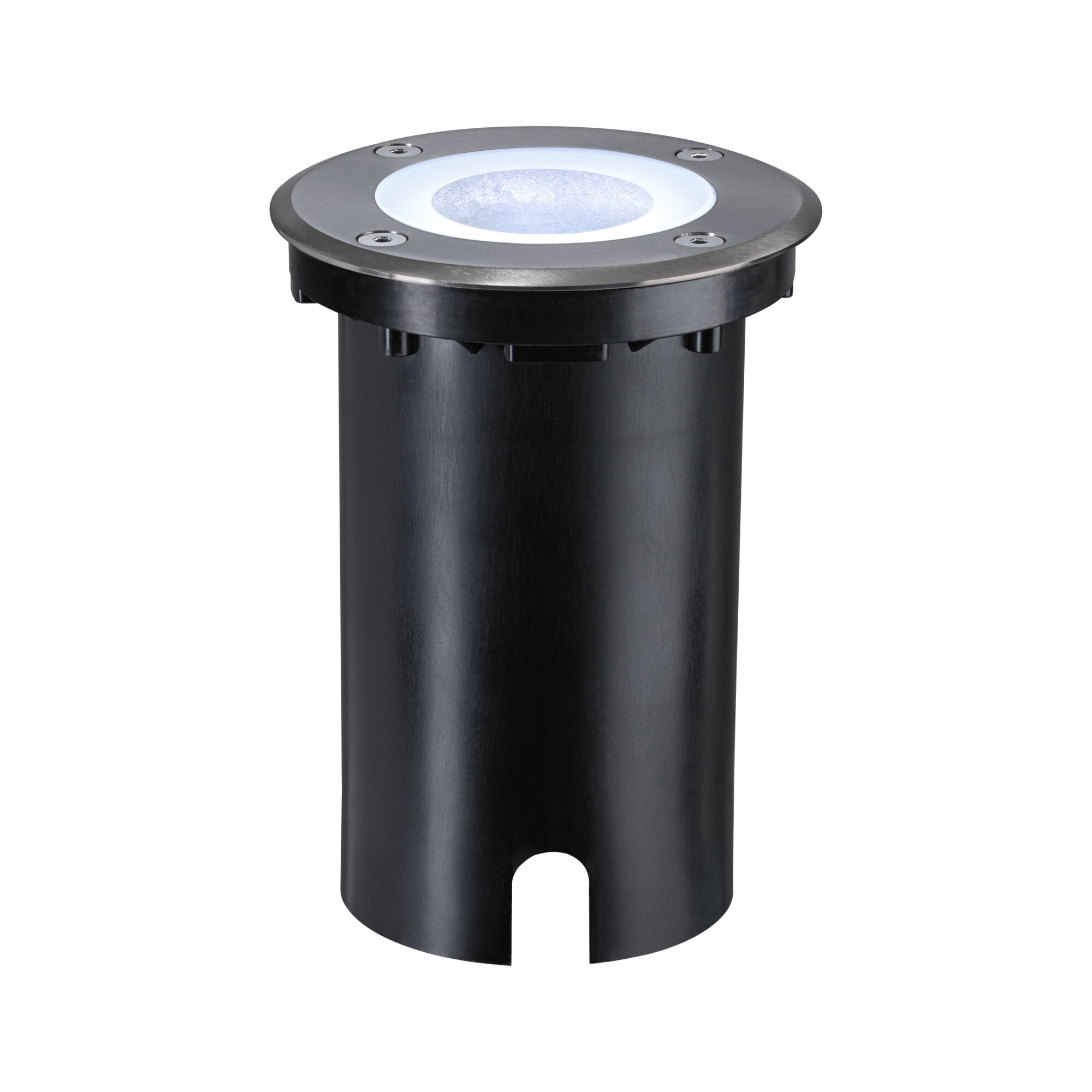

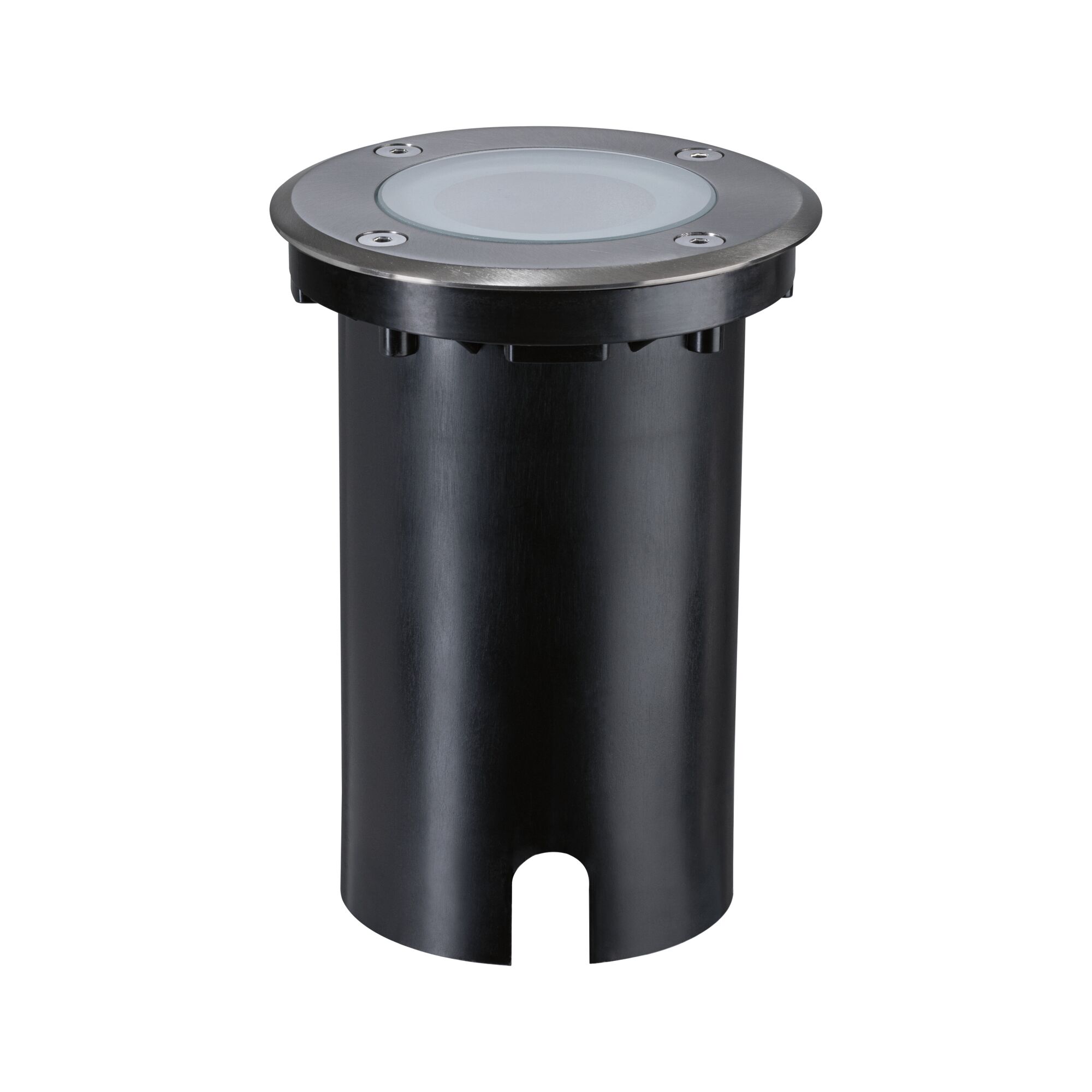

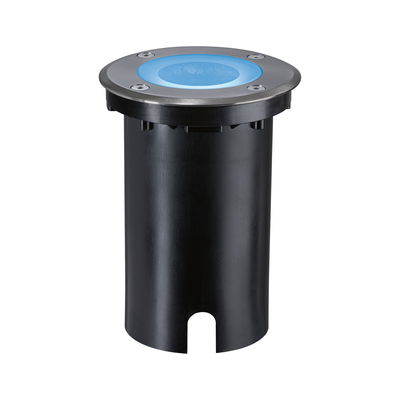

LED Recessed floor luminaire
Smart Home Zigbee 3.0
Floor
IP67 round 110mm RGBW+ 4,9W 300lm 230V 120° Brushed iron Aluminium
IP67 round 110mm RGBW+ 4,9W 300lm 230V 120° Brushed iron Aluminium
- Beam angle 120°
- Color temperatur: 2700K - Warm white - 6500K -Daylight white
- Recessed floor light for large area lighting
LED Recessed floor luminaire Smart Home Zigbee 3.0 Floor IP67 round 110mm RGBW+ 4,9W 300lm 230V 120° Brushed iron Aluminium

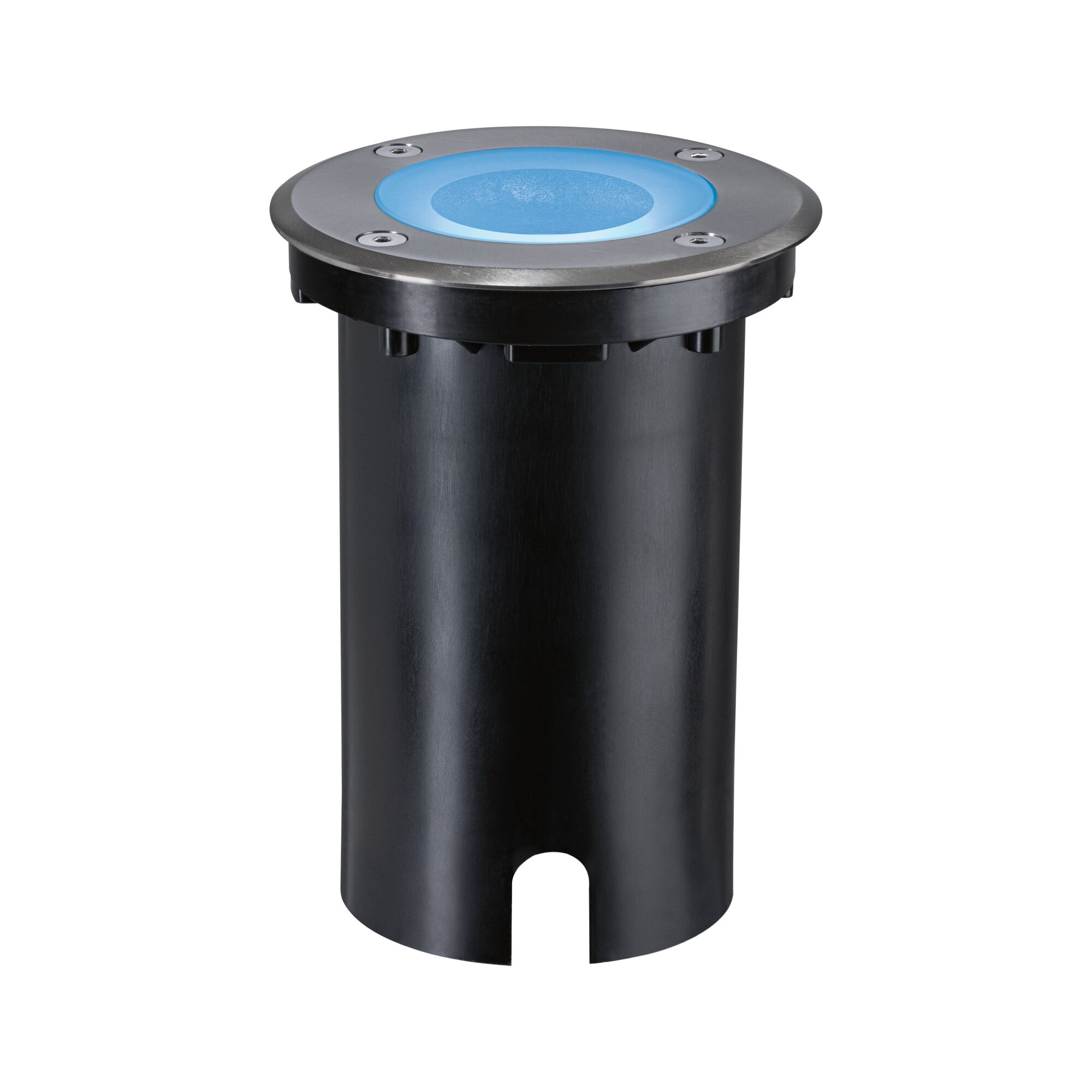

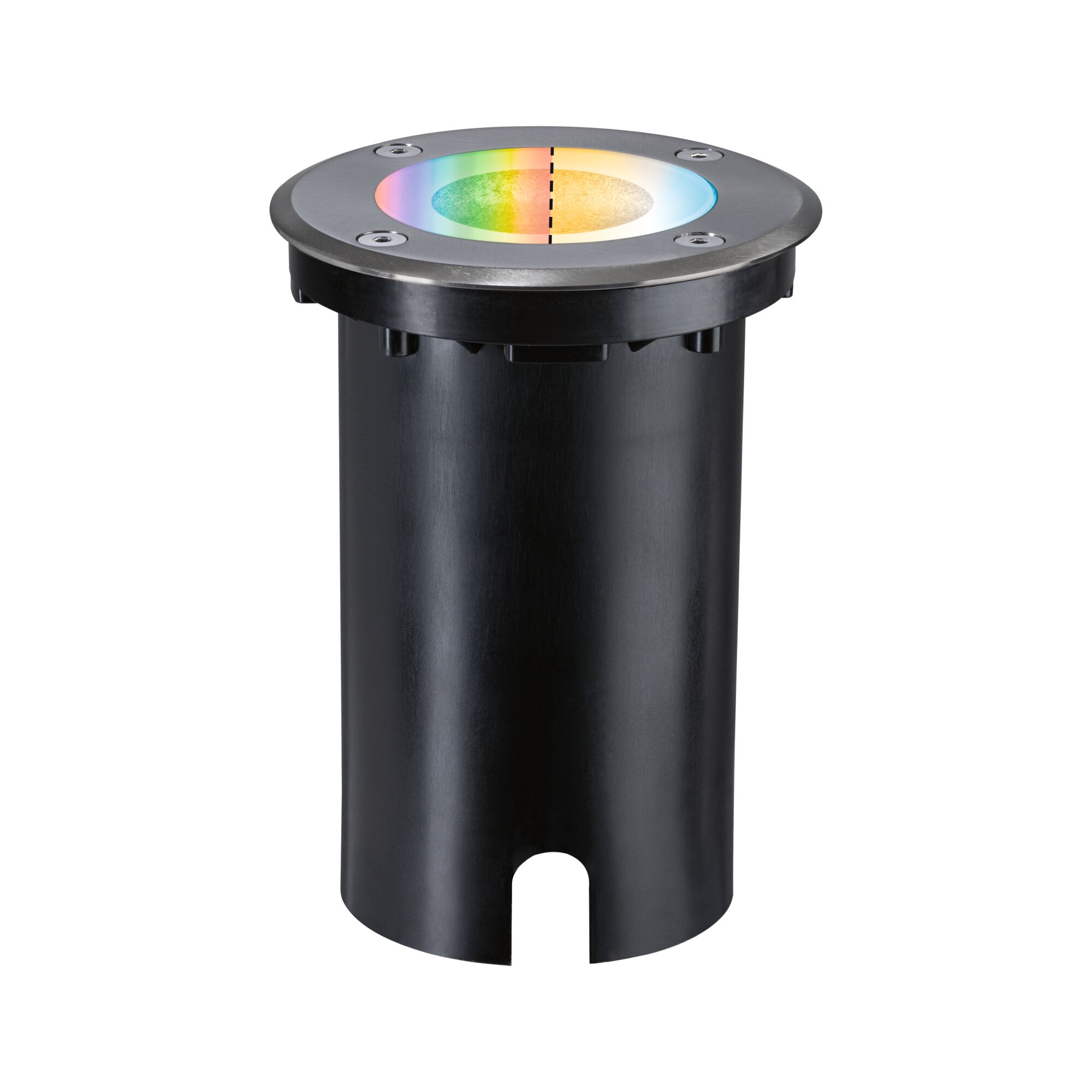

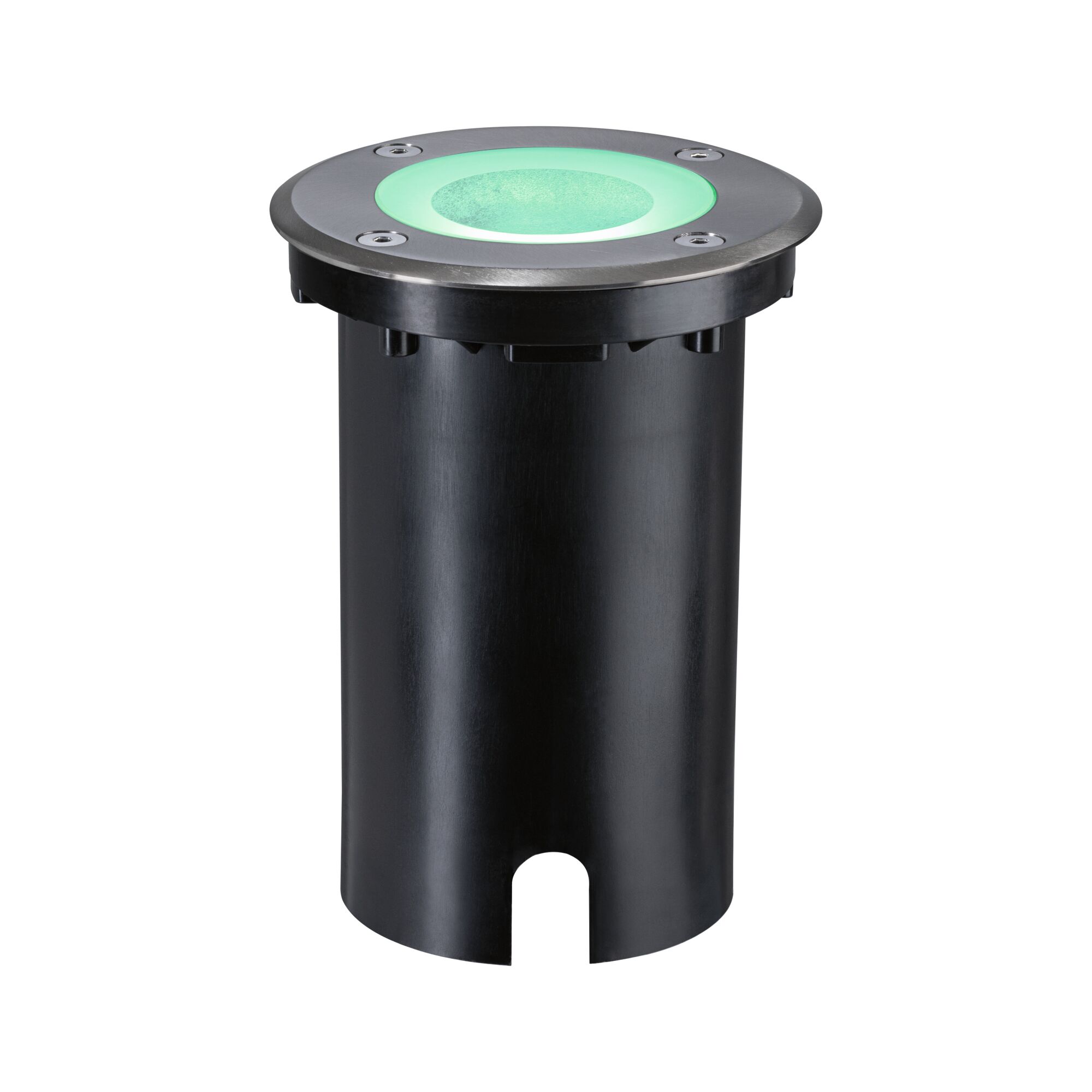

The round LED recessed floor luminaire has a diameter of 110 mm and 420 lumens. It has a colour control with Tunable White and RGBW, which makes it possible to adjust the colour temperature individually and continuously. The RGBW function offers a free choice of light colour. The luminaire can withstand loads of up to 500 kg and is rustproof, waterproof and dustproof, providing light in all weather conditions. It is seawater-resistant and made of brushed iron. The beam angle is 120°.
- Beam angle 120°
- Color temperatur: 2700K - Warm white - 6500K -Daylight white
- Recessed floor light for large area lighting
- Seawater-resistant luminaire for use by the coast
- IP Protection: IP67 - protected against temporary immersion

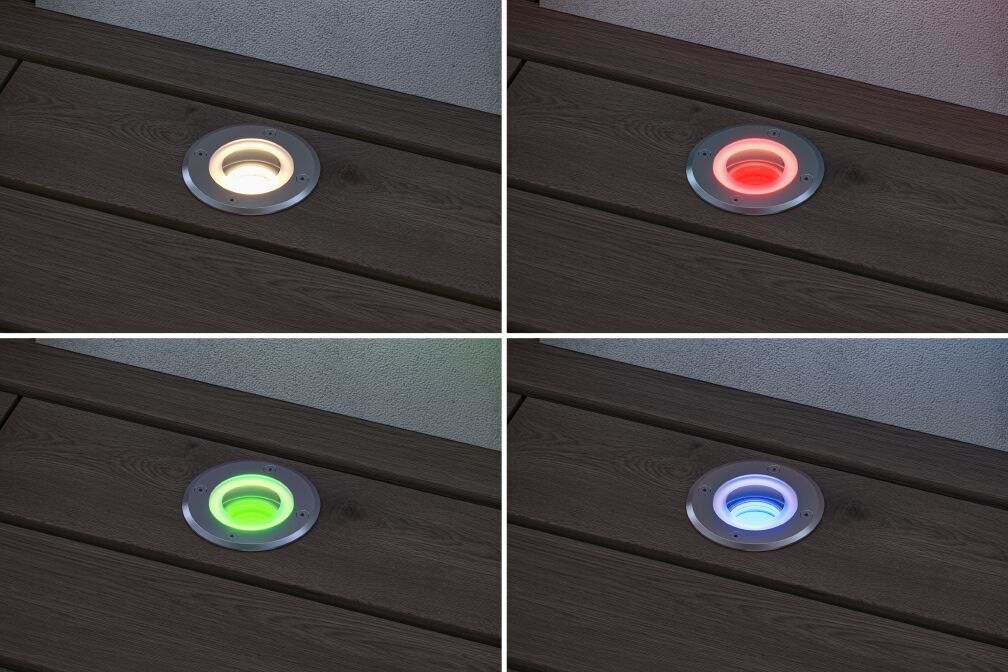

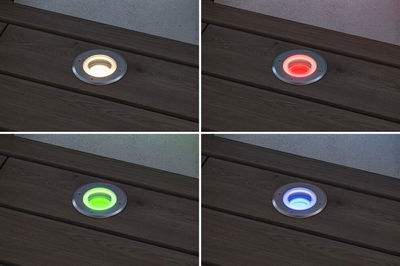

- RGBW offers a fluid colour selection, plus the tunable white function
- Max. load up to 500 kg
- Dimmable
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 148 mm |
| Ø | 110 mm |
| Mounting hole | 103 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Brushed iron |
| Material | Aluminium |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann 501.34 Smart Switch, Paulmann SmartHome Zigbee Gent2 501.40 |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 25000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Colour change | Color change RGBW, Tunable White |
| Beam angle | 120 ° |
| Usable luminous flux | 300 lm |
| Luminous flux LED module | 420 lm |
| color temp | 2700 - 6500 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 4,9 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| IP protection | IP67 |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Number of component parts | 1x |
| protection class | protection class I |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 9 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
