Article-No.:
97765
URailPower Supply
Middle
304x18mm max. 1000/1000W Chrome matt
304x18mm max. 1000/1000W Chrome matt
£34.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days

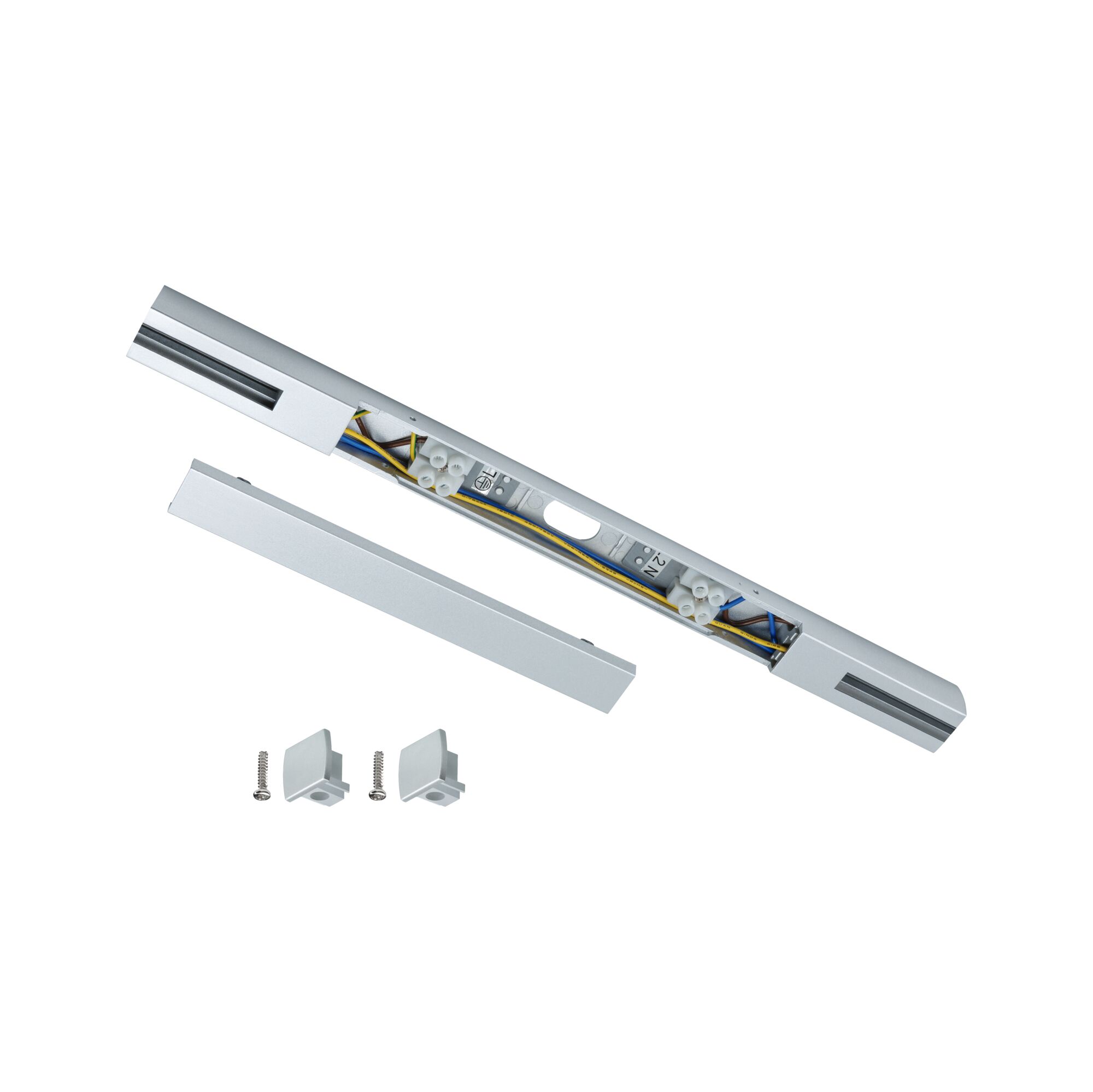

- End caps to close off the rail ends are included in the scope of delivery
- URail middle feeder incl. assembly instructions
- Remember: Order the connectors at the same time!

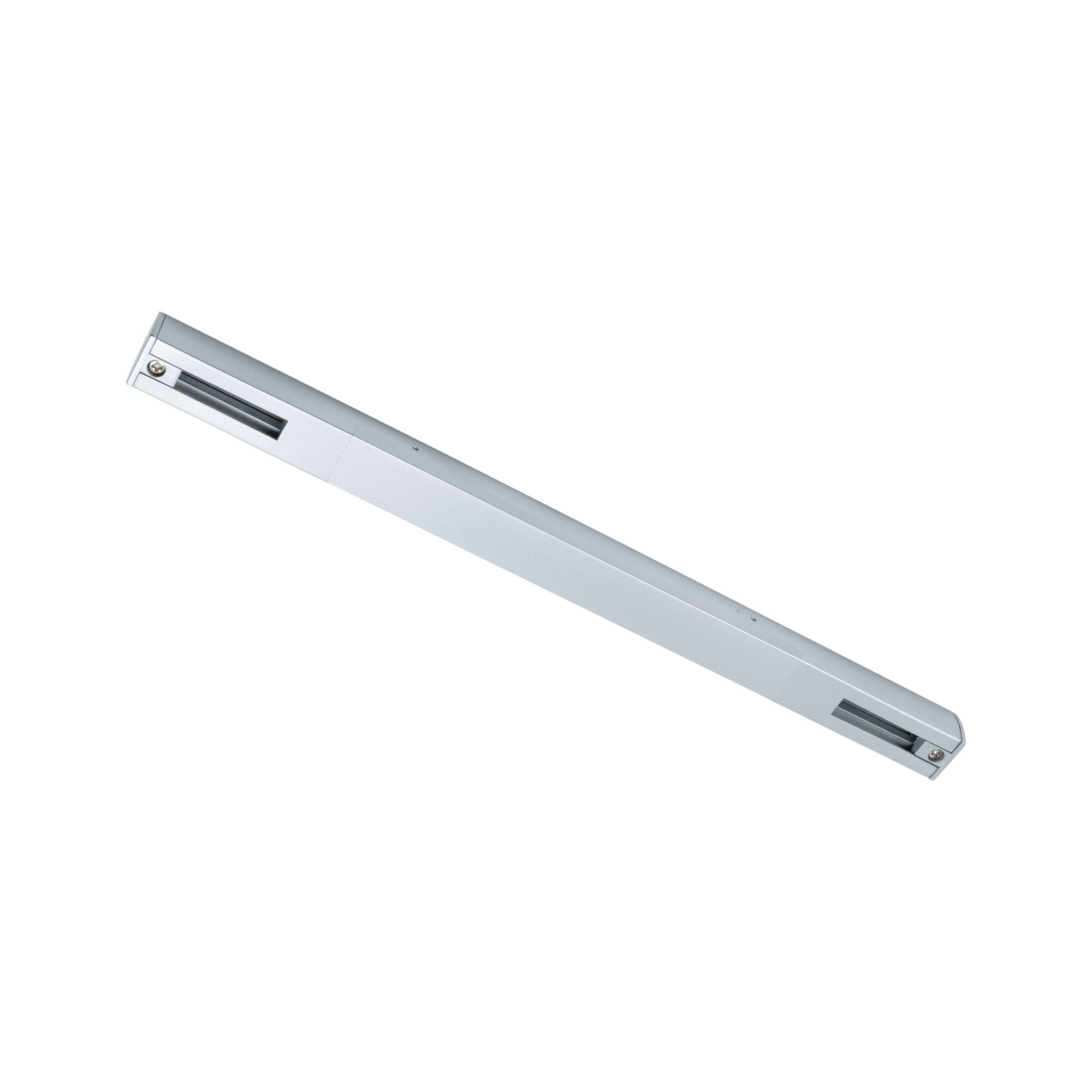

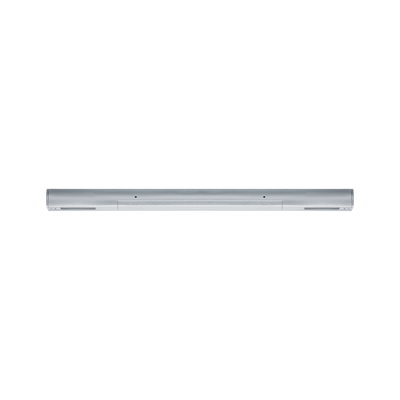

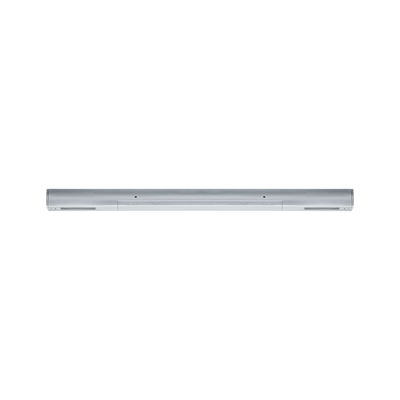

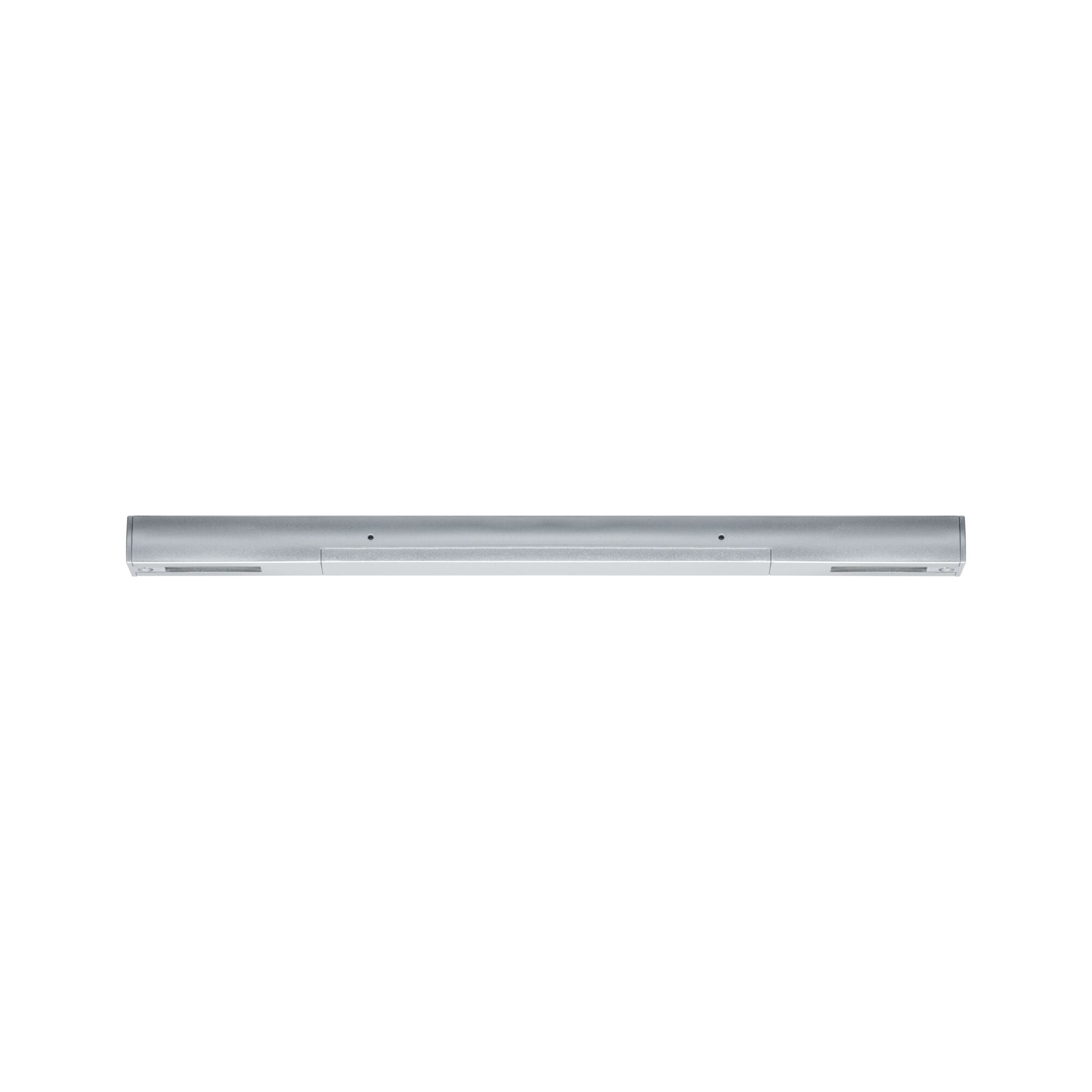

URail Power Supply Middle 304x18mm max. 1000/1000W Chrome matt

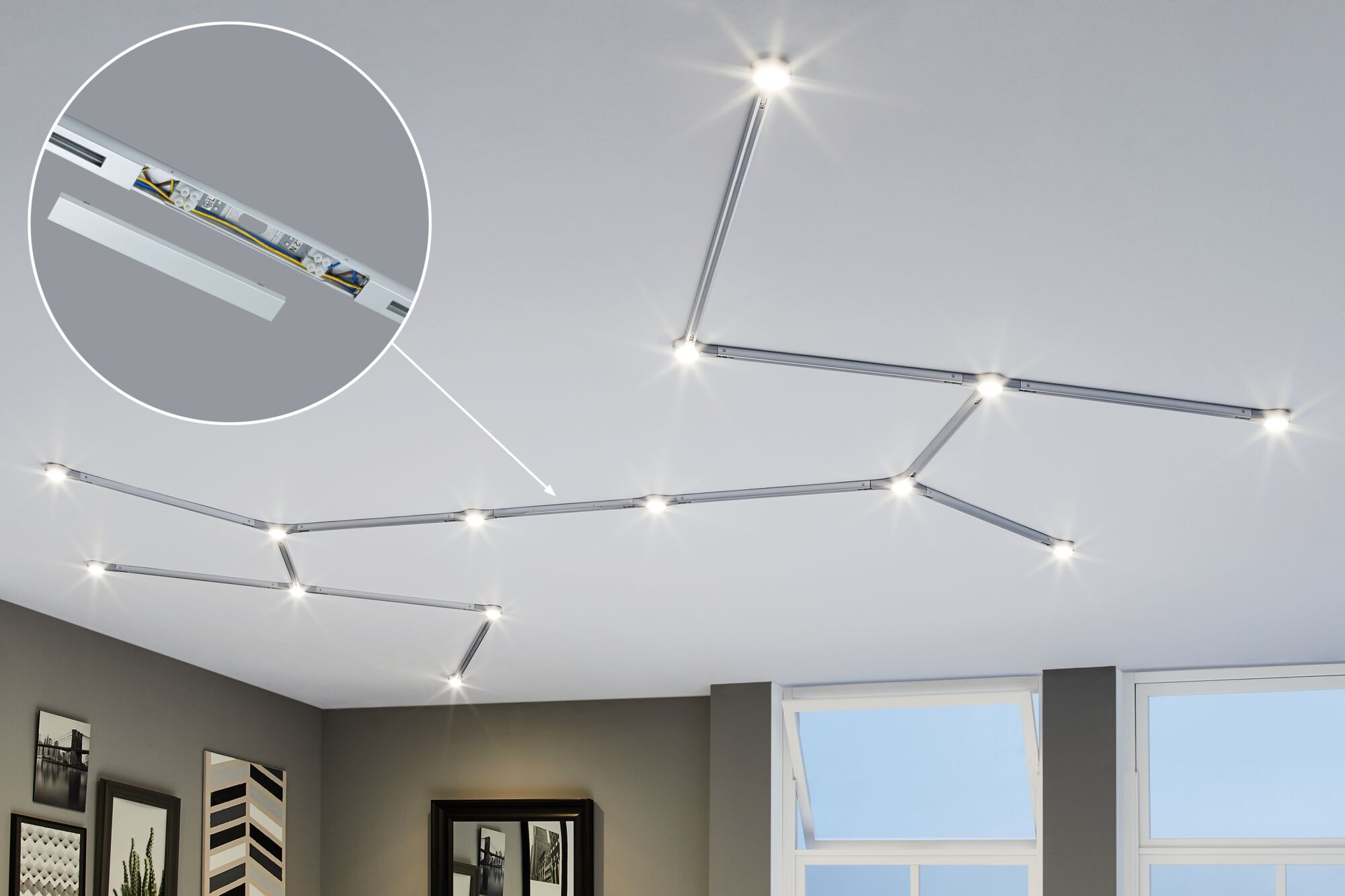

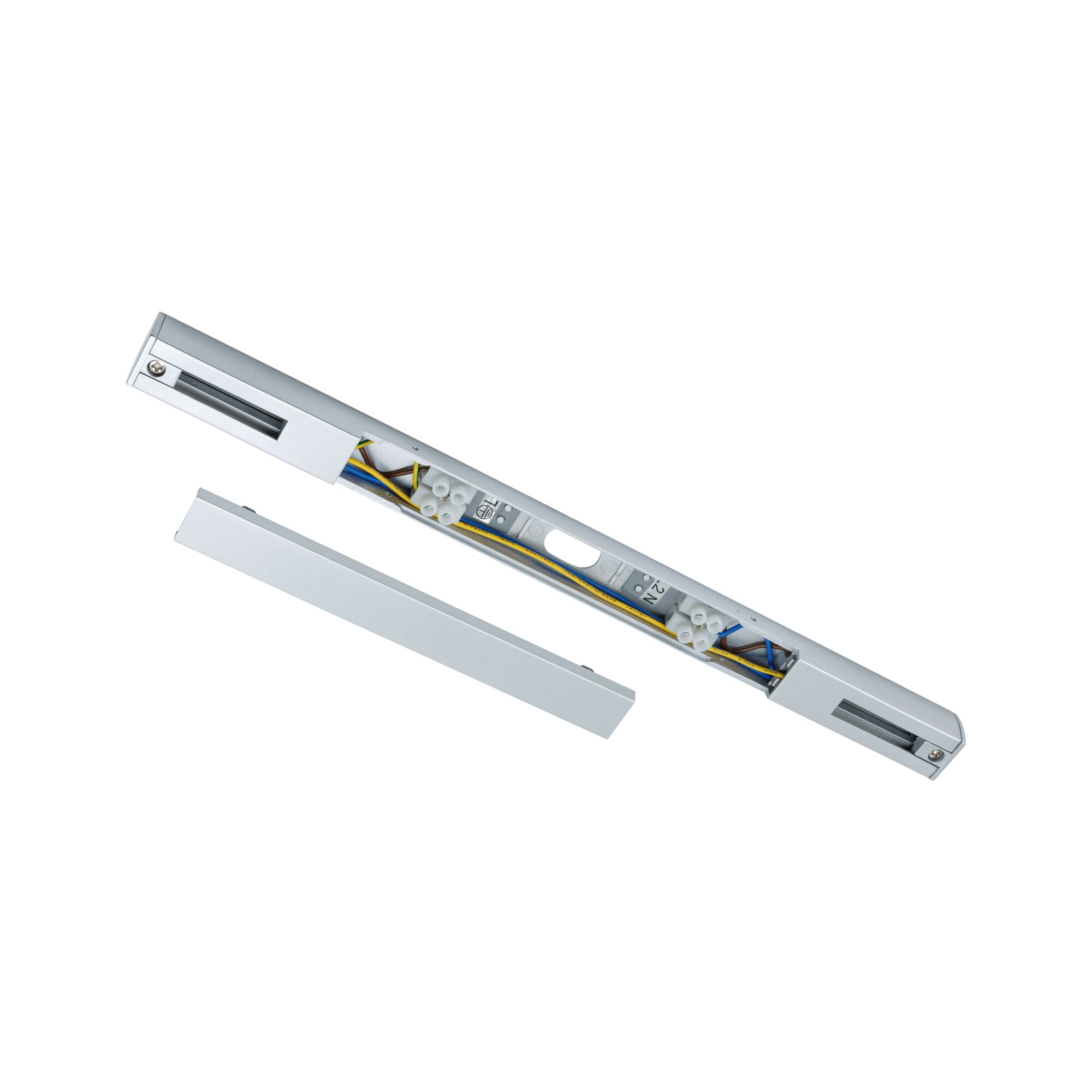

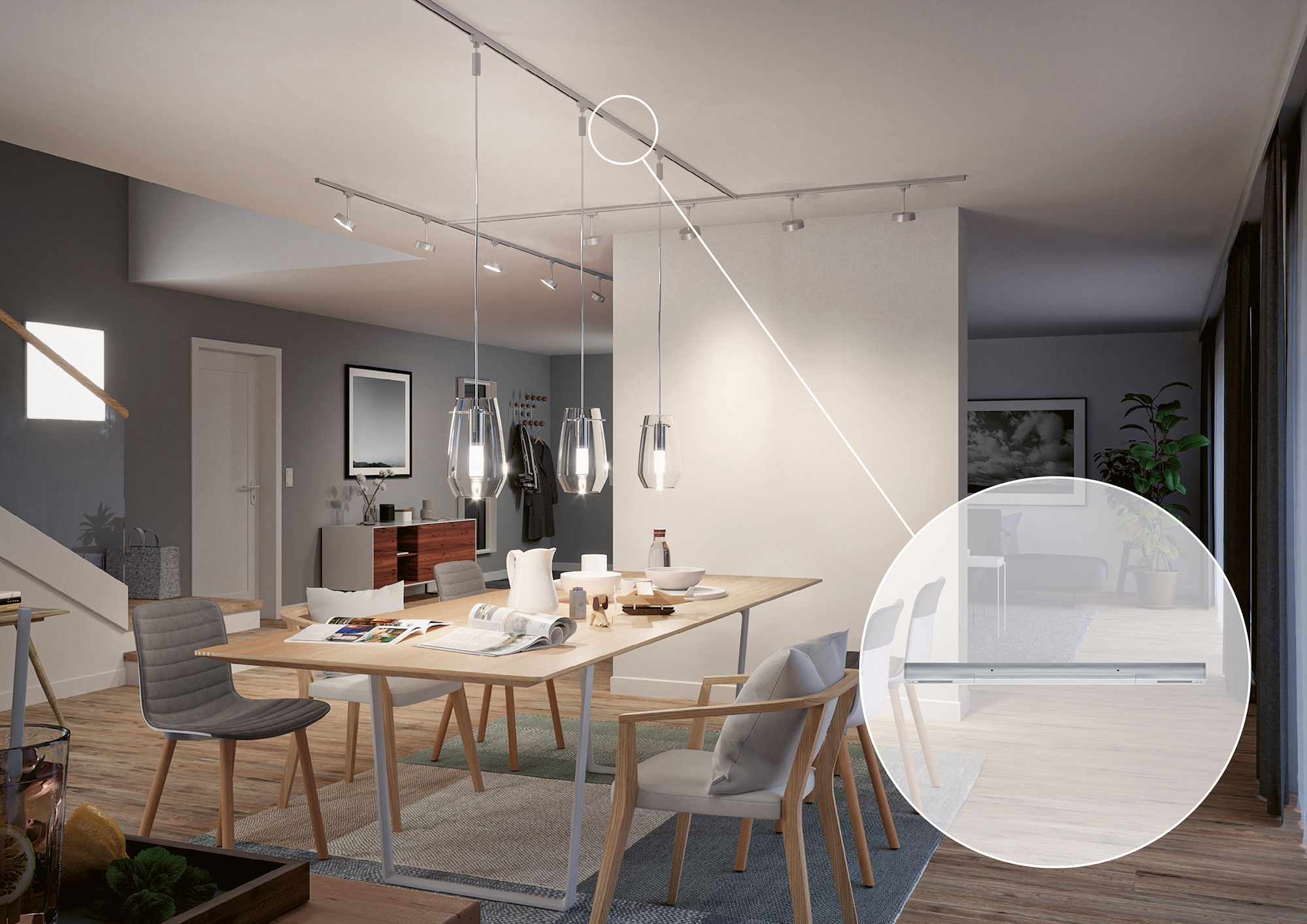

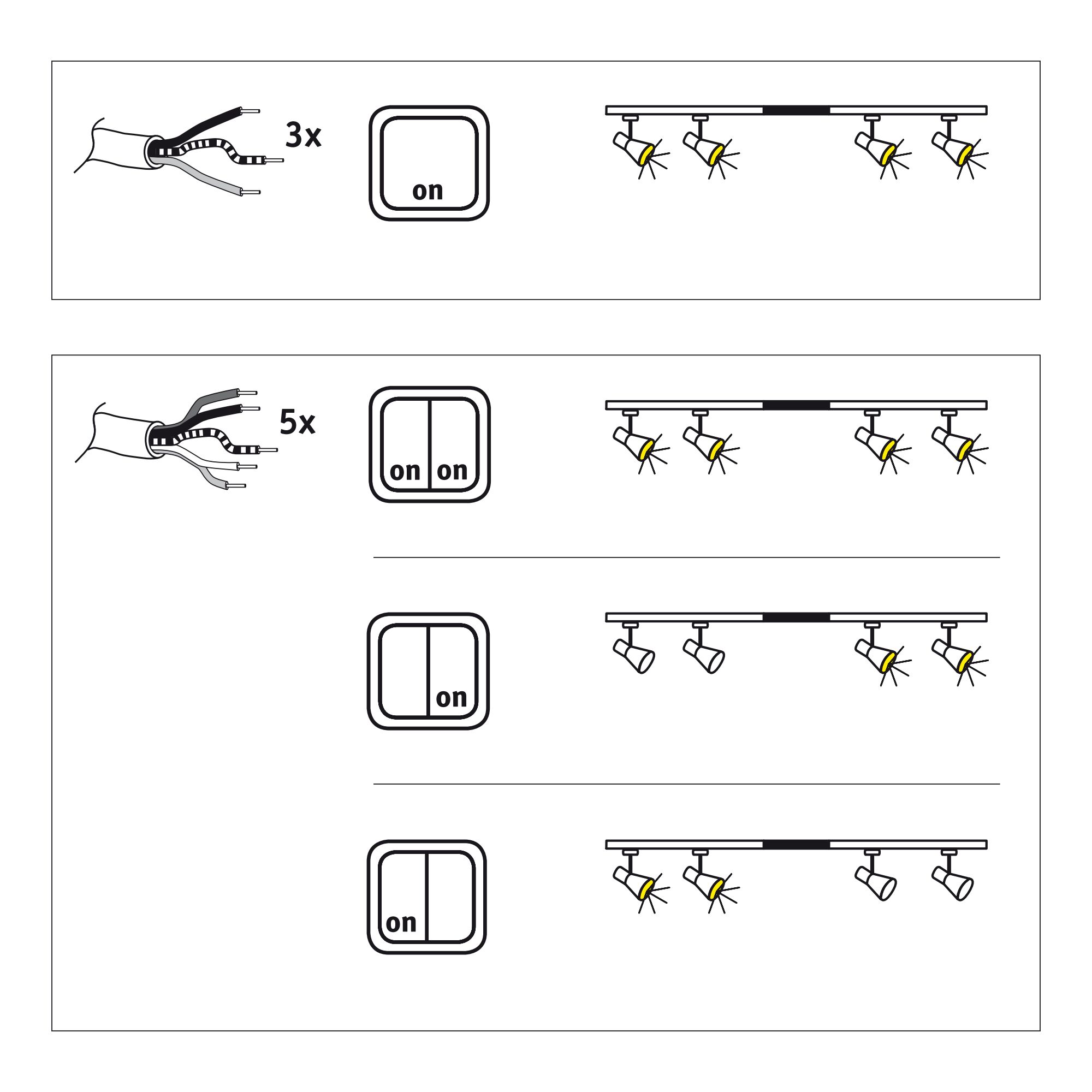

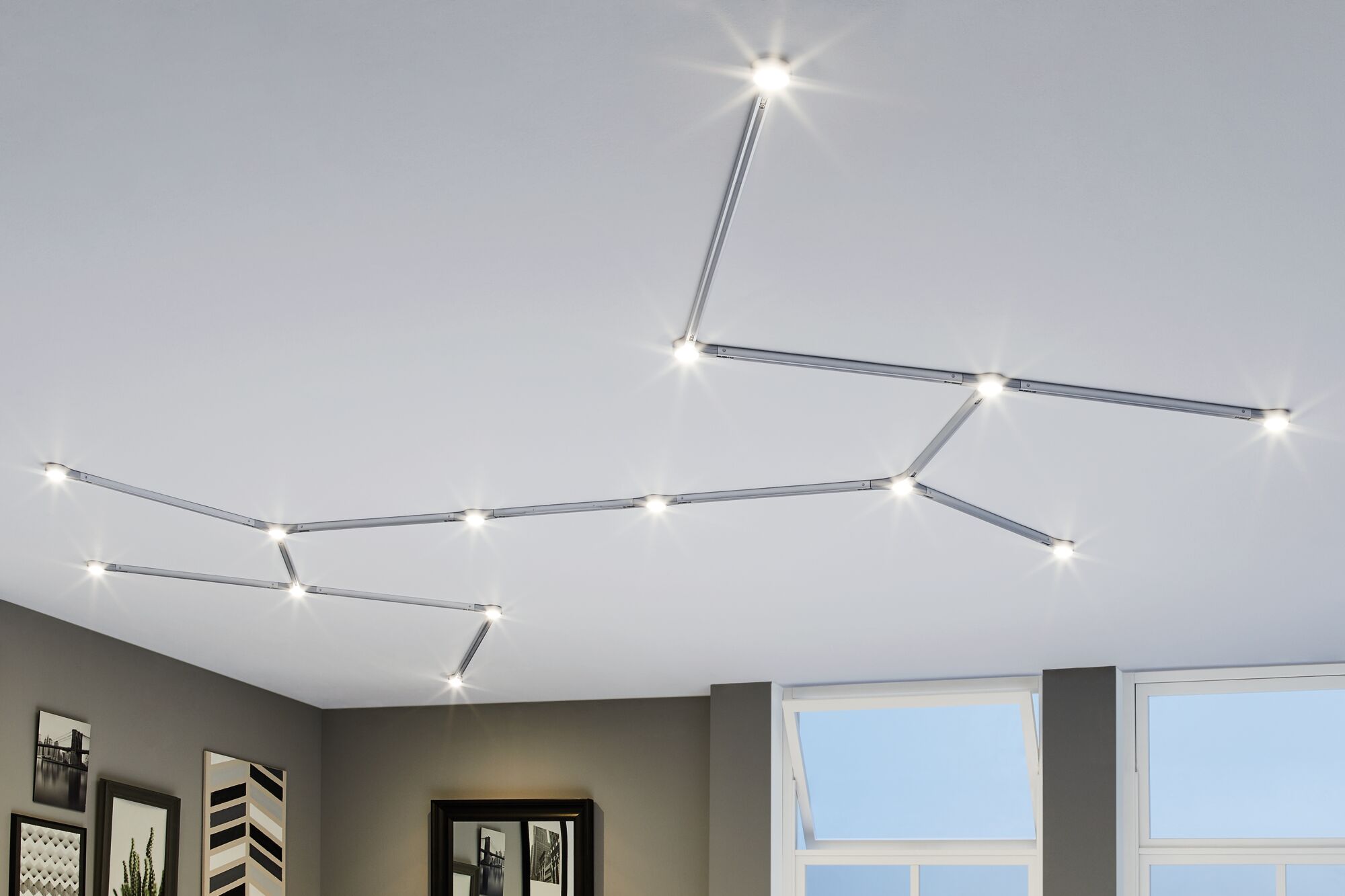

The URail centre feed in matt chrome is mounted directly above the power connection and fits perfectly into any light installation thanks to its rail shape. It can also be used to connect 5-core ceiling outlets to switch the system separately. One output of the supply is fed by one phase, the other output by the other phase.
- End caps to close off the rail ends are included in the scope of delivery
- URail middle feeder incl. assembly instructions
- Remember: Order the connectors at the same time!
- Surface/color: Chrome matt
| Dimension | |
|---|---|

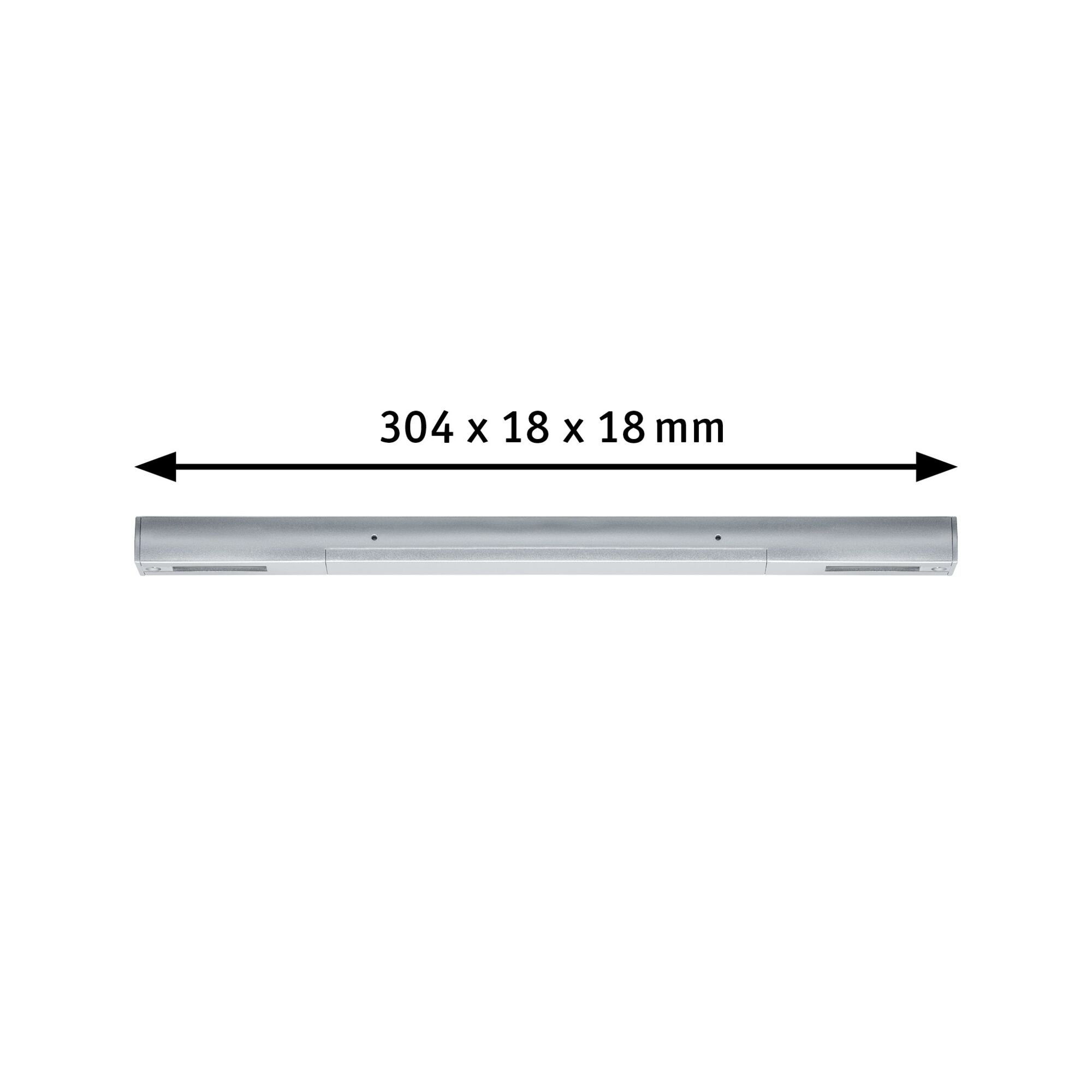

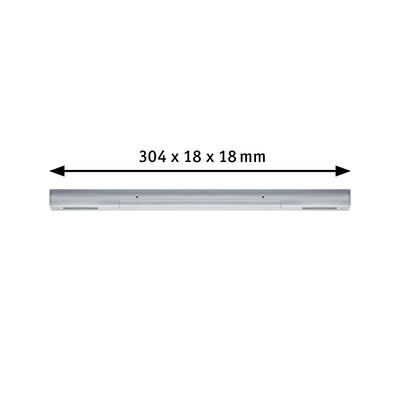

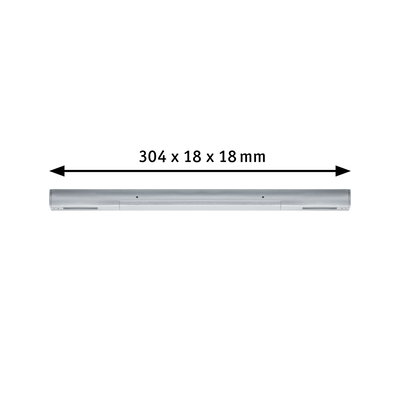

| Dimensions (Height x Width x Depth) | H: 18 x B: 304 x T: 18 mm |
| net weight | 116 g |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | Chrome matt |
| Material | Plastic |
| Installation | |
|---|---|
| URail Inline Adapter | N/A |
| Lamp Features | |
|---|---|
| Inclusive lamp | no |
| light source property | Without light source |
| Maximum wattage range | max. 1000/1000 W |
| Technique | Accessories without bulbs |
| Replacable | 7 not concerned. |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
