Article-No.:
3726
LED Recessed panel
Cover-it Promo
round 165mm 10W 800lm 3000K Matt white
round 165mm 10W 800lm 3000K Matt white
- Area lighting
- Very flat design
- Color temperatur: 3000K - Warm white

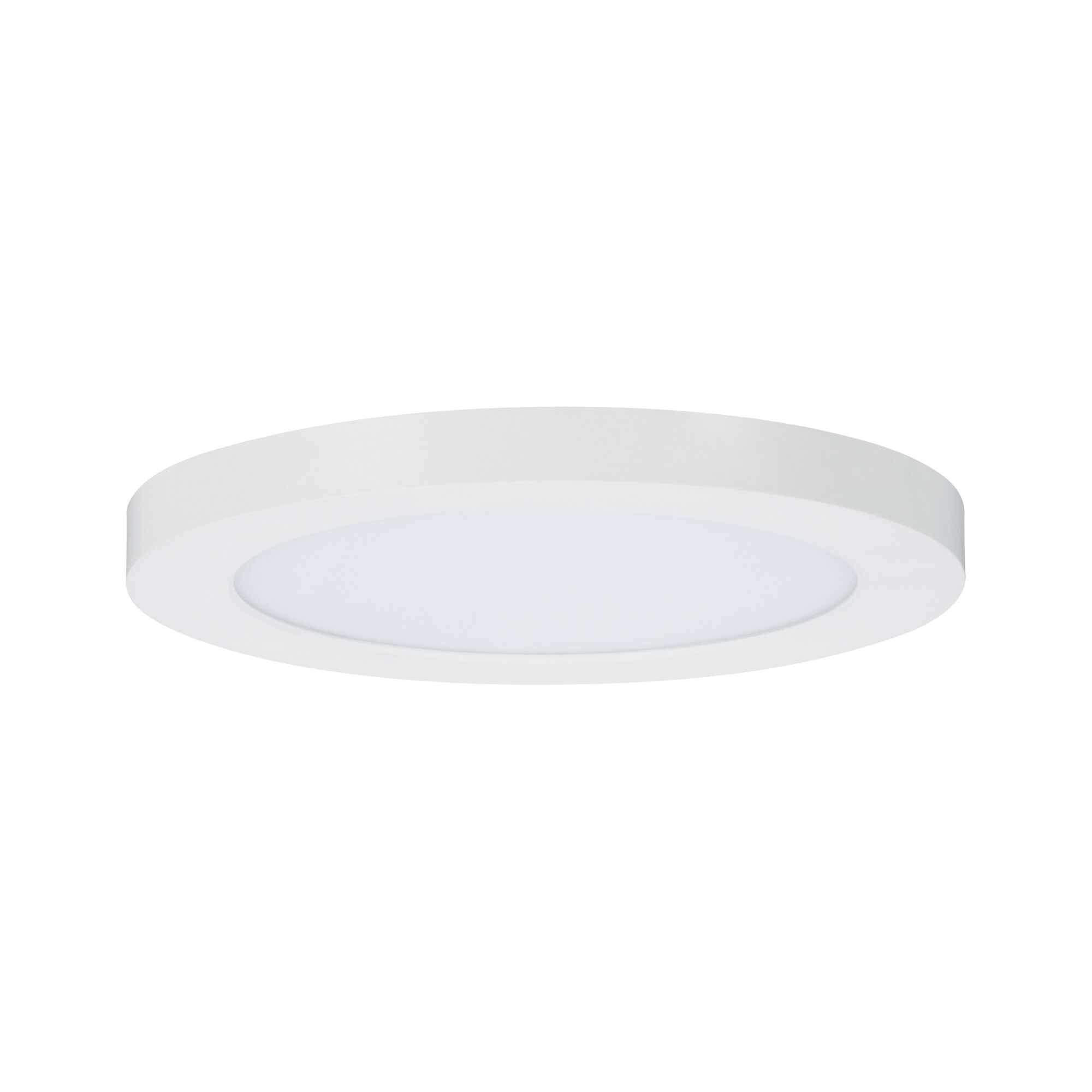

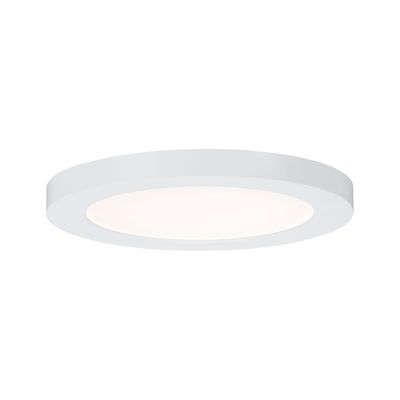

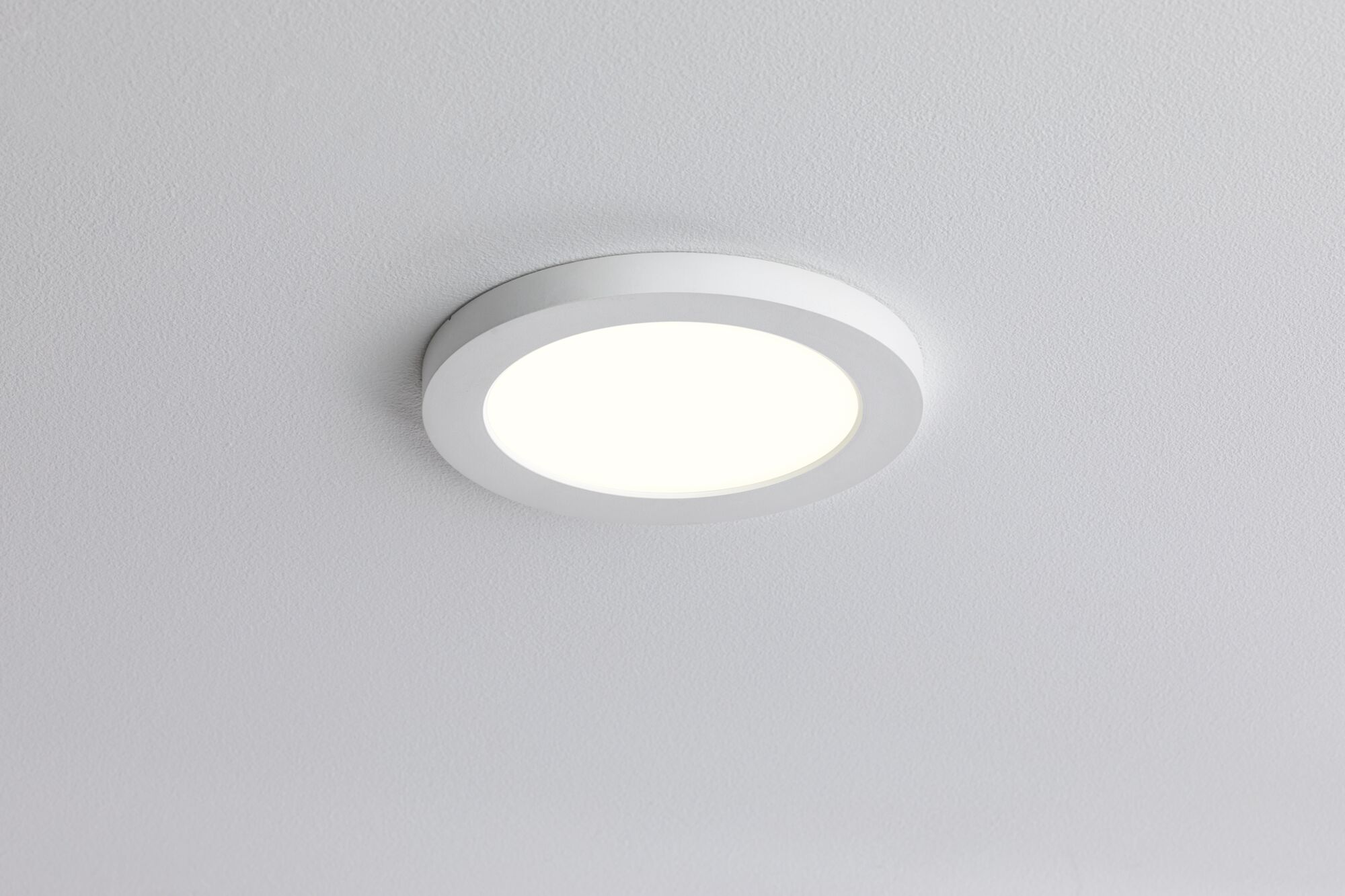

LED Recessed panel Cover-it Promo round 165mm 10W 800lm 3000K Matt white

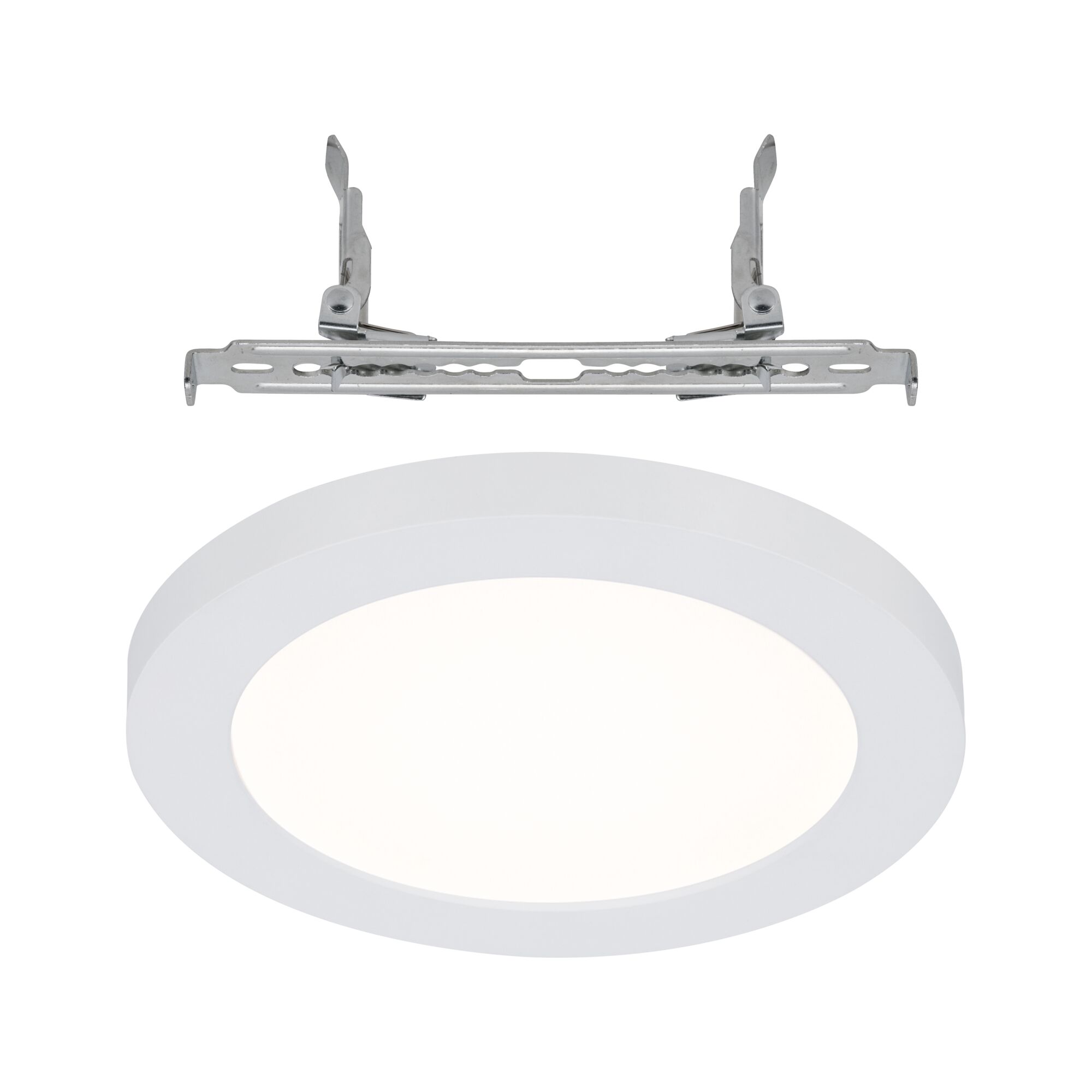

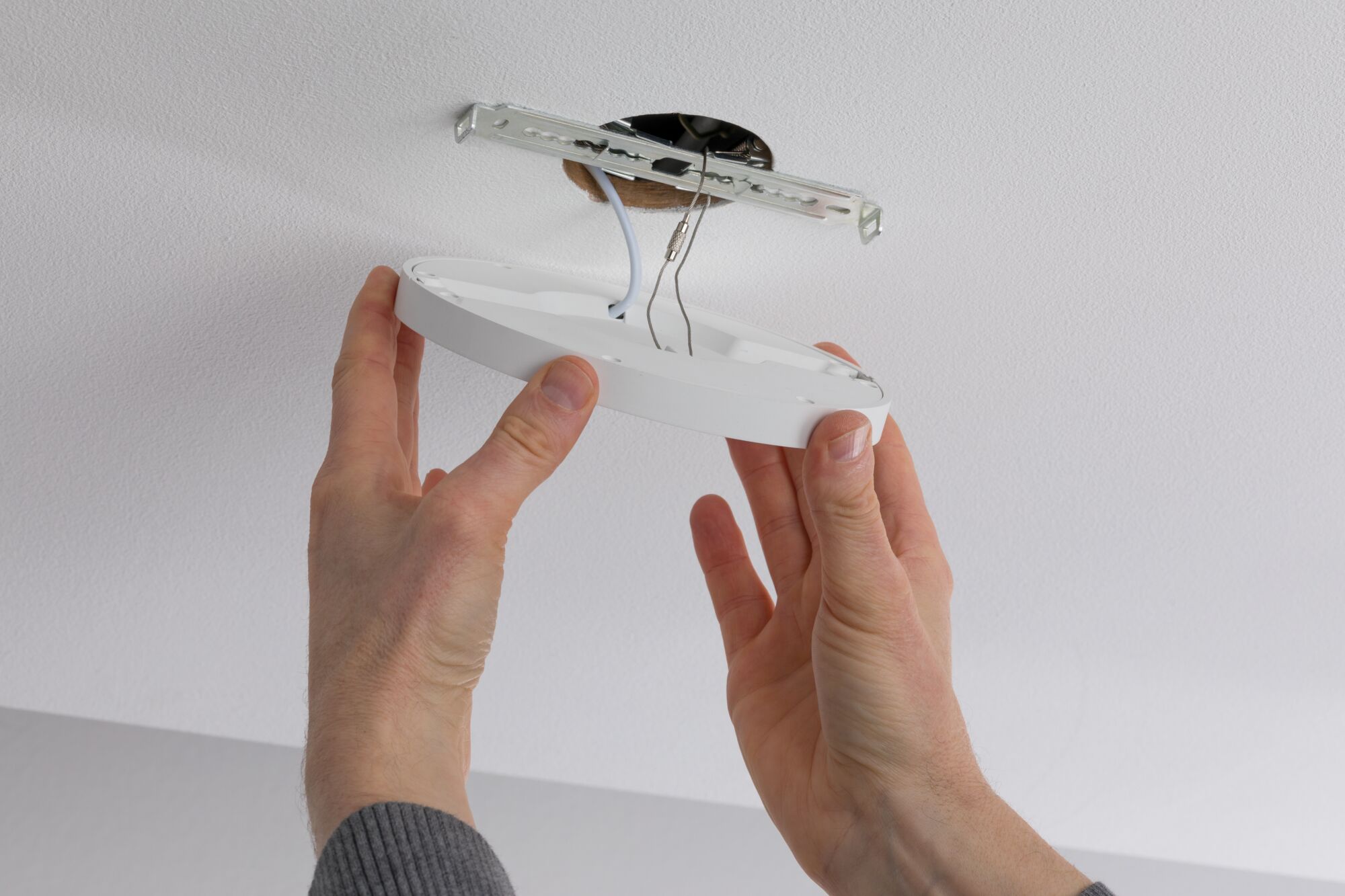

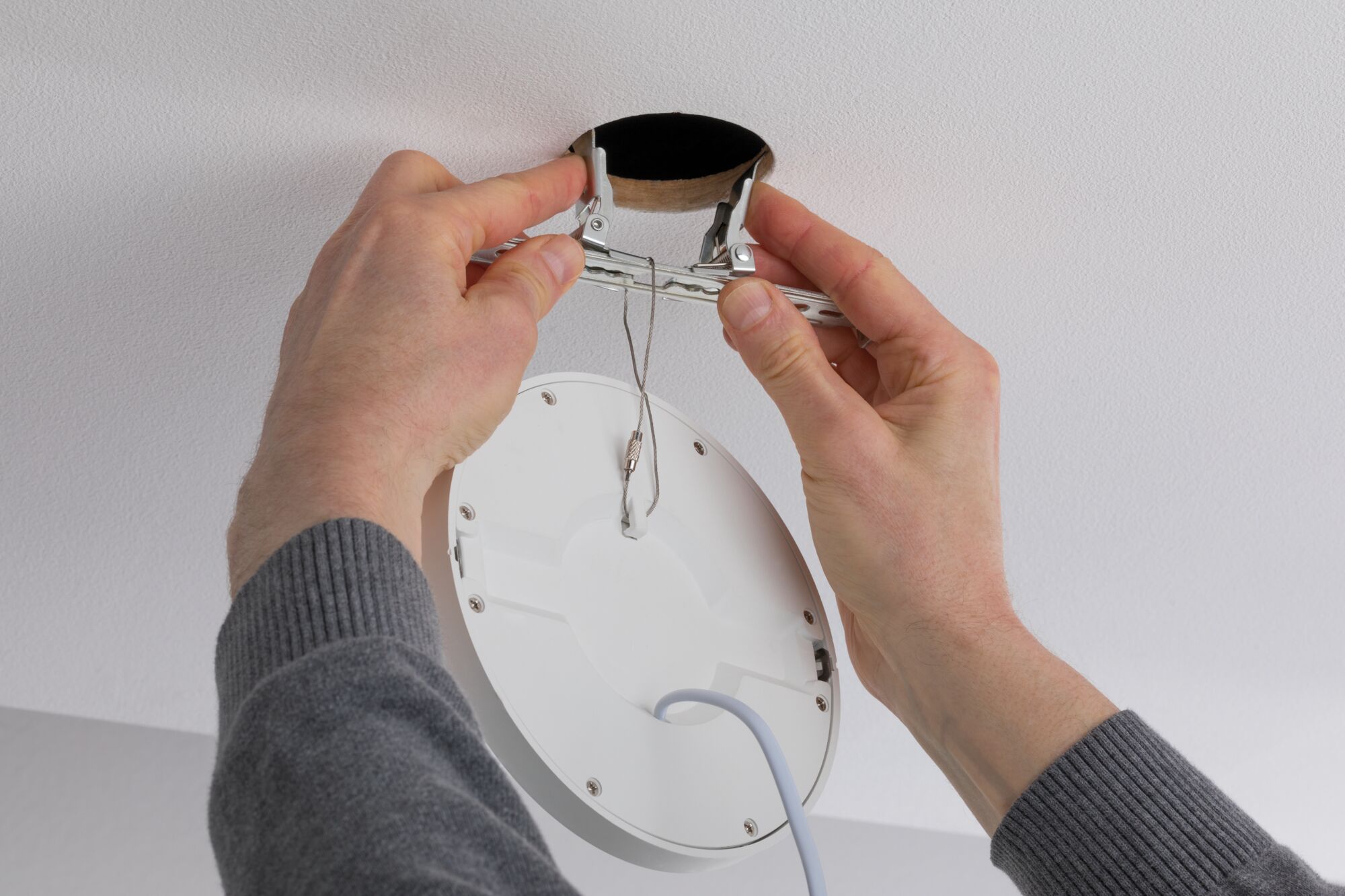

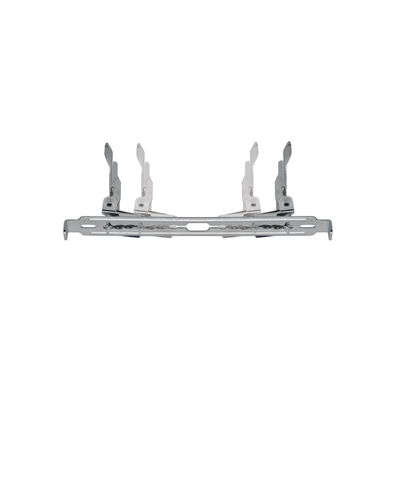

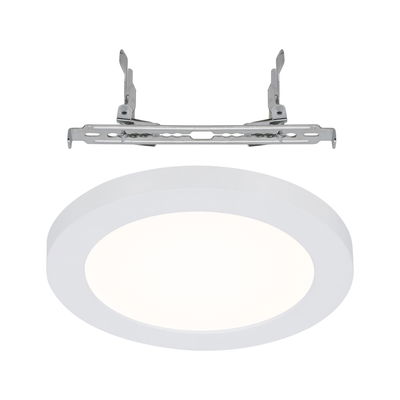

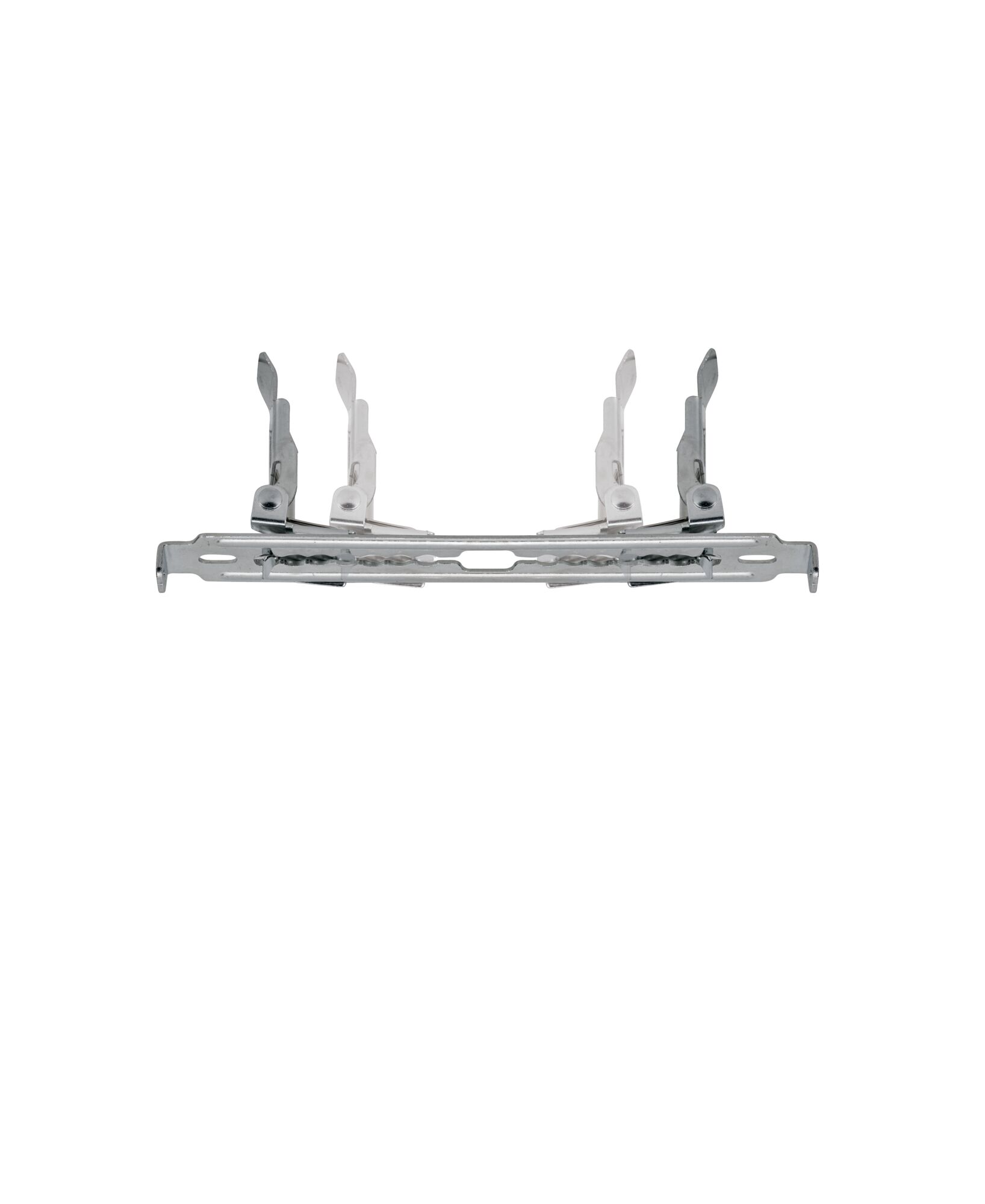

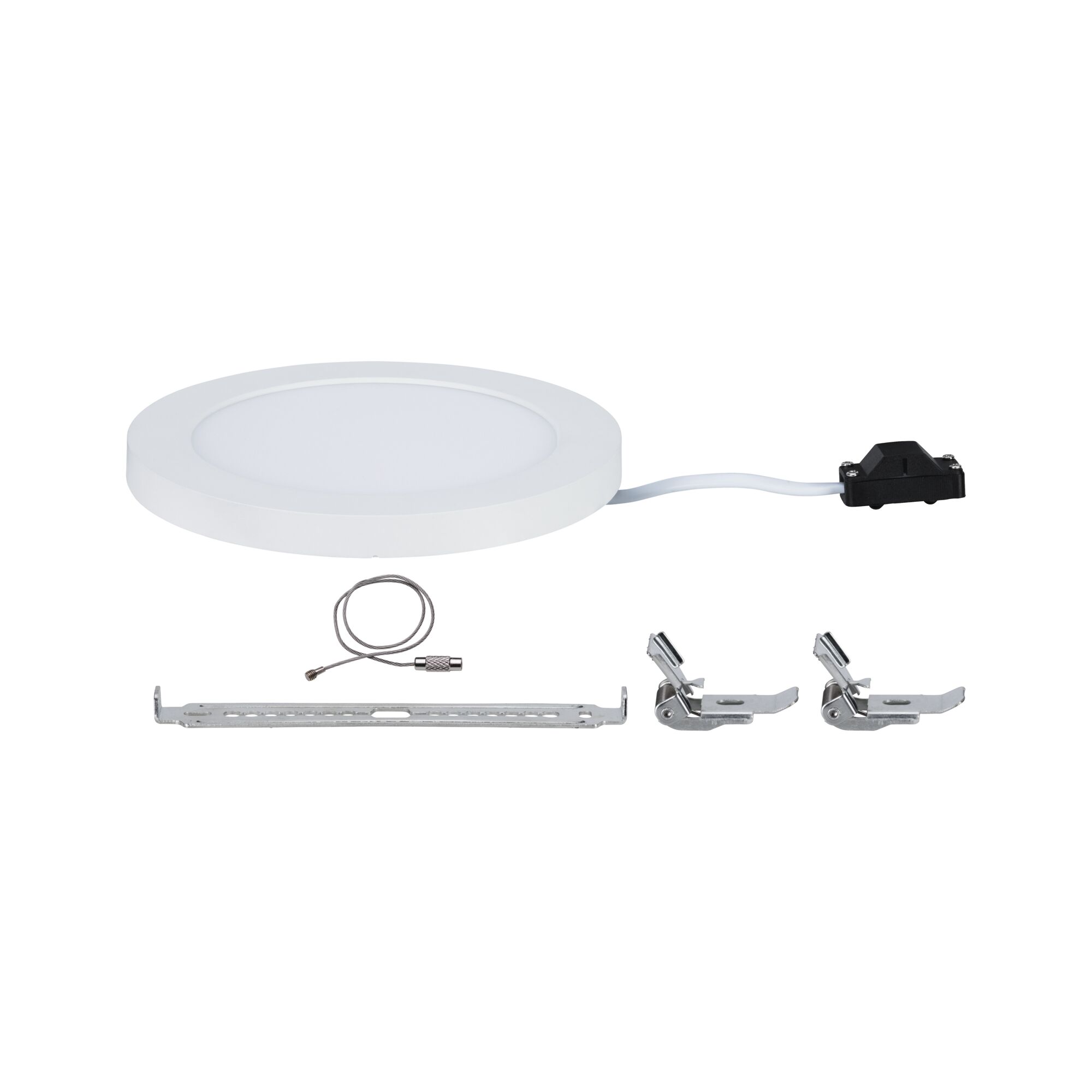

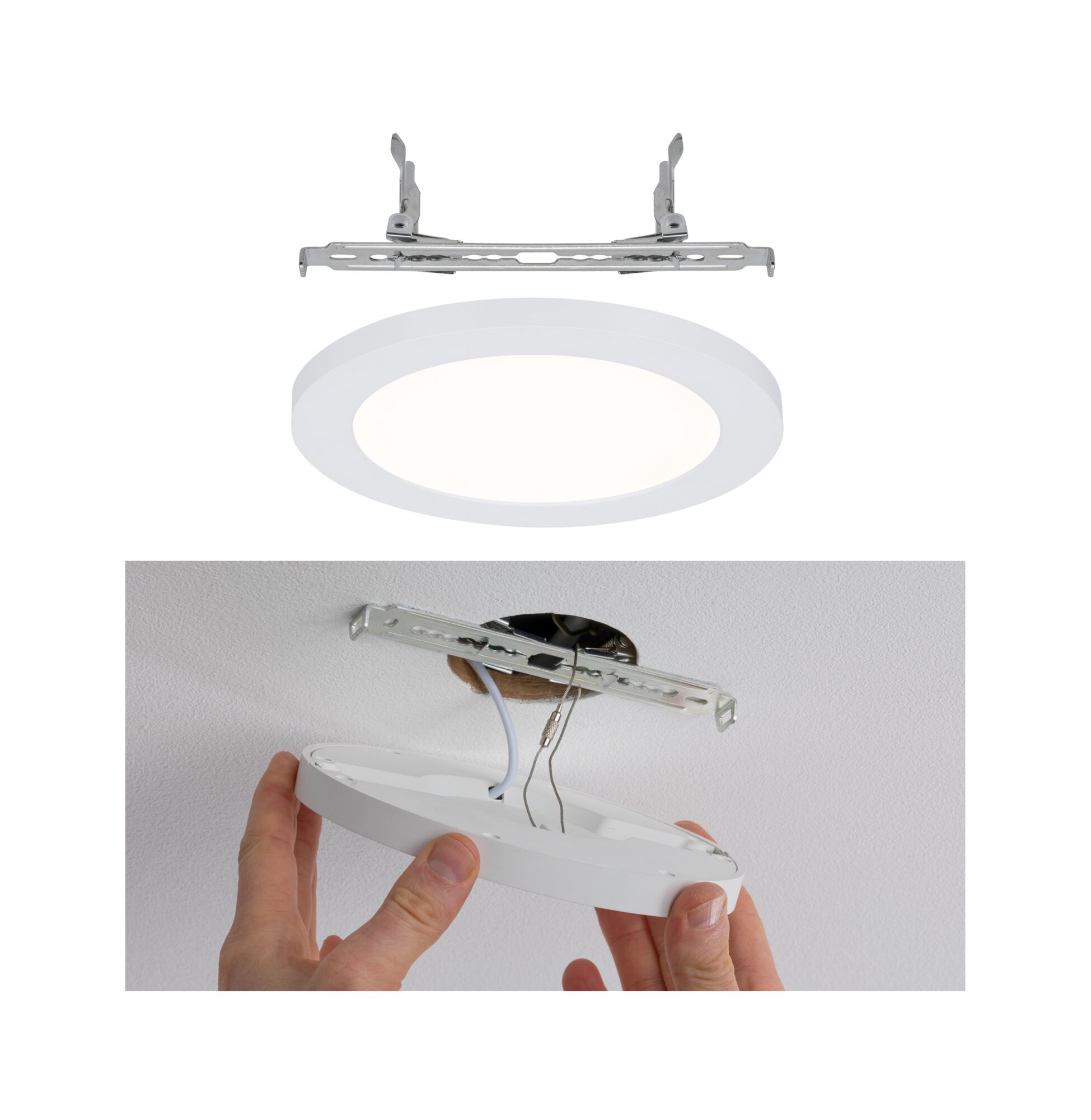

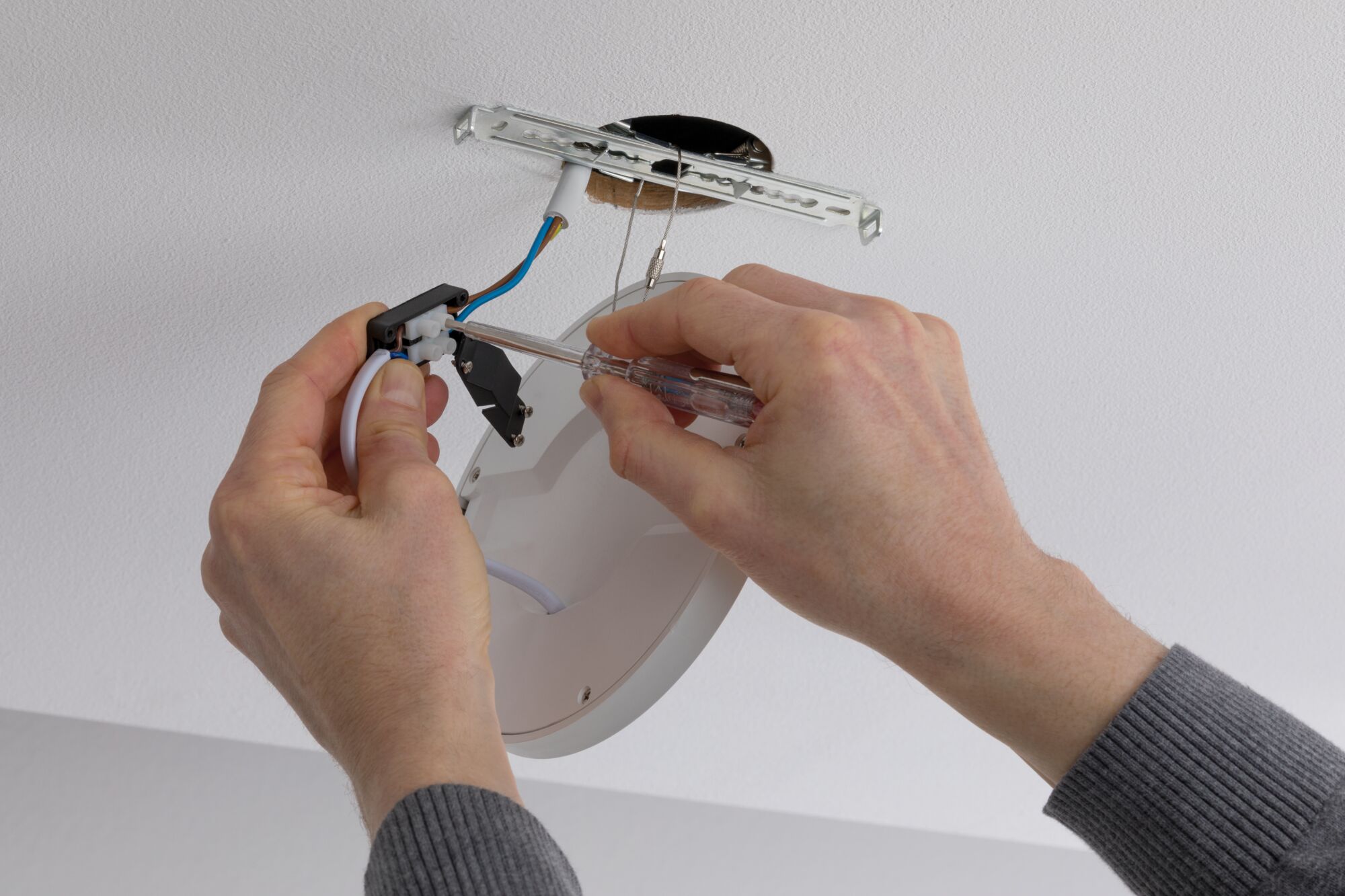

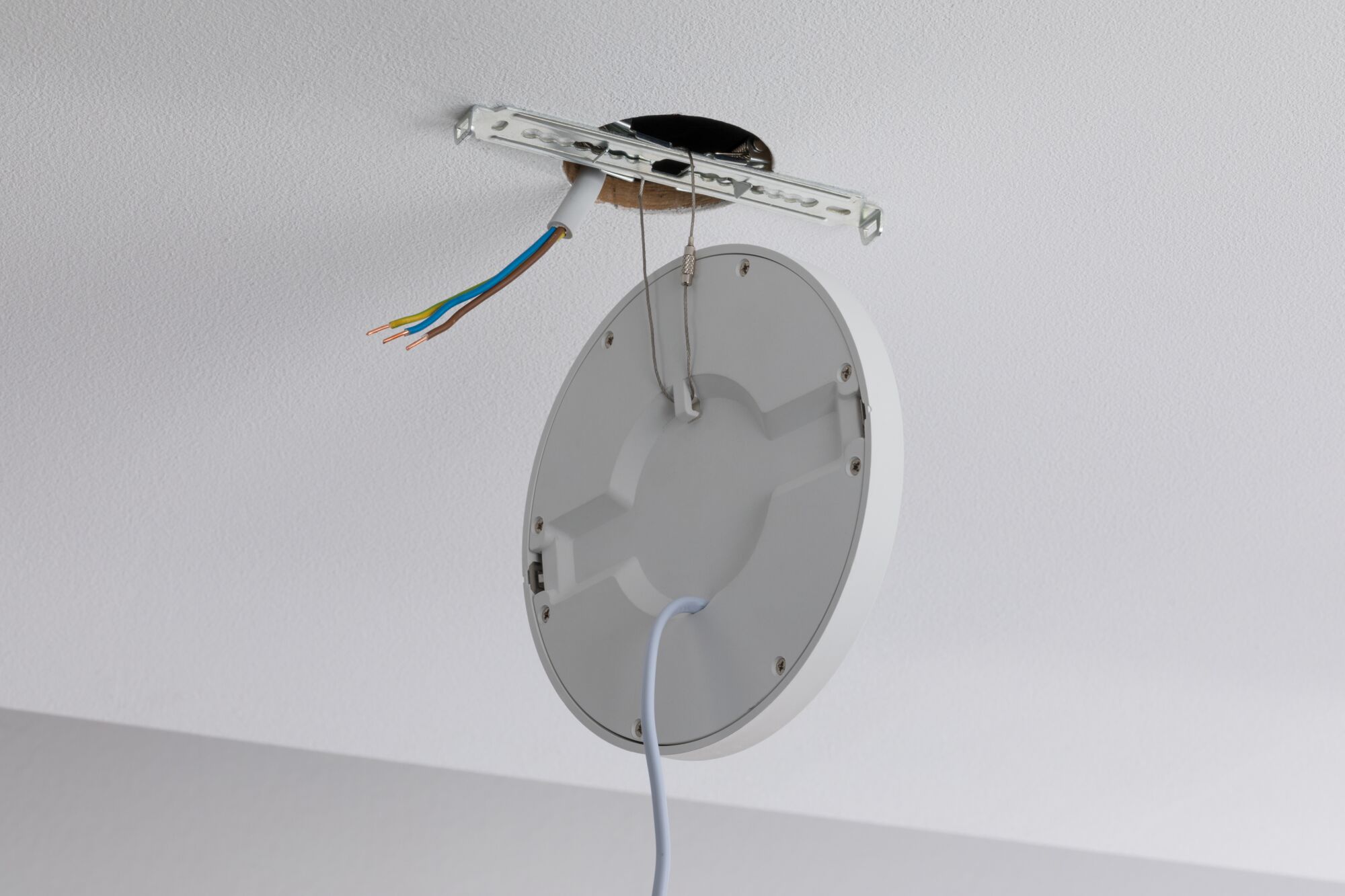

The white recessed panel with an output of 10 watts has a very low overall height and can therefore be installed in suspended ceilings with a cavity depth of 20 millimetres or more. An adjustable rail with retaining springs allows the panel to be installed in different mounting diameters.
- Area lighting
- Very flat design
- Color temperatur: 3000K - Warm white

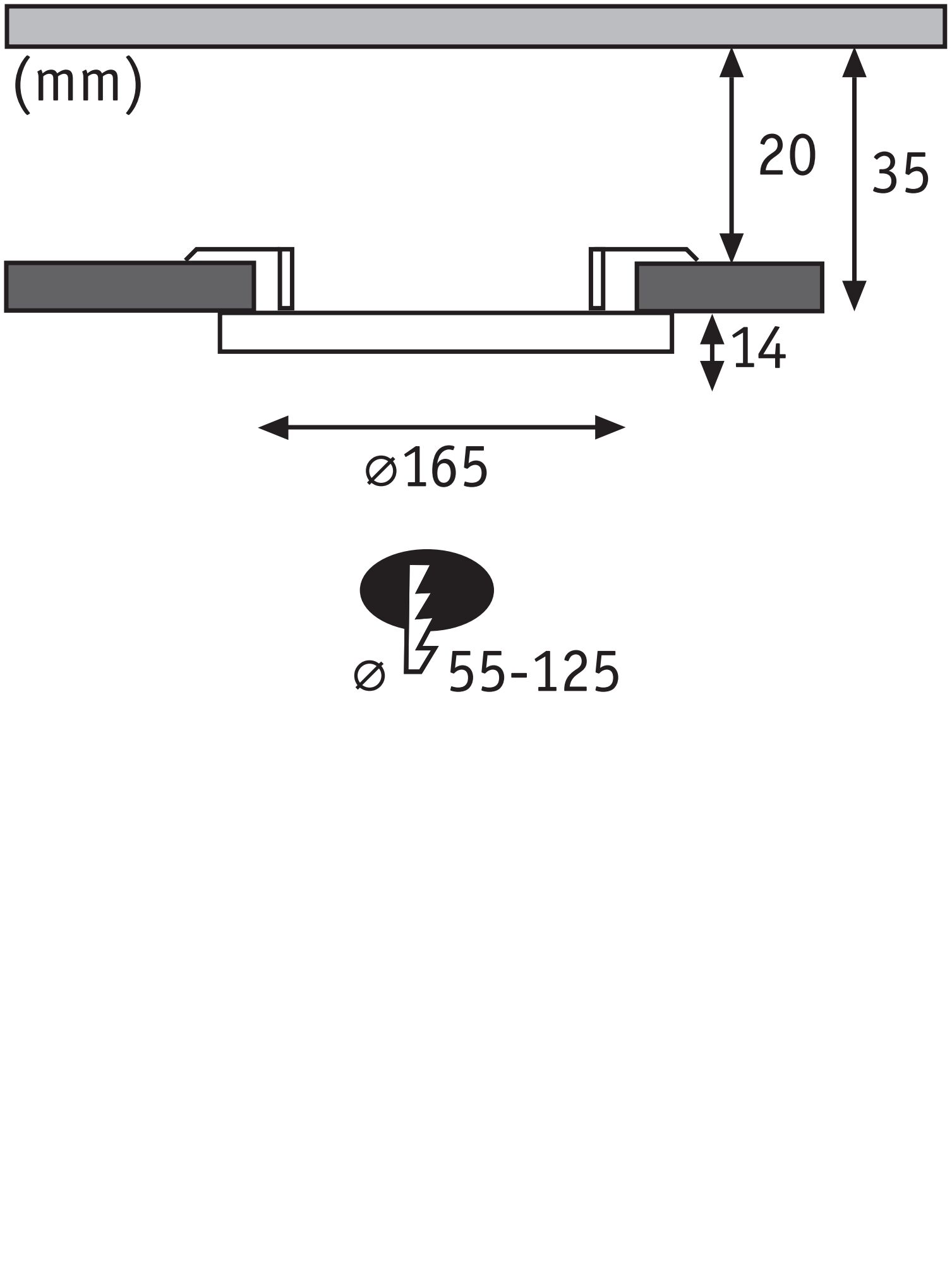

| Dimension | |
|---|---|
| mounting hole 2 | 125 mm |
| Total Mounting depth | 35 mm |
| Dimensions (Height x Width x Depth) | H: 14 mm |
| Ø | 165 mm |
| Mounting hole | 55 mm |
| Form | round |
| Depth of hollow wall | 20 mm, 20 mm |
| Design and Material | |
|---|---|
| Colour | Matt white |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 15000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 800 lm |
| Luminous flux LED module | 1400 lm |
| color temp | 3000 K |
| Lamp Features | |
|---|---|
| Component parts | 10 W |
| Technique | LED |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 92 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 13 W |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
