Article-No.:
95477
URailConnector
Line connector illuminated
189x57mm 5,3W Chrome matt
189x57mm 5,3W Chrome matt
£70.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- Efficient LED technology
- Simple plug-in installation
- Suitable only for URail rails

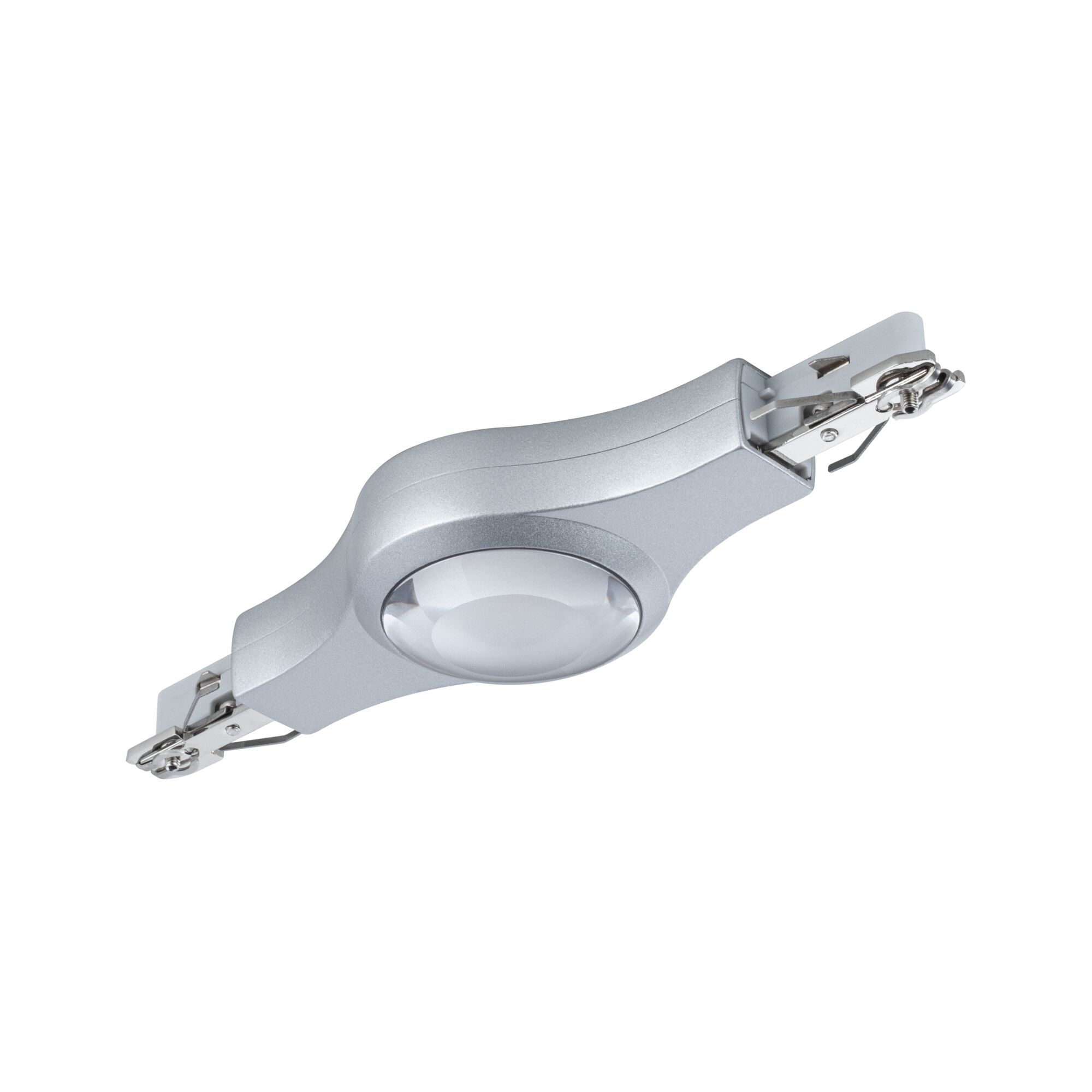

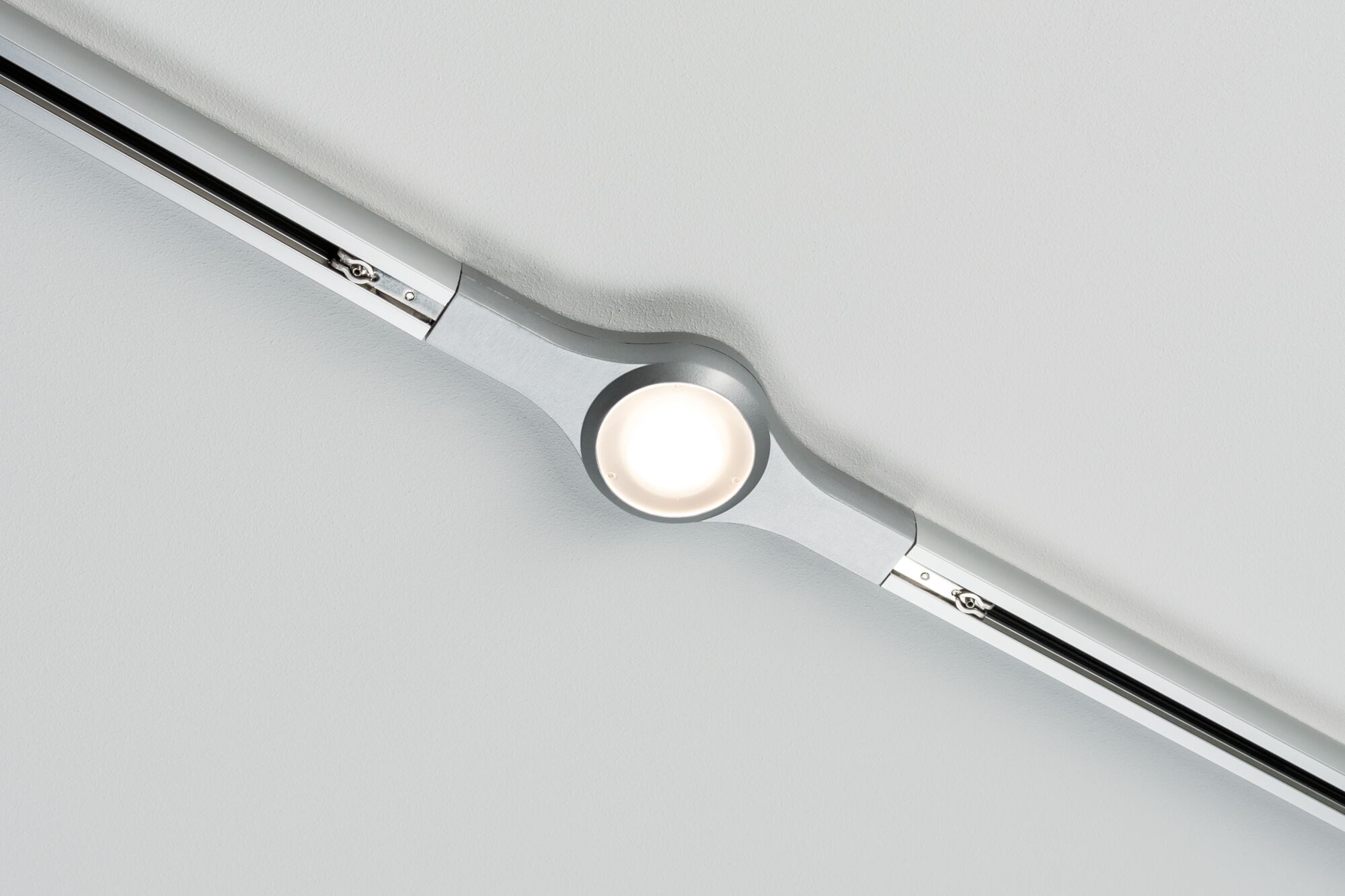

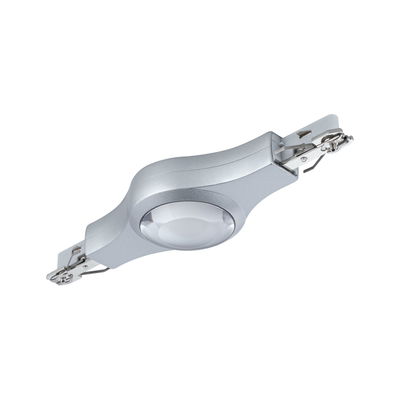

URail Connector Line connector illuminated 189x57mm 5,3W Chrome matt

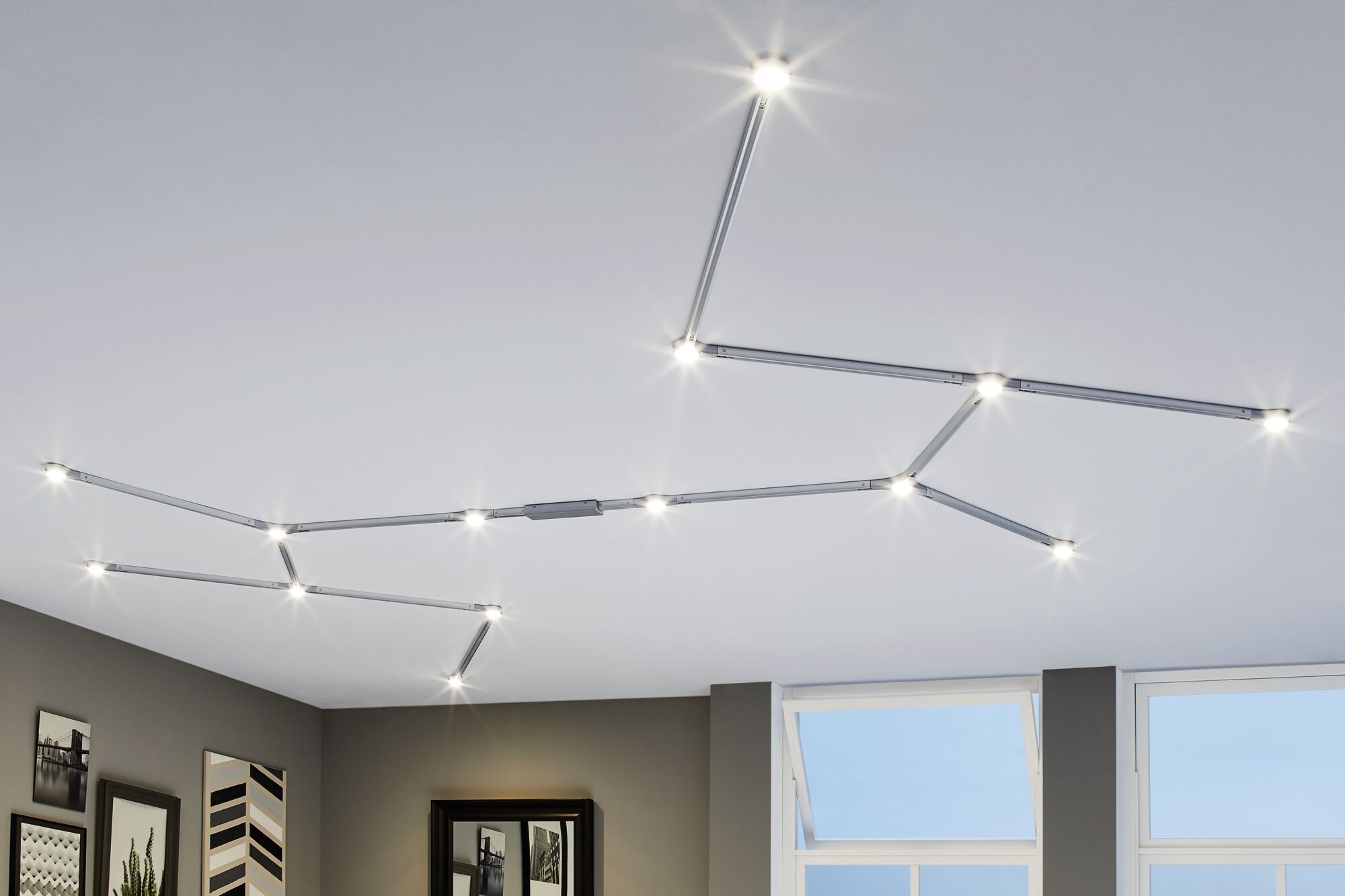

Design your own individual rail system! The illuminated connectors are low-glare, variably dimmable and can easily be plugged together with other URail components. They are suitable both for wall and ceiling installation.
- Efficient LED technology
- Simple plug-in installation
- Suitable only for URail rails
- URail line connector incl. assembly instructions
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 27 x B: 189 x T: 57 mm |
| Usable length | 120 mm |
| Design and Material | |
|---|---|
| Colour | Chrome matt |
| Material | Metal |
| Recycled material included | no |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 399,3 lm |
| Luminous flux LED module | 440 lm |
| Beam angle | 80 ° |
| Lamp Features | |
|---|---|
| Dimmable | with dimmer R, L, C (universal compatibility) |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 38 W |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 5,3 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 5,3 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| power supply efficiency factor | 0,99 |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
