VariFit LED Recessed panel Veluna IP44 round 125mm 8,5W 700lm 3000K Satin

The frameless Veluna panel with an output of 8,5 watts provides extensive warm white light. Thanks to flexible VariFit technology, the clamping springs can be freely adjusted between 45 and 100 mm for installation. The panel can therefore be installed both in existing boreholes and new ones created with standard drill bits.For hole diameters larger than 90 mm, a cavity depth of at least 30 mm is needed. For hole diameters larger than 68 mm, a depth of at least 45 mm is needed.

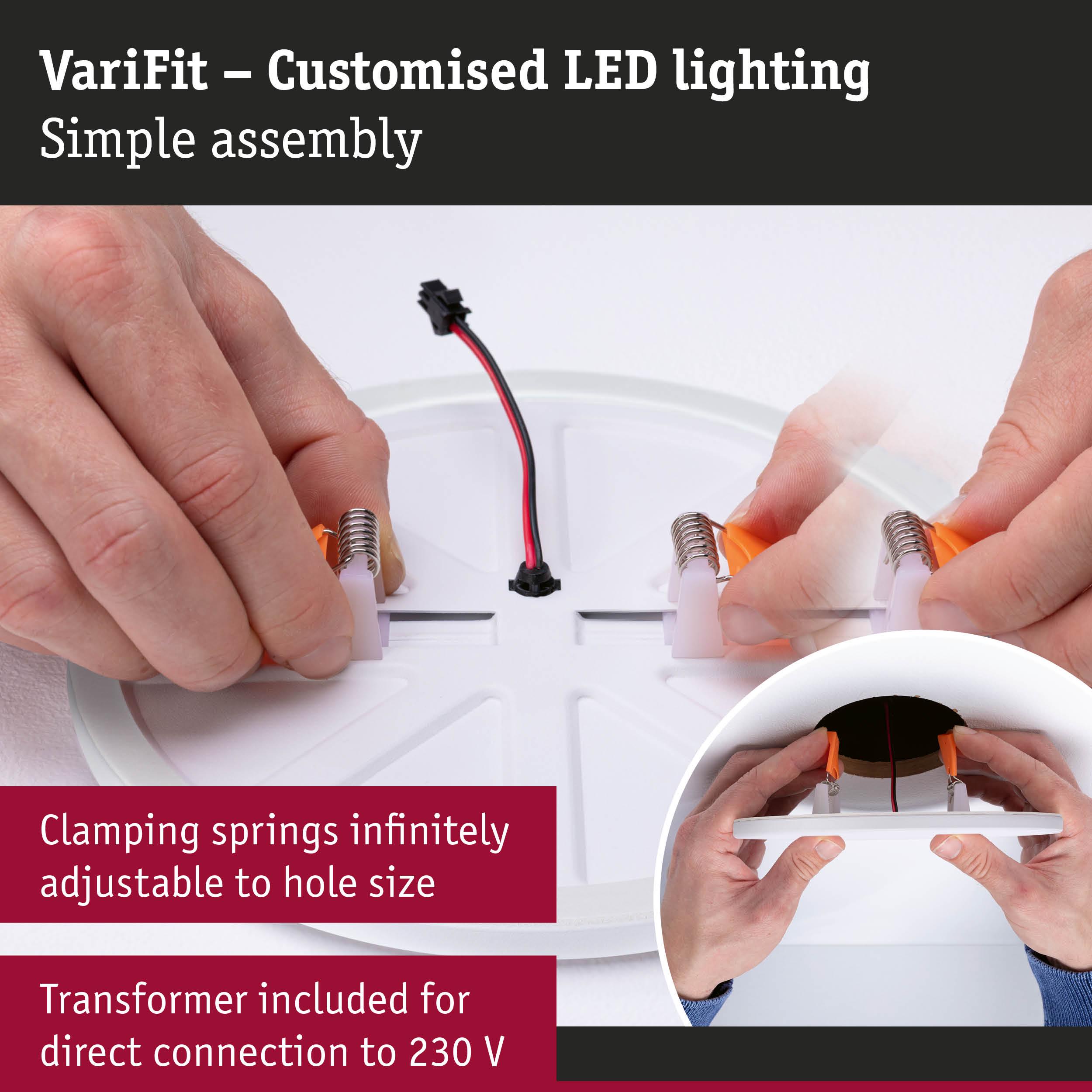

VariFit – flexible installation with infinitely adjustable clamping springs
With integrated LED bulb

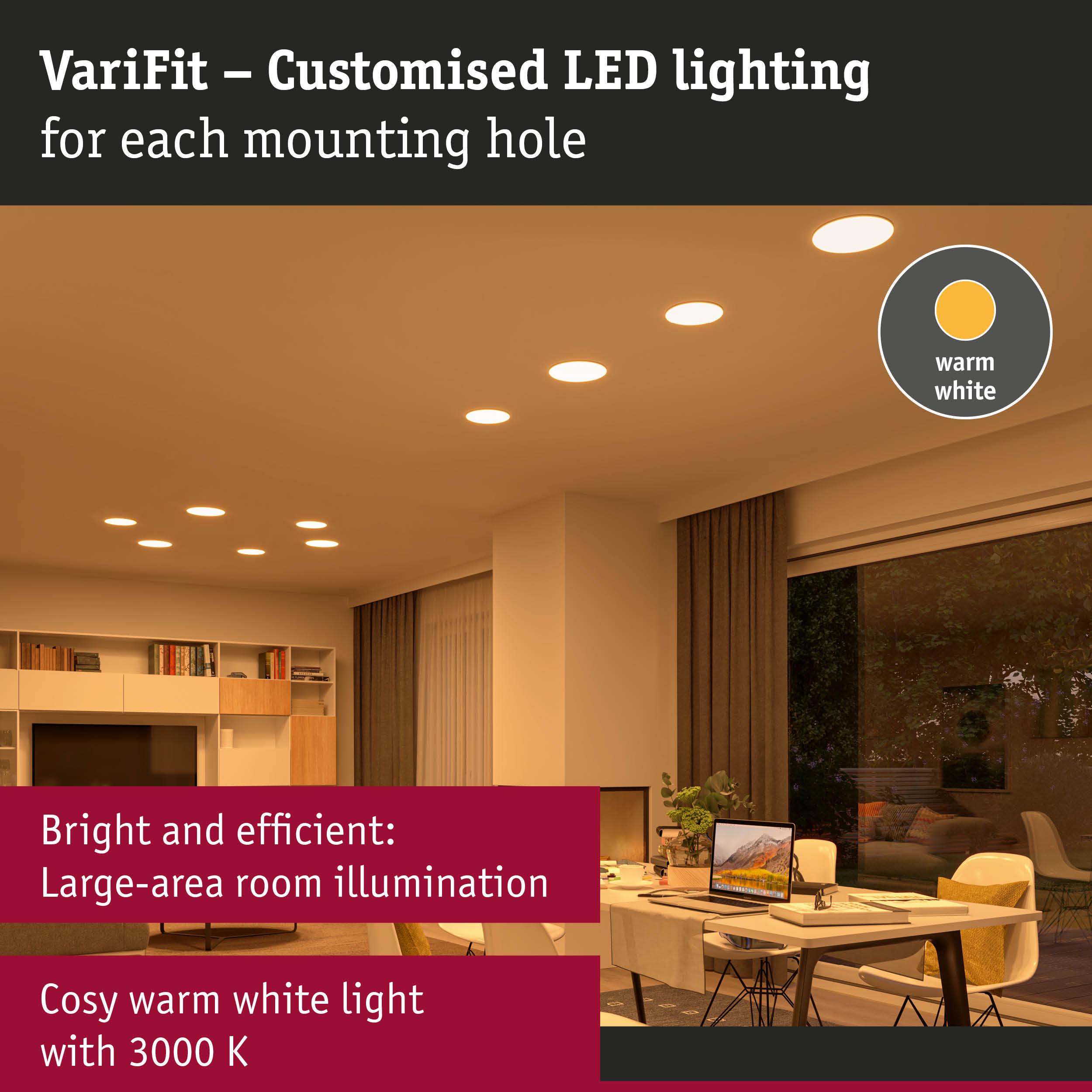

Color temperatur: 3000K - Warm white
Even room light based on cutting-edge LED technology
For 230 V direct connection

Dimension
mounting hole 2	100 mm
Dimensions (Height x Width x Depth)	H: 10/31 mm
Ø	125 mm
Mounting hole	45 mm
Form	round

Design and Material
Colour	Satin
Material	Plastic

Installation
Installation site (recommendation)	Wall and ceiling mounting

Energy consumption
Energy efficiency (A to G)	F

Service life
Lifetime	30000 h
Rated life time	30000 h

Light Characteristics
Colour temp.	3000 K
Usable luminous flux	700 lm
Luminous flux LED module	900 lm
color temp	3000 K
Color rendering index	> 80 Ra

Lamp Features
Component parts	8,5 W
Technique	LED

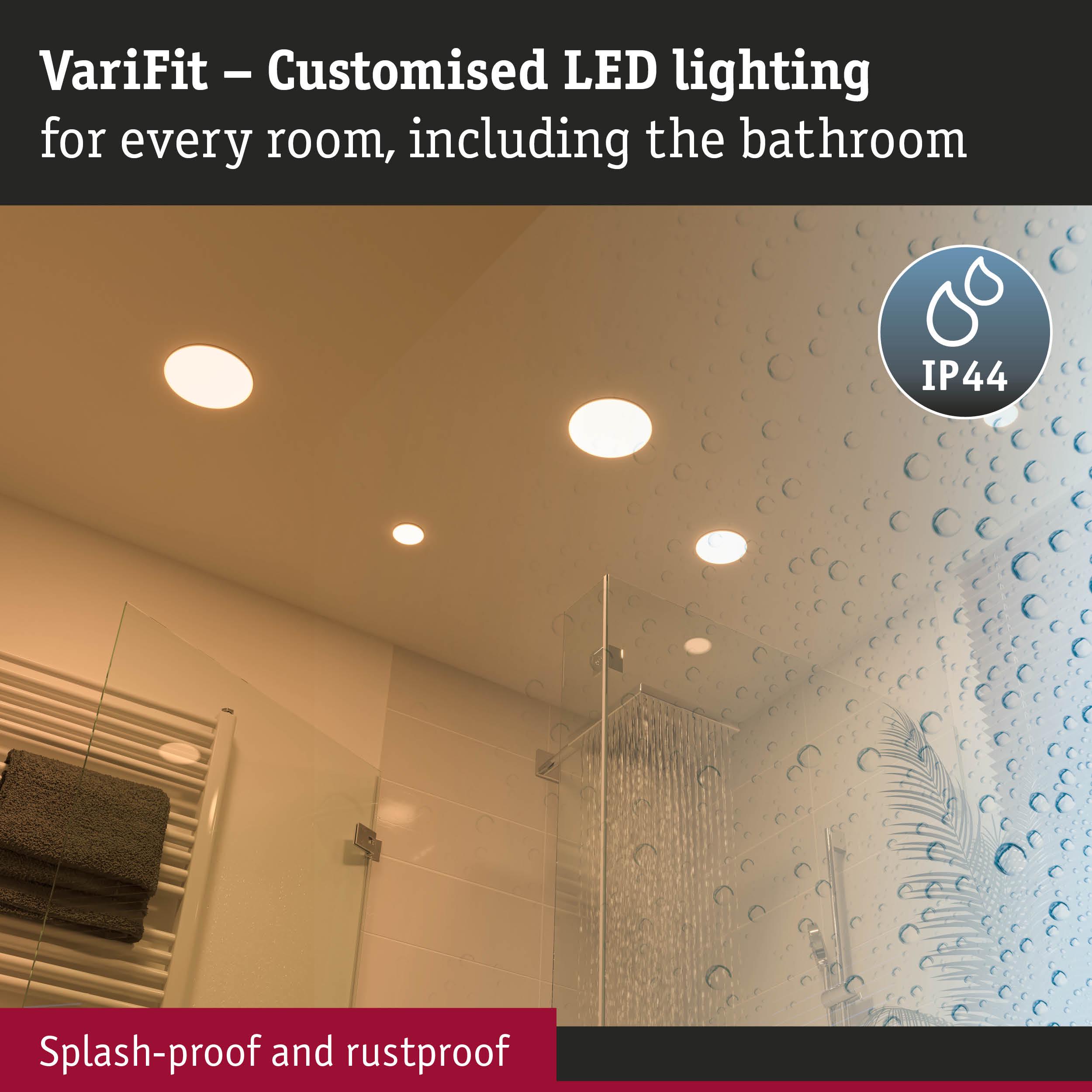

IP protection	IP44 ceiling mounting
Dimmable	No
Inclusive lamp	yes
Incandescent Equivalent	65.7 W
Number of component parts	1x
protection class	protection class II
Replacable	3 Lightsource is not replaceable, the complete lighting must be replaced.\|4 Control gear is replaceable without damage the lighting fixture by enduser.
Power consumption	10 W

Transformer
apparent power	19.5 VA

Labelling
WEEE-Reg.-No	DE 39236390

Downloads

Manuals

Download Installation/Montage

VariFit LED Recessed panel Veluna

IP44 round 125mm 8,5W 700lm 3000K Satin
