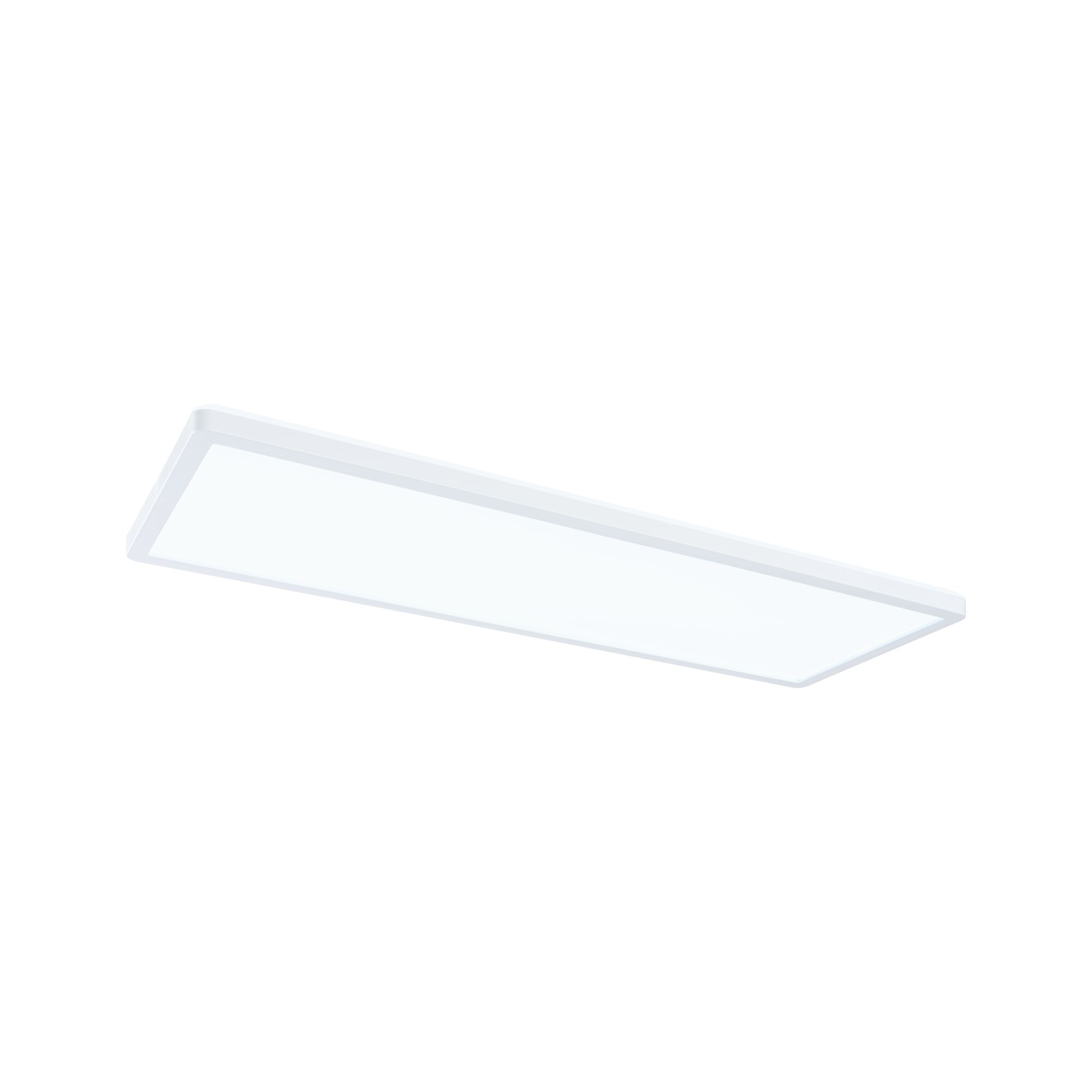

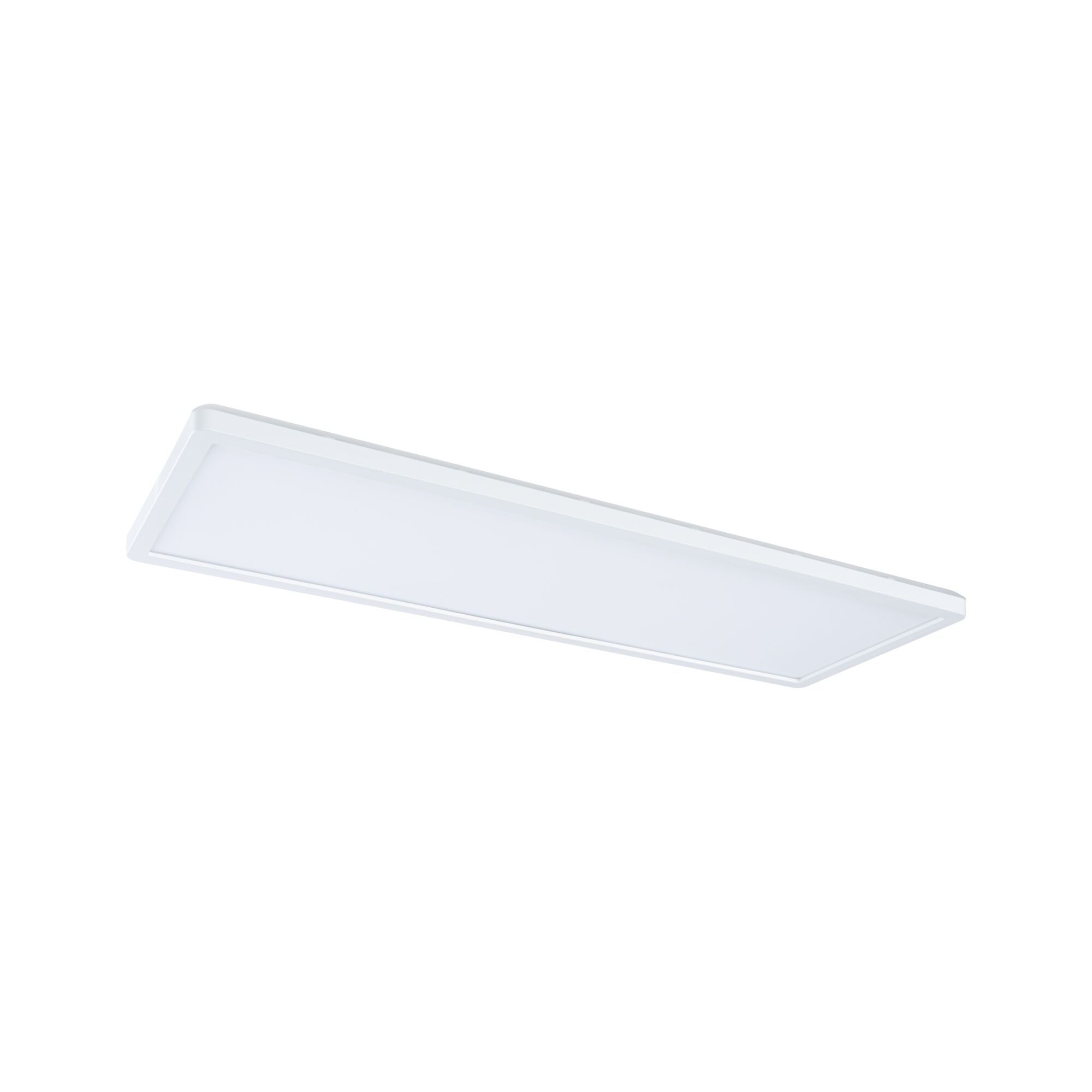

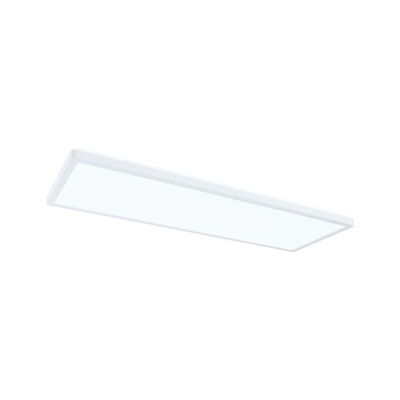

LED Panel Atria Shine Backlight square 580x200mm 22W 1800lm 4000K White

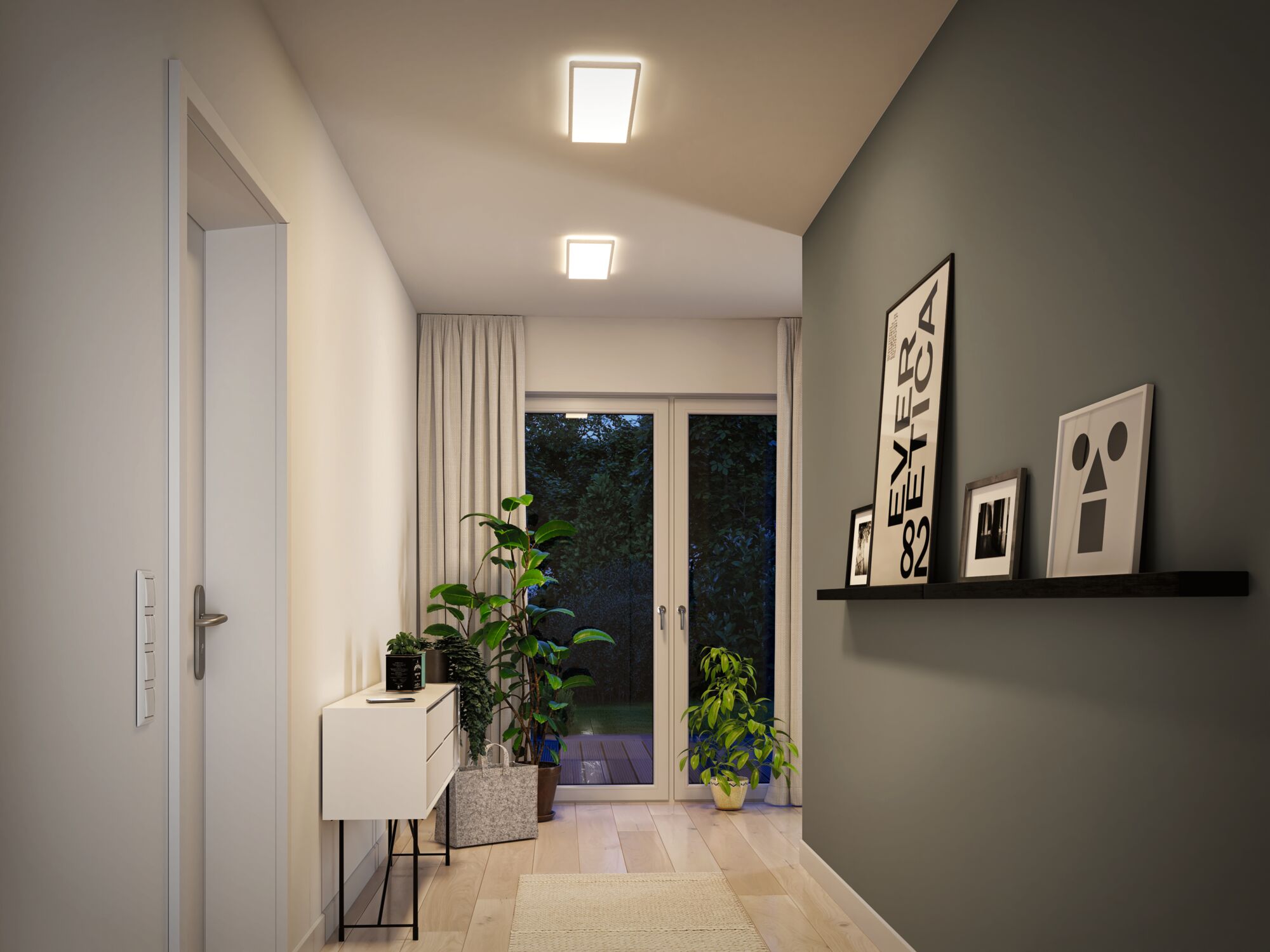

With an output of 22W, the squaree Atria Shine LED panel in White and 580x200mm is ideal for basic lighting in living rooms, bedrooms and kitchens. The light of the panel creates uniform and wide-area room illumination. Additional backlight technology produces a magical feel-good atmosphere and gives the panel an almost floating luminous appearance. With a quick clip, a special twist lock and an ultra-flat installation height of 28 mm, the panel is very easy to install.

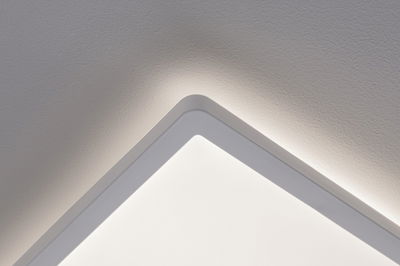

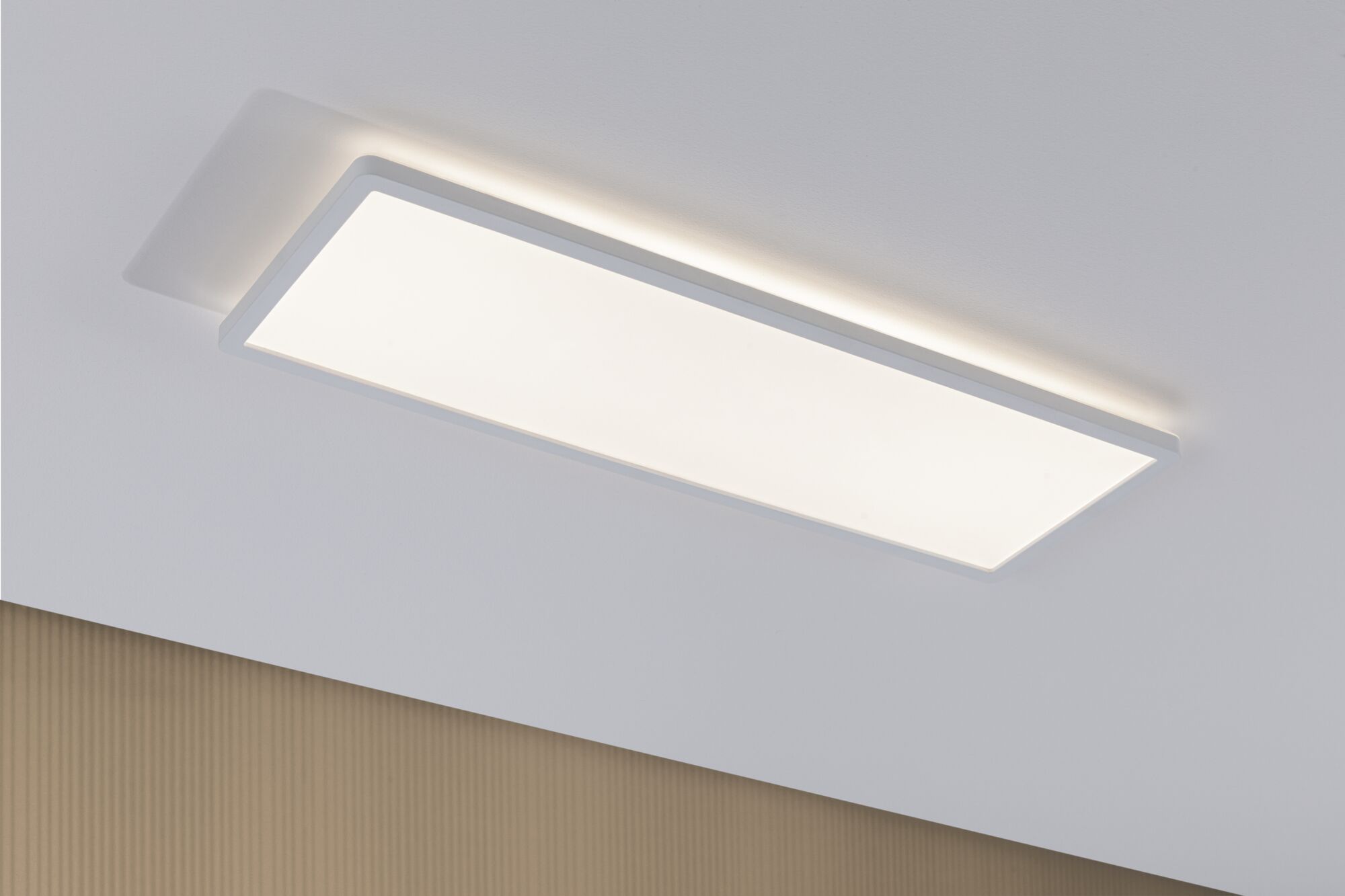

Backlight technology for subtle, almost floating appearance of the luminaire
Ultra-flat design: Installation height of only 28 mm
Even room light based on cutting-edge LED technology
Color temperatur: 4000K - Neutral white
Can be mounted on wall or ceiling
Especially flat construction

Dimension

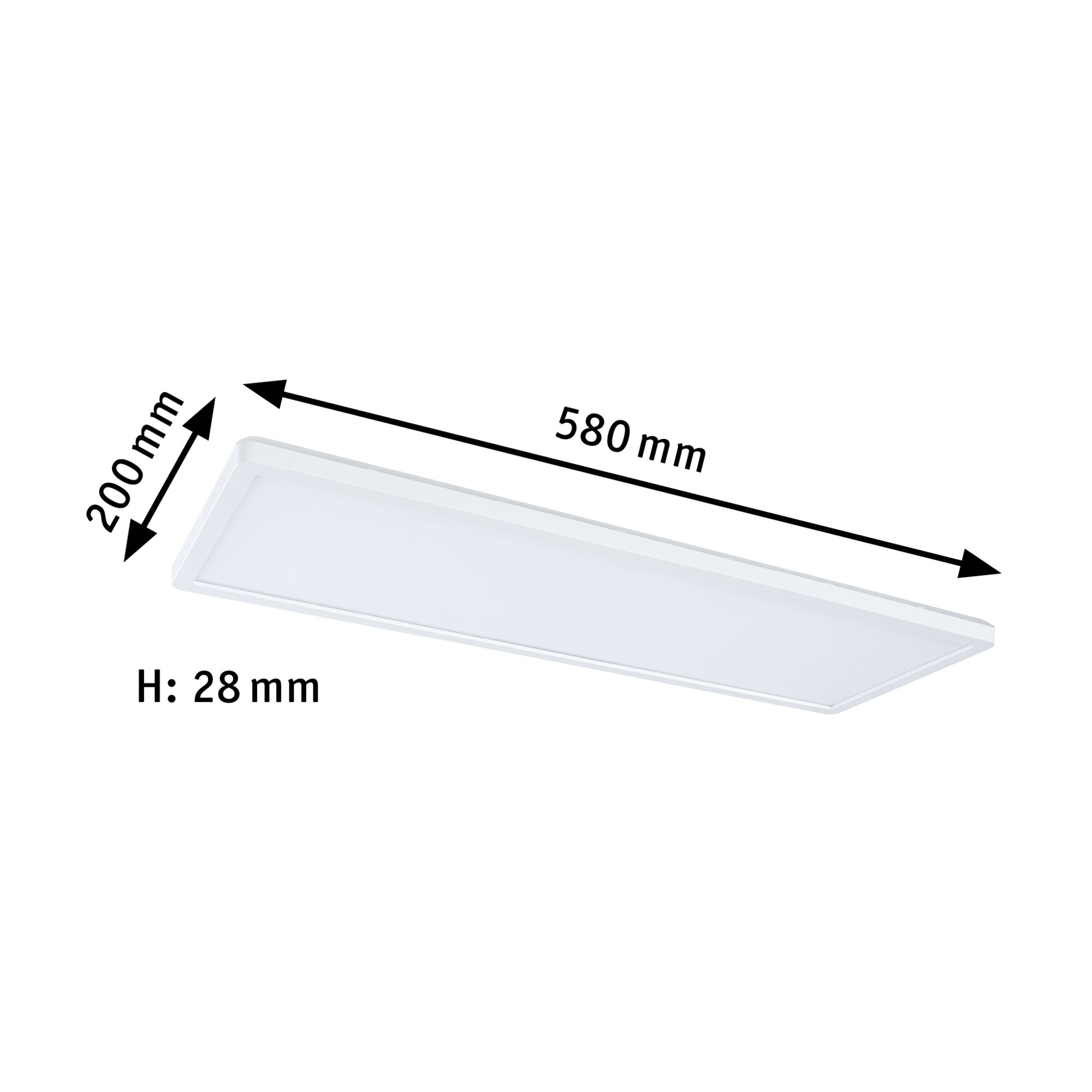

Dimensions (Height x Width x Depth)	H: 28 x B: 580 x T: 200 mm
Form	square

Design and Material
Colour	White
Material	Plastic

Energy consumption
Energy efficiency (A to G)	E

Service life
Lifetime	30000 h

Light Characteristics
Colour temp.	4000 K
Usable luminous flux	1800 lm
Luminous flux LED module	2700 lm
color temp	4000 K
Color rendering index	> 80 Ra

Lamp Features
Component parts	22 W
Technique	LED
IP protection	IP20
Dimmable	No
Inclusive lamp	yes
Total Width	580 mm
Incandescent Equivalent	160 W
Number of component parts	1x
protection class	protection class II
Replacable	3 Lightsource is not replaceable, the complete lighting must be replaced.\|6 Control gear is not replaceable, the complete lighting must be replaced.
Power consumption	23 W

Transformer
apparent power	40 VA

Labelling
WEEE-Reg.-No	DE 39236390

Downloads

Manuals

Download Installation/Montage

LED Panel Atria Shine Backlight

square 580x200mm 22W 1800lm 4000K White
