Article-No.: 93070

LED Module recessed luminaire3-Step-Dim Nova Coin
round 51mm Coin 6W 470lm 230V dimmable 2700K Satin

A G G

Product Data Sheet

Version: 3-Step dim

3-Step dim

Non Dim

Colour: Satin

Satin

Light colour: Warm white

Neutral white

Warm white

£14.95* Prices incl. Standard rate VAT

Ready to ship, delivery within 2-3 working days

5-year warranty

Secure payment

Free shipping from £ 150 Free returns

LED module with junction box, incl. double quick terminal to loop through

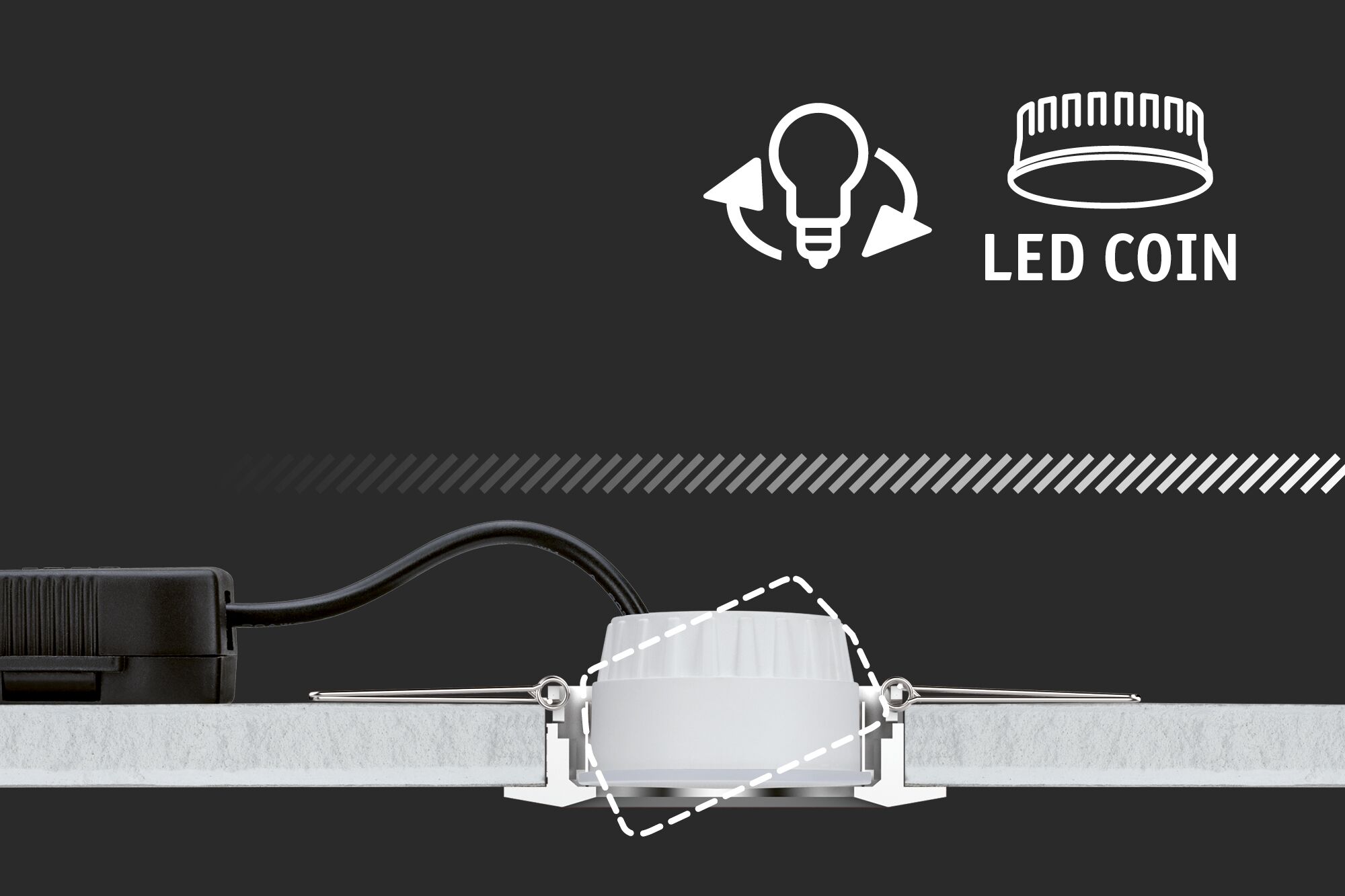

Very flat – can also be mounted in small cavities of only 30 mm depth
Can be dimmed with a standard light switch, with 3 dimming levels

LED Module recessed luminaire 3-Step-Dim Nova Coin round 51mm Coin 6W 470lm 230V dimmable 2700K Satin

The innovative Nova coins with a neutral white light and 3-step dimming function can also be used in combination with existing light installations. If you have already installed recessed spotlights with a diameter of 51 mm, you can simply switch over to the energy-saving LED modules. The old lamp is removed, the Slim Coin is connected with the help of quick clips, without having to use tools - that is all!

LED module with junction box, incl. double quick terminal to loop through
Very flat – can also be mounted in small cavities of only 30 mm depth
Can be dimmed with a standard light switch, with 3 dimming levels
Color temperatur: 2700K - Warm white
Operating voltage: 230 V

Dimension
Dimensions (Height x Width x Depth)	H: 30 mm
Ø	51 mm
Mounting hole	68 mm
Form	round

Design and Material
Colour	Satin
Material	Plastic

Energy consumption
Energy efficiency (A to G)	G
Energy consumption	7 kWh_1000h

Service life
Lamp lumen maintenance factor 6000h	80 %
luminous flux at the end of lamplife	70 %
Number of switching cycles >=	50000
Lifetime	30000 h

Light Characteristics
Colour temp.	2700 K
color temp	2700 K
Farbtemperatur_Text	Warmweiß
Beam angle	100 °
Usable luminous flux	470 lm
colour consistency	SDCM 6
Color rendering index	> 85 Ra
Rated luminous flux (Lumen)	470 lm

Lamp Features
Component parts	6 W
Technique	LED
Socket	Coin
Dim	dimmable in 3 steps with normal light switch
Dimmable	Yes
Inclusive lamp	yes
Incandescent Equivalent	40 W
Adjustability	fixed
Number of component parts	1x
protection class	protection class II
Replacable	7 not concerned.
Power consumption	7 W

Labelling
WEEE-Reg.-No	DE 39236390

Downloads

Manuals

Download Installation/Montage

Flyer and Safety instructions

Safety instructions
