Article-No.:
50043
Controller
Smart Home Zigbee 3.0
Cephei
230V max. 1000W White/Grey
230V max. 1000W White/Grey
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch

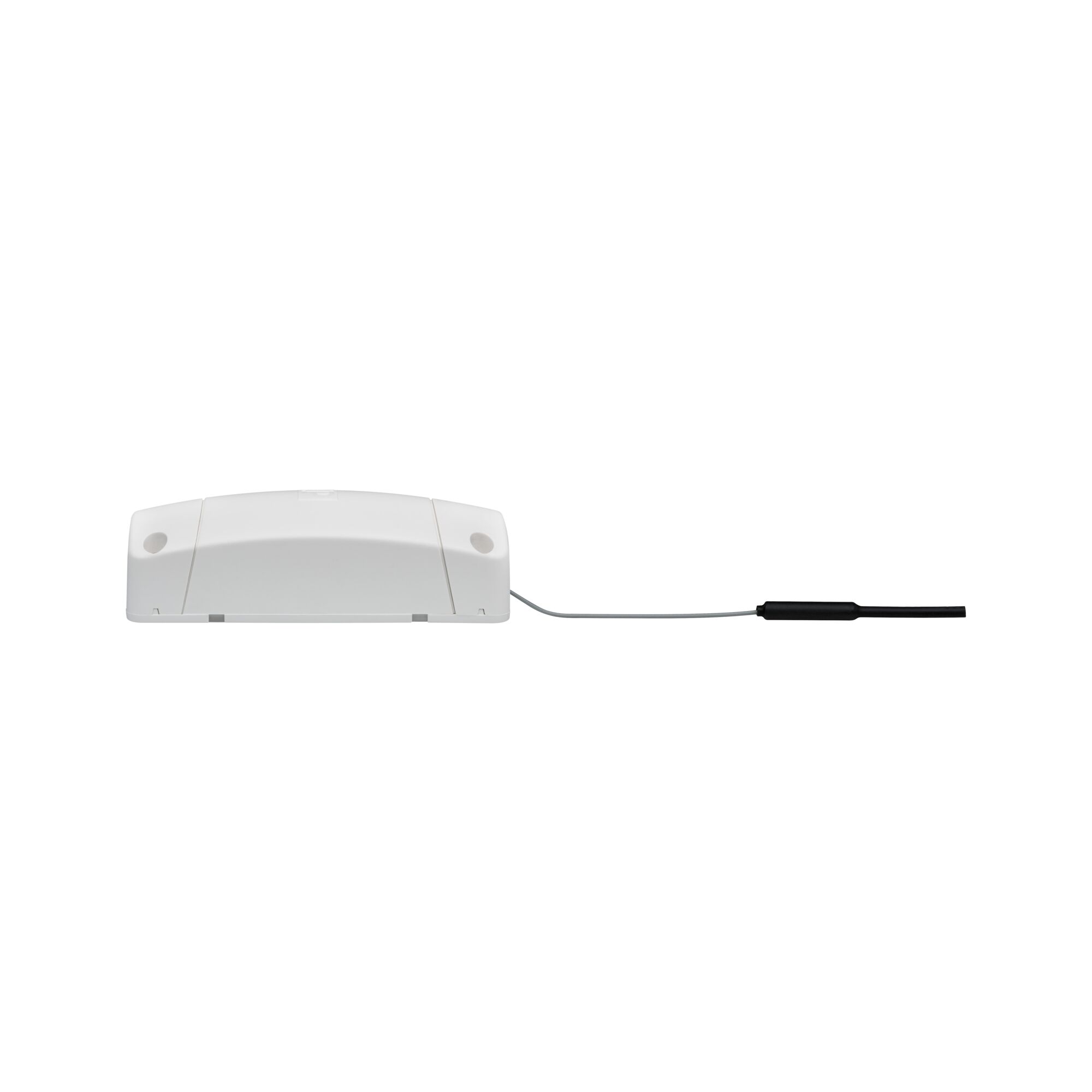

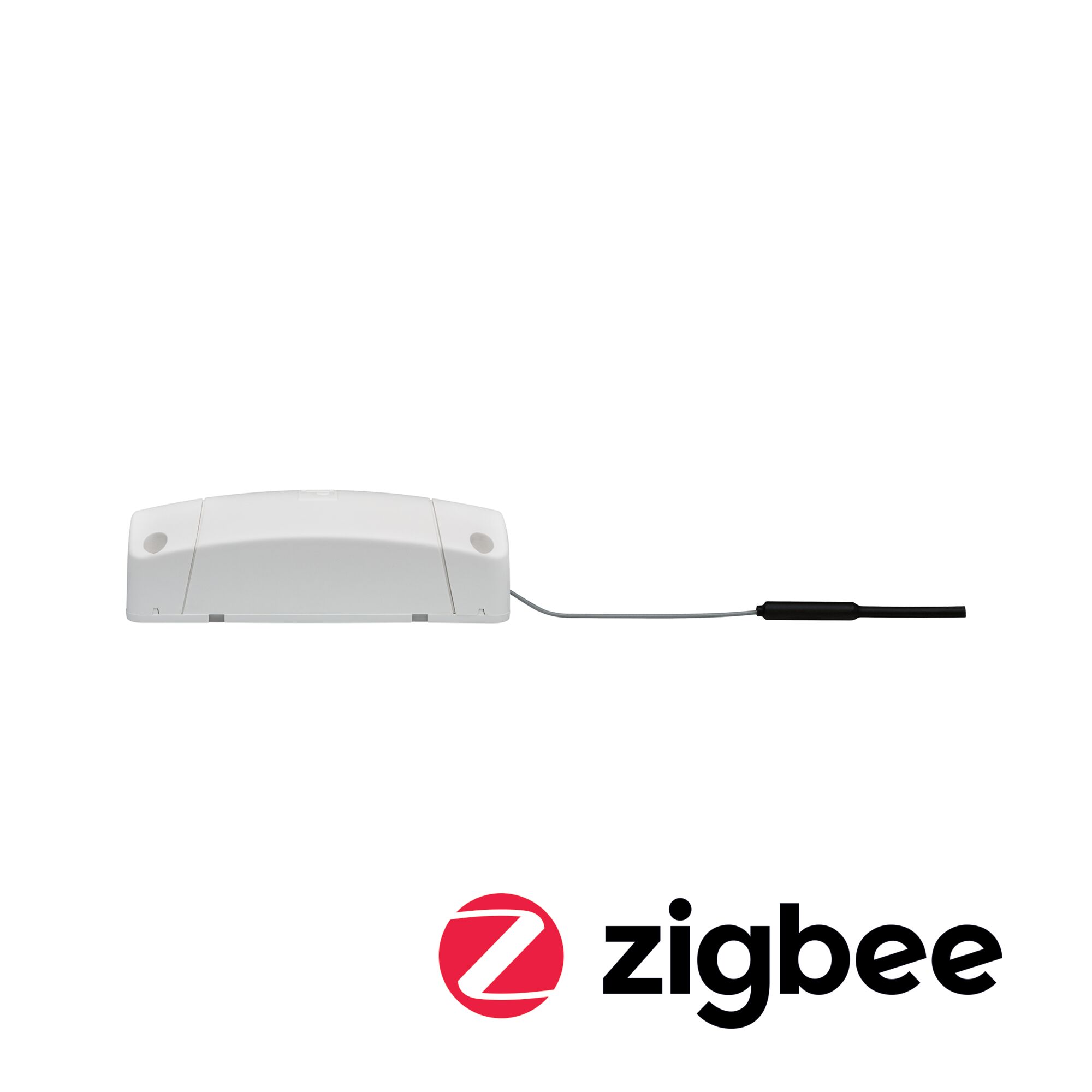

Controller Smart Home Zigbee 3.0 Cephei 230V max. 1000W White/Grey
With the Cephei switch controller you can switch any luminaires on and off. It is simply fitted between the 230 V connection and the luminaire or ballast. The controller is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol which links up the devices of several manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. To operate the control, you can choose between the Smart Friends Box, a gateway for the same standard by a different manufacturer, or a Smart Home Zigbee 3.0 hand-held transmitter. Specific individual components can be addressed, or switched in groups as lighting scenarios.
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
- Bidirectional data transfer
- Mesh-capable: range increases from product to product
- For the wireless control of luminaires
- Max. 1000W inductive load (converter transformer)
- Max 75 W capacitive load (electronic ballasts)
- With strain relief and aerial
Dimension | |
---|---|
Dimensions (Height x Width x Depth) | H: 28 x B: 95 x T: 38 mm |
Design and Material | |
---|---|
Colour | White, Grey |
Material | Plastic |
Service life | |
---|---|
Lifetime | 30000 h |
Lamp Features | |
---|---|
Compatible Smart Home technology | Zigbee |
Technique | Accessories without bulbs |
Dimmable | No |
Inclusive lamp | no |
Total Width | 95 mm |
Maximum wattage range | max. 1000 W |
protection class | protection class II |
Replacable | 7 not concerned. |
Transformer | |
---|---|
Inductive load | 75 W |
Capacitive load | 75 W |
Resistive load | 1000 W |
Labelling | |
---|---|
MM symbol | MM symbol |
WEEE-Reg.-No | DE 39236390 |
Smart_Home | |
---|---|
Protocol type | Zigbee 3.0 |
Zigbee certification | Zigbee_inside (not certified) |
Radio frequency | 2,4 GHz |
Radio range | 20 m |
