Article-No.:
94479

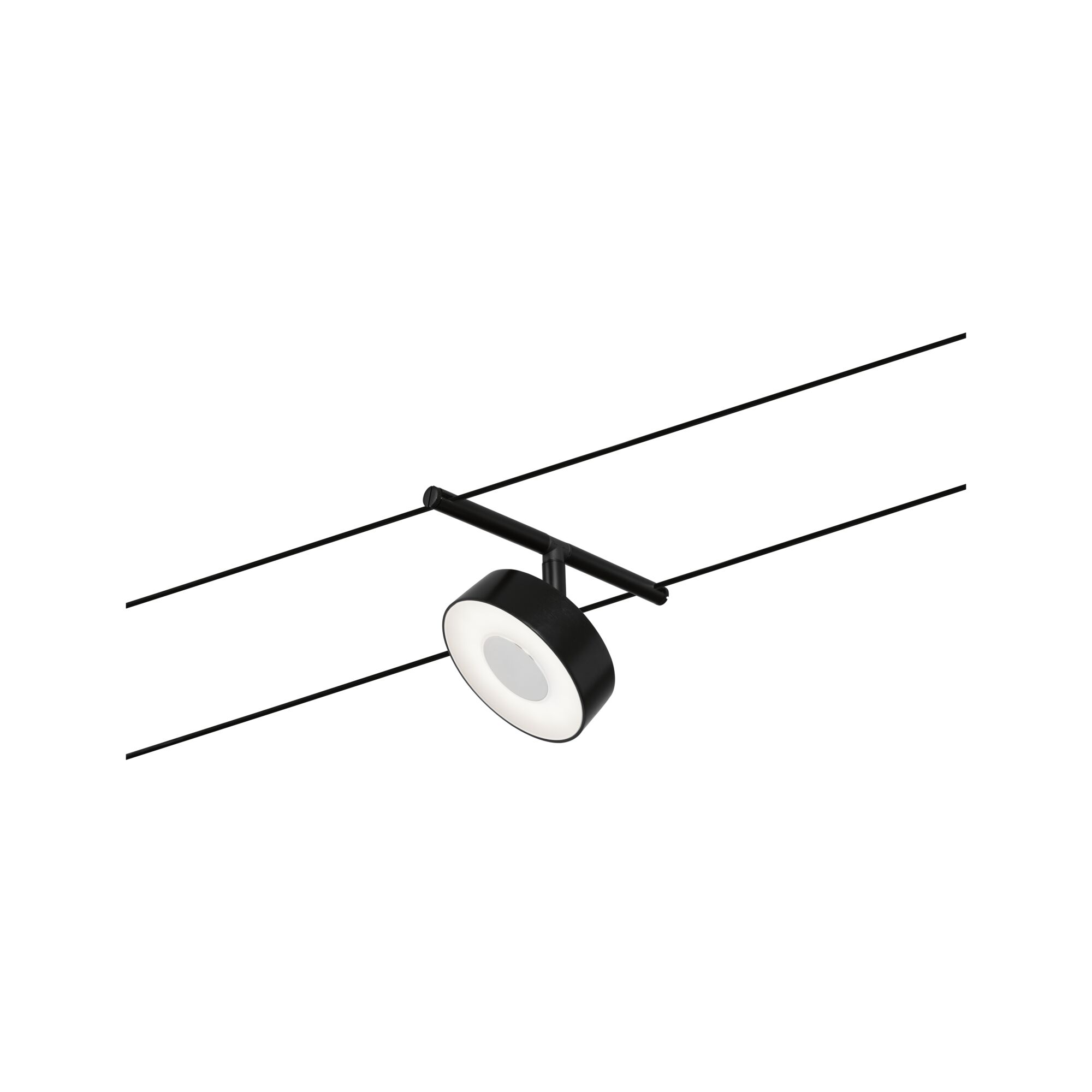

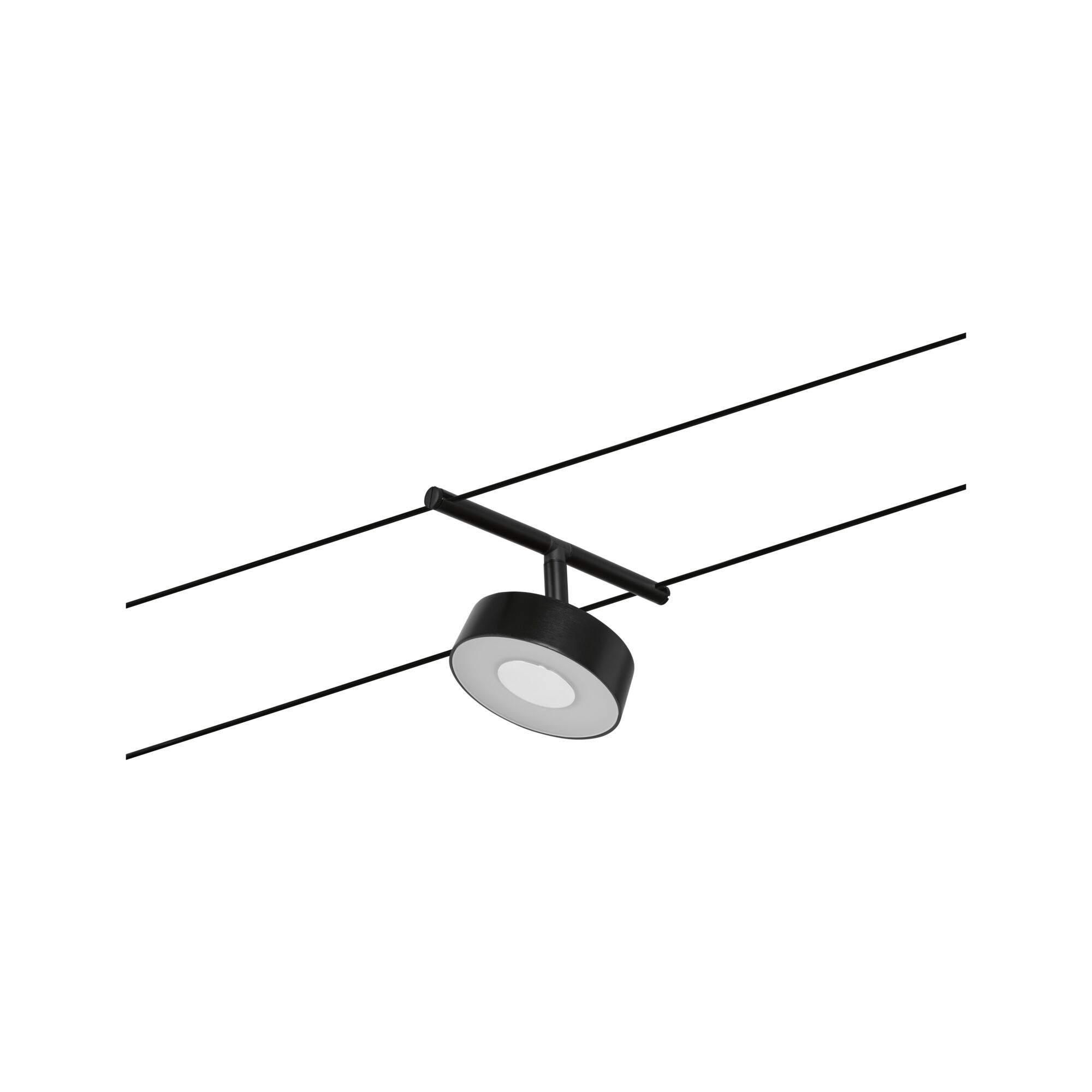

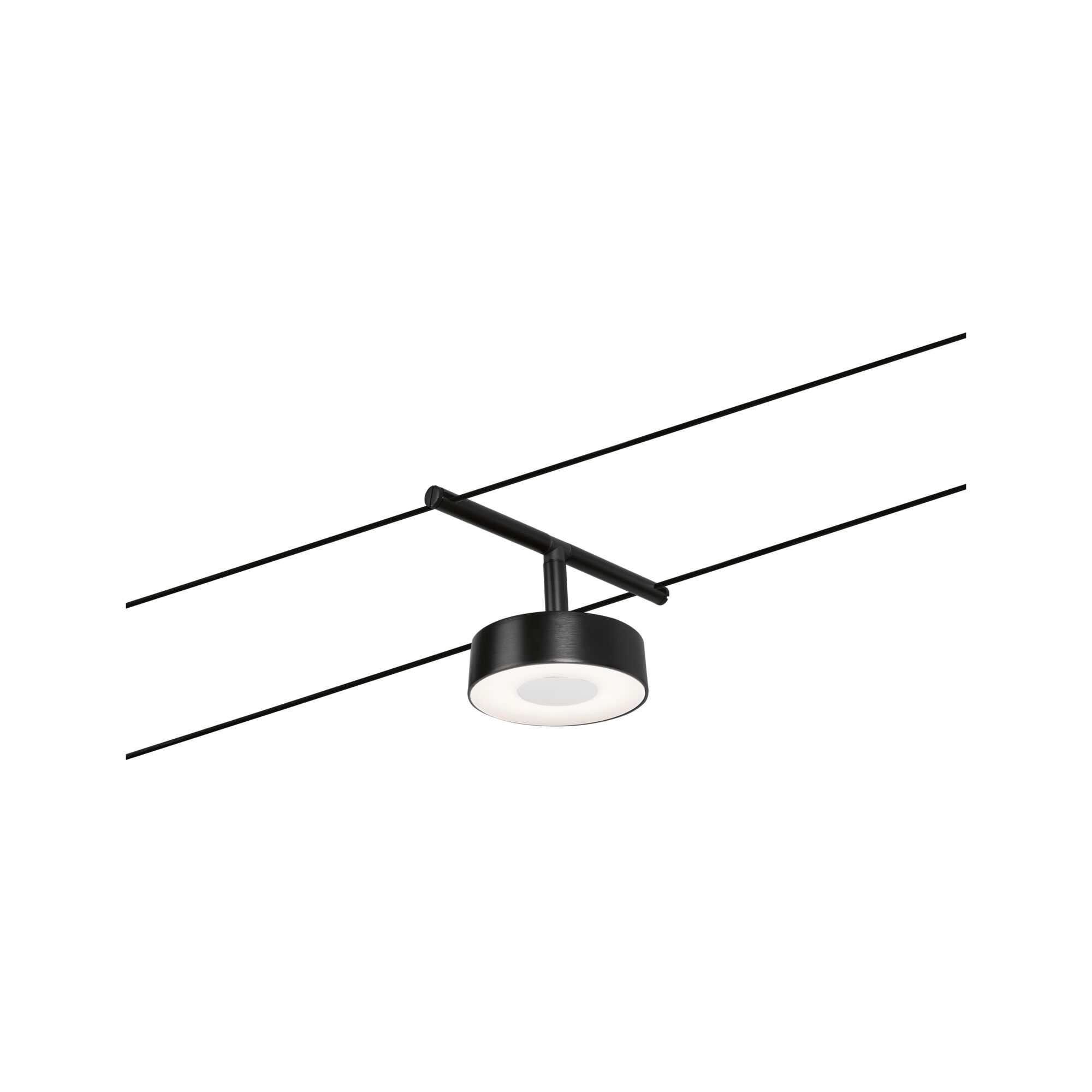

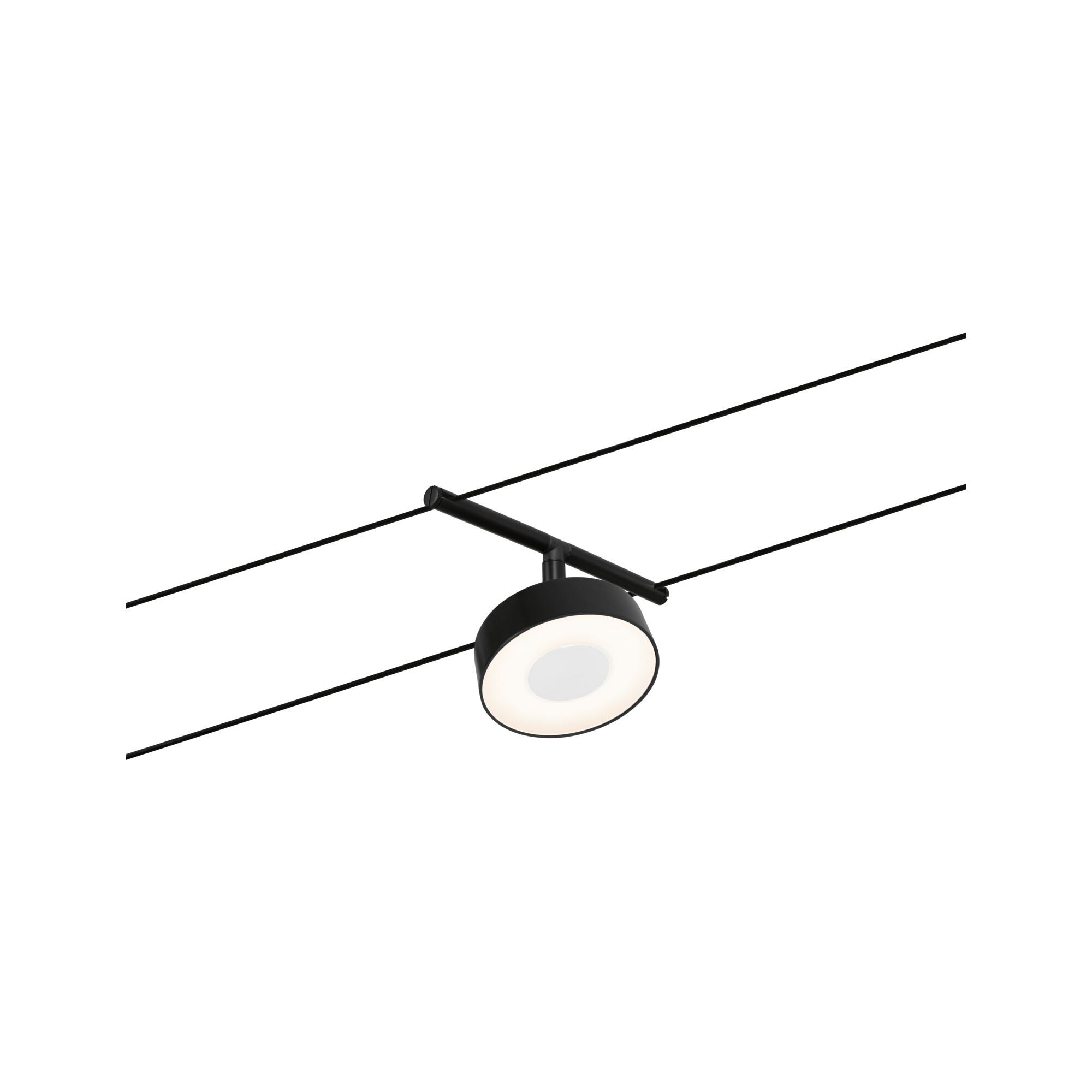

CorDuo
LED Cable system
Circle Basic Set
5x180lm 5x5W 3000K 230/12V Black matt
5x180lm 5x5W 3000K 230/12V Black matt

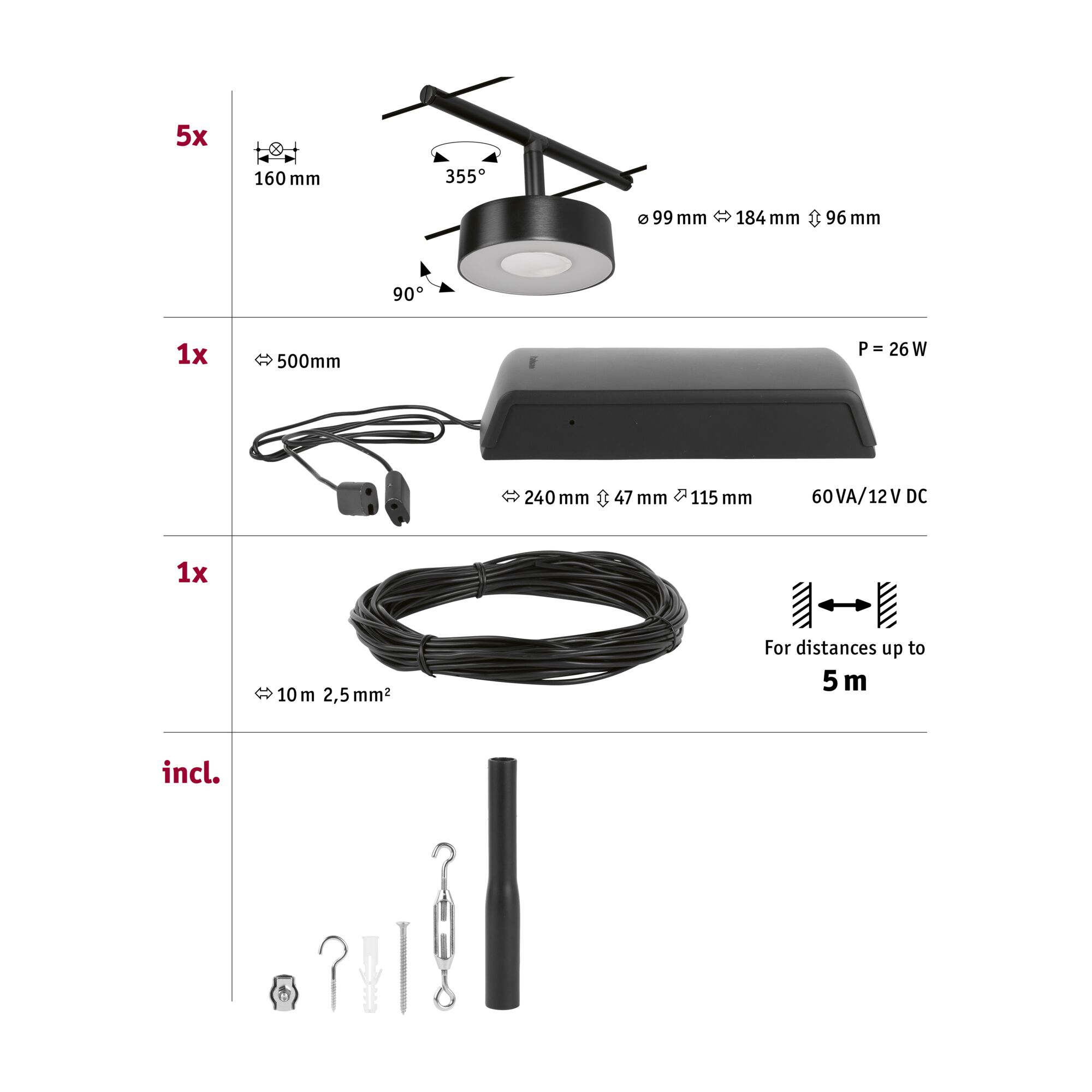

- Complete set consisting of transformer, cable, spots and installation instructions
- Suitable for wall and ceiling mounting
- Ideal for illuminating large and angled spaces

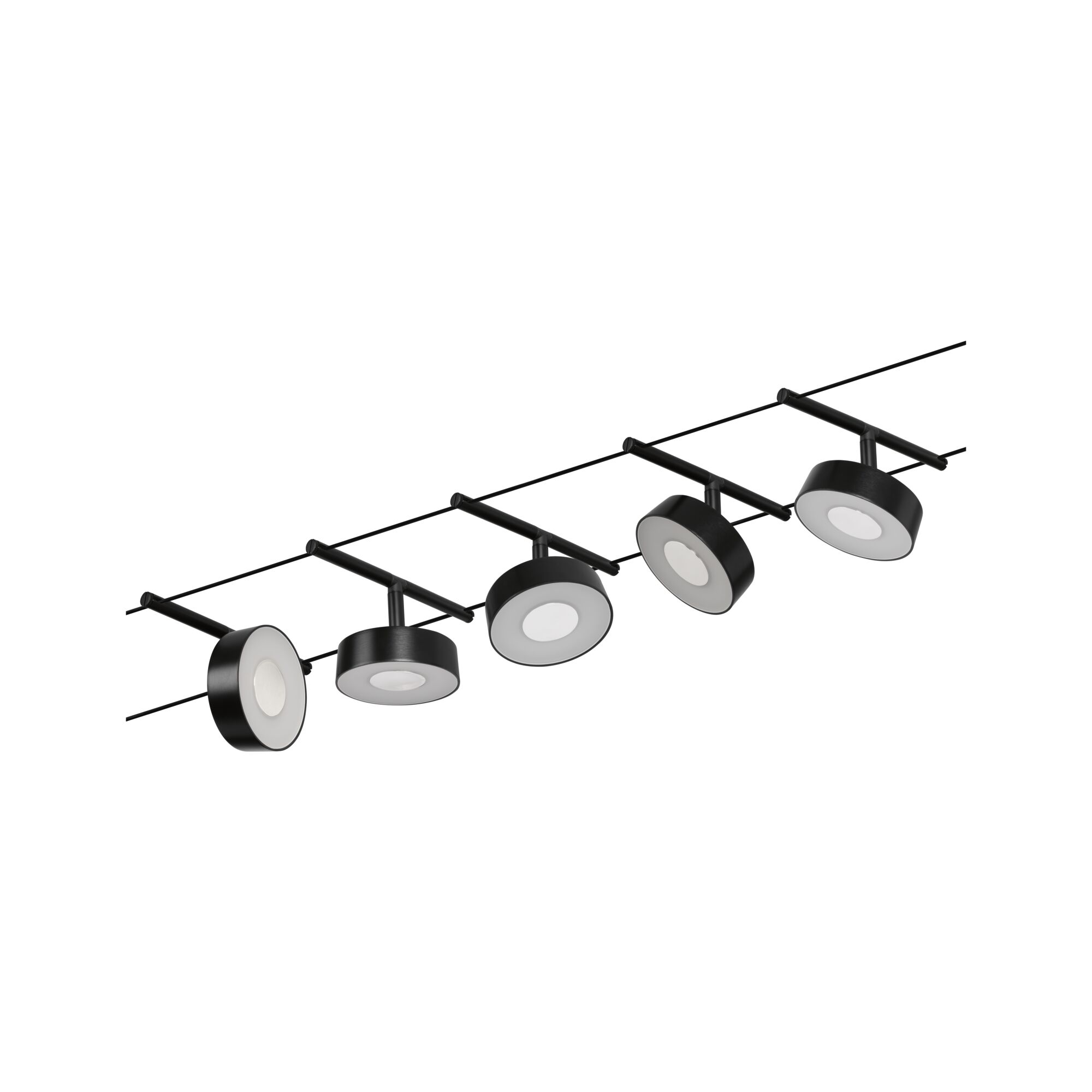

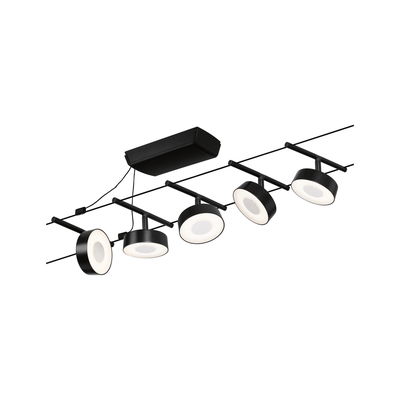

CorDuo LED Cable system Circle Basic Set 5x180lm 5x5W 3000K 230/12V Black matt

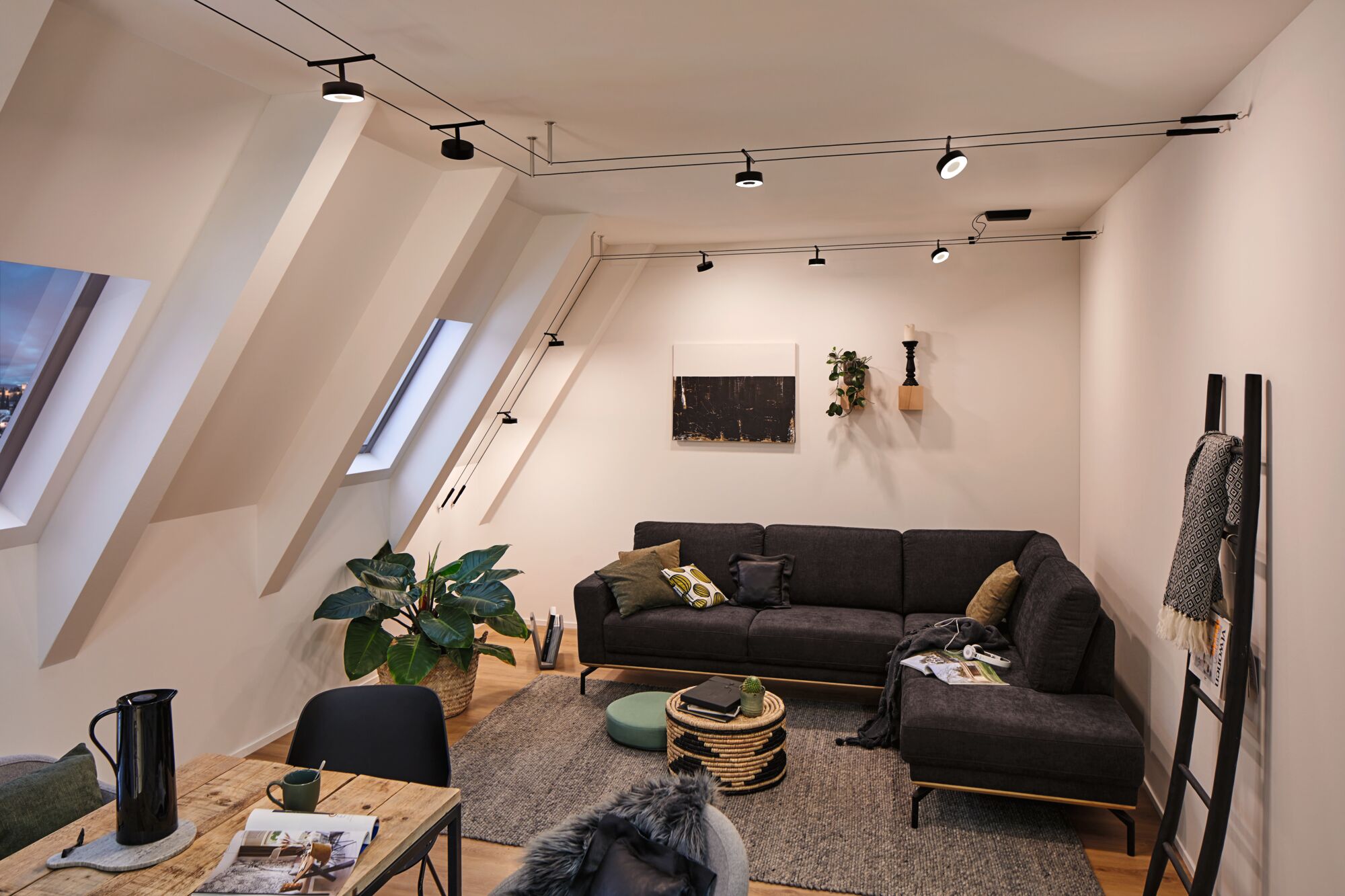

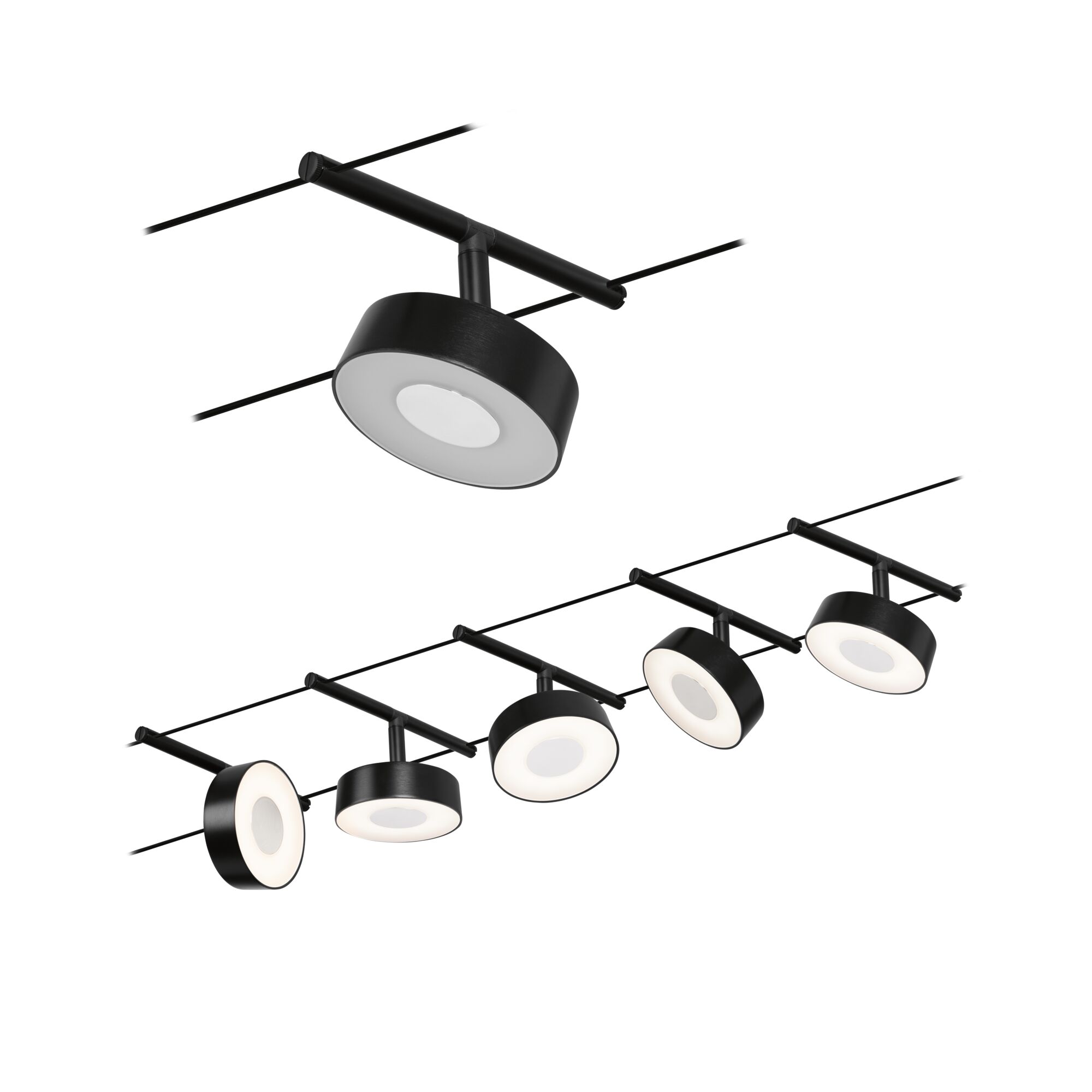

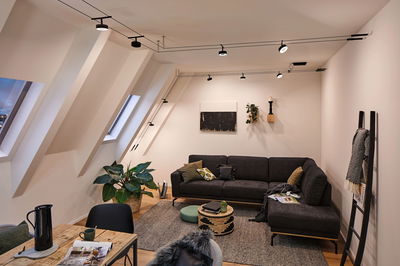

The Circle series in Black matt with 5 LED spots can be installed on the wall or on the ceiling, thus offering unlimited design possibilities. Whether straight, sloped or angled – cable systems are suitable for any room and are the ideal problem solver for tricky installation conditions. The basic set can be supplemented with individual spots, deflectors and other accessories. The cable, with a length of 10 m, can be separated in the middle so the system can be suspended across a max. distance of 5 m. The system enables optimum light distribution, and can easily be expanded if more lighting is needed. Only one power outlet is needed for the distribution of luminaires throughout the room. Systems with 12 V DC (direct current) technology cannot be dimmed using a wall dimmer switch.
- Complete set consisting of transformer, cable, spots and installation instructions
- Suitable for wall and ceiling mounting
- Ideal for illuminating large and angled spaces
- LED equipment conserves up to 80% in comparison to conventional light bulbs
- Not suited for operation to 12 V AC
| Dimension | |
|---|---|
| Wire distance | 160 mm |
| Span width | 5 m |
| Dimensions (Height x Width x Depth) | H: 96 mm |
| Ø | 99 mm |
| Length | 5 m |
| Design and Material | |
|---|---|
| Colour | Black matt |
| Material | Metal, Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 180 lm |
| Luminous flux LED module | 400 lm |
| color temp | 3000 K |
| Lamp Features | |
|---|---|
| Component parts | 5 W |
| Technique | LED |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 35 W |
| Number of component parts | 5x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 26 W |
| Transformer | |
|---|---|
| Transformer power | 60 VA |
| Transformer height | 47 mm |
| Transformer width | 240 mm |
| Transformer depth | 115 mm |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
