Article-No.:
94426
CorDuo
LED Cable system
DiscLED Basic Set
5x200lm 5x4,5W 3000K 230/12V Chrome matt/Chrome
5x200lm 5x4,5W 3000K 230/12V Chrome matt/Chrome

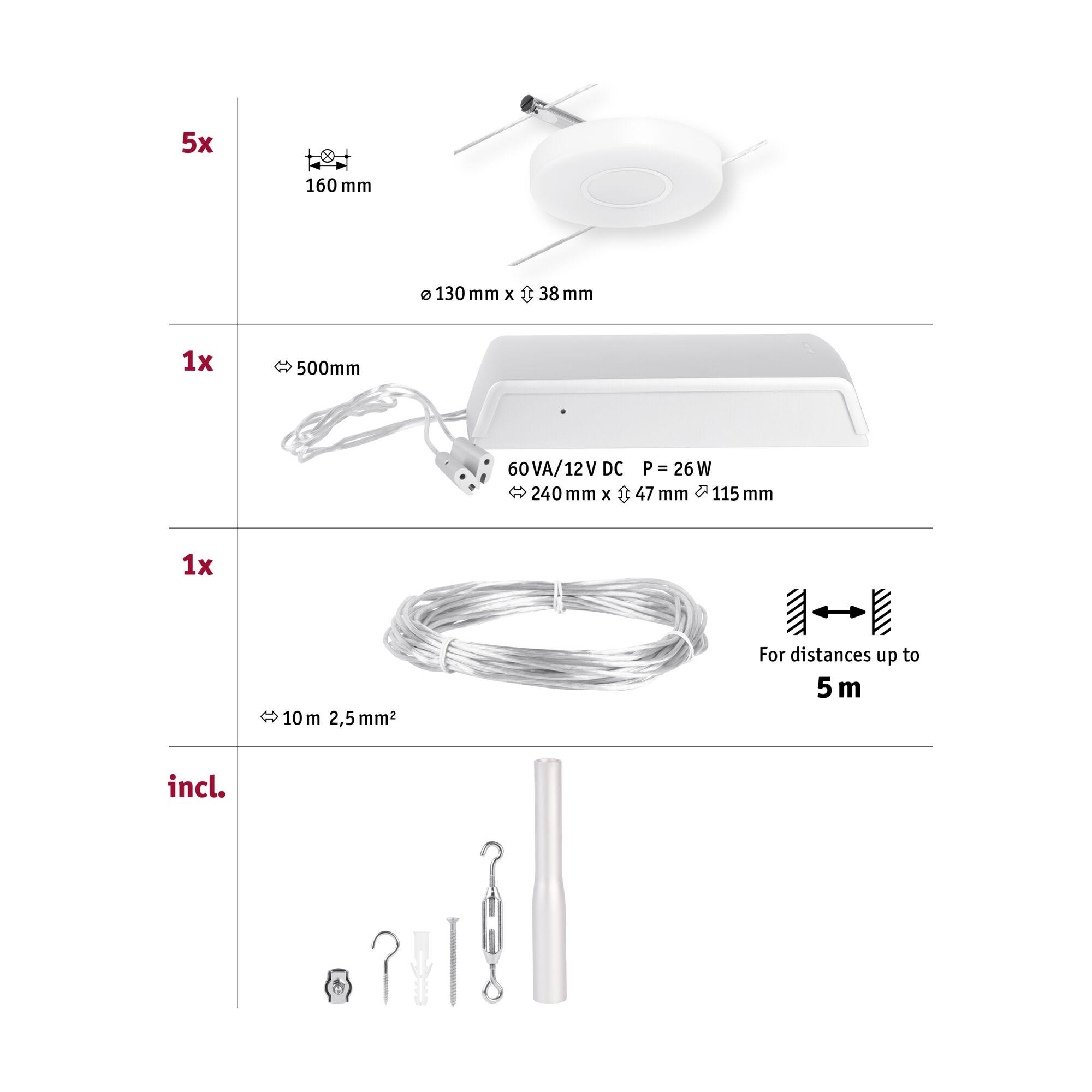

- Complete set consisting of transformer, cable, spots and installation instructions
- Suitable for wall and ceiling mounting
- Non-replaceable lamp

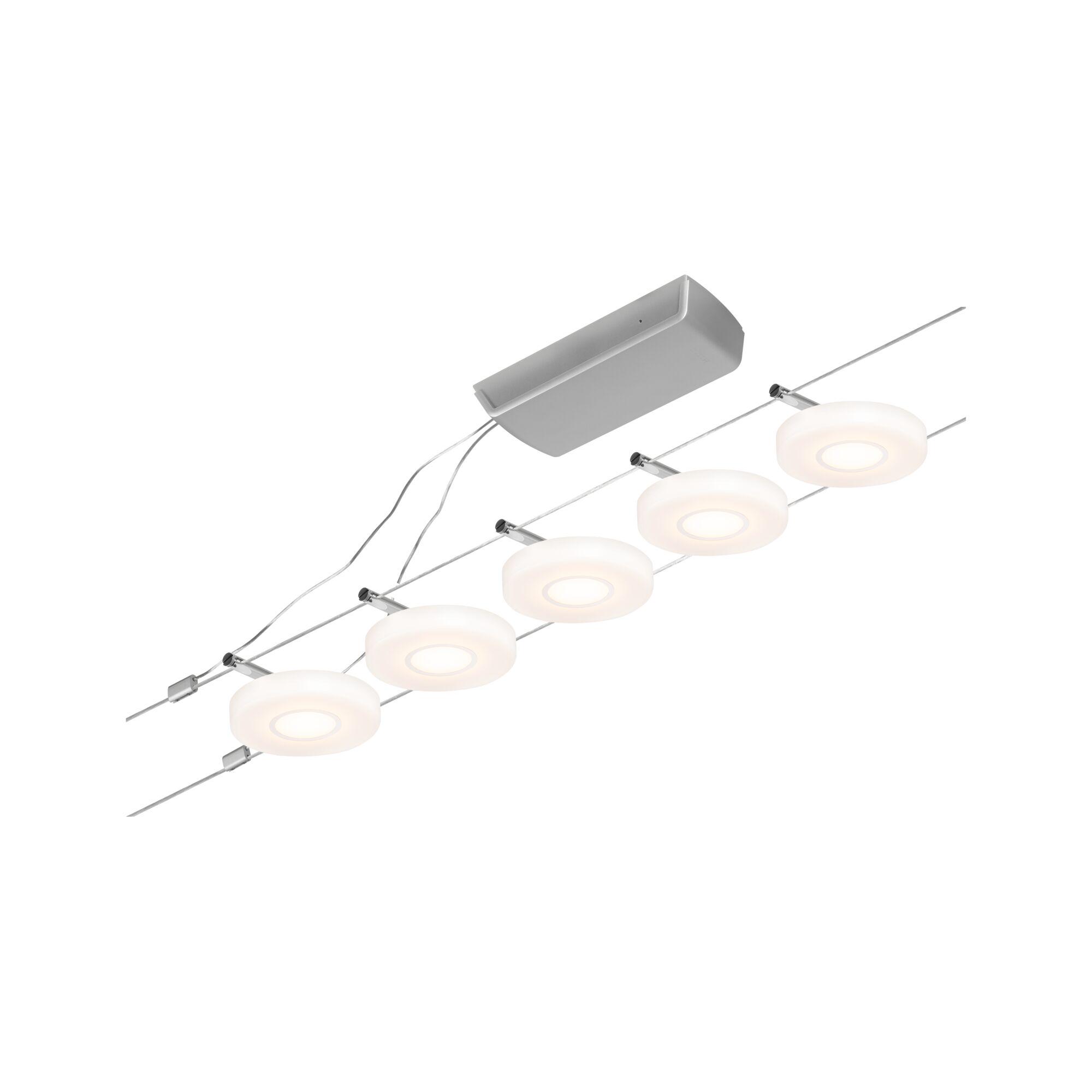

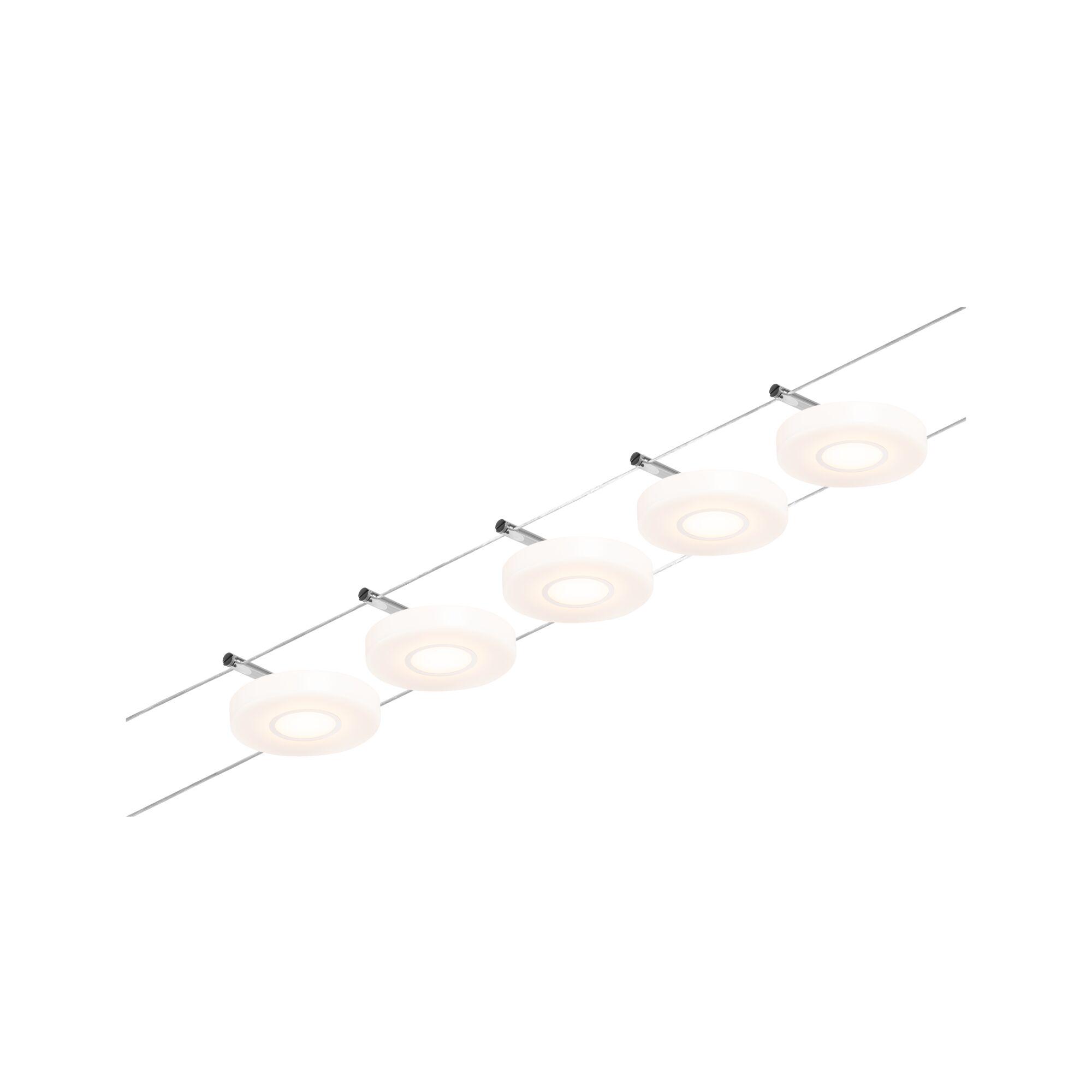

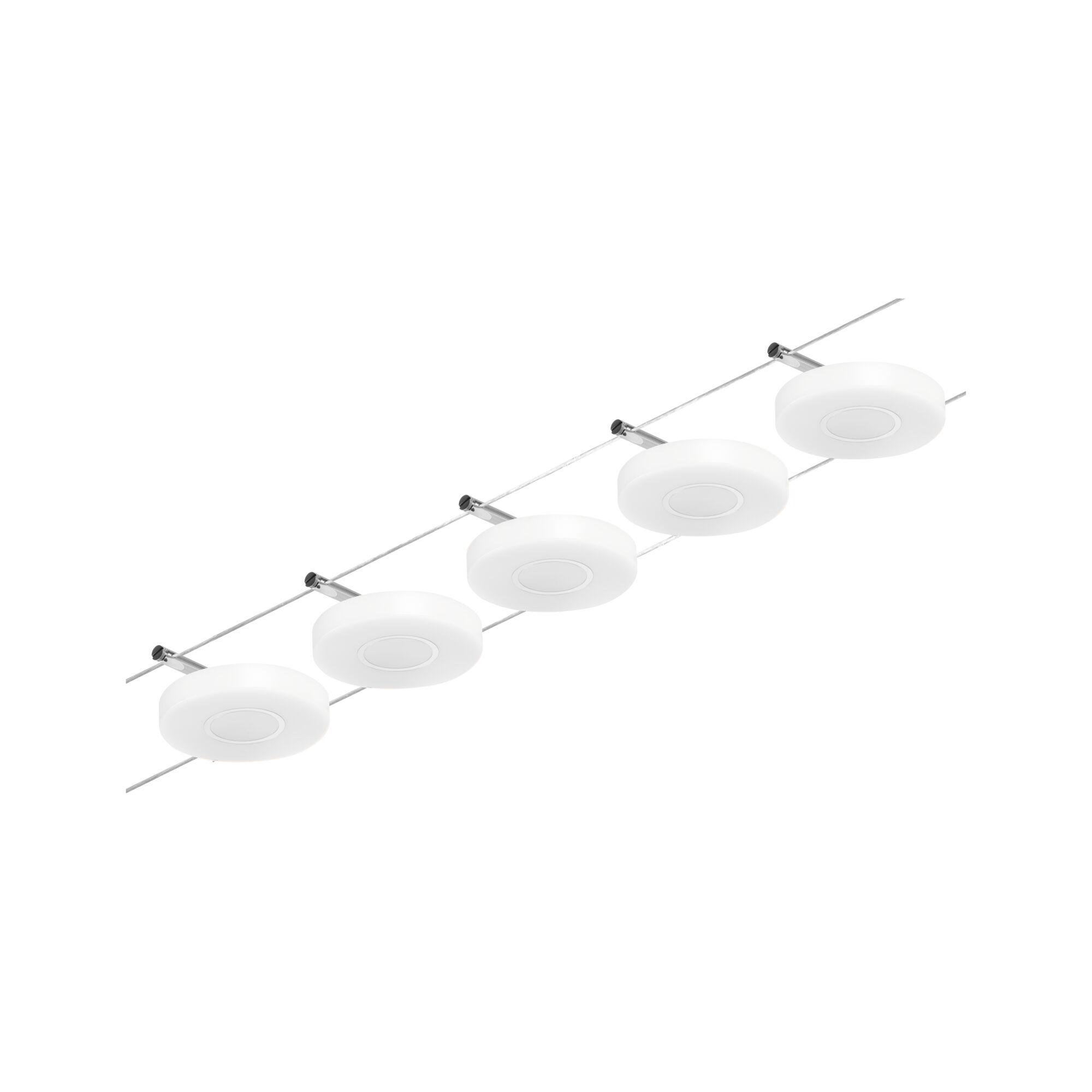

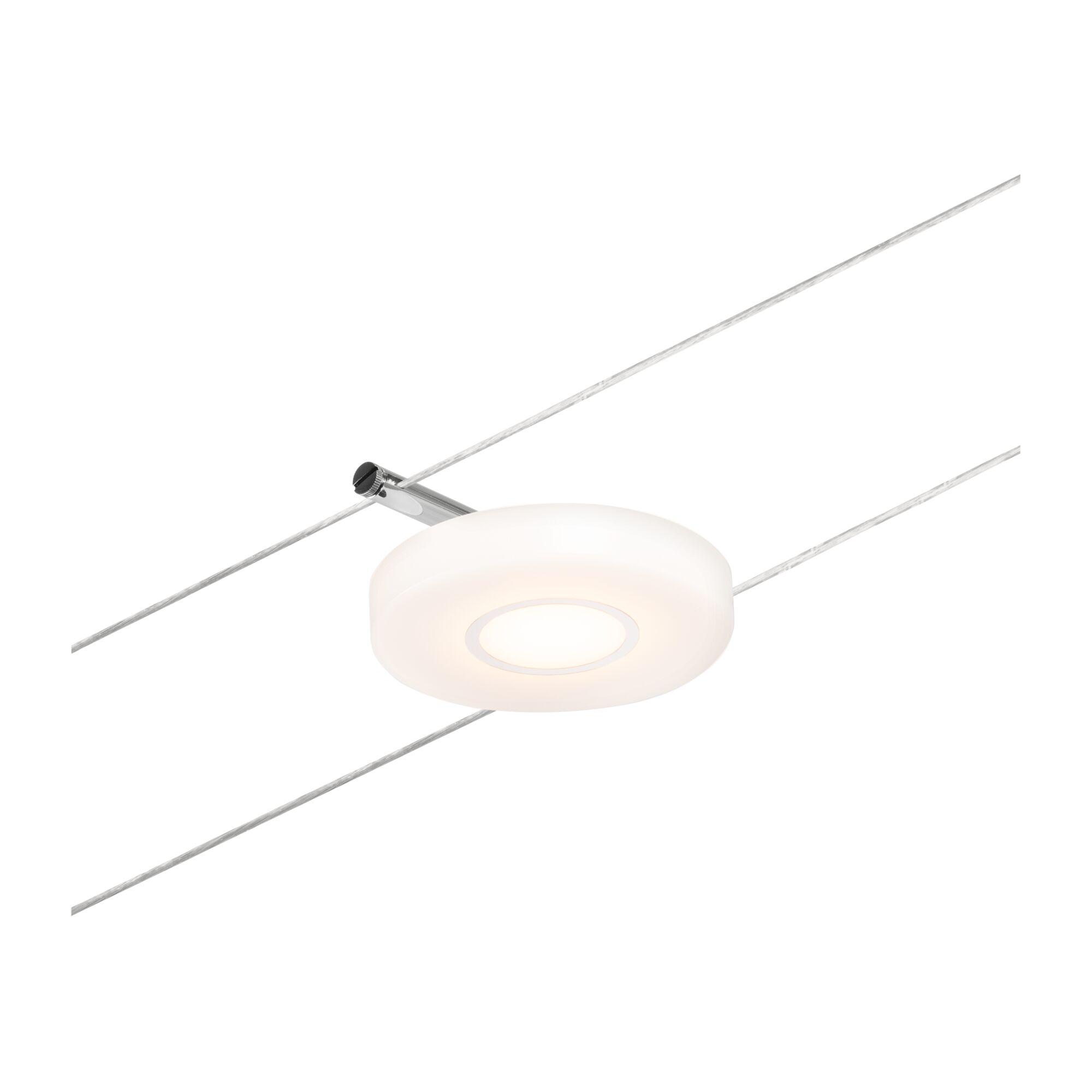

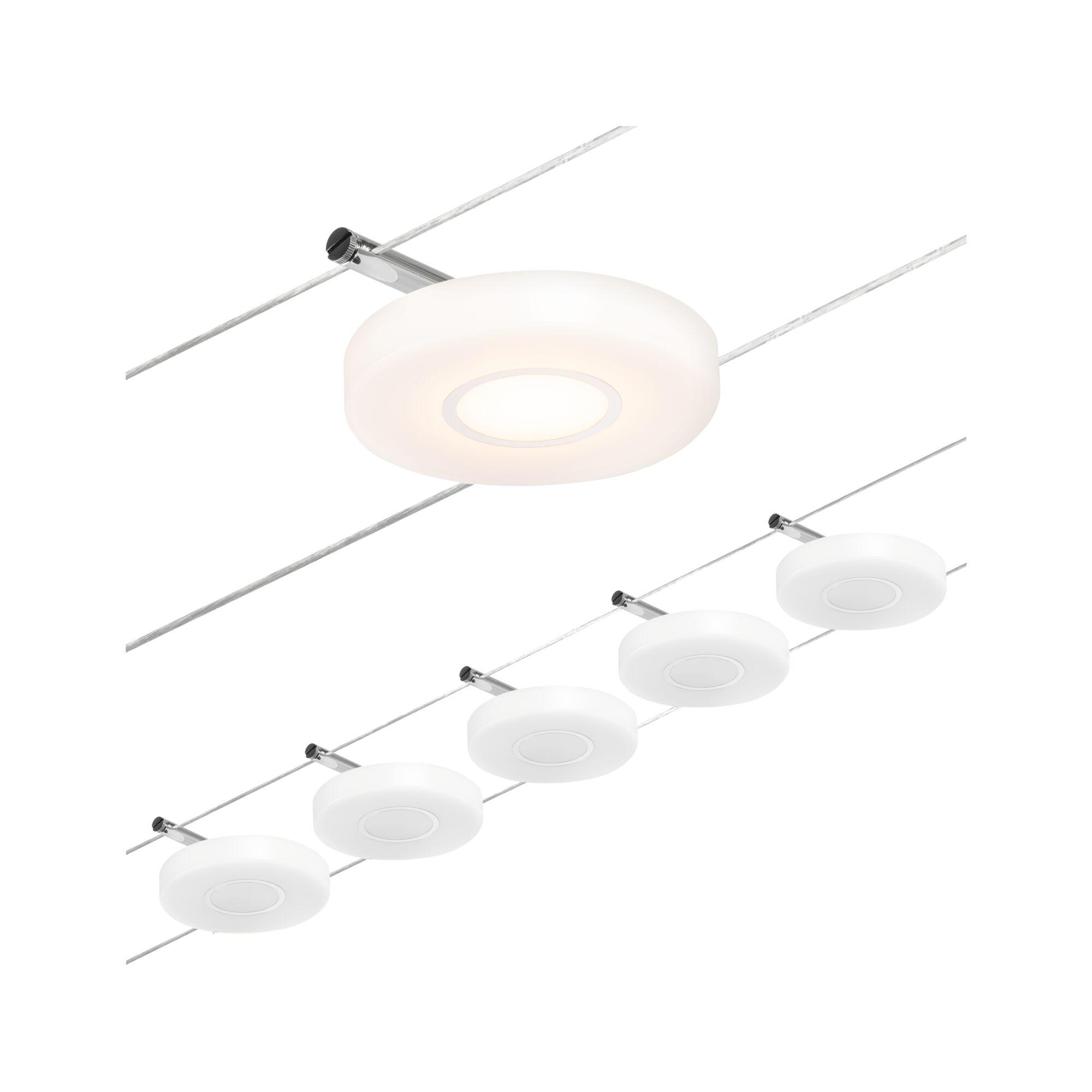

CorDuo LED Cable system DiscLED Basic Set 5x200lm 5x4,5W 3000K 230/12V Chrome matt/Chrome

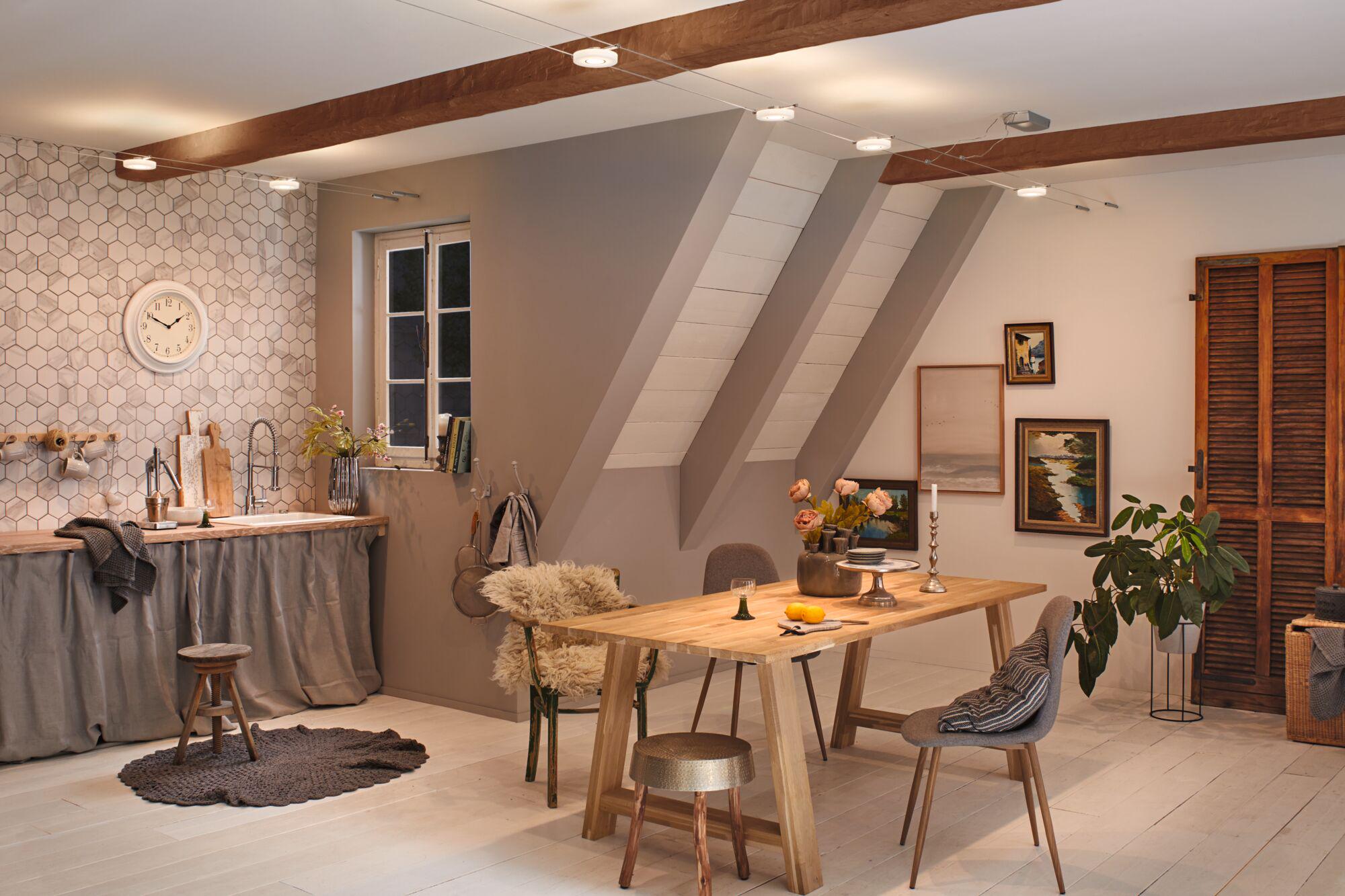

The DiscLED series in Chrome matt/Chrome can be installed on the wall or on the ceiling for unlimited design possibilities. Whether straight, sloped or angled – cable systems are suitable for any room and are the ideal problem solver for tricky installation conditions. The basic set can be supplemented with individual spots, deflectors and other accessories. The cable, with a length of 10 m, can be separated in the middle so the system can be suspended across a max. distance of 5 m. The system enables optimum light distribution, and can easily be expanded if more lighting is needed. Only one power outlet is needed for the distribution of luminaires throughout the room. Systems with 12 V DC (direct current) technology cannot be dimmed using a wall dimmer switch.
- Complete set consisting of transformer, cable, spots and installation instructions
- Suitable for wall and ceiling mounting
- Non-replaceable lamp
- Not suited for operation to 12 V AC
| Dimension | |
|---|---|
| Wire distance | 160 mm |
| Span width | 5 m |
| Dimensions (Height x Width x Depth) | H: 38 mm |
| Ø | 130 mm |
| Length | 10 m |
| Design and Material | |
|---|---|
| Colour | Chrome, Chrome matt |
| Material | Metal |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 200 lm |
| Luminous flux LED module | 450 lm |
| color temp | 3000 K |
| Lamp Features | |
|---|---|
| Component parts | 4,5 W |
| Technique | LED |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 39 W |
| Number of component parts | 5x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 26 W |
| Transformer | |
|---|---|
| Transformer power | 60 VA |
| apparent power | 28 VA |
| Transformer height | 47 mm |
| Transformer width | 115 mm |
| Transformer depth | 240 mm |
