Article-No.:
94421
CorDuo
LED Cable system
MacLED Individual Spot
250lm 4,5W 3000K 12V Chrome matt/Chrome
250lm 4,5W 3000K 12V Chrome matt/Chrome
- Individual spot for extending cable systems
- Suitable for wall and ceiling mounting
- Ideal for illuminating large and angled spaces

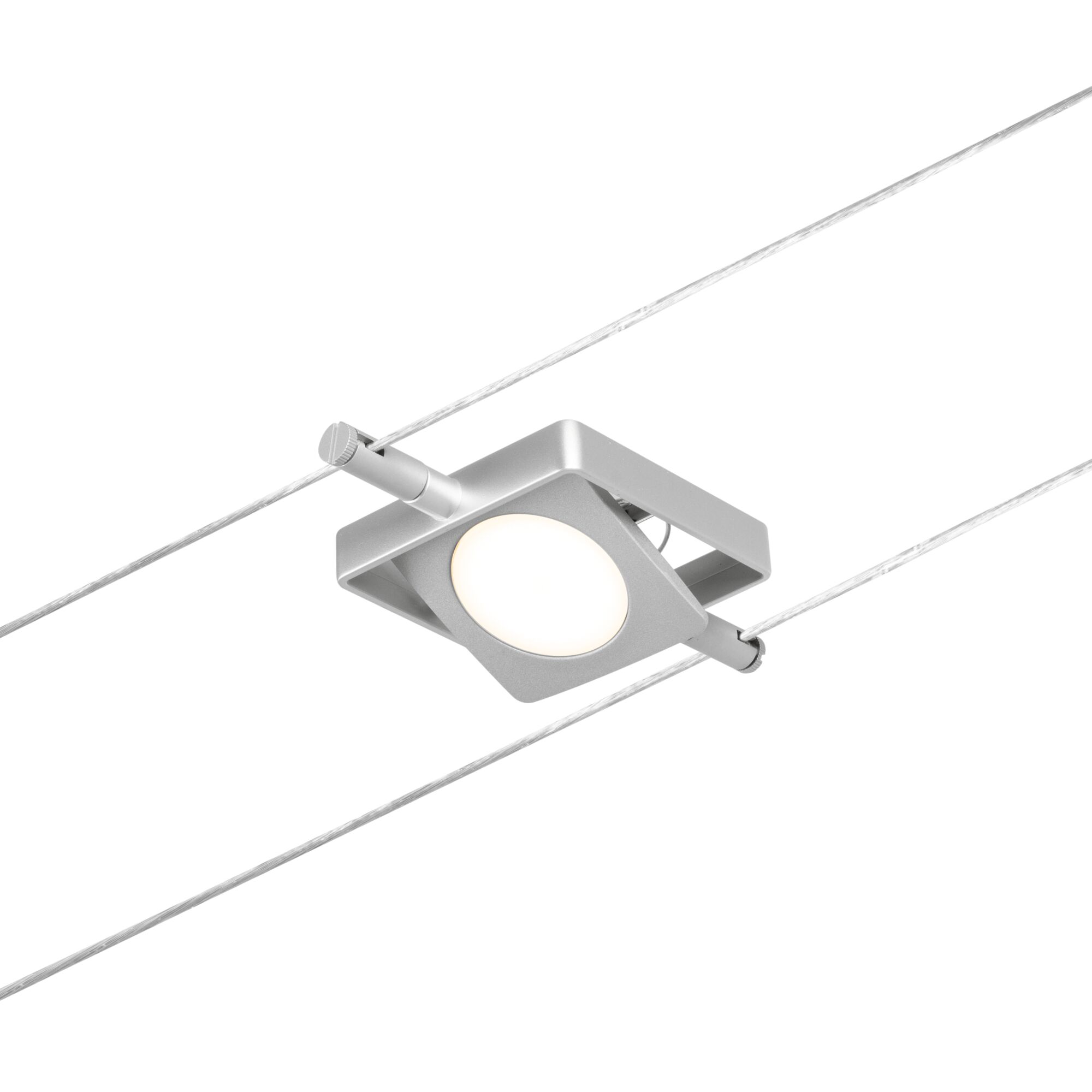

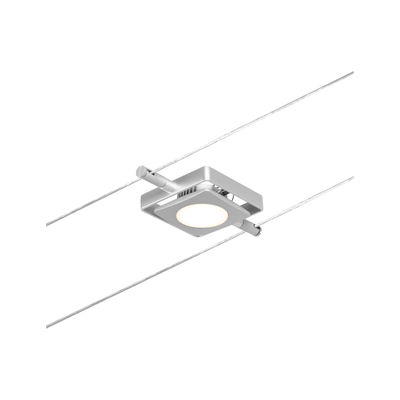

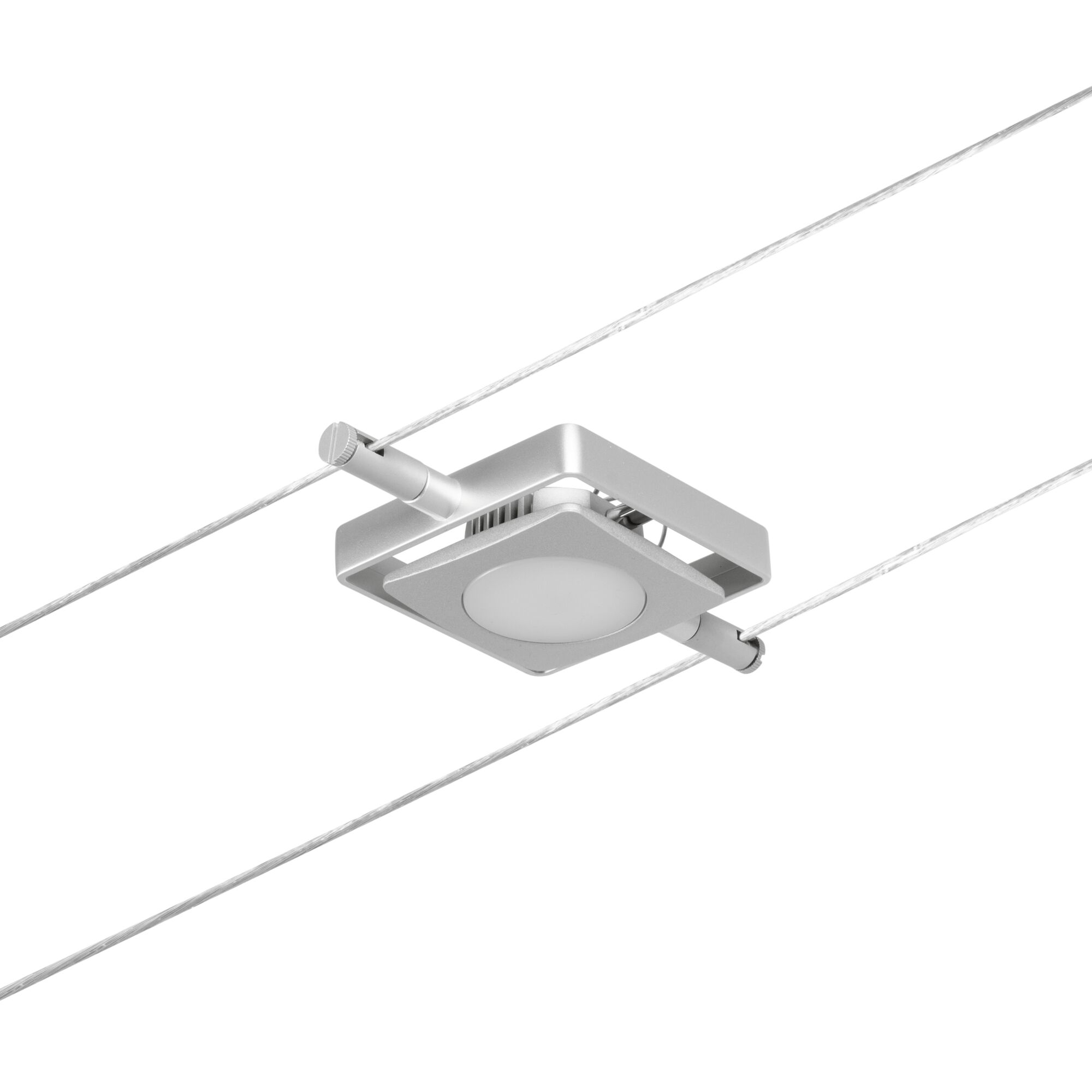

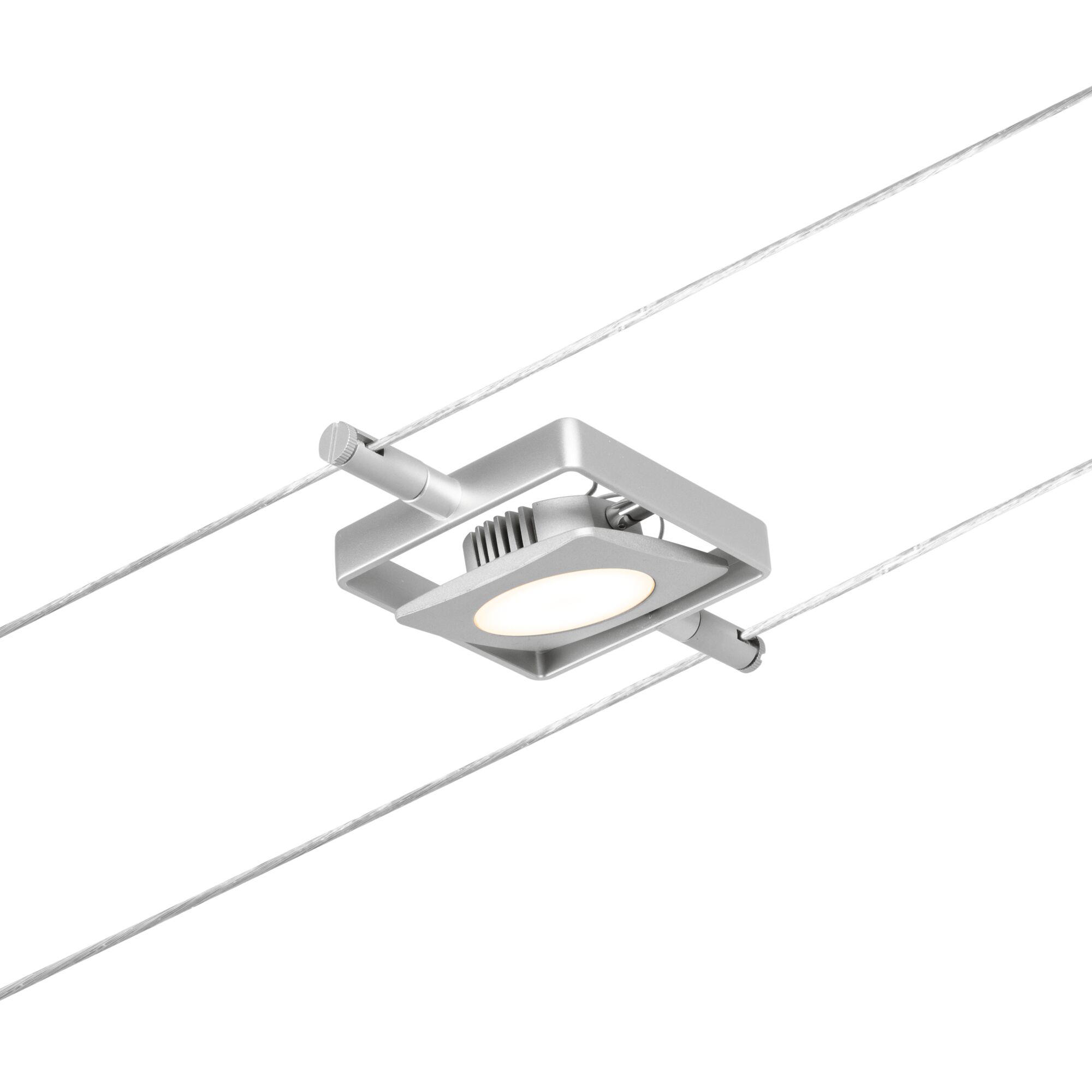

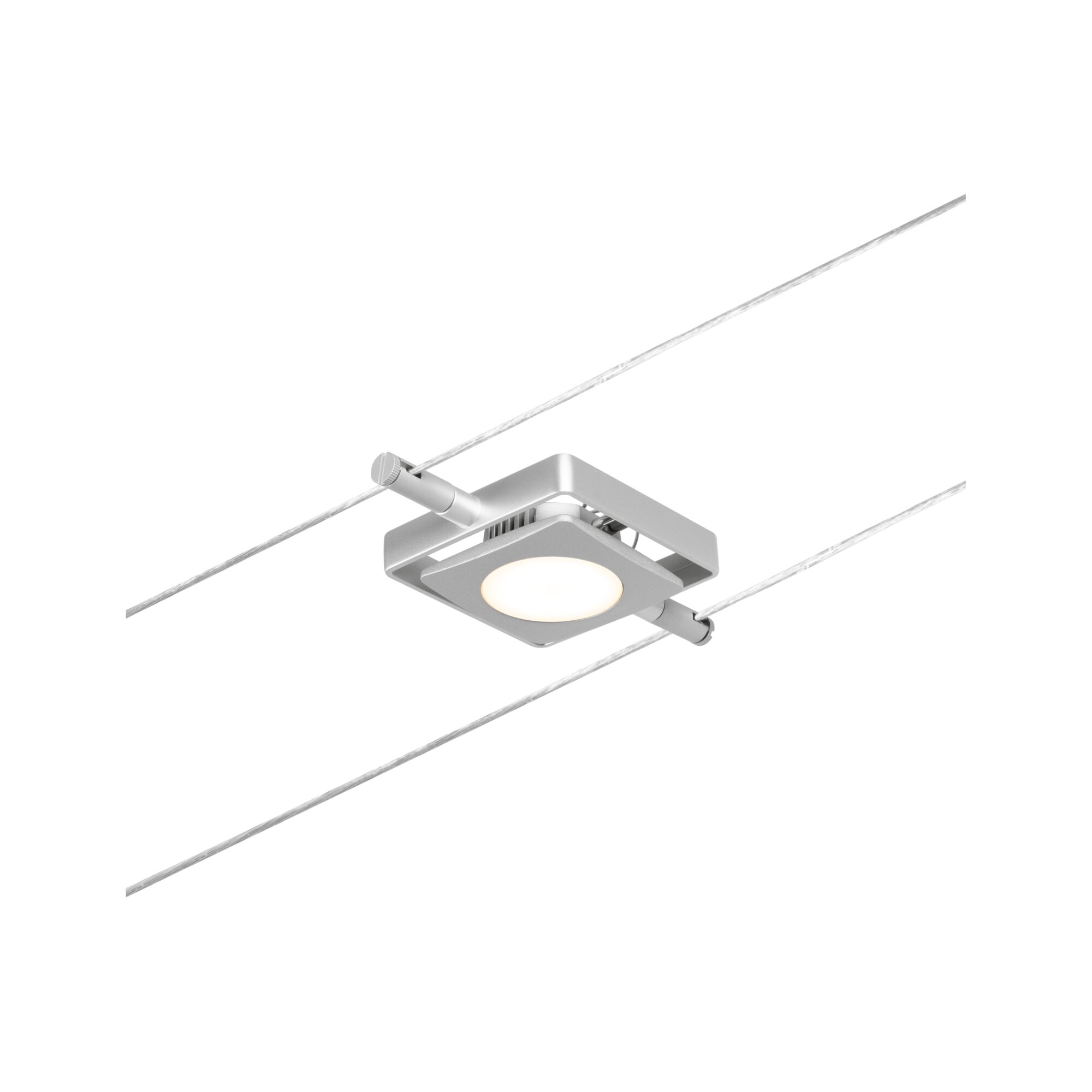

CorDuo LED Cable system MacLED Individual Spot 250lm 4,5W 3000K 12V Chrome matt/Chrome

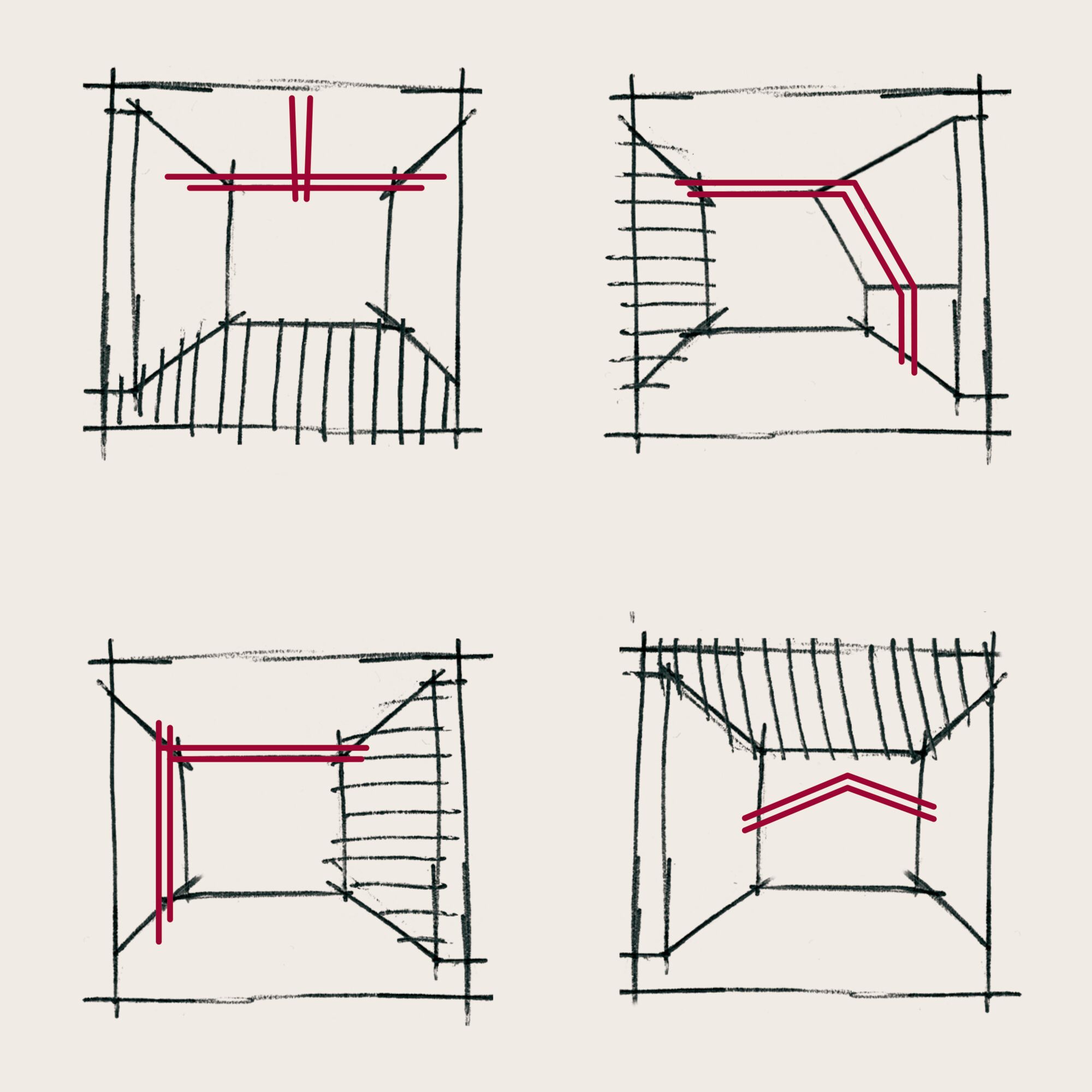

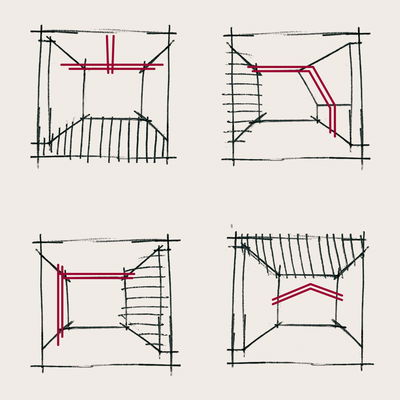

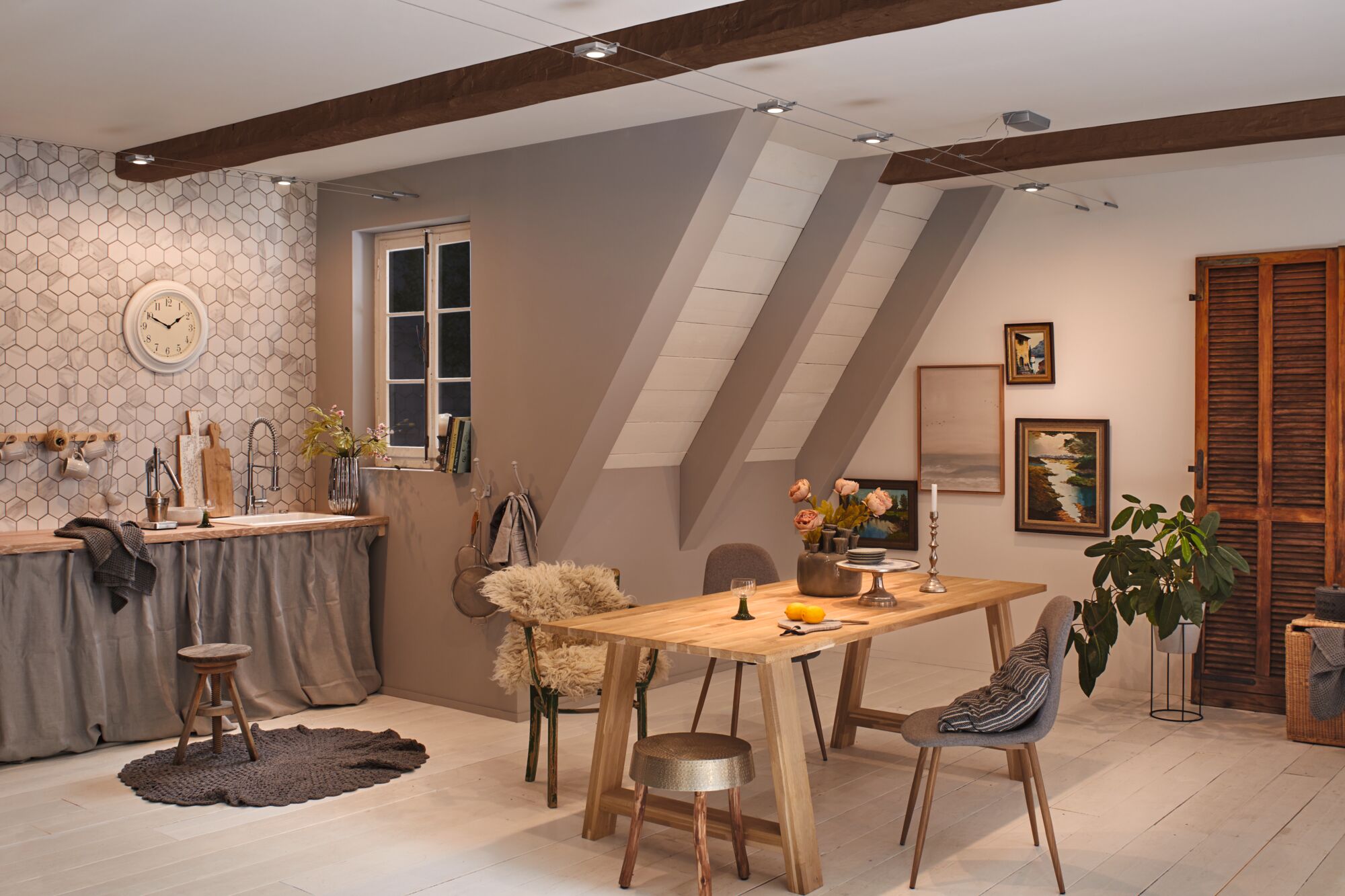

The MacLED individual spot in Chrome matt, Chrome makes a great addition to existing cable systems. The system can be installed on the wall or on the ceiling for unlimited design possibilities. Whether straight, sloped or angled – cable systems are suitable for any room and are the ideal problem solver for tricky installation conditions. The system enables optimum light distribution, and can easily be expanded if more lighting is needed. Only one power outlet is needed for the distribution of luminaires throughout the room. Systems with 12 V DC (direct current) technology cannot be dimmed using a wall dimmer switch.
- Individual spot for extending cable systems
- Suitable for wall and ceiling mounting
- Ideal for illuminating large and angled spaces
- LED equipment conserves up to 80% in comparison to conventional light bulbs
- Not suited for operation to 12 V AC
| Dimension | |
|---|---|
| Wire distance | 160 mm |
| Span width | 5 m |

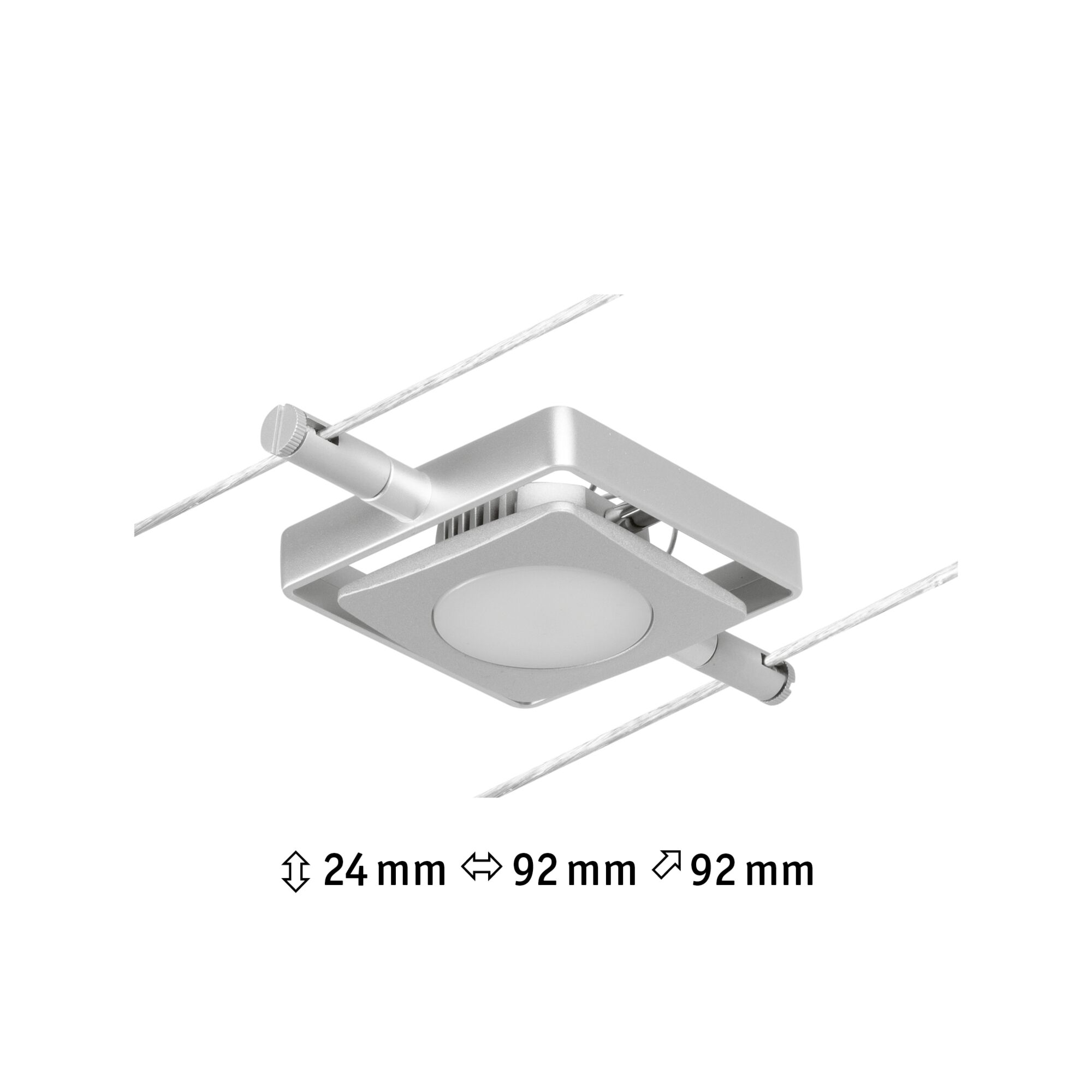

| Dimensions (Height x Width x Depth) | H: 24 x B: 92 x T: 92 mm |
| Length | 10 m |
| Design and Material | |
|---|---|
| Colour | Chrome, Chrome matt |
| Material | Metal |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 250 lm |
| Luminous flux LED module | 450 lm |
| color temp | 3000 K |
| Lamp Features | |
|---|---|
| Component parts | 4,5 W |
| Technique | LED |
| Dimmable | No |
| Inclusive lamp | yes |
| Total Width | 92 mm |
| Incandescent Equivalent | 39 W |
| Number of component parts | 1x |
| protection class | protection class III |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 5 W |
| Transformer | |
|---|---|
| Transformer height | 47 mm |
| Transformer width | 115 mm |
| Transformer depth | 240 mm |
