Article-No.:
97762
Electronic transformer
Electronic transformer Halogen+LED
max. 0-50W 220-240/12V 50VA White
max. 0-50W 220-240/12V 50VA White
- No minimum load
- protection class II
- Dimmable with trailing edge dimmer

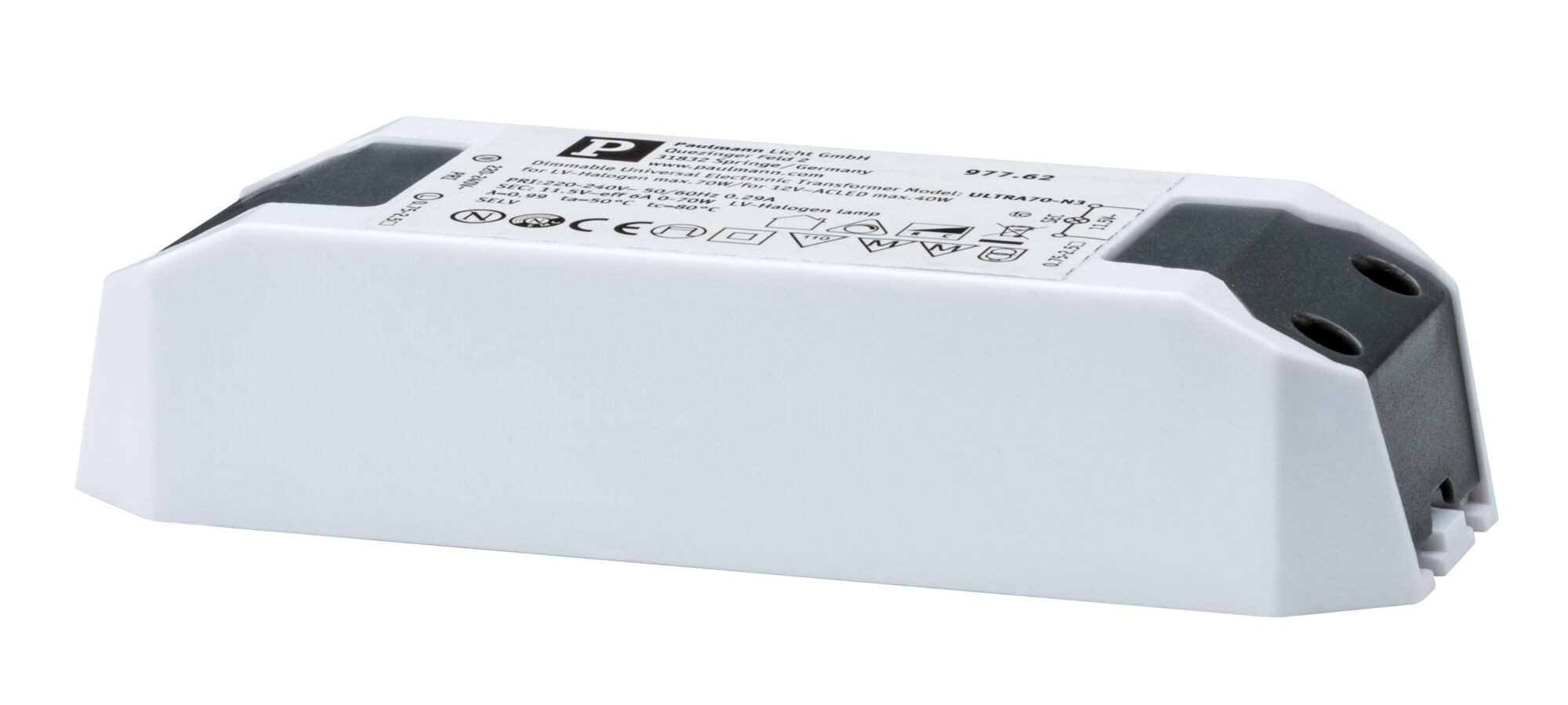

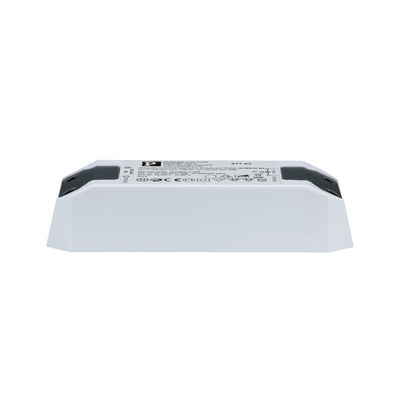

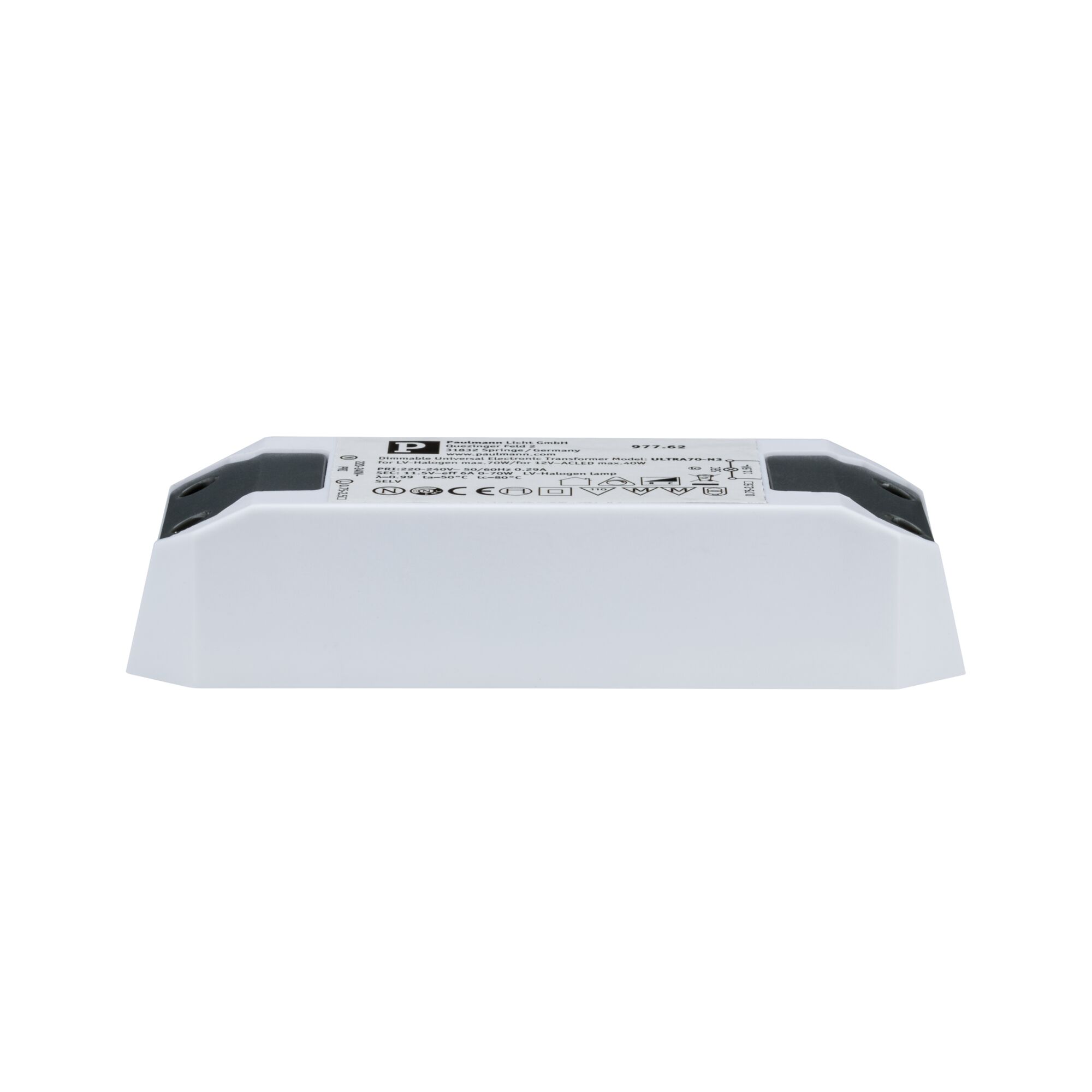

Electronic transformer Halogen+LED max. 0-50W 220-240/12V 50VA White
The universal problem-solver for LED up to 30 watt, and halogen up to 50 watt. The practical accessories by Paulmann allow you to shape your lighting system to suit your individual preferences even more closely.
- No minimum load
- protection class II
- Dimmable with trailing edge dimmer
- Integrated fire protection
- Temperature monitor and electronic fuse
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 28 x B: 44 x T: 127 mm |
| Mounting hole | 52 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Features | |
|---|---|
| Softstart | Softstart |
| Integrated temperature monitor and electronic fuse | Integrated temperature monitor and electronic fuse |
| Service life | |
|---|---|
| Service life, electronic ballast | 50000 h |
| Lamp Features | |
|---|---|
| Technique | Accessories without bulbs |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | no |
| Total Width | 44 mm |
| Maximum wattage range | max. 0-50 W |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Transformer | |
|---|---|
| Transformer power | 50 VA |
| Integrated fire protection | Integrated fire protection |
| elevated spike protection | elevated spike protection |
| Integrated spark protection | Integrated spark protection |
| integrated overload protection | integrated overload protection |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
