Article-No.:
84400
Halogen pin base
Oven
G9 230V 225lm 25W 2700K dimmable Clear
G9 230V 225lm 25W 2700K dimmable Clear
- For 230 V direct connection
- Small classics
- Small and bright

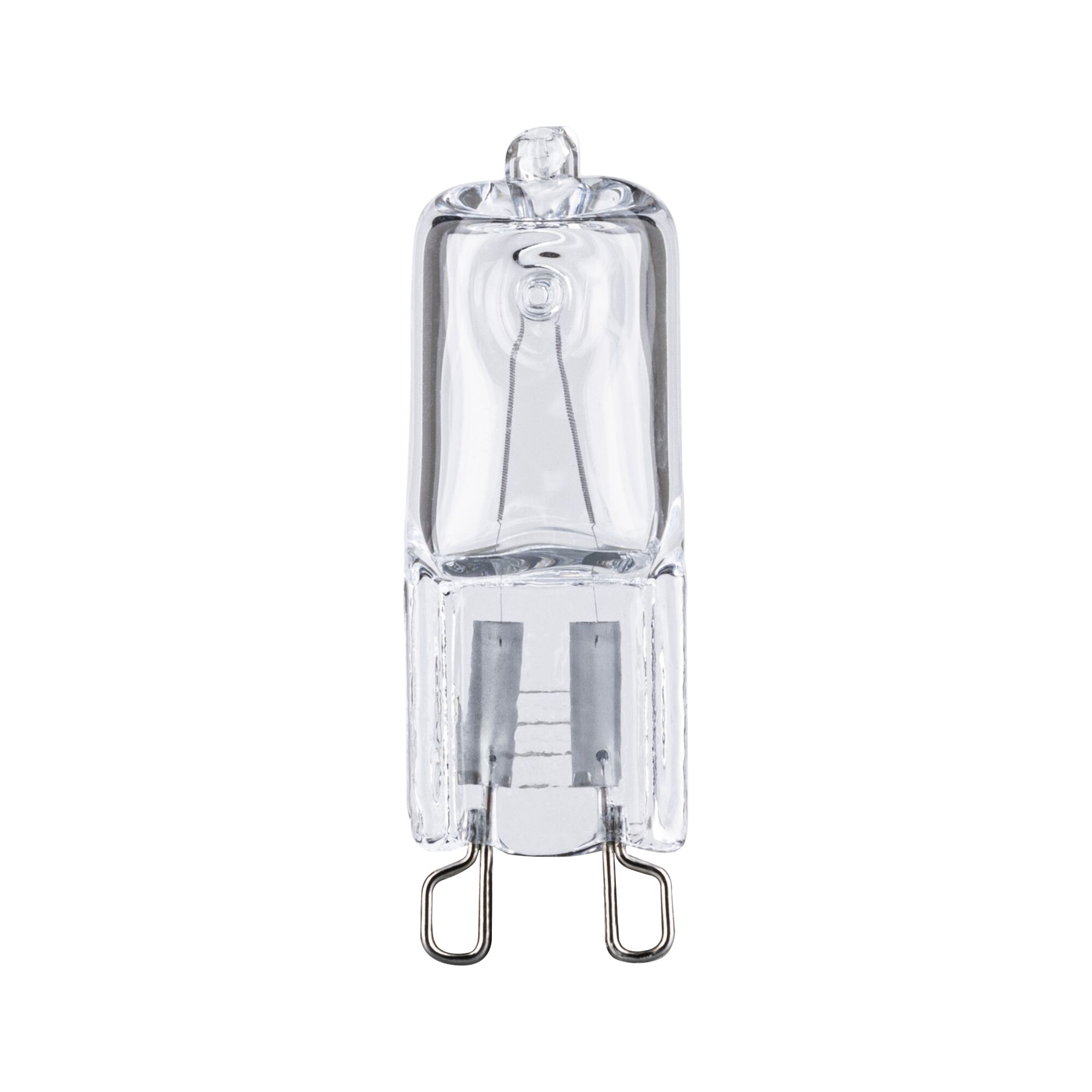

Halogen pin base Oven G9 230V 225lm 25W 2700K dimmable Clear
The halogen pin base with 225lm and G9 is ideally suited for use in various types of ovens. The pin base supports 2700 K and creates a warm white light for brightness and good visibility.
- For 230 V direct connection
- Small classics
- Small and bright
- Uncomplicated replacement: Simply plugged in thanks to G9 socket
| Dimension | |
|---|---|

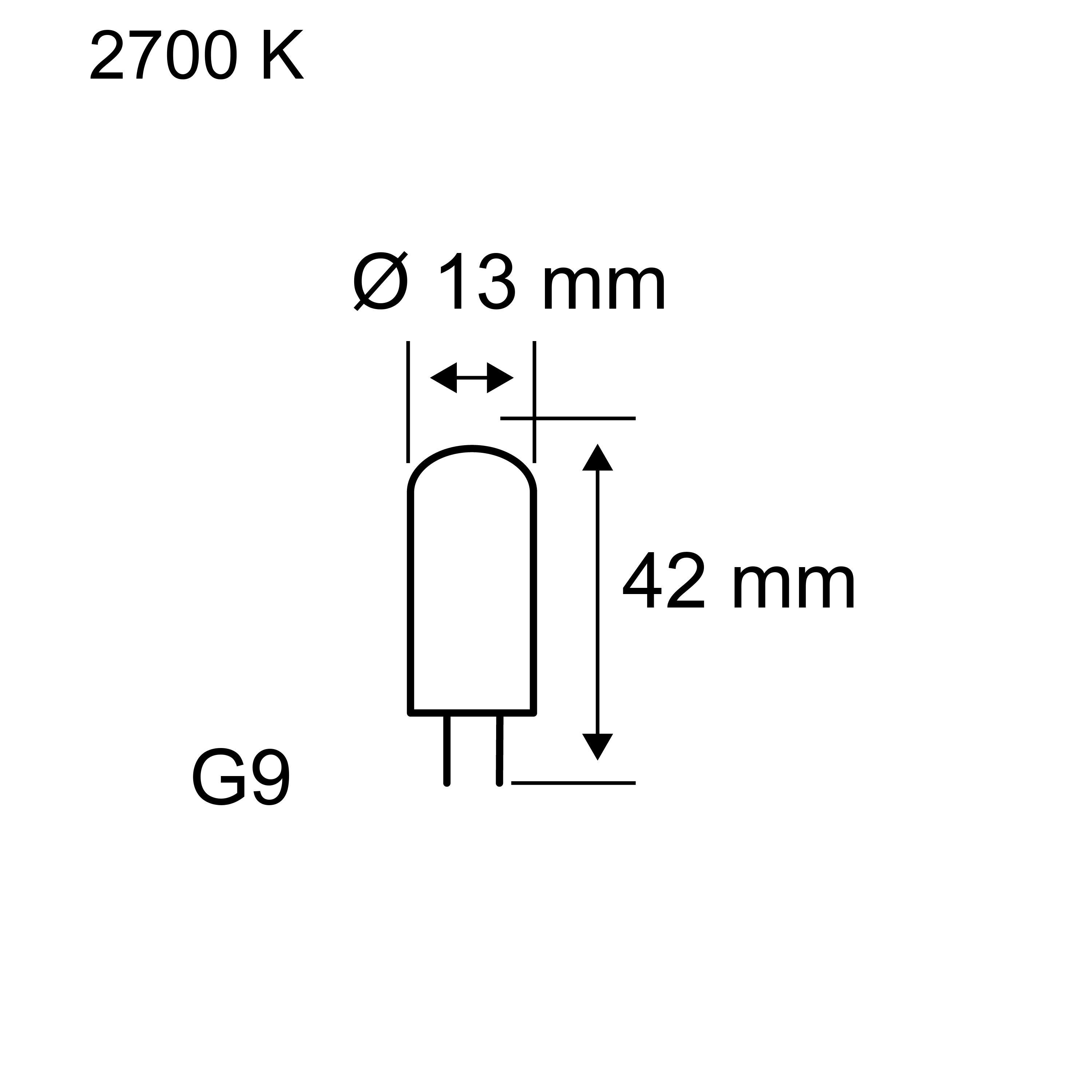

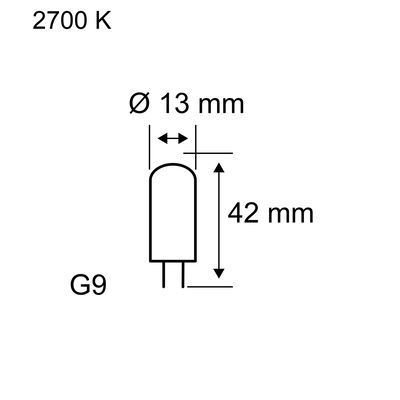

| Dimensions (Height x Width x Depth) | H: 42 mm |
| Ø | 13 mm |
| Design and Material | |
|---|---|
| Colour | Clear |
| Material | Glass |
| Installation | |
|---|---|
| can be used with the following dimmers | RLC Müller Paladin 873 030 LED |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 25 kWh_1000h |
| Service life | |
|---|---|
| luminous flux at the end of lamplife | 75 % |
| Number of switching cycles >= | 8000 |
| Lifetime | 2000 h |
| Rated life time | 2000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Usable luminous flux | 225 lm |
| color temp | 2700 K |
| Color rendering index | > 90 Ra |
| Rated luminous flux (Lumen) | 225 lm |
| Lamp Features | |
|---|---|
| Component parts | 25 W |
| Technique | 230V Halogen |
| Socket | G9 |
| Type | Bipin |
| Dimmable | with dimmer R, L, C (universal compatibility) |
| Inclusive lamp | yes |
| Number of component parts | 1x |
| Replacable | 7 not concerned. |
| Transformer | |
|---|---|
| apparent power | 25 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
