Article-No.:
94256
LED Exterior panel
Board Twilight-controlled motion detector (IR)
IP44 angular 250x600mm 3000K 10W 900lm 230V Anthracite Aluminium
IP44 angular 250x600mm 3000K 10W 900lm 230V Anthracite Aluminium
£94.95*
£69.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days

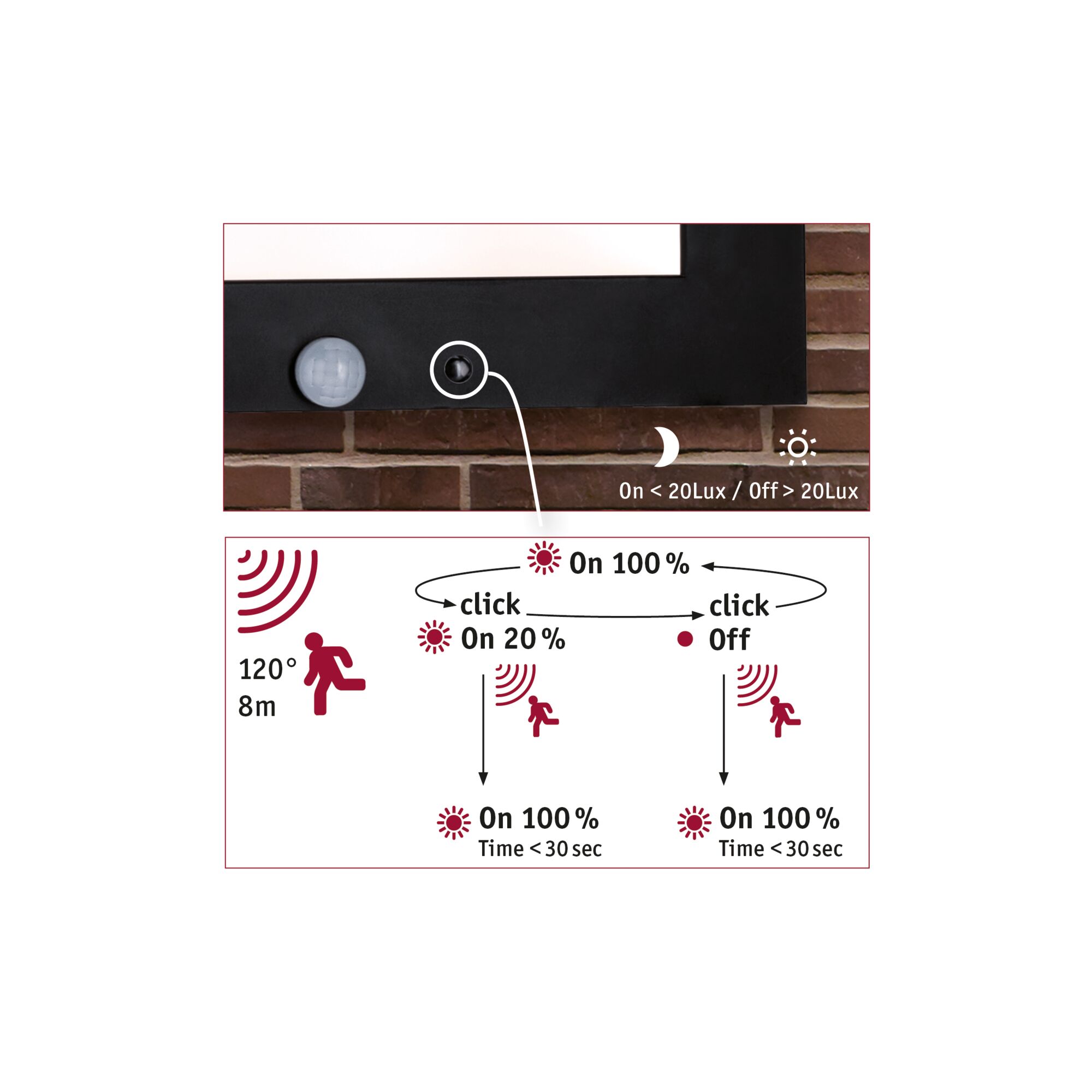

- Automatic switching with integrated motion detector
- Color temperatur: 3000K - Warm white
- For 230 V direct connection
LED Exterior panel Board Twilight-controlled motion detector (IR) IP44 angular 250x600mm 3000K 10W 900lm 230V Anthracite Aluminium

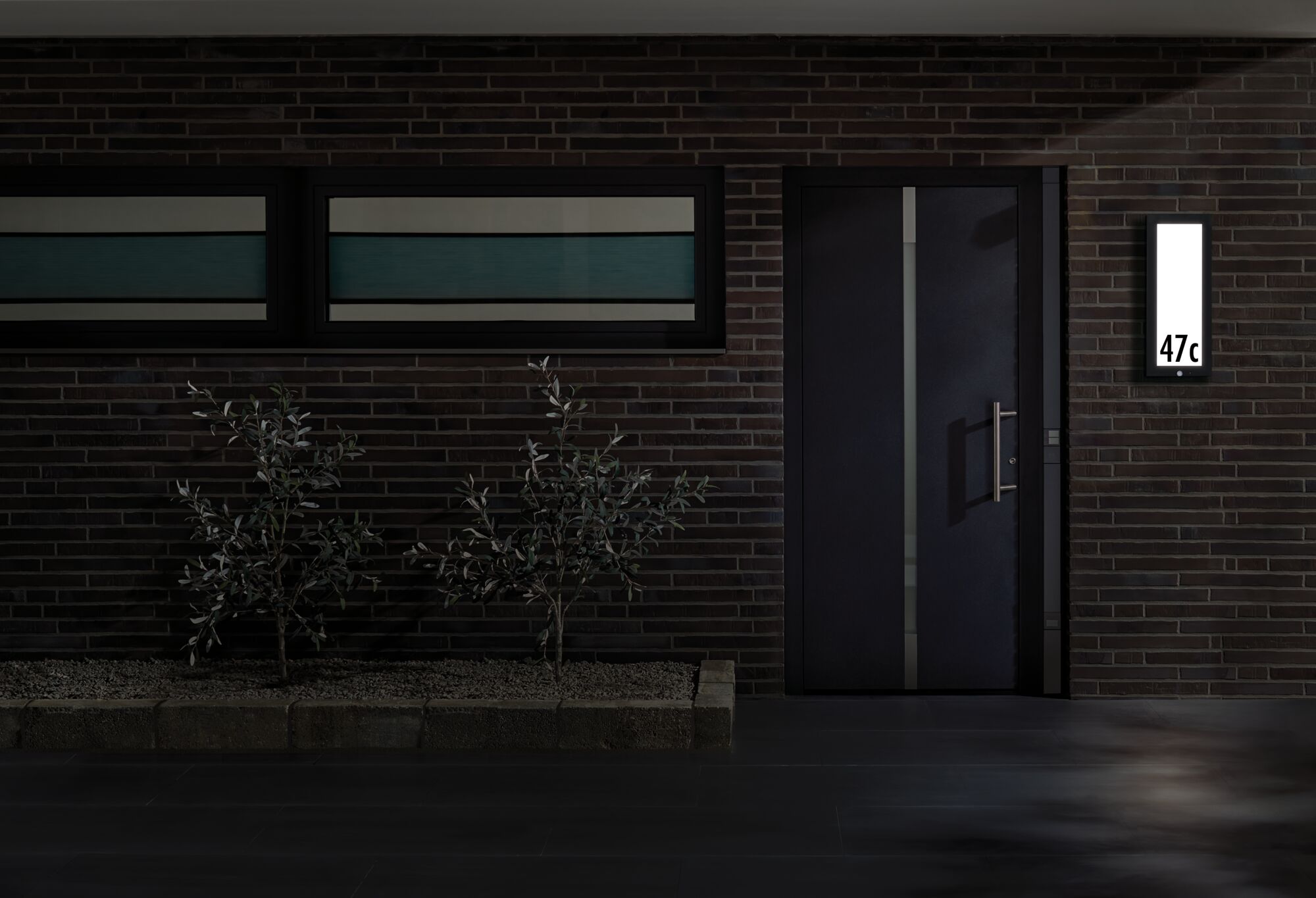

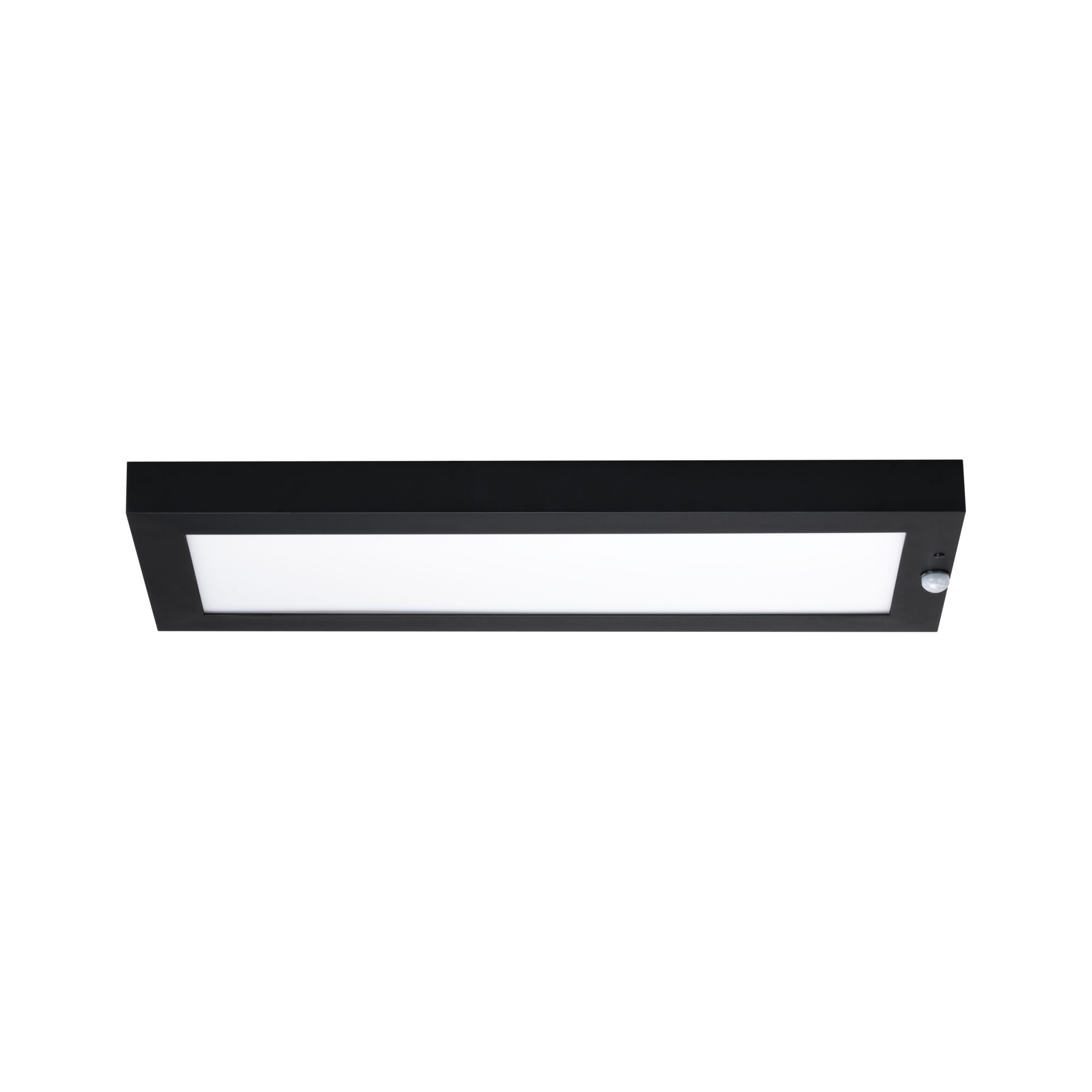

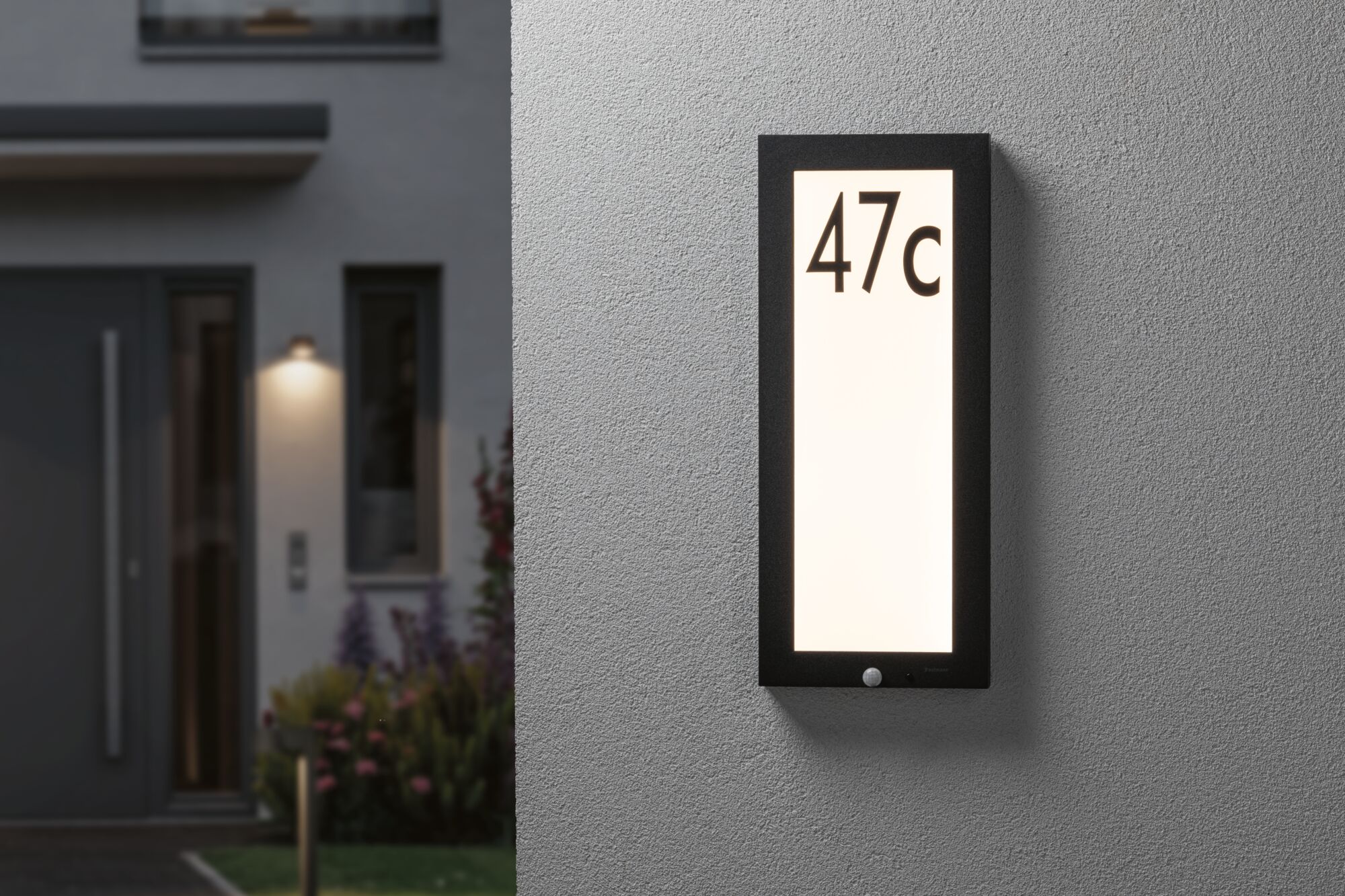

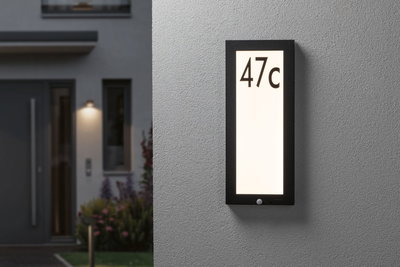

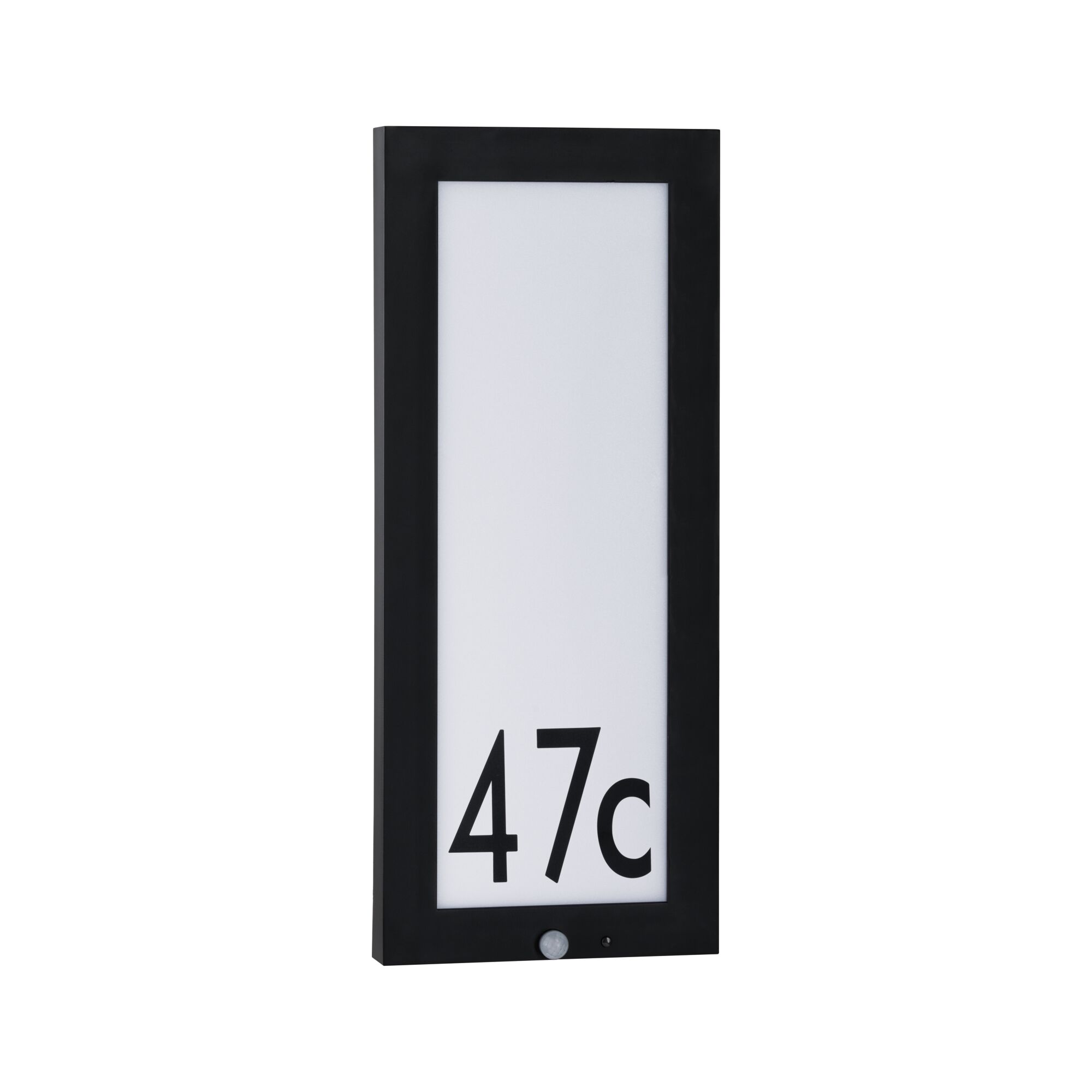

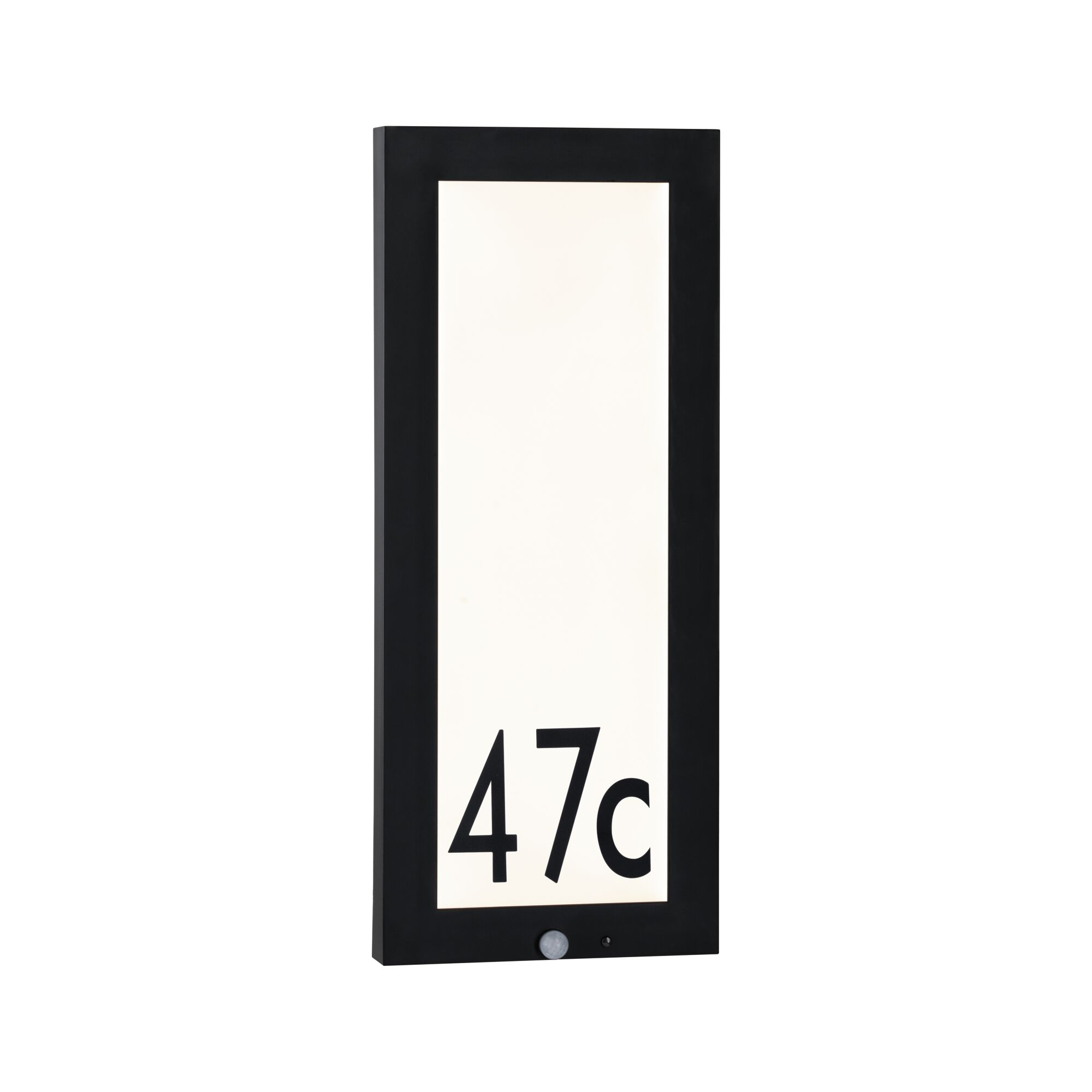

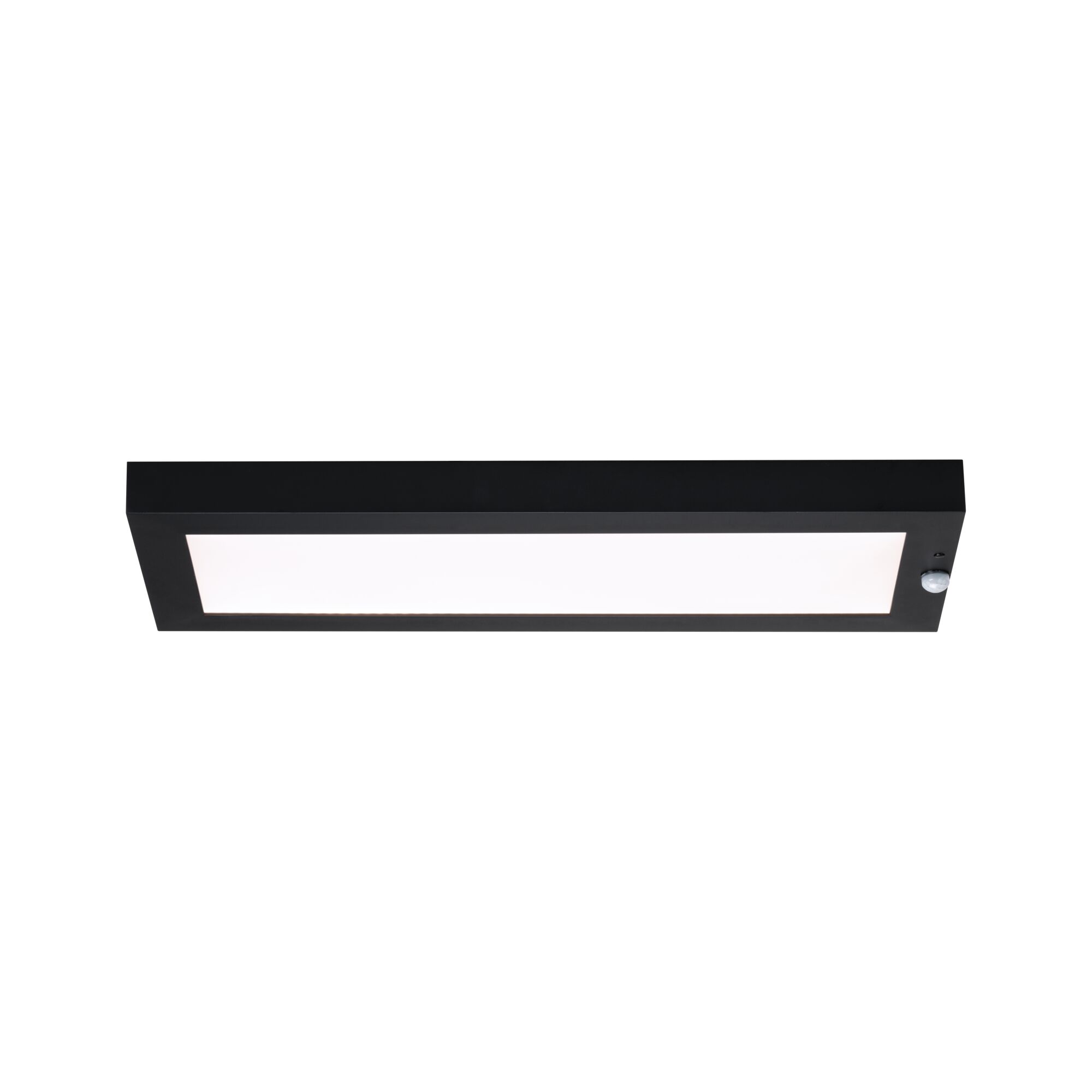

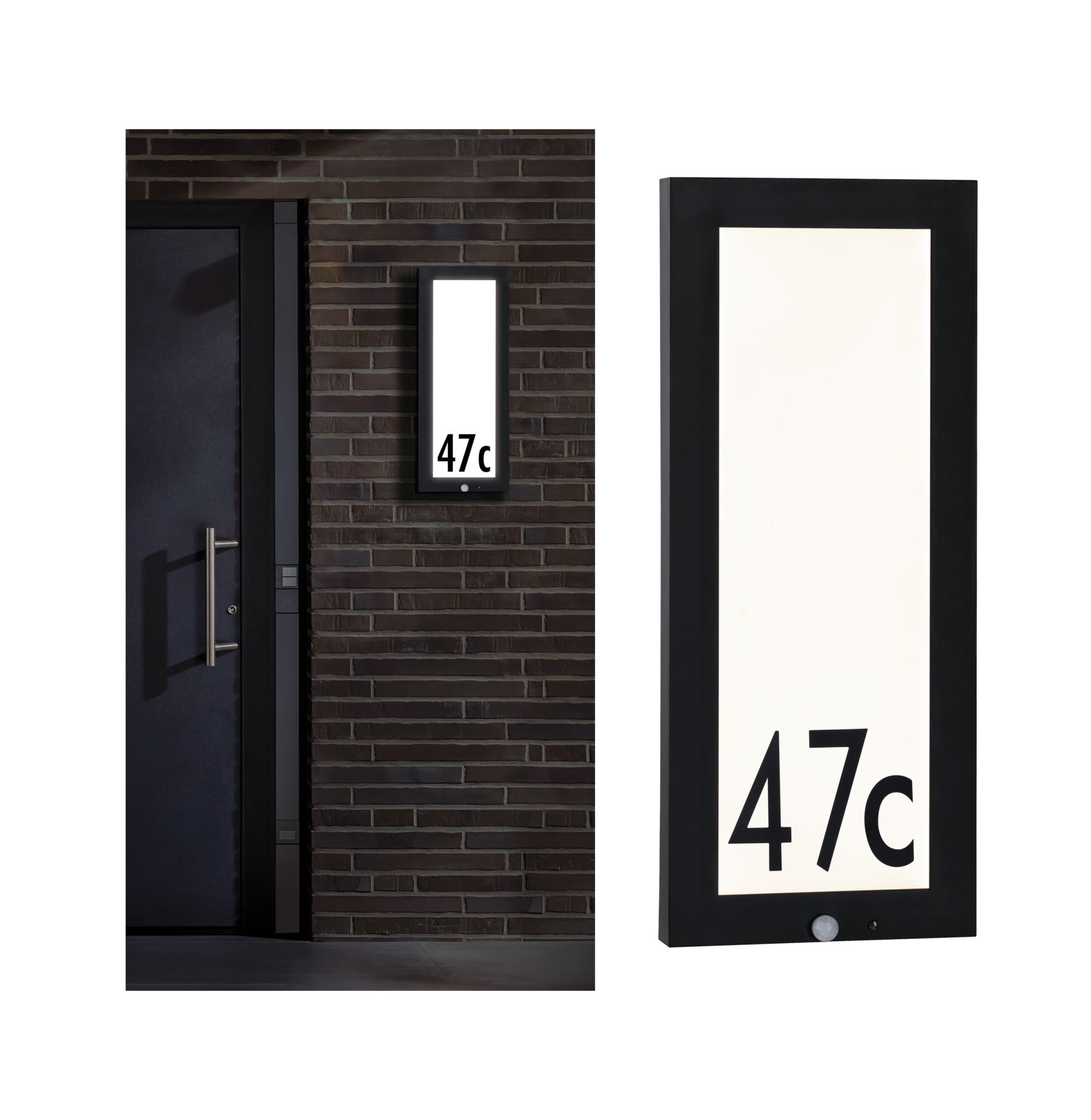

The Outdoor Panel with dimensions of 20x60 cm can be installed on the wall and on the ceiling and creates a gentle and evenly distributed light. The panel can be re-purposed as a house number light by attaching the number and letter stickers provided. Choose between permanent operation or motion sensor activation.
- Automatic switching with integrated motion detector
- Color temperatur: 3000K - Warm white
- For 230 V direct connection

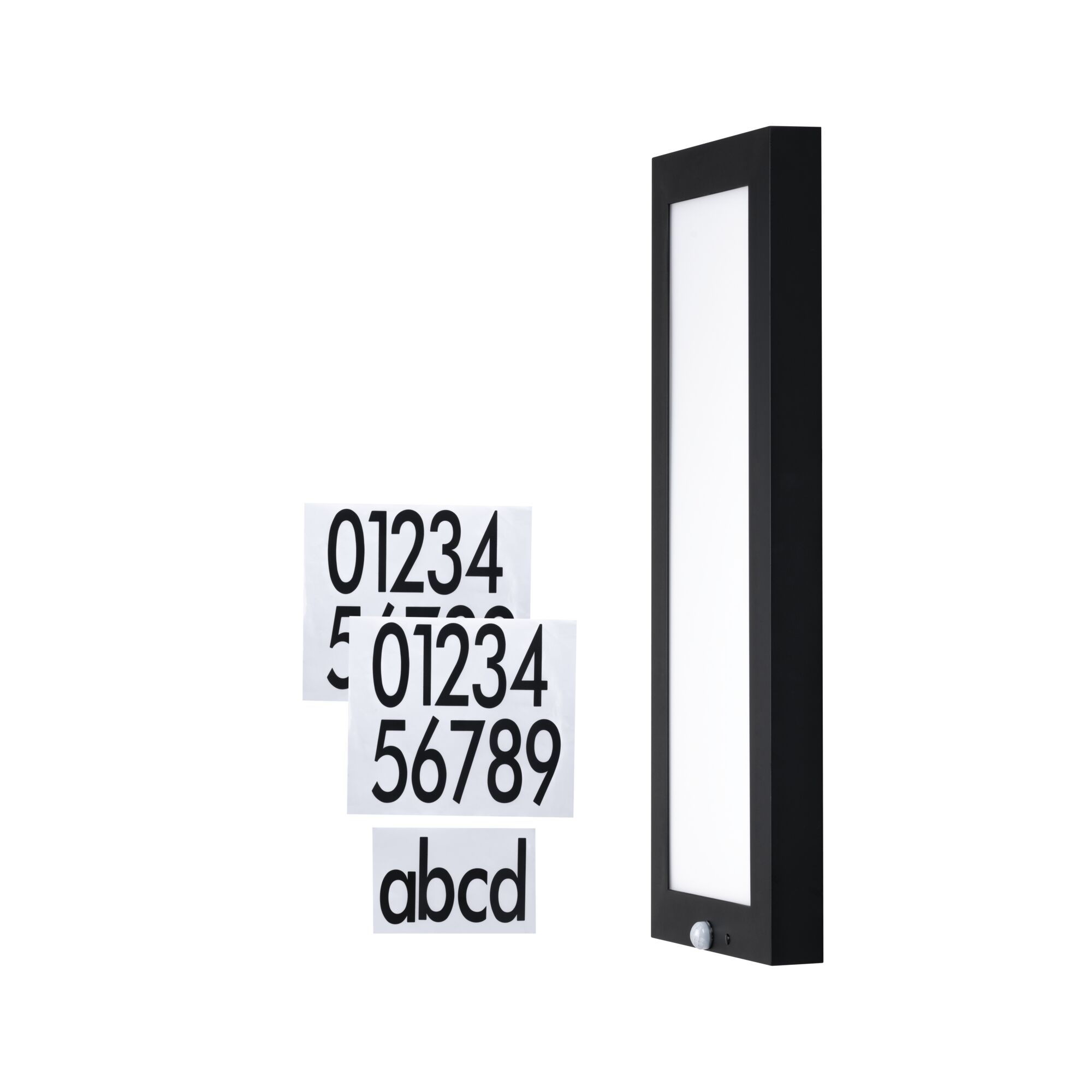

- Incl. 2 sets of numbers and 1 set of letters in black that can be bonded on individually
- protective system: IP44 – for wet-duty rooms and outdoor use
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 600 x B: 250 x T: 40 mm |
| net weight | 2252 g |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | Anthracite |
| Material | Aluminium |
| Stainless | stainless |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Features | |
|---|---|

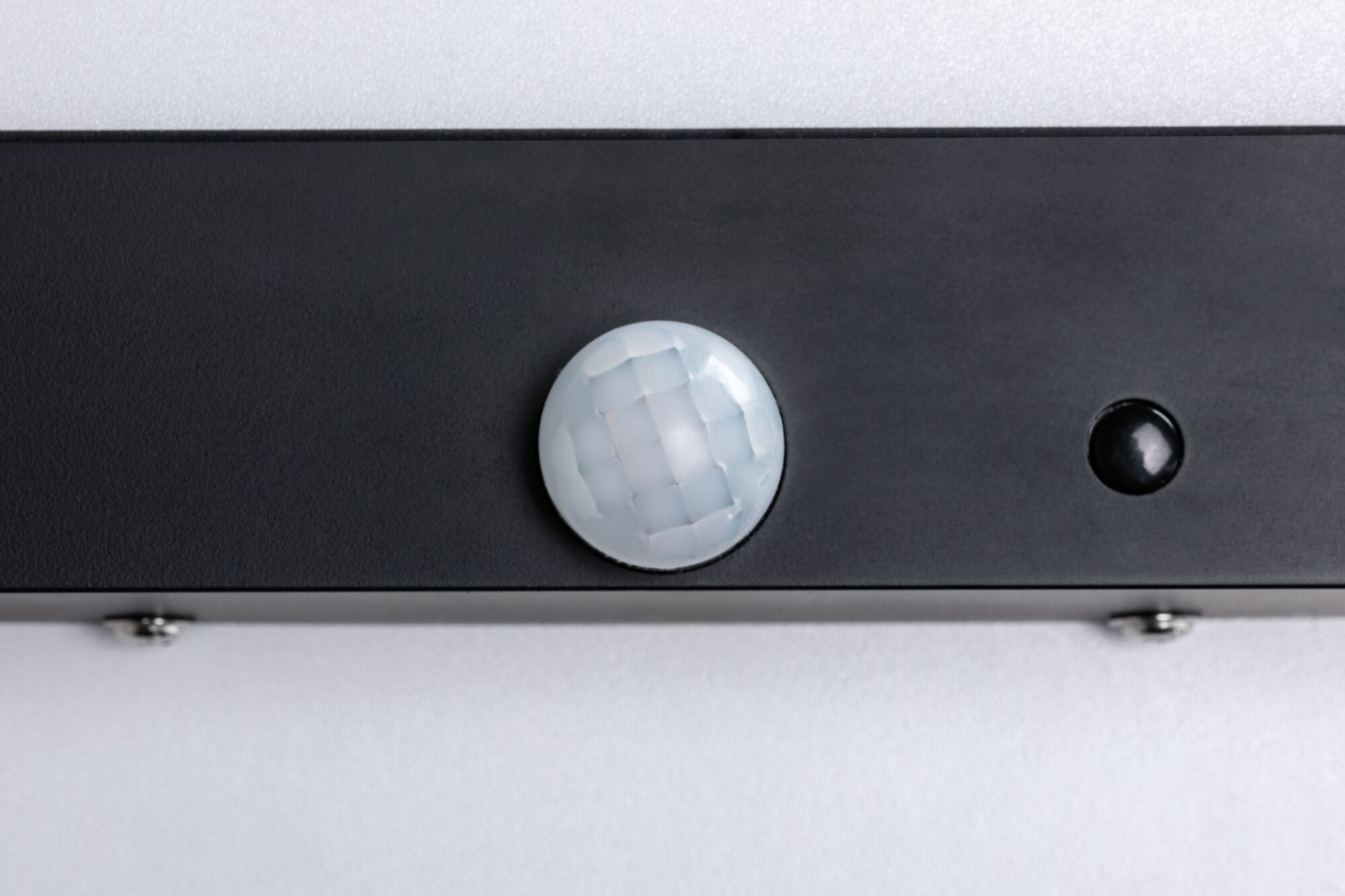

| Sensors | Twilight-controlled motion detector (IR) |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 900 lm |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 1250 lm |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 10 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 120 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| IP protection | IP44 |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 13 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 20 VA |
| Transformer height | 18 mm |
| Transformer width | 39 mm |
| Transformer depth | 122 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
