Article-No.:
92976
LED Module recessed luminaire
Easy Dim
Nova Mini Plus Coin
round 35mm Coin 4,2W 300lm 230V dimmable 2700K Clear
round 35mm Coin 4,2W 300lm 230V dimmable 2700K Clear
£19.95*
Prices incl. Standard rate VAT
- LED module with junction box, incl. double quick terminal to loop through
- Color temperatur: 2700K - Warm white

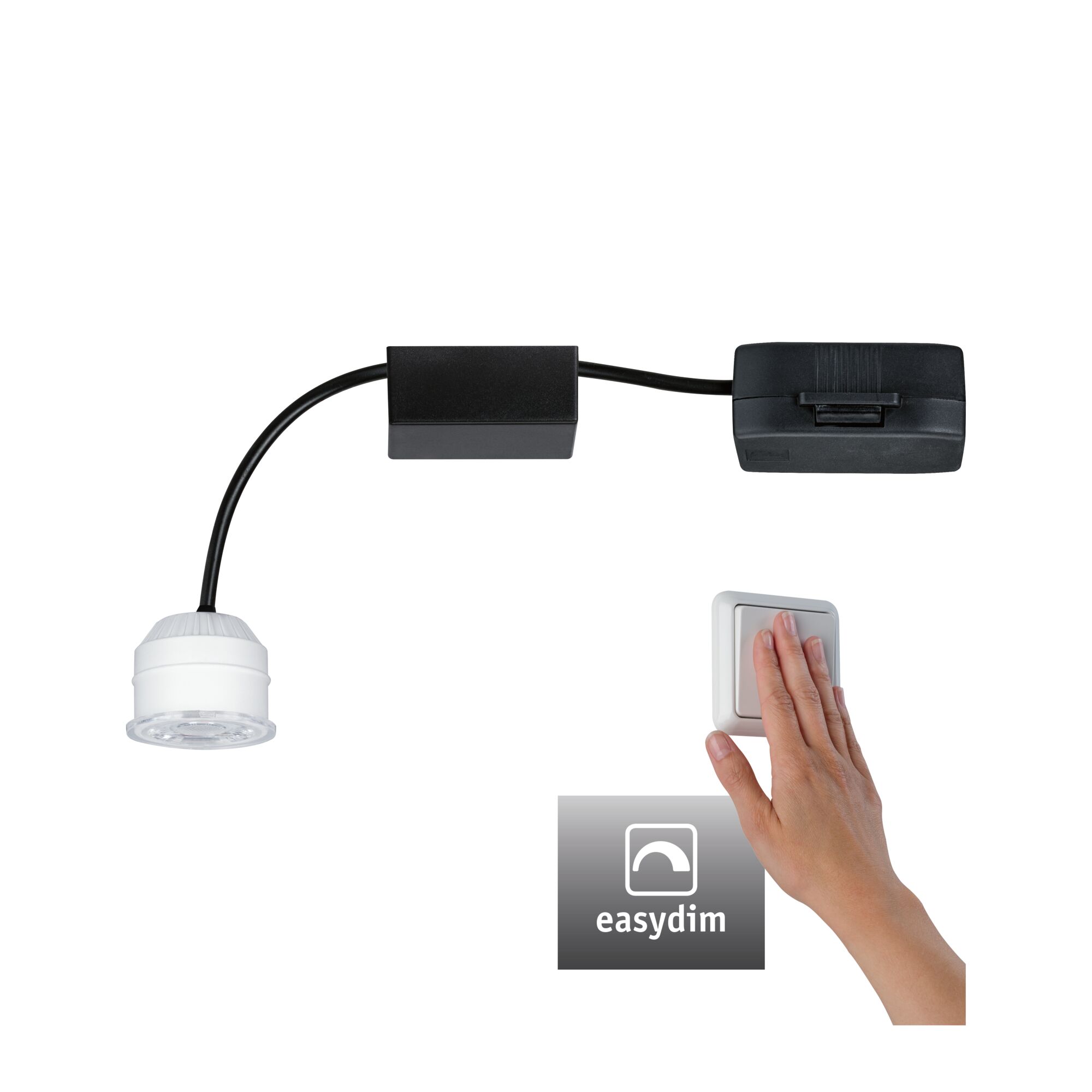

- EasyDim – continuous dimming via an existing wall switch

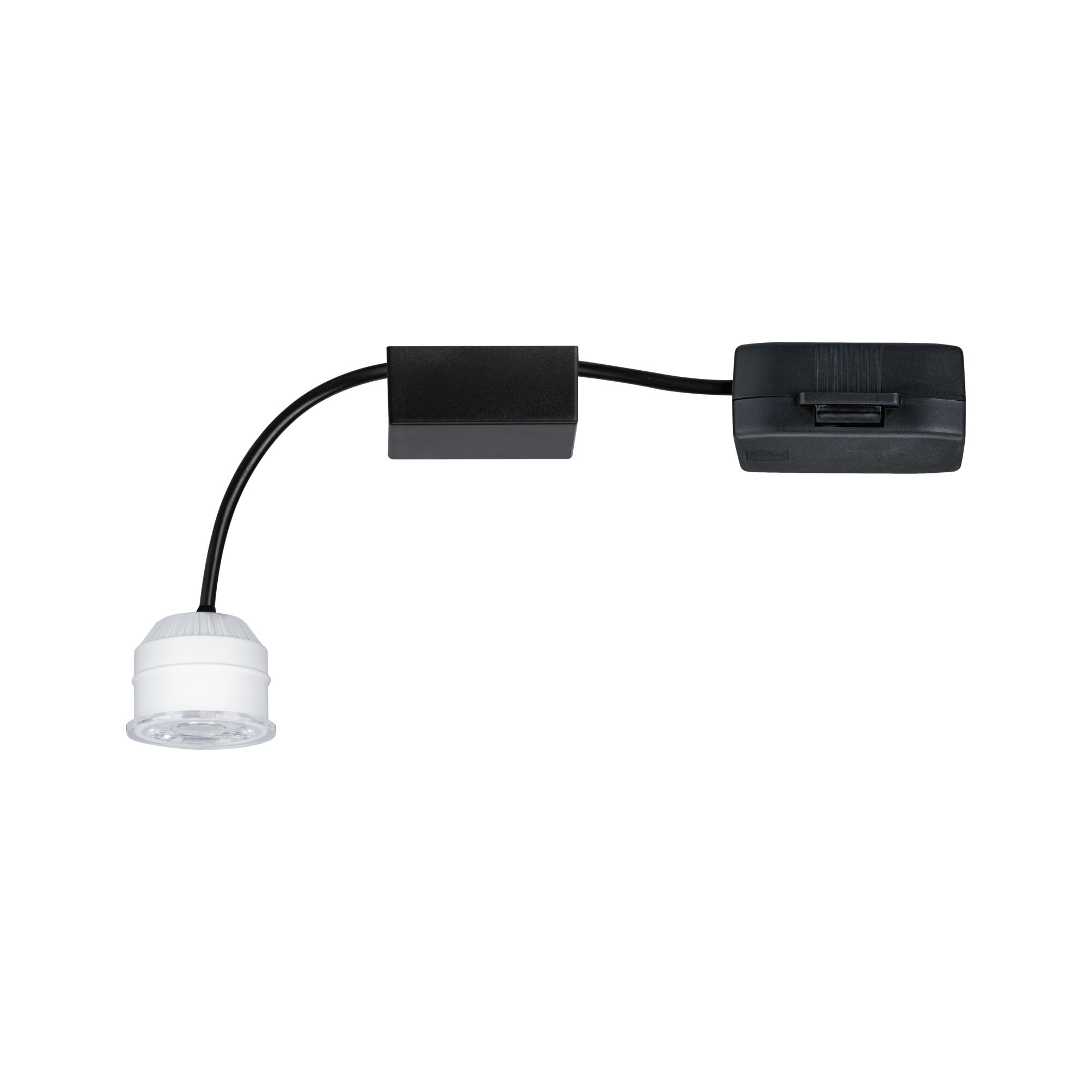

LED Module recessed luminaire Easy Dim Nova Mini Plus Coin round 35mm Coin 4,2W 300lm 230V dimmable 2700K Clear
The Nova mini EasyDim Coin is ideal for the replacement of existing 35 mm installations. The unique LED lamp is exchangeable, flat and can be linked unlimited times. The integrated EasyDim function enables continuous dimming via a regular commercial light switch.
- LED module with junction box, incl. double quick terminal to loop through
- Color temperatur: 2700K - Warm white
- EasyDim – continuous dimming via an existing wall switch
- For 230 V direct connection
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 30 mm |
| Ø | 35 mm |
| Mounting hole | 55 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Clear |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Energy consumption | 5 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 80 % |
| luminous flux at the end of lamplife | 85 % |
| Number of switching cycles >= | 50000 |
| Lifetime | 30000 h |
| Rated life time | 15000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 38 ° |
| Usable luminous flux | 300 lm |
| color temp | 2700 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Rated peak intensity | 560 cd |
| Luminous intensity | 600 cd |
| Rated luminous flux (Lumen) | 300 lm |
| Lamp Features | |
|---|---|
| Component parts | 4,2 W |
| Technique | LED |
| Socket | Coin |
| Dim | EasyDim |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 28 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Power consumption | 4,2 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
