Article-No.:
92471
LED Module recessed luminaire
Nova Plus Coin Reflector
round 50mm Coin 6,3W 430lm 230V dimmable 2700K Satin
round 50mm Coin 6,3W 430lm 230V dimmable 2700K Satin
£22.95*
Prices incl. Standard rate VAT

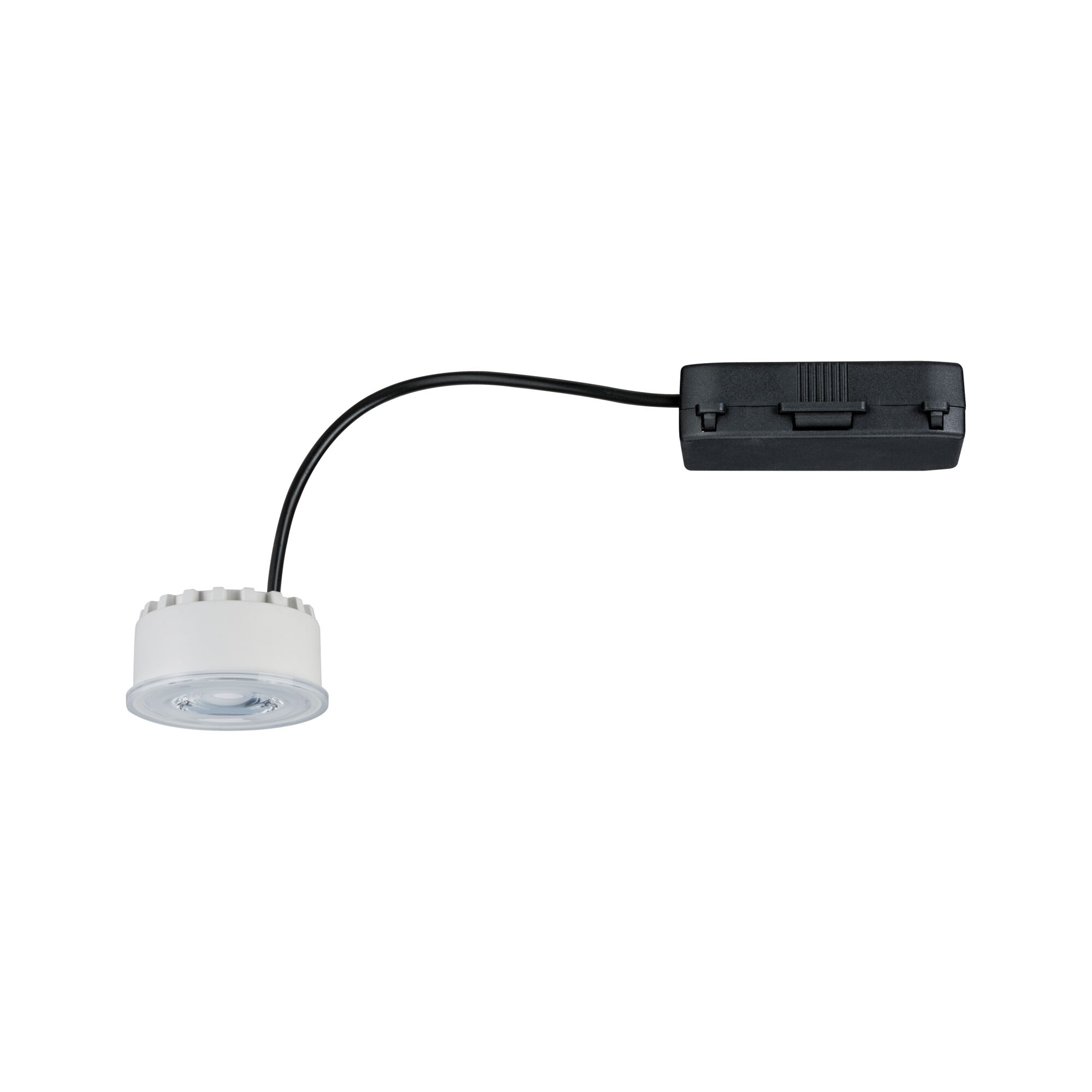

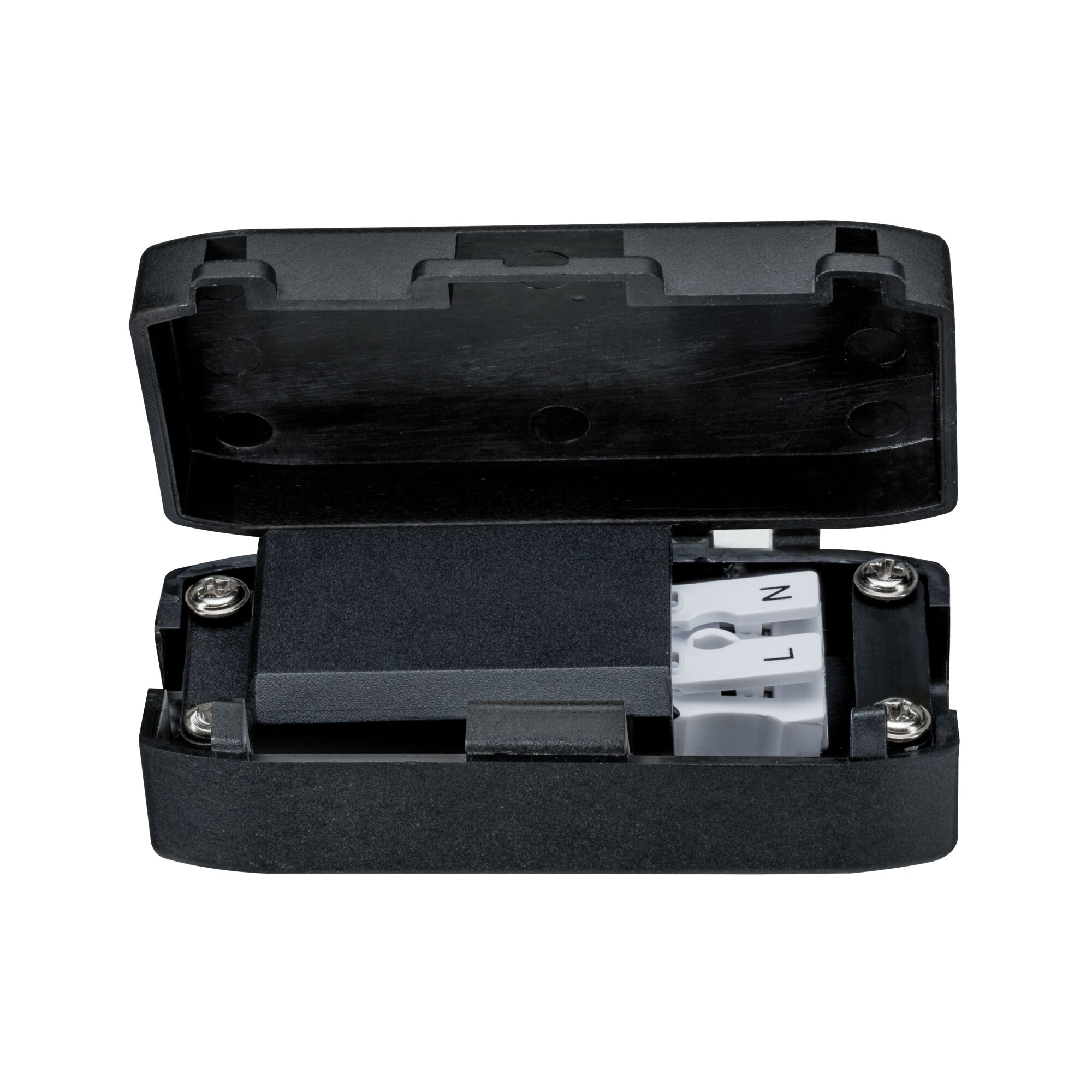

- LED module with junction box, incl. double quick terminal to loop through
- For 230 V direct connection
- Dimmable

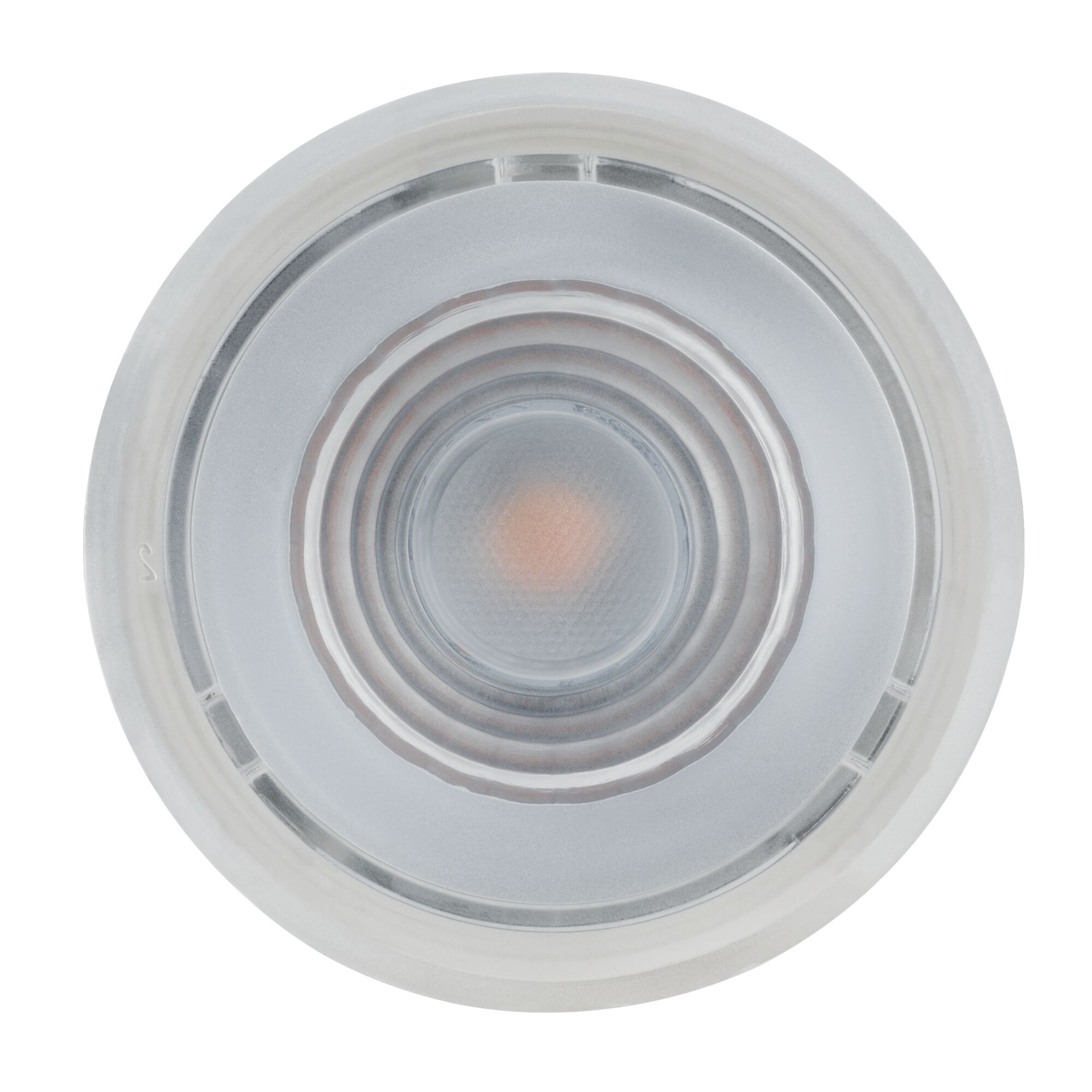

LED Module recessed luminaire Nova Plus Coin Reflector round 50mm Coin 6,3W 430lm 230V dimmable 2700K Satin
The innovative Nova Plus reflector coins with a warm white light can also be used in combination with existing light installations. If you have already installed recessed spotlights with a diameter of 51 mm, you can simply switch over to the energy-saving LED modules. The old lamp is removed, the Slim Coin is connected with the help of quick clips, without having to use tools - that is all!
- LED module with junction box, incl. double quick terminal to loop through
- For 230 V direct connection
- Dimmable
- Color temperatur: 2700K - Warm white

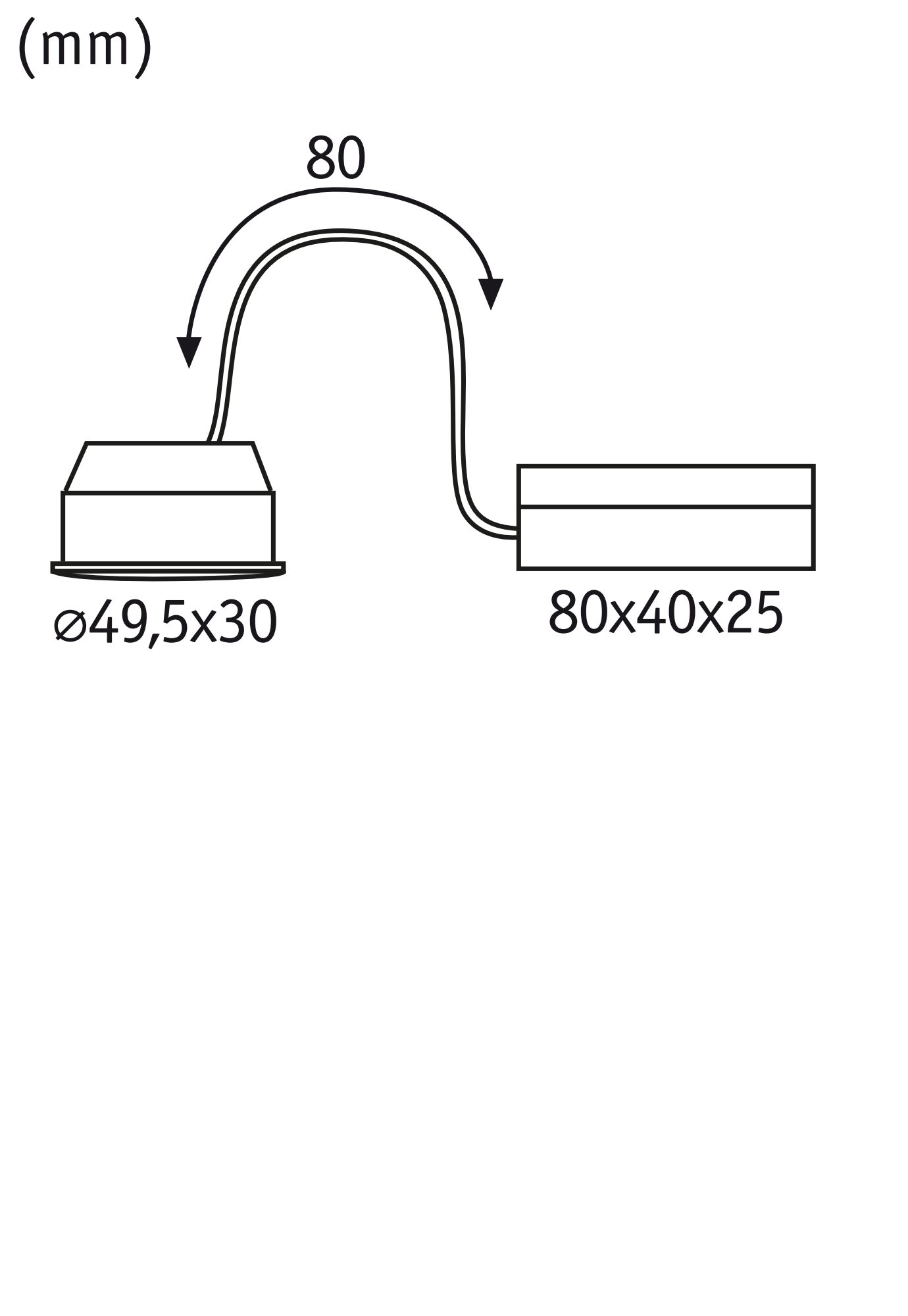

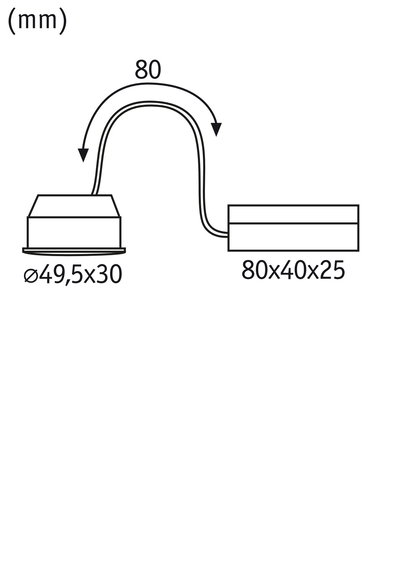

| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 30 mm |
| Ø | 50 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Satin |
| Material | Plastic |
| Energy consumption | |
|---|---|

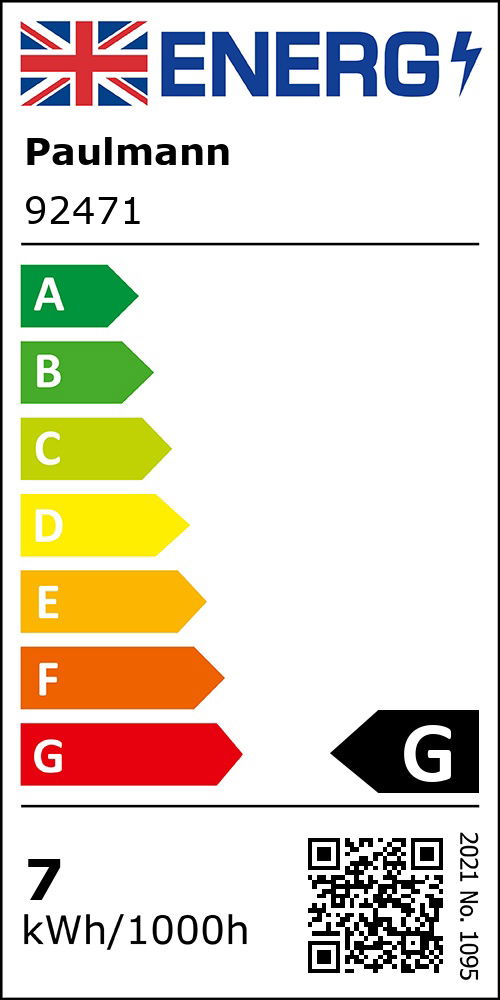

| Energy efficiency (A to G) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 80 % |
| luminous flux at the end of lamplife | 70 % |
| Number of switching cycles >= | 50000 |
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | 2700 K |
| Farbtemperatur_Text | Warmweiß |
| Beam angle | 38 ° |
| Usable luminous flux | 430 lm |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Rated peak intensity | 630 cd |
| Rated luminous flux (Lumen) | 430 lm |
| Lamp Features | |
|---|---|
| Component parts | 6,3 W |
| Technique | LED |
| Socket | Coin |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Incandescent Equivalent | 37 W |
| Adjustability | fixed |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Power consumption | 7 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
Downloads
Flyer and Safety instructions
Safety instructions
