Article-No.:
93074
LED Module recessed luminaireSmart Home Zigbee 3.0
Tunable White Coin
round 50mm Coin 6W 470lm 230V dimmable Tunable White Satin
round 50mm Coin 6W 470lm 230V dimmable Tunable White Satin
£43.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- Can still be switched on and off with the light switch
LED Module recessed luminaire Smart Home Zigbee 3.0 Tunable White Coin 1-piece set round 50mm Coin 6W 470lm 230V dimmable Tunable White Satin
The innovative, smart coins can also be used in combination with existing light installations. If you have already installed recessed spotlights with a diameter of 51 mm, you can simply switch over to the energy-saving LED modules. The old lamp is removed, the Slim Coin is connected with the help of quick clips, without having to use tools - that is all! The tunable white function allows the light colour to be adjusted as required: from daylight-white working light to relaxing, warm white light. The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interconnects devices from different manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated.
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- Can still be switched on and off with the light switch
- Very flat – can also be mounted in small cavities of only 30 mm depth
- For 230 V direct connection
- Efficient LED technology
- Variable dimming
- Color temperatur: 2700K - Warm white - 6500K -Daylight white
| Dimension | |
|---|---|

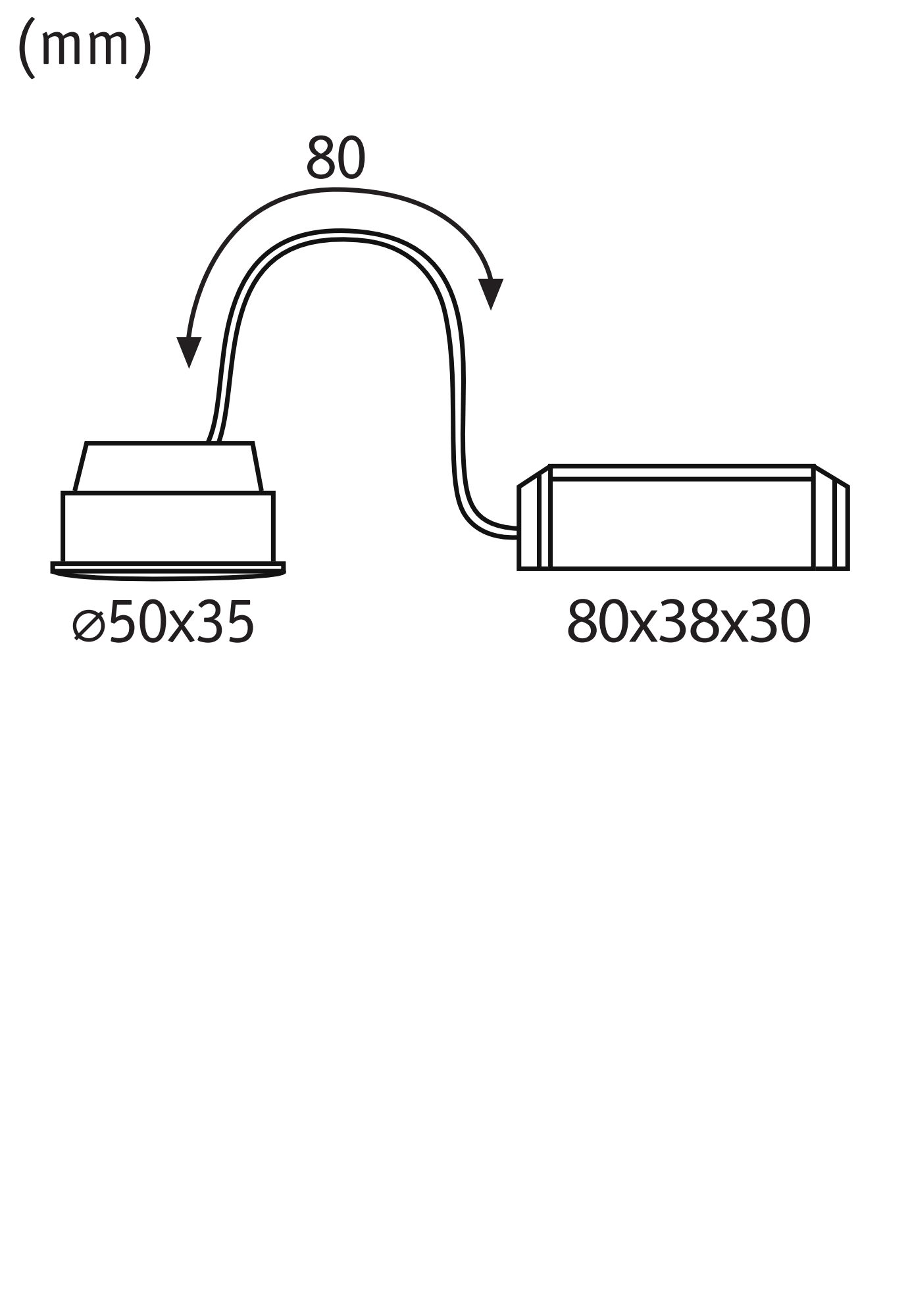

| Dimensions (Height x Width x Depth) | H: 35 mm |
| Diameter | 50 mm |
| Built-in diameter | 68 mm |
| Design and Material | |
|---|---|
| Form | round |
| Type | Coin |
| Colour | Satin |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 80 % |
| luminous flux at the end of lamplife | 70 % |
| Number of switching cycles >= | 50000 |
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 2700 K |
| Nominal luminous flux | 470 lm |
| Colour consistency (SDCM) | 6 |
| Color rendering index | > 85 Ra |
| Beam angle | 100 ° |
| Colour change | Tunable White |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with Smart Home |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel |
| Incandescent Equivalent | 39 W |
| Protection class | Protection class II |
| Base/Socket | Coin |
| Technique | LED |
| Component parts | 6 W |
| Number of component parts | 1x |
| Compatible Smart Home technology | Zigbee |
| Replacable | 7 not concerned. |
| Power consumption | 7 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
