Article-No.:
71006
LED Panel
3-Step-Dim
Atria Shine Backlight
round 420mm 22W 2300lm 4000K Chrome matt dimmable
round 420mm 22W 2300lm 4000K Chrome matt dimmable

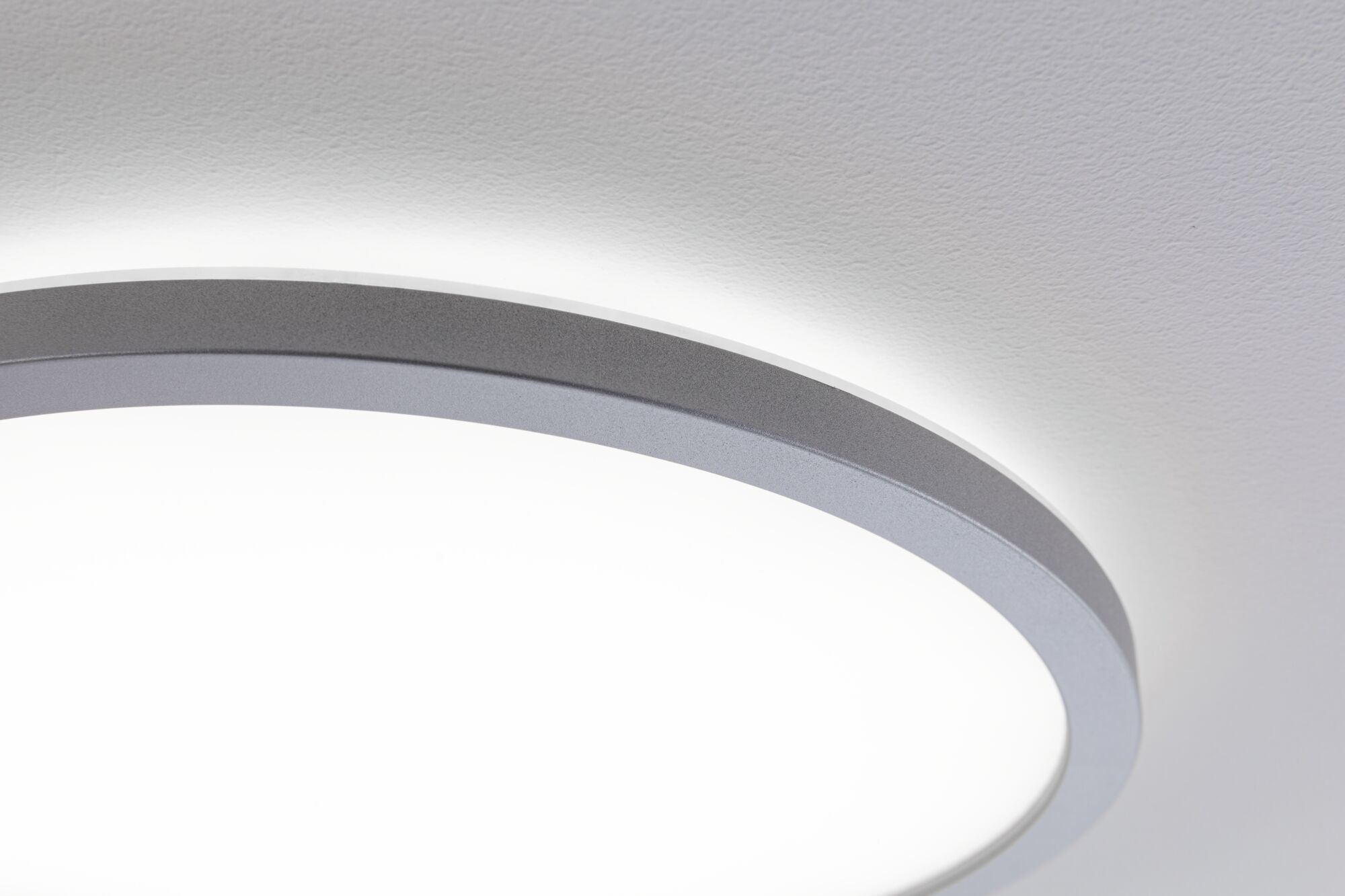

- Backlight technology for subtle, almost floating appearance of the luminaire
- Ultra-flat design: Installation height of only 28 mm
- Even room light based on cutting-edge LED technology
LED Panel 3-Step-Dim Atria Shine Backlight round 420mm 22W 2300lm 4000K Chrome matt dimmable

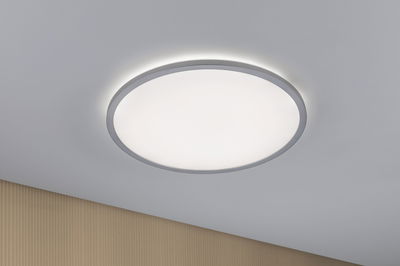

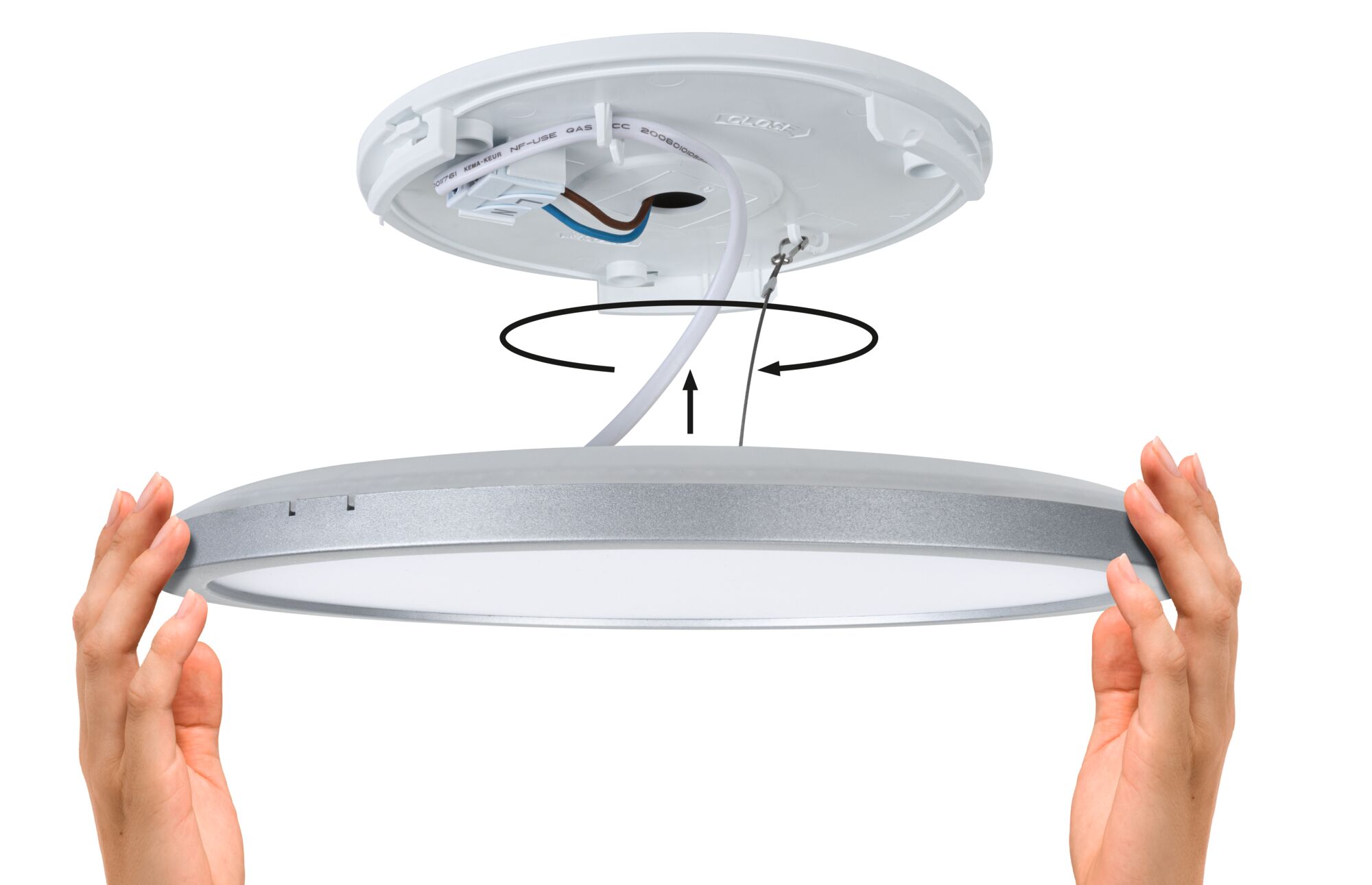

With an output of 22W, the rounde Atria Shine LED panel in Chrome matt and 420mm is ideal for basic lighting in living rooms, bedrooms and kitchens. The light of the panel creates uniform and wide-area room illumination. Additional backlight technology produces a magical feel-good atmosphere and gives the panel an almost floating luminous appearance. With a quick clip, a special twist lock and an ultra-flat installation height of 28 mm, the panel is very easy to install.
- Backlight technology for subtle, almost floating appearance of the luminaire
- Ultra-flat design: Installation height of only 28 mm
- Even room light based on cutting-edge LED technology
- Color temperatur: 4000K - Neutral white
- Can be mounted on wall or ceiling
- Especially flat construction
Dimension | |
---|---|

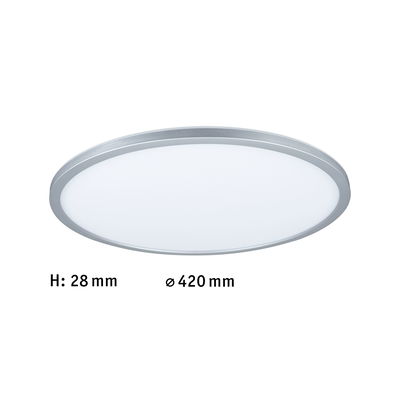

Dimensions (Height x Width x Depth) | H: 28 mm |
Ø | 420 mm |
Form | round |
Design and Material | |
---|---|
Colour | Chrome matt |
Material | Plastic |
Energy consumption | |
---|---|
Energy efficiency (A to G) | E |
Service life | |
---|---|
Lifetime | 30000 h |
Light Characteristics | |
---|---|
Colour temp. | 4000 K |
Usable luminous flux | 2300 lm |
Luminous flux LED module | 2800 lm |
color temp | 4000 K |
Color rendering index | > 80 Ra |
Lamp Features | |
---|---|
Component parts | 22 W |
Technique | LED |
IP protection | IP20 |
Dim | dimmable in 3 steps with normal light switch |
Dimmable | Yes |
Inclusive lamp | yes |
Incandescent Equivalent | 170 W |
Number of component parts | 1x |
protection class | protection class II |
Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
Power consumption | 23 W |
Transformer | |
---|---|
apparent power | 40 VA |
Labelling | |
---|---|
WEEE-Reg.-No | DE 39236390 |
