Article-No.:
71023
LED Panel
Abia
round 300mm 22W 2200lm 4000K Chrome matt
round 300mm 22W 2200lm 4000K Chrome matt
- Satined plastic cover for fine diffusion of light
- Even room light based on cutting-edge LED technology
- Especially flat construction

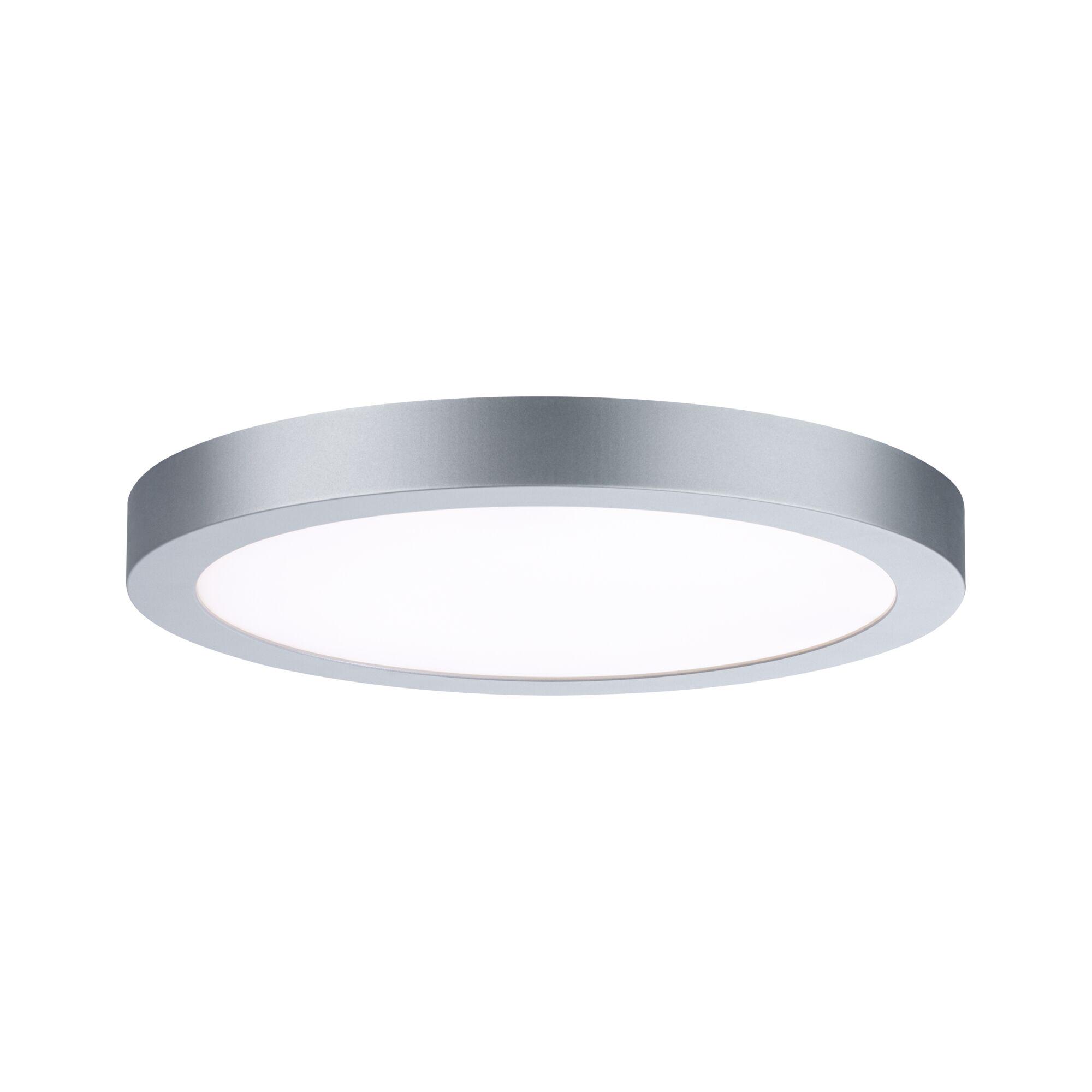

LED Panel Abia round 300mm 22W 2200lm 4000K Chrome matt
The round Abia panel in chrome matt combines an extremely shallow structure and uniform light distribution in an advanced design. Thanks to its subtle, unobtrusive, clean and linear design, the panel blends perfectly into modern architecture-orientated interiors.
- Satined plastic cover for fine diffusion of light
- Even room light based on cutting-edge LED technology
- Especially flat construction
- LED lamp (fixed) included in scope of delivery
- For 230 V direct connection
- Color temperatur: 4000K - Neutral white
| Dimension | |
|---|---|

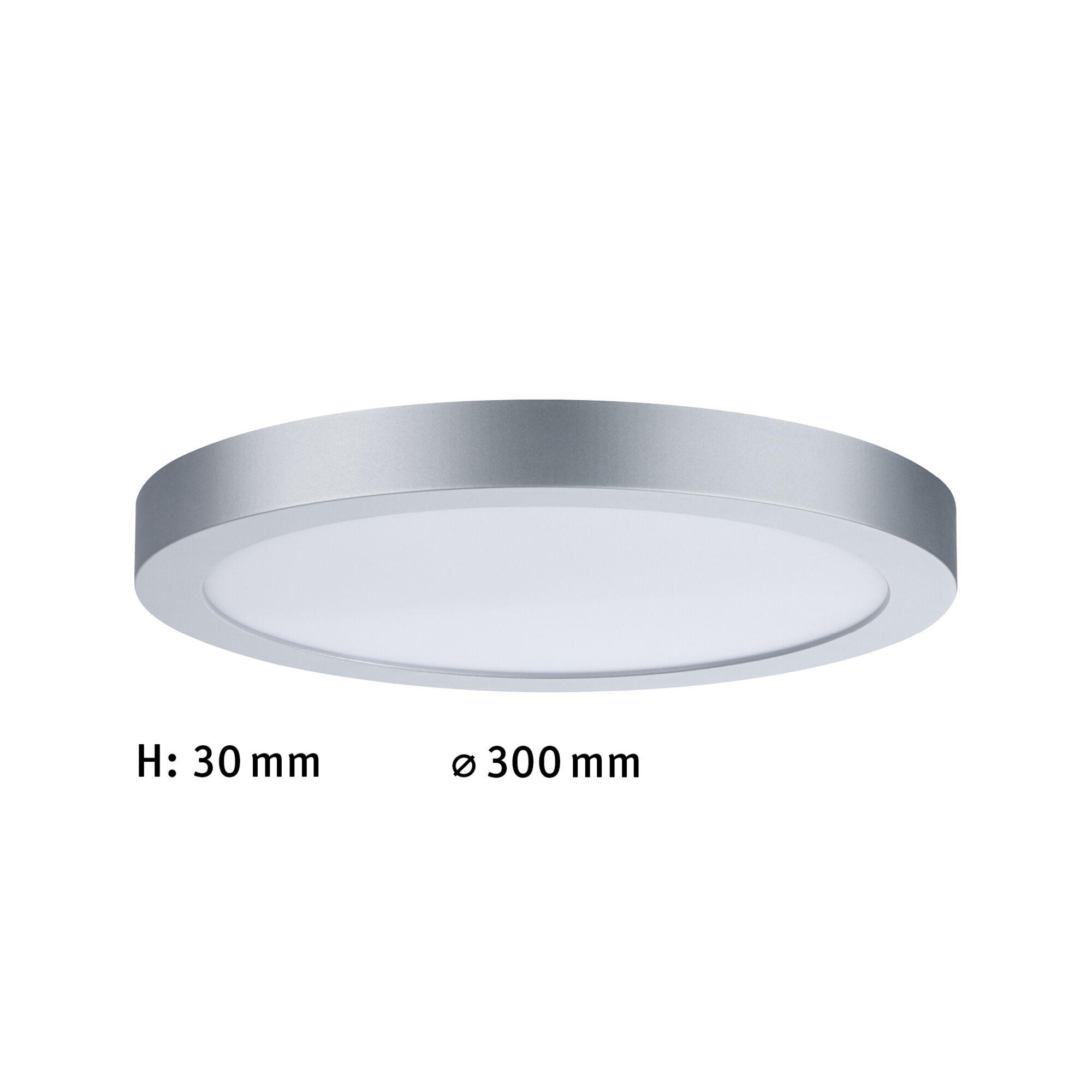

| Dimensions (Height x Width x Depth) | H: 30 mm |
| Ø | 300 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Chrome matt |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 4000 K |
| Usable luminous flux | 2200 lm |
| Luminous flux LED module | 3200 lm |
| color temp | 4000 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 22 W |
| Technique | LED |
| IP protection | IP20 |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 186 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 24 W |
| Transformer | |
|---|---|
| apparent power | 26 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
