Article-No.:
70900
LED Panel
Abia
square 300x300mm 22W 2000lm 2700K Matt white
square 300x300mm 22W 2000lm 2700K Matt white
- Satined plastic cover for fine diffusion of light
- Even room light based on cutting-edge LED technology
- Especially flat construction

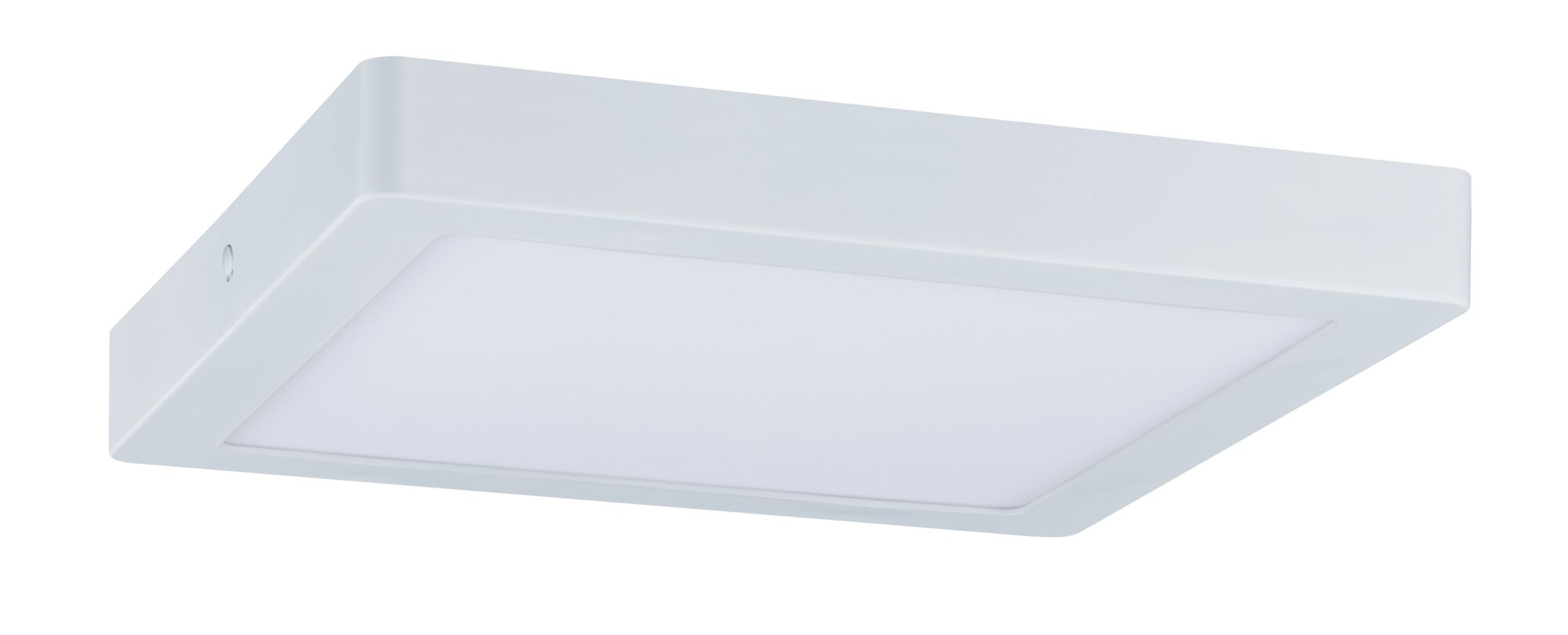

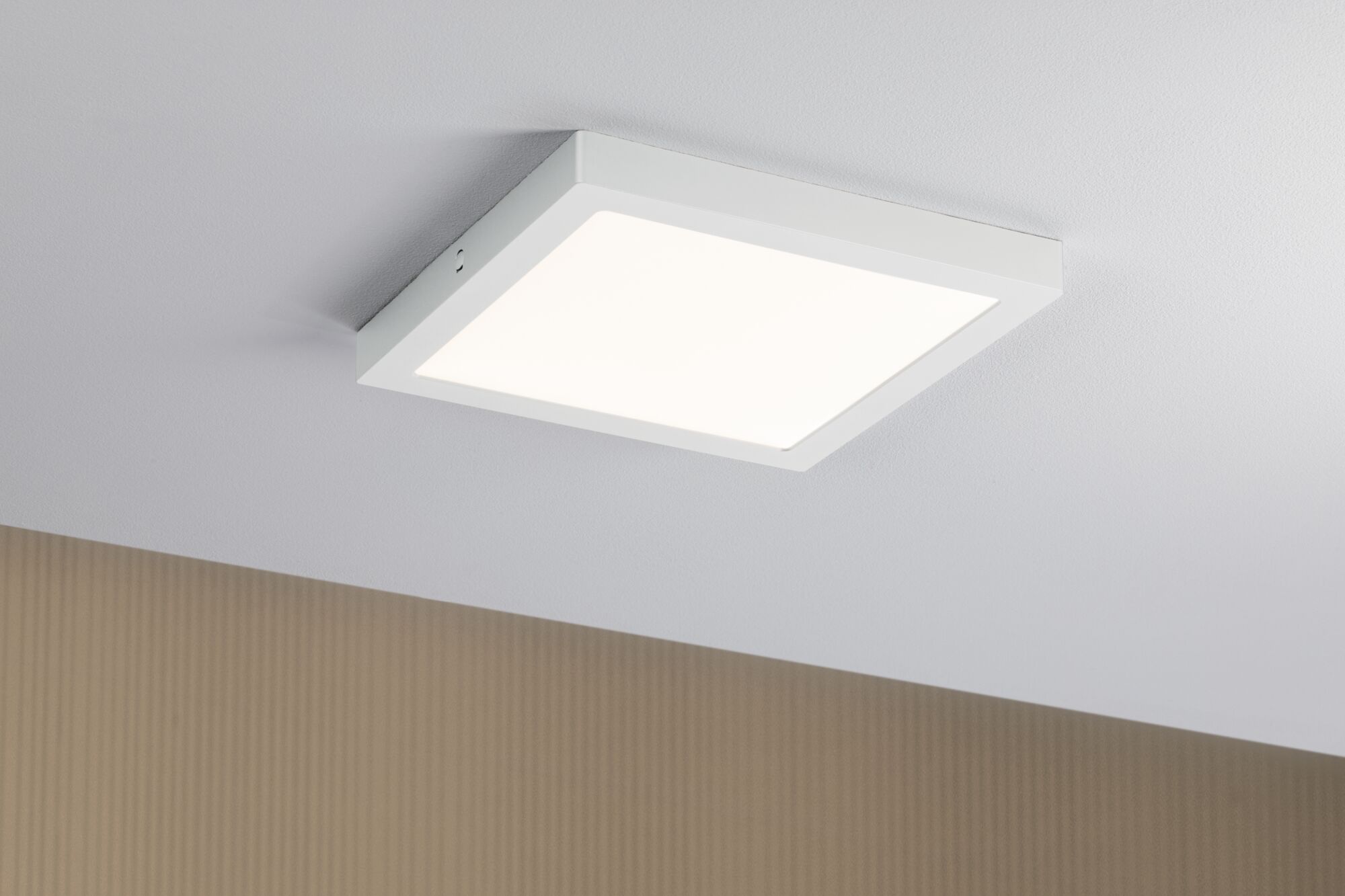

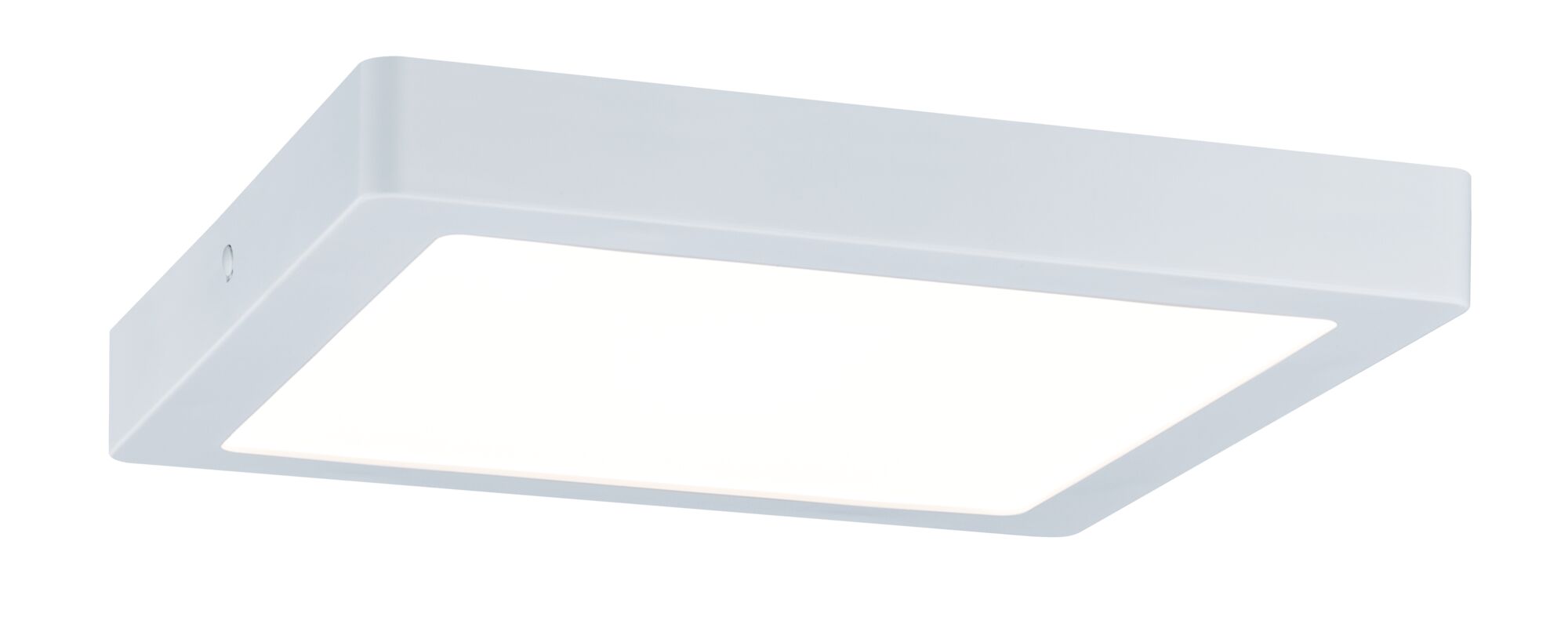

LED Panel Abia square 300x300mm 22W 2000lm 2700K Matt white
In the rectangular Abia ceiling luminaire, modern LED technology enables a combination of extremely flat assembly and exceptionally uniform light distribution. The quiet, sleek design will harmonise with comfortable modern styles as well as interiors with more daring architectural features.
- Satined plastic cover for fine diffusion of light
- Even room light based on cutting-edge LED technology
- Especially flat construction
- LED lamp (fixed) included in scope of delivery
- For 230 V direct connection
| Dimension | |
|---|---|

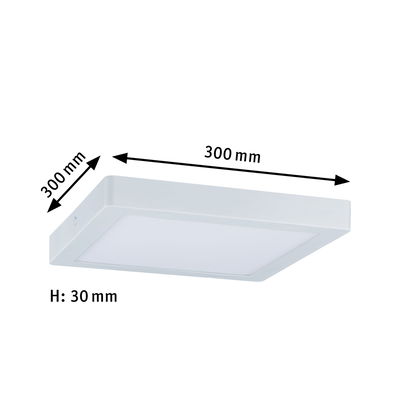

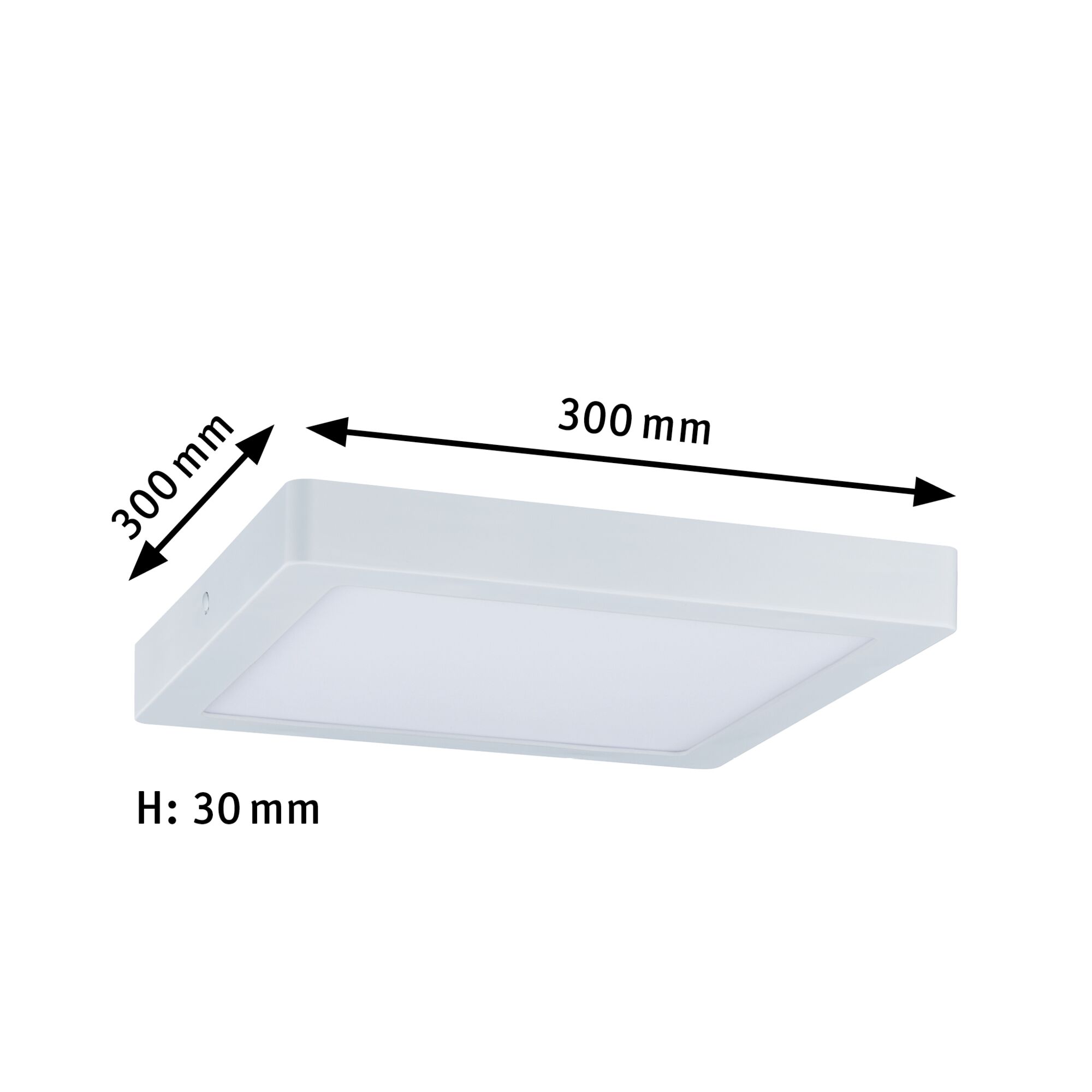

| Dimensions (Height x Width x Depth) | H: 30 x B: 300 x T: 300 mm |
| Form | square |
| Design and Material | |
|---|---|
| Colour | Matt white |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Usable luminous flux | 2000 lm |
| Luminous flux LED module | 3200 lm |
| color temp | 2700 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 22 W |
| Technique | LED |
| IP protection | IP20 |
| Dimmable | No |
| Inclusive lamp | yes |
| Total Width | 300 mm |
| Incandescent Equivalent | 186 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 24 W |
| Transformer | |
|---|---|
| apparent power | 46 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
