Article-No.:
70653

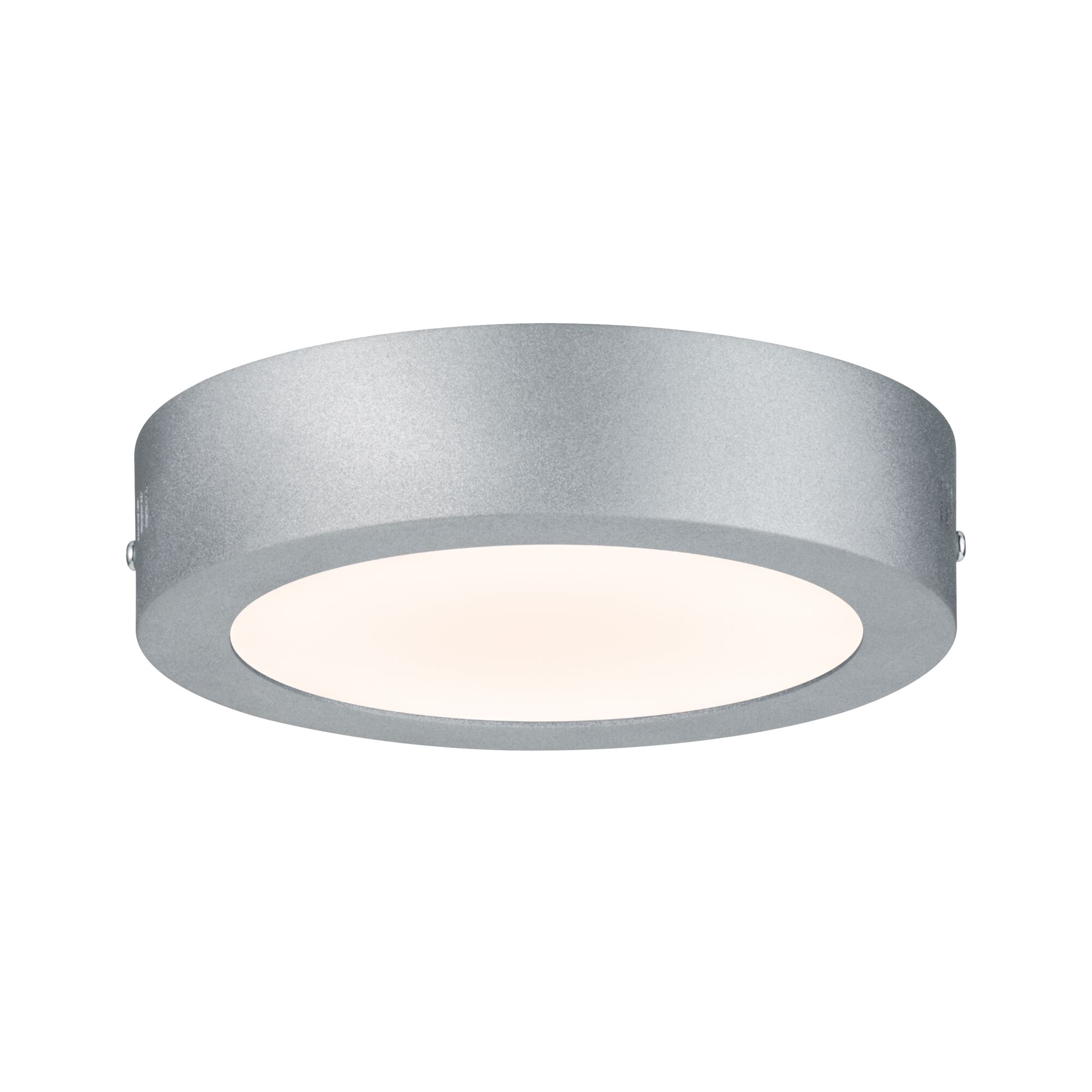

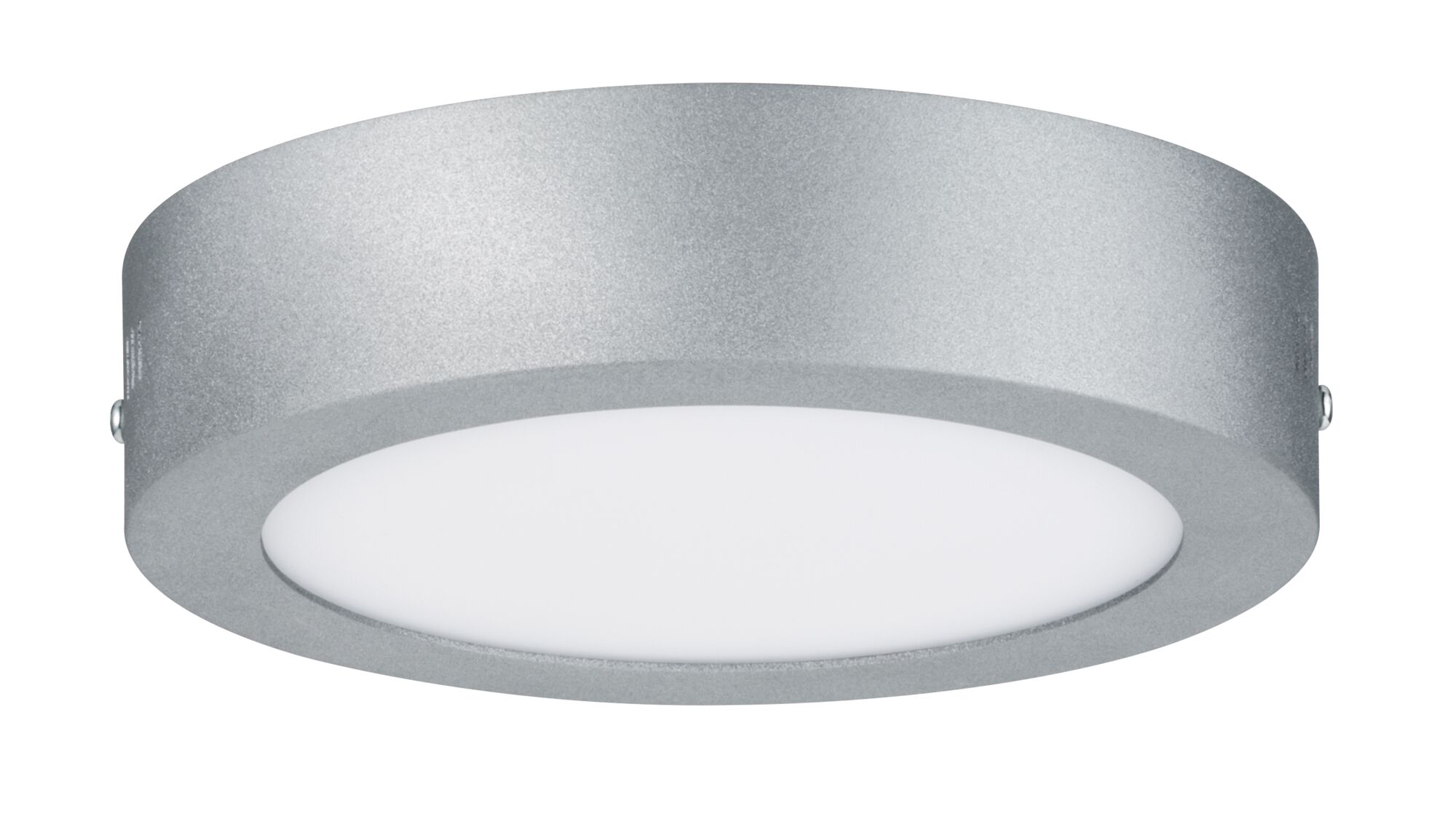

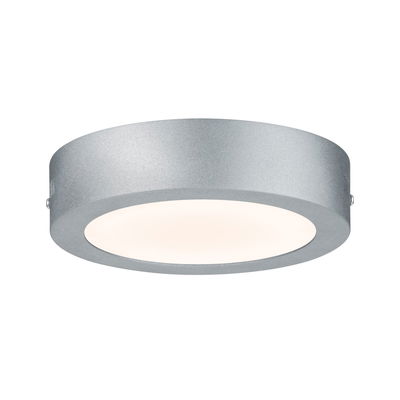

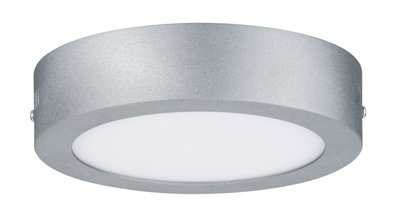

LED Panel
Lunar
round 170mm 11W 760lm 3000K Chrome matt
round 170mm 11W 760lm 3000K Chrome matt
- Especially flat construction in round design
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)
- Even room light based on cutting-edge LED technology
LED Panel Lunar round 170mm 11W 760lm 3000K Chrome matt
With the Lunar wall and ceiling luminaires, modern LED technology enables a combination of very flat assembly and very even light distribution. The quiet, sleek design will harmonise with comfortable modern styles as well as interiors with more daring architectural features.
- Especially flat construction in round design
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)
- Even room light based on cutting-edge LED technology
- High light yield for area lighting
- For 230 V direct connection
- With integrated LED bulb
- Satined plastic cover for fine diffusion of light
Dimension | |
---|---|

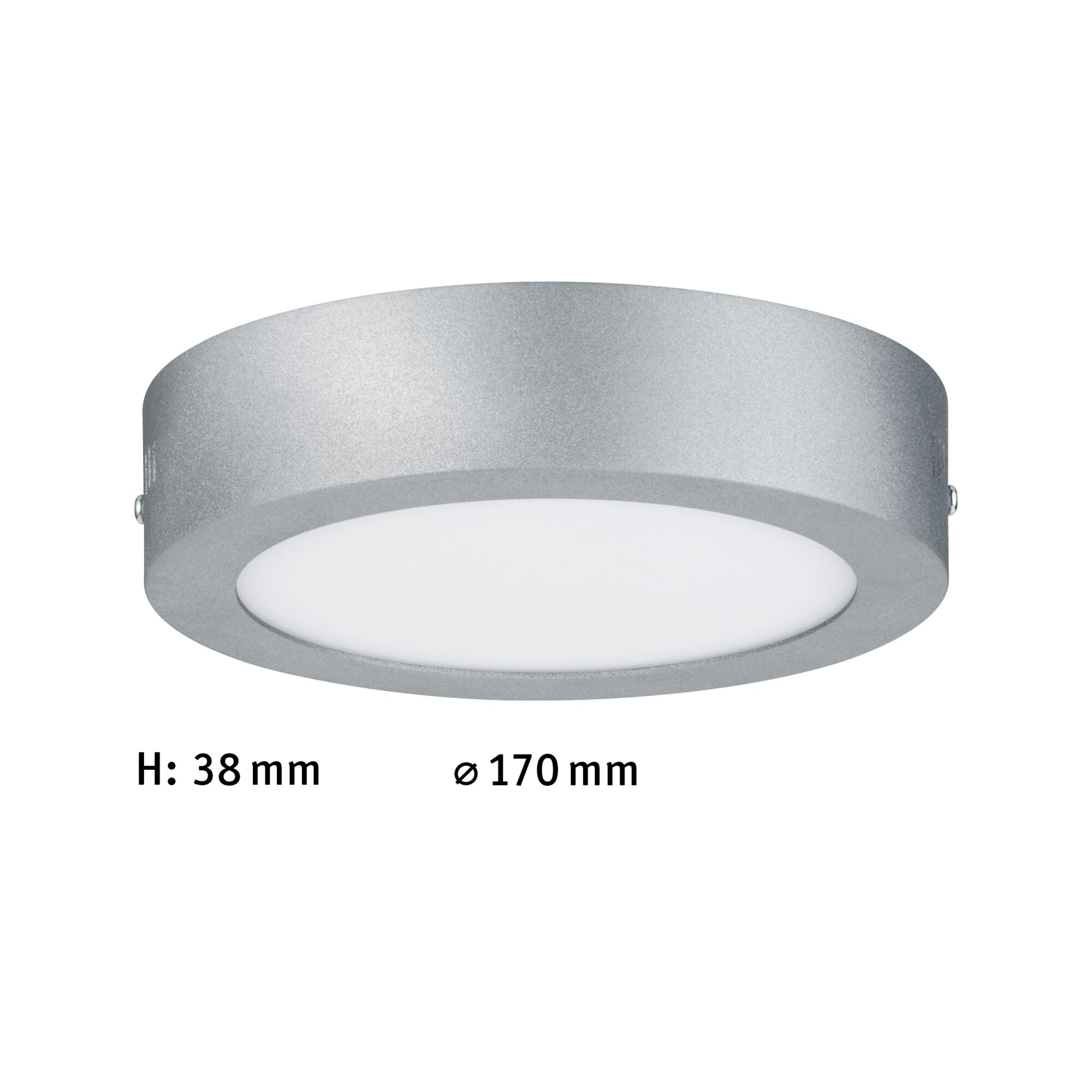

Dimensions (Height x Width x Depth) | H: 38 mm |
Ø | 170 mm |
Form | round |
Design and Material | |
---|---|
stainless | stainless alu |
Colour | Chrome matt |
Material | Aluminium |
Installation | |
---|---|
Installation site (recommendation) | Wall and ceiling mounting |
Energy consumption | |
---|---|
Energy efficiency (A to G) | E |
Service life | |
---|---|
Lifetime | 30000 h |
Rated life time | 30000 h |
Light Characteristics | |
---|---|
Colour temp. | 3000 K |
Usable luminous flux | 760 lm |
Luminous flux LED module | 1300 lm |
color temp | 3000 K |
Color rendering index | > 80 Ra |
Rated luminous flux (Lumen) | 760 lm |
Lamp Features | |
---|---|
Component parts | 11 W |
Technique | LED |
IP protection | IP20 |
Dimmable | No |
Inclusive lamp | yes |
Incandescent Equivalent | 88 W |
Number of component parts | 1x |
protection class | protection class II |
Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
Power consumption | 13 W |
Transformer | |
---|---|
Transformer power | 12,6 VA |
Labelling | |
---|---|
WEEE-Reg.-No | DE 39236390 |
