Article-No.:
79808

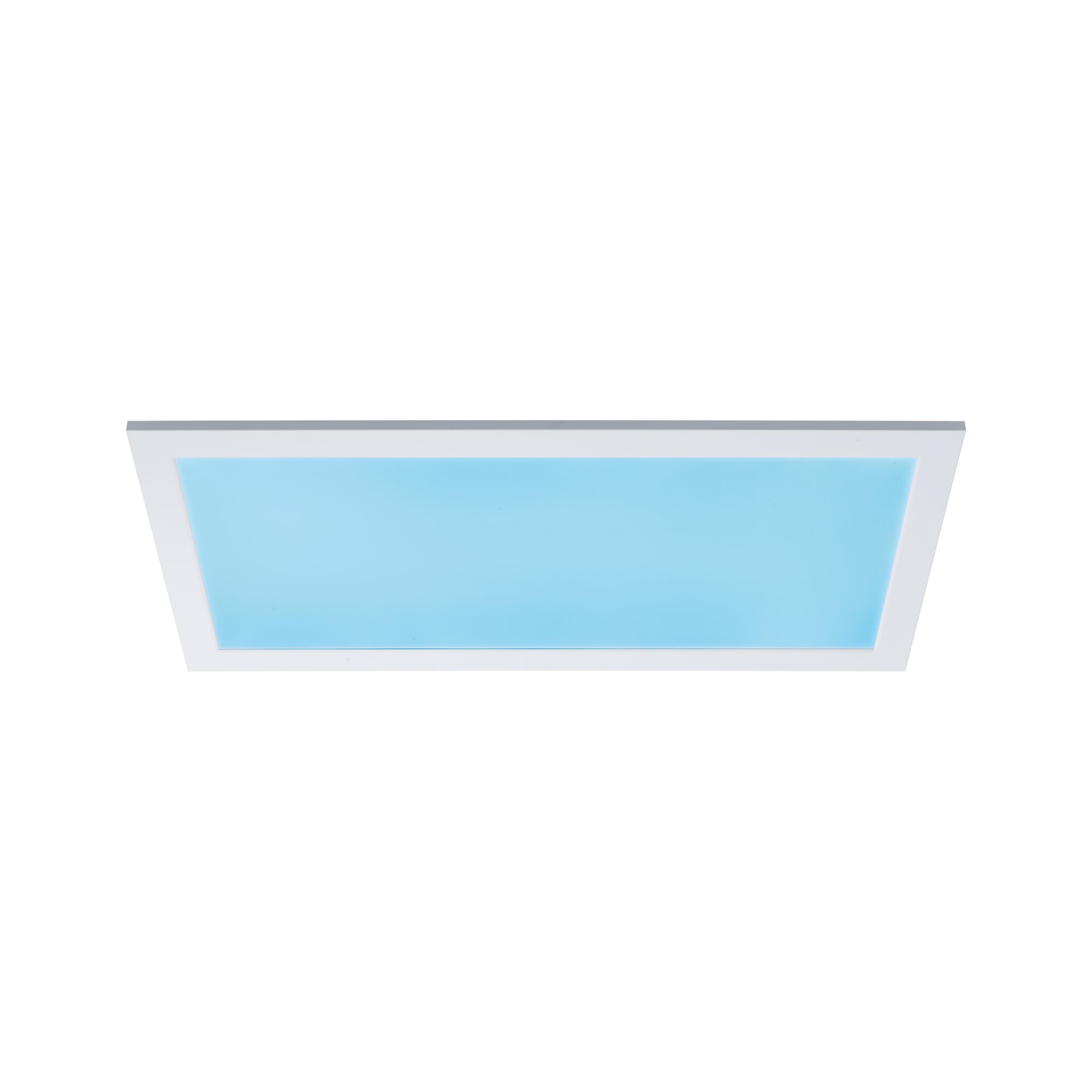

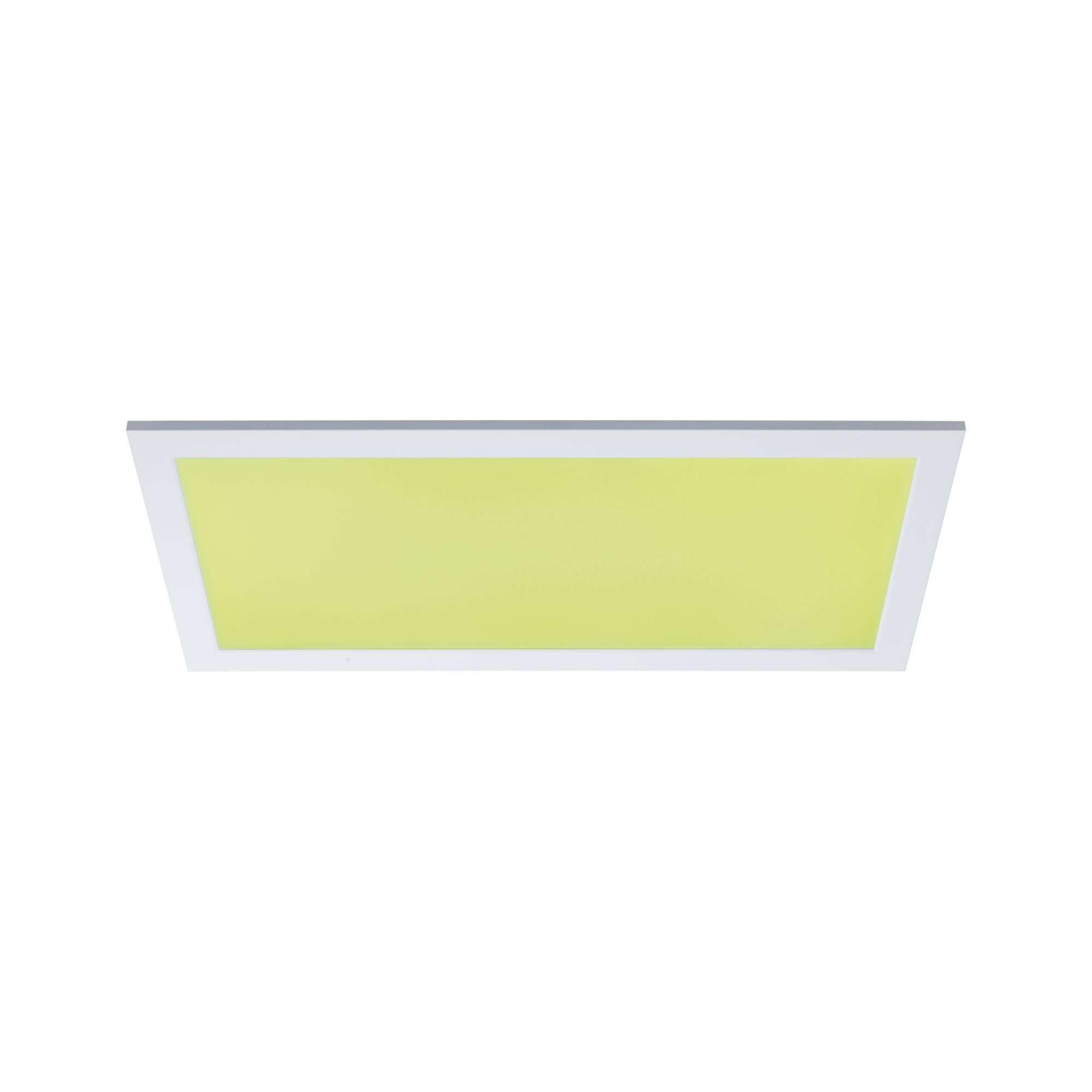

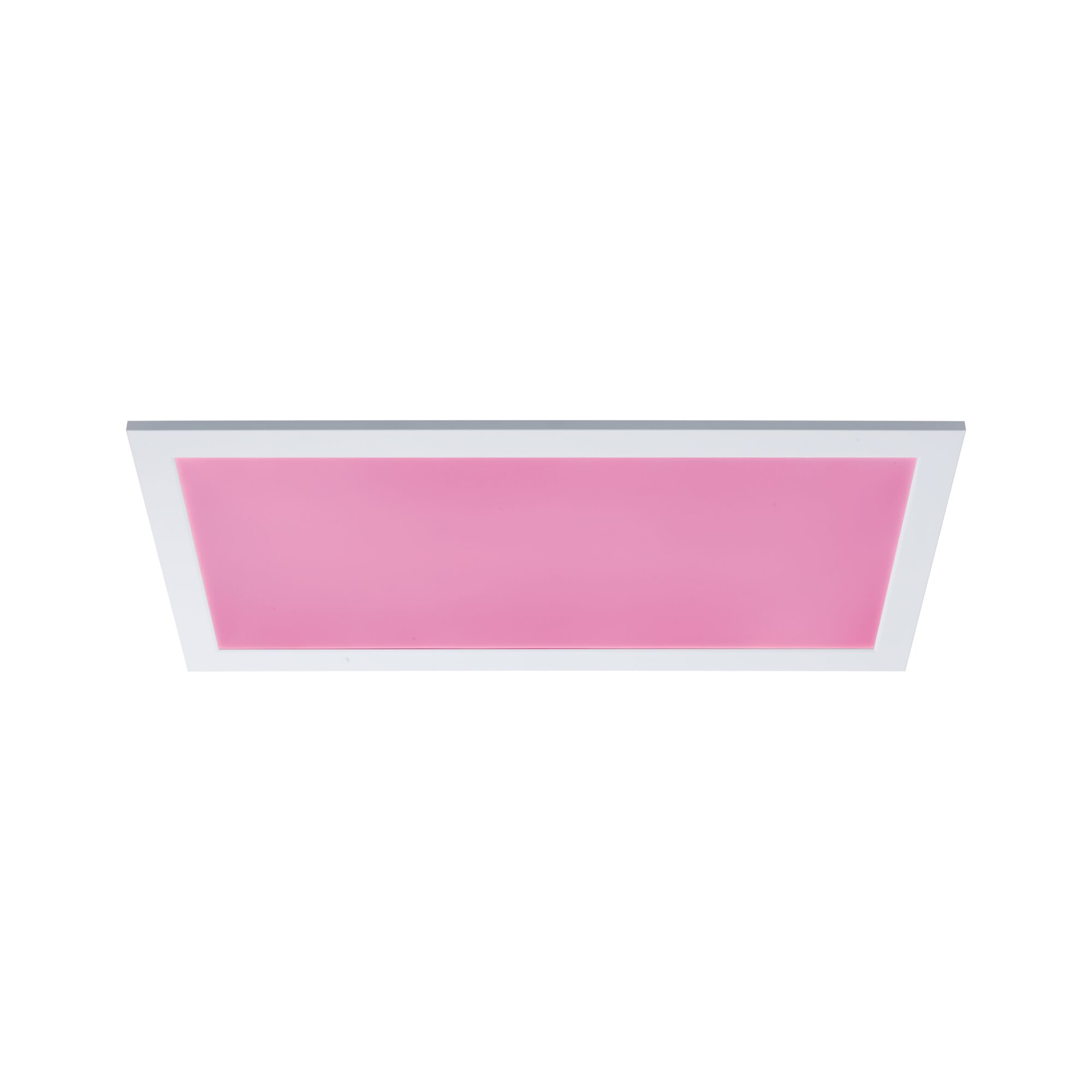

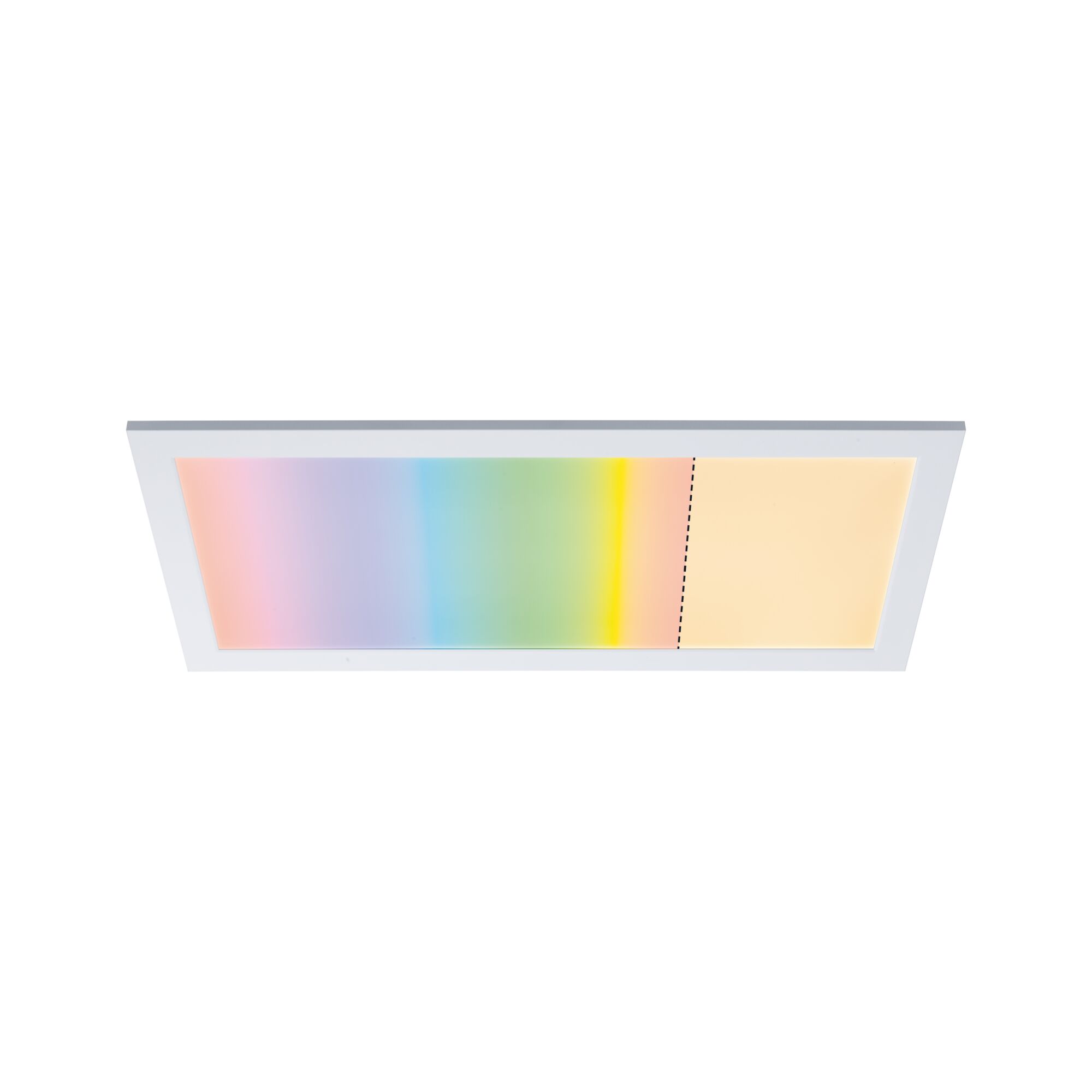

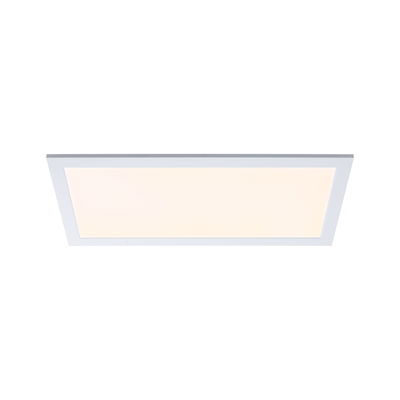

LED Panel
Smart Home Zigbee 3.0
Amaris
square 595x295mm 22W 1800lm RGBW+ Matt white dimmable
square 595x295mm 22W 1800lm RGBW+ Matt white dimmable
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch

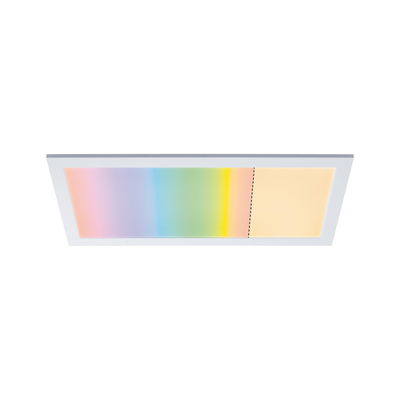

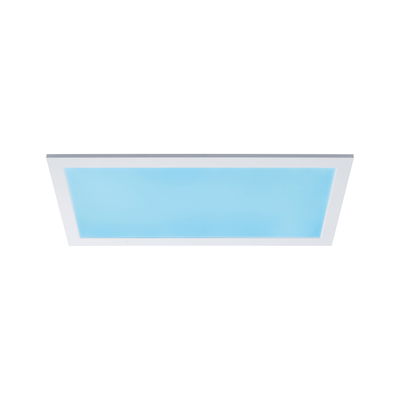

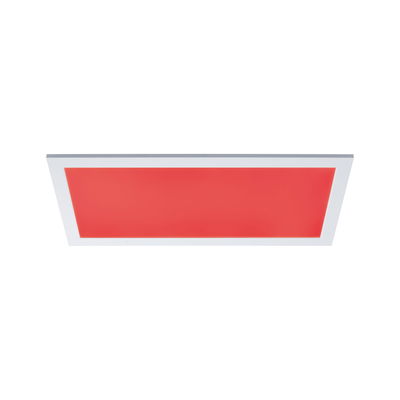

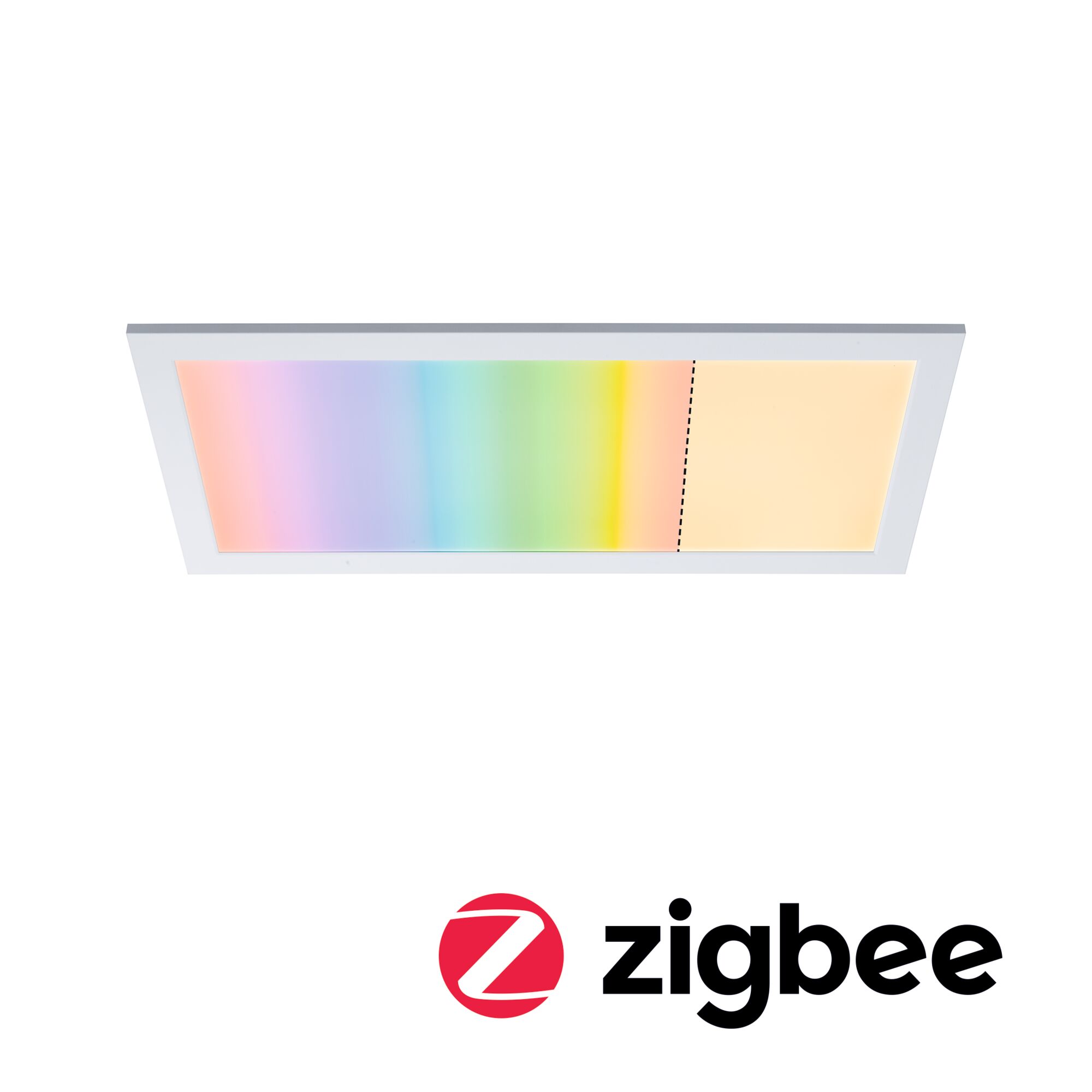

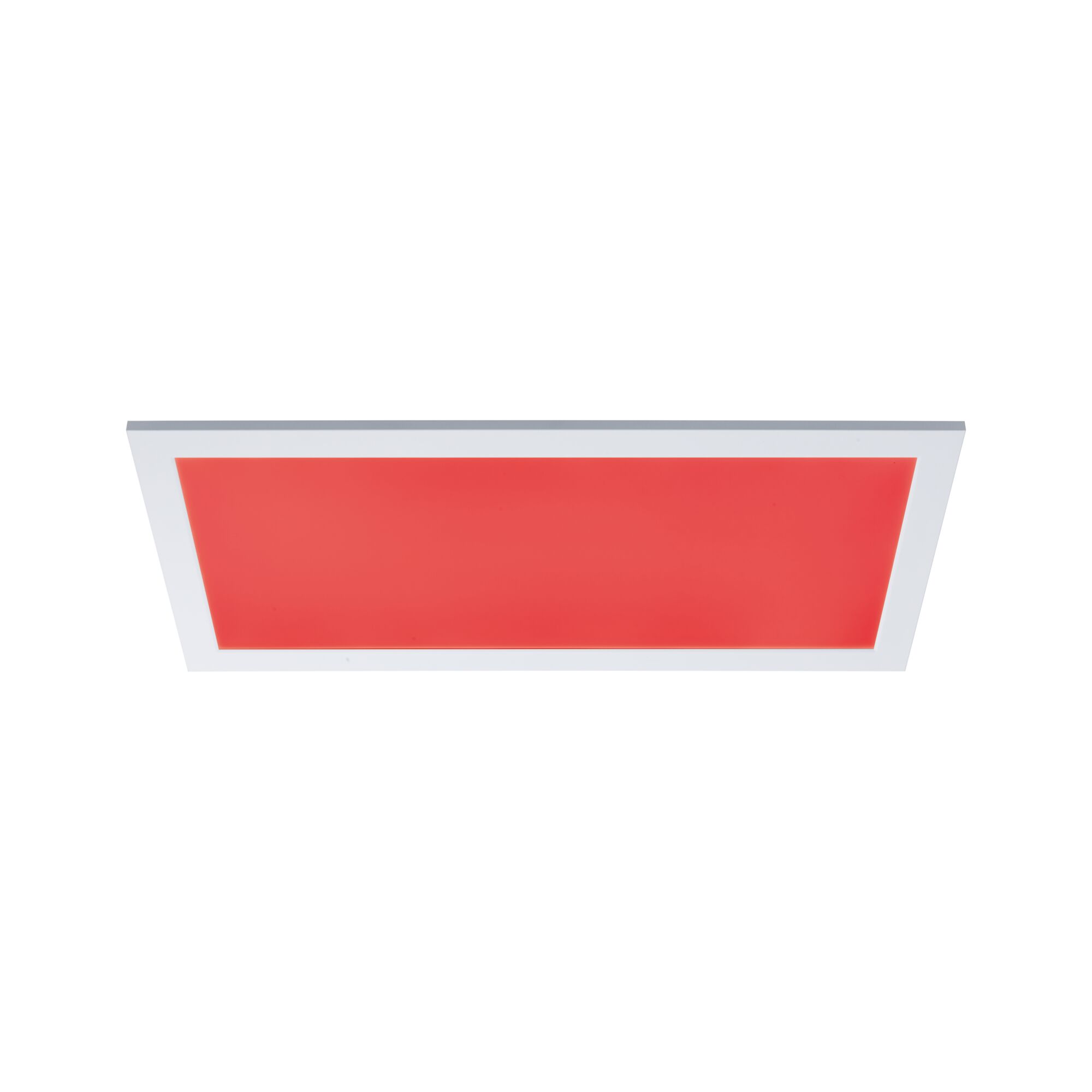

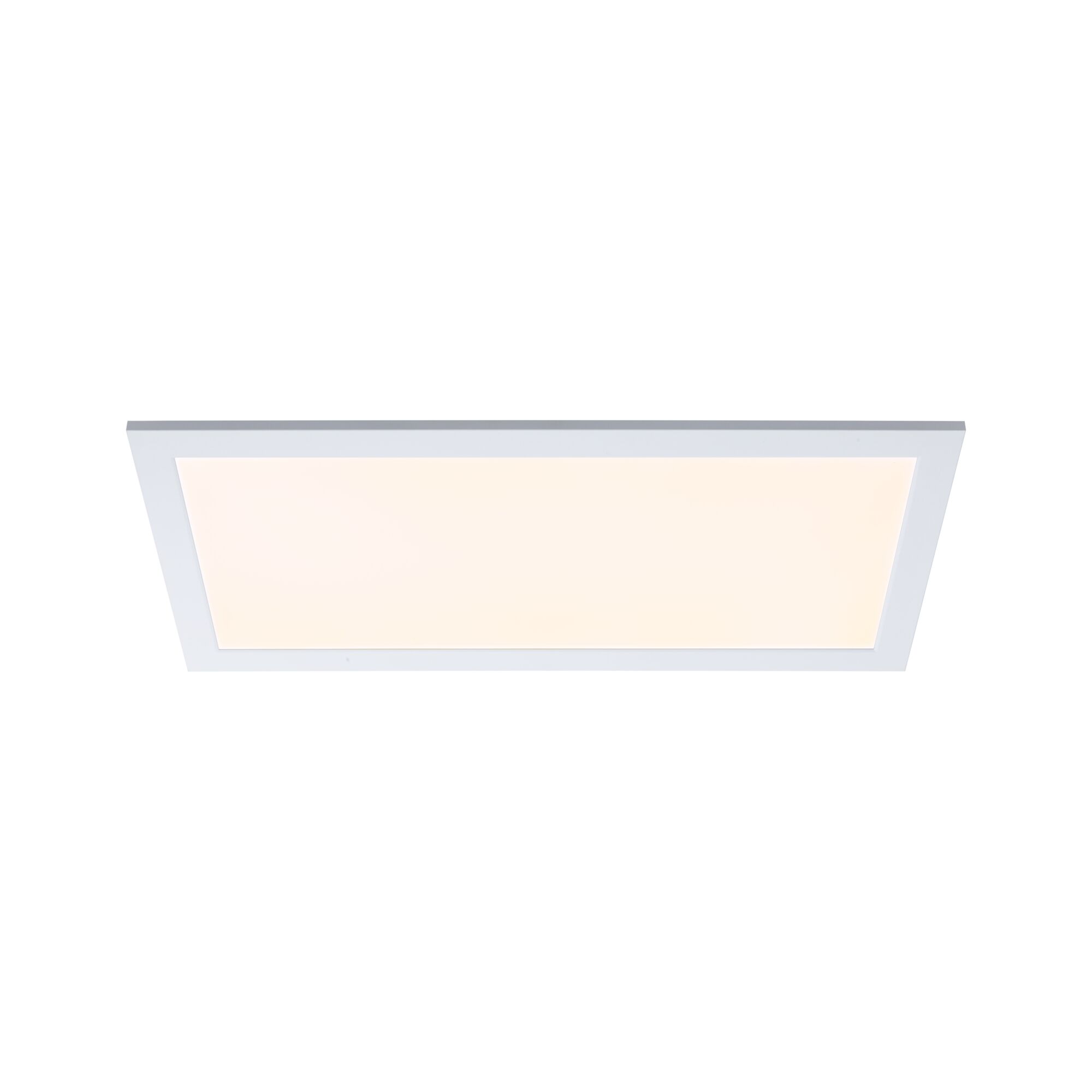

LED Panel Smart Home Zigbee 3.0 Amaris square 595x295mm 22W 1800lm RGBW+ Matt white dimmable

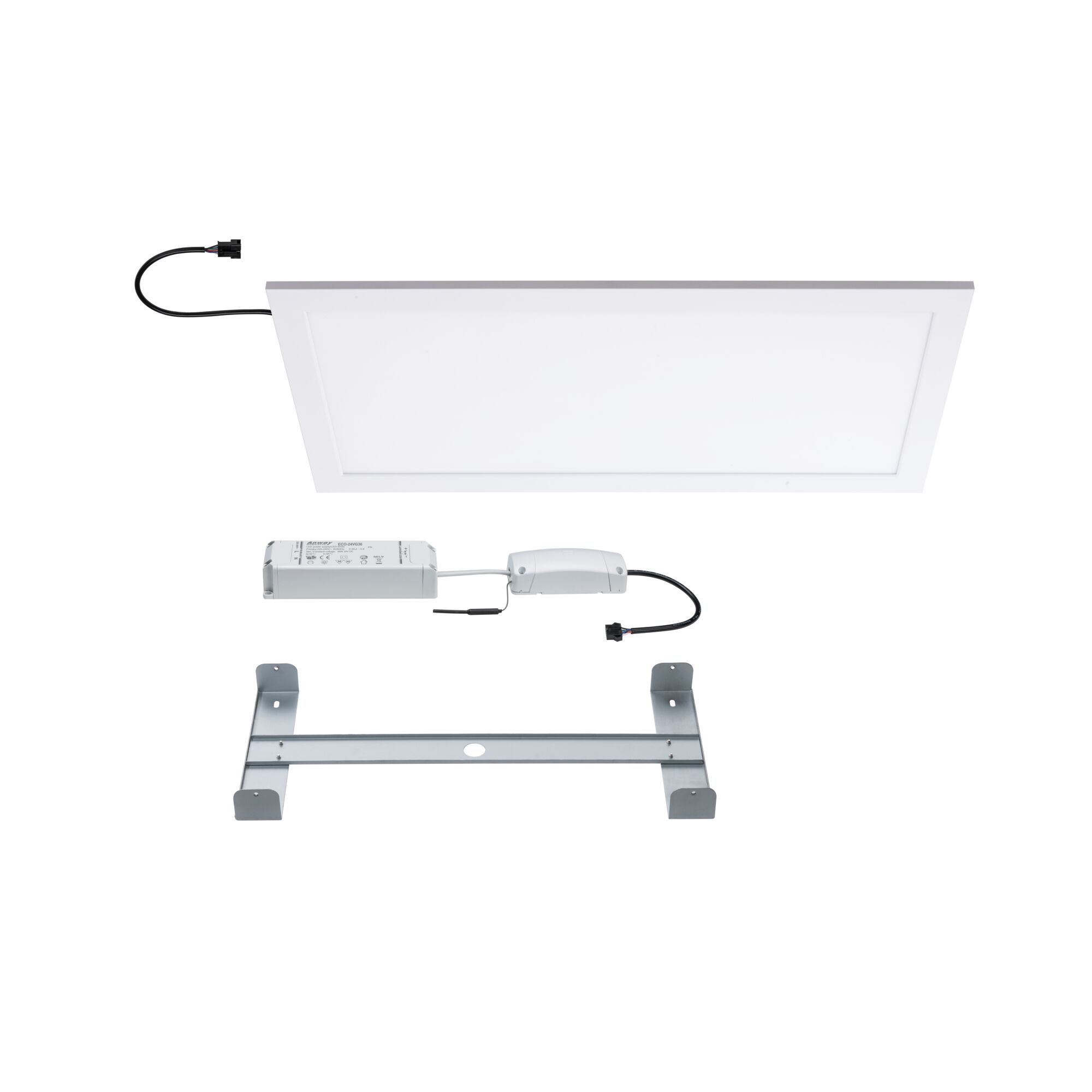

Measuring 595 x 295 mm, the flat Amaris Zigbee 3.0 panel is particularly understated due to its ultra-flat design. The satined finish of the diffuser plate provides pleasant wide-area room lighting. Depending on your mood, you can choose between true warm white, coloured light and various effects. The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that links devices from different manufacturers. Thanks to the sturdy metal substructure, installation is extremely easy and the panel appears to float.
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
- Even room light based on cutting-edge LED technology
- Color temperatur: 2700K - Warm white - 6500K -Daylight white
Dimension | |
---|---|

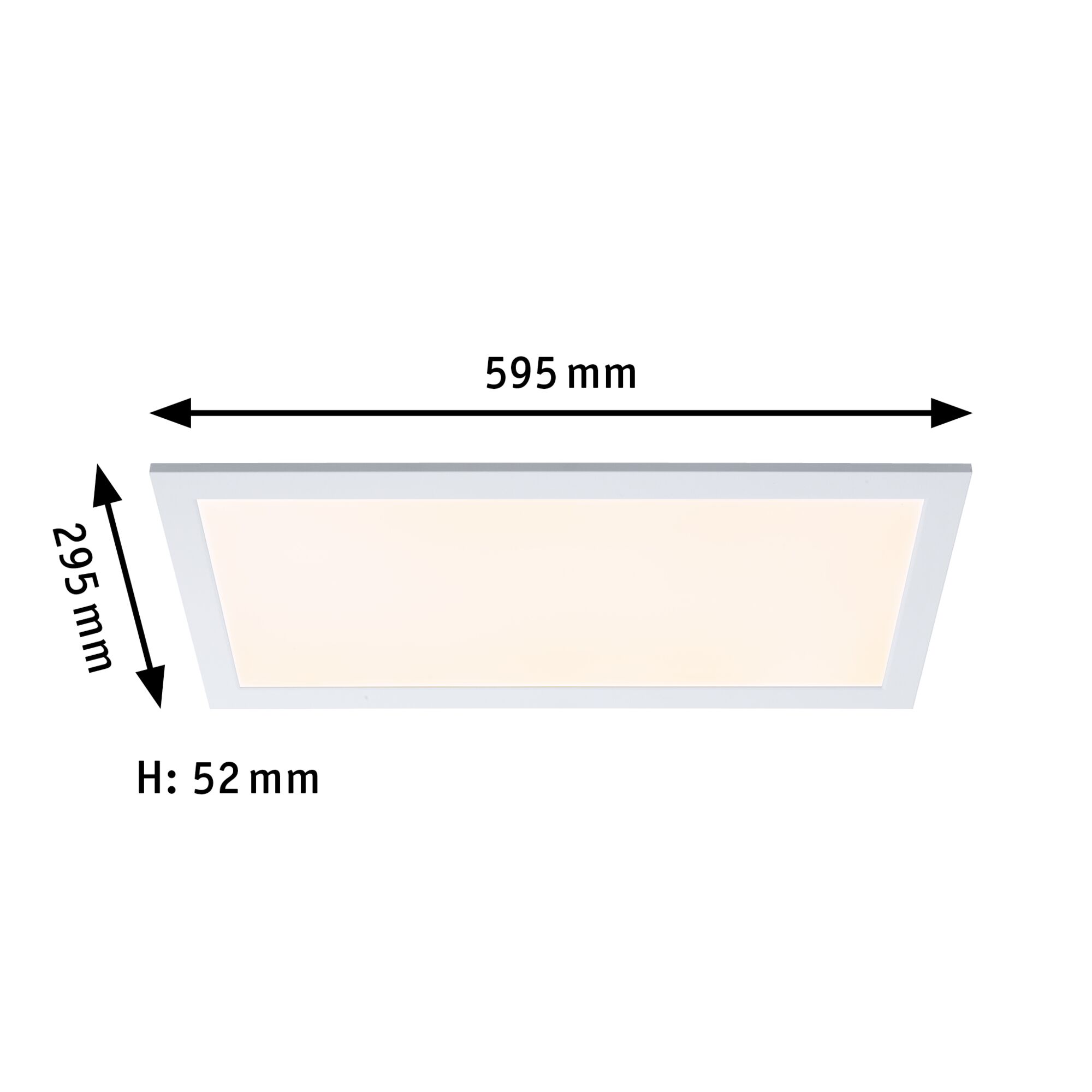

Dimensions (Height x Width x Depth) | H: 52 x B: 595 x T: 295 mm |
Form | square |
Design and Material | |
---|---|
Colour | Matt white |
Material | Metal |
Installation | |
---|---|
can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
Energy consumption | |
---|---|
Energy efficiency (A to G) | F |
Service life | |
---|---|
Lifetime | 30000 h |
Light Characteristics | |
---|---|
Colour temp. | 2700 K |
Colour change | Color change RGBW, Tunable White |
Usable luminous flux | 1800 lm |
Luminous flux LED module | 2300 lm |
color temp | 2700 K |
Lamp Features | |
---|---|
Component parts | 22 W |
Compatible Smart Home technology | Zigbee |
Technique | LED |
Dim | with Smart Home |
Dimmable | Yes |
Inclusive lamp | yes |
Total Width | 595 mm |
Incandescent Equivalent | 142 W |
Number of component parts | 1x |
protection class | protection class II |
Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
Power consumption | 25 W |
Transformer | |
---|---|
Transformer power | 25 VA |
Transformer height | 22 mm |
Transformer width | 43 mm |
Transformer depth | 126 mm |
Labelling | |
---|---|
WEEE-Reg.-No | DE 39236390 |
Smart_Home | |
---|---|
Protocol type | Zigbee 3.0 |
Zigbee certification | Zigbee zertifiziert |
Radio frequency | 2,4 GHz |
Radio range (Open field) | 20 m |
