Article-No.:
79784
LED Pendant luminaire
Smart Home Zigbee 3.0
Puric Pane
2700K 6x450lm 6x6W Black dimmable
2700K 6x450lm 6x6W Black dimmable
- Dimmable
- swivelling
- Color temperatur: 2700K - Warm white
LED Pendant luminaire Smart Home Zigbee 3.0 Puric Pane 2700K 6x450lm 6x6W Black dimmable

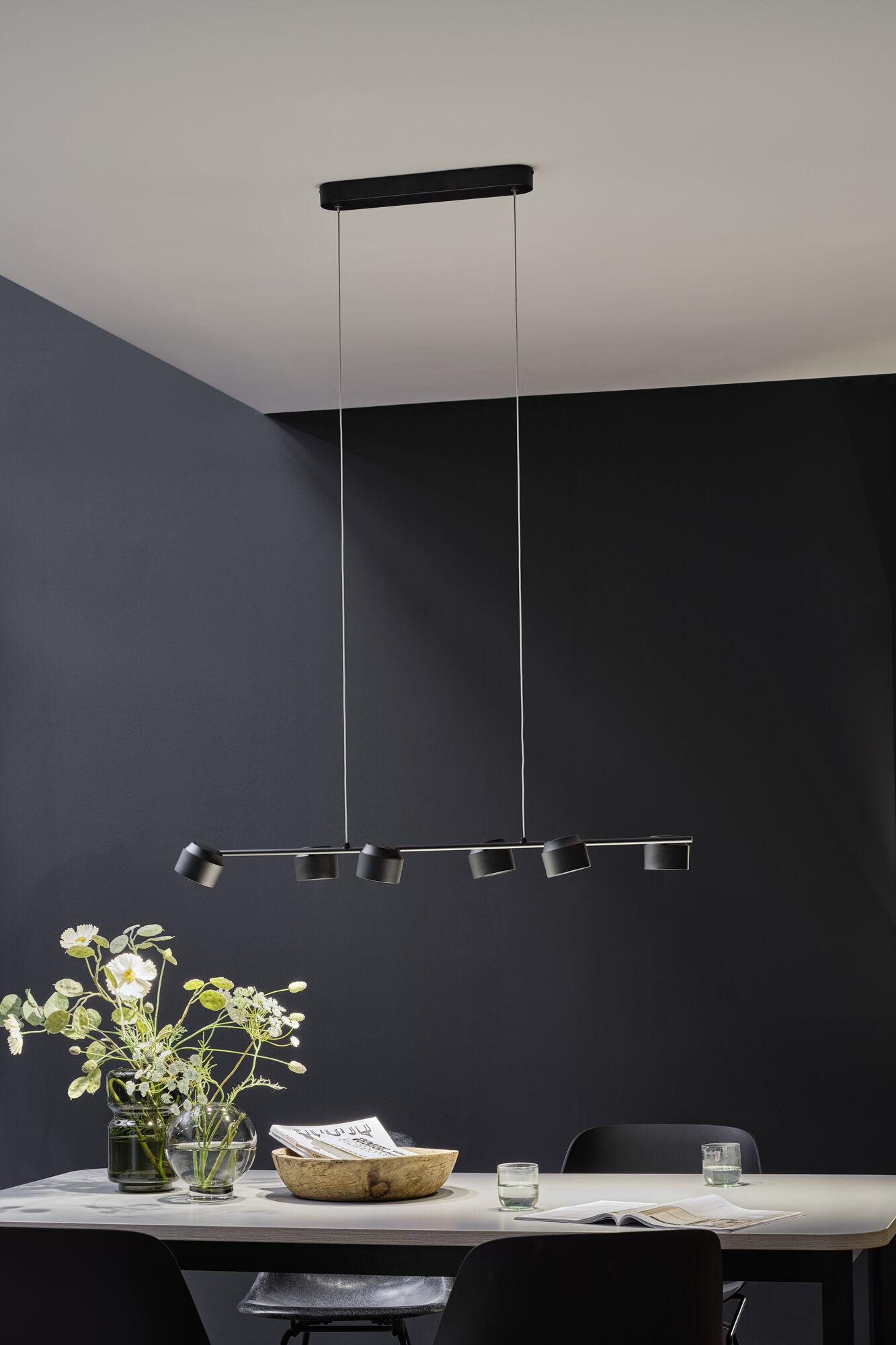

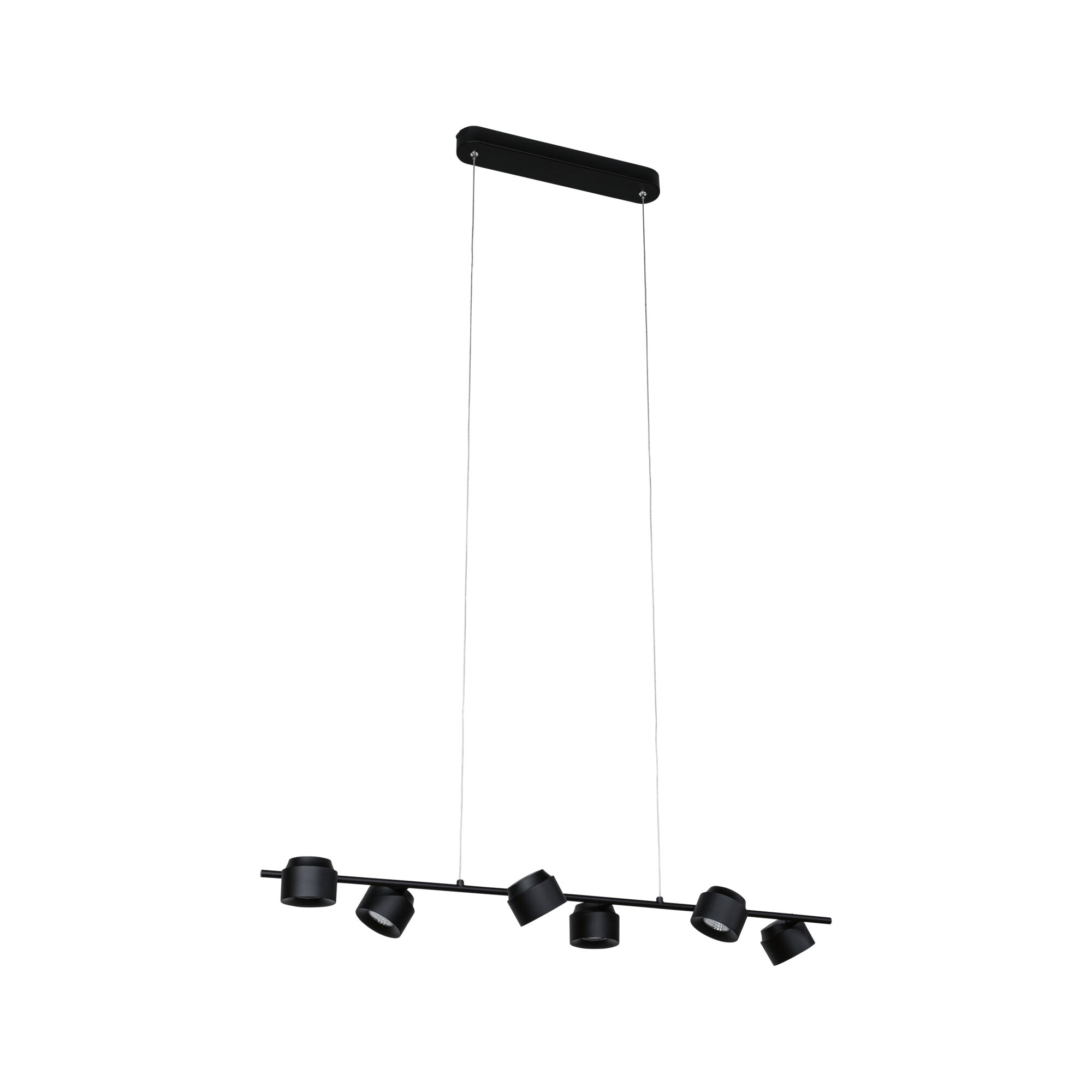

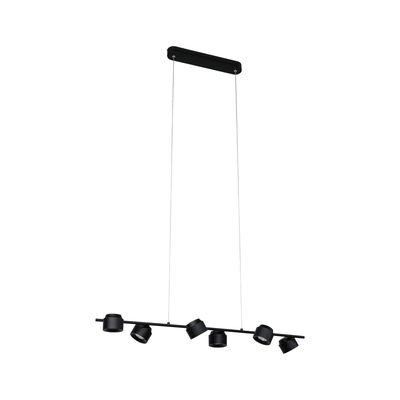

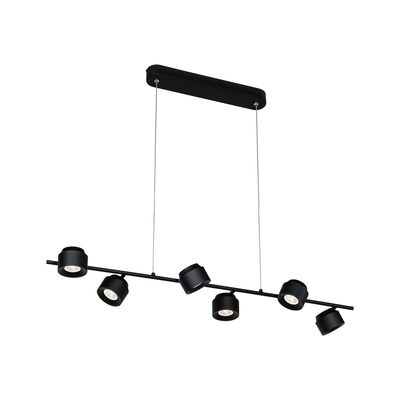

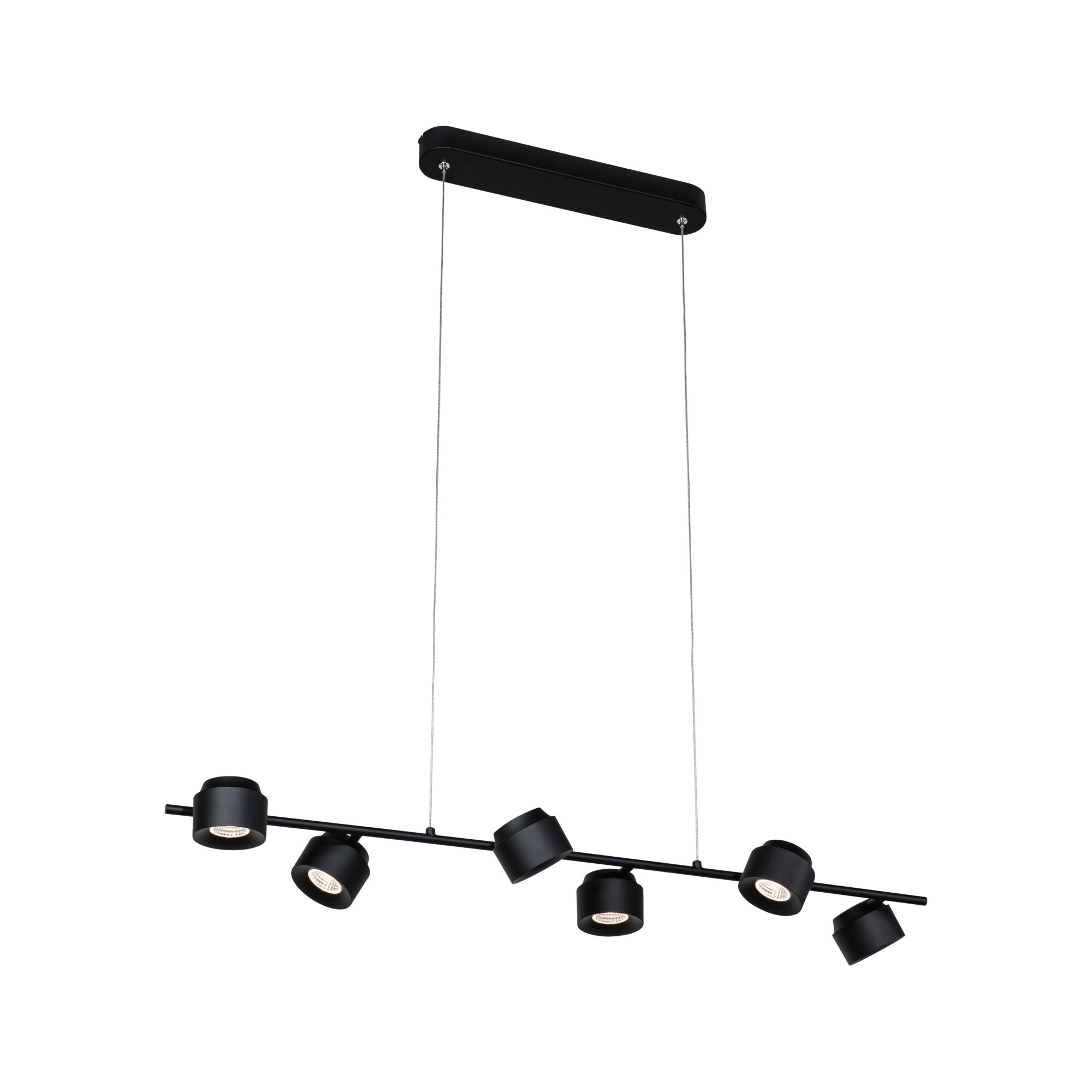

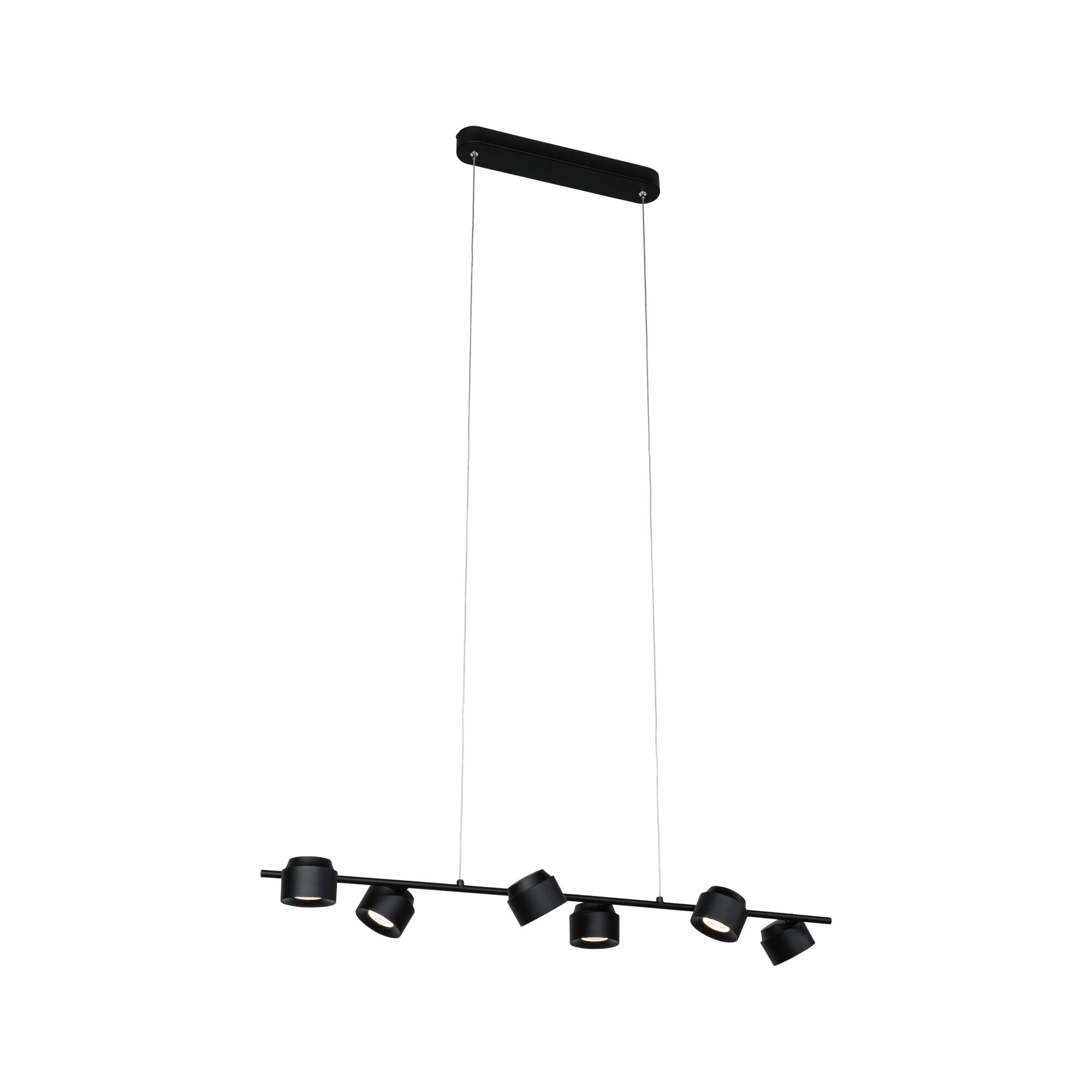

The 6-lamp, smart Puric Pane pendant luminaire in black impresses with its modern, scaled-back design. Thanks to the special facetted lens, the luminaire is particularly efficient. A large part of the light produced on the LED chip is directed to the front. The individual, adjustable spot head and the adjustable pendant height allow for flexible lighting design. With direct or indirect lighting, the pendant luminaire provides captivating lighting effects and is a visual highlight in any room. The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers.
- Dimmable

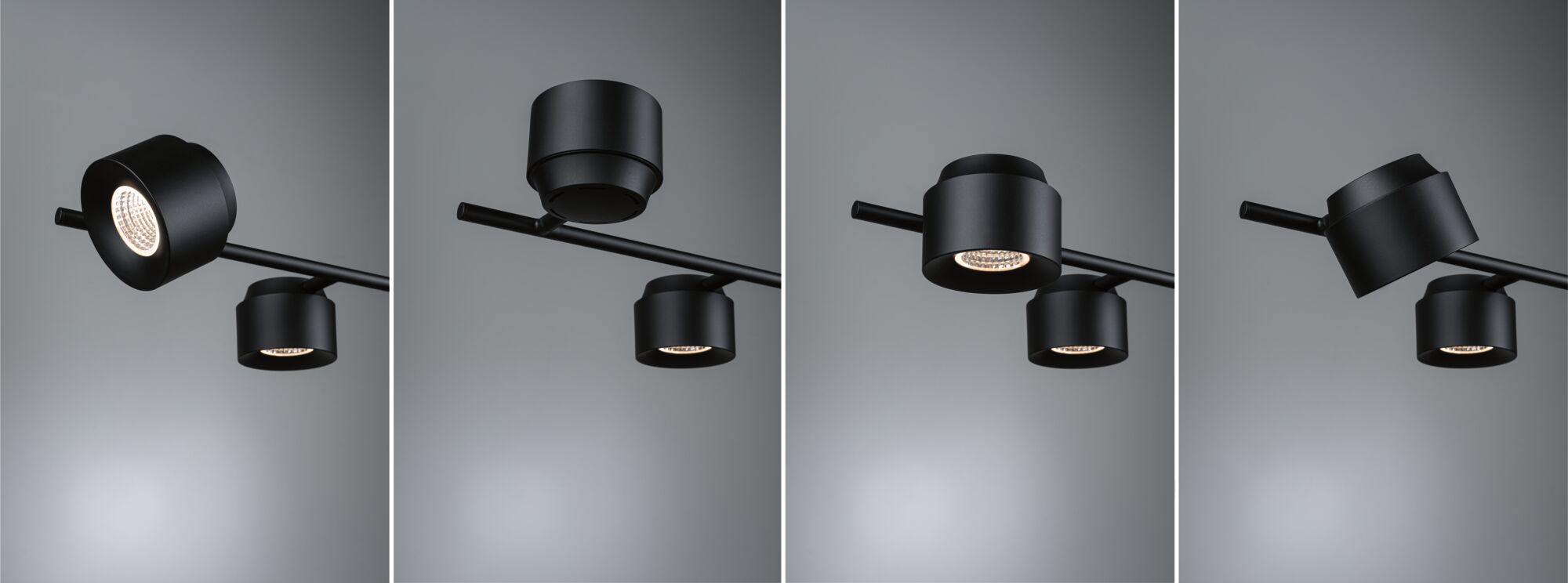

- swivelling
- Color temperatur: 2700K - Warm white

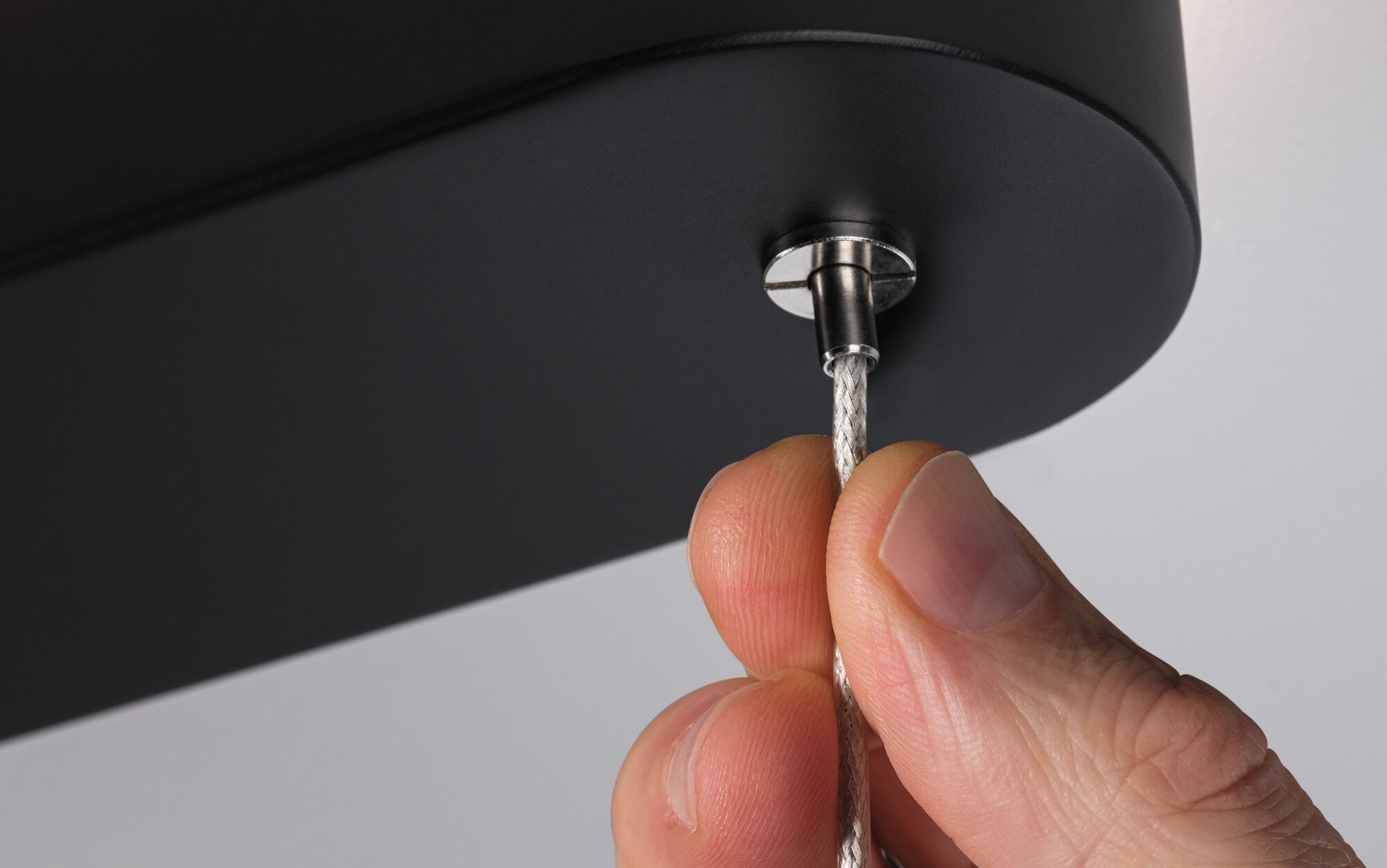

- Pendant length individually adjustable
- LED lamp (fixed) included in scope of delivery
- Controllable with Paulmann Zigbee remote control Gent 500.67
- Usable with smart home gateways that have a Zigbee interface
| Dimension | |
|---|---|

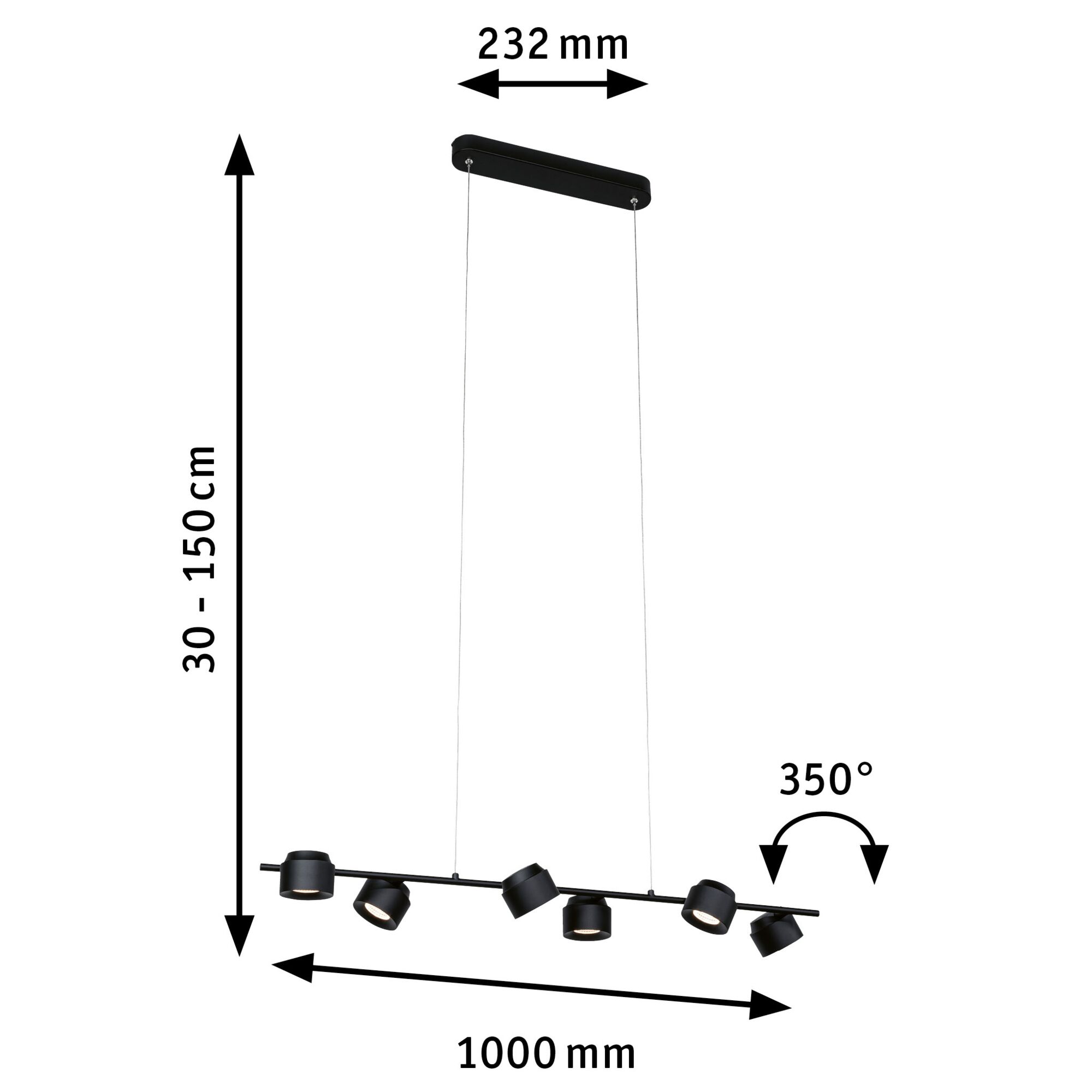

| Dimensions (Height x Width x Depth) | H: 1500 x B: 1000 x T: 232 mm |
| Canopy depth | 38 mm |
| Canopy width | 422 mm |
| Pendulum length range | 30-150 cm |
| Design and Material | |
|---|---|
| Colour | Black |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 55 ° |
| Usable luminous flux | 450 lm |
| Luminous flux LED module | 600 lm |
| color temp | 2700 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 6 W |

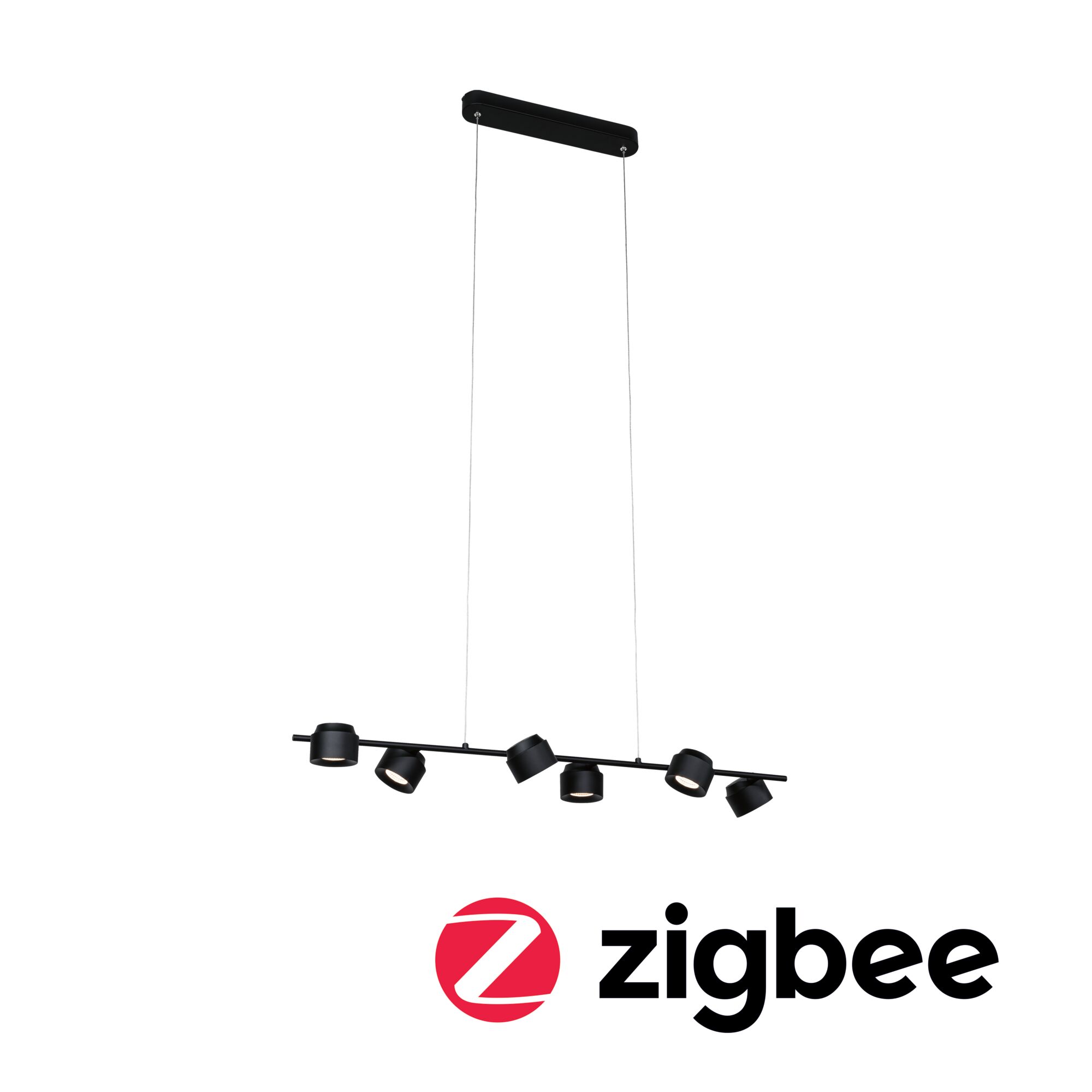

| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| IP protection | IP20 |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Total Width | 1000 mm |
| Incandescent Equivalent | 210 W |
| Number of component parts | 6x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 38 W |
| Transformer | |
|---|---|
| apparent power | 41 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
