Article-No.:
94748
LED Recessed floor luminaire
Vanea seawater resistant
IP67 round 100mm 3000K 3,5W 160lm 230V 93° Aluminium Aluminium
IP67 round 100mm 3000K 3,5W 160lm 230V 93° Aluminium Aluminium
- Seawater-resistant luminaire for use by the coast
- Color temperatur: 3000K - Warm white
- IP Protection: IP67 - protected against temporary immersion

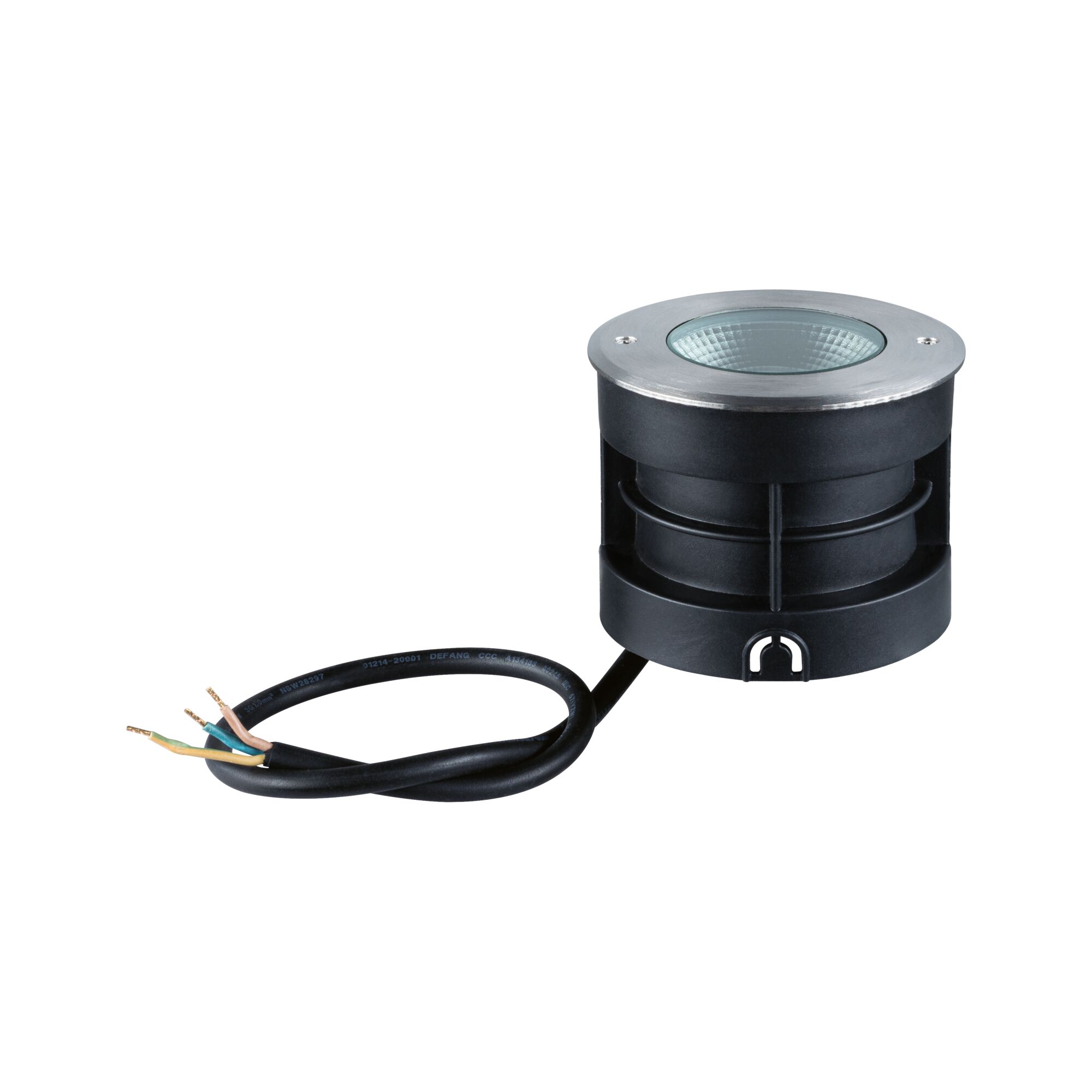

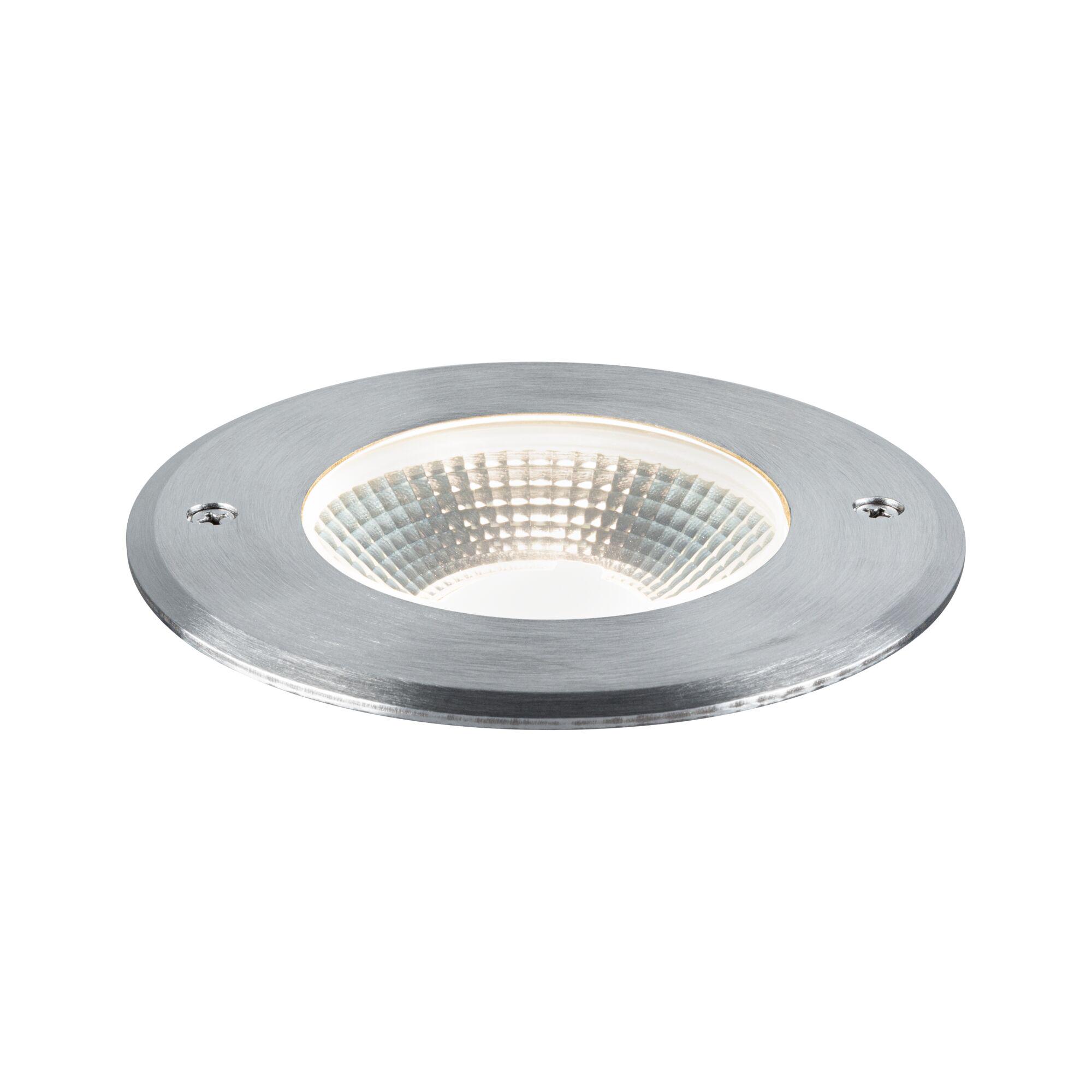

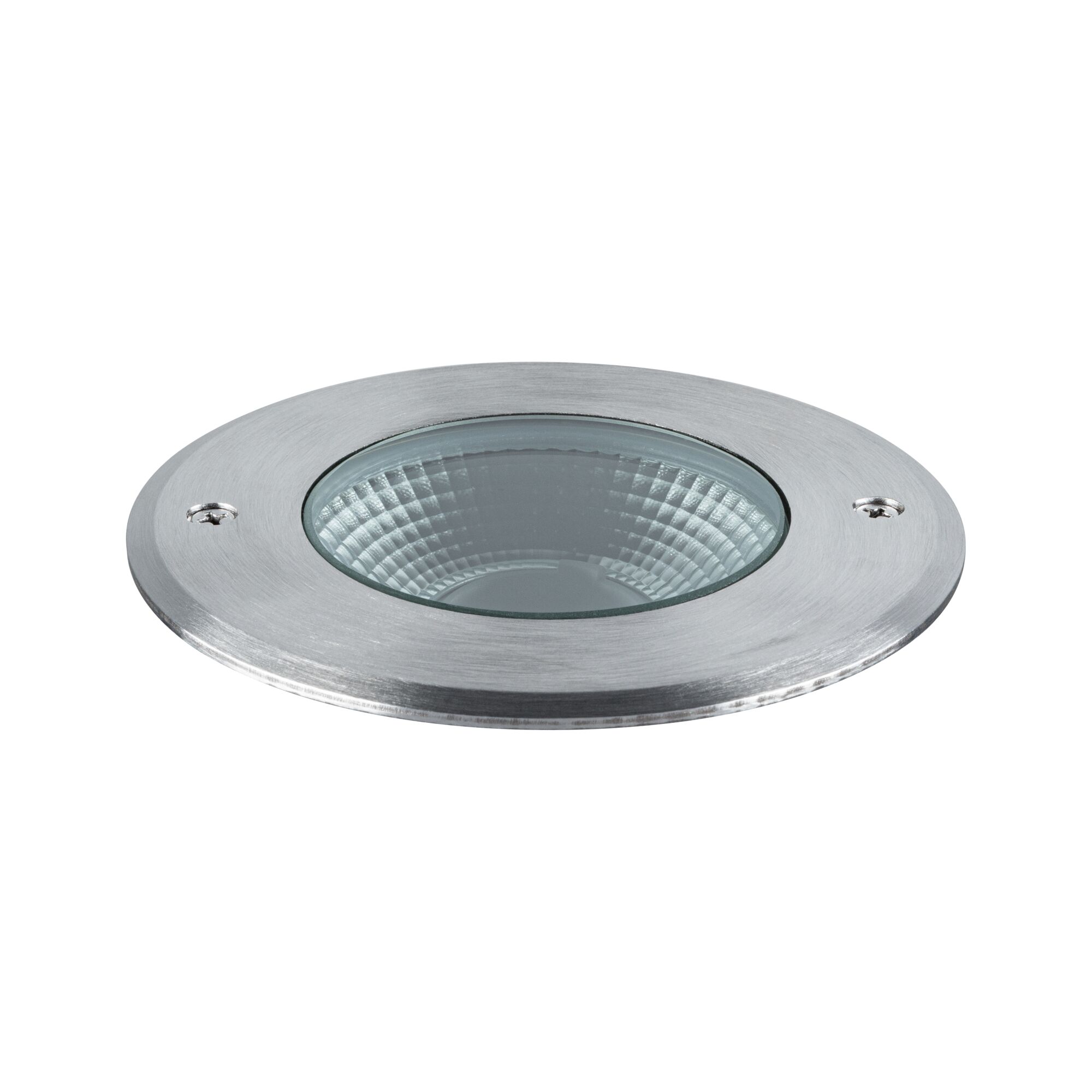

LED Recessed floor luminaire Vanea seawater resistant IP67 round 100mm 3000K 3,5W 160lm 230V 93° Aluminium Aluminium

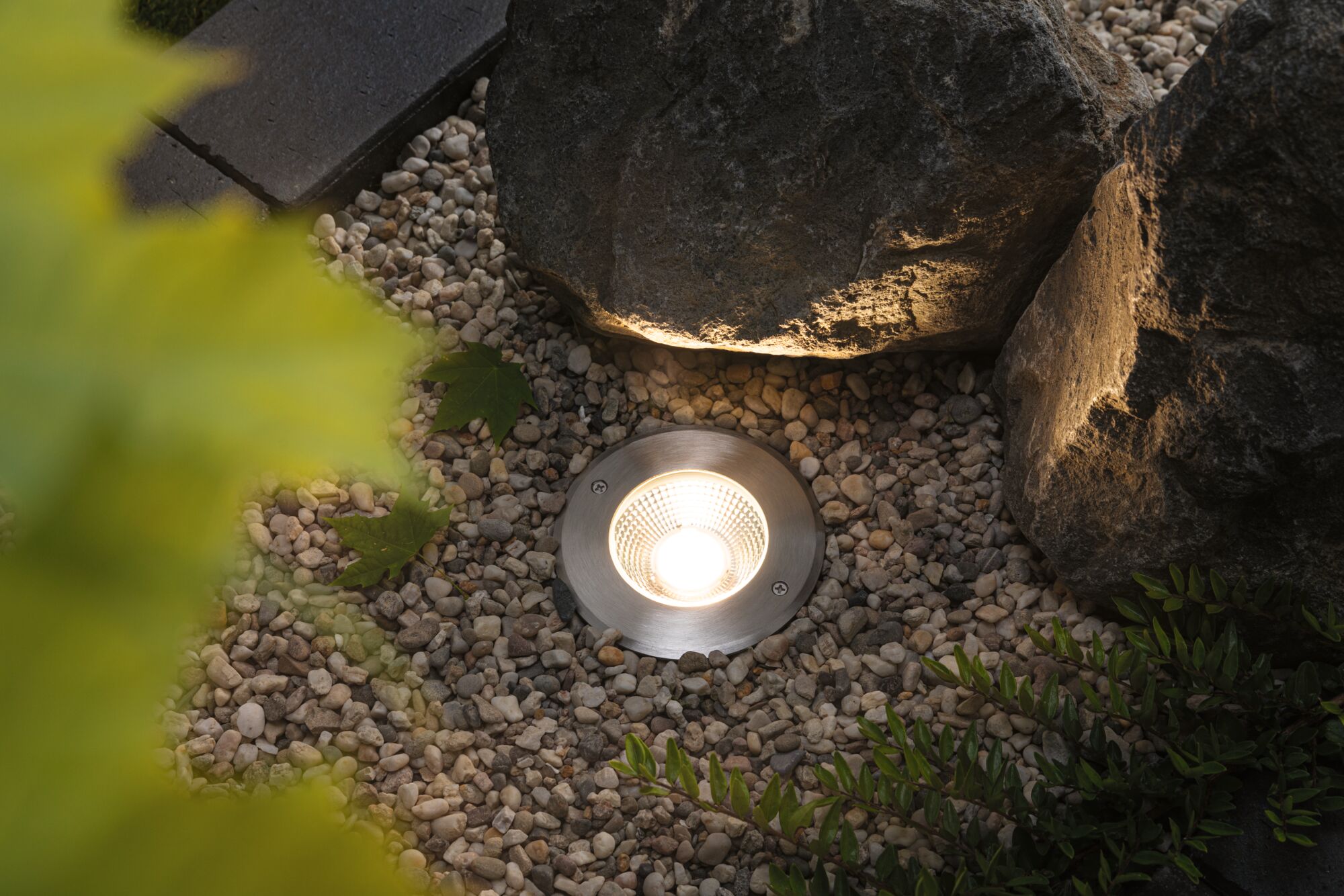

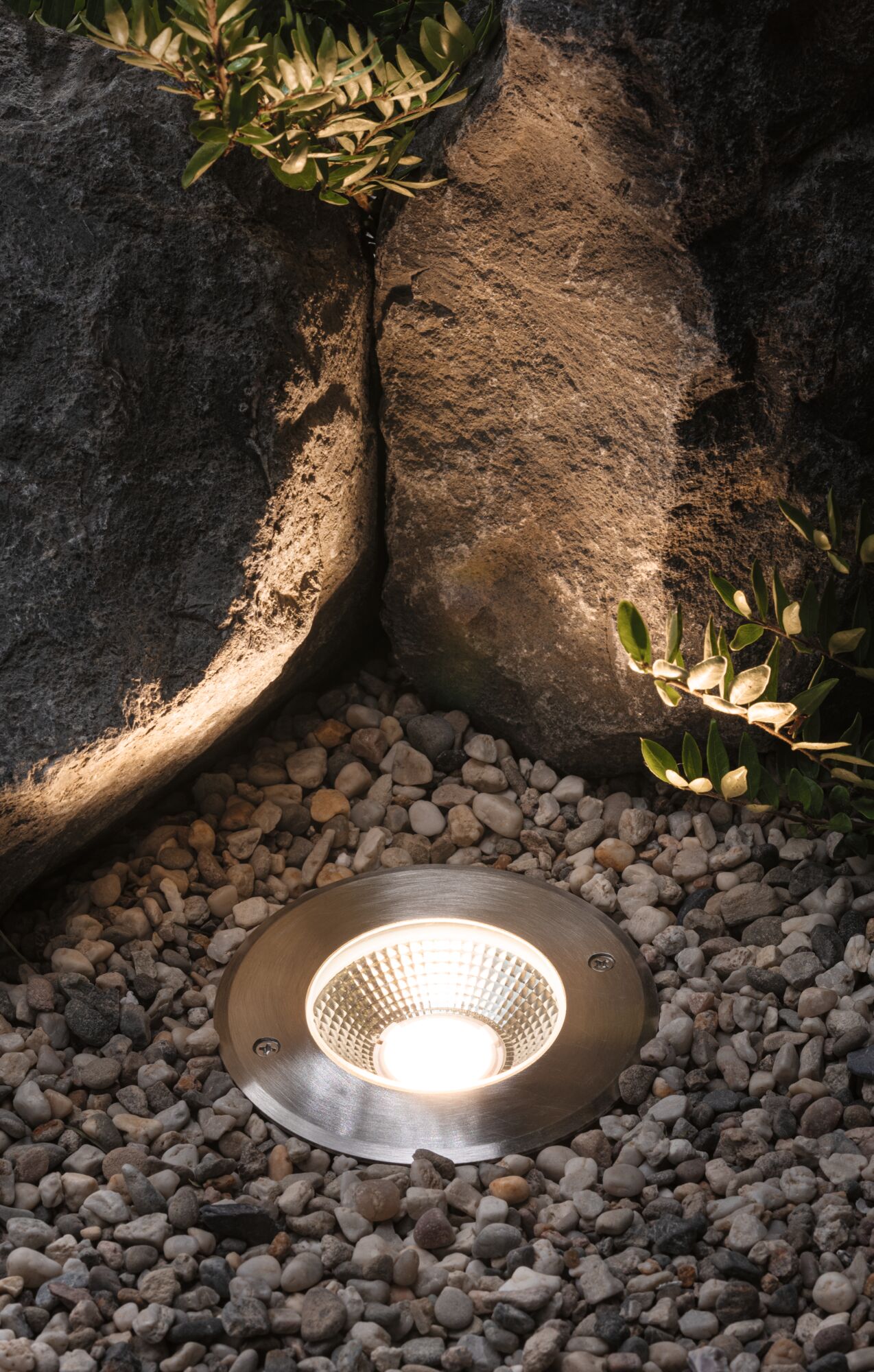

The warm white, round Vanea recessed floor luminaire with a diameter of 100 mm is a special eye-catcher and sets light accents on driveways and walkways. Thanks to protection class IP67, it is protected against splashing water from all sides, and suitable for installation underfoot in outdoor areas. The Vanea recessed floor luminaire improves safety along paths and on patios in the dark. It creates a unique atmosphere in the garden.
- Seawater-resistant luminaire for use by the coast
- Color temperatur: 3000K - Warm white
- IP Protection: IP67 - protected against temporary immersion
- LED lamp (fixed) included in scope of delivery
- For 230 V direct connection
- Color: Alu
| Dimension | |
|---|---|

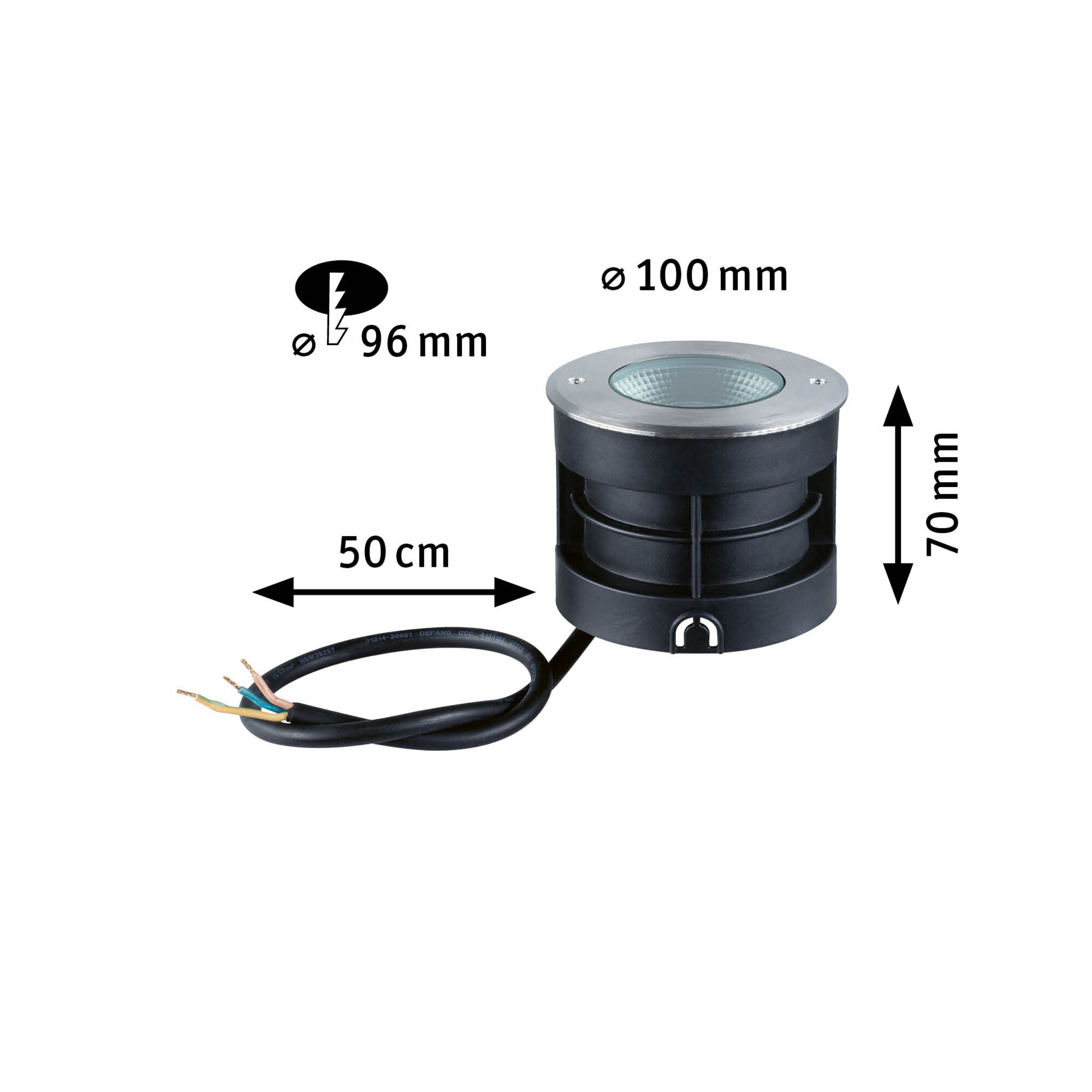

| Dimensions (Height x Width x Depth) | H: 78 mm |
| Ø | 100 mm |
| Mounting hole | 96 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Aluminium |
| Material | Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 93 ° |
| Usable luminous flux | 160 lm |
| Luminous flux LED module | 280 lm |
| color temp | 3000 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 3,5 W |
| Technique | LED |
| IP protection | IP67 |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 28 W |
| Number of component parts | 1x |
| protection class | protection class I |
| Maximum load | 500 kg |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 3,5 W |
| Transformer | |
|---|---|
| apparent power | 4 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
