Article-No.:
93379

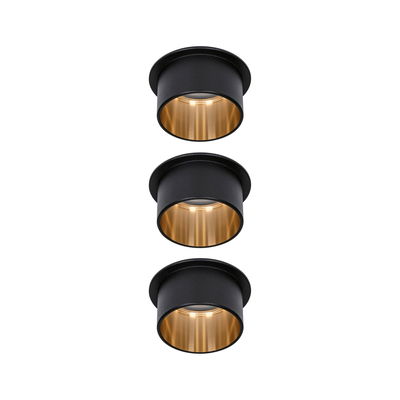

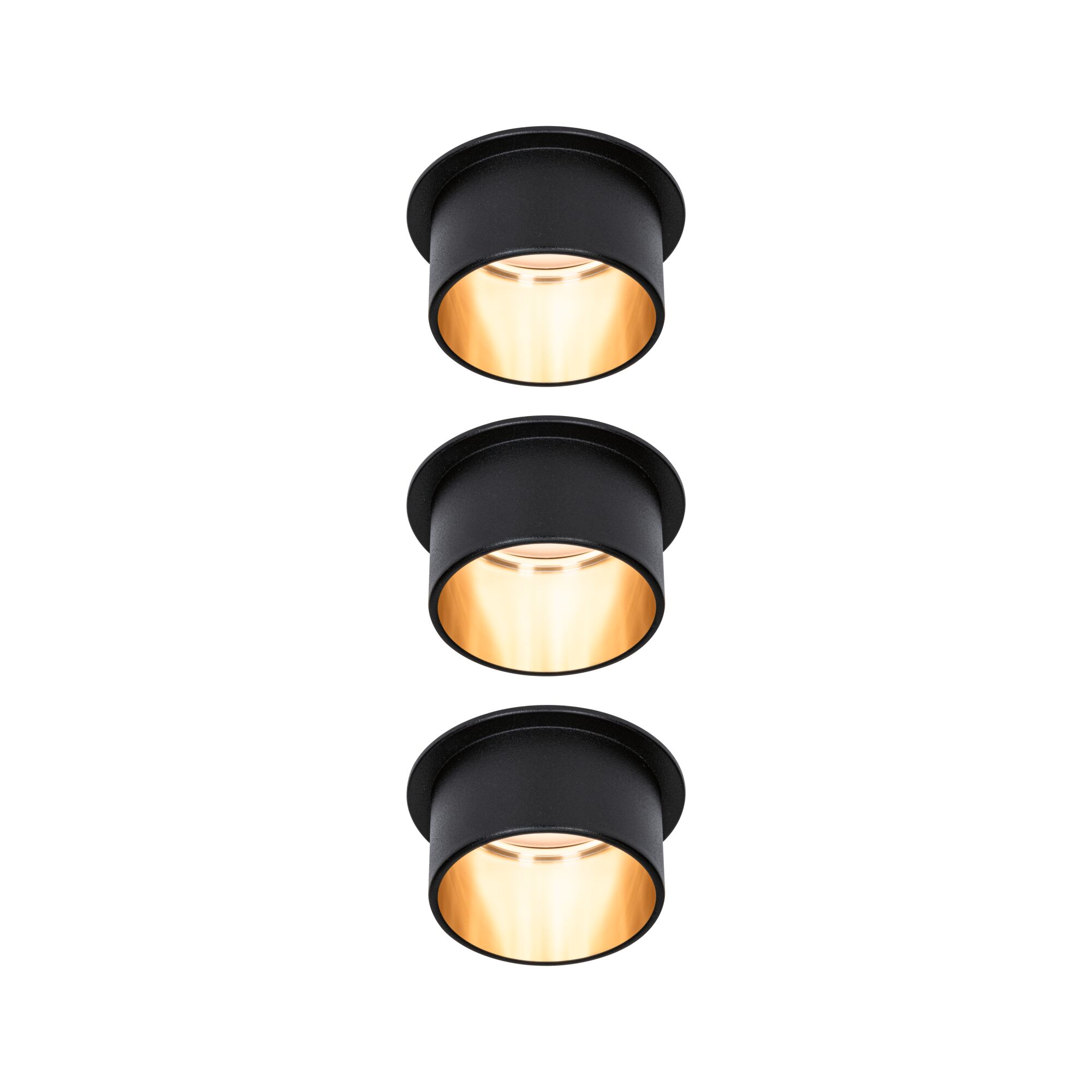

LED Recessed luminaire
3-Step-Dim
Gil Coin Basic Set
IP44 round 68mm Coin 3x6W 3x470lm 230V dimmable 2700K Black matt/Gold
IP44 round 68mm Coin 3x6W 3x470lm 230V dimmable 2700K Black matt/Gold
- Can be dimmed with a standard light switch, with 3 dimming levels
- Incl. replaceable LED lamp
- Color temperatur: 2700K - Warm white

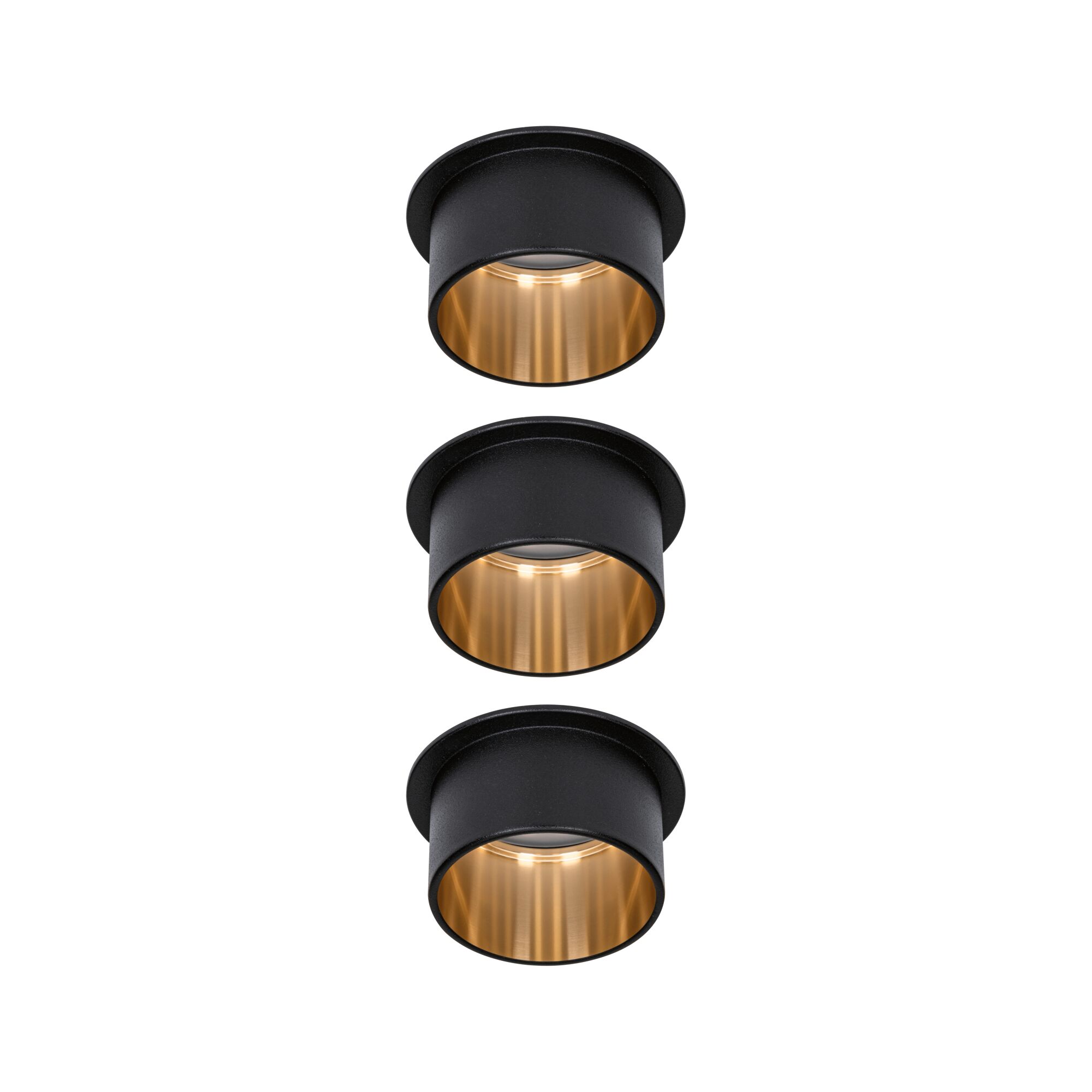

LED Recessed luminaire 3-Step-Dim Gil Coin Basic Set IP44 round 68mm Coin 3x6W 3x470lm 230V dimmable 2700K Black matt/Gold

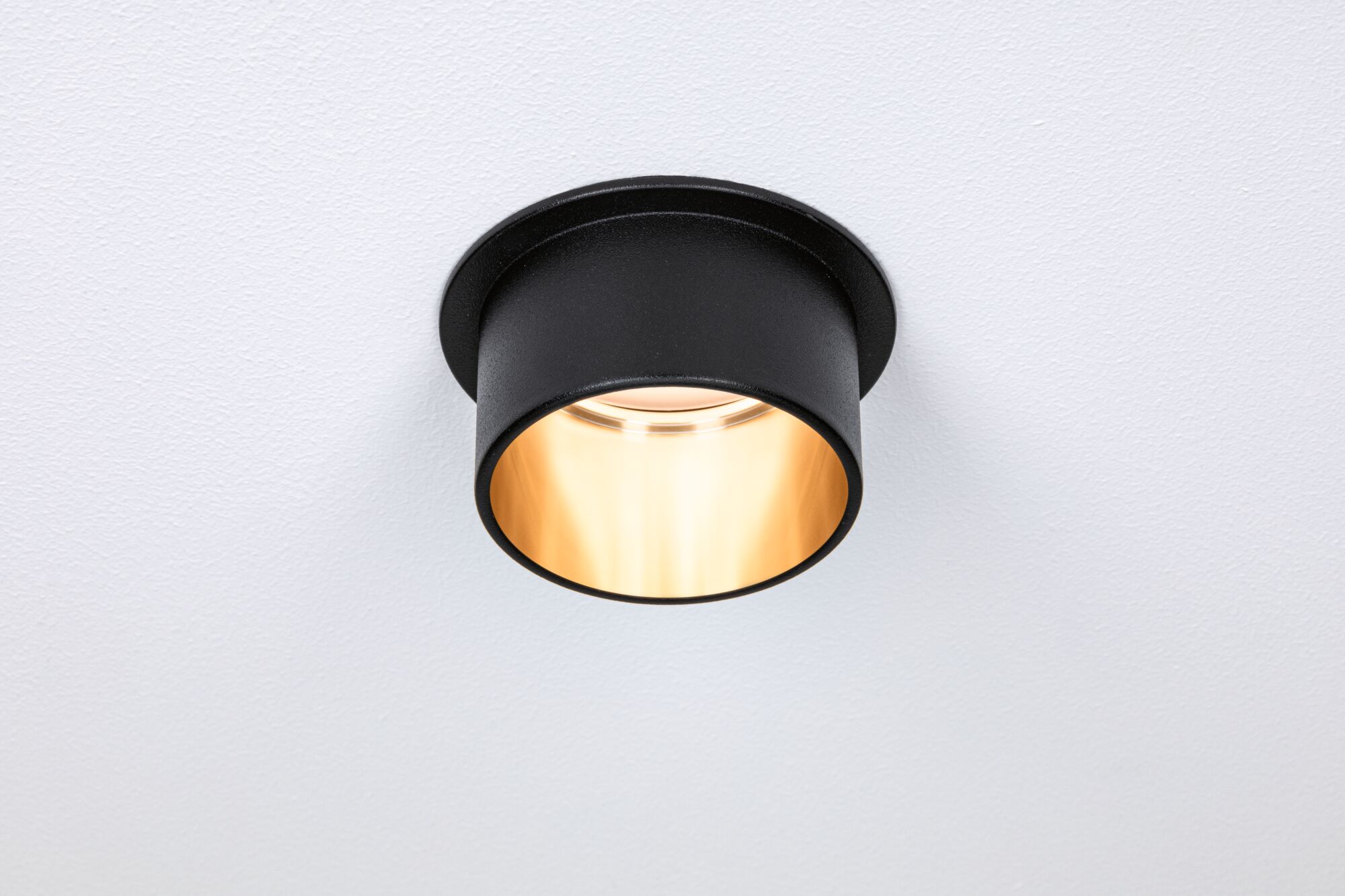

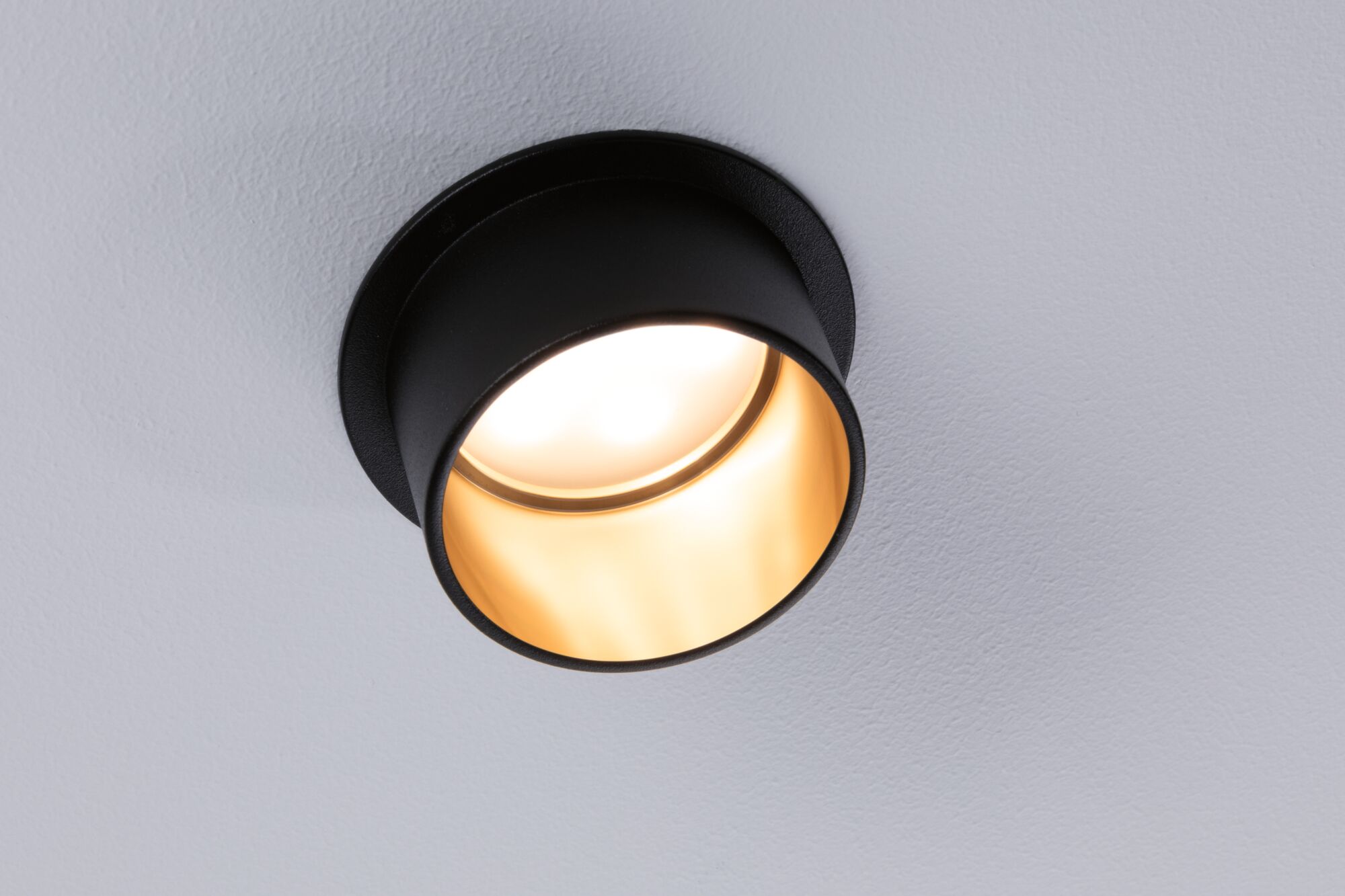

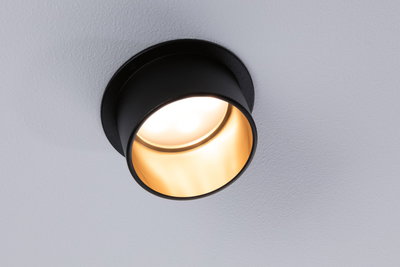

With its two-tone design, the decorative Gil recessed luminaire 3-piece set in Black matt/Gold makes for a real lighting highlight and sets glare-free accents on the ceiling. The protruding decorative cylinder requires a shallower installation depth than the recessed light points. Once you see it, you won’t want to look away The spotlights score points with brilliant technology: The replaceable LED coins provide pleasant warm white light, can be dimmed in three steps using a conventional light switch and can be chained together in an unlimited number. They require a bore of 62 mm.
- Can be dimmed with a standard light switch, with 3 dimming levels
- Incl. replaceable LED lamp
- Color temperatur: 2700K - Warm white

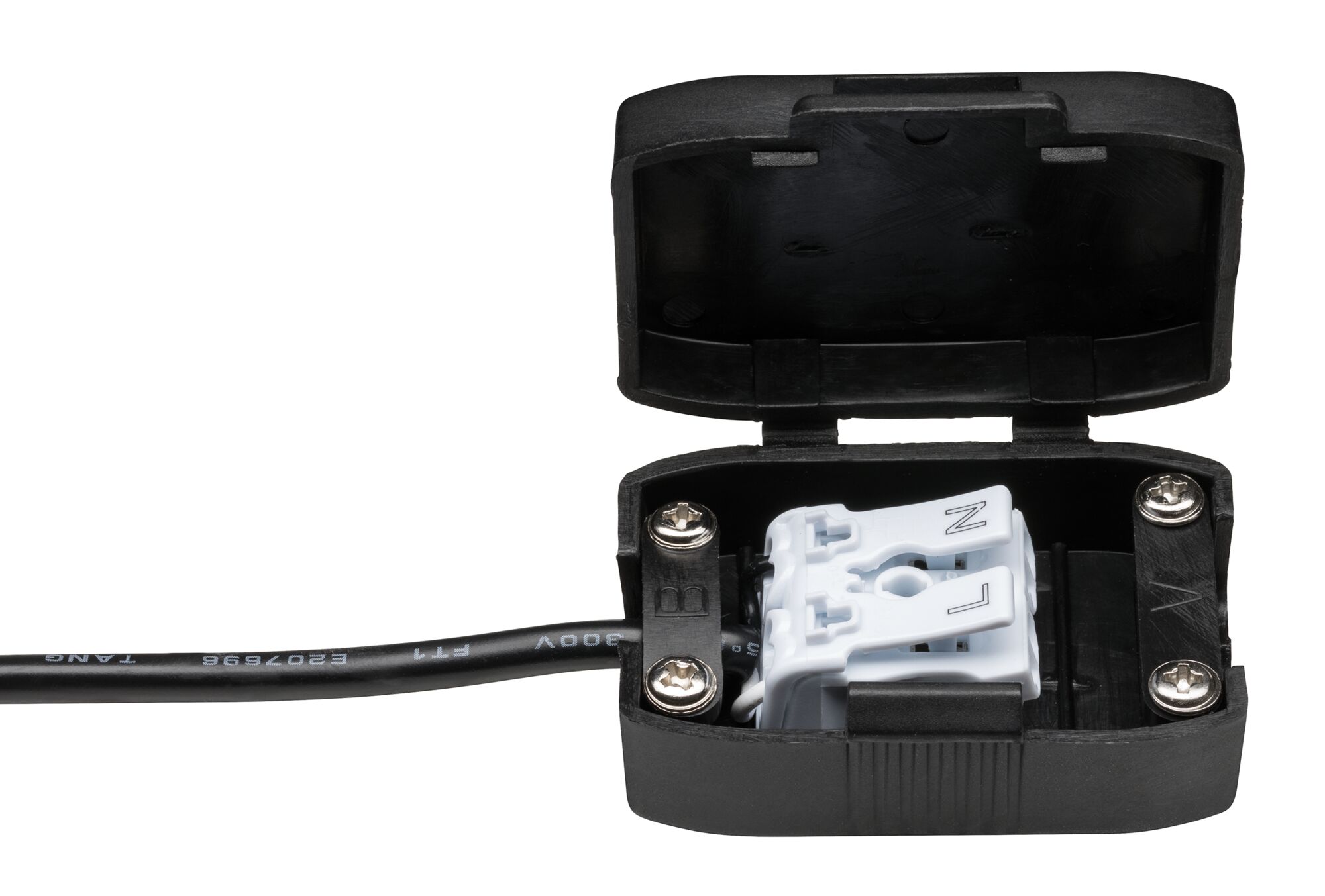

- For 230 V direct connection

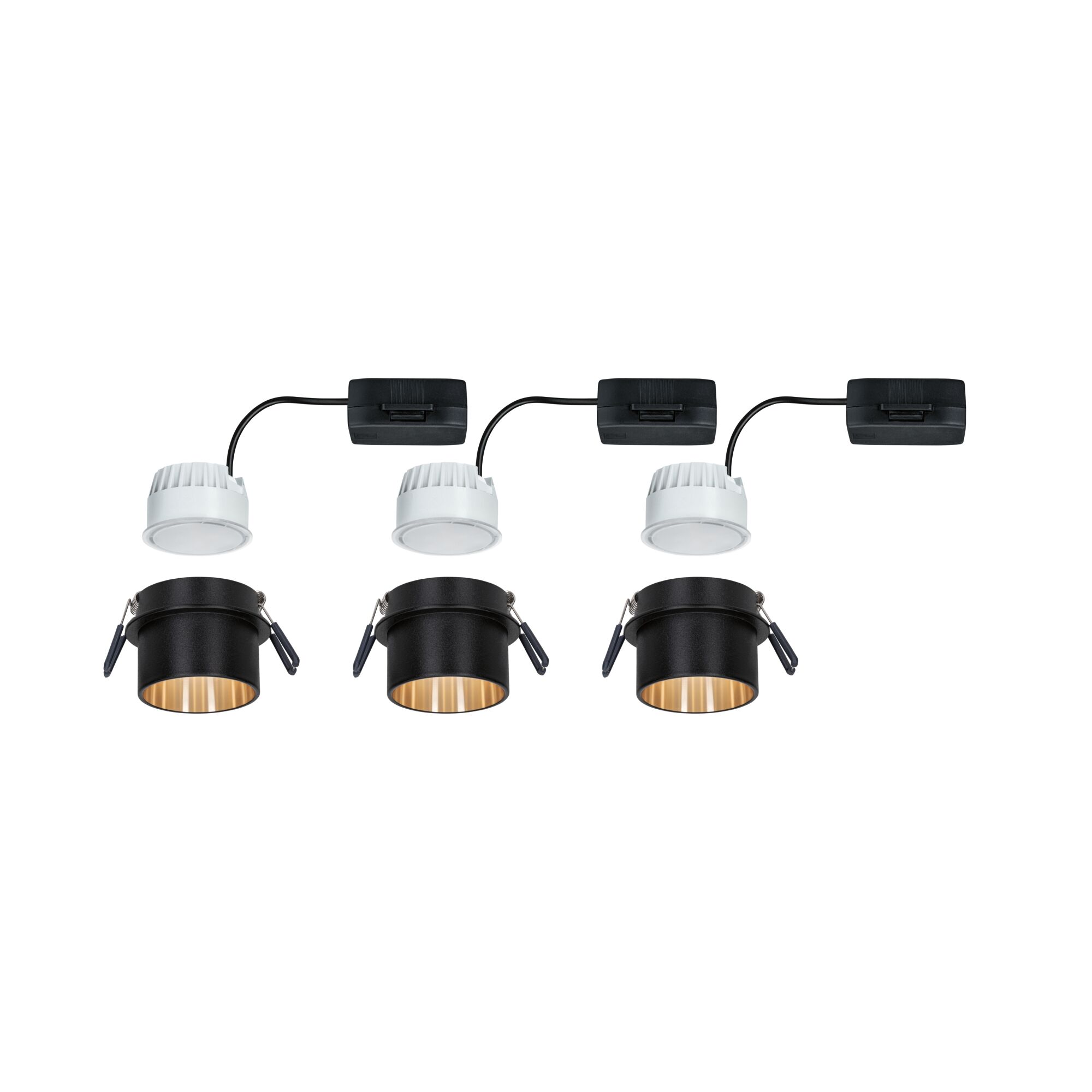

- Set of 3 luminaires

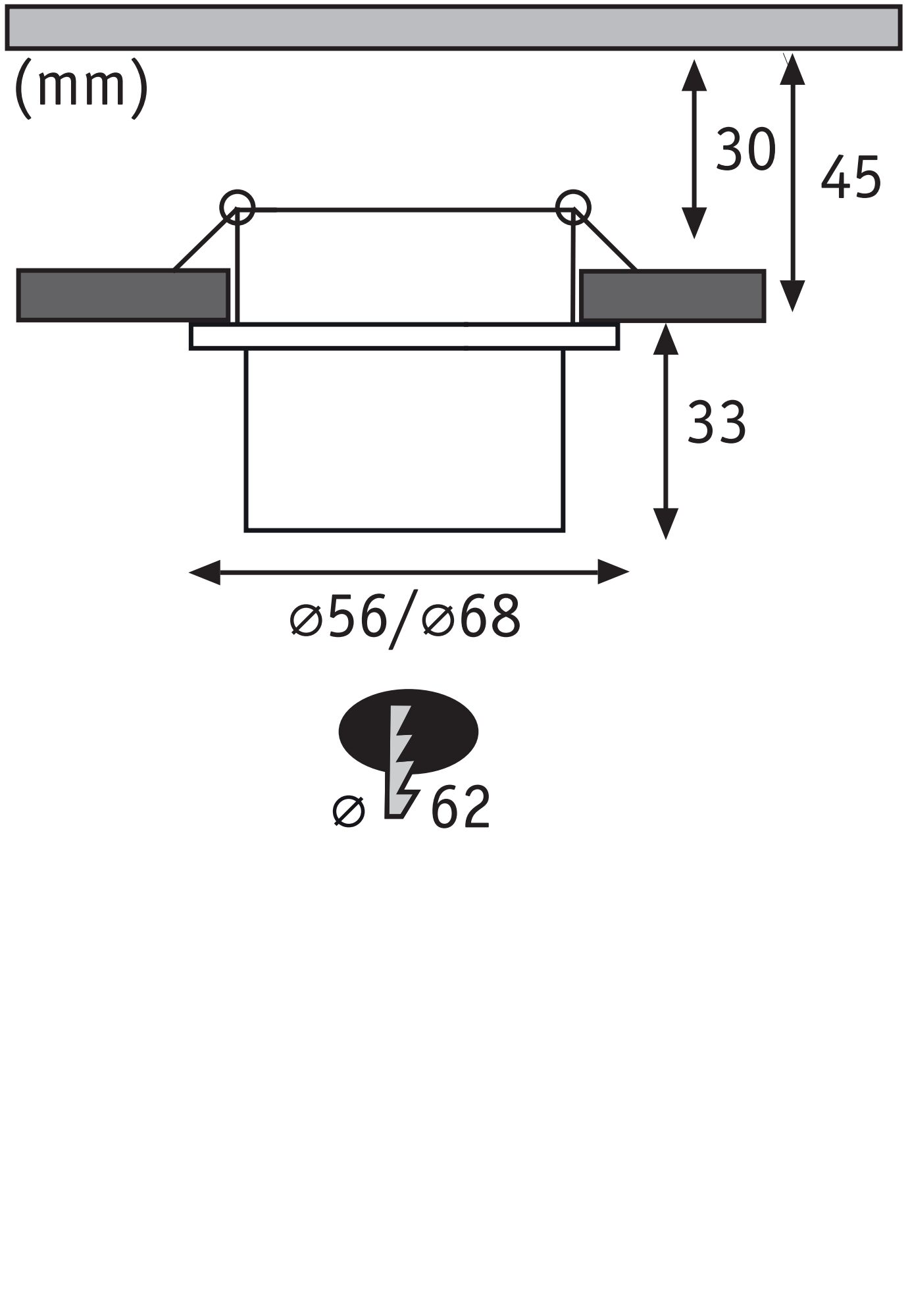

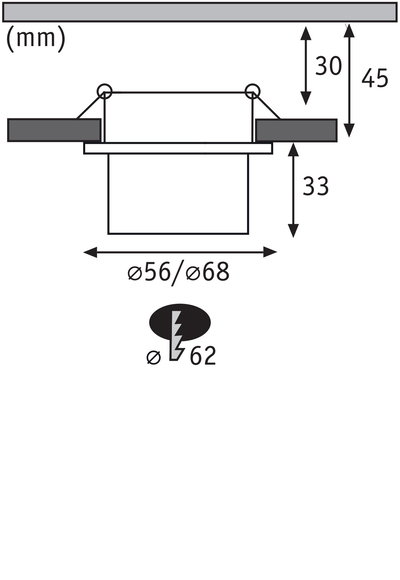

| Dimension | |
|---|---|
| Depth of hollow wall | 30 mm, 30 mm |
| Total Mounting depth | 45 mm |
| Ø | 68 mm |
| Mounting hole | 62 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Gold, Black matt |
| Material | Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Usable luminous flux | 470 lm |
| color temp | 2700 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Technique | LED |
| Socket | Coin |
| IP protection | IP44 |
| Dim | dimmable in 3 steps with normal light switch |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 41 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
Downloads
Manuals
Download Installation/MontageEmpfohlene Leuchtmittel
A
G
G
- LED Module recessed luminaire
round 51mm Coin 6W 470lm 230V dimmable 2700K Satin
£14.95*
A
G
G
- LED Module recessed luminaire
round 50mm Coin 6,3W 430lm 230V dimmable 2700K Satin
£22.95*
A
G
G
- LED Module recessed luminaire

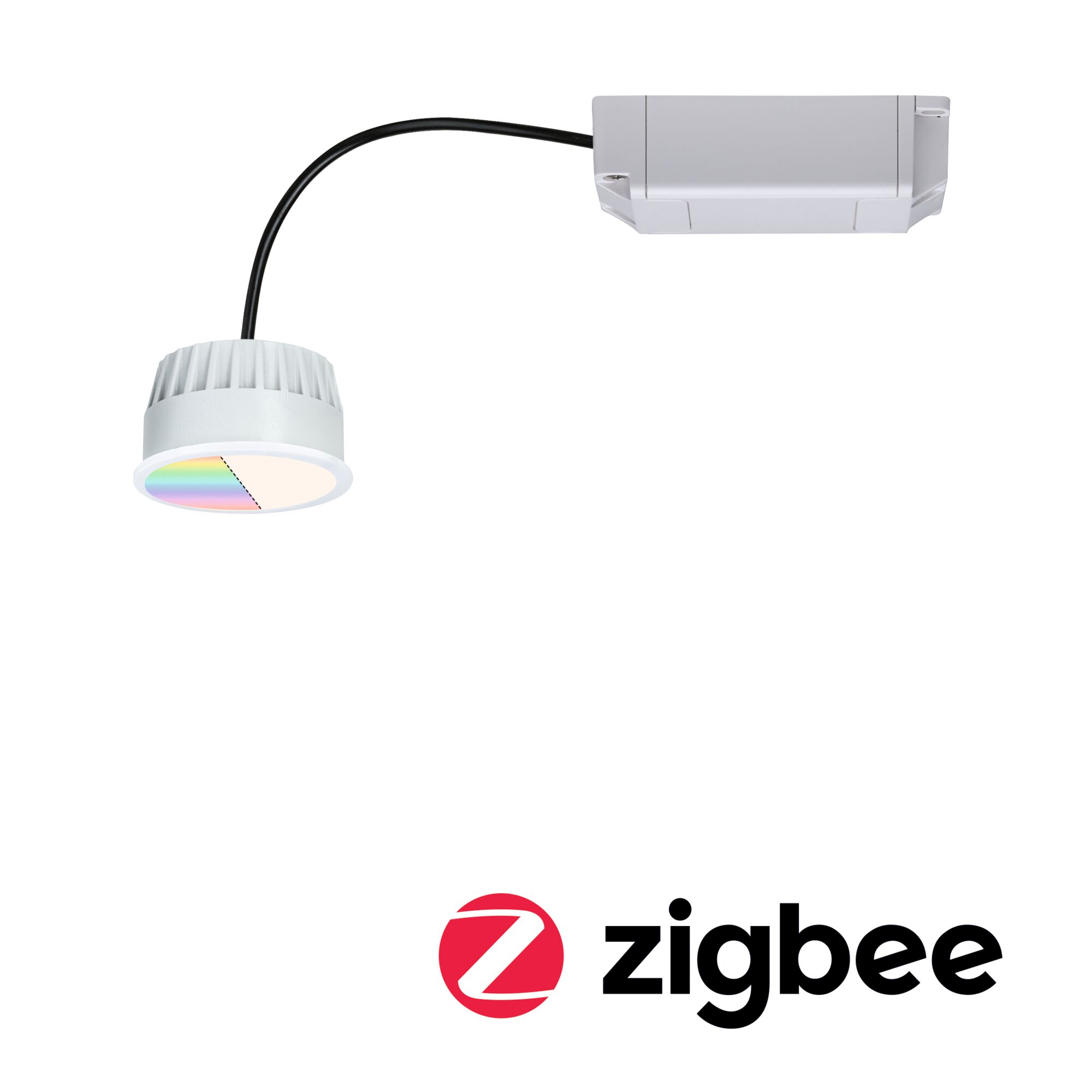

round 50mm Coin 5,2W 400lm 230V dimmable RGBW+ Satin
£47.95*
A
G
G
- LED Module recessed luminaire

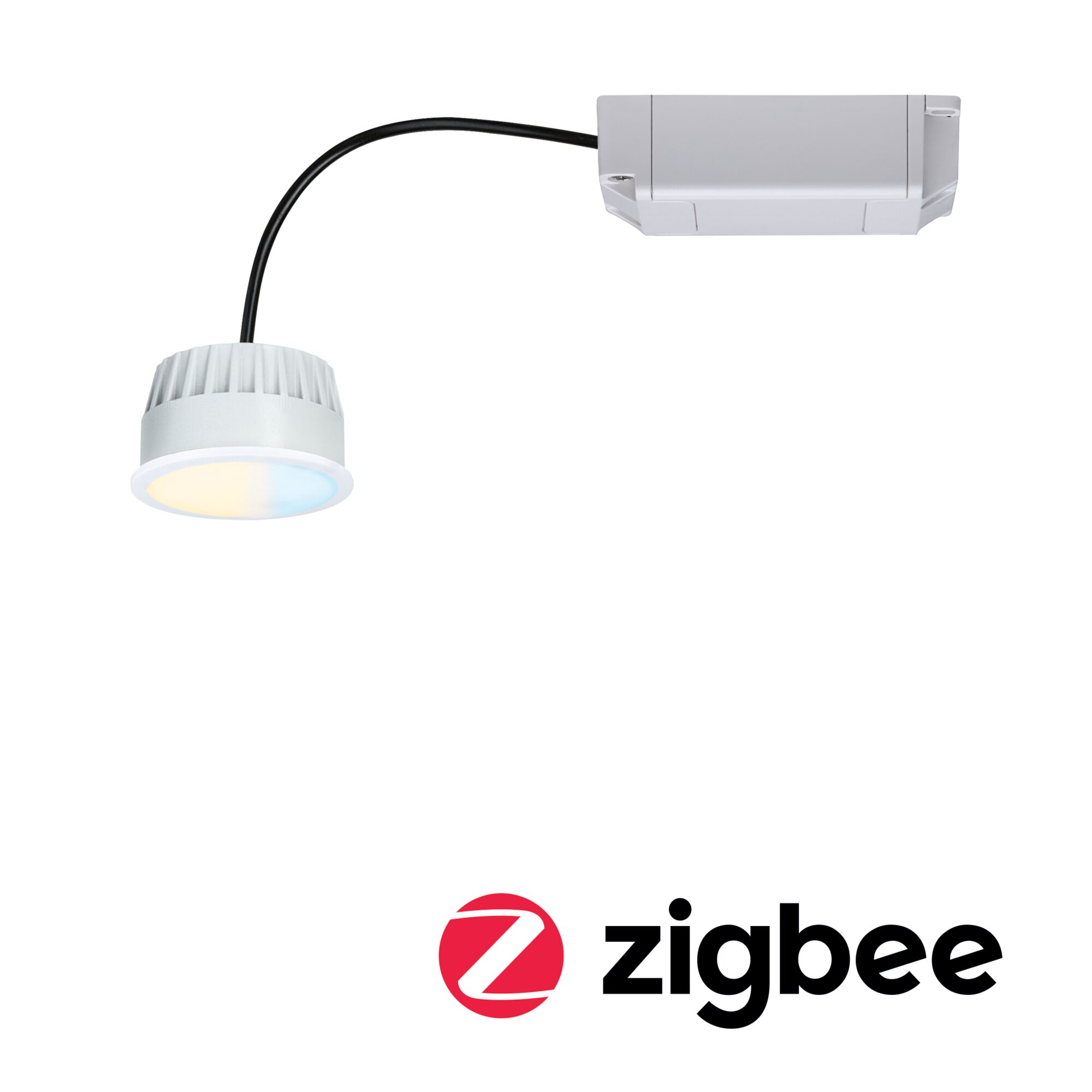

round 50mm Coin 6W 470lm 230V dimmable Tunable White Satin
