Article-No.:
93415

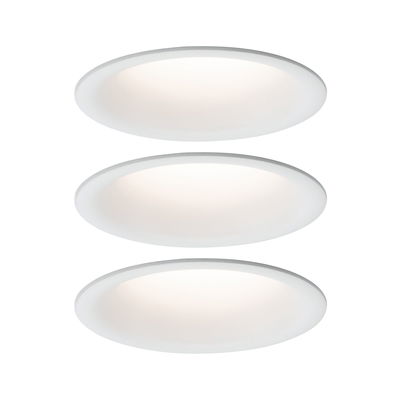

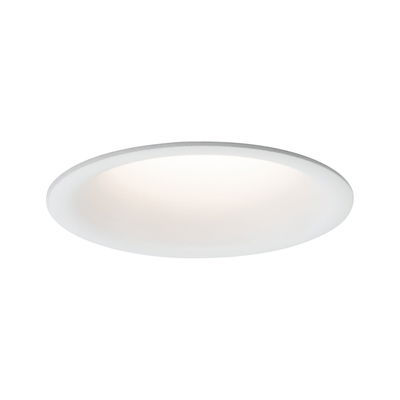

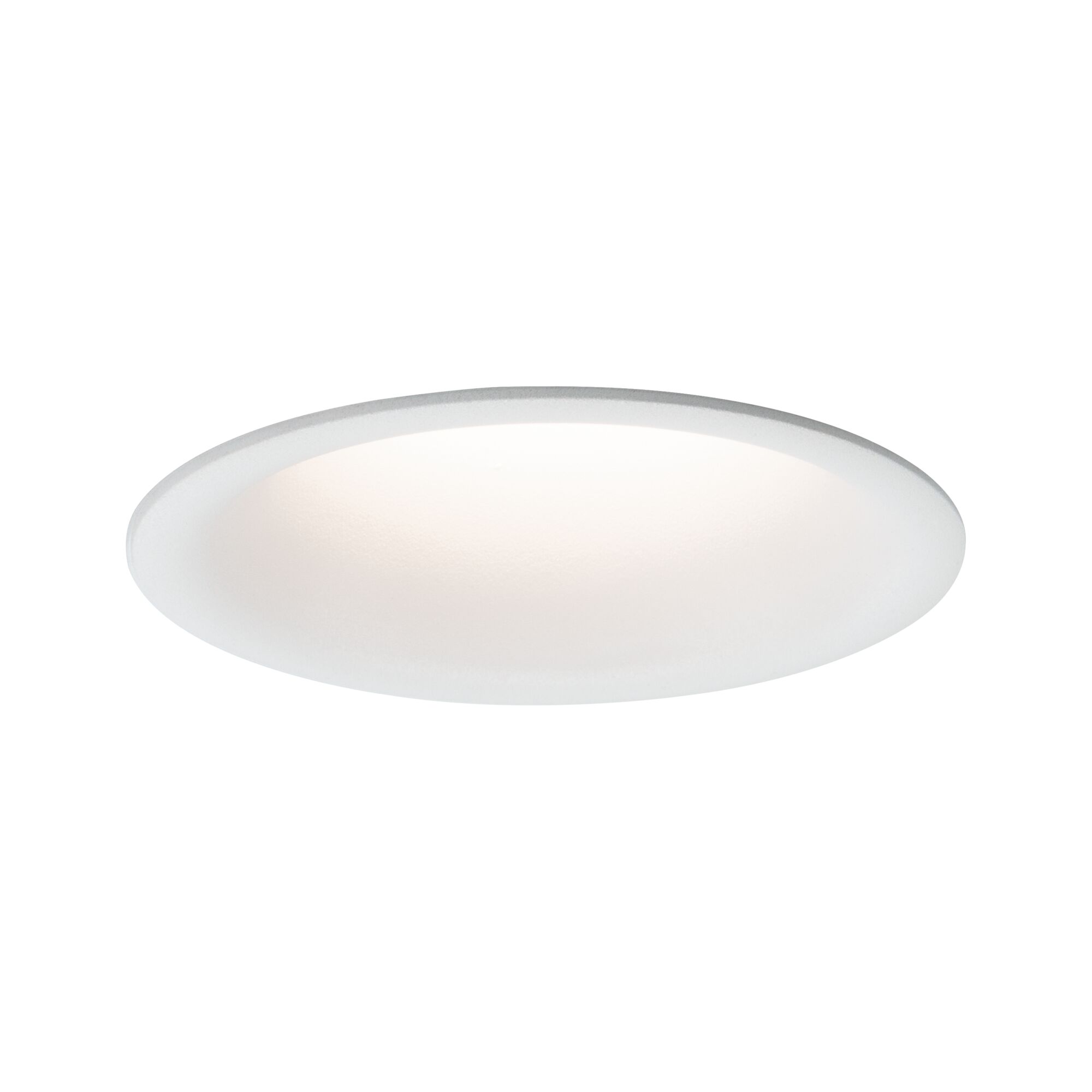

LED Recessed luminaire
Cymbal Coin Basic Set
IP44 round 77mm Coin 3x6,7W 3x430lm 230V dimmable 2700K Matt white
IP44 round 77mm Coin 3x6,7W 3x430lm 230V dimmable 2700K Matt white
- Dimmable

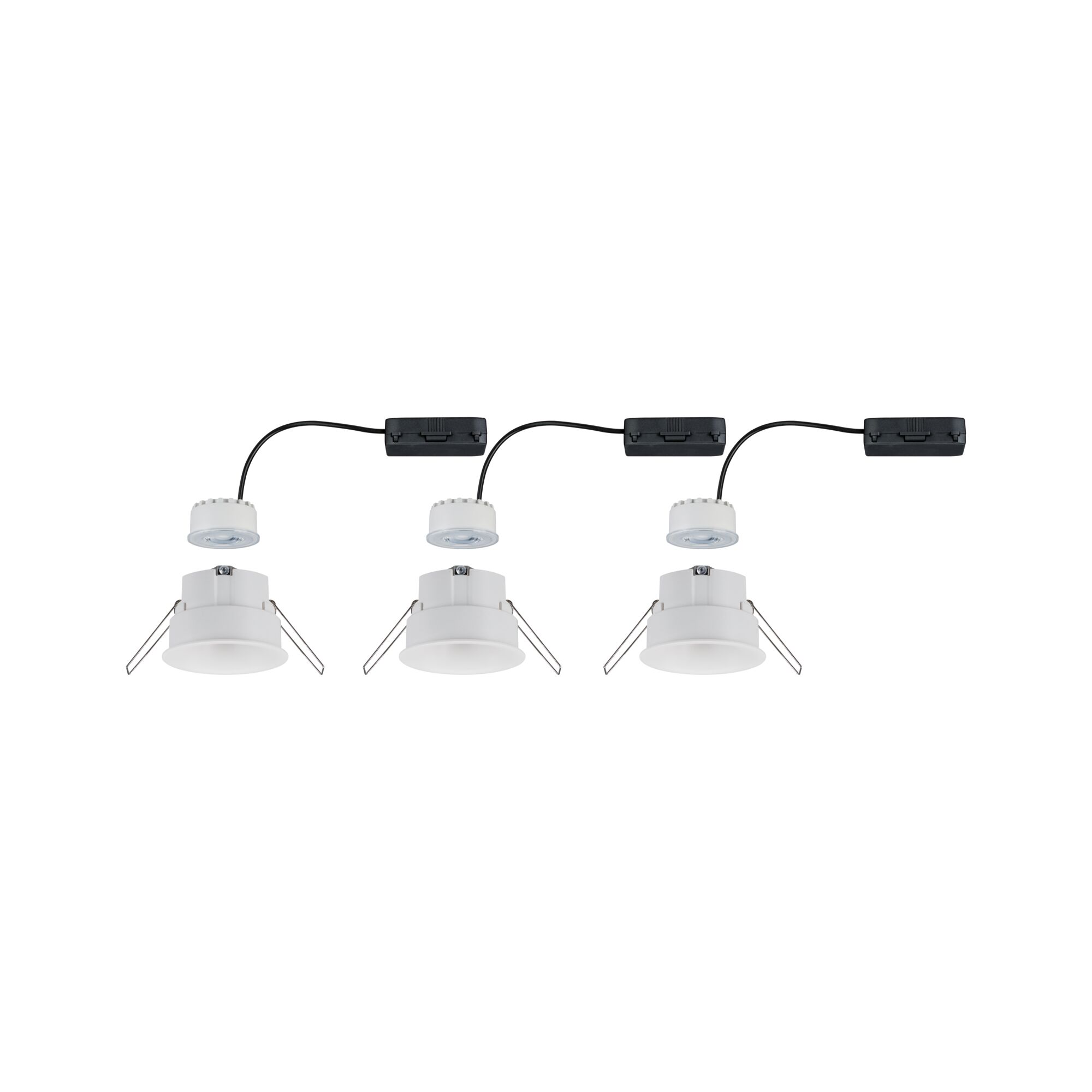

- Set of 3 luminaires incl. LED module

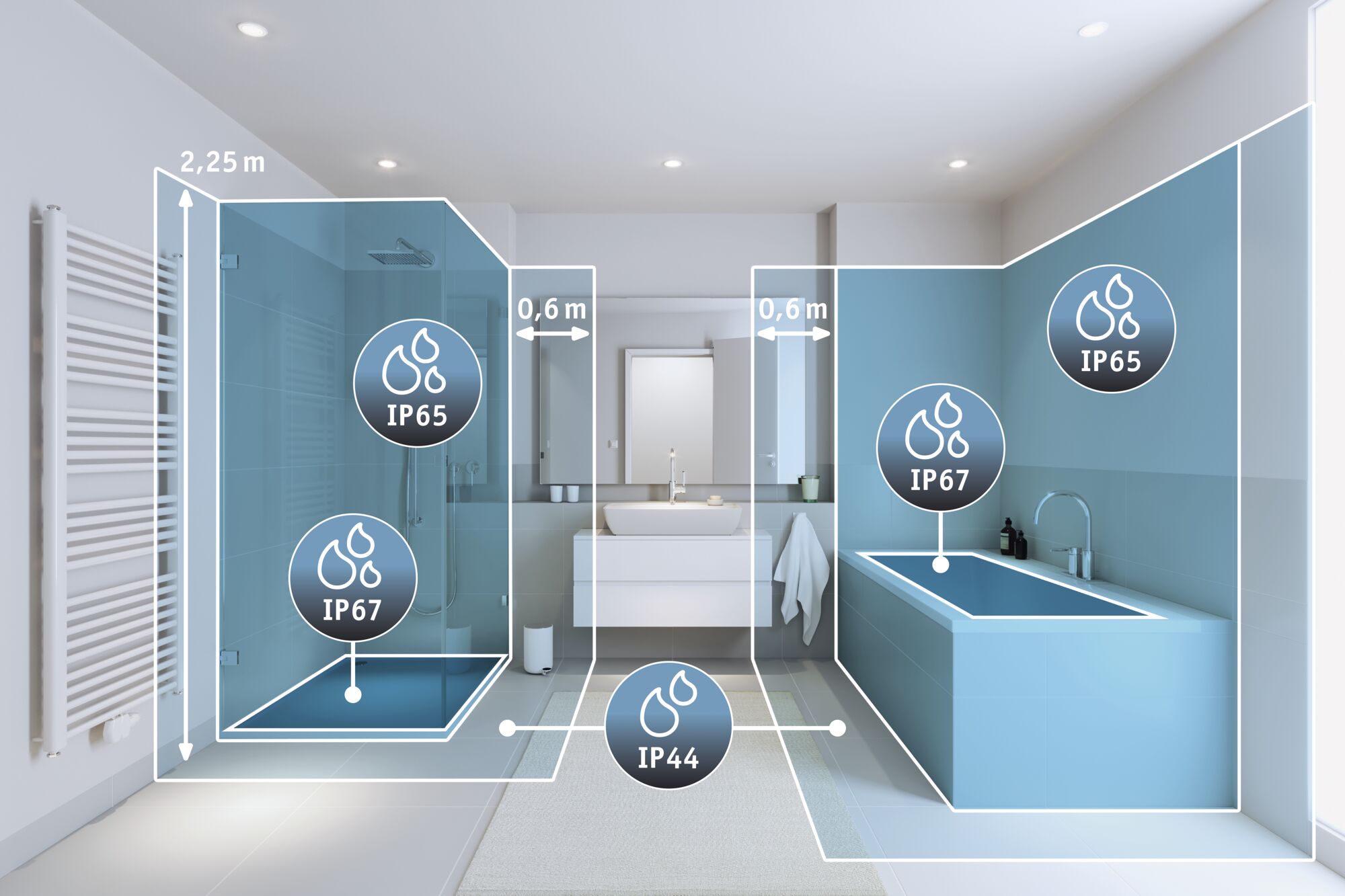

- IP protection: IP44 splash-protected

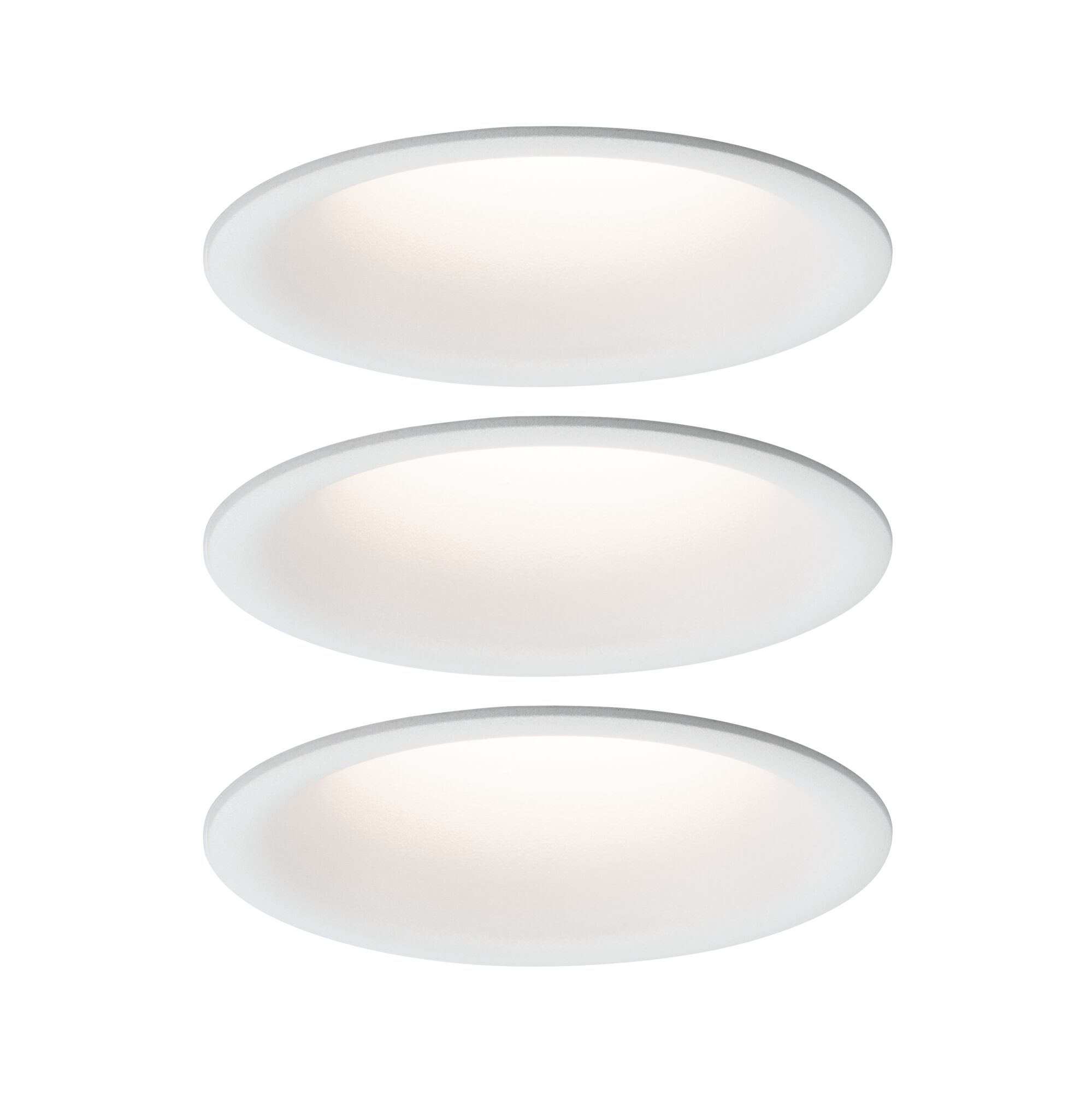

LED Recessed luminaire Cymbal Coin Basic Set IP44 round 77mm Coin 3x6,7W 3x430lm 230V dimmable 2700K Matt white

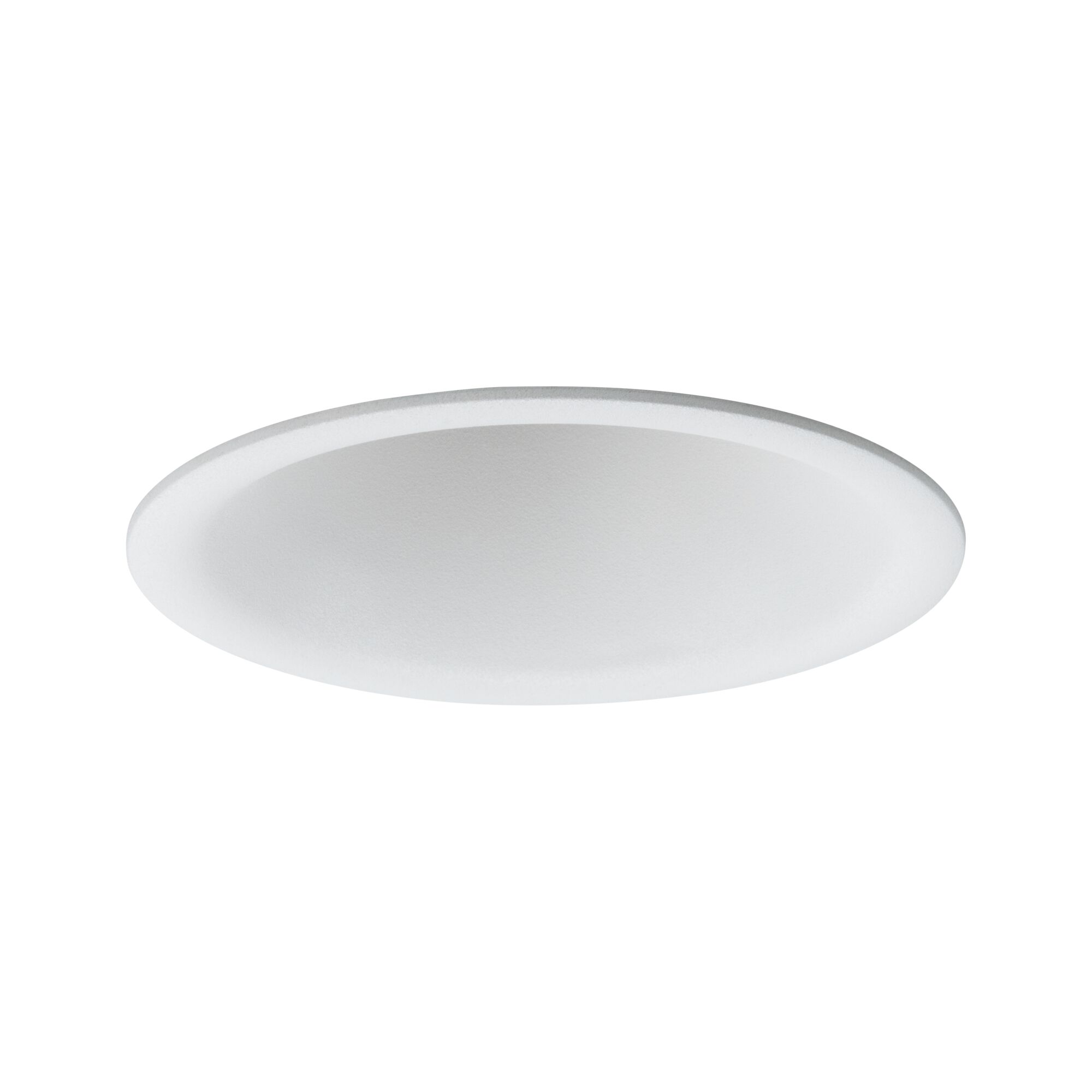

100% minimalist – the transparent material of the premium frameless recessed luminaires Cymbal makes them almost invisible when they are not lit. The slightly offset lamps ensure glare-free illumination.
- Dimmable
- Set of 3 luminaires incl. LED module
- IP protection: IP44 splash-protected
- Color temperatur: 2700K - Warm white

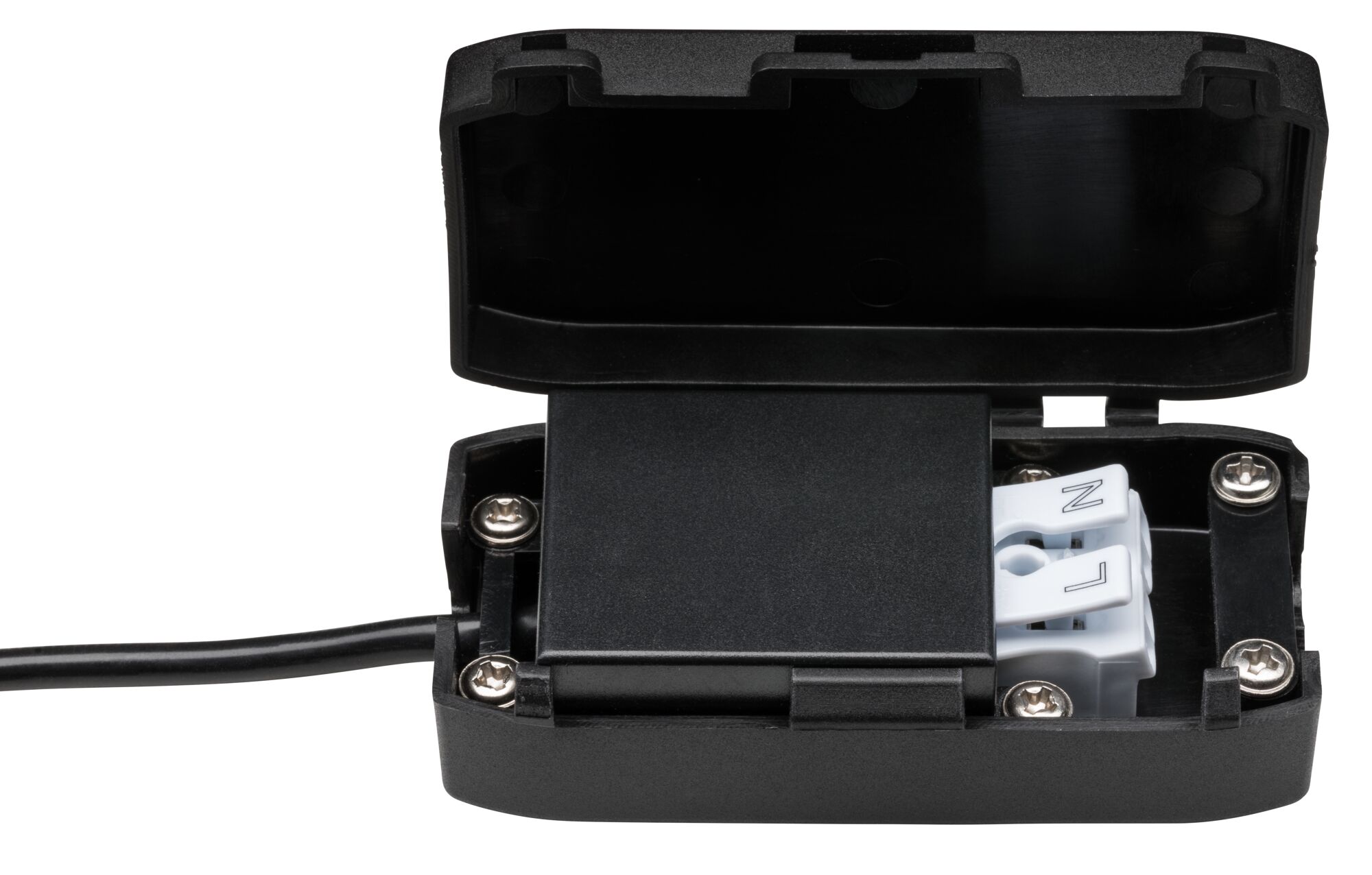

- For 230 V direct connection
| Dimension | |
|---|---|
| depth of hollow wall | 55 mm |
| Mounting depth | 70 mm |
| Dimensions (Height x Width x Depth) | H: 50 mm |
| Ø | 77 mm |
| Mounting hole | 70 mm |
| Form | round |
| Depth of hollow wall | 55 mm |
| Design and Material | |
|---|---|
| Colour | Matt white |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | RLC Müller Paladin 873 030 LED\n |

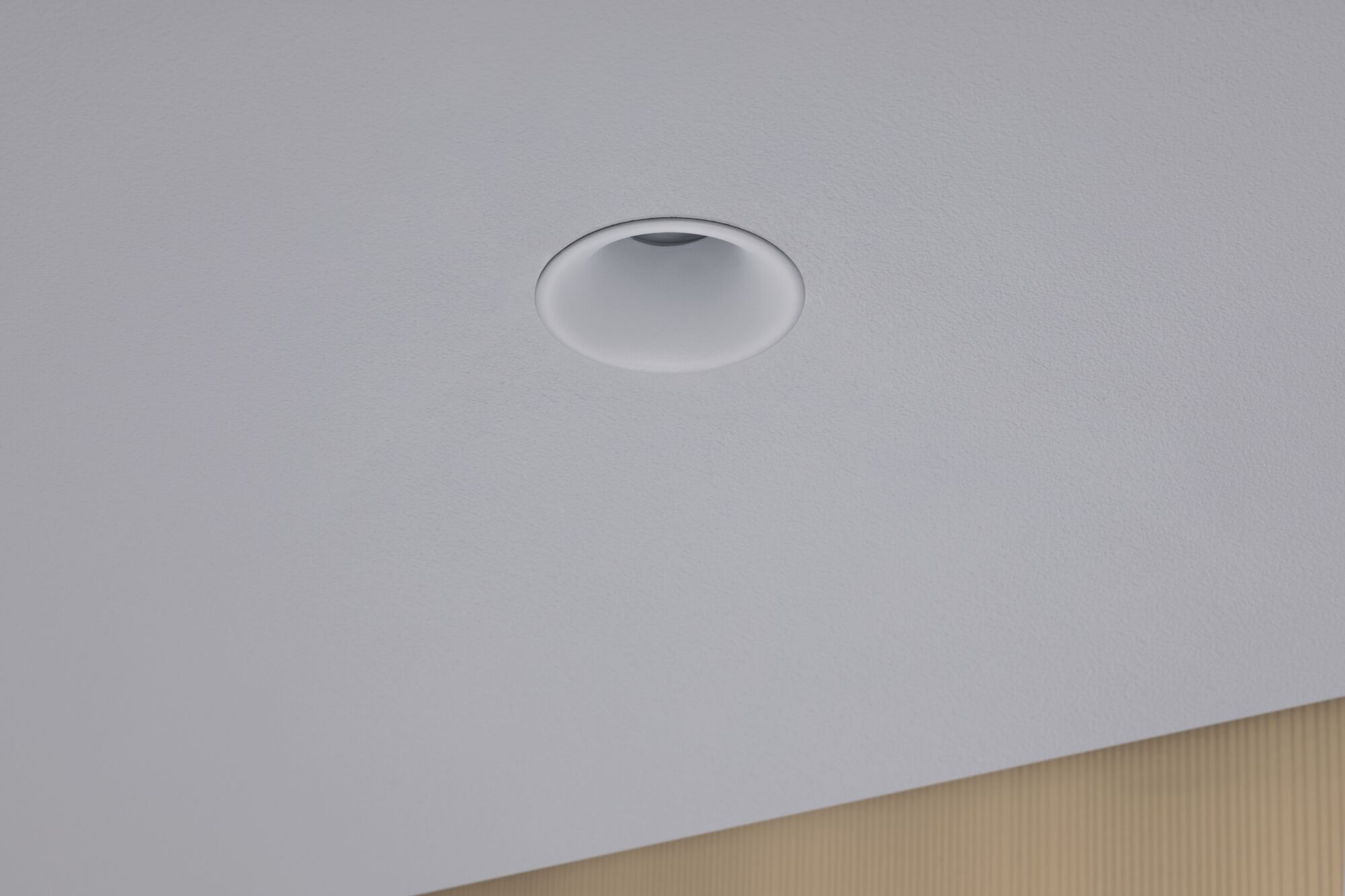

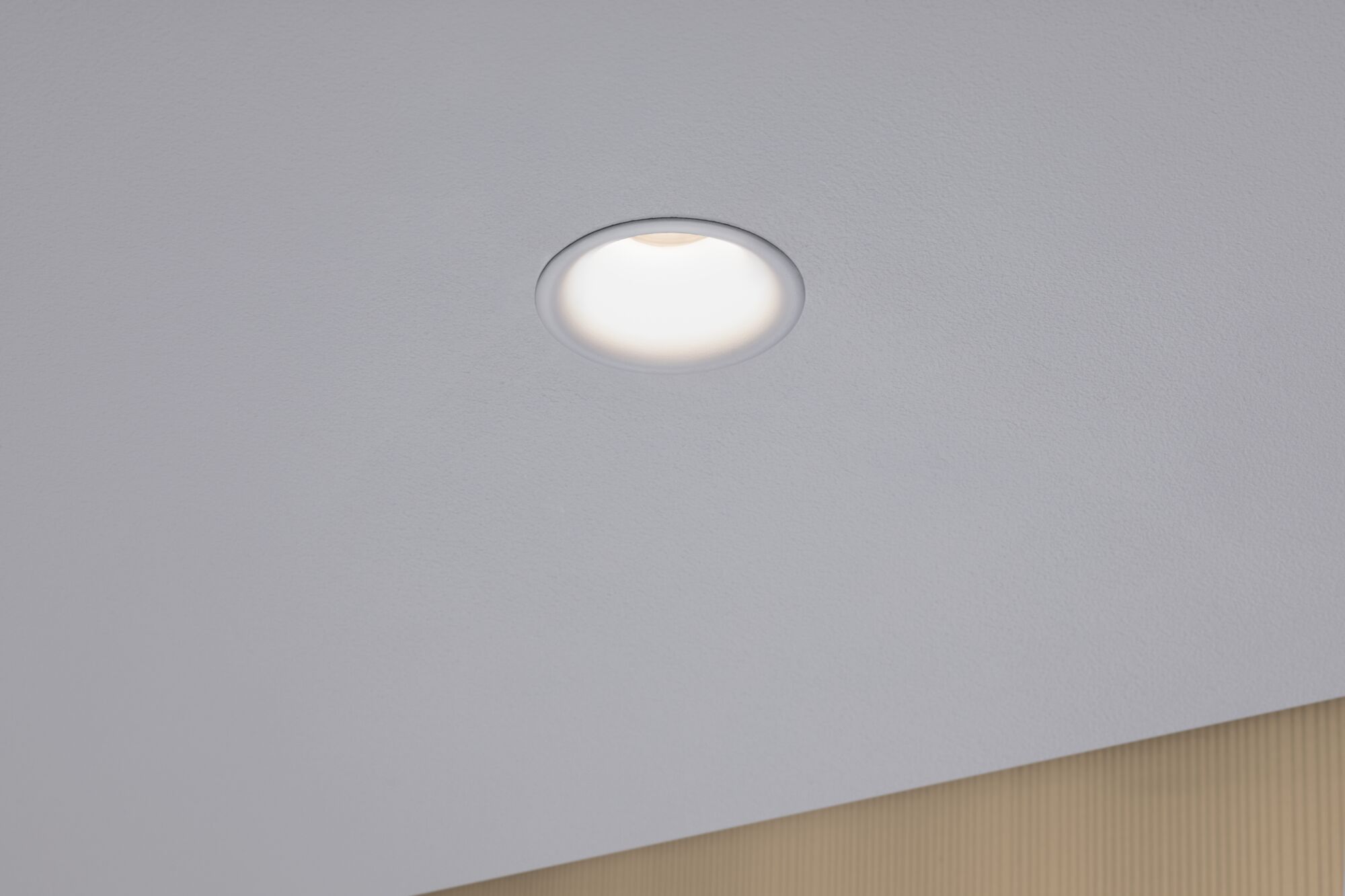

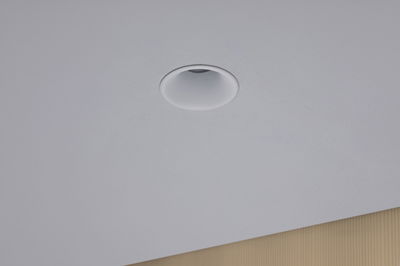

| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| energy efficiency (A to G) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 80 % |
| luminous flux at the end of lamplife | 75 % |
| Number of switching cycles >= | 30000 |
| lifetime | 30.000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Color temp. | 2700 K |
| Beam angle | 38 ° |
| Useful luminous flux | 430 lm |
| color temp | 2.700 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Beam angle LED module | 30 ° |
| Rated luminous flux (Lumen) | 530 lm |
| Lamp Features | |
|---|---|
| Component parts | 6,3 W |
| Technique | LED |
| Socket | Coin |
| IP protection | IP44 ceiling mounting |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Incandescent Equivalent | 37 W |
| Maximum wattage | max. 3x10 W |
| Inclusive lamp | ✓ |
| Number of component parts | 3x |
| protection class | protection class II |

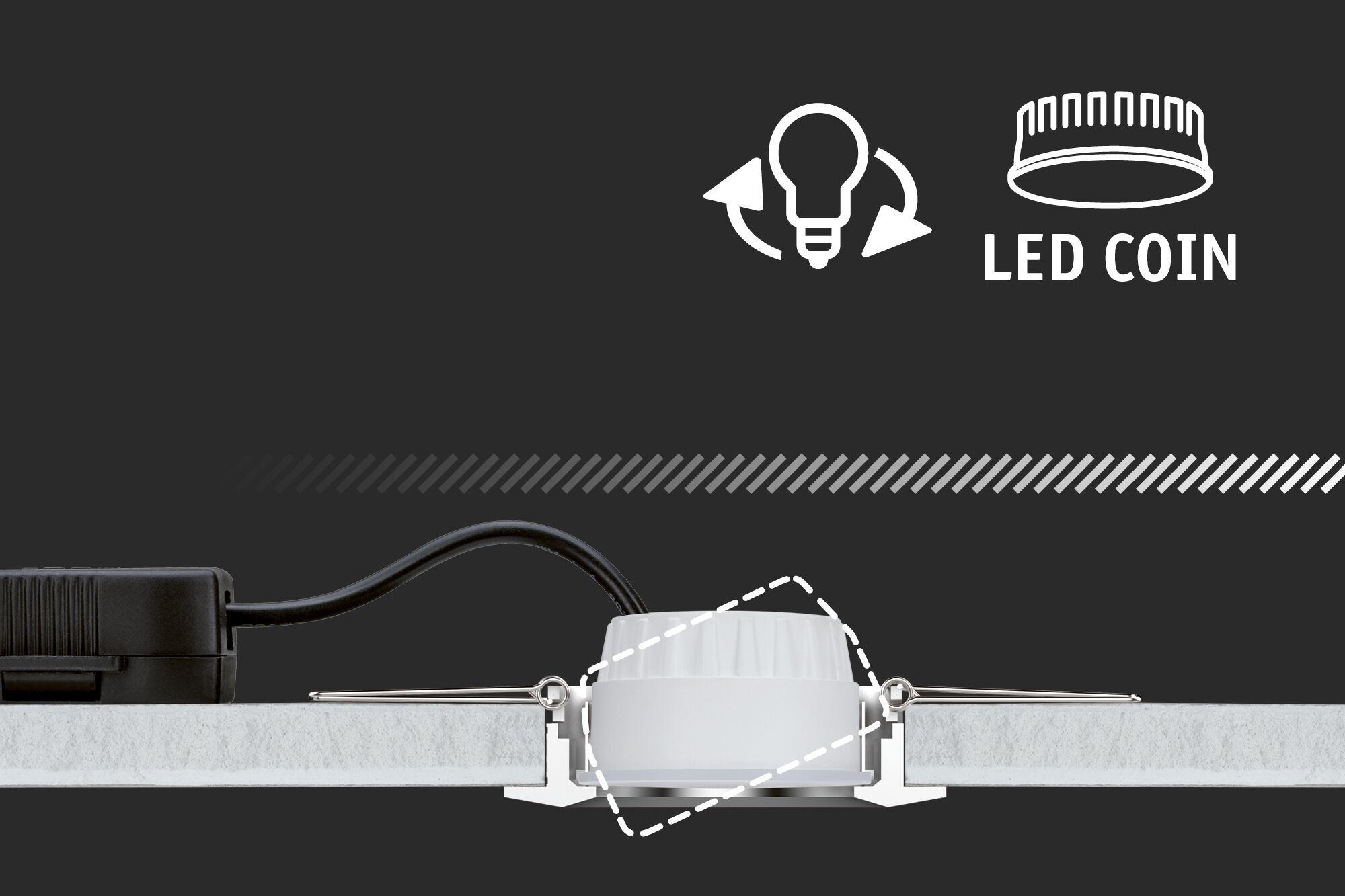

| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Transformer | |
|---|---|
| apparent power | 7 VA |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
