Article-No.:
94297
LED Recessed luminaire
Nova Mini Coin Basic Set Swivelling
round 66mm 15° Coin 3x4W 3x310lm 230V 2700K Turned aluminium
round 66mm 15° Coin 3x4W 3x310lm 230V 2700K Turned aluminium
- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white
- swivelling

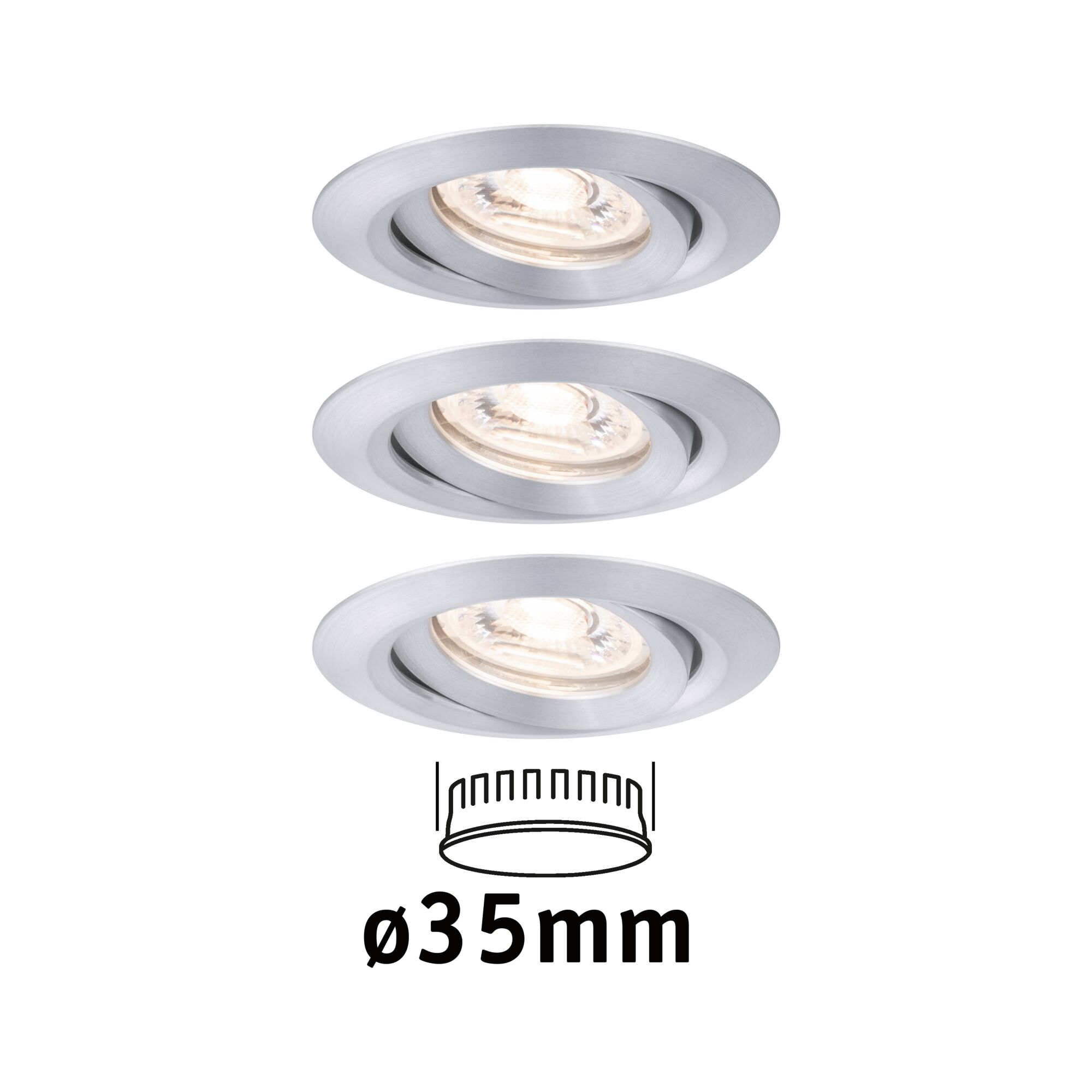

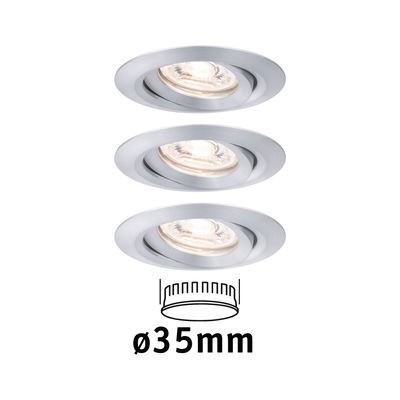

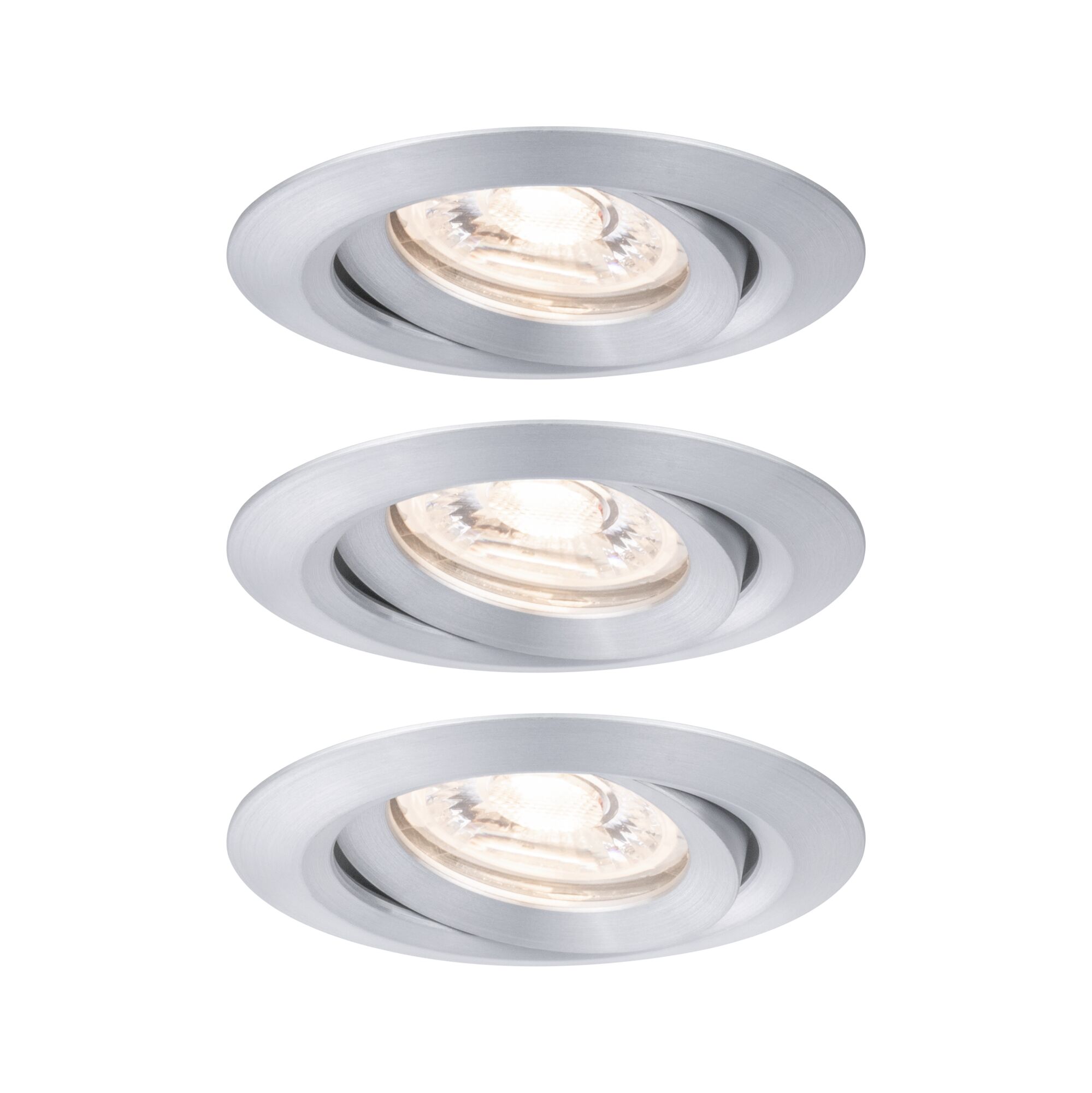

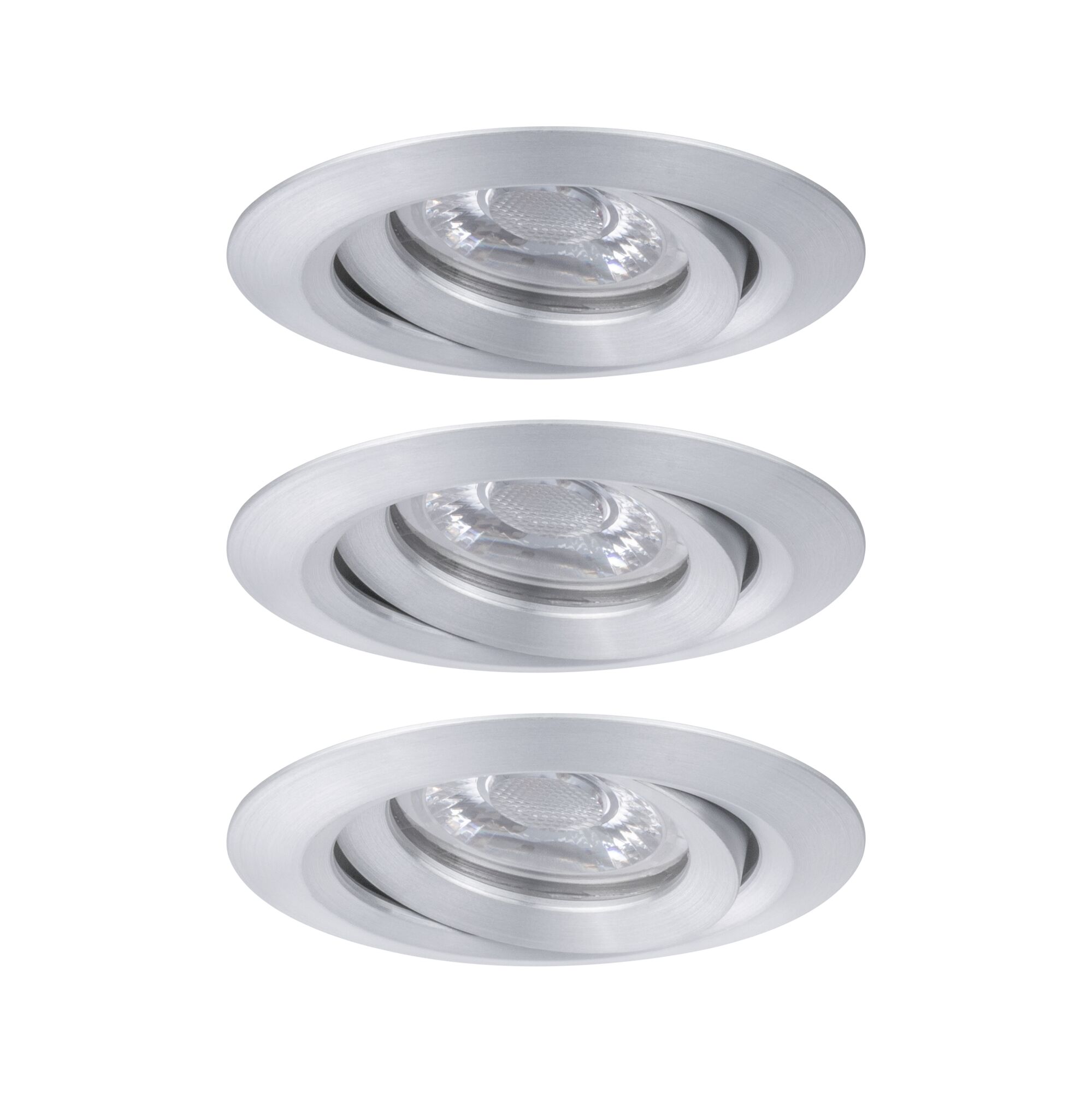

LED Recessed luminaire Nova Mini Coin Basic Set Swivelling round 66mm 15° Coin 3x4W 3x310lm 230V 2700K Turned aluminium

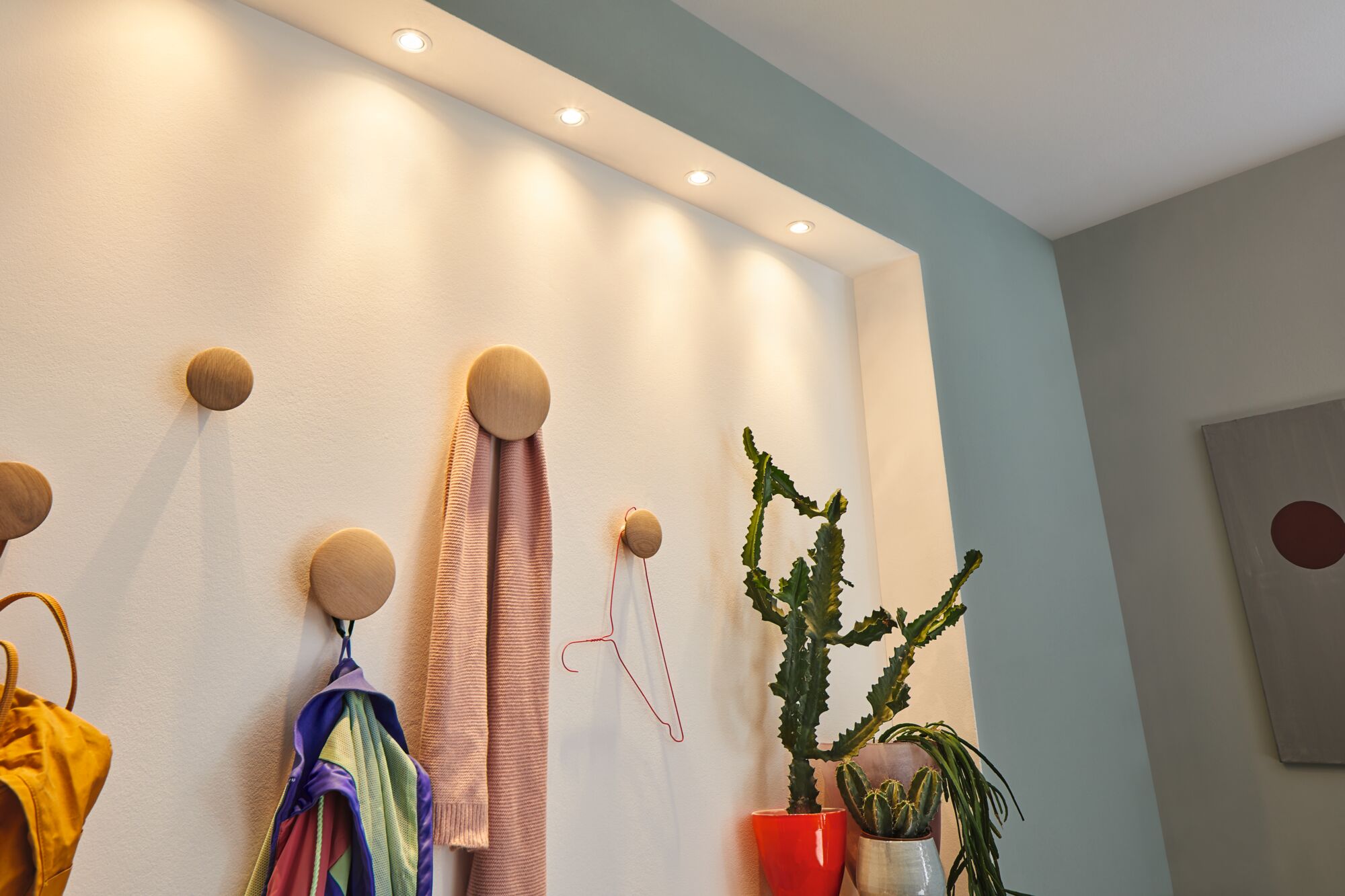

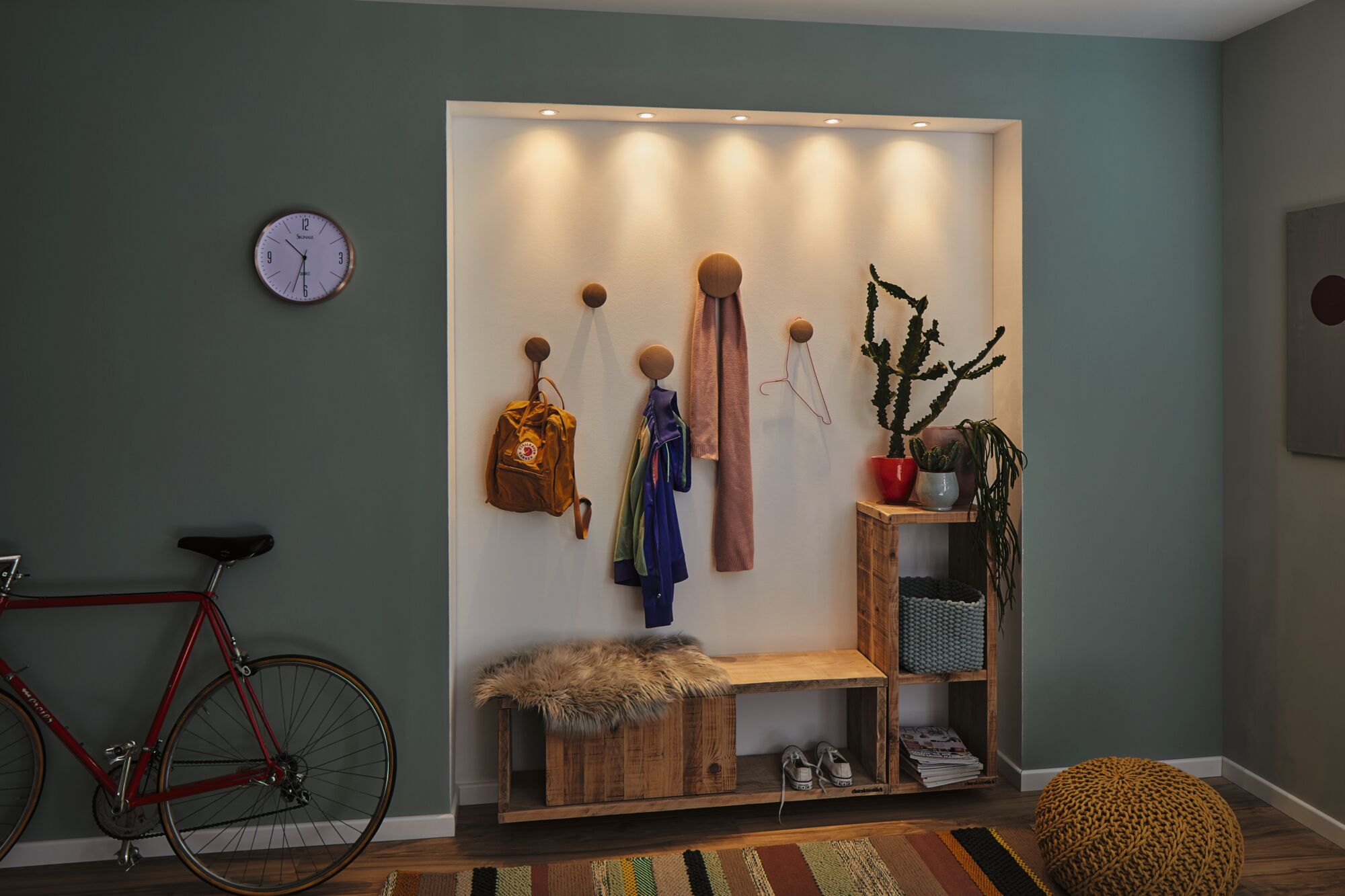

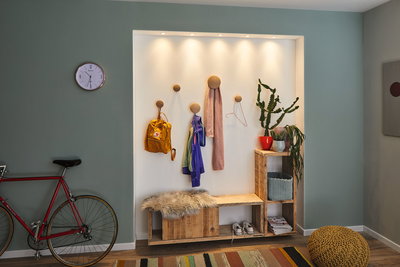

The swivelling recessed luminaires Nova mini in the colour Turned aluminium offer whole new possibilities, thanks to their reduced size. They are suitable for conservatories, spot lighting, bar counters and beam cladding. The unique 35 mm Coins are exchangeable, flat and can be linked unlimited times.

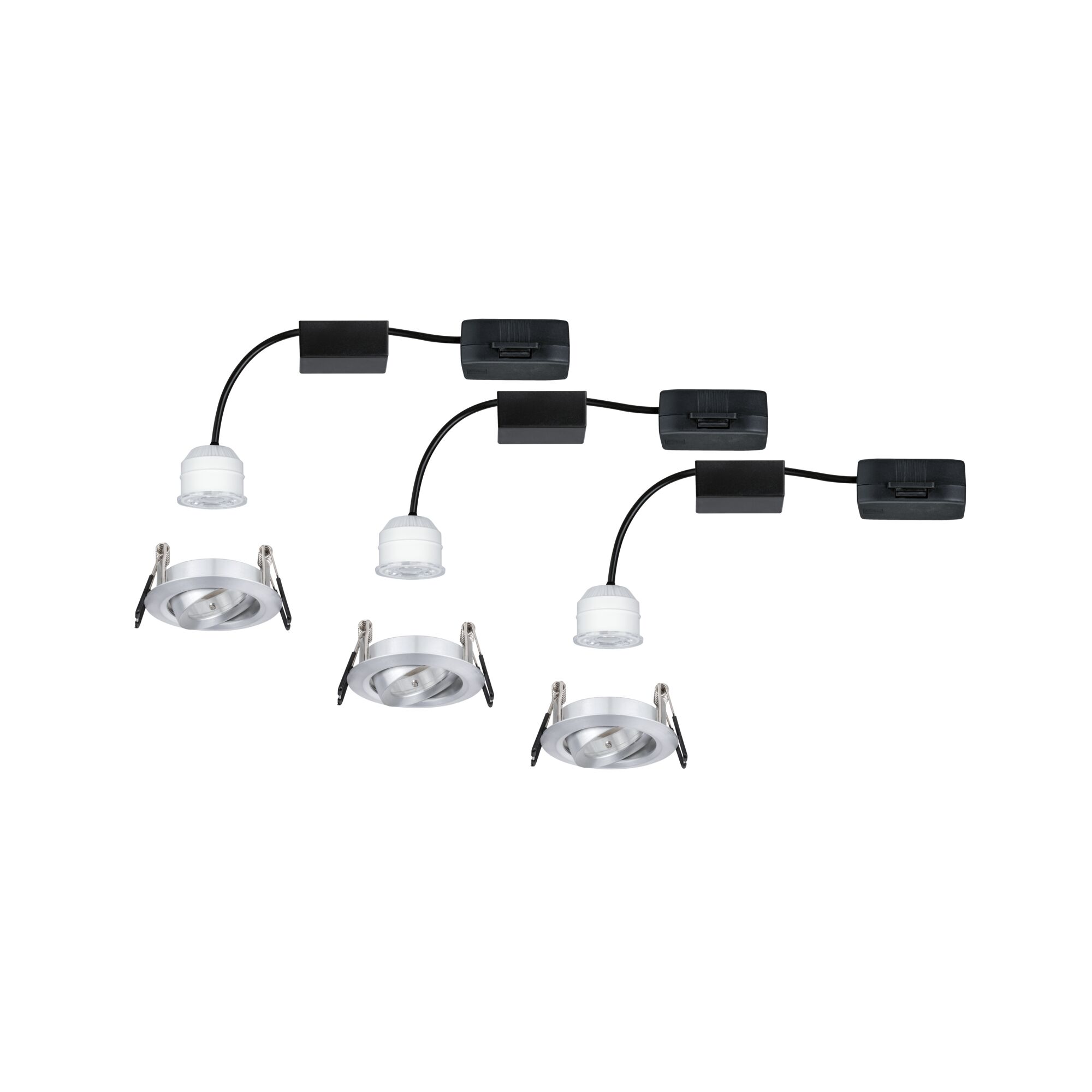

- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white
- swivelling
- For 230 V direct connection
| Dimension | |
|---|---|
| Depth of hollow wall | 35 mm, 35 mm |
| Total Mounting depth | 50 mm |
| Ø | 66 mm |
| Mounting hole | 55 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Turned aluminium |
| Material | Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Energy consumption | 4 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 38 ° |
| Usable luminous flux | 310 lm |
| color temp | 2700 K |
| colour consistency | SDCM 3 |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 4 W |
| Swivel range | 15 ° |
| Technique | LED |
| Socket | Coin |
| IP protection | IP23 |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 29 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 4 W |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
