Article-No.:
92948
LED Recessed panel
Areo
round 80mm 5W 390lm 3000K Nickel matt
round 80mm 5W 390lm 3000K Nickel matt

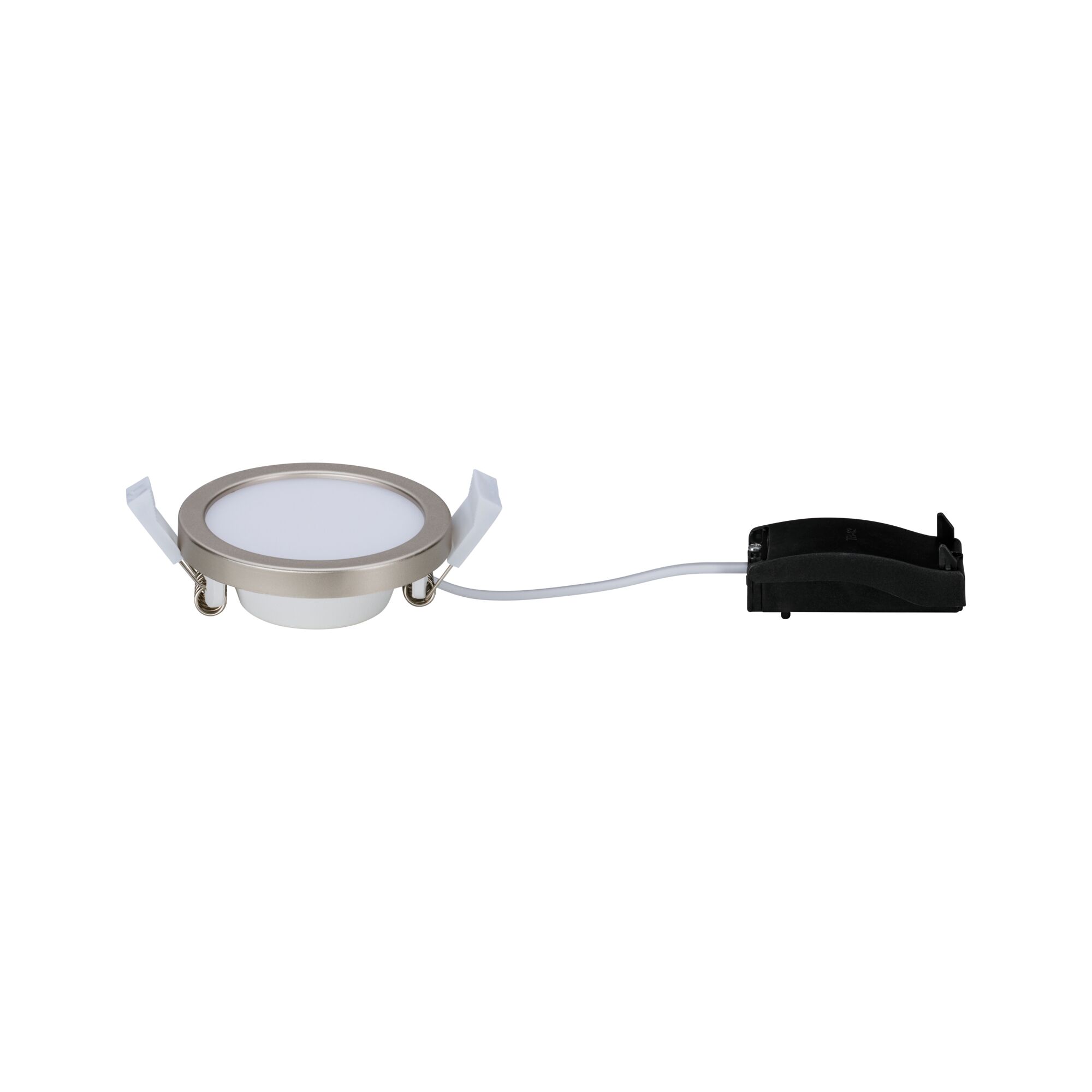

- Complete set incl. panel, supply line and fixation material
- Satined plastic cover for fine diffusion of light
- Low mounting depth: only 35mm

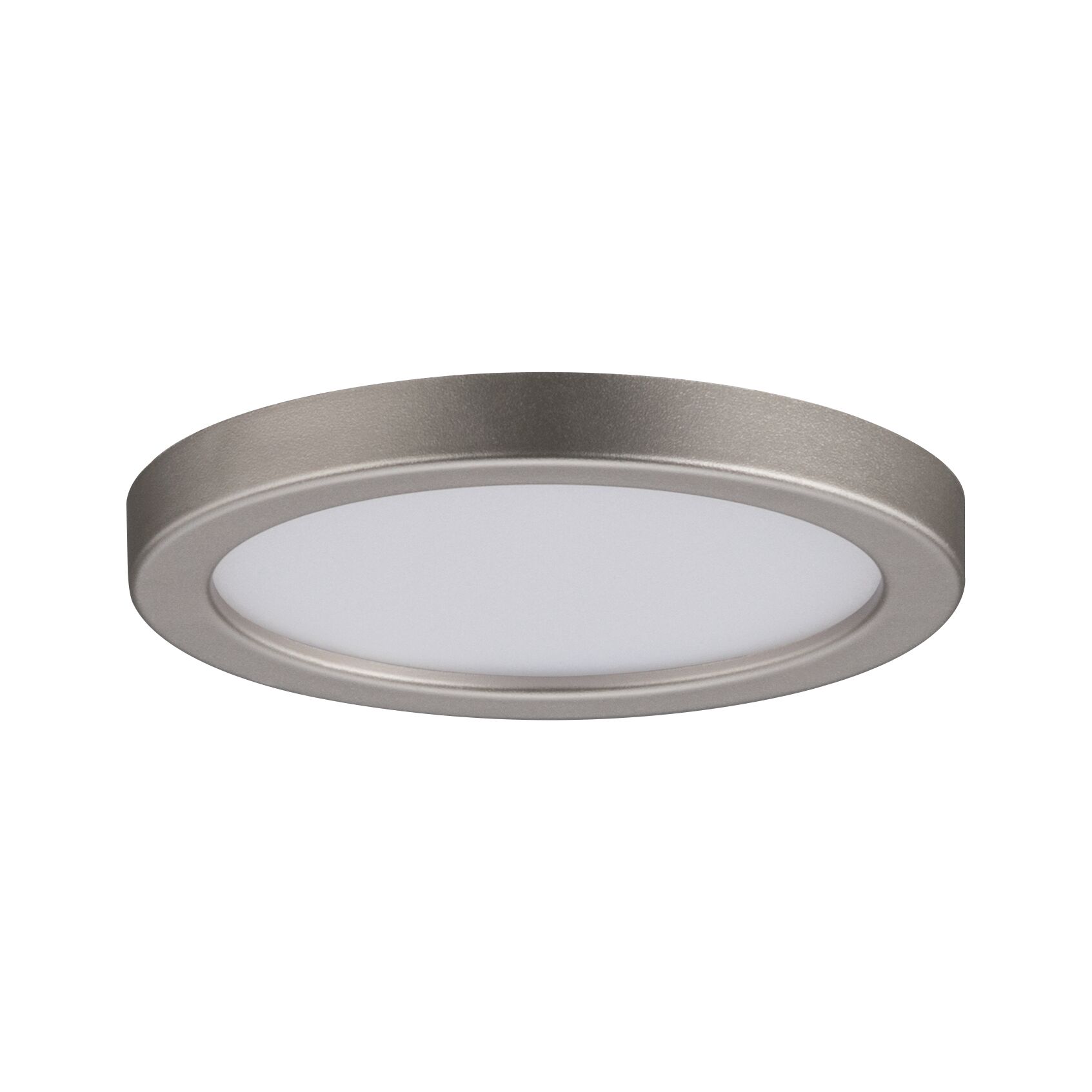

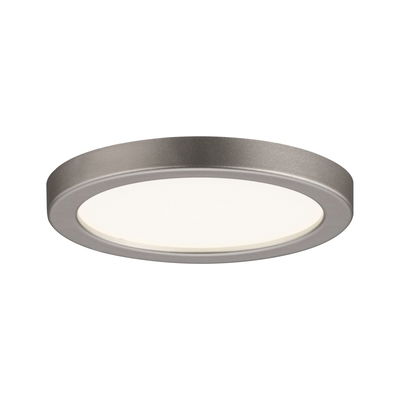

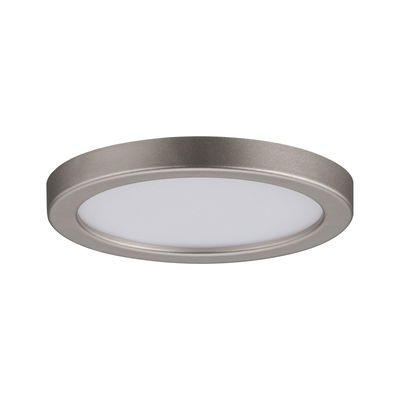

LED Recessed panel Areo round 80mm 5W 390lm 3000K Nickel matt
The Areo round LED panel with an output of 5 watts provides uniform room illumination. The matt nickel edge is especially narrow, so that it is hardly noticed. The luminaire is made of plastic and is thus particularly easy to keep clean. It is also easy to install on account of its low weight.
- Complete set incl. panel, supply line and fixation material
- Satined plastic cover for fine diffusion of light
- Low mounting depth: only 35mm

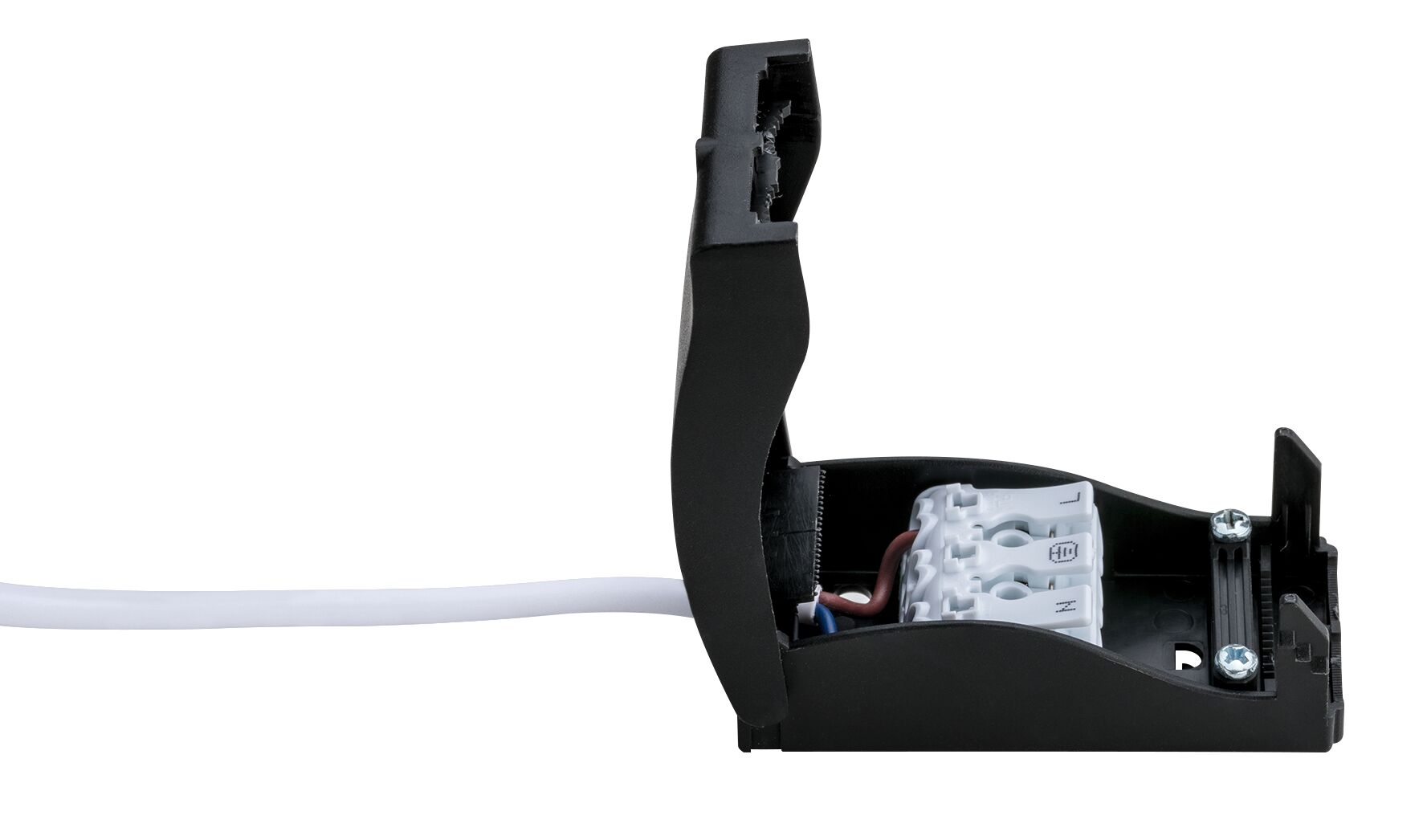

- For 230 V direct connection
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white

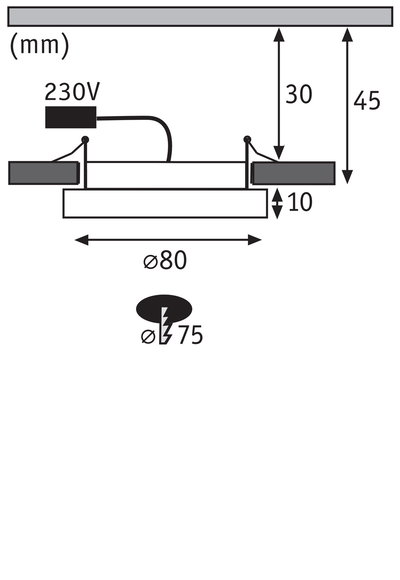

| Dimension | |
|---|---|
| Total Mounting depth | 35 mm |
| Dimensions (Height x Width x Depth) | H: 10 mm |
| Ø | 80 mm |
| Mounting hole | 75 mm |
| Form | round |
| Depth of hollow wall | 20 mm, 20 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Nickel matt |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 390 lm |
| Luminous flux LED module | 500 lm |
| color temp | 3000 K |
| Lamp Features | |
|---|---|
| Component parts | 5 W |
| Technique | LED |
| IP protection | IP23 ceiling mounting |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 54 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 5,5 W |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
