Article-No.: 92068

LED Recessed panel LED Recessed panel
IP44 angular 165x165mm 11,1W 720lm 2700K White

Form: angular

angular

Output:

Colour:

Chrome matt

Dimension:

115x115mm

£23.95* Prices incl. Standard rate VAT

Ready to ship, delivery within 2-3 working days

5-year warranty

Secure payment

Free shipping from £ 150 Free returns

Single luminaire incl. LED module
Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
Color temperatur: 2700K - Warm white

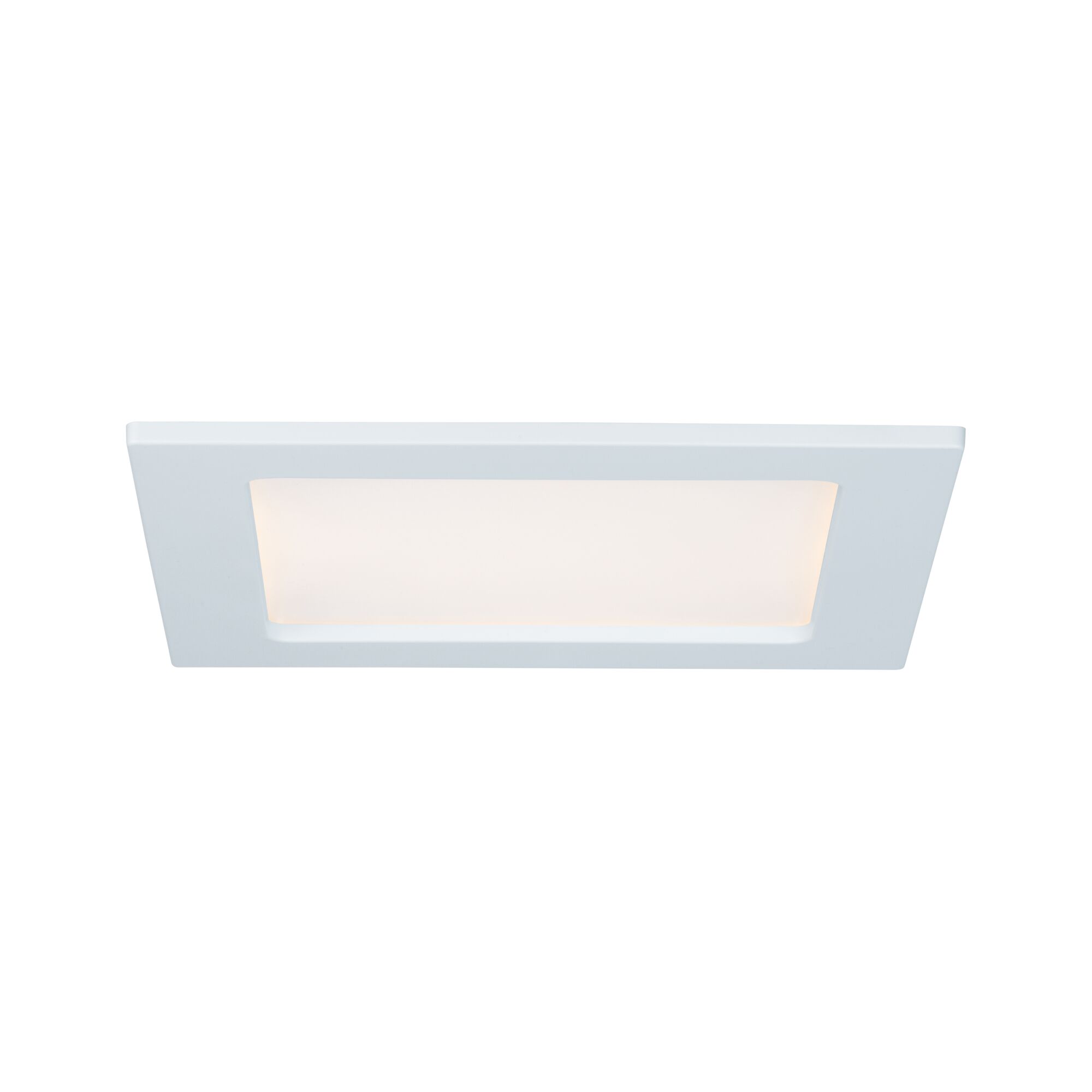

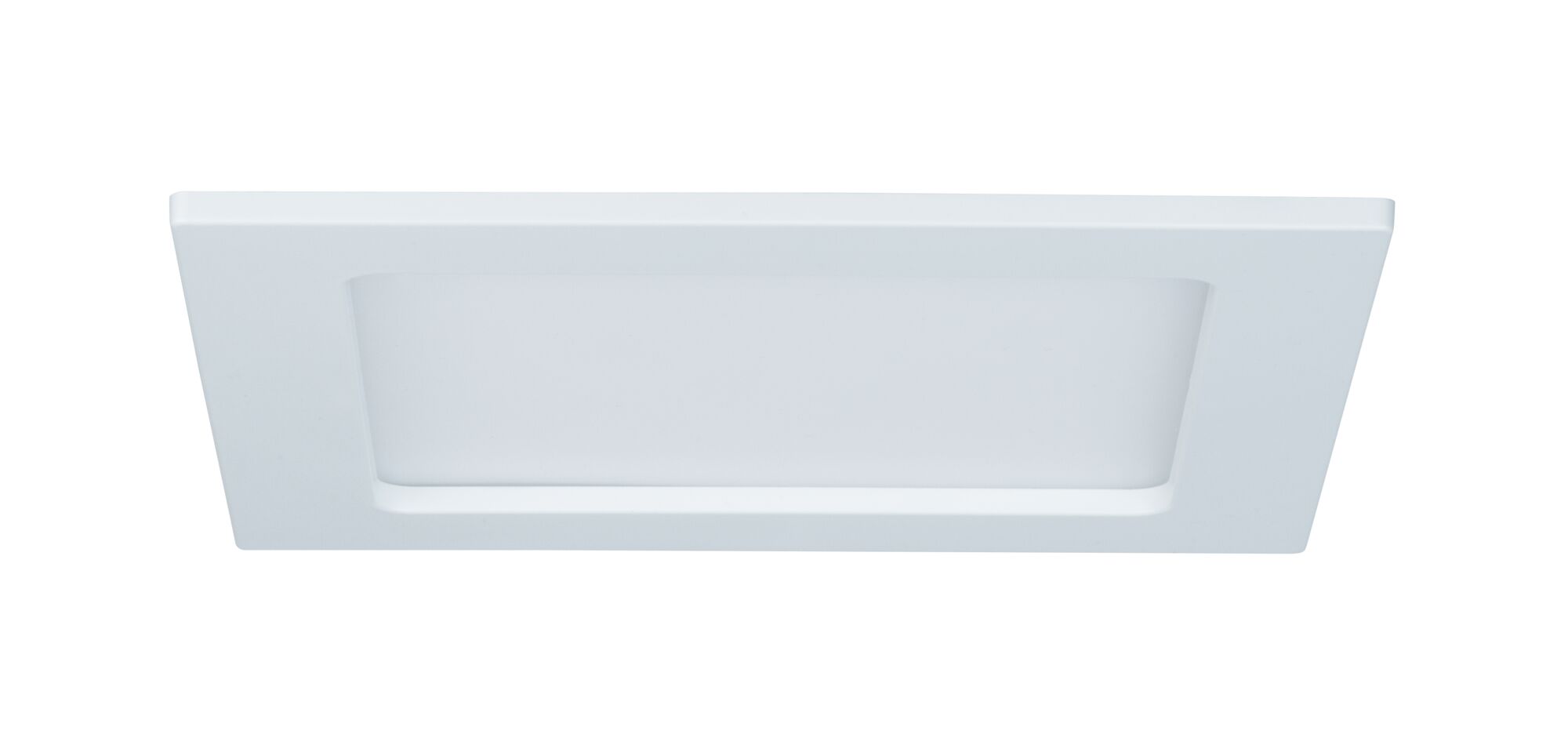

LED Recessed panel IP44 angular 165x165mm 11,1W 720lm 2700K White

LED panels with IP44 protection are protected in particular against splash water penetrating the luminaire and therefore ideal for installation in wet locations. In interior bathrooms they are a great substitute for windows – the bathroom is illuminated evenly, glare-free and brightly as though through a skylight. Thanks to their shallow installation depth recessed panels can be mounted into practically any suspended ceiling. In addition, through highly efficient LED technology, they also offer great potential for energy saving, in turn saving you money.

Single luminaire incl. LED module
Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
Color temperatur: 2700K - Warm white
IP protection: IP44 splash-protected

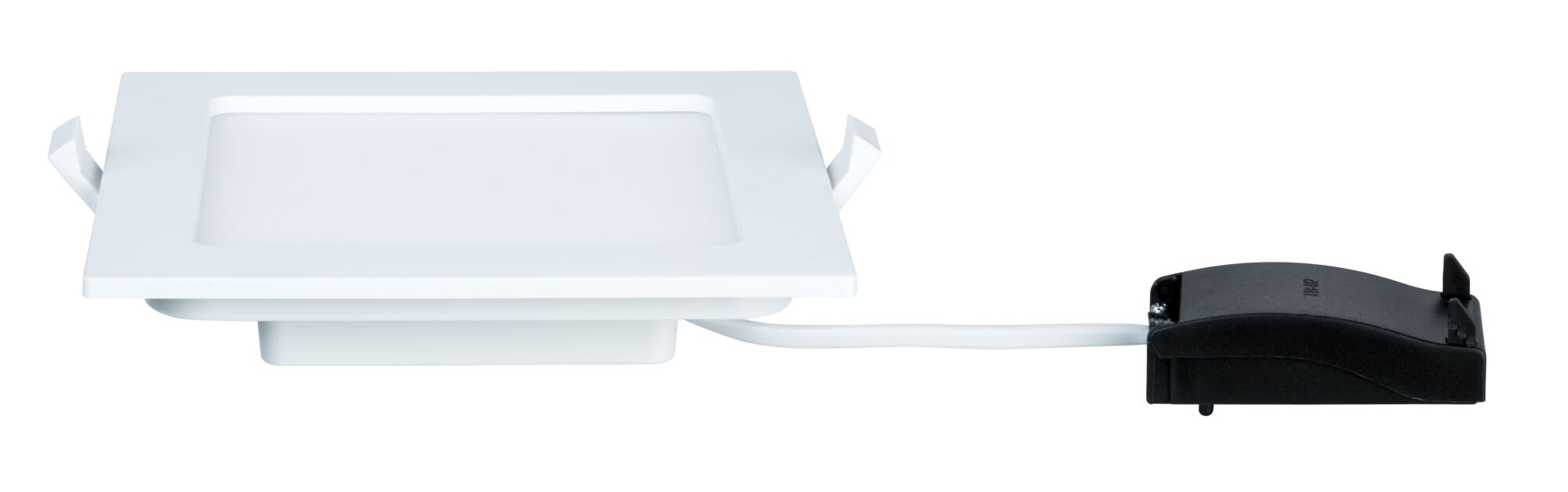

Incl. junction box with double quick clamp for feeding through wires

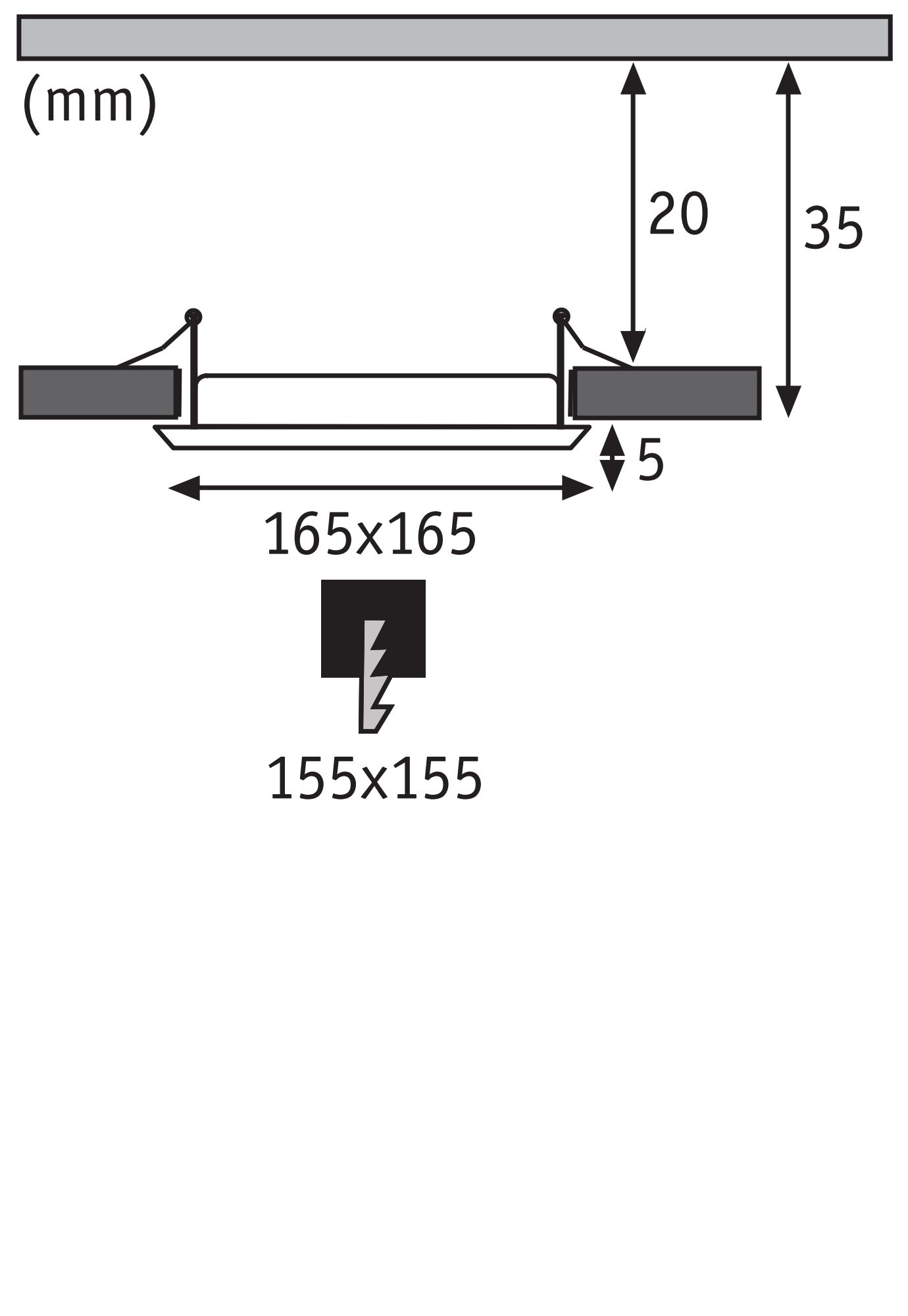

Dimension
mounting hole 2	155 mm
Total Mounting depth	35 mm
Dimensions (Height x Width x Depth)	H: 5 x B: 165 x T: 165 mm
Mounting hole	155 mm
Form	angular
Depth of hollow wall	20 mm, 20 mm

Design and Material
stainless	stainless
Colour	White
Material	Plastic

Installation
Installation site (recommendation)	Ceiling mounting

Energy consumption
Energy efficiency (A to G)	F

Service life
Lifetime	30000 h

Light Characteristics
Colour temp.	2700 K
color temp	2700 K
Farbtemperatur_Text	Warmweiß
Beam angle	110 °
Usable luminous flux	720 lm
Luminous flux LED module	1130 lm
Beam angle LED module	118 °
Rated luminous flux (Lumen)	780 lm

Lamp Features
Component parts	11,1 W
Technique	LED
Inclusive lamp	yes
Incandescent Equivalent	79 W
Adjustability	fixed
Dimmable	No
IP protection	IP44 ceiling mounting
Number of component parts	1x
protection class	protection class II
Replacable	3 Lightsource is not replaceable, the complete lighting must be replaced.\|6 Control gear is not replaceable, the complete lighting must be replaced.
Power consumption	13 W

Labelling
MM symbol	MM symbol
WEEE-Reg.-No	DE 39236390

Downloads

Manuals

Download Installation/Montage

Flyer and Safety instructions

Safety instructions Downlights
