Article-No.:
92065
LED Recessed panel
LED Recessed panel
IP44 angular 165x165mm 12W 850lm 4000K White
IP44 angular 165x165mm 12W 850lm 4000K White
£25.95*
Prices incl. Standard rate VAT
- Single luminaire incl. LED module
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Color temperatur: 4000K - Neutral white

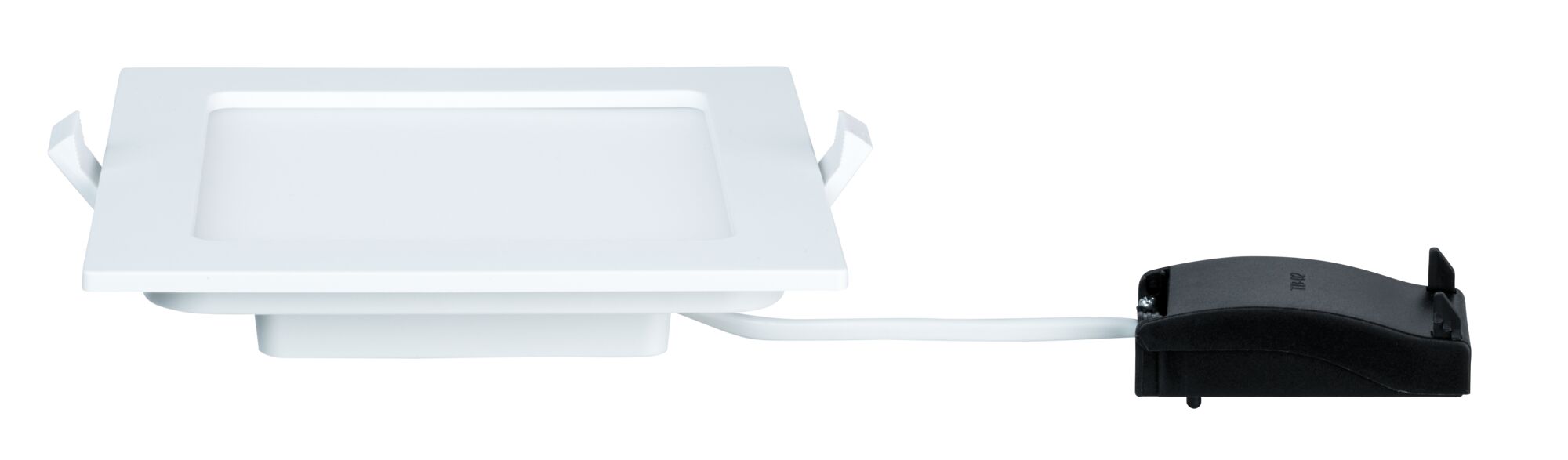

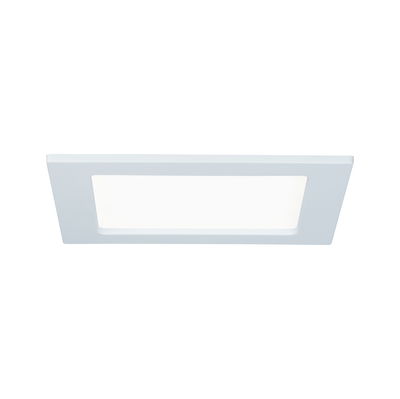

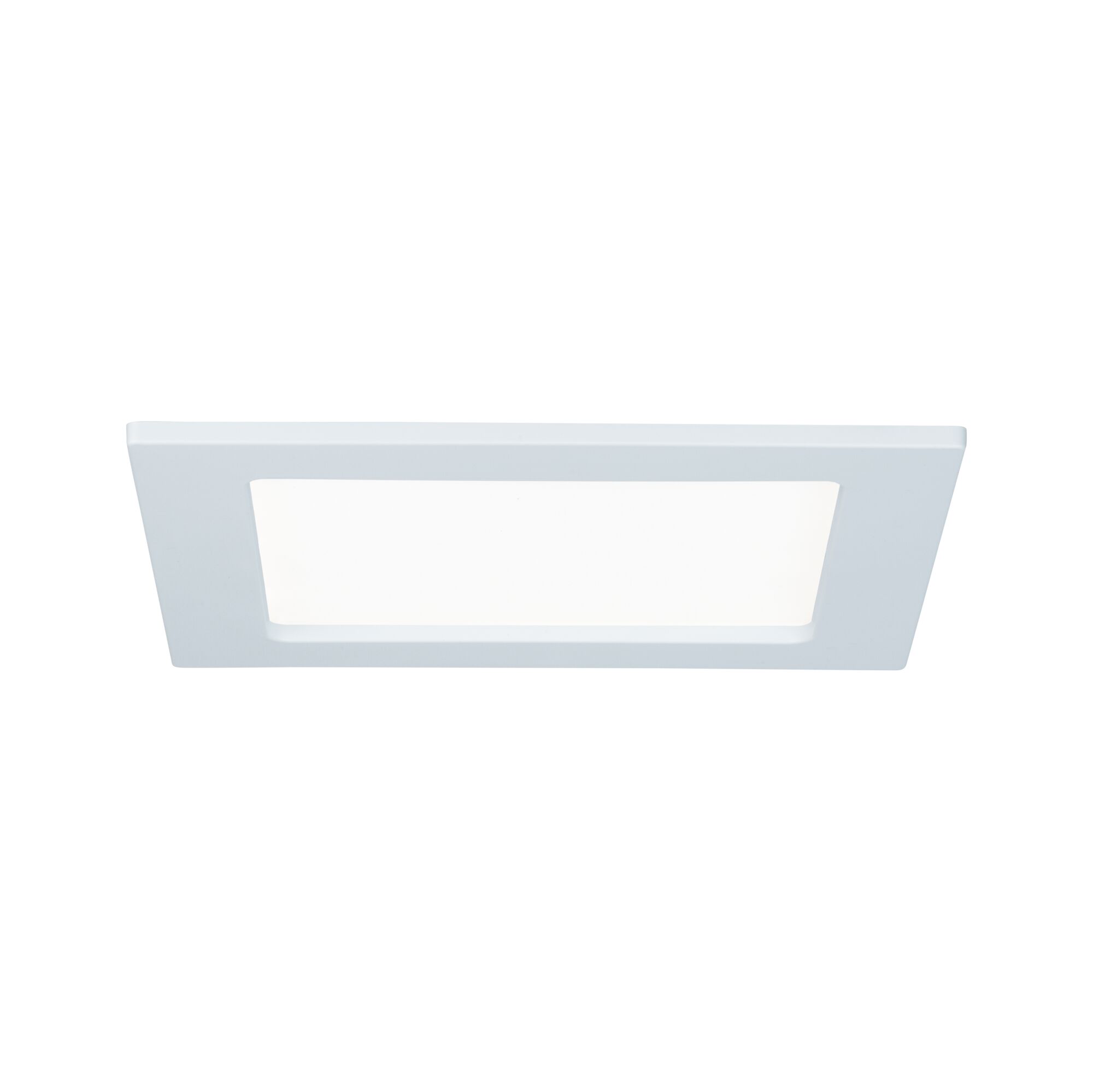

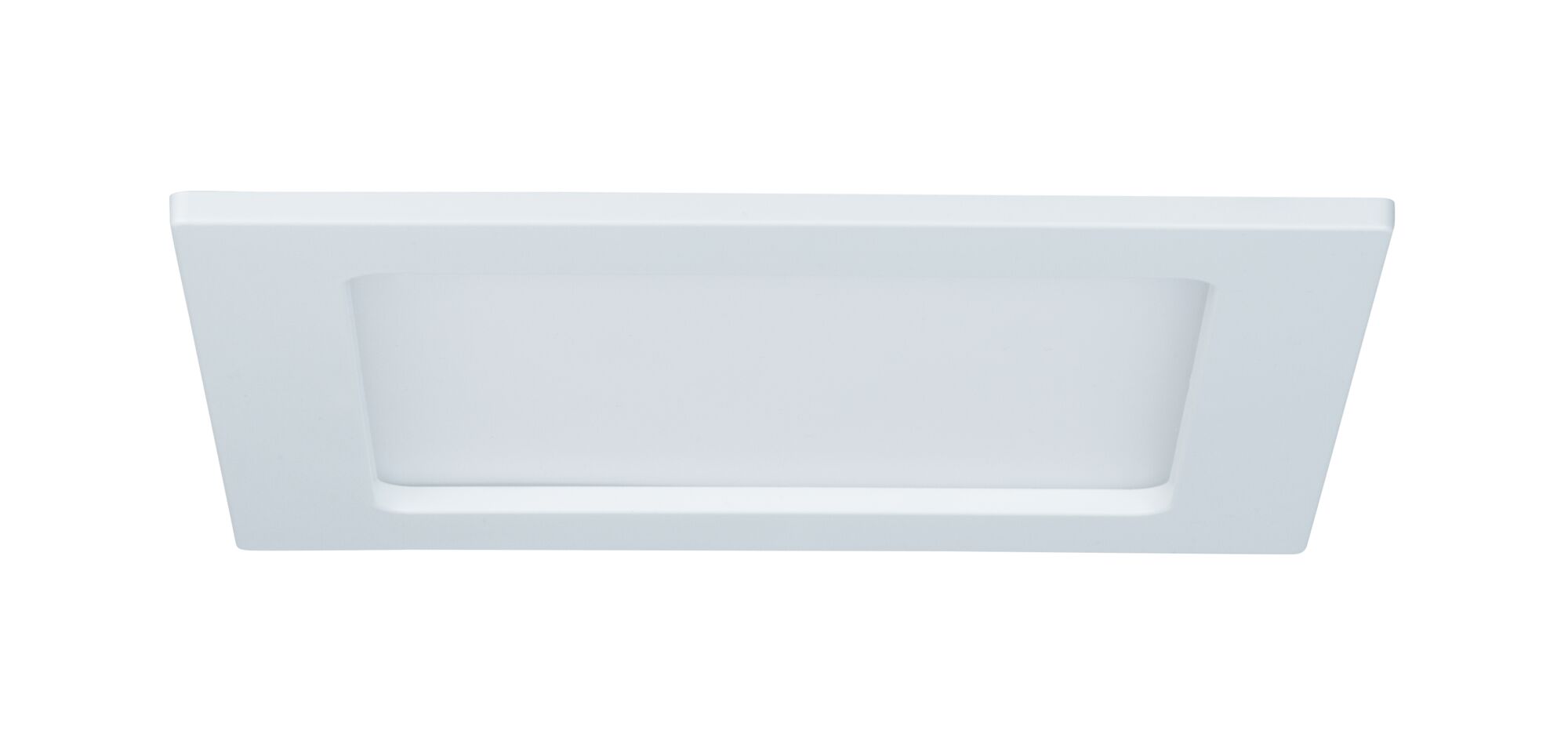

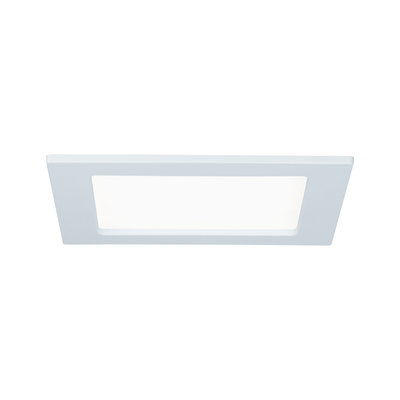

LED Recessed panel IP44 angular 165x165mm 12W 850lm 4000K White
LED panels with IP44 protection are protected in particular against splash water penetrating the luminaire and therefore ideal for installation in wet locations. In interior bathrooms they are a great substitute for windows – the bathroom is illuminated evenly, glare-free and brightly as though through a skylight. Thanks to their shallow installation depth recessed panels can be mounted into practically any suspended ceiling. In addition, through highly efficient LED technology, they also offer great potential for energy saving, in turn saving you money.
- Single luminaire incl. LED module
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Color temperatur: 4000K - Neutral white
- IP protection: IP44 splash-protected
- Incl. junction box with double quick clamp for feeding through wires

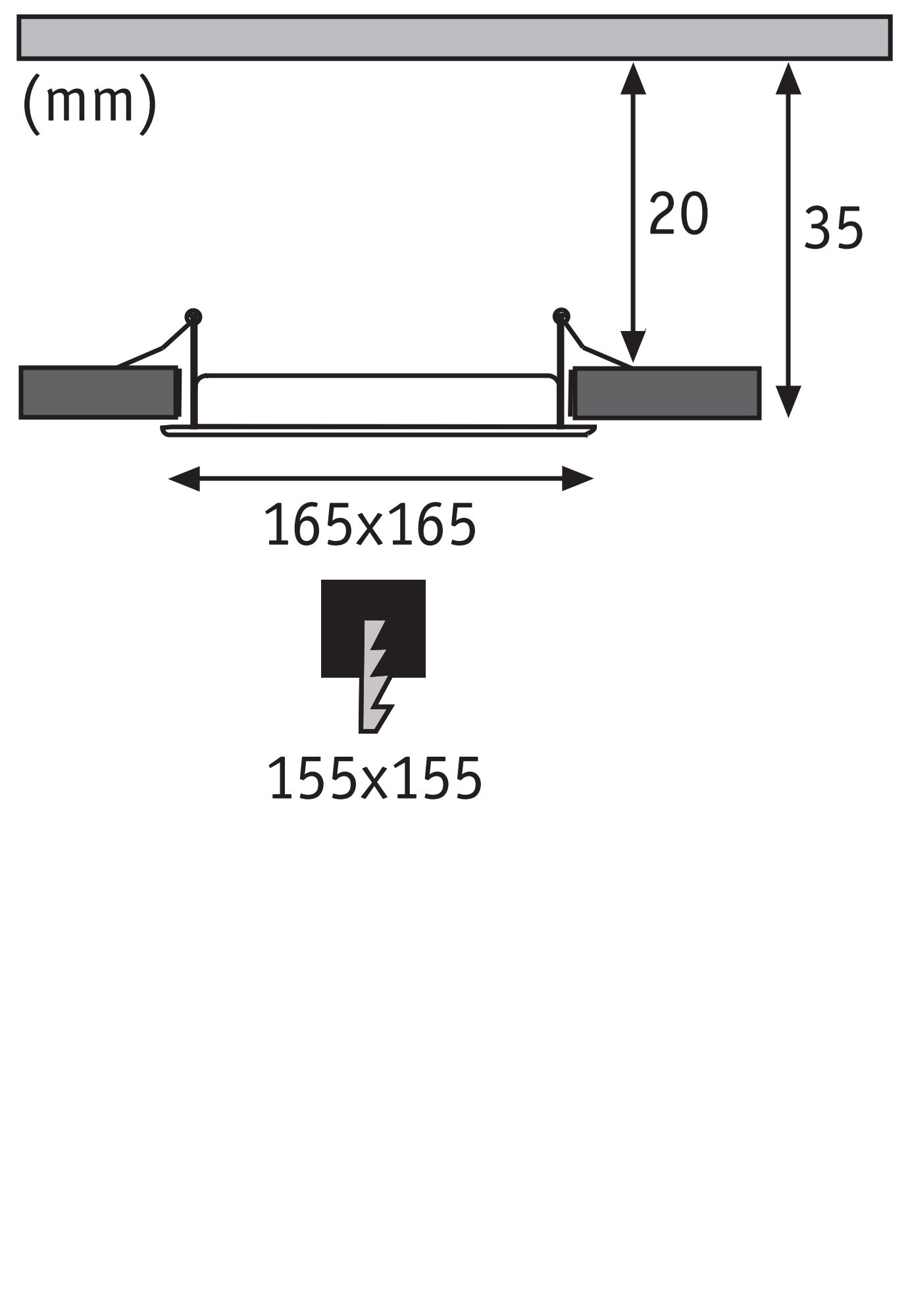

| Dimension | |
|---|---|
| mounting hole 2 | 155 mm |
| Total Mounting depth | 35 mm |
| Dimensions (Height x Width x Depth) | H: 5 x B: 165 x T: 165 mm |
| Mounting hole | 155 mm |
| Form | angular |
| Depth of hollow wall | 20 mm, 20 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 4000 K |
| Beam angle | 120 ° |
| Usable luminous flux | 850 lm |
| Luminous flux LED module | 1263 lm |
| color temp | 4000 K |
| Beam angle LED module | 118 ° |
| Rated luminous flux (Lumen) | 850 lm |
| Lamp Features | |
|---|---|
| Component parts | 12 W |
| Technique | LED |
| IP protection | IP44 ceiling mounting |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 86 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 12 W |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
