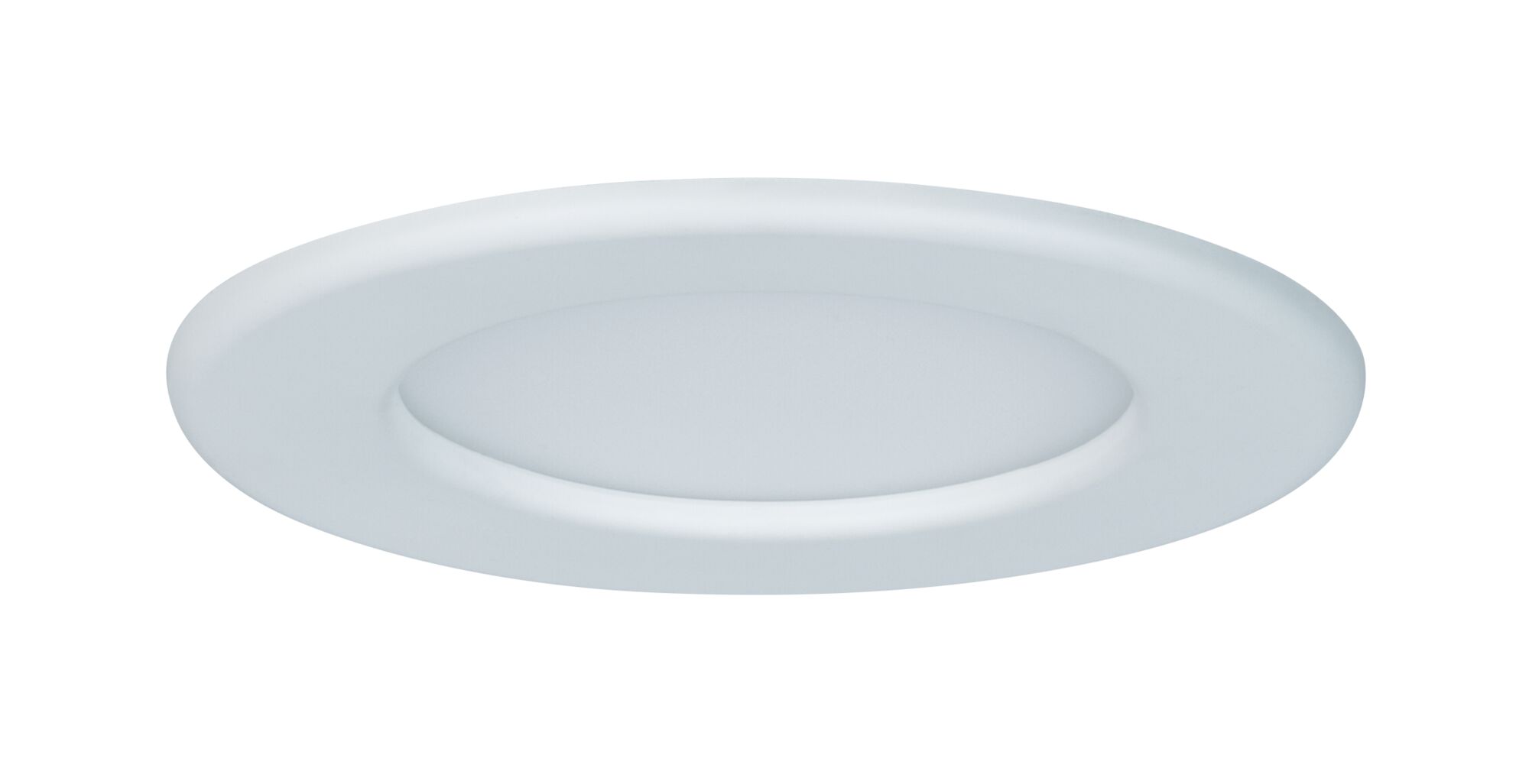

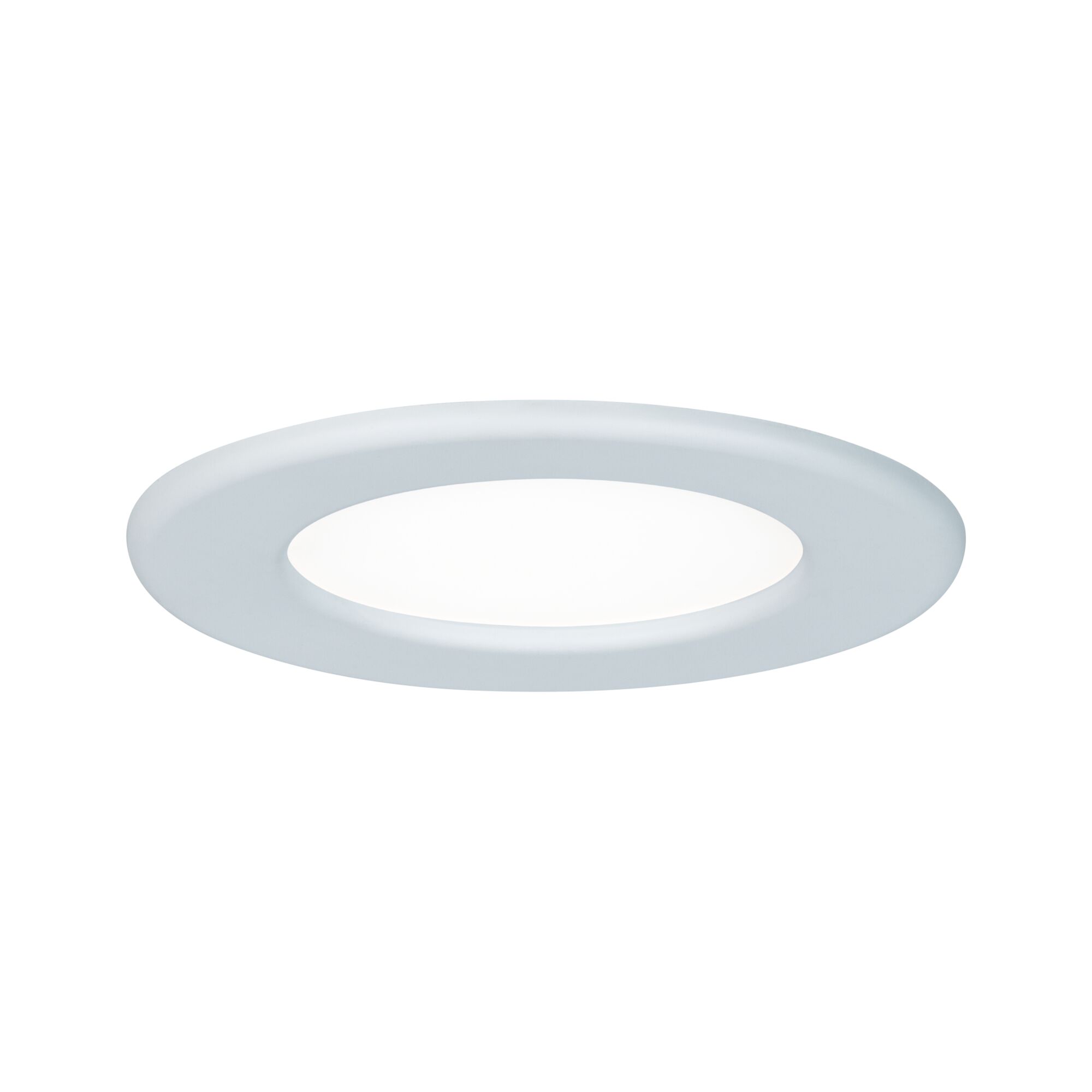

LED Recessed panel IP44 round 115mm 6W 390lm 4000K White

LED panels with IP44 protection are protected in particular against splash water penetrating the luminaire and therefore ideal for installation in wet locations. In interior bathrooms they are a great substitute for windows – the bathroom is illuminated evenly, glare-free and brightly as though through a skylight. Thanks to their shallow installation depth recessed panels can be mounted into practically any suspended ceiling. In addition, through highly efficient LED technology, they also offer great potential for energy saving, in turn saving you money.

Single luminaire incl. LED module
Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
Color temperatur: 4000K - Neutral white
IP protection: IP44 splash-protected

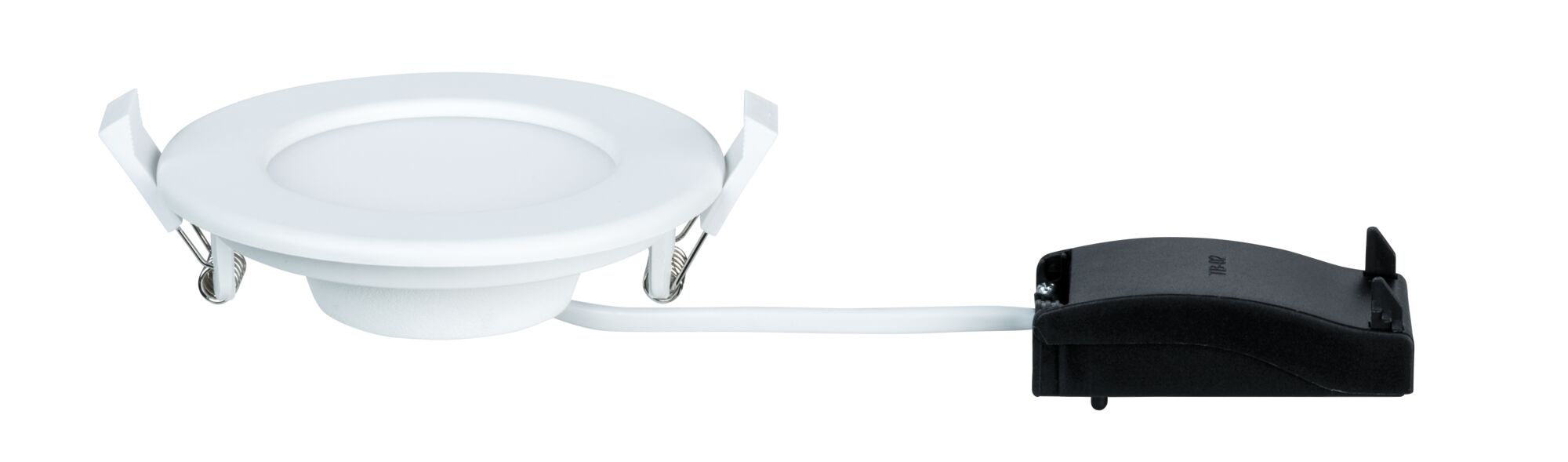

Incl. junction box with double quick clamp for feeding through wires

Dimension
Total Mounting depth	35 mm
Dimensions (Height x Width x Depth)	H: 5 mm
Ø	115 mm
Mounting hole	100 mm
Form	round
Depth of hollow wall	20 mm, 20 mm

Design and Material
stainless	stainless
Colour	White
Material	Plastic

Installation
Installation site (recommendation)	Ceiling mounting

Energy consumption
Energy efficiency (A to G)	E

Service life
Lifetime	30000 h
Rated life time	30000 h

Light Characteristics
Colour temp.	4000 K
Beam angle	110 °
Usable luminous flux	390 lm
Luminous flux LED module	671 lm
color temp	4000 K
Beam angle LED module	118 °
Rated luminous flux (Lumen)	390 lm

Lamp Features
Component parts	6 W
Technique	LED
IP protection	IP44 ceiling mounting
Dimmable	No
Inclusive lamp	yes
Incandescent Equivalent	51 W
Number of component parts	1x
protection class	protection class II
Replacable	3 Lightsource is not replaceable, the complete lighting must be replaced.\|6 Control gear is not replaceable, the complete lighting must be replaced.
Power consumption	6 W

Labelling
MM symbol	MM symbol
WEEE-Reg.-No	DE 39236390

LED Recessed panel LED Recessed panel

IP44 round 115mm 6W 390lm 4000K White
